Mazda MX-5 (2018 year). Manual - part 6

Driver's side auto-dimming door
mirror

*

The movement of the auto-dimming door
mirror is interlocked with the
auto-dimming rearview mirror in the
interior to automatically reduce glare from
rear on-coming vehicles.
Refer to Rearview Mirror on page 3-30.

NOTE
The passenger-side door mirror does not
have the auto-dimming feature.

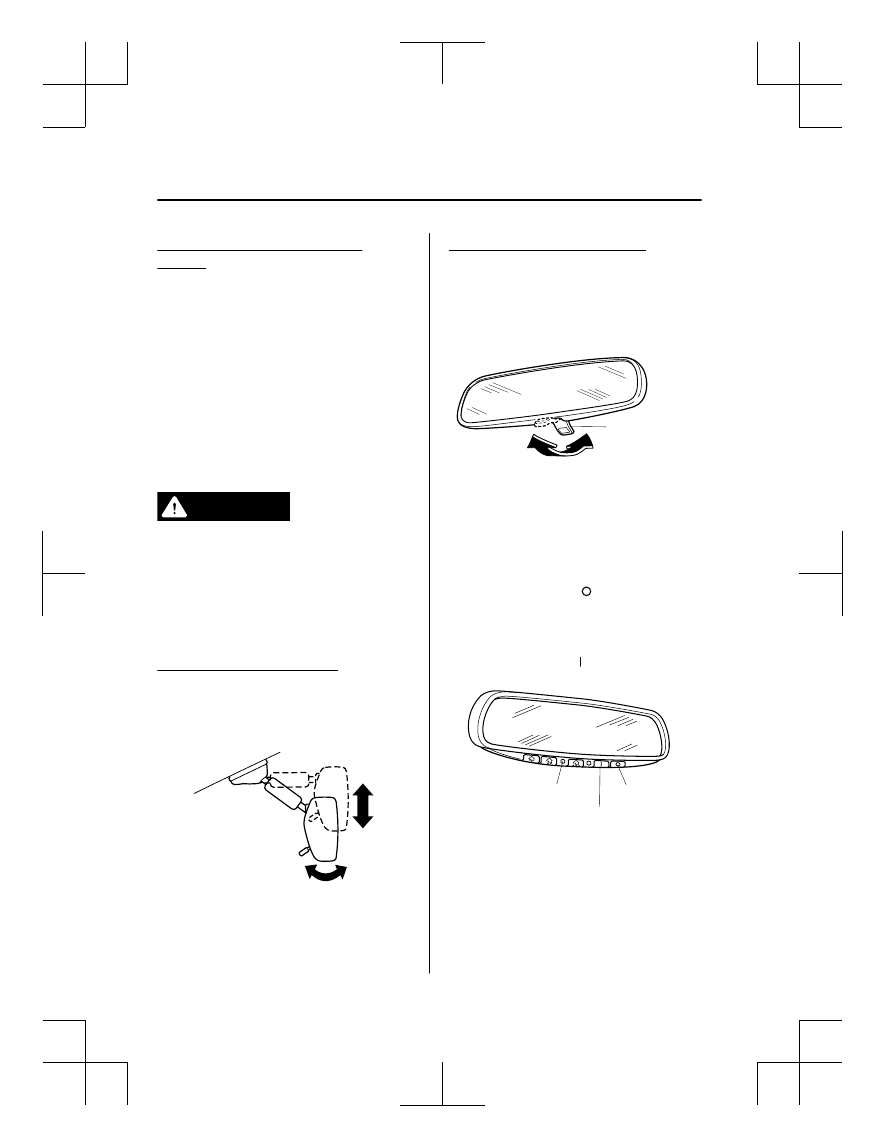

▼ Rearview Mirror

WARNING

Do not stack cargo or objects higher than
the seatbacks:
Cargo stacked higher than the seatbacks is
dangerous. It can block your view in the
rearview mirror, which might cause you to
hit another car when changing lanes.

Rearview mirror adjustment

Before driving, adjust the rearview mirror
to center on the scene through the rear
window.


NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.

Reducing glare from headlights

Manual day/night mirror

Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.


Day/Night lever

Day

Night

Auto-dimming mirror

The auto-dimming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.

Press the OFF button ( ) to cancel the
auto-dimming function. The indicator light
will turn off.
To reactivate the auto-dimming function,
press the ON button ( ). The indicator
light will illuminate.

Indicator light

OFF button

ON button



Before Driving

Mirrors

3-30

*Some models.

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

NOTE



Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity will
be affected and may not operate
normally.


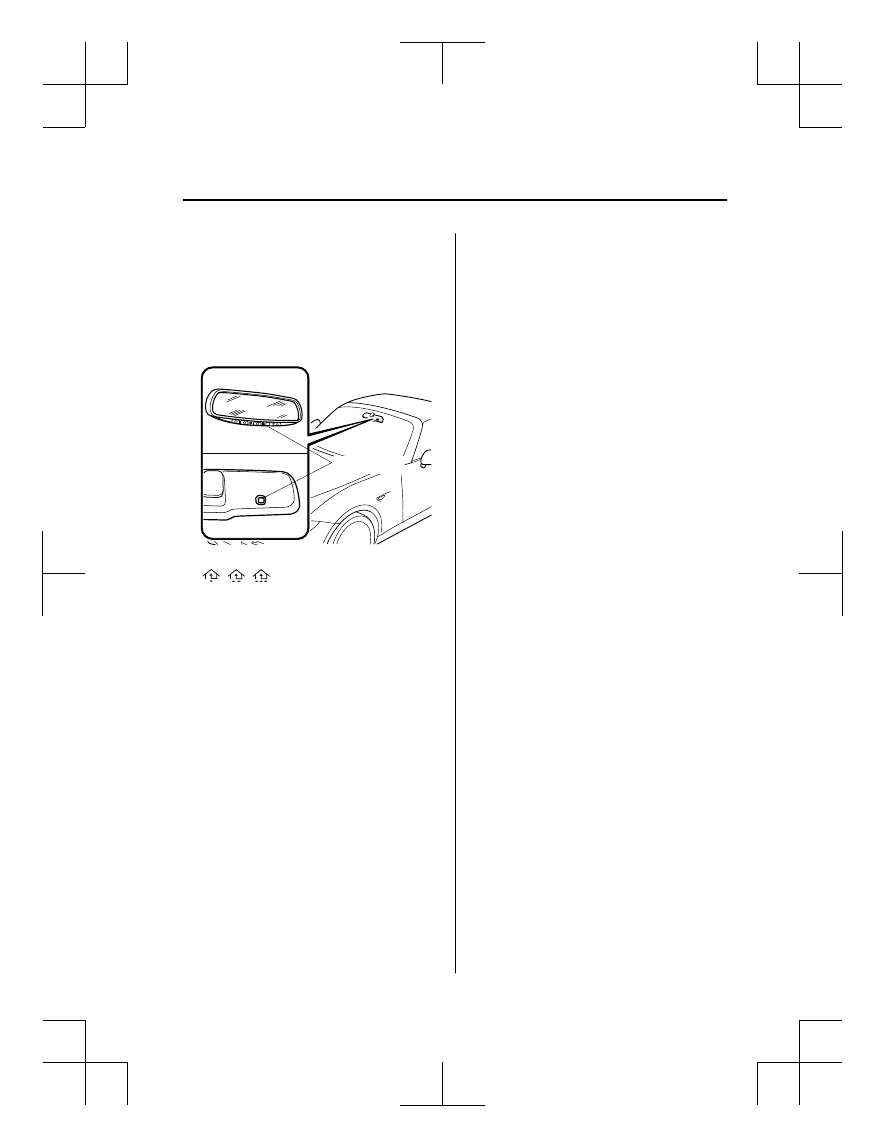

Light sensor



For information regarding the 3 buttons
(

,

,

) on the auto-dimming

mirror.
Refer to HomeLink Wireless Control
System on page 4-56.



The auto-dimming function is canceled
when the ignition is switched ON and
the shift/selector lever is in reverse (R).

Before Driving

Mirrors

3-31

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

Power Windows

The windows can be opened/closed by
operating the power window switches.

WARNING

Make sure the opening is clear before
closing a window:
Closing a power window is dangerous. A
person's hands, head, or even neck could
be caught by the window and result in
serious injury or even death. This warning
applies especially to children.

Never allow children to play with power
window switches:
Power window switches that are not locked
with the power window lock switch would
allow children to operate power windows
unintentionally, which could result in
serious injury if a child's hands, head or
neck becomes caught by the window.

Make sure nothing blocks the window just
before it reaches the fully closed position or
while fully holding up the power window
switch:
Blocking the power window just before it
reaches the fully closed position or while
fully holding up the power window switch
is dangerous.
In this case, the jam-safe function cannot
prevent the window from closing all the
way. If fingers are caught, serious injuries
could occur.

Before Driving

Windows

3-32

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

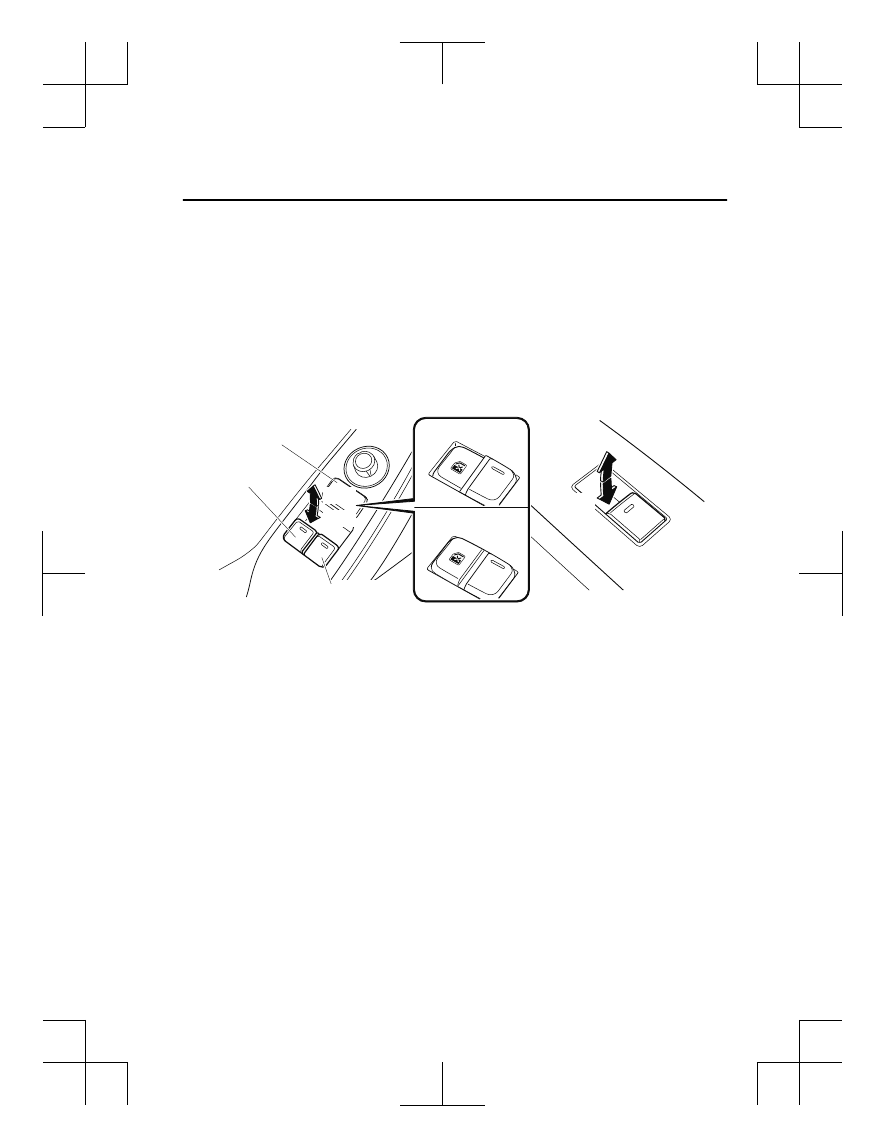

▼ Opening/Closing Windows

The window opens while the switch is pressed and it closes while the switch is pulled up
with the ignition switched ON. Do not open or close both windows at the same time.
The passenger window can be opened/closed when the power window lock switch on the
driver's door is in the unlock position. Keep this switch in the locked position while children
are in the vehicle.


Open

Close

Open

Driver's window

Power window
lock switch

Passenger's
window

Close

Unlocked position

Locked position

Master control switch

Passenger's window switch

NOTE



A power window may no longer open/close if you continue to press the switch after
opening/closing the power window. If the power window does not open/close, wait a
moment and then operate the switch again.



The passenger windows may be opened or closed using the master control switches on the
driver's door.



The power window can be operated for about 40 seconds after the ignition is switched
from ON to ACC or off with all doors closed. If any door is opened, the power window
will stop operating.
For engine-off operation of the power window, the switch must be held up firmly
throughout window closure because the auto-closing function will be inoperable.



When the power window lock switch is in the locked position, the light on the passenger
power window switch turns off. The light may be difficult to see depending on the
surrounding brightness.

Before Driving

Windows

3-33

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

▼ Auto-opening

To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.

To stop the window partway, pull up the
switch and then release it.

NOTE



The power window cannot be fully
closed while the door is open.



Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other
reasons (such as a switch continues to
be operated after the window is open/
closed), the window will not fully open
automatically.
The power window auto function will
only resume on the power window that
has been reset.
1. Close the doors and the convertible

top/roof.

2. Switch the ignition ON.
3. Make sure that the power window

lock switch located on the driver's
door is not depressed.

4. Press the switch and fully open the

window.

5. Pull up the switch to fully close the

window and continue holding the
switch for about 2 seconds after the
window fully closed.

6. Make sure that the power windows

operate correctly using the door
switches.

After the system has been re-initialized,
passenger window can be fully opened
automatically using the master control
switches.

If the automatic power window
operation does not operate normally
while the doors or convertible top/
retractable hardtop are opened/closed,
reset it using the previous procedures.

Before Driving

Windows

3-34

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

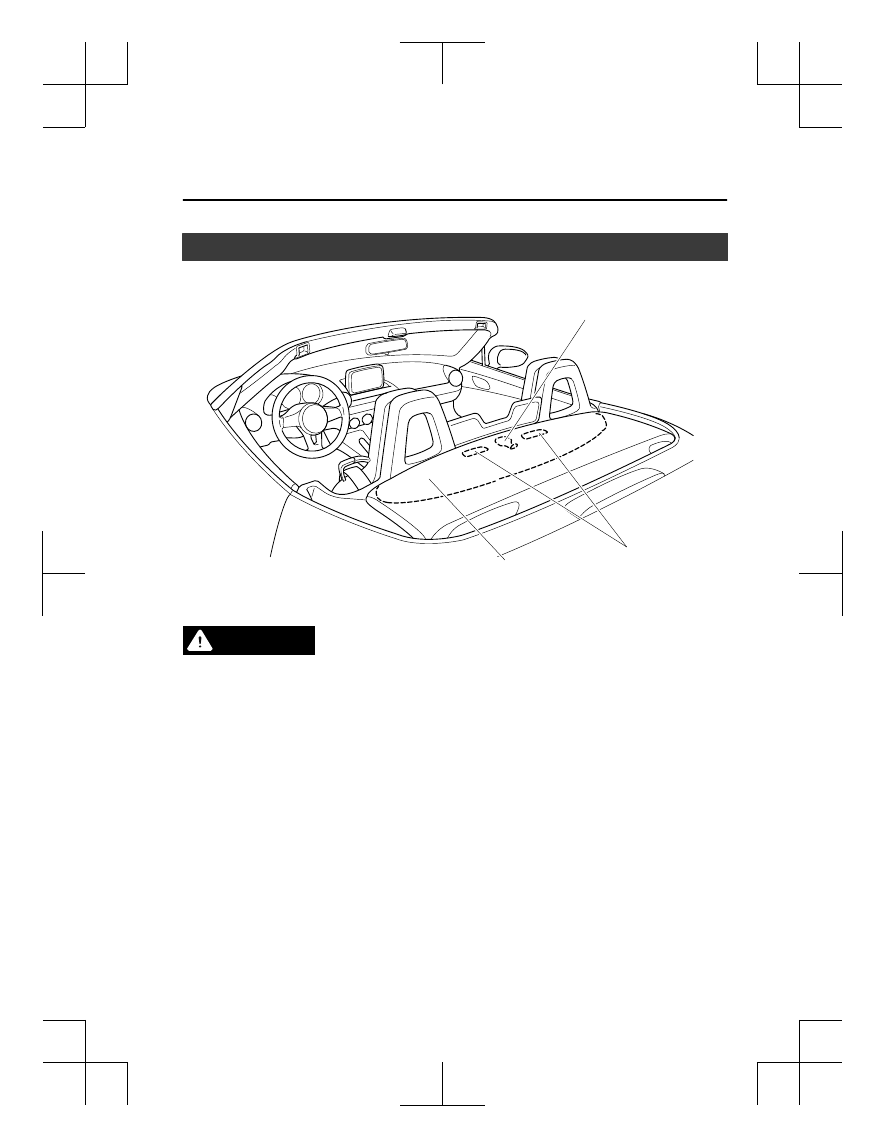

Convertible Top (Soft Top)

When opening/closing the convertible top, park the vehicle in a safe place where it does not
obstruct traffic.

Top latch assembly

Convertible top's handles

Convertible top

▼ Convertible Top Precautions

WARNING

Sit in the seat with the seat belt correctly fastened when the vehicle is moving:
Standing in the vehicle, or sitting on the convertible top storage area or center console when
the vehicle is moving is a dangerous way to ride. During a sudden maneuver or collision you
could be seriously injured or even killed.

Always keep your hands and fingers away from the fastening mechanisms when moving the
convertible top:
It is dangerous to place your hands or fingers near the fastening mechanisms. Your hands or
fingers could be caught and injured by the mechanism.

Before Driving

Convertible Top (Soft Top)

3-35

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

CAUTION

Remove leaves or other matter that may accumulate on and around the convertible top. If

leaves or other matter block the drain filter, water may enter the vehicle. Clean the drain
filter at least once a year.
Refer to Convertible Top Maintenance on page 6-59.

Before opening the convertible top, make sure the rear window defogger switch is turned

off. Otherwise the heat generated from the defogger could damage the convertible top and
the internal material.

Before lowering or raising the convertible top, stop in a safe place off the right-of-way and

park on a level surface.

Make sure nothing is on the convertible top or near the back window when raising or

lowering the convertible top.
Even small objects may interfere and cause damage.

Do not drive through an automatic car wash; it may damage the convertible top.
Do not raise or lower the convertible top when the temperature is below 5 °C (41 °F) ; this

will damage the convertible top material.

Do not lower the convertible top when it's wet. If the convertible top dries while folded, it

will deteriorate and mold.

Lowering the convertible top while it's wet can also cause water to drip into the passenger

compartment.

Do not raise or lower the convertible top in a strong wind as it could damage the

convertible top or cause an unexpected accident.

NOTE



The power windows go down automatically in conjunction with the convertible top
opening/closing. However, this is a function for improving the operability, and it does not
mean there is a problem. If the vehicle battery is disconnected for vehicle maintenance or
other reasons, the power windows will not go down automatically. If the power windows
do not go down, the automatic open/close mechanism for the windows must be reset.
Refer to Auto-opening on page 3-34.



When lowering the convertible top, make sure objects inside the vehicle are not blown
away by the wind.



Secure all loose objects inside before driving with the convertible top down.



To help prevent burglary or vandalism and to ensure that the passenger compartment
stays dry, close the convertible top and both windows securely and lock both doors when
leaving the vehicle.



The soft top is made of high quality material and if it is not maintained correctly, the
material could harden, becomes stained, or have an uneven gloss.

Before Driving

Convertible Top (Soft Top)

3-36

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

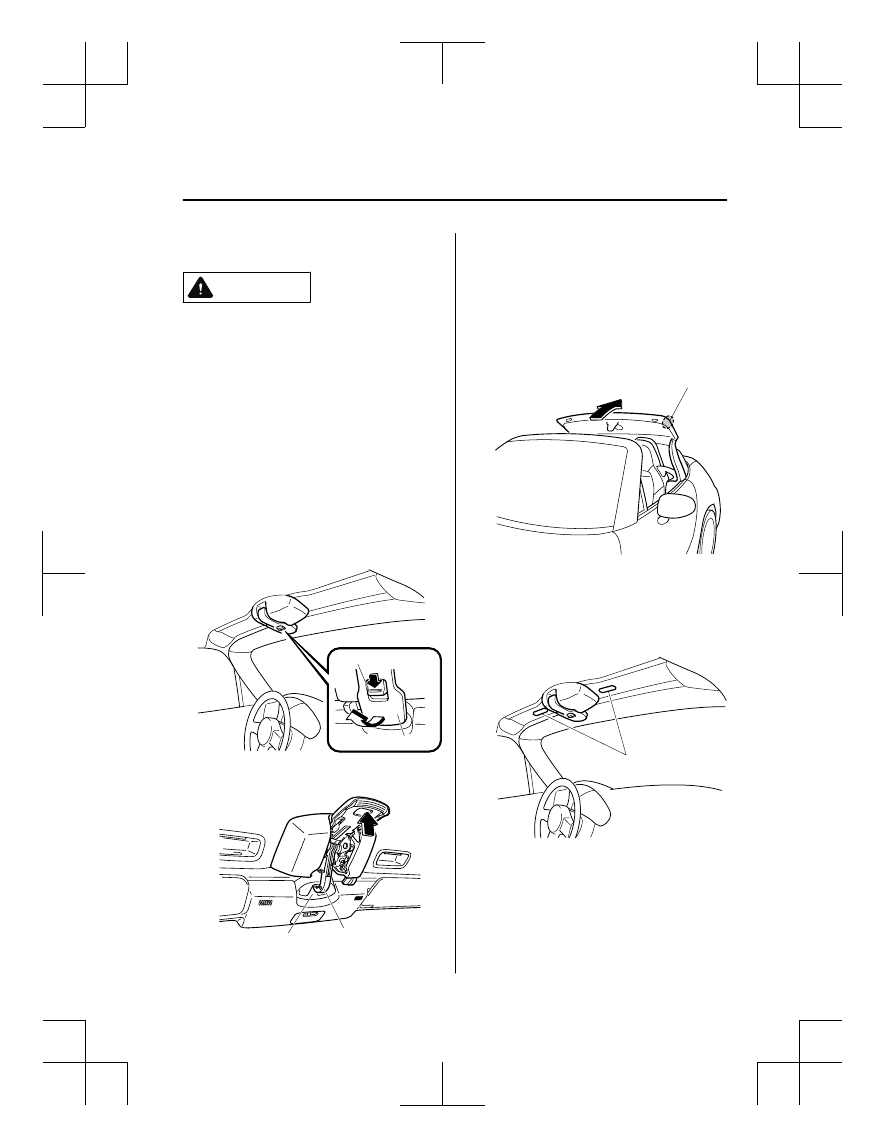

▼ Lowering the Convertible Top

CAUTION

Do not sit on the folded convertible top.
Otherwise, the convertible top could be
damaged or you may fall off and be
injured.

1. Make sure the parking brake is

applied.

2. If the engine is running, turn it off.
3. Make sure there are no objects which

have been placed in the area where the
convertible top is to be retracted.

4. With the lock release button depressed

forward, pull back the top latch lever
to unlock it.


Top latch

Lock release button

5. Remove the striker from the anchor.



Anchor

Striker

NOTE
If the power windows do not go down
automatically, fully open the windows
or open the doors.

6. Standing outside of the vehicle, hold

the convertible top along the front edge
and pull it toward the vehicle rear.


Front edge

NOTE
To lower the convertible top from
inside the vehicle, use the convertible
top's handles.


Convertible top's handles

Before Driving

Convertible Top (Soft Top)

3-37

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

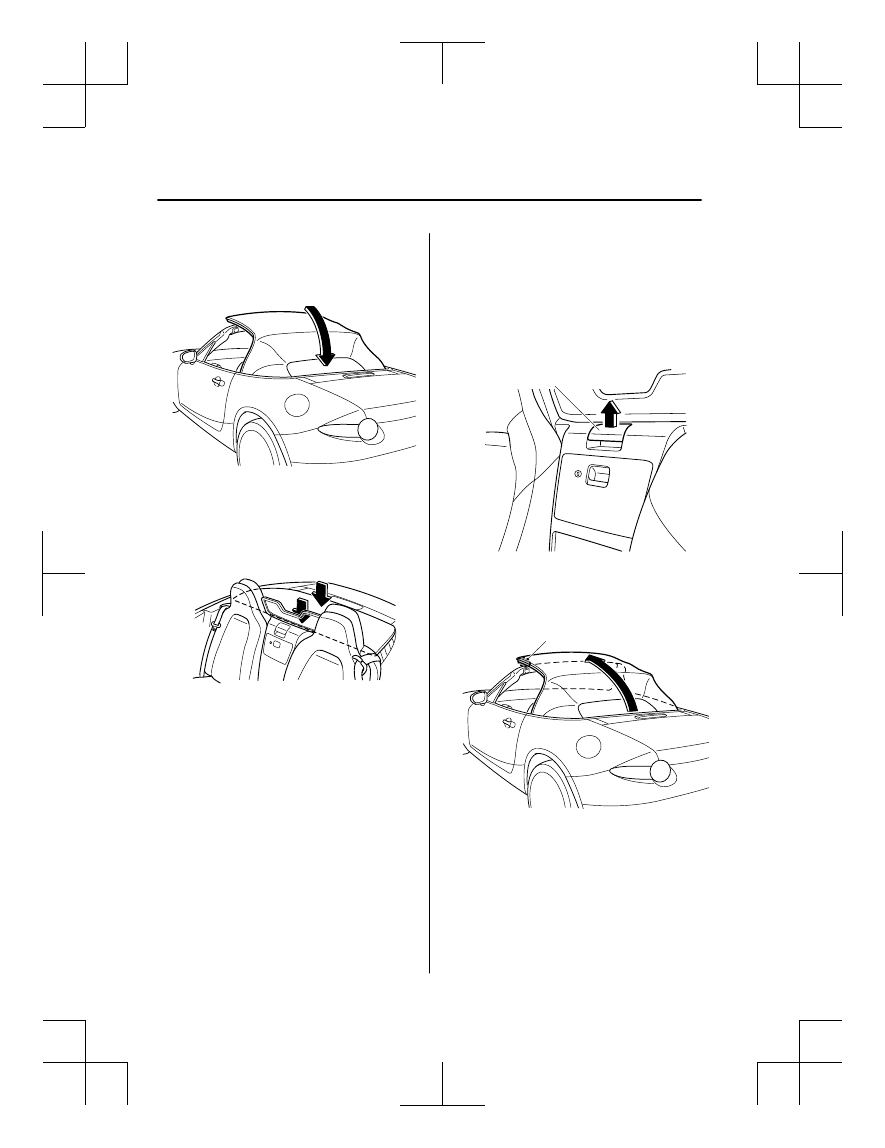

7. Move the convertible top rearward and

fold it while pressing the rear glass
lightly with your hand.


8. With the back end of the convertible

top pressed, press the front end until a
latch sound is heard.
Lightly rock the retracted convertible
top to make sure it is securely locked.


▼ Raising the Convertible Top

1. Make sure the parking brake is

applied.

2. If the engine is running, turn it off.
3. Pull up the unlock lever to disengage

the lock.


Unlock Lever

4. Standing outside of the vehicle, hold

the convertible top along the front edge
and pull it towards the vehicle front.


Front edge

NOTE



If the power windows do not go
down automatically, fully open the
windows or open the doors.

Before Driving

Convertible Top (Soft Top)

3-38

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27



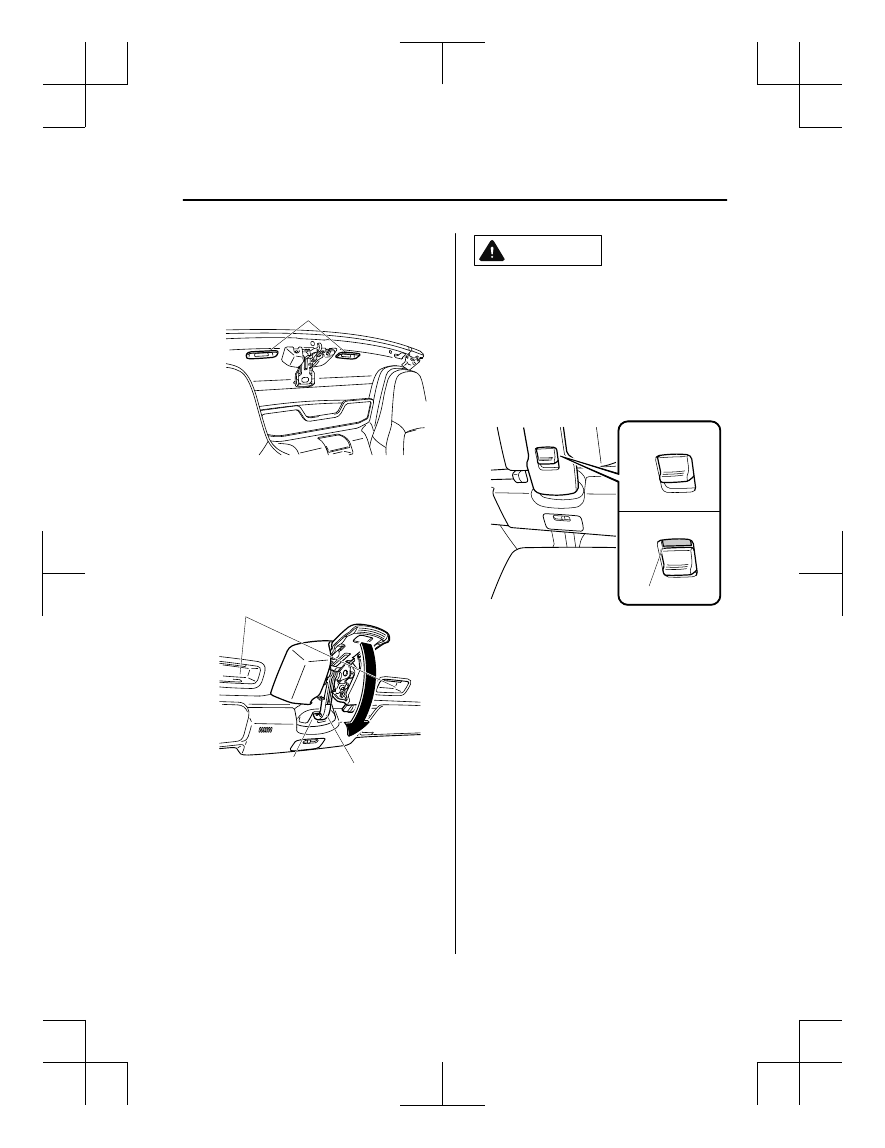

To raise the convertible top from
inside the vehicle, use the
convertible top's handles.


Convertible top's handles

5. Sitting in a seat, grasp the convertible

top's handles, and press the convertible
top against the windshield.
Make sure the striker engages with the
anchor, move the top latch slowly, and
then push the top latch upward until a
latch sound is heard.


Convertible top's handles

Striker

Anchor

CAUTION

Driving with the convertible top not fully

locked could damage the convertible
top.
If the red indicator is visible on the lock
release button, the convertible top is not
locked. After locking the convertible top,
verify that the red indicator is not visible.


Locked position

Unlocked position

Red indicator

Do not spray water directly near the

seam of the window and convertible top
when flushing away dirt on the soft top
with water. Otherwise, water may enter
the vehicle.
Refer to Convertible Top Maintenance on
page 6-59.

NOTE



The convertible top may be constricted
if it is left retracted for a long period.
Therefore, if the top has become
constricted, it may be difficult to hook
the top latch striker to the anchor.



Make sure the convertible top is
securely locked by pushing up on it. If it
still sounds loose (rattles) after being
locked by the top latch, have it inspected
at an Authorized Mazda Dealer.

Before Driving

Convertible Top (Soft Top)

3-39

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

Convertible Top (Hardtop)

The retractable hardtop opens/closes electrically by operating switches in the vehicle. When
opening/closing the roof and window glass operate together. The front roof is stored in the
storage area under rear roof.
To help prevent burglary or vandalism and to ensure that the passenger compartment stays
dry, close the roof and both windows securely and lock both doors when leaving the vehicle.

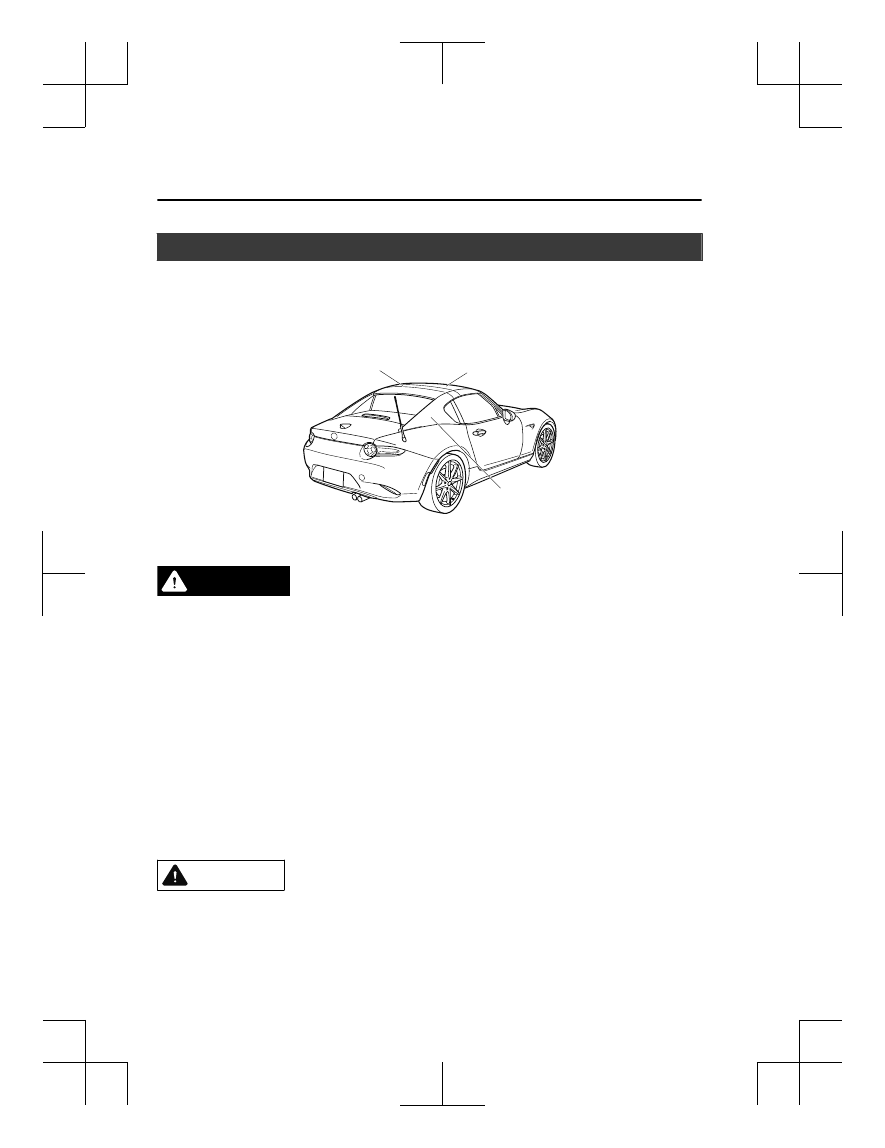

Front roof

Rear roof

Middle roof

▼ Convertible Top Precautions

WARNING

Always confirm that there are no people around the vehicle before operating the roof:
If the roof were to operate unexpectedly, it could result in an accident and serious injury from
someone getting caught in the mechanism.

Sit in the seat with the seat belt correctly fastened when the vehicle is moving:
Standing in the vehicle, or sitting on the rear roof or center console when the vehicle is
moving is a dangerous way to ride. During a sudden maneuver or collision you could be
seriously injured or even killed.

Always keep your hands and fingers away from the fastening mechanisms when moving the
roof:
It is dangerous to place your hands or fingers near the fastening mechanisms. Your hands or
fingers could be caught and injured by the mechanism.

CAUTION

When getting in or out of the vehicle with the roof open, be careful not to hit your head or

body on the corner of the windshield glass. It may cause an injury.

Do not drive with the roof partially opened; this could damage the roof or cause an

unexpected accident.

Before Driving

Convertible Top (Hardtop)

3-40

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

Children should not be allowed to play with the retractable hardtop switch.
Do not place objects or cargo around the rear roof, rear glass, or the front roof storage area.

Even small objects may interfere and cause damage.

Remove leaves that accumulate on and around the roof. If the leaves are not removed, they

may block the water drainage outlets.

Before opening the roof, make sure the rear window defogger switch (Defroster) is turned

off. Otherwise the heat generated from the defogger could damage the roof and the
internal material.

When opening/closing the roof, verify that there is no obstruction above the roof (about 1.6

m (5 ft 2 in) from the ground) so as not to damage the roof or the obstruction.

When opening/closing the roof, do not apply any load to the front roof or the rear roof. The

opening/closing mechanism of the roof may be damaged.

Do not spray water directly near the seam of the window and roof when washing off dirt on

the roof with water. Otherwise, water may enter the cabin.
Refer to Convertible Top (Retractable Hardtop) Maintenance on page 6-61.

Open/close the roof with the vehicle parked on a hard, level ground in a safe place where

the vehicle does not obstruct traffic. If the roof is opened/closed on a slope or bump, the
opening/closing mechanism of the roof may be damaged.

Do not drive through an automatic car wash as it may damage the roof.
Do not open or close the roof forcefully when the ambient temperature is low and the roof

or the surrounding area is frozen as it could damage the roof.

Opening the roof while it is wet can also cause water to drip into the passenger

compartment.

Do not open or close the roof in a strong wind as it could damage the roof.

Before Driving

Convertible Top (Hardtop)

3-41

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

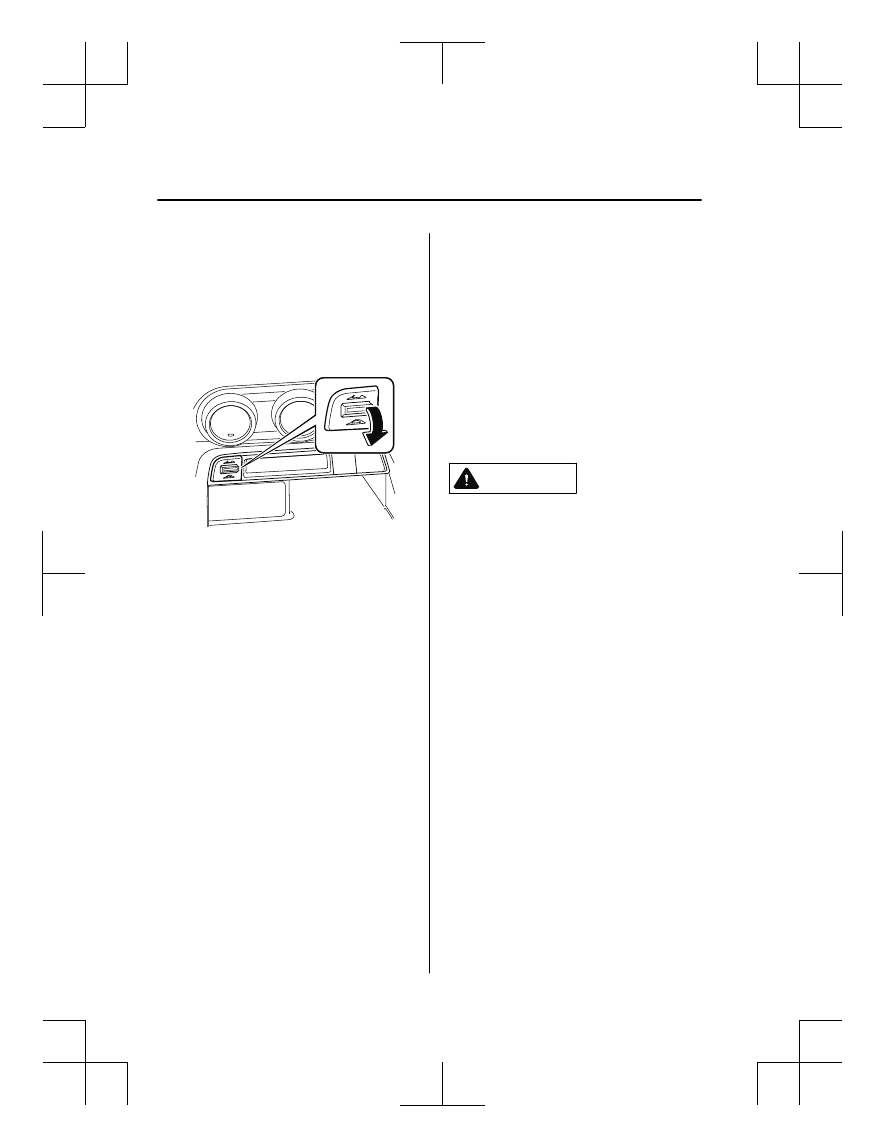

▼ Operation Indication

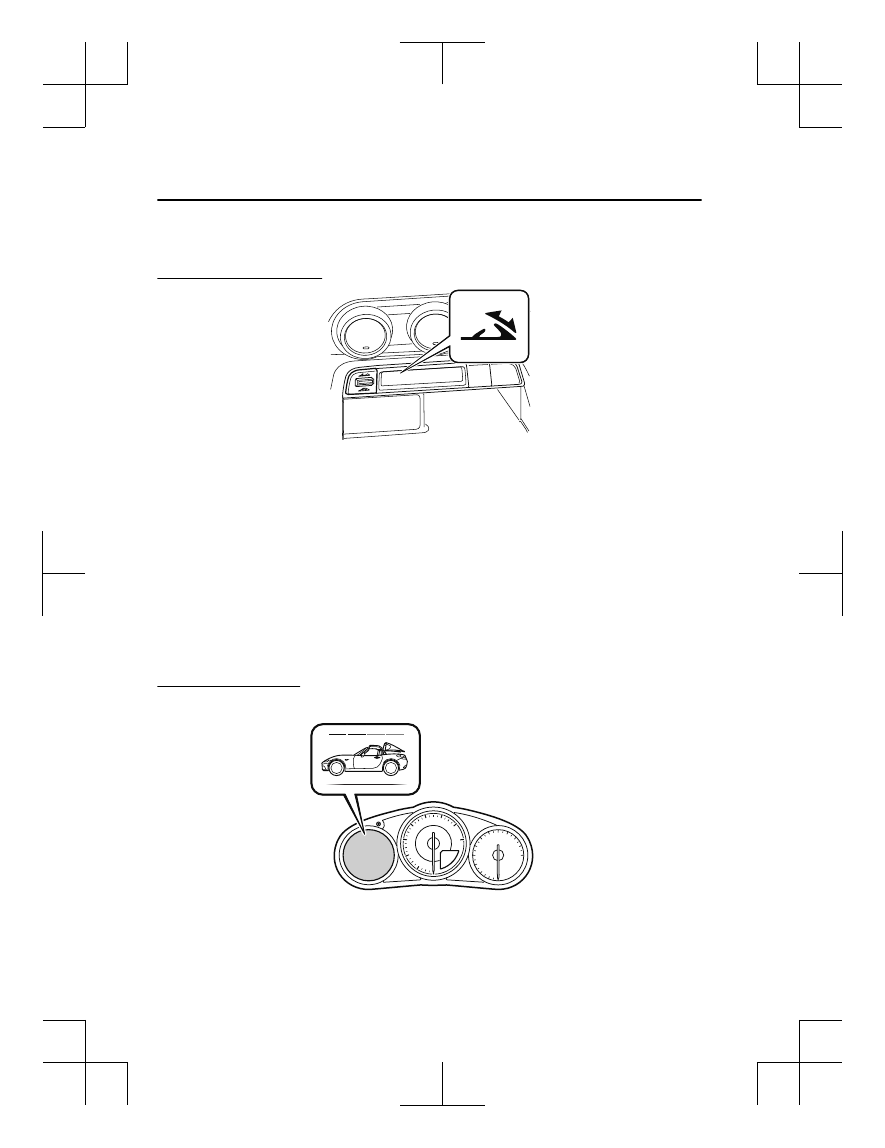

Operation Indicator Light

When illuminated

This indicates that the roof is only partially open.

When flashing

This indicates that the roof is being open/closed. (During switch operation)

When not illuminated

This indicates that the roof is open/closed fully.

NOTE
If the operation indicator light flashes quickly, there may be a system malfunction. Consult
an Authorized Mazda Dealer.

Roof operation display

The roof operation status is indicated on the multi-information display.

Before Driving

Convertible Top (Hardtop)

3-42

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

▼ Opening the Roof

When opening the roof, make sure objects
inside the vehicle are not blown away by
the wind. Secure all loose objects inside
before driving with the roof down.
1. Park the vehicle on level ground in a

safe place where the vehicle does not
obstruct traffic.



Shift the shift lever to neutral on a
manual transmission vehicle.



Shift the selector lever to P on an
automatic transmission vehicle.



Apply the parking brake.

2. Make sure that the trunk is closed.
3. Start the engine to prevent the battery

from going dead.

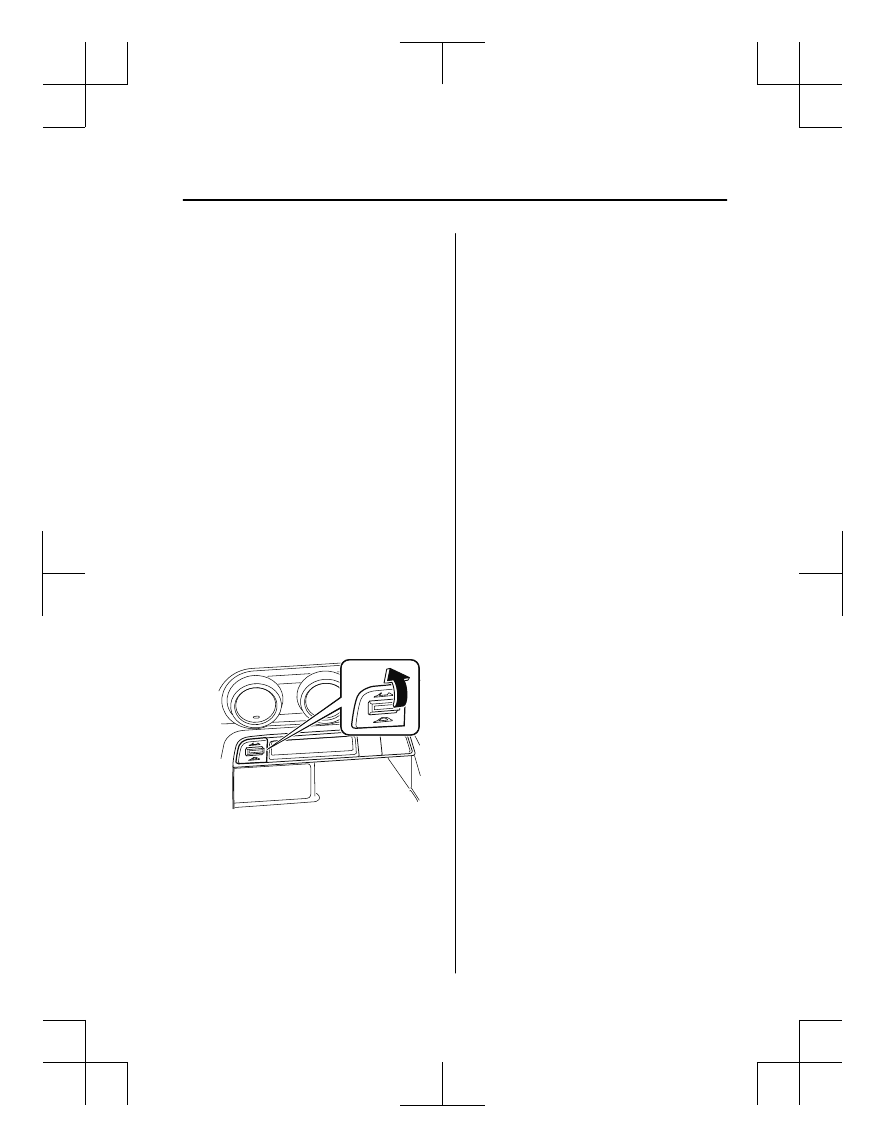

4. Continue pressing the retractable

hardtop switch in the open direction
until the roof opening operation is
completed. When the opening
operation is completed, a beep sound is
activated and the operation indicator
light turns off.

NOTE



If the retractable hardtop switch is
pressed in the open direction, a
warning beep sounds.



When pressing the retractable
hardtop switch while the windows
are closed, the windows open
slightly. If the switch is continuously
pressed in the open direction until
the roof opening operation is
completed, the windows return to
their original positions. However,
the windows may not return to their
original positions depending on the
conditions.



The roof keeps opening and the
operation indicator light flashes
while the retractable hardtop switch
is pressed in the open direction.



If the switch is released while the
roof is opening, the roof stops
opening. If the switch is pressed in
the open direction again, the roof
resumes opening.



When the roof is half-open, the front
roof resumes opening after the rear
roof is completely open.

▼ Closing the Roof

1. Park the vehicle on level ground in a

safe place where the vehicle does not
obstruct traffic.



Shift the shift lever to neutral on a
manual vehicle.



Shift the selector lever to P on an
automatic vehicle.



Apply the parking brake.

2. Make sure that the trunk is closed.
3. Slightly slide the seats back if they are

in the foremost position.

4. Start the engine to prevent the battery

from going dead.

Before Driving

Convertible Top (Hardtop)

3-43

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

5. Continue pressing the retractable

hardtop switch in the close direction
until the roof closing operation is
completed. When the closing operation
is completed, a beep sound is activated
and the operation indicator light turns
off.


6. Close the windows using the power

window switch.

NOTE



If the retractable hardtop switch is
pressed in the close direction, a warning
beep sounds.



When pressing the retractable hardtop
switch while the windows are closed, the
windows open slightly. The windows do
not return to their original positions
even after the roof closing operation is
completed.



The roof keeps closing and the operation
indicator light flashes while the
retractable hardtop switch is pressed in
the close direction.



If the switch is released while the roof is
closing, the roof stops closing. If the
switch is pressed in the close direction
again, the roof resumes closing.

▼ Operation Conditions

If the following conditions have been
satisfied, the roof can be opened/closed.



The ignition is switched ON.



Shift/selector lever is in a position other
than R (reverse).



Vehicle speed is 10 km/h (6.2 mph) or
less.



The trunk lid is closed.



The vehicle is tilted at an angle of 15
degrees or less.

CAUTION

If the vehicle speed exceeds 10 km/h (6.2
mph) during the opening/closing
operation, the opening/closing operation
of the roof stops midstream. If the roof
stops midstream, visibility at the rear may
be impaired or damage to the roof may
occur which could lead to an accident.
Operate the switch again with the vehicle
stopped, depending on the road and traffic
conditions, to complete opening/closing
operation of the roof.

NOTE



For the purposes of safety when
opening/closing the roof, follow the
instructions for Opening the Roof and
Closing the Roof.



If the roof cannot be closed even after
the operation conditions are all met,
have it checked at an Authorized Mazda
Dealer.
The roof can be closed manually as an
emergency measure.
Refer to When the Roof Cannot be
Closed on page 7-58.

Before Driving

Convertible Top (Hardtop)

3-44

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

▼ Power Window Interlocking

Operation

When opening/closing the roof, the power
windows lower automatically for
improved operability.

NOTE
If the vehicle battery is disconnected for
vehicle maintenance or other reasons, the
power windows will not lower
automatically. If the power windows do
not lower, reset the power window
automatic open/close function.
Refer to Auto-opening on page 3-34.

Before Driving

Convertible Top (Hardtop)

3-45

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27
