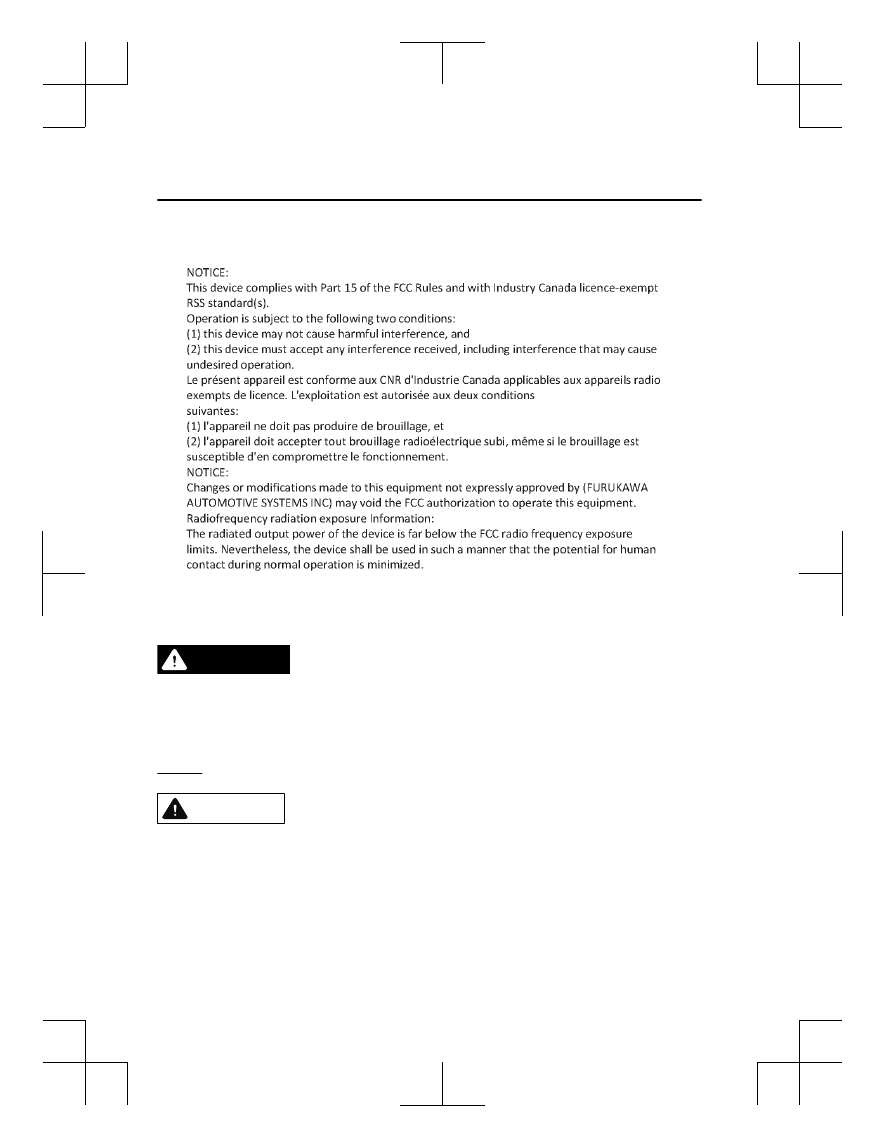

▼ Blind Spot Monitoring (BSM)

NOTE
During printing time of this user manual the approvals listed above are granted.

WARNING

Change or modifications not expressively approved by the party responsible for compliance
could void the use's authority to operate the equipment.

▼ HomeLink Wireless Control System

Type A

CAUTION

HomeLink has been tested and complies with FCC and Industry Canada rules. Changes or
modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the device.

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-44

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

NOTE
FCC ID: NZLMOBHL4
CANADA:4112A-MOBHL4
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1- This device may not cause harmful interference, and
2- This device must accept any interference received, including interference that may cause
undesired operation.

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-45

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

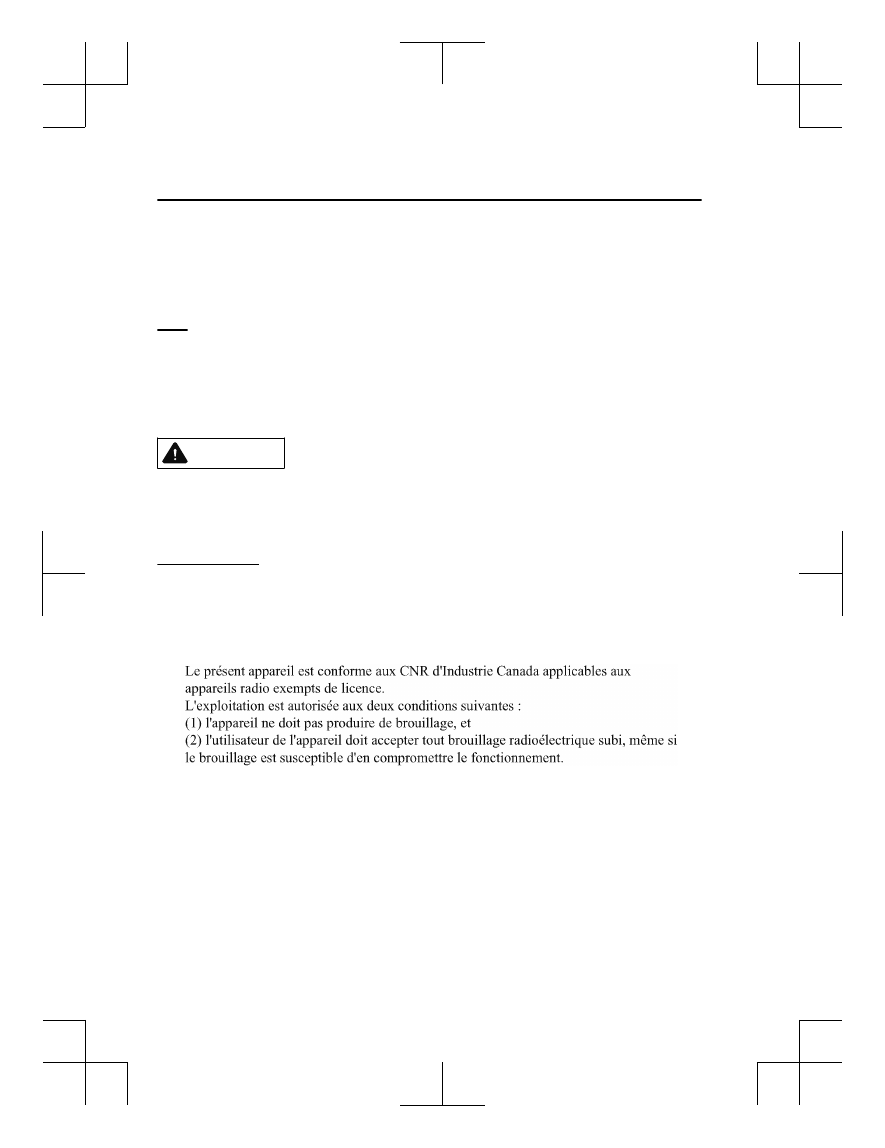

Type B

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-46

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

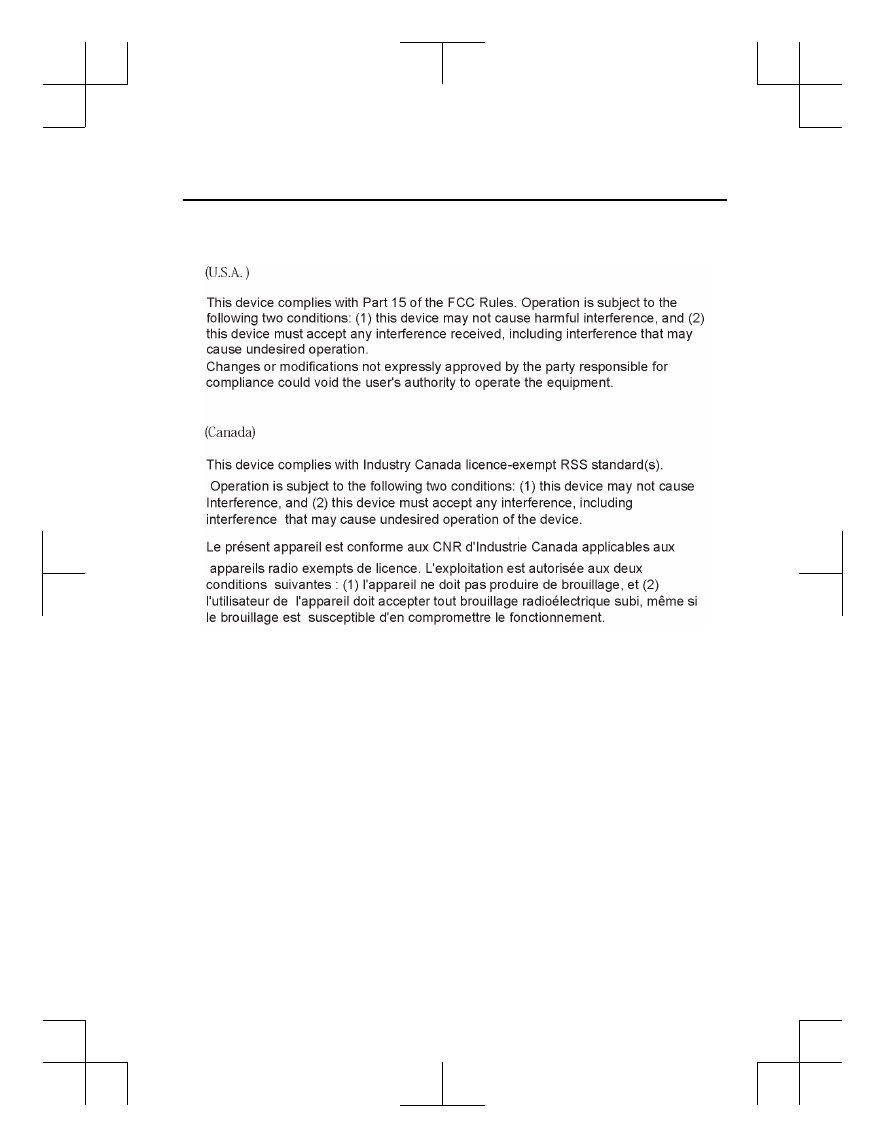

▼ Tire Pressure Monitoring System

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-47

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Audio System

(U.S.A. and Canada)

FCC ID: NT862932

FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may

cause undesired operation.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

IC: 3043A-62932

ISED CANADA

This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may

cause undesired operation.

Mazda Audio System Customer Service



U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.mazdausa.com/mazdaconnect



Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-48

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

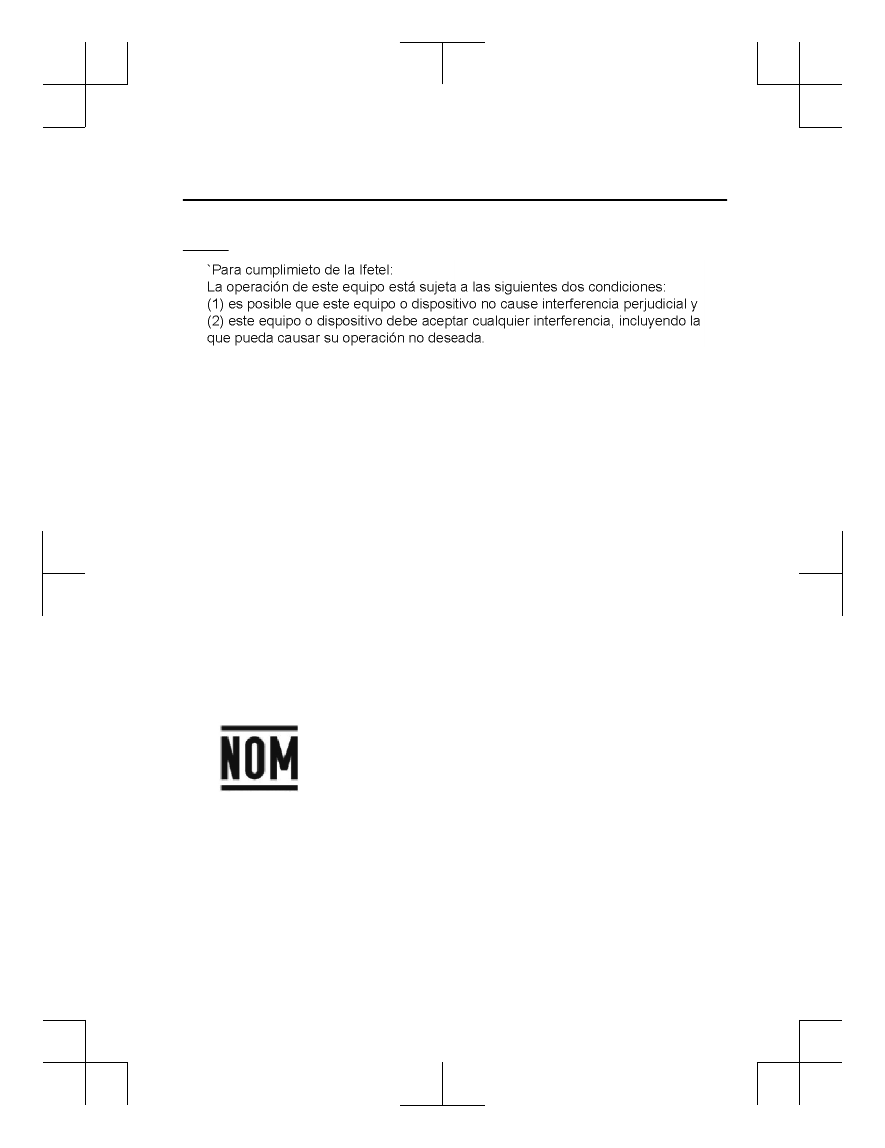

Mexico



Name and address of the importer: Refer to "MEXICO" (page 8-13) in Importer/
Distributor section.



Brand name of the product: Visteon Corporation.



Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-13) in Importer/Distributor section.



Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-13) in Importer/Distributor section.



Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet for detailed warranty information.



Warranty procedure:
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx



Brief description: Automotive Electronics Infotainment Head Unit



Model name of the product: MAZDA_GEN_65_CMU



Homologation ID: RCPJOMA13–1301



Electrical specifications:
Voltage: 10-16V, Frequency: 2.4GHz, Current: 1A(Typ)

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-49

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

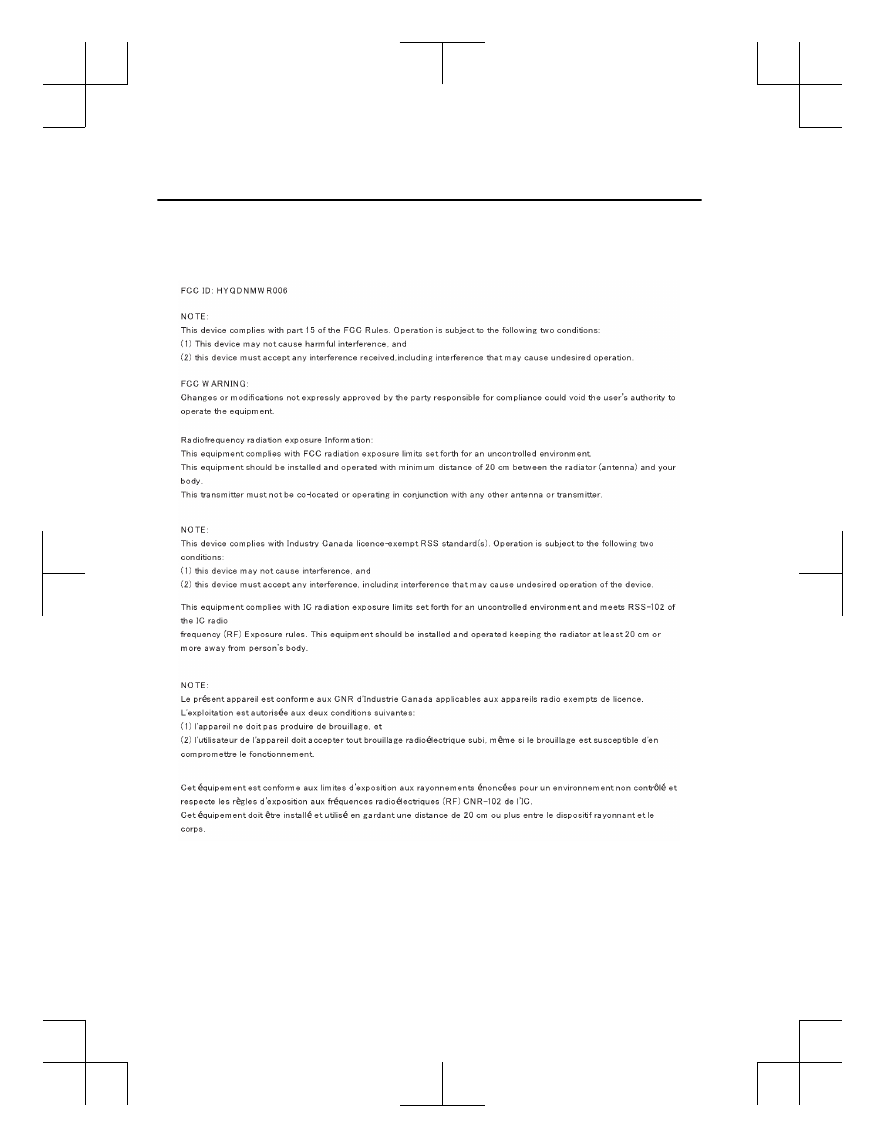

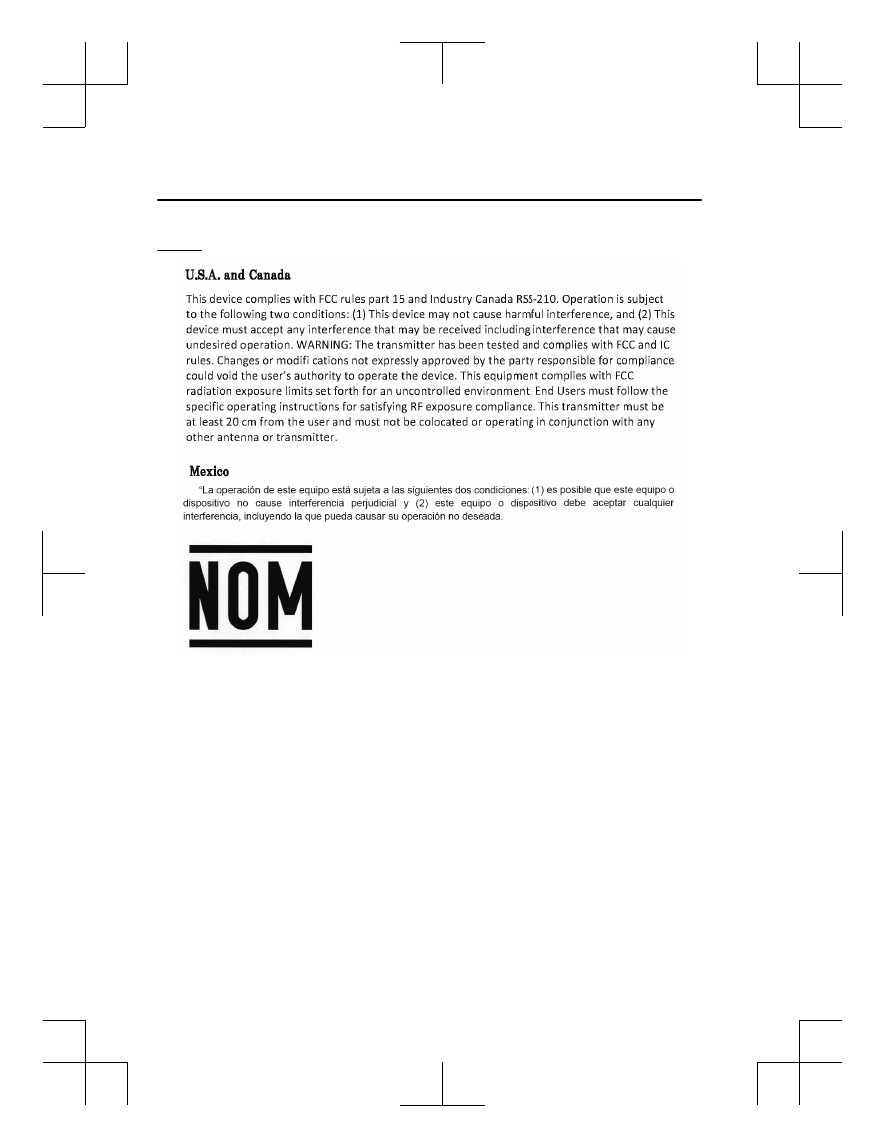

▼ Mazda Radar Cruise Control (MRCC)/Distance Recognition Support System

(DRSS)/Smart Brake Support (SBS)

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-50

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Customer Information and Reporting Safety Defects

Declaration of Conformity

8-51

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

MEMO

8-52

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Specifications

Technical information about your Mazda.

Identification Numbers..................... 9-2

Vehicle Information Labels.......... 9-2

Specifications..................................... 9-4

Specifications............................... 9-4

Personalization Features.................9-12

Personalization Features.............9-12

9-1

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

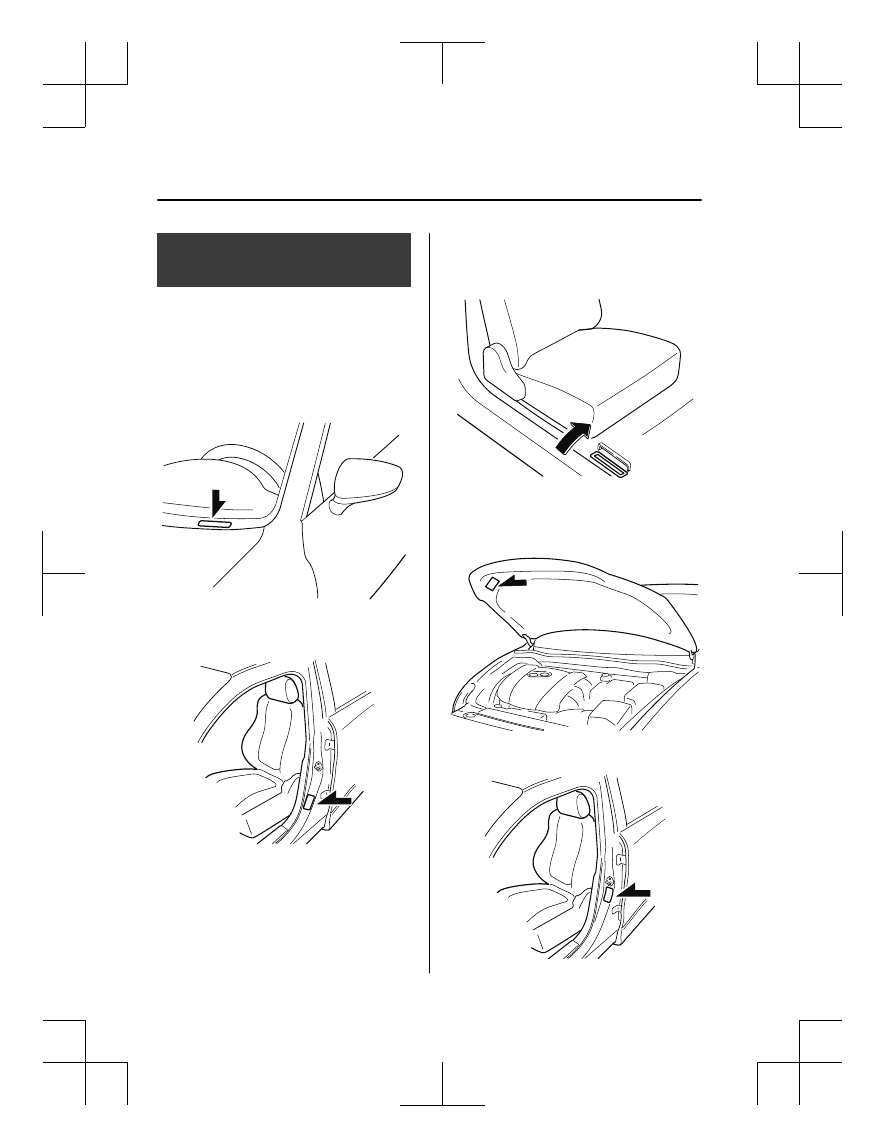

Vehicle Information

Labels

▼ Vehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.

▼ Motor Vehicle Safety Standard

Label (U.S.A. and Canada)

▼ Chassis Number

Open the cover shown in the figure to
check the chassis number.

▼ Vehicle Emission Control

Information Label (U.S.A. and
Canada)

▼ Tire Pressure Label

Specifications

Identification Numbers

9-2

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

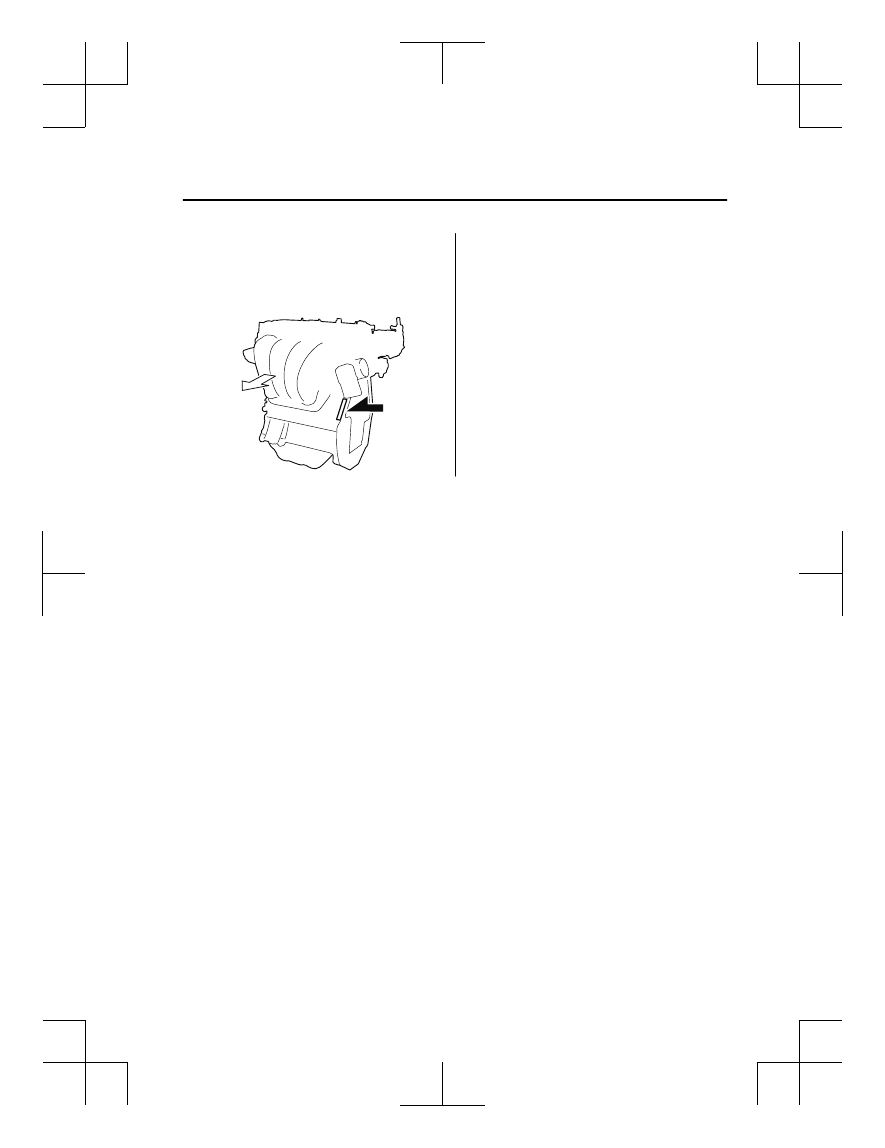

▼ Engine Number

SKYACTIV-G 2.0, SKYACTIV-G 2.5,
and SKYACTIV-G 2.5T

Forward

Specifications

Identification Numbers

9-3

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Specifications

▼ Engine

Item

Specification

SKYACTIV-G 2.0

SKYACTIV-G 2.5

SKYACTIV-G 2.5T

Type

DOHC-16V in-line, 4-cylinder

Bore × Stroke

83.5 × 91.2 mm (3.29 × 3.59

in)

89.0 × 100 mm (3.50 × 3.94 in)

Displacement

1,997.6 ml (1,997.6 cc)

2,488.5 ml (2,488.5 cc)

Compression ra‐
tio

13.0

10.5

▼ Electrical System

Battery

Classification

Specification

SKYACTIV-G 2.0,
SKYACTIV-G 2.5,
SKYACTIV-G 2.5T

12V-60Ah/20HR or 12V-65Ah/20HR

Spark-plug

Classification

Specification

SKYACTIV-G 2.0,
SKYACTIV-G 2.5

Mazda Genuine spark plug

PE5R-18-110 or PE5S-18-110

SKYACTIV-G 2.5T

Mazda Genuine spark plug

PY8V-18-110

1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer

for details.

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.

Specifications

9-4

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Lubricant Quality

Lubricant

Classification

Engine oil

Refer to Recommended Oil on page 6-24.

Coolant

FL-22 type

Manual transaxle oil

Mazda Long Life Gear Oil G7

Automatic transaxle fluid

Mazda Genuine ATF-FZ

Transfer case oil

Mazda Long Life Hypoid Gear Oil SG1

Rear differential oil

Mazda Long Life Hypoid Gear Oil SG1

Brake fluid/Clutch fluid

SAE J1703 or FMVSS116 DOT-3

1 Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life

Gear Oil G7 is recommended.
If Mazda Long Life Gear Oil G7 cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).

NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.

▼ Capacities

(Approximate Quantities)

Item

Capacity

Engine oil

SKYACTIV-G
2.0

With oil filter replacement

4.2 L (4.4 US qt, 3.7 Imp qt)

Without oil filter replace‐
ment

4.0 L (4.2 US qt, 3.5 Imp qt)

SKYACTIV-G
2.5

With oil filter replacement

4.5 L (4.8 US qt, 4.0 Imp qt)

Without oil filter replace‐
ment

4.3 L (4.5 US qt, 3.8 Imp qt)

SKYACTIV-G
2.5T

With oil filter replacement

4.8 L (5.1 US qt, 4.2 Imp qt)

Without oil filter replace‐
ment

4.6 L (4.9 US qt, 4.0 Imp qt)

Coolant

U.S.A. and Can‐
ada

SKYACTIV-G 2.0

7.1 L (7.5 US qt, 6.2 Imp qt)

SKYACTIV-G 2.5

7.4 L (7.8 US qt, 6.5 Imp qt)/

7.5 L (7.9 US qt, 6.6 Imp qt)

SKYACTIV-G 2.5T

8.5 L (9.0 US qt, 7.5 Imp qt)

Mexico

SKYACTIV-G 2.0

7.5 L (7.9 US qt, 6.6 Imp qt)

SKYACTIV-G 2.5

7.6 L (8.0 US qt, 6.7 Imp qt)

SKYACTIV-G 2.5T

8.5 L (9.0 US qt, 7.5 Imp qt)

Manual transaxle oil

1.65 L (1.74 US qt, 1.45 Imp qt)

Specifications

9-5

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Item

Capacity

Automatic transaxle
fluid

SKYACTIV-G 2.0

7.8 L (8.2 US qt, 6.9 Imp qt)

SKYACTIV-G 2.5

7.8 L (8.2 US qt, 6.9 Imp qt)/

8.0 L (8.5 US qt, 7.0 Imp qt)

SKYACTIV-G 2.5T

8.0 L (8.5 US qt, 7.0 Imp qt)

Transfer case oil

0.45 L (0.48 US qt, 0.40 Imp qt)

Rear differential oil

0.35 L (0.37 US qt, 0.31 Imp qt)

Fuel tank

2WD

56.0 L (14.8 US gal, 12.3 Imp gal)

AWD

58.0 L (15.3 US gal, 12.8 Imp gal)

Check oil and fluid levels with dipsticks or reservoir gauges.

▼ Dimensions

Item

Vehicle specification

Overall length

4,550 mm (179.1 in)

Overall width

1,840 mm (72.4 in)

Overall height

1,675 mm (65.9 in)

Front tread

17 inch styled steel wheel
vehicle

1,586 mm (62.4 in)

17 inch aluminum wheel
vehicle

1,596 mm (62.8 in)

19 inch aluminum wheel
vehicle

1,596 mm (62.8 in)

Rear tread

17 inch styled steel wheel
vehicle

1,586 mm (62.4 in)

17 inch aluminum wheel
vehicle

1,596 mm (62.8 in)

19 inch aluminum wheel
vehicle

1,596 mm (62.8 in)

Wheelbase

2,698 mm (106.2 in)

Specifications

9-6

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Weights

U.S.A. and Canada

SKYACTIV-G 2.0

Item

Weight

GVWR (Gross Vehicle Weight Rating)

1,960 kg (4,321 lbs)

GAWR (Gross Axle Weight
Rating)

Front

980 kg (2,161 lbs)

Rear

980 kg (2,161 lbs)

SKYACTIV-G 2.5

Item

Weight

2WD

AWD

GVWR (Gross Vehicle Weight Rating)

2,060 kg (4,541 lbs)/

2,075 kg (4,575 lbs)

2,100 kg (4,630 lbs)/

2,143 kg (4,724 lbs)

GAWR (Gross Axle Weight
Rating)

Front

1,060 kg (2,337 lbs)/

1,075 kg (2,370 lbs)

1,070 kg (2,359 lbs)/

1,100 kg (2,425 lbs)

Rear

1,000 kg (2,205 lbs)

1,030 kg (2,271 lbs)/

1,043 kg (2,299 lbs)

SKYACTIV-G 2.5T

Item

Weight

2WD

AWD

GVWR (Gross Vehicle Weight Rating)

2,140 kg (4,718 lbs)

2,180 kg (4,806 lbs)

GAWR (Gross Axle Weight
Rating)

Front

1,120 kg (2,469 lbs)

1,140 kg (2,513 lbs)

Rear

1,020 kg (2,249 lbs)

1,040 kg (2,293 lbs)

Mexico

SKYACTIV-G 2.0

Item

Weight

GVW (Gross Vehicle Weight)

Total

2,060 kg (4,542 lbs)

Front

1,035 kg (2,282 lbs)

Rear

1,025 kg (2,260 lbs)

GAW (Permissible axle load)

Front

1,055 kg (2,326 lbs)

Rear

1,105 kg (2,436 lbs)

Specifications

9-7

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47
