Oil Change

Setting Interval

Oil replacement period can be selected from the fixed setting.
The vehicle lets you know when an oil change is due by illumi‐
nating the wrench indicator light in the instrument cluster.

Distance (km or mile)

Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indication/indicator light in the instrument cluster
will be illuminated when the remaining distance is less than 1,000
km or 600 mile.

Reset

Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever replacing
the engine oil.

Maintenance and Care

Scheduled Maintenance

6-18

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Owner Maintenance Precautions

The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.

Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling



Brake and clutch fluid level (page 6-29)



Engine coolant level (page 6-27)



Engine oil level (page 6-26)



Washer fluid level (page 6-29)

At Least Monthly



Tire inflation pressures (page 6-41)

At Least Twice a Year (For Example, Every Spring and Fall)

You can do the following scheduled maintenance items if you have some mechanical ability
and a few basic tools and if you closely follow the directions in this manual.



Engine coolant (page 6-27)



Engine oil (page 6-24)

Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.

As explained in the Introduction (page 6-2), several procedures can be done only by a
qualified service technician with special tools.

Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by an Authorized
Mazda Dealer.

There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.

We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.

Maintenance and Care

Owner Maintenance

6-19

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

WARNING

Do not perform maintenance work if you lack sufficient knowledge and experience or the
proper tools and equipment to do the work. Have maintenance work done by a qualified
technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.

If you must run the engine while working under the hood, make certain that you remove all
jewelry (especially rings, bracelets, watches, and necklaces) and all neckties, scarves, and
similar loose clothing before getting near the engine or cooling fan which may turn on
unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry, loose clothing or have long hair or a long beard.
Either can become entangled in moving parts and result in injury.

Pull over to a safe location, then switch the ignition off and make sure the fan is not

running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue running
indefinitely even if the engine has stopped and the engine compartment temperature is high.
You could be hit by the fan and seriously injured.

Do not leave items in the engine compartment:
After you have finished checking or doing servicing in the engine compartment, do not forget
and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fire
leading to an unexpected accident.

Maintenance and Care

Owner Maintenance

6-20

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Hood

WARNING

Always check that the hood is closed and
securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly open
while the vehicle is moving and block the
driver's vision which could result in a
serious accident.

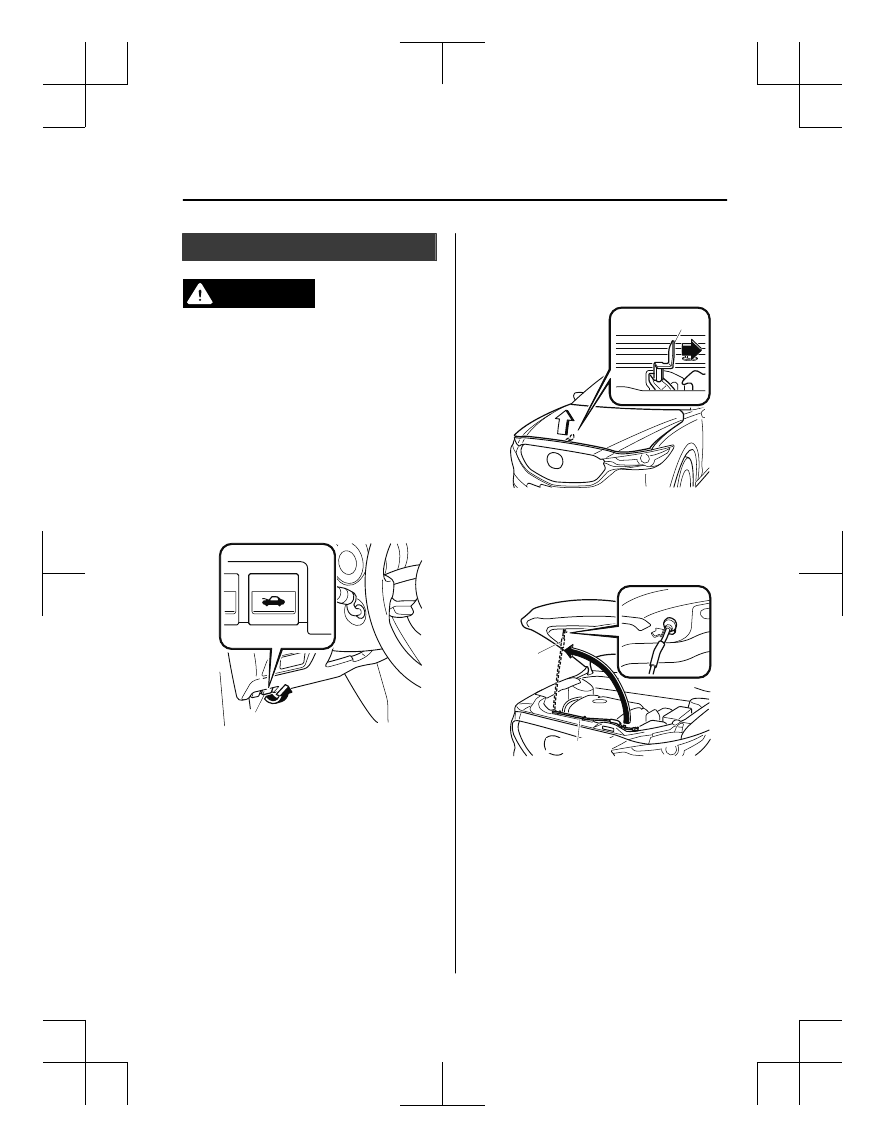

▼ Opening the Hood

1. With the vehicle parked, pull the

release handle to unlock the hood.

Release handle

2. Insert your hand into the hood

opening, slide the latch lever to the
right, and lift up the hood.

Lever

3. Grasp the support rod in the padded

area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.

Pad

Support rod

Maintenance and Care

Owner Maintenance

6-21

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

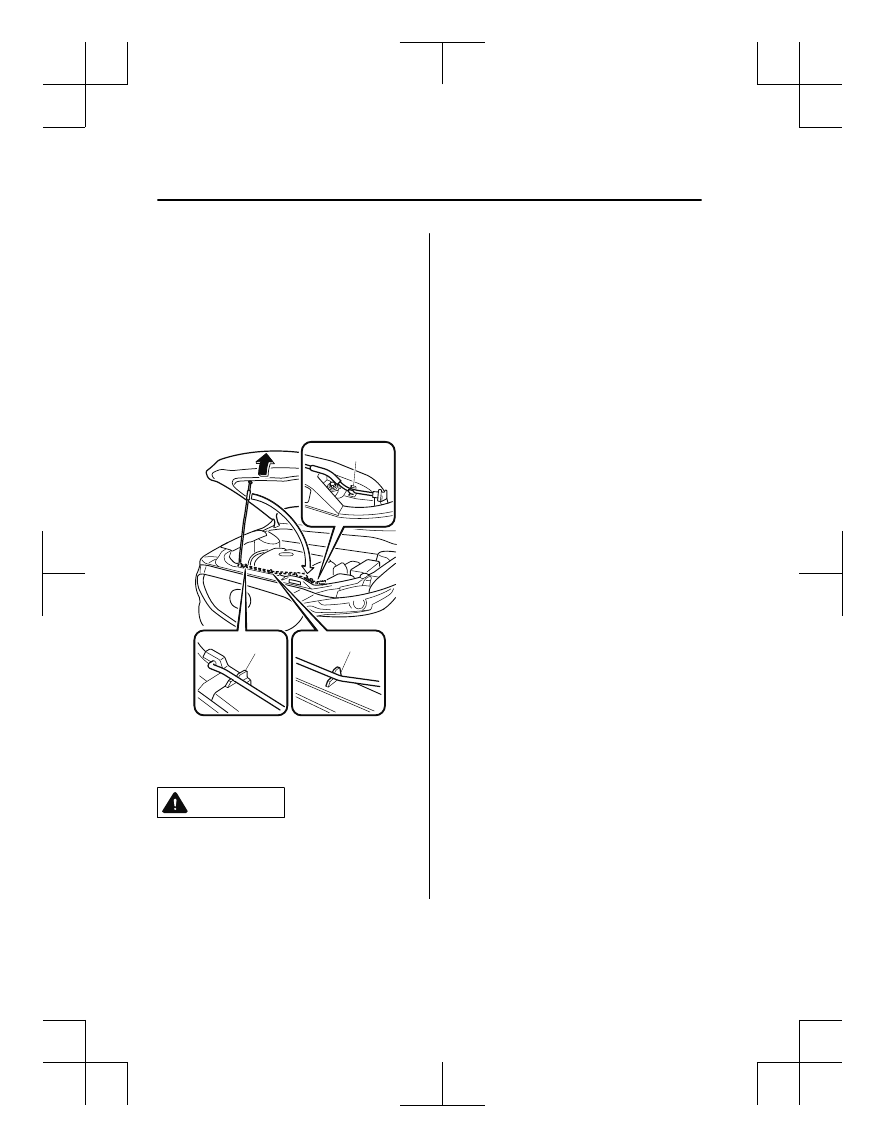

▼ Closing the Hood

1. Check under the hood area to make

certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.

2. Lift the hood, grasp the padded area on

the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.

Clip

3. Lower the hood slowly to a height of

about 20 cm (7.9 in) above its closed
position and then let it drop.

CAUTION

When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.

Maintenance and Care

Owner Maintenance

6-22

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

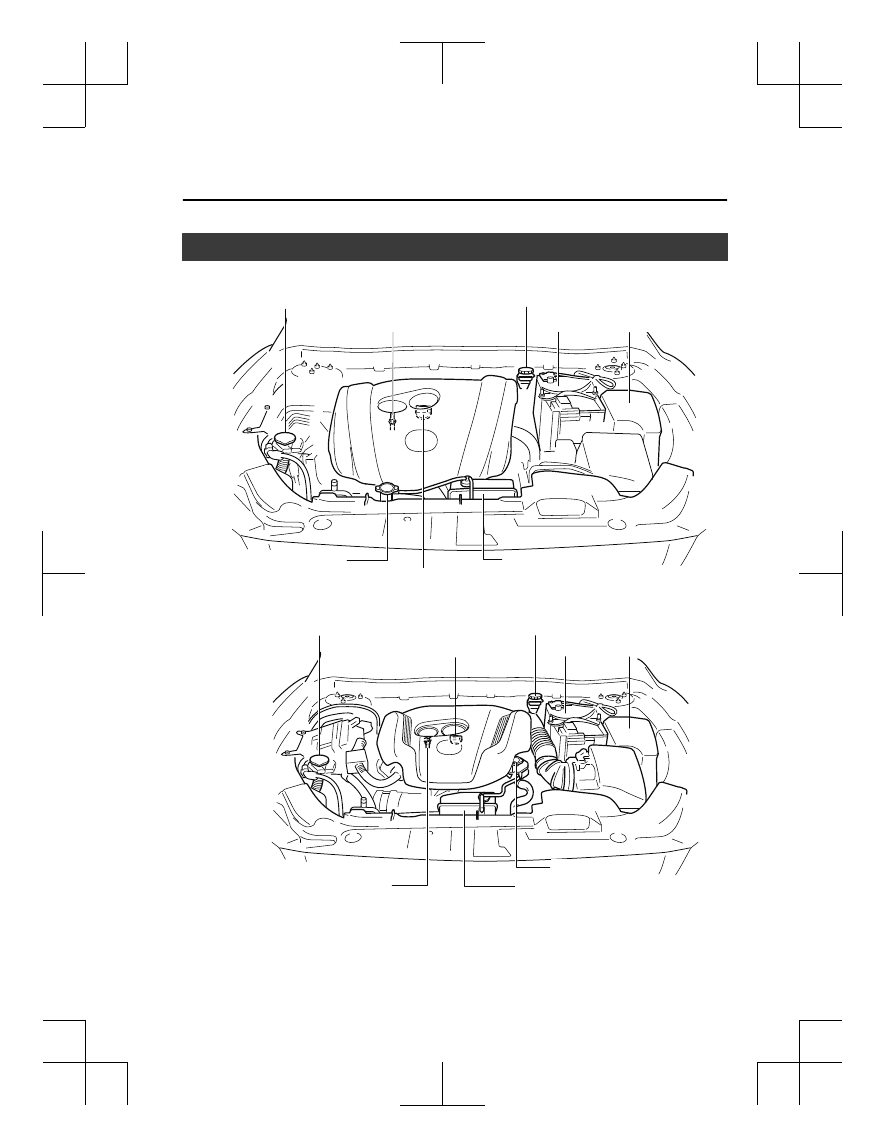

Engine Compartment Overview

Windshield washer fluid reservoir

Engine oil-filler cap

Brake/Clutch fluid reservoir

Engine oil-dipstick

Battery

Fuse block

Cooling system cap

Engine coolant reservoir

SKYACTIV-G 2.0 and SKYACTIV-G 2.5

Windshield washer fluid reservoir

Engine oil-filler cap

Engine oil dipstick

Battery

Fuse block

Cooling system cap

Engine coolant reservoir

SKYACTIV-G 2.5T

Brake fluid reservoir

Maintenance and Care

Owner Maintenance

6-23

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Engine Oil

NOTE
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2) for
owner's responsibility in protecting your
investment.

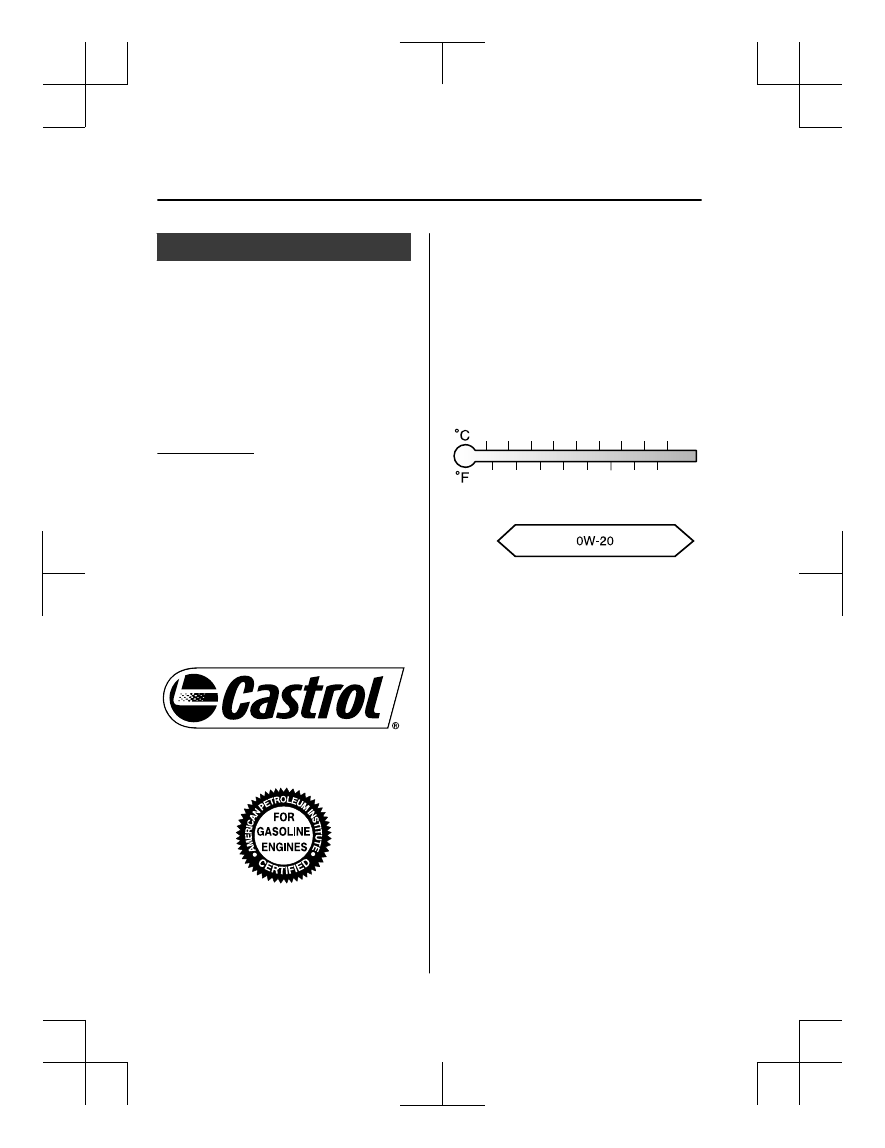

▼ Recommended Oil

U.S.A., Canada

SKYACTIV-G 2.0, SKYACTIV-G 2.5

Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 0W-20 Oil is
required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol

(U.S.A. only).

(ILSAC)

Only use SAE 0W-20 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

–40 –20

100

–10

–20

–30

–40

Maintenance and Care

Owner Maintenance

6-24

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

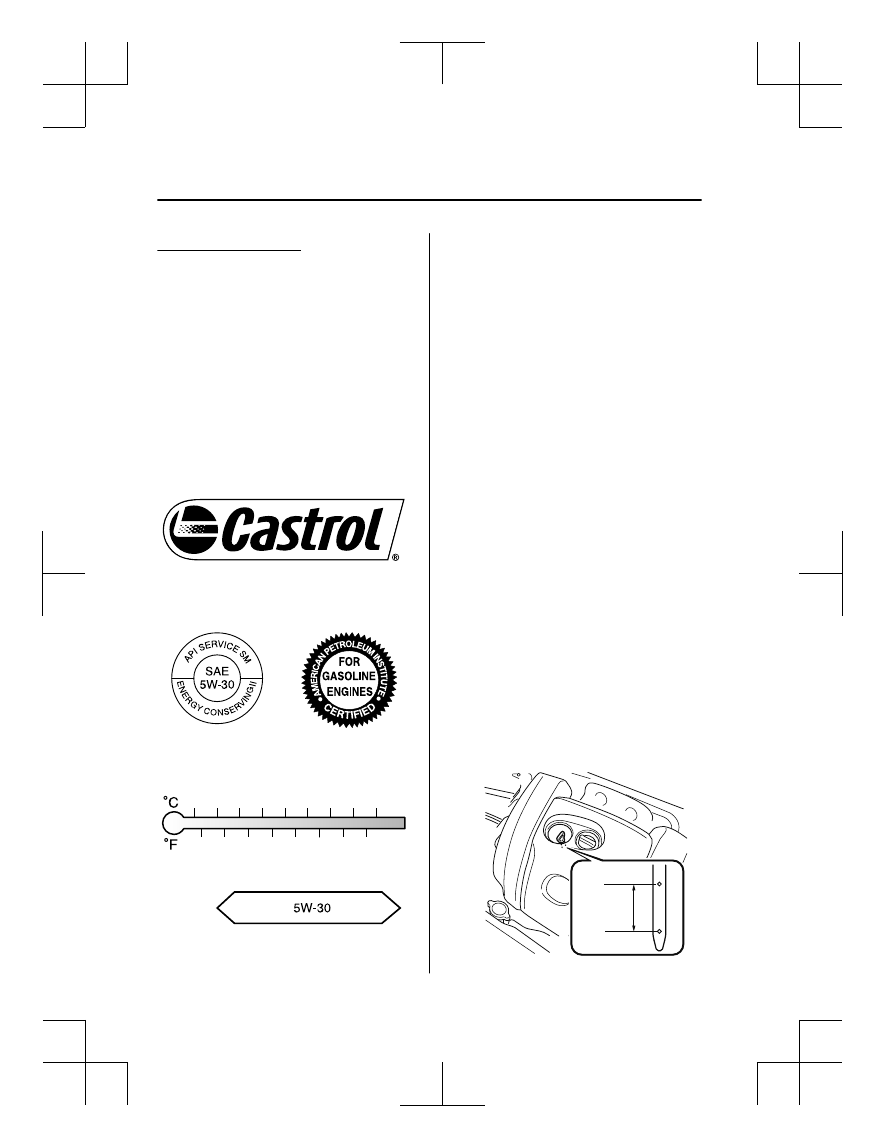

SKYACTIV-G 2.5T

Use SAE 5W-30 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 5W-30 Oil is
required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol

(U.S.A. only).

(ILSAC)

Only use SAE 5W-30 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

–40 –20

100

–10

–20

–30

–40

Maintenance and Care

Owner Maintenance

6-25

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Except U.S.A., Canada

SKYACTIV-G 2.0, SKYACTIV-G 2.5

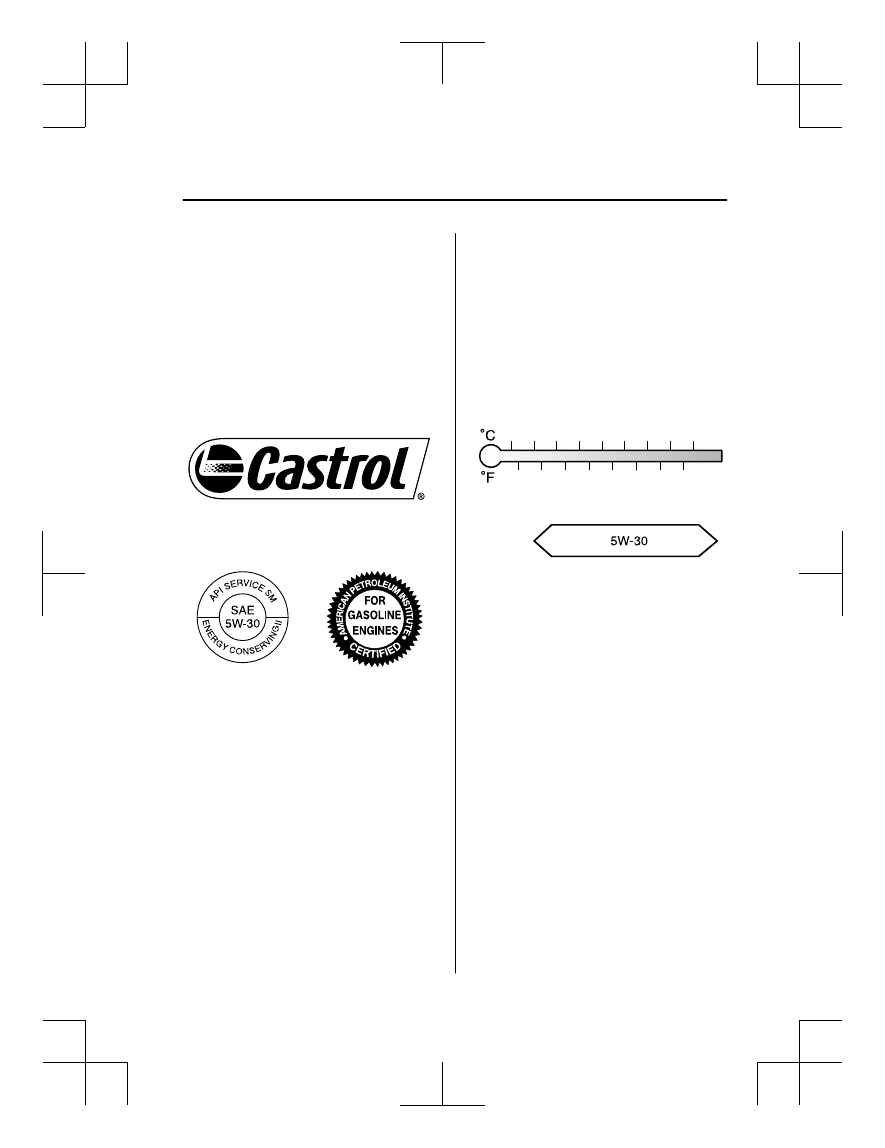

Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.

For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol

(Mexico only).

(ILSAC)

(Mexico)

–40 –20

100

–10

–20

–30

–40

SKYACTIV-G 2.0, SKYACTIV-G 2.5

Use SAE 5W-30 engine oil. If SAE 5W-30
engine oil is not available, use SAE 5W-20
engine oil.

The quality designation SM or SN, or
ILSAC must be on the label.

SKYACTIV-G 2.5T

Use SAE 5W-30 engine oil. If SAE 5W-30
engine oil is not available, use SAE 0W-30
or SAE 10W-30 engine oil.

The quality designation SM or SN, or
ILSAC must be on the label.

▼ Inspecting Engine Oil Level

1. Be sure the vehicle is on a level

surface.

2. Warm up the engine to normal

operating temperature.

3. Turn it off and wait at least 5 minutes

for the oil to return to the oil pan.

4. Pull out the dipstick, wipe it clean, and

reinsert it fully.
SKYACTIV-G 2.0, SKYACTIV-G
2.5, and SKYACTIV-G 2.5T

MAX

MIN

Maintenance and Care

Owner Maintenance

6-26

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

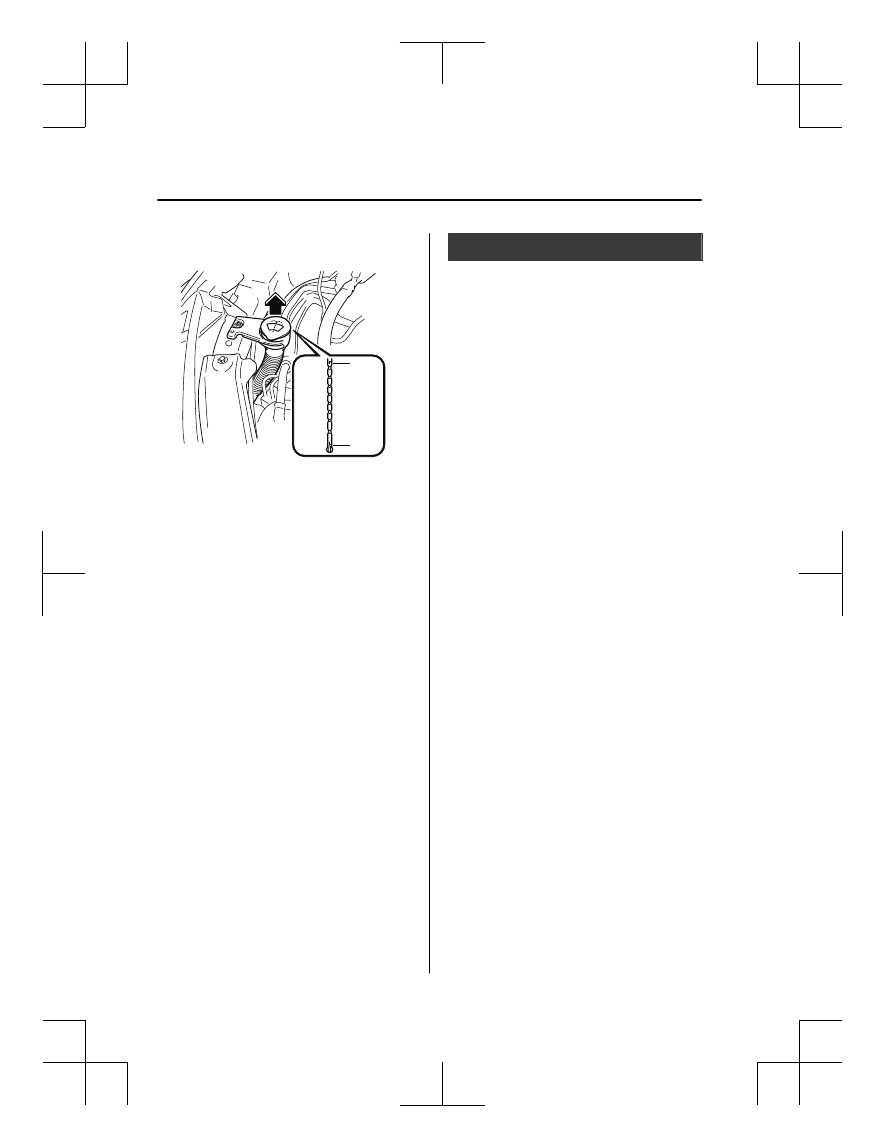

5. Pull it out again and examine the level.

The level is normal if it is between the
MIN and MAX marks.
If it is near or below MIN, add enough
oil to bring the level to MAX.

CAUTION

Do not overfill the engine oil. This may
cause engine damage.

6. Make sure the O-ring on the dipstick is

positioned properly before reinserting
the dipstick.

7. Reinsert the dipstick fully.

Engine Coolant

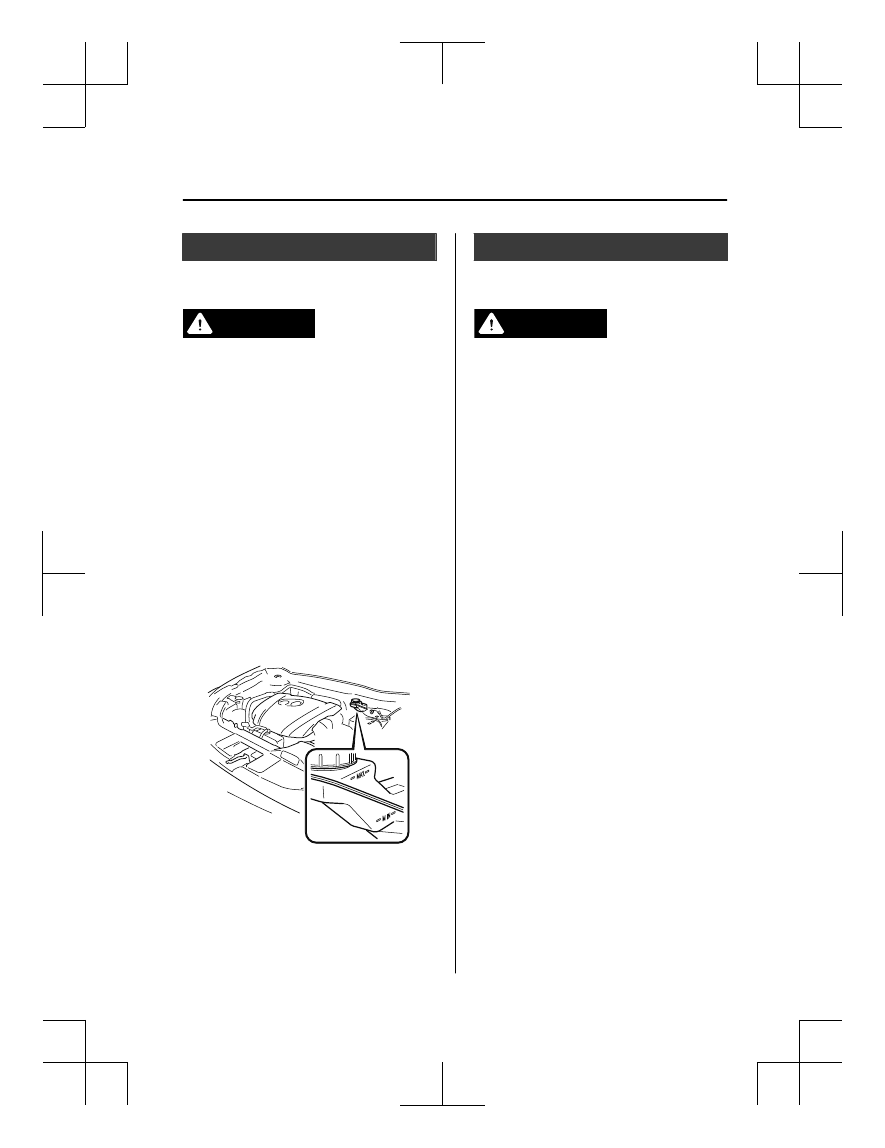

▼ Inspecting Coolant Level

WARNING

Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the engine has
been running, parts of the engine
compartment can become very hot. You
could be burned. Carefully inspect the
engine coolant in the coolant reservoir, but
do not open it.

Pull over to a safe location, then switch

the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.

Do not remove either cooling

system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.

Maintenance and Care

Owner Maintenance

6-27

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

NOTE
Changing the coolant should be done by
an Authorized Mazda Dealer.

Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling where
temperatures may drop below freezing.

Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.
SKYACTIV-G 2.0 and SKYACTIV-G
2.5

SKYACTIV-G 2.5T

If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.

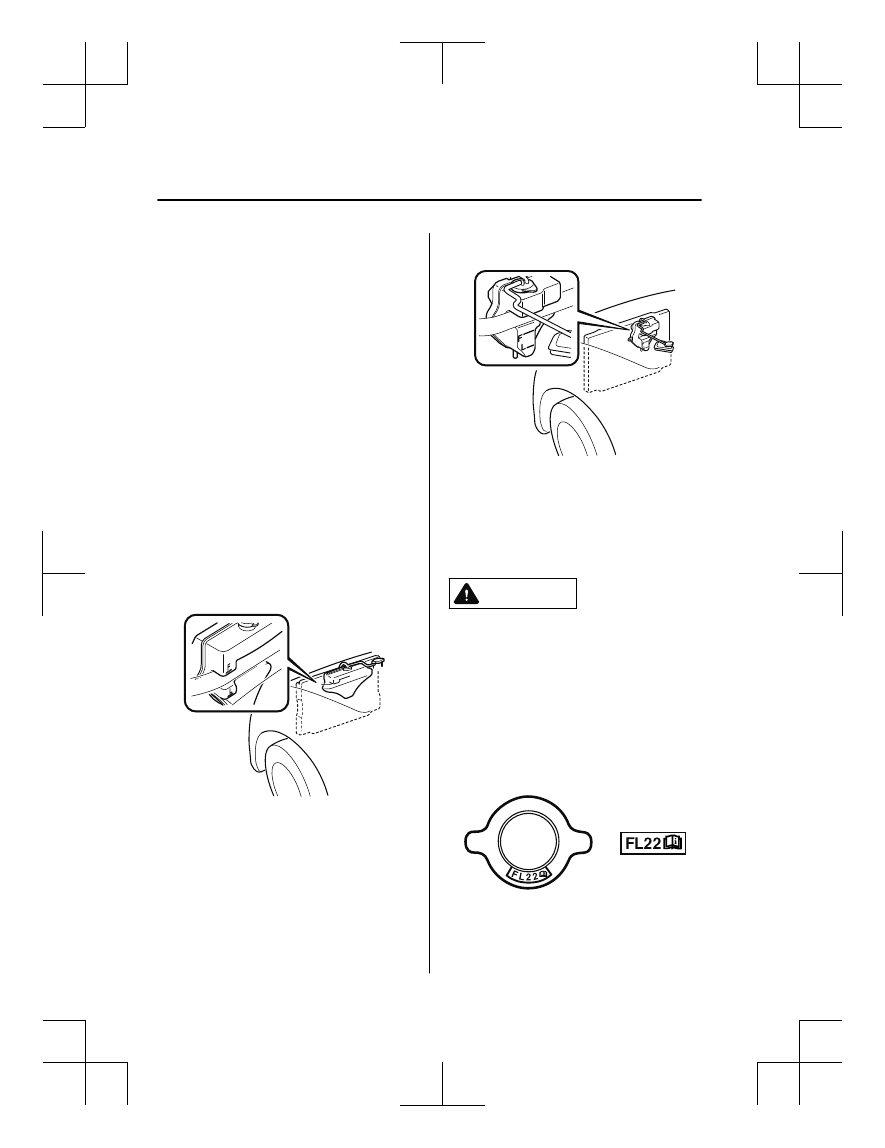

Securely tighten the coolant reservoir tank
cap after adding coolant.

CAUTION

Radiator coolant will damage paint.

Rinse it off quickly if spilled.

If the “FL22” mark is shown on or near

the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
engine and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.

Maintenance and Care

Owner Maintenance

6-28

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Brake/Clutch Fluid

▼ Inspecting Brake/Clutch Fluid Level

WARNING

If the brake/clutch fluid level is low, have
the brakes inspected:
A low brake/clutch fluid level is dangerous.
A low level could indicate brake lining wear
or a brake system leak which could cause
the brakes to fail and lead to an accident.

The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an
Authorized Mazda Dealer.

Washer Fluid

▼ Inspecting Washer Fluid Level

WARNING

Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer fluid is
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.

Using Washer Fluid Without Anti-freeze
Protection in Cold Weather:
Operating your vehicle in temperatures
below 4 degrees C (40 degrees F) using
washer fluid without anti-freeze protection
is dangerous as it could cause impaired
windshield vision and result in an accident.
In cold weather, always use washer fluid
with anti-freeze protection.

NOTE
State or local regulations may restrict the
use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides adequate
freeze resistance for all regions and
climates in which the vehicle will be
operated.

Maintenance and Care

Owner Maintenance

6-29

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.

The top of the float should be between F
and L.

Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.

NOTE
Front and rear washer fluid is supplied
from the same reservoir.

Body Lubrication

All moving points of the body, such as
door and hood hinges and locks, should be
lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.

Maintenance and Care

Owner Maintenance

6-30

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Wiper Blades

CAUTION

Hot waxes applied by automatic car

washers have been known to affect the
wiper's ability to clean windows.

To prevent damage to the wiper blades,

do not use gasoline, kerosene, paint
thinner, or other solvents on or near
them.

When the wiper lever is in the AUTO

position and the ignition is switched ON,
the wipers may move automatically in
the following cases:

If the windshield above the rain sensor

is touched.

If the windshield above the rain sensor

is wiped with a cloth.

If the windshield is struck with a hand

or other object.

If the rain sensor is struck with a hand

or other object from inside the vehicle.

Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.

Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.

If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.

▼ Replacing Windshield Wiper Blades

When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.

CAUTION

To prevent damage to the wiper arms

and other components, do not try to
sweep the wiper arm by hand.

Do not bend the blade rubber

unnecessarily when replacing it.
Otherwise, the metal stiffener in the
blade may deform and the windshield
wiper operation may be adversely
affected.

NOTE
When raising both windshield wiper arms,
raise the driver's side wiper arm first.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side first while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windshield.

1. Raise the wiper arm.

CAUTION

To prevent damage to the windshield
let the wiper arm down easily, do not
let it slap down on the windshield.

Maintenance and Care

Owner Maintenance

6-31

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

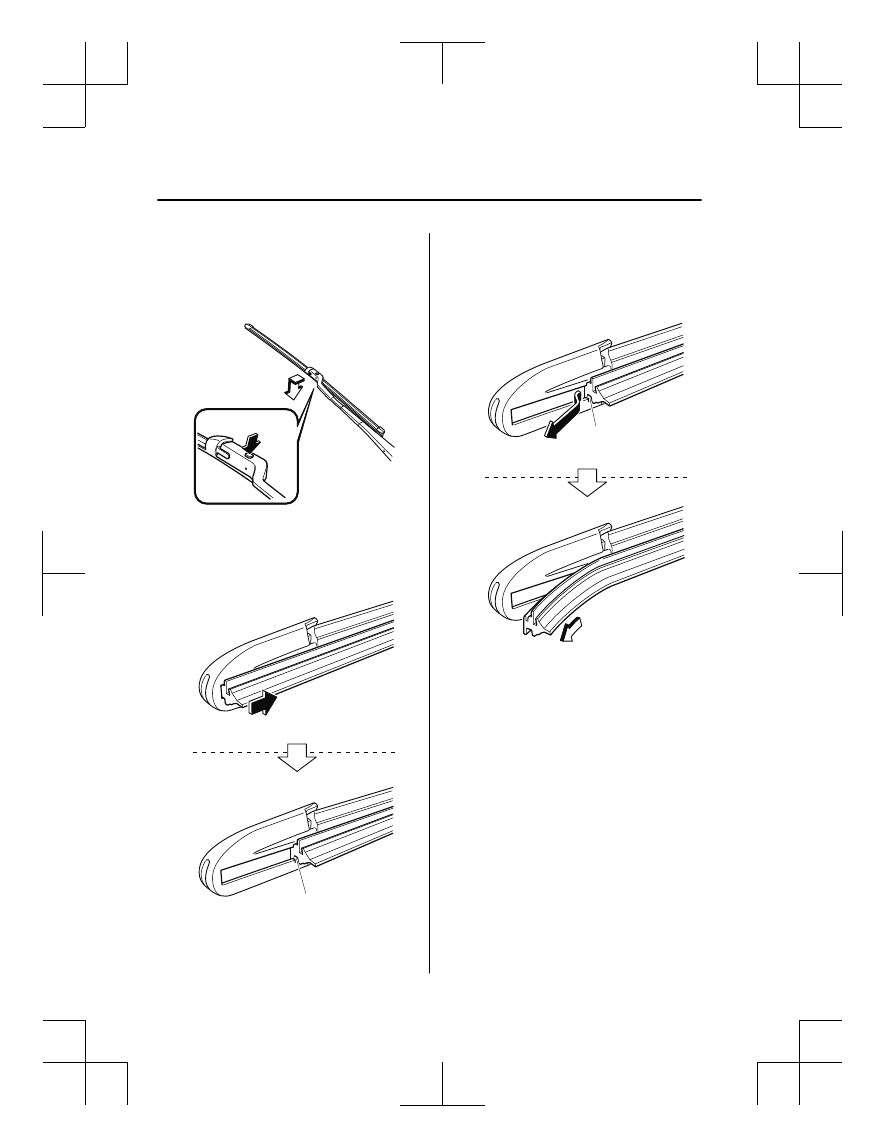

2. Slide the blade component in the

direction of the arrow while pressing
the wiper arm tab to remove the blade
component from the wiper arm.

3. Pull the blade rubber in the direction of

the arrow and slide it to a position
where the blade holder groove can be
checked.

Groove

4. Pull the end of the blade rubber from

the blade holder groove in the direction
of the arrow and remove the blade
rubber from the blade holder.

Groove

Maintenance and Care

Owner Maintenance

6-32

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

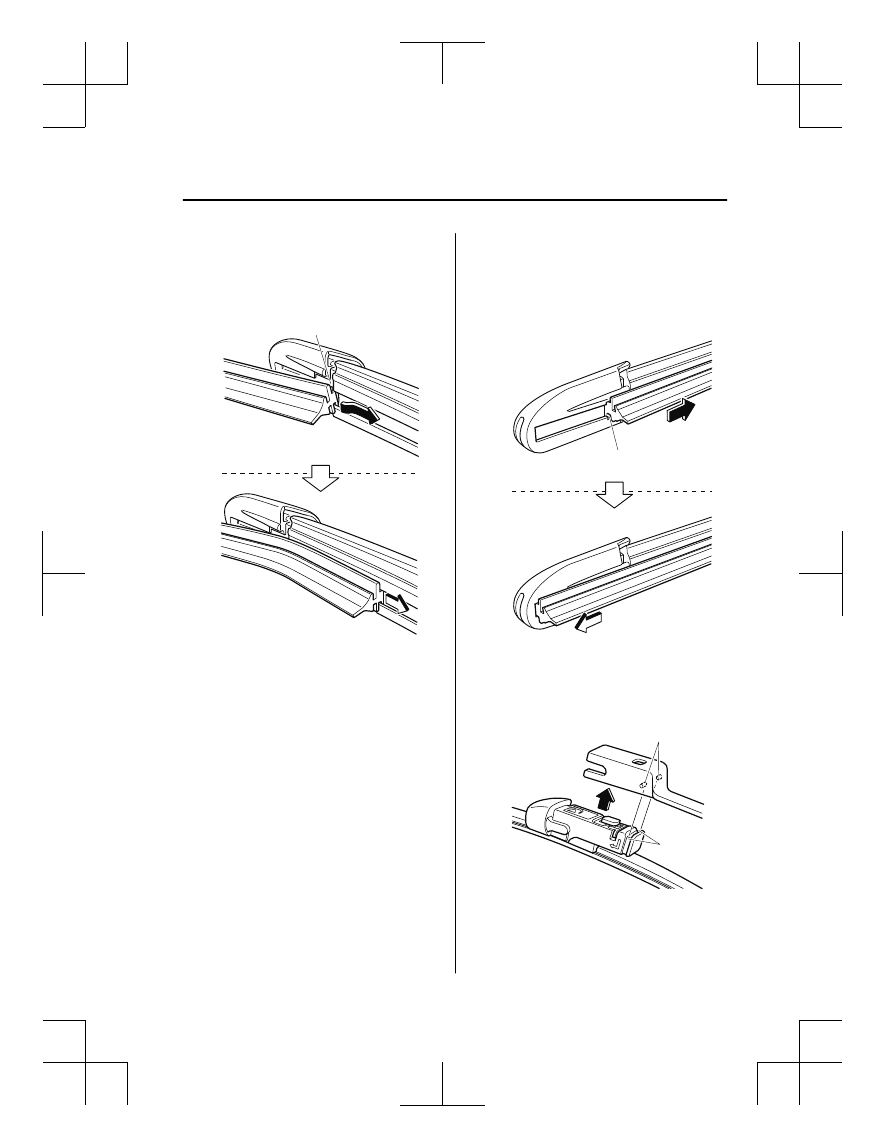

5. Insert the end of the new blade rubber

into the groove of the blade holder
until it contacts the end of the blade
holder.

Groove

6. After pulling the blade rubber in the

direction of the arrow and sliding the
blade rubber to a position to check the
blade holder groove, slide the blade
rubber end in the opposite direction.

Groove

7. Make sure that the blade rubber is

correctly installed to the blade holder.

8. Align the wiper arm tabs with the

blade component grooves.

Tabs

Grooves

Maintenance and Care

Owner Maintenance

6-33

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Content .. 31 32 33 34 ..
