Mazda CX-3 (2019 year). Manual

After rotation, inflate all tire pressures to
specification (page 9-7) and inspect the
lug nuts for tightness.

CAUTION

Rotate unidirectional tires and radial tires
that have an asymmetrical tread pattern or
studs only from front to rear, not from side
to side. Tire performance will be reduced if
rotated from side to side.

▼ Replacing a Tire

WARNING

Always use tires that are in good condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and traction
could result in an accident.

Replace all four tires at the same time:
Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle control.
Mazda strongly recommends that you
replace all four tires at the same time.

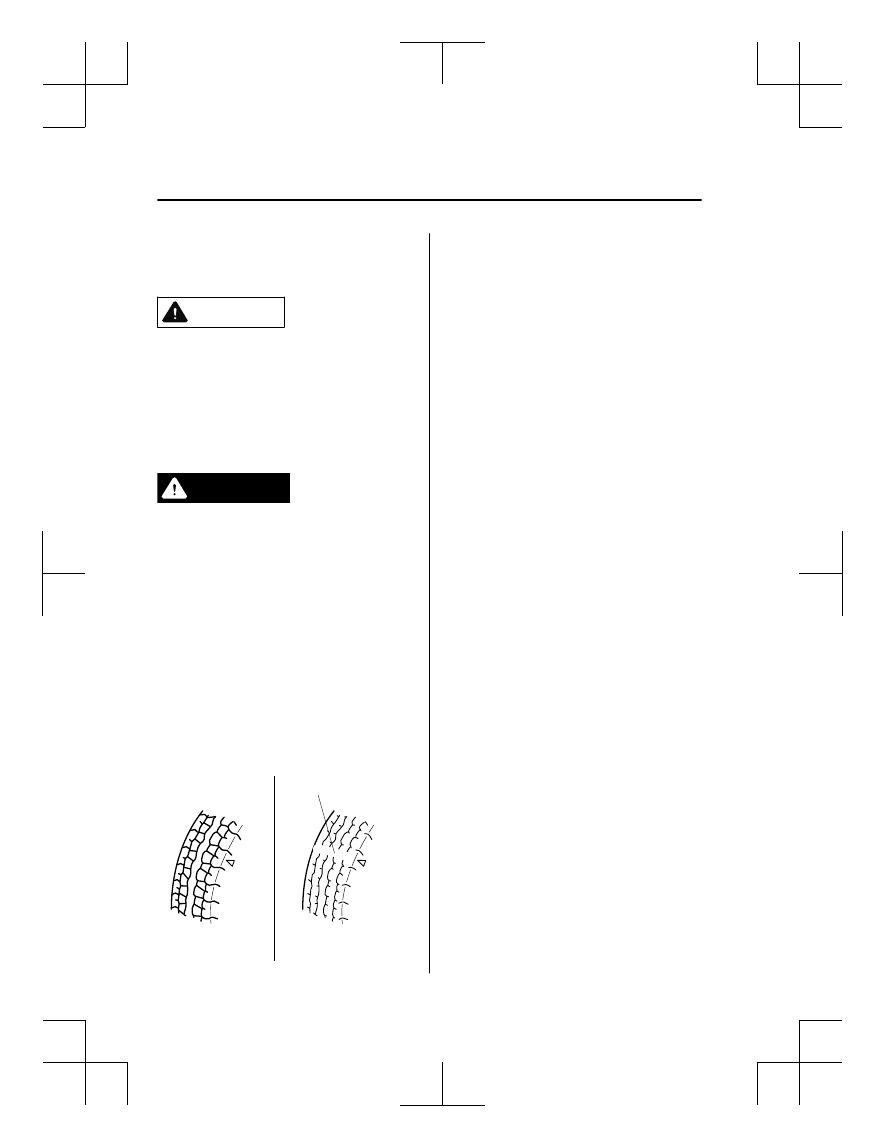

If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.

New tread

Tread wear indicator

Worn tread

You should replace the tire before the band
crosses the entire tread.

NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-25.

Maintenance and Care

Owner Maintenance

6-38

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

▼ Temporary Spare Tire

Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.

NOTE
The temporary spare tire condition
gradually deteriorates even if it has not
been used.

The temporary spare tire is easier to
handle because of its construction which is
lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-7.

CAUTION

Do not use your temporary spare tire rim

with a snow tire or a conventional tire.
Neither will properly fit and could
damage both tire and rim.

The temporary spare tire has a tread life

of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.

The temporary spare tire is for limited

use, however, if the tread wear
solid-band indicator appears, replace the
tire with the same type of temporary
spare (page 6-38).

Maintenance and Care

Owner Maintenance

6-39

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

▼ Replacing a Wheel

WARNING

Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is dangerous.
Braking and handling could be affected,
leading to loss of control and an accident.

CAUTION

A wrong-sized wheel may adversely affect:

Tire fit
Wheel and bearing life
Ground clearance
Snow-chain clearance
Speedometer calibration
Headlight aim
Bumper height
Tire Pressure Monitoring System

NOTE

•

When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).

•

For details, contact an Authorized
Mazda Dealer.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.

Maintenance and Care

Owner Maintenance

6-40

*Some models.

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

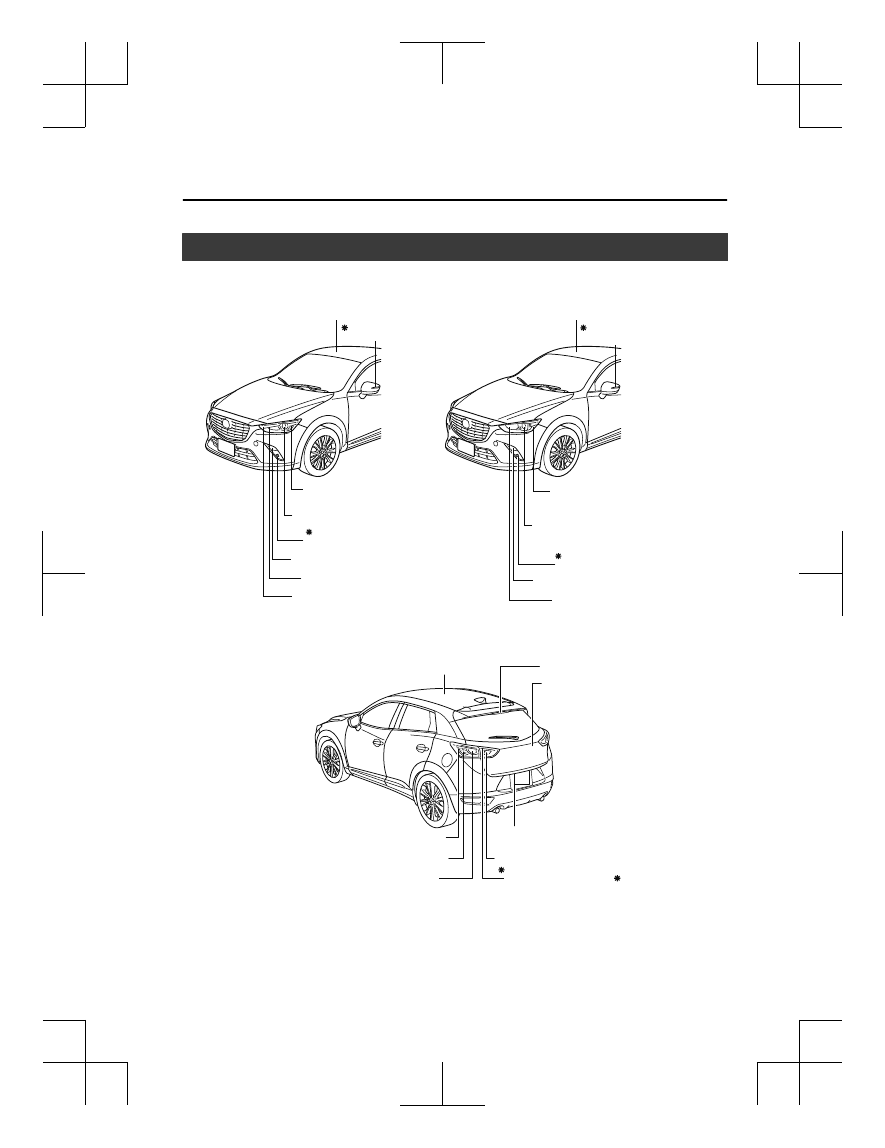

Light Bulbs

With LED Headlights

With Halogen Headlights

Overhead lights (Front) /Map lights

Overhead lights (Rear)

Overhead lights (Front) /Map lights

Headlights (High
beam)/Daytime running
lights

Headlights (Low beam)

Parking lights/Daytime
running lights

Side turn signal lights

Fog lights

Parking lights/Front
side-marker lights

Front side-marker lights

Front turn signal lights

Luggage compartment light

License plate lights

Reverse lights

Taillights

Rear turn signal lights

Rear side-marker lights

Brake lights/Taillights

High-mount brake light

Some models.

Side turn signal lights

Headlights (High beam)

Headlights (Low beam)

Fog lights

Front turn signal lights

Maintenance and Care

Owner Maintenance

6-41

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

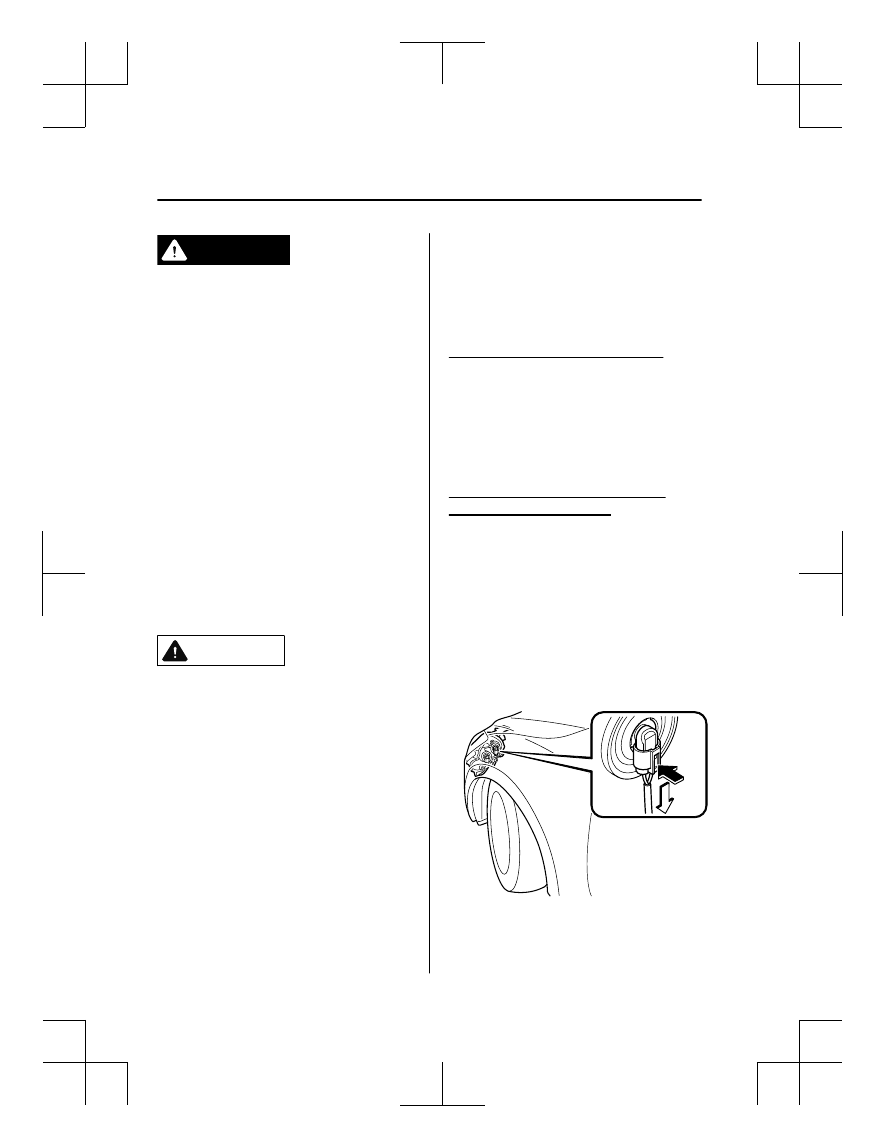

WARNING

Never touch the glass portion of a halogen
bulb with your bare hands and always
wear eye protection when handling or
working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it will
explode and serious injuries could be
caused by the flying glass.
If the glass portion is touched with bare
hands, body oil could cause the bulb to
overheat and explode when lit.

Always keep halogen bulbs out of the reach
of children:
Playing with a halogen bulb is dangerous.
Serious injuries could be caused by
dropping a halogen bulb or breaking it
some other way.

CAUTION

When removing the lens or lamp unit using
a flathead screwdriver, make sure that the
flathead screwdriver does not contact the
interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may
occur.

NOTE

•

To replace the bulb, contact an
Authorized Mazda Dealer.

•

If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.

•

Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.

▼ Replacing Exterior Light Bulbs

Headlights (With LED headlights)

The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized
Mazda Dealer when the replacement is
necessary.

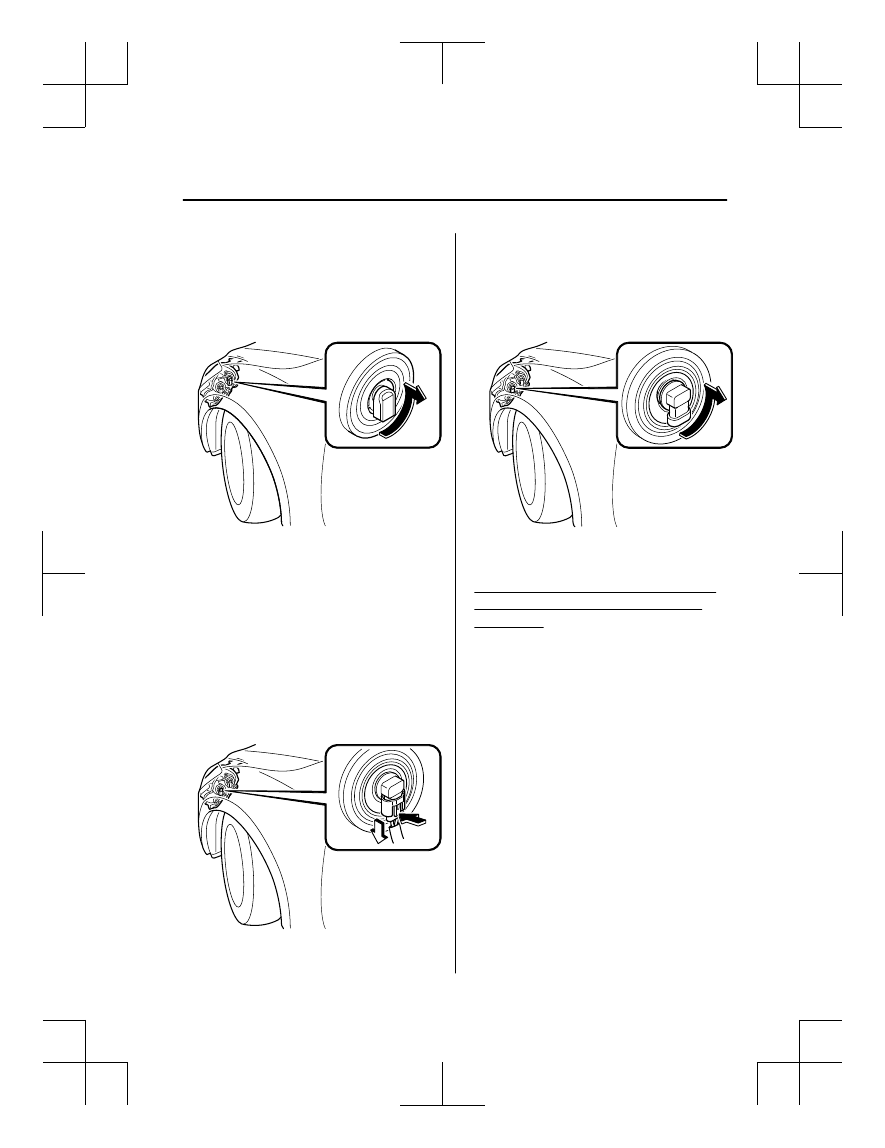

Headlights/Daytime running lights
(With halogen headlights)

High-beams bulbs/Daytime running
lights

1. Make sure the ignition is switched off,

and the headlight switch is off.

2. Lift the hood.
3. Disconnect the connector from the unit

by pressing the tab on the connector
with your finger and pulling the
connector downward.

Maintenance and Care

Owner Maintenance

6-42

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

4. Turn the socket and bulb assembly to

remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.

5. Install the new bulb in the reverse

order of the removal procedure.

Low-beam bulbs

1. Make sure the ignition is switched off,

and the headlight switch is off.

2. Lift the hood.
3. Disconnect the connector from the unit

by pressing the tab on the connector
with your finger and pulling the
connector downward.

4. Turn the socket and bulb assembly to

remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.

5. Install the new bulb in the reverse

order of the removal procedure.

Parking lights/Daytime running lights/
Front side-marker lights (With LED
headlights)

Maintenance and Care

Owner Maintenance

6-43

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

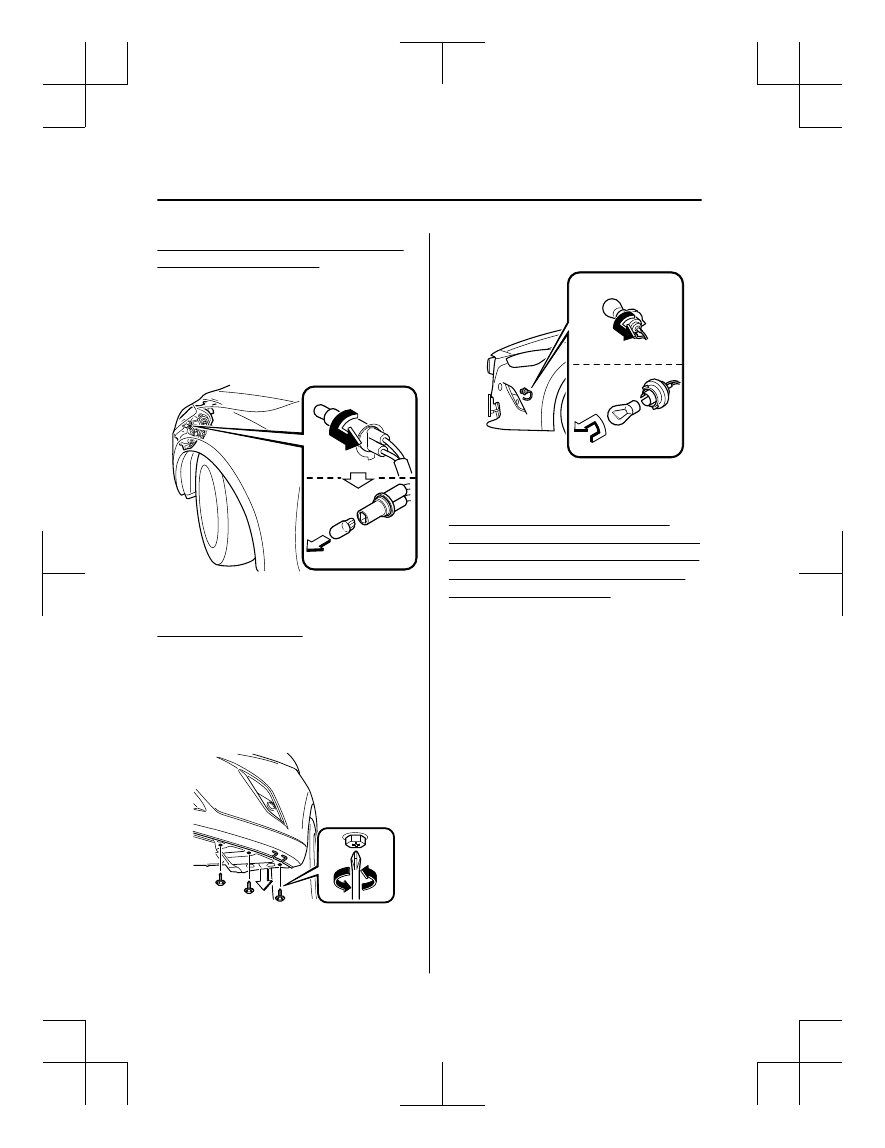

Parking lights/Front side-marker lights
(With halogen headlights)

1. Make sure the ignition is switched off,

and the headlight switch is off.

2. Turn the socket and bulb assembly

counterclockwise and remove it.

3. Disconnect the bulb from the socket.

4. Install the new bulb in the reverse

order of the removal procedure.

Front turn signal lights

1. Make sure the ignition is switched off,

and the headlight switch is off.

2. Turn the screw counterclockwise and

remove it, and then partially peel back
the mudguard.

3. Turn the socket and bulb assembly

counterclockwise and remove it.

4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse

order of the removal procedure.

Fog lights

, Side turn signal lights

Brake lights/Taillights (LED type), Rear
side-marker lights (LED type),Taillights
(LED type)

, High-mount brake light,

Reverse lights (LED type)

Maintenance and Care

Owner Maintenance

6-44

*Some models.

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

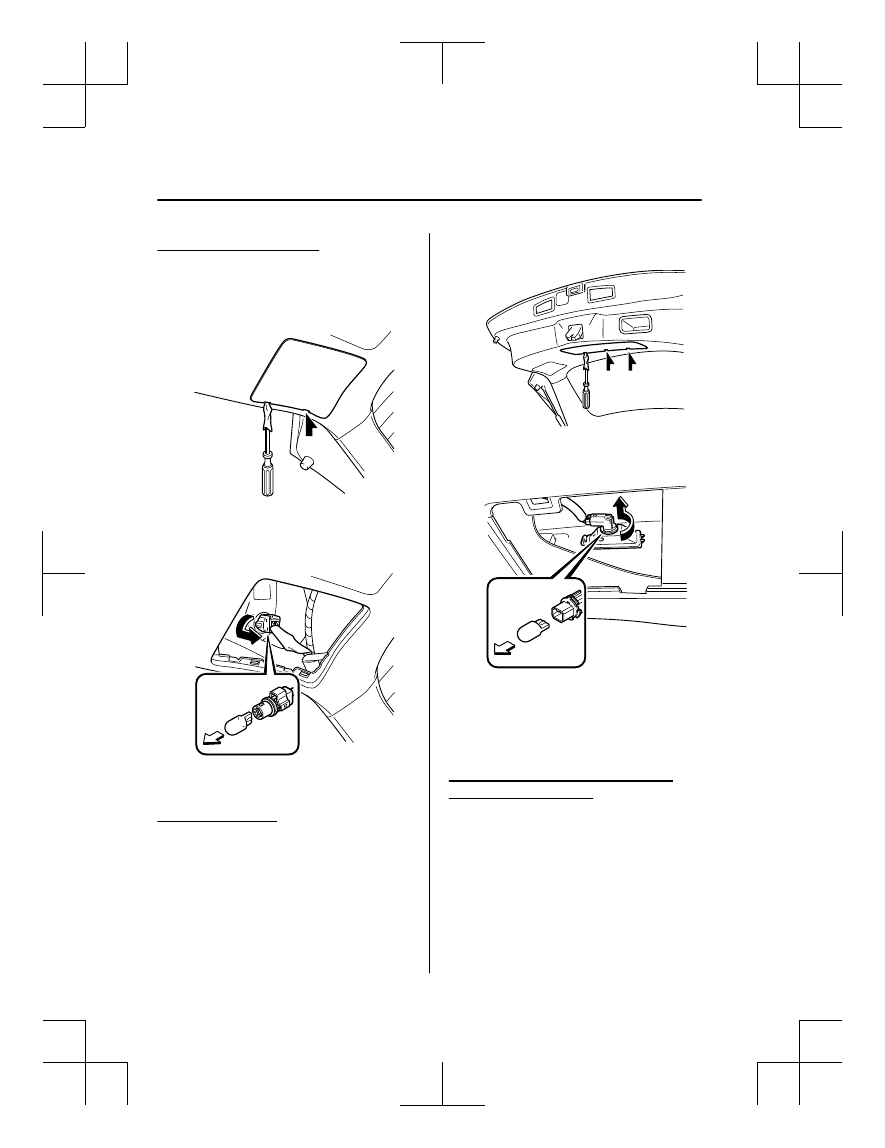

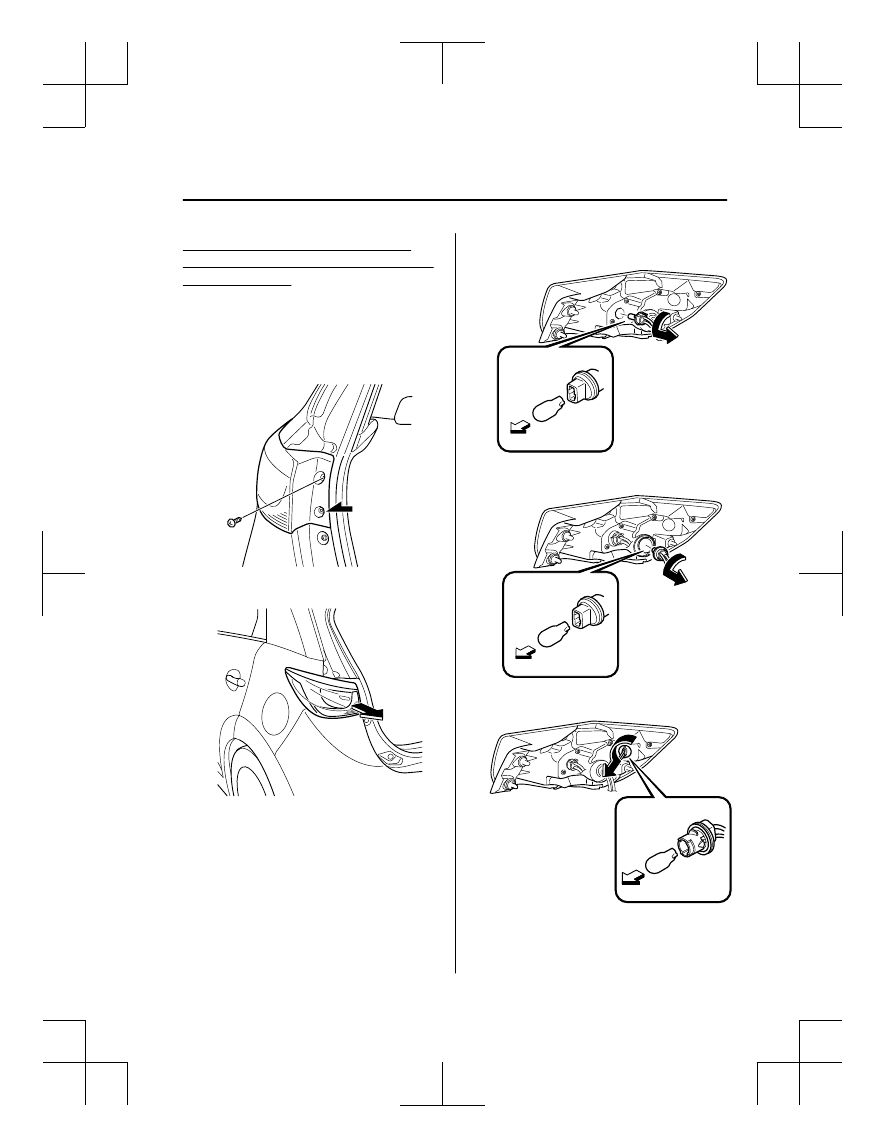

Reverse lights (Bulb type)

1. Make sure the ignition is switched off,

and the headlight switch is off.

2. Remove the cover.

3. Turn the socket and bulb assembly

counterclockwise and remove it.

4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse

order of the removal procedure.

License plate lights

1. Make sure the ignition is switched off,

and the headlight switch is off.

2. Remove the cover.

3. Turn the socket and bulb assembly

counterclockwise and remove it.

4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse

order of the removal procedure.

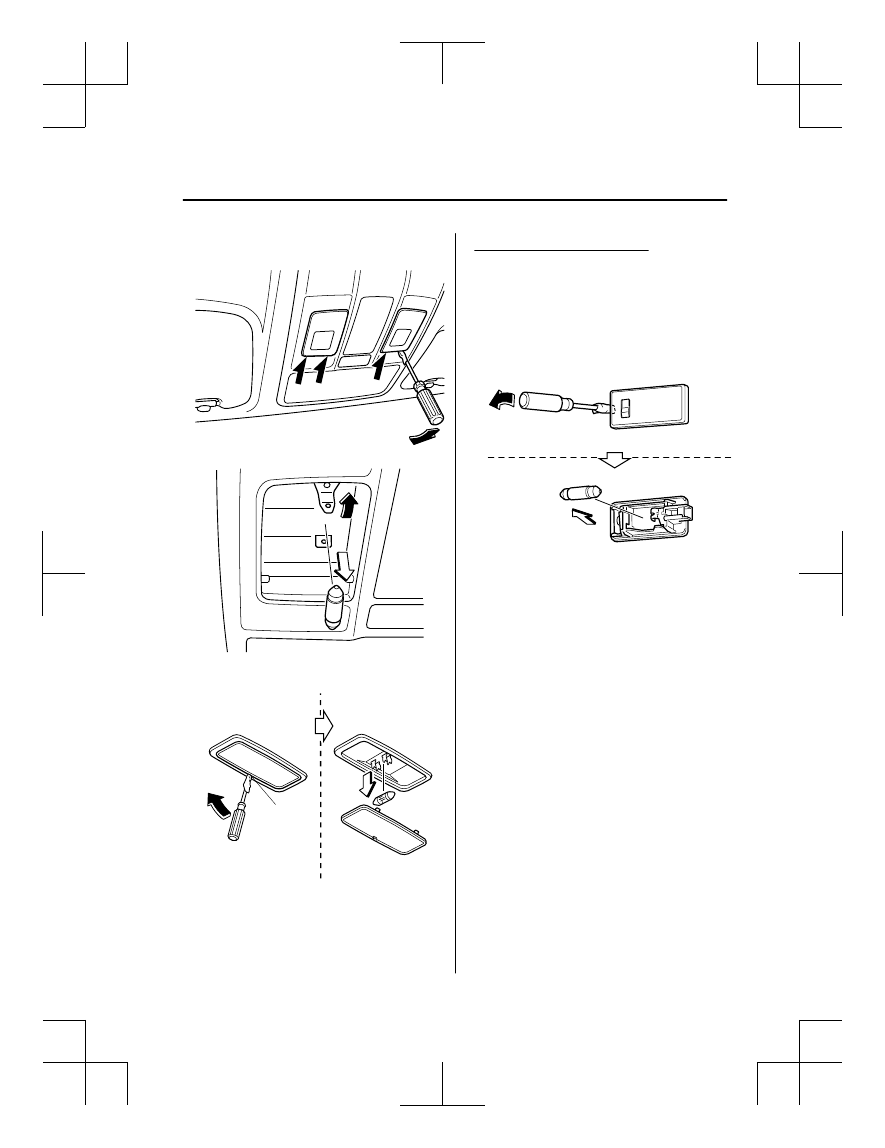

▼ Replacing Interior Light Bulbs

Overhead lights (Front)/Map lights,
Overhead lights (Rear)

1. Wrap a small flathead screwdriver with

a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.

2. Disconnect the bulb by pulling it out.

Maintenance and Care

Owner Maintenance

6-46

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

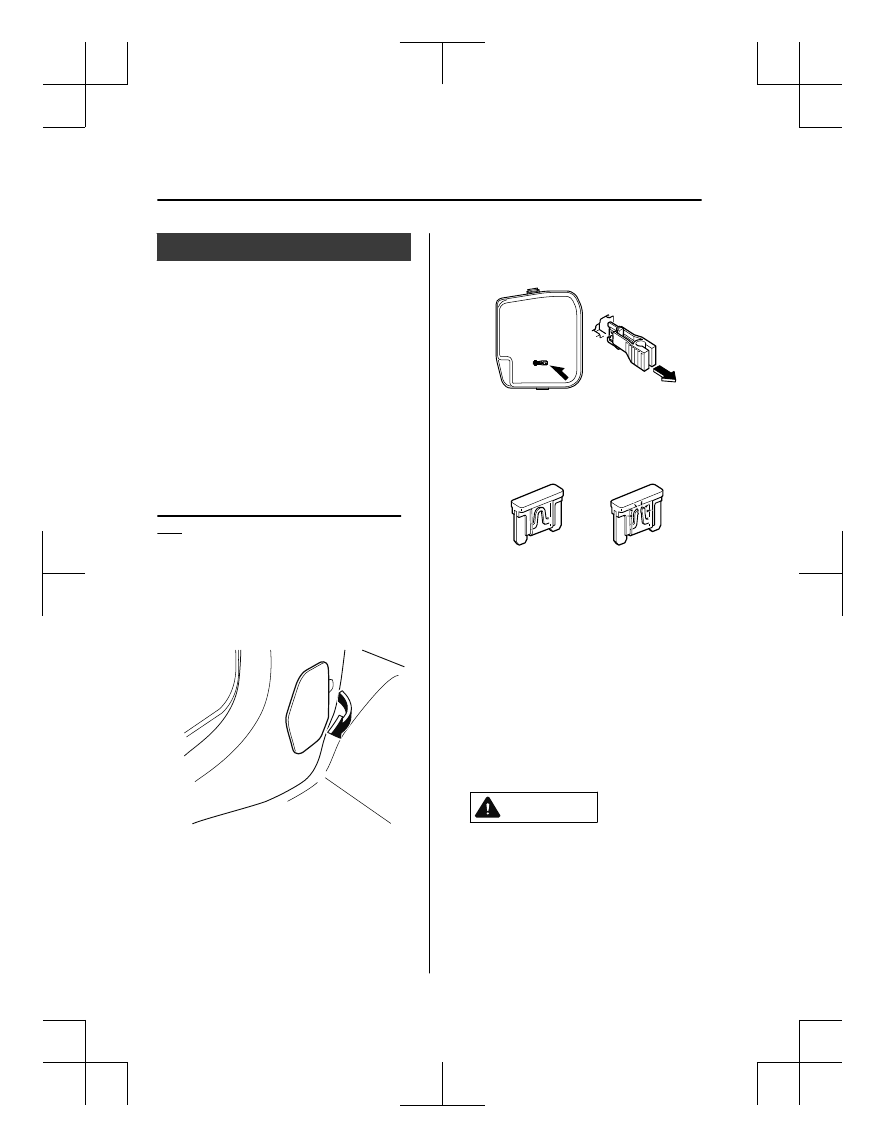

Fuses

Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

▼ Fuse Replacement

Replacing the fuses on the vehicle's left
side

If the electrical system does not work, first
inspect the fuses on the vehicle's left side.

1. Make sure the ignition is switched off,

and other switches are off.

2. Open the fuse panel cover.

3. Pull the fuse straight out with the fuse

puller provided on the fuse block
located in the engine compartment.

4. Inspect the fuse and replace it if it is

blown.

Normal

Blown

5. Insert a new fuse of the same

amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.

CAUTION

Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.

6. Reinstall the cover and make sure that

it is securely installed.

Maintenance and Care

Owner Maintenance

6-48

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

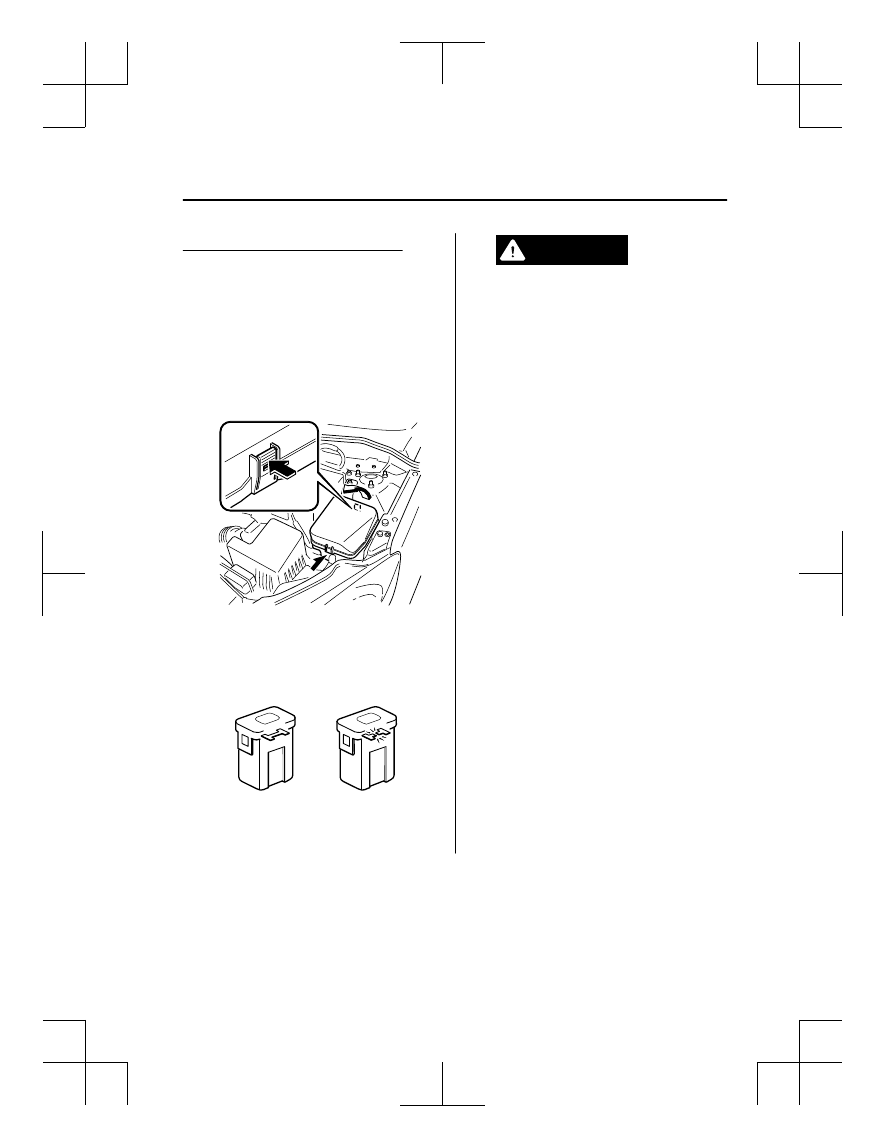

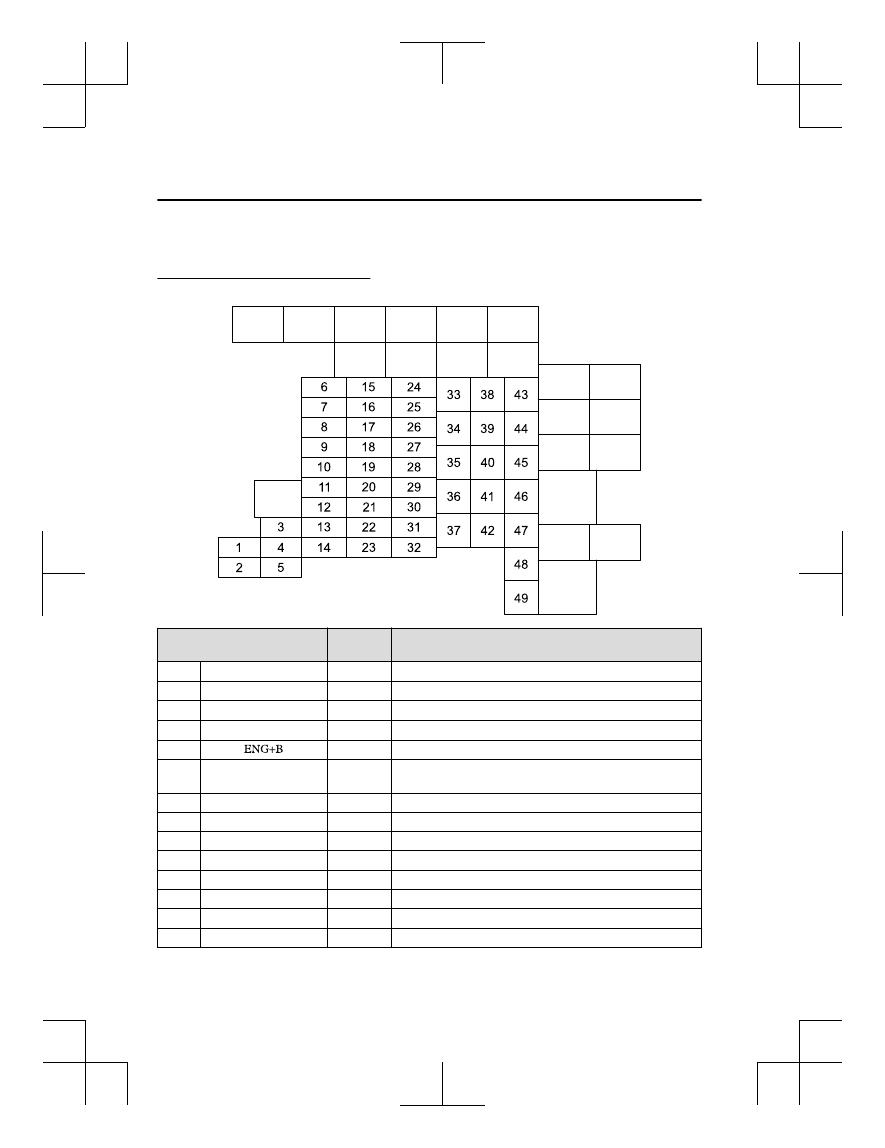

Replacing the fuses under the hood

If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:

1. Make sure the ignition is switched off,

and other switches are off.

2. Remove the fuse block cover.

3. If any fuse but the MAIN fuse is

blown, replace it with a new one of the
same amperage rating.

Normal

Blown

WARNING

Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.

4. Reinstall the cover and make sure that

it is securely installed.

Maintenance and Care

Owner Maintenance

6-49

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

▼ Fuse Panel Description

Fuse block (Engine compartment)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

C/U IG1

15 A

For protection of various circuits

ENGINE IG1

7.5 A

Engine control system

SUNROOF

10 A

Moonroof

INTERIOR

15 A

Overhead light, Audio system

7.5 A

Engine control system

AUDIO2

ENGINE4

15 A

Engine control system

METER1

10 A

Instrument cluster

SRS1

7.5 A

Air bag

METER2

7.5 A

―

RADIO

7.5 A

Audio system

ENGINE3

15 A

Engine control system

ENGINE1

15 A

―

ENGINE2

15 A

Engine control system

AUDIO1

25 A

Audio system

Maintenance and Care

Owner Maintenance

6-50

*Some models.

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

A/C MAG

7.5 A

Air conditioner

AT PUMP

15 A

―

15 A

Transaxle control system

D.LOCK

25 A

Power door locks

H/L RH

20 A

Headlight (RH)

7.5 A

Engine control system

TAIL

20 A

Taillights, License plate lights, Parking lights

ST.HEATER

15 A / 20 A Heated steering wheel

, Headlight

ROOM

25 A

Overhead light

FOG

15 A

Fog lights

H/CLEAN

20 A

―

STOP

10 A

Brake lights

HORN

15 A

Horn

H/L LH

20 A

Headlight (LH)

ABS/DSC S

30 A

ABS, Dynamic stability control system

HAZARD

15 A

Hazard warning flashers, Turn signal lights

FUEL PUMP

SCR

15 A

Fuel system

FUEL WARM

25 A

―

WIPER

20 A

Front window wiper

50 A

For protection of various circuits

FAN2

EPB L

30 A

Electric parking brake (LH)

FUEL PUMP

30 A

―

ABS/DSC M

50 A

ABS, Dynamic stability control system

EVVT

20 A

Engine control system

―

FAN1

EPB R

30 A

Electric parking brake (RH)

FAN3

40 A

Cooling fan

ENG.MAIN

40 A

Engine control system

EPS

60 A

―

DEFOG

40 A

Rear window defogger

IG2

30 A

For protection of various circuits

INJECTOR

ENG.SUB

30 A

Engine control system

Maintenance and Care

Owner Maintenance

*Some models.

6-51

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

HEATER

40 A

Air conditioner

P.WINDOW1

30 A

Power windows

DCDC DE

40 A

―

Fuse block (Left side)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

―

AUDIO2

15 A

Audio system

ST.HEATER

10 A

Heated steering system

F.OUTLET

15 A

Accessory sockets

―

AT IND

7.5 A

AT shift indicator

MIRROR

7.5 A

Power control mirror

―

P.WINDOW2

25 A

Power windows

R.WIPER

15 A

Rear window wiper and washer

P.SEAT D

30 A

Power seat

―

SRS2/ESCL

15 A

―

SEAT WARM

20 A

Seat warmer

Maintenance and Care

Owner Maintenance

6-52

*Some models.

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Mazda CX-3 (2019 year). Manual - part 29
