Mazda 3 Hatchback (2018 year). Manual - part 9



The trip record will be erased when:



The power supply is interrupted
(blown fuse or the battery is
disconnected).



The vehicle is driven over 9999.9 km
(mile).

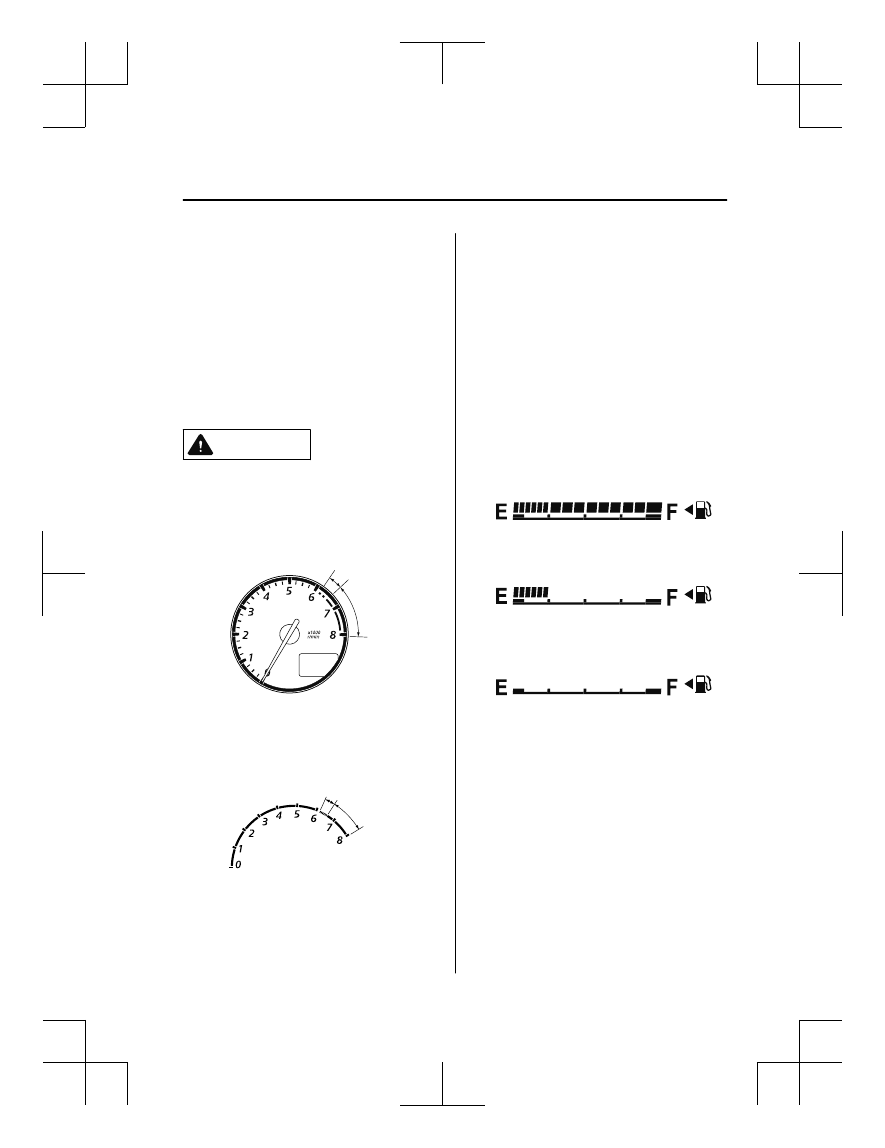

▼ Tachometer

*

The tachometer shows engine speed in
thousands of revolutions per minute (rpm).

CAUTION

Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.
Type A

*

1

The range varies depending on the type
of gauge.

*

1

Striped zone

*

1

Red zone

Type B

*

1

The range varies depending on the type
of gauge.

*

1

Striped zone

*

1

Red zone

NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.

▼ Fuel Gauge

The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.
Type A/Type B instrument cluster

Full

1/4 Full

Empty

When Driving

Instrument Cluster and Display

*Some models.

4-15

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

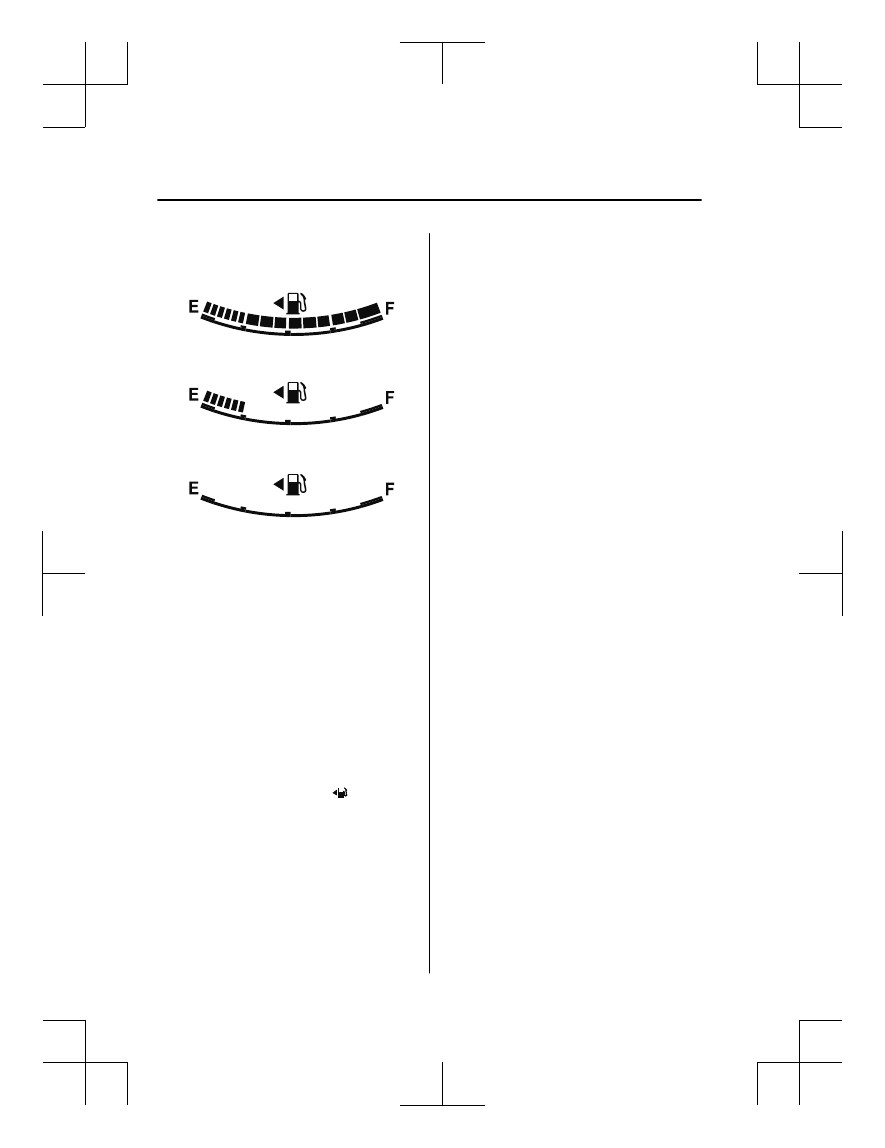

Type C instrument cluster

Full

1/4 Full

Empty

If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Taking Action on page 7-32 .

NOTE



After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.



The display indicating a quarter or less
remaining fuel has more segments to
show the remaining fuel level in greater
detail.



The direction of the arrow ( ) indicates
that the fuel-filler lid is on the left side
of the vehicle.

▼ Dashboard Illumination

(Without auto-light control)
When the position lights are turned on
with the ignition switched ON, the
brightness of the dashboard illumination is
dimmed.
(With auto-light control)
When the position lights are turned on
with the ignition switched ON, the
brightness of the dashboard illumination is
dimmed. However, when the light sensor
detects that the surrounding area is bright
such as when the position lights are turned
on in the daytime, the dashboard
illumination does not dim.

NOTE



(With auto-light control)
When the ignition is switched ON in the
early evening or at dusk, the dashboard
illumination is dimmed for several
seconds until the light sensor detects the
brightness of the surrounding area,
however, the dimmer may cancel after
the brightness is detected.



When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-43.

The brightness of the instrument cluster
and dashboard illuminations can be
adjusted by rotating the knob.



The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.

When Driving

Instrument Cluster and Display

4-16

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21



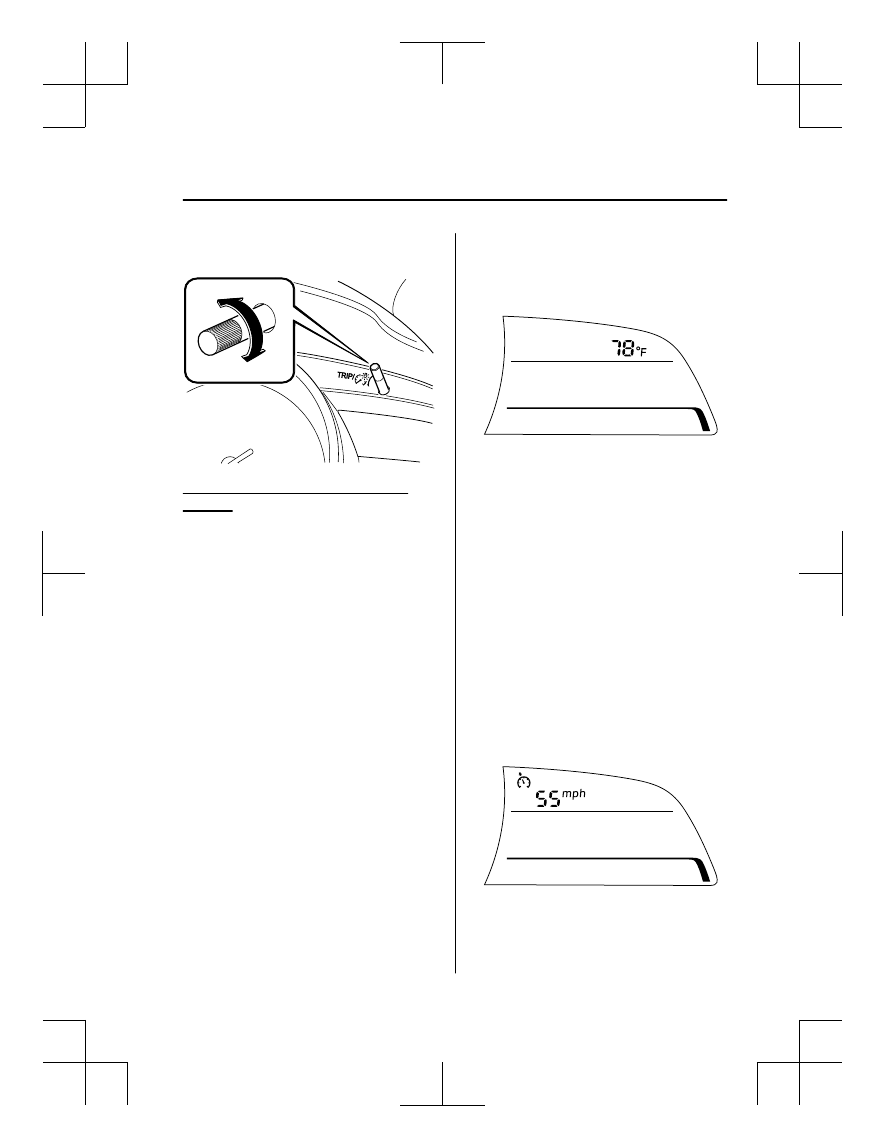

The brightness increases by rotating the
knob to the right.

Dim

Bright

Function for cancelling illumination
dimmer

The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
heard while the instrument cluster is
dimmed with the ignition switched ON. If
the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.

NOTE



When the illumination dimmer is
canceled, the instrument cluster cannot
be dimmed even if the position lights are
turned on.



When the illumination dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.

▼ Outside Temperature Display

*

When the ignition is switched ON, the
outside temperature is displayed.

NOTE



Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:



Significantly cold or hot temperatures.



Sudden changes in outside
temperature.



The vehicle is parked.



The vehicle is driven at low speeds.

▼ Cruise Control Set Vehicle Speed

Display

*

The vehicle speed preset using the cruise
control is displayed.

When Driving

Instrument Cluster and Display

*Some models.

4-17

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

▼ Trip Computer and INFO Switch

*

The following information can be selected
by pressing the INFO switch with the
ignition switched ON.



Distance-to-empty mode



Average fuel economy mode



Current fuel economy mode



Average vehicle speed

If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.

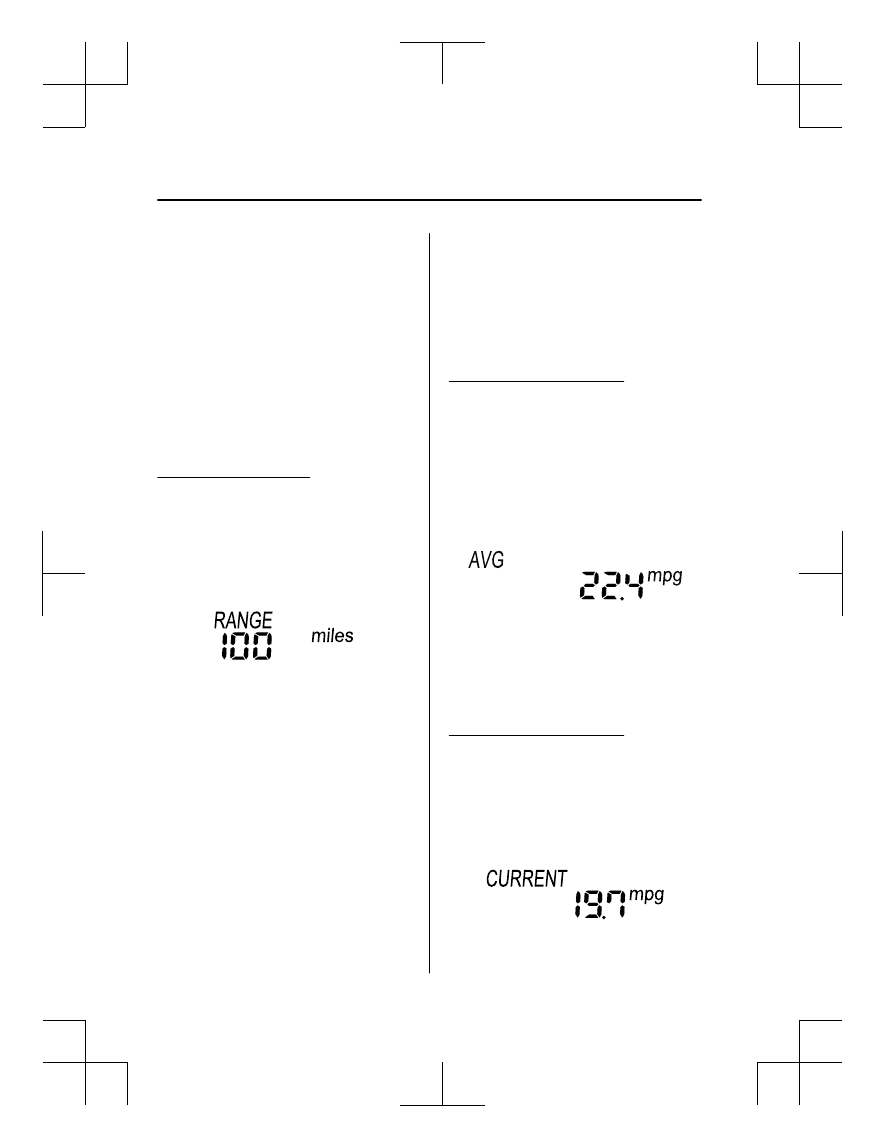

Distance-to-empty mode

This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.

NOTE



Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refueling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.



The display may not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.



The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
(indicating the remaining fuel supply)
disappear.



If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.

Average fuel economy mode

This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle,
re-connecting the battery after
disconnection, or resetting the data. The
average fuel economy is calculated and
displayed every minute.

To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - -
L/100 km (- - - mpg) will be displayed for
about 1 minute before the fuel economy is
recalculated and displayed.

Current fuel economy mode

This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance traveled.

Current fuel economy will be calculated
and displayed every 2 seconds.

When Driving

Instrument Cluster and Display

4-18

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.

Average vehicle speed mode

This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.

To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - km/h
(- - - mph) will be displayed for about 1
minute before the vehicle speed is
recalculated and displayed.

When Driving

Instrument Cluster and Display

4-19

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

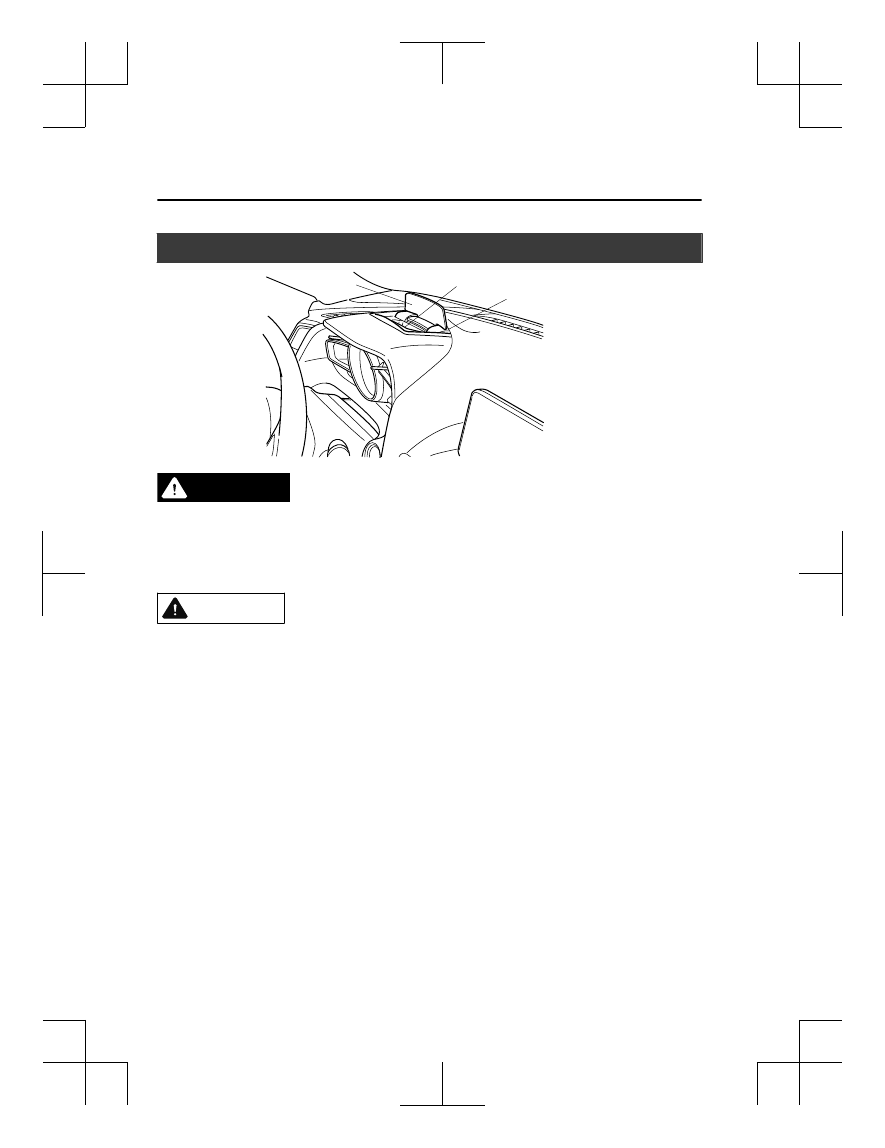

Active Driving Display

*

Optical receiver

Mirror

Combiner

WARNING

Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as doing
so could distract your attention from the road ahead and lead to an accident.

CAUTION

Do not try to adjust the angle or open/close the active driving display manually.

Fingerprints on the display will make it difficult to view and using excessive force when
operating it could cause damage.

Do not place objects in the vicinity of the active driving display. The active driving display

may not operate or any interference with its operation could cause damage.

Do not place beverages near the active driving display. If water or other liquids are splashed

on the active driving display, it could cause damage.

Do not place objects above the active driving display or apply stickers to the dust-proof

sheet/optical receiver as they will cause interference.

A sensor is integrated to control the display's luminosity. If the optical receiver is covered,

the display's luminosity will lower making the display difficult to view.

Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.

When Driving

Instrument Cluster and Display

4-20

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

NOTE



Wearing polarized sunglasses will reduce the visibility of the active driving display due to
the characteristics of the display.



If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate.



The display may be difficult to view or temporarily affected by weather conditions such as
rain, snow, light, and temperature.



If the audio system is removed, the active driving display cannot be operated.

The active driving display indicates the following information:



Blind Spot Monitoring (BSM) Operation Conditions and Warnings
Refer to Blind Spot Monitoring (BSM) on page 4-84.



Distance Recognition Support System (DRSS) Warnings
Refer to Distance Recognition Support System (DRSS) on page 4-96.



Traffic Sign Recognition System (TSR) traffic signs and Warnings
Refer to Traffic Sign Recognition System (TSR) on page 4-90.



Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
Refer to Mazda Radar Cruise Control (MRCC) on page 4-102.



Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation
Conditions and Warnings
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) on
page 4-113.



Smart City Brake Support (SCBS) Warnings
Refer to Smart City Brake Support (SCBS) on page 4-124.



Smart Brake Support (SBS) Warnings
Refer to Smart Brake Support (SBS) on page 4-128.



Cruise Control Operation Conditions
Refer to Cruise Control on page 4-141.



Navigation Guidance (vehicles with navigation system)



Speed limit indicator (vehicles with navigation system)



Vehicle Speed

When Driving

Instrument Cluster and Display

4-21

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Each setting/adjustment for the active driving display can be performed on the center
display.
1. Select the

icon on the home screen and display the Settings screen.

2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.



Method for adjusting screen brightness (automatically/manually)



Screen brightness initial settings (automatic adjustment is selected)



Screen brightness adjustment (manual adjustment is selected)



Display position of active driving display (display height)



Active driving display ON/OFF (indication)



Navigation guidance ON/OFF



Reset settings (reset)

When Driving

Instrument Cluster and Display

4-22

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

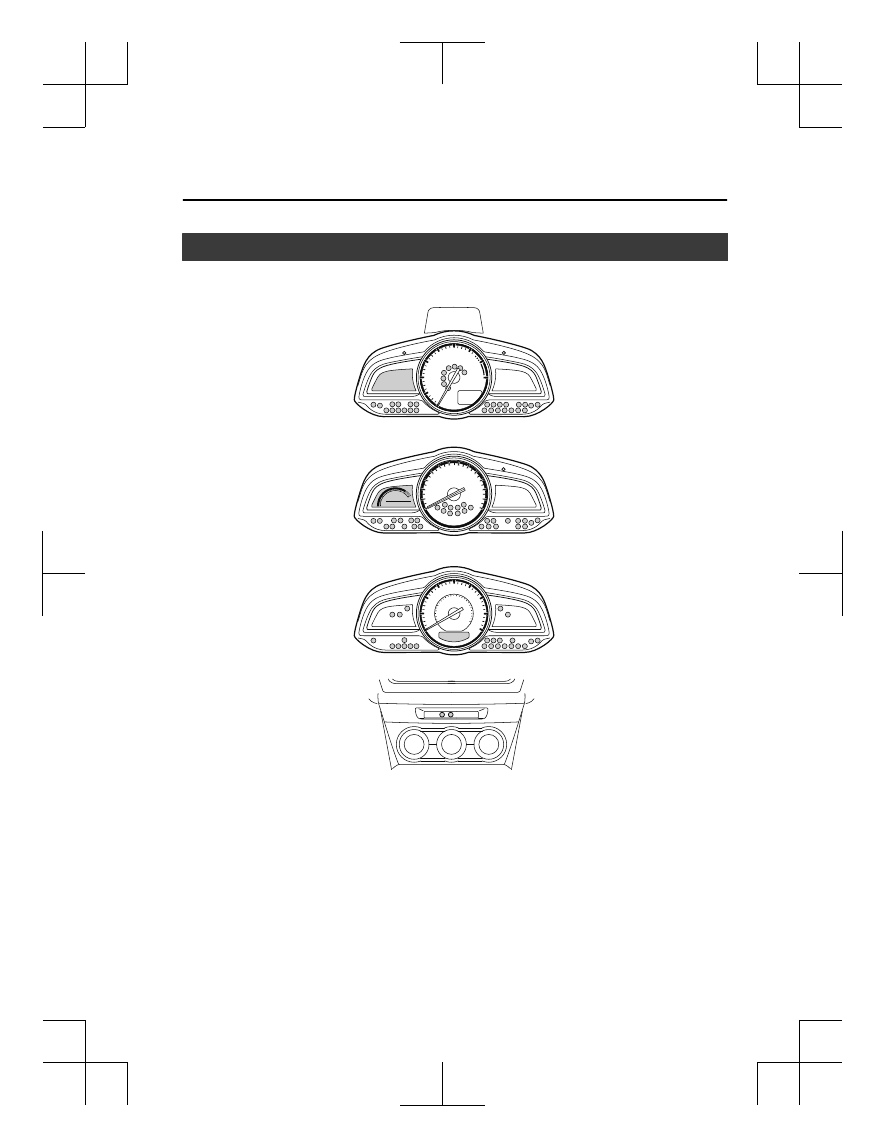

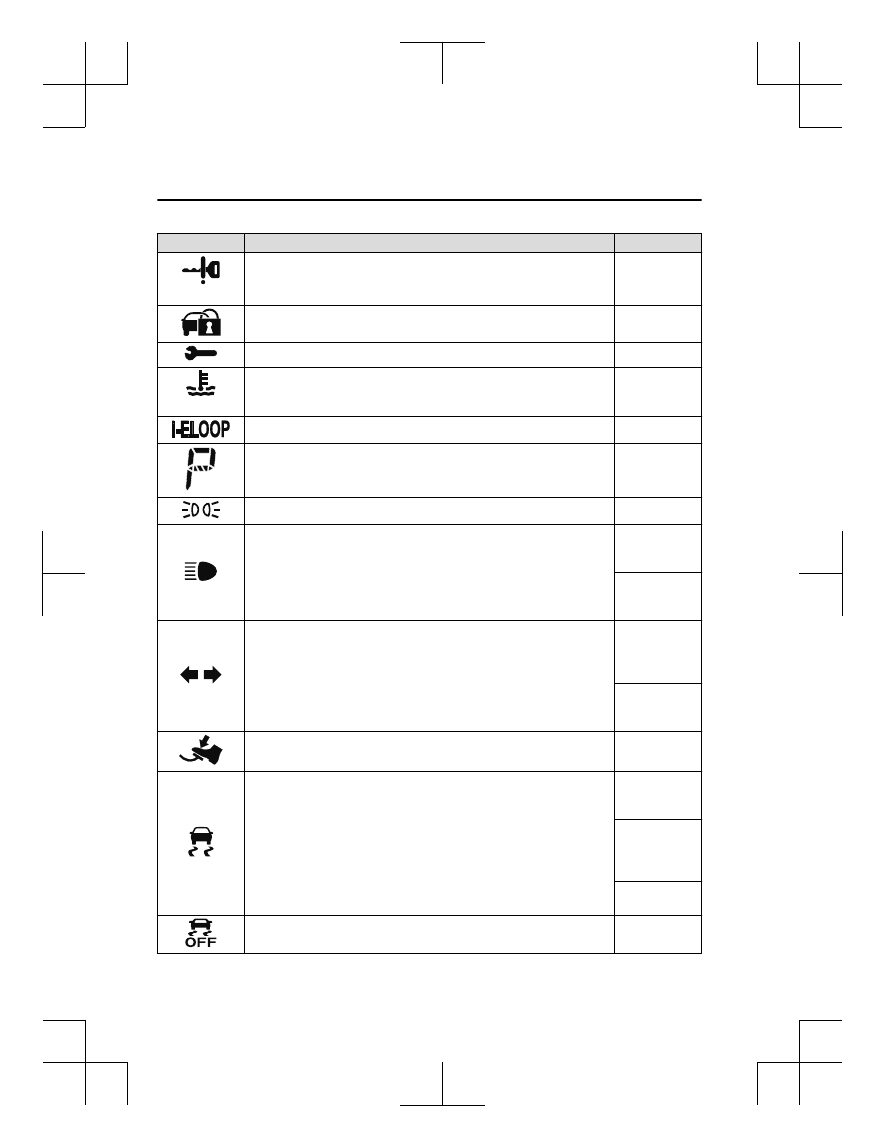

Warning/Indicator Lights

Instrument Cluster varies depending on model and specifications.

Warning/Indicator lights will appear in any of the highlighted areas

Type A

Type B

Type C

Center of Dashboard

(Digital Speed Meter Type)

(Analog Speed Meter Type (With Tachometer))

(Analog Speed Meter Type (Without Tachometer))

Instrument Cluster

When Driving

Instrument Cluster and Display

4-23

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

▼ Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system
malfunction.

Signal

Warning

Page

Brake System Warning Light

*1*2

ABS Warning Light

*1

Electronic Brake

Force Distribu-

tion System

Warning

ABS warning

Charging System Warning Light

*1

Engine Oil Warning Light

*1

(Red)

High Engine Coolant Temperature Warning Light

*1

Power Steering Malfunction Indicator Light

*1

Master Warning Light

*1

*

Electric Parking Brake (EPB) Warning Light

*1

Check Engine Light

*1

*

Automatic Transaxle Warning Light

*1

Air Bag/Seat Belt Pretensioner System Warning Light

*1

*

Tire Pressure Monitoring System Warning Light

*1

Flashing

Turns on

(Red)

KEY Warning Light

*1

Turns on

Flashing

(Amber)

*

High Beam Control System (HBC) Warning Light

*1

When Driving

Instrument Cluster and Display

4-24

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Signal

Warning

Page

(Amber)

*

Mazda Radar Cruise Control (MRCC) Warning Light

*

Lane-keep Assist System (LAS) & Lane Departure Warning System

(LDWS) Warning Light

*1

*

LED Headlight Warning Light

*1

(Amber)

*

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning

Light

*1

Low Fuel Warning Light

Check Fuel Cap Warning Light

*1

Seat Belt Warning Light

*

Low Washer Fluid Level Warning Light

Door-Ajar Warning Light

*

1 The light turns on when the ignition is switched on for an operation check, and turns off

a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.

*

2 The light turns on continuously when the parking brake is applied.

▼ Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system
malfunction.

Signal

Indicator Lights

Page

*

Blind Spot Monitoring (BSM) OFF Indicator Light

*1

Except malfunc-

tion

Malfunction

*

Lane-keep Assist System (LAS) & Lane Departure Warning System

(LDWS) OFF Indicator Light

*1

When Driving

Instrument Cluster and Display

*Some models.

4-25

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Signal

Indicator Lights

Page

(Green)

KEY Indicator Light

Security Indicator Light

*1

Wrench Indicator Light

*1

(Blue)

Low Engine Coolant Temperature Indicator Light

*

i-ELOOP Indicator Light

Shift Position Indication

Lights-On Indicator Light

Headlight High-Beam Indicator Light

Headlight

High-Low Beam

Flashing the

Headlights

Turn Signal/Hazard Warning Indicator Lights

Turn and

Lane-Change

Signals

Hazard Warning

Flasher

*

Brake Pedal Operation demand Indicator Light

TCS/DSC Indicator Light

*1

Traction Control

System (TCS)

Dynamic Stabil-

ity Control

(DSC)

(Turns on)

DSC OFF Indicator Light

*1

When Driving

Instrument Cluster and Display

4-26

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Signal

Indicator Lights

Page

*

Select Mode Indicator Light

(Green)

*

High Beam Control System (HBC) Indicator Light

(Green)

*

Mazda Radar Cruise Control (MRCC) Indicator Light

(Red)

*

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Indicator

Light

Smart City

Brake Support

(SCBS)

Smart Brake

Support (SBS)

*

Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indica-

tor Light

Smart City

Brake Support

(SCBS)

Smart Brake

Support (SBS)

*

Front Passenger Air Bag Deactivation Indicator Light

*1

(White)

*

Cruise Main Indication

(Green/White)

*

Cruise Set Indication/Indicator Light

*

1 The light turns on when the ignition is switched on for an operation check, and turns off

a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.

When Driving

Instrument Cluster and Display

*Some models.

4-27

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

▼ Wrench Indicator Light

When the ignition is switched ON, the
wrench indicator light is illuminated and
then turns off after a few seconds.

The wrench indicator light is illuminated
when the preset maintenance period
arrives. Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page 6-
16.

▼ Low Engine Coolant Temperature

Indicator Light (Blue)

The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have a
malfunction. Consult an Authorized
Mazda Dealer.

When Driving

Instrument Cluster and Display

4-28

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

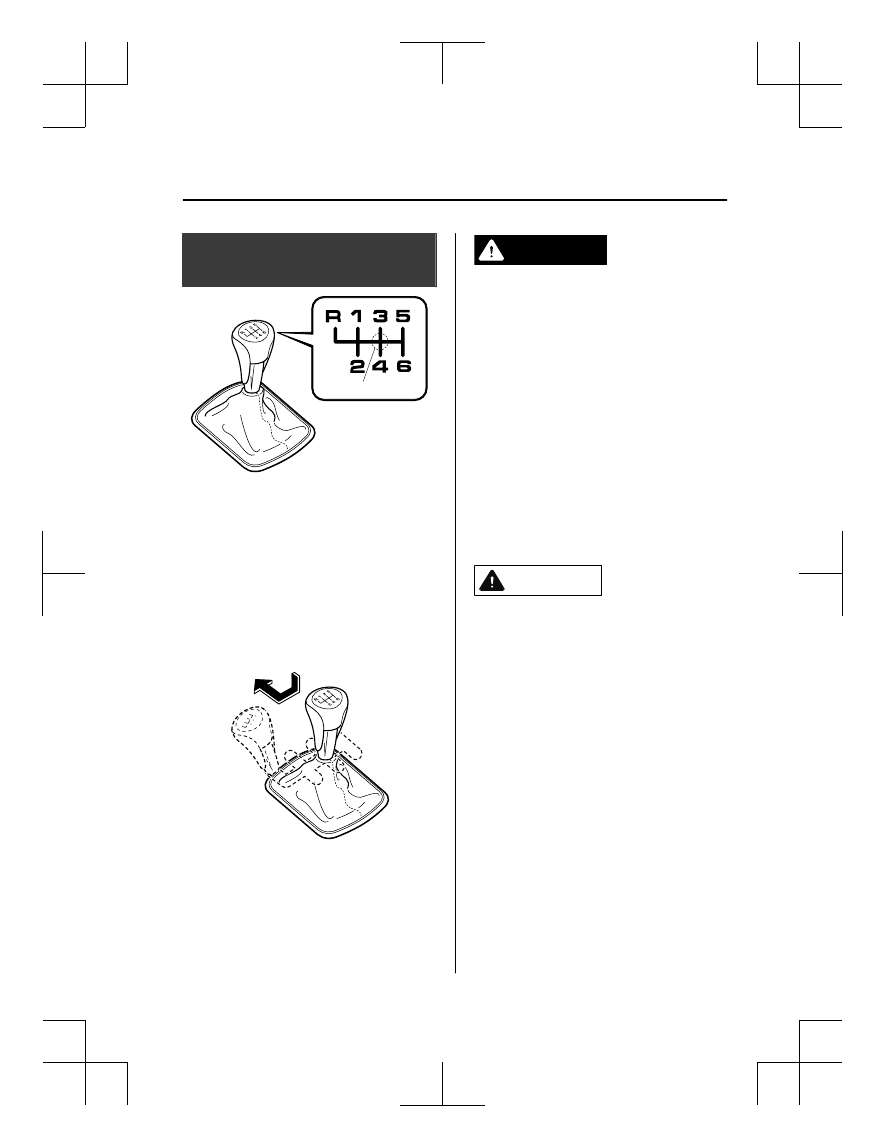

Manual Transaxle Shift

Pattern

Neutral position

The shift pattern of the transaxle is
conventional, as shown.

Depress the clutch pedal all the way down
while shifting; then release it slowly.

Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift to
R.

WARNING

Do not use sudden engine braking on
slippery road surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.

Always leave the shift lever in 1 or R
position and set the parking brake when
leaving the vehicle unattended:
Otherwise the vehicle could move and
cause an accident.

CAUTION

Keep your foot off the clutch pedal except

when shifting gears. Also, do not use the
clutch to hold the vehicle on an upgrade.
Riding the clutch will cause needless
clutch wear and damage.

Do not apply any excessive lateral force

to the shift lever when changing from 5th
to 4th gear. This could lead to the
accidental selection of 2nd gear, which
could result in damage to the transaxle.

Make sure the vehicle comes to a

complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transaxle.

When Driving

Manual Transaxle Operation

4-29

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

NOTE



(For vehicles with type C instrument
cluster

*1

)

If the engine speed is about to exceed
the permissible engine speed, the buzzer
sounds.
Refer to Over Rev. Buzzer on page 7-
41.

*

1 To determine which instrument

cluster is equipped on your Mazda,
Refer to Meters and Gauges on page
4-12.



If shifting to R is difficult, shift back into
neutral, release the clutch pedal, and try
again.

▼ Gear Shift Indicator (GSI)

*

The GSI supports you to obtain optimum
fuel economy and smooth driving. It
displays the selected gear position in the
instrument cluster as well as notifies the
driver to change to the most suitable gear
position corresponding to the actual
driving condition.

Selected gear position

Suitable gear position

Indication

Condition

Numeral

The selected gear position is dis-
played.

and numeral

Shift up or down to the indicated
gear position is recommended.

CAUTION

Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traffic conditions
have to be judged correctly by the driver
before shifting.

NOTE
The GSI turns off when the following
operations are performed.



The vehicle is stopped.



The vehicle is put in neutral.



The vehicle is driven in reverse.



The clutch is not fully engaged when
accelerating from a stop.



The clutch pedal remains depressed for
2 seconds or longer while driving.

When Driving

Manual Transaxle Operation

4-30

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Content .. 7 8 9 10 ..
