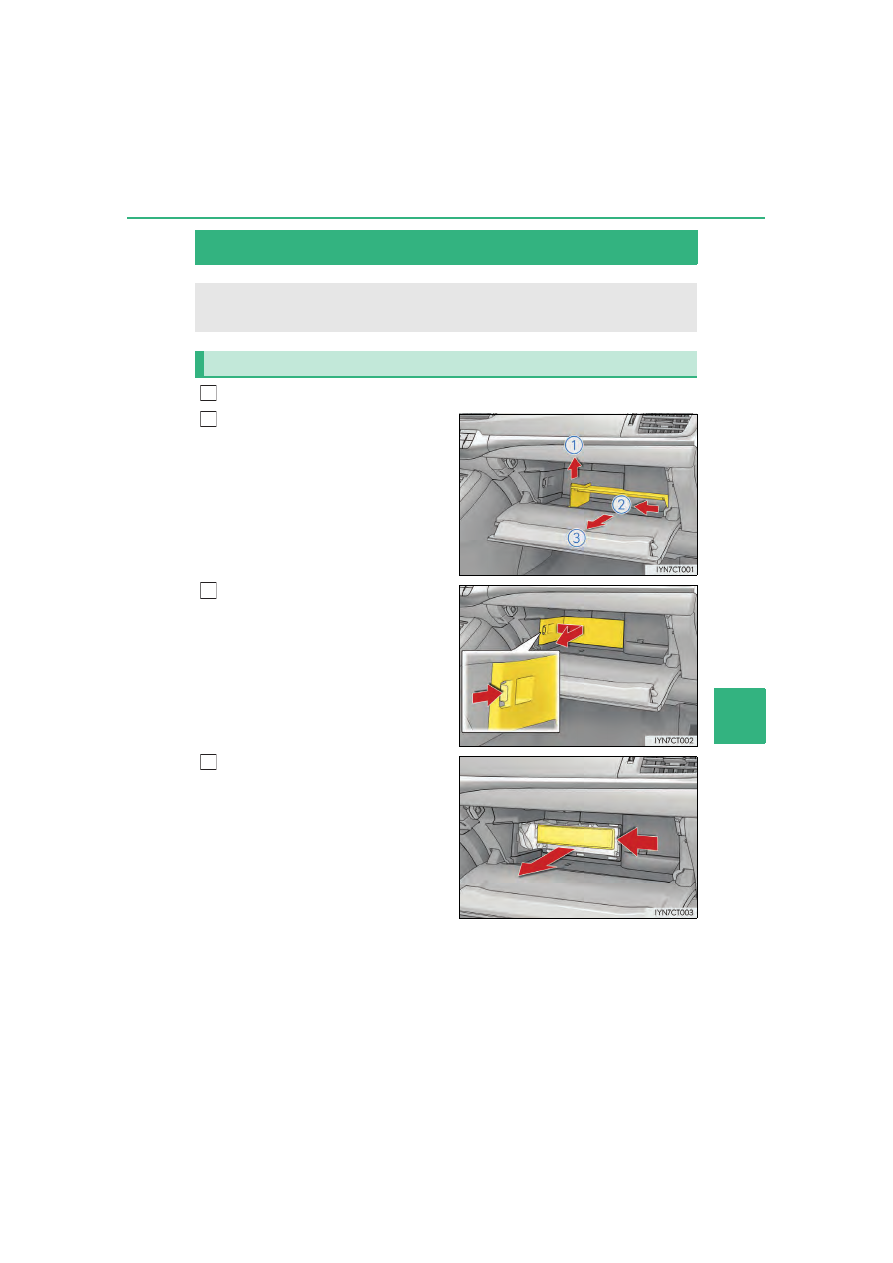

Air conditioning filter

Turn the power switch off.
Open the glove box. Lift and remove
the partition.

Remove the glove box cover.

Remove the filter cover.

The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.

Removal method

508

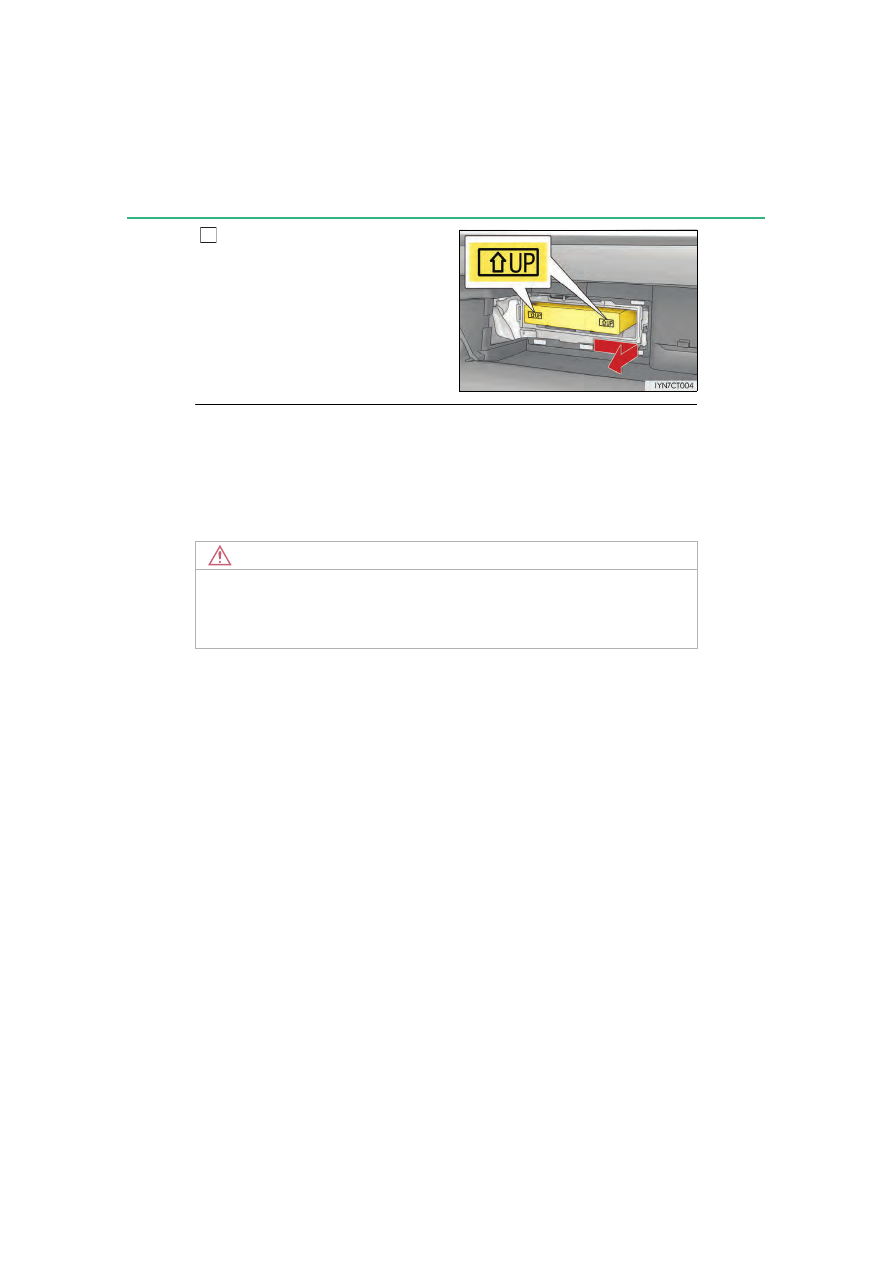

Slide and pull out the filter. Replace it
with a new one.

The “

UP” marks shown on the filter

should be pointing up.

■

Checking interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In

dusty areas or areas with heavy traffic flow, early replacement may be required. (For

scheduled maintenance information, please refer to the “Owner’s Manual Supplement”

or “Scheduled Maintenance”.)

■

If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.

NOTICE

■

When using the air conditioning system
Make sure that a filter is always installed.

Using the air conditioning system without a filter may cause damage to the system.

509

Main

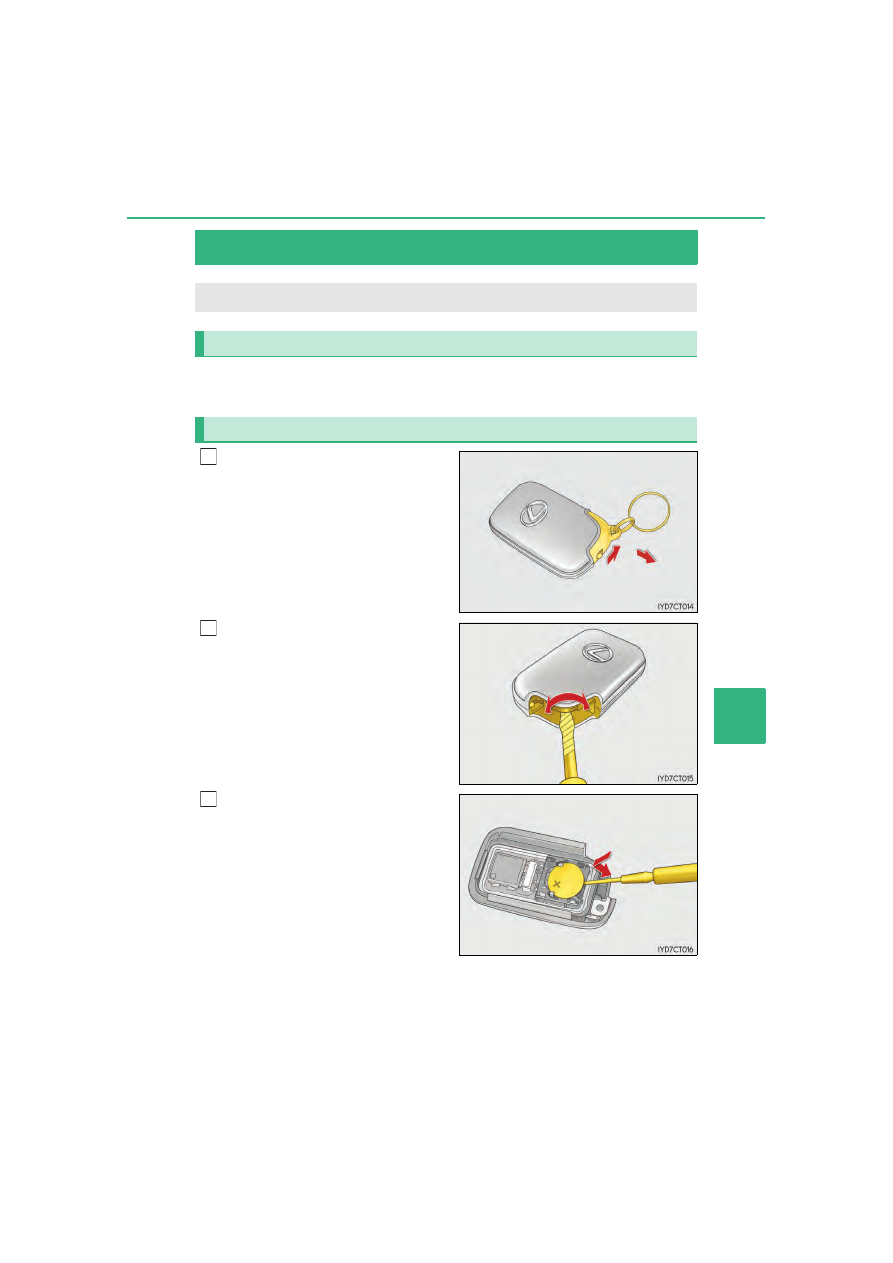

Electronic key battery

●

Flathead screwdriver

●

Lithium battery CR1632

Take out the mechanical key.

Remove the cover.

To prevent damage to the key, cover the

tip of the screwdriver with a rag.

Remove the depleted battery.

Insert a new battery with the “+” termi-

nal facing up.

Replace the battery with a new one if it is depleted.

You will need the following items:

Replacing the battery

510

■

Use a CR1632 lithium battery

●

Batteries can be purchased at your Lexus dealer, local electrical appliance shops or

camera stores.

●

Replace only with the same or equivalent type recommended by the manufacturer.

●

Dispose of used batteries according to the local laws.

■

When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can

replace the battery for you.

■

If the electronic key battery is depleted
The following symptoms may occur:

●

The smart access system with push-button start and wireless remote control will not

function properly.

●

The operational range will be reduced.

WARNING

■

Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away

from children. Failure to do so could result in death or serious injury.

NOTICE

■

For normal operation after replacing the battery
Observe the following precautions to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery to rust.

●

Do not touch or move any other component inside the remote control.

●

Do not bend either of the battery terminals.

511

Main

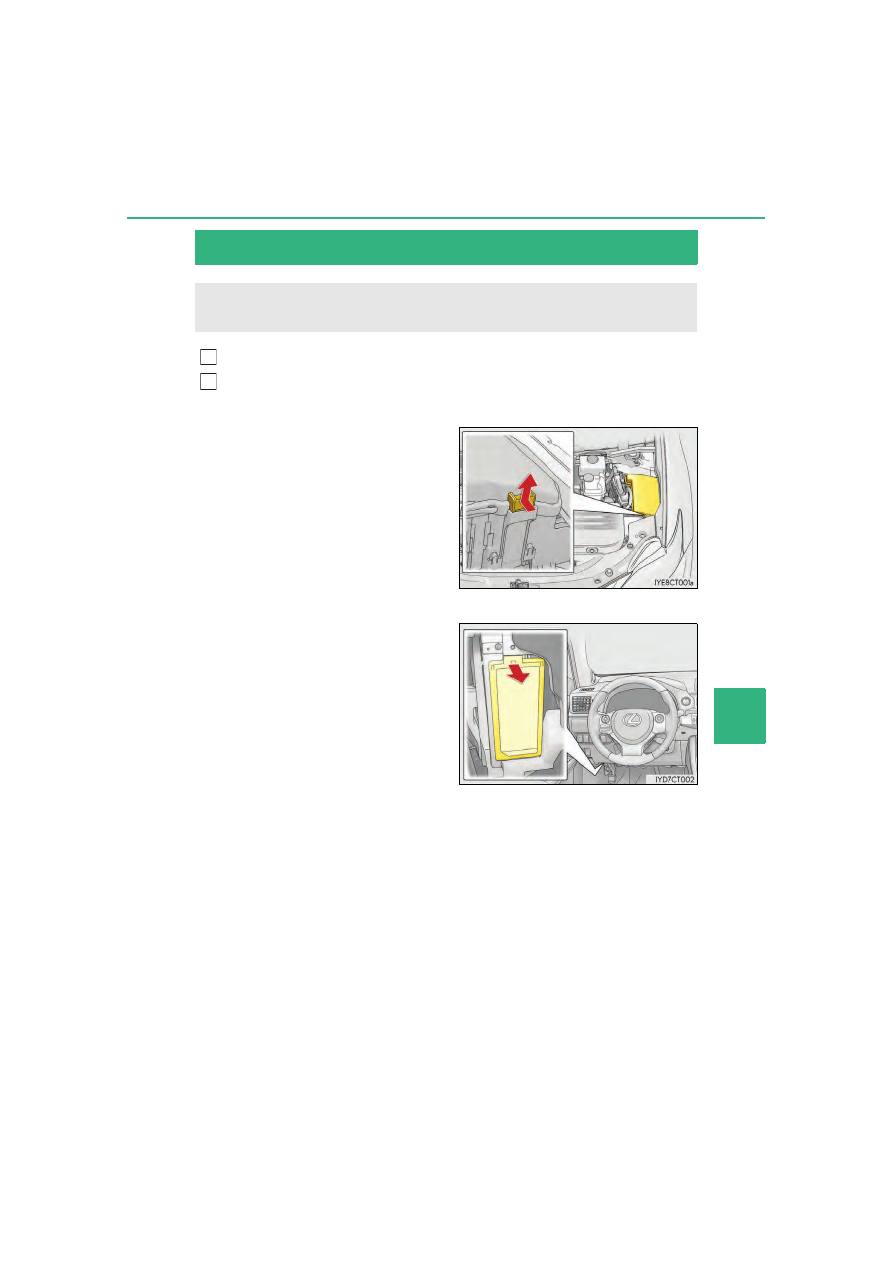

Checking and replacing fuses

Turn the power switch off.
Open the fuse box cover.



Engine compartment

Push the tab in and lift the lid off.



Left side instrument panel

Remove the lid.

If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.

512

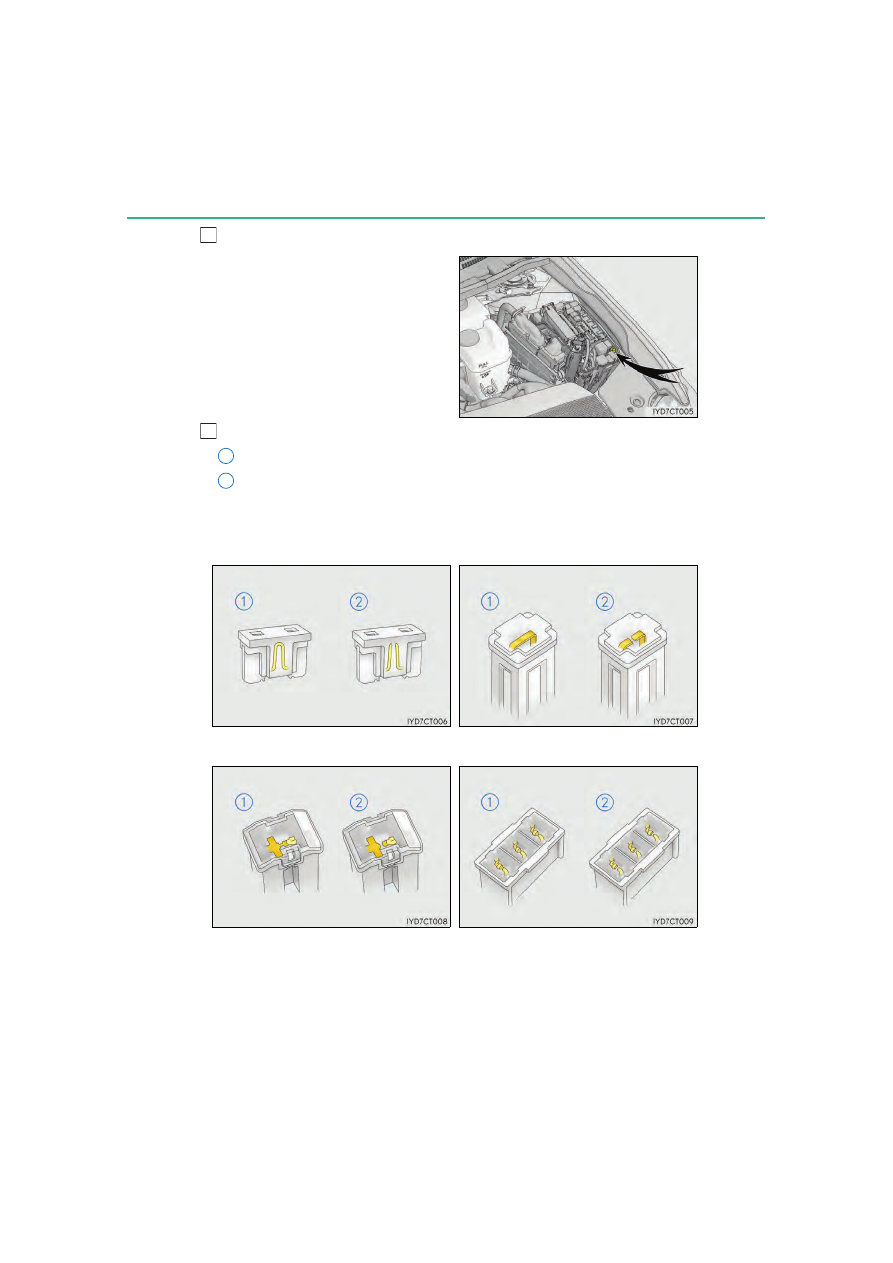

Remove the fuse.
Only type A fuse can be removed
using the pullout tool.

Check if the fuse is blown.

Normal fuse
Blown fuse

Replace the blown fuse with a new fuse of an appropriate amperage rating. The

amperage rating can be found on the fuse box lid.



Type A



Type B



Type C



Type D

513

Main

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may need

replacement. (

P. 514)

●

If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.

■

When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.

Because certain bulbs are connected to circuits designed to prevent overload, nongenu-

ine parts or parts not designed for this vehicle may be unusable.

WARNING

■

To prevent system breakdowns and vehicle fire
Observe the following precautions.

Failure to do so may cause damage to the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use any other

object in place of a fuse.

●

Always use a genuine Lexus fuse or equivalent.

Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

■

Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near the

fuse box.

Doing so may cause electric shock, resulting in death or serious injury.

NOTICE

■

Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as

soon as possible.

514

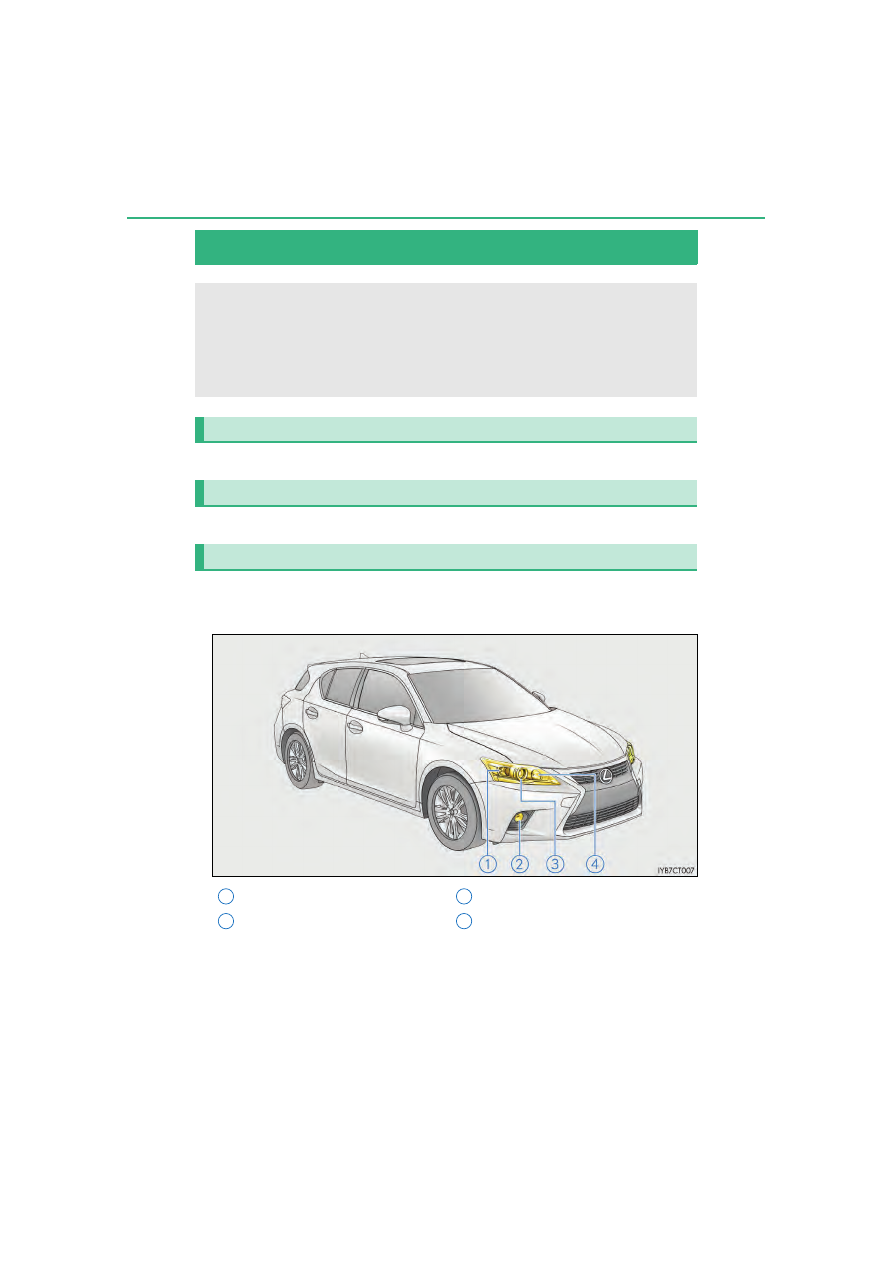

Light bulbs

Check the wattage of the light bulb to be replaced. (

P. 585)

P. 484

■

Front



Vehicles with halogen headlights

You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.

Preparing for light bulb replacement

Removing the engine compartment cover

Bulb locations

Front turn signal light
Halogen fog light (if equipped)

Headlight low beam
Headlight high beam

3
4

515

Main



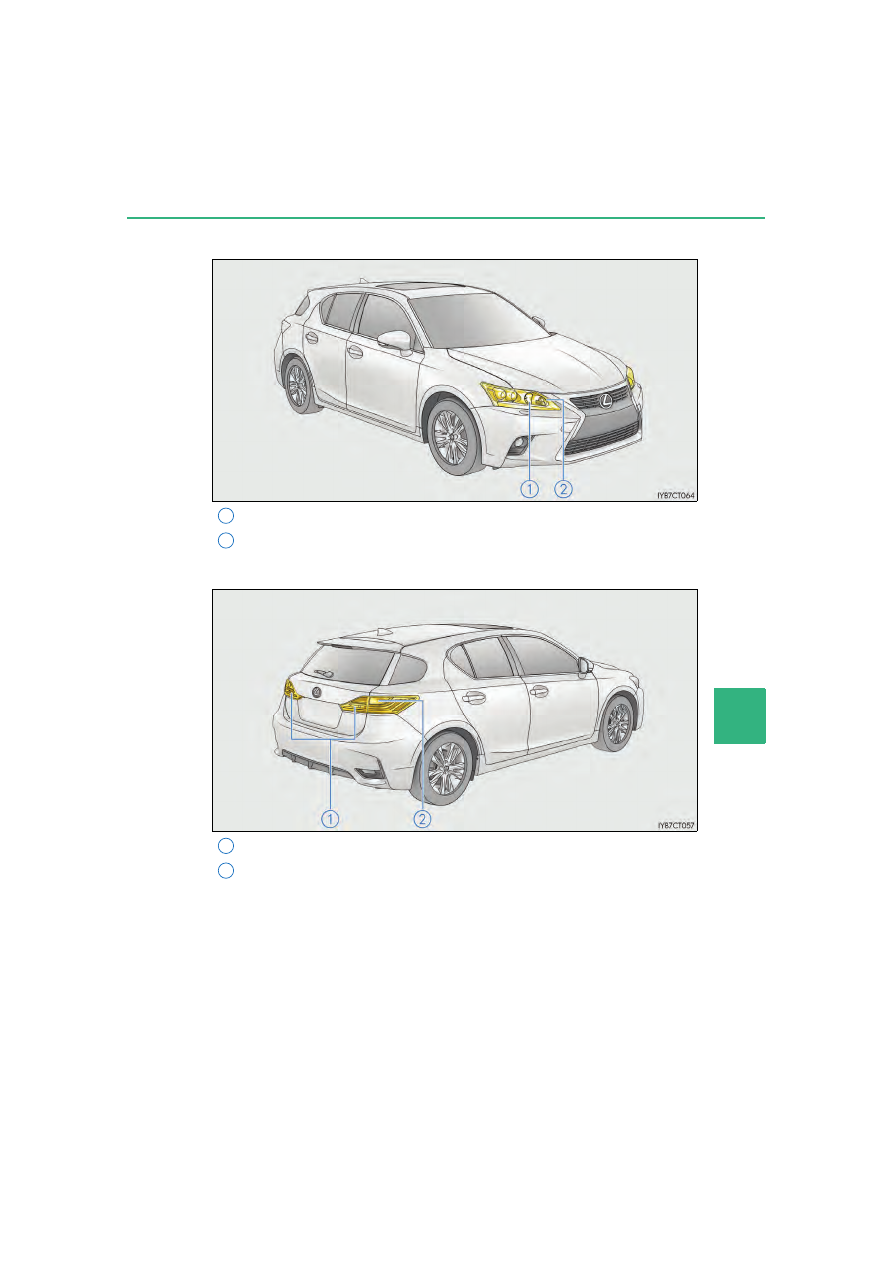

Vehicles with LED headlights

Headlight high beam
Front turn signal light

■

Rear

Back-up light
Rear turn signal light

516

■

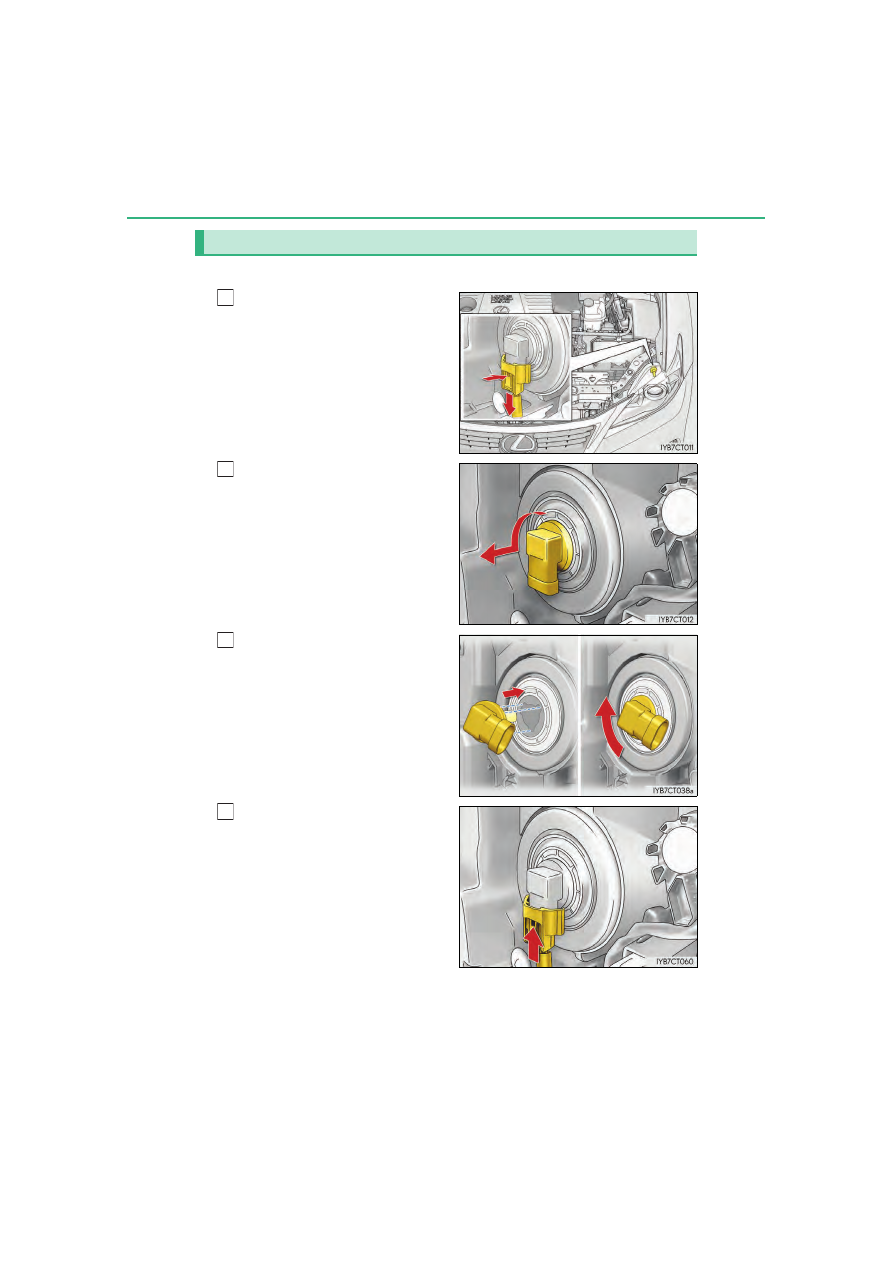

Headlight low beams (halogen headlights)

Unplug the connector while
pressing the lock release.

Turn the bulb base counterclock-
wise.

Set the new light bulb.

Align the 3 tabs on the light bulb with

the mounting, and insert. Turn it

clockwise to set.

Set the connector.

After installing the connector, shake

the bulb base gently to check that it is

not loose, turn the headlight low

beams on once and visually confirm

that no light is leaking through the

mounting.

Replacing light bulbs

517

Main

■

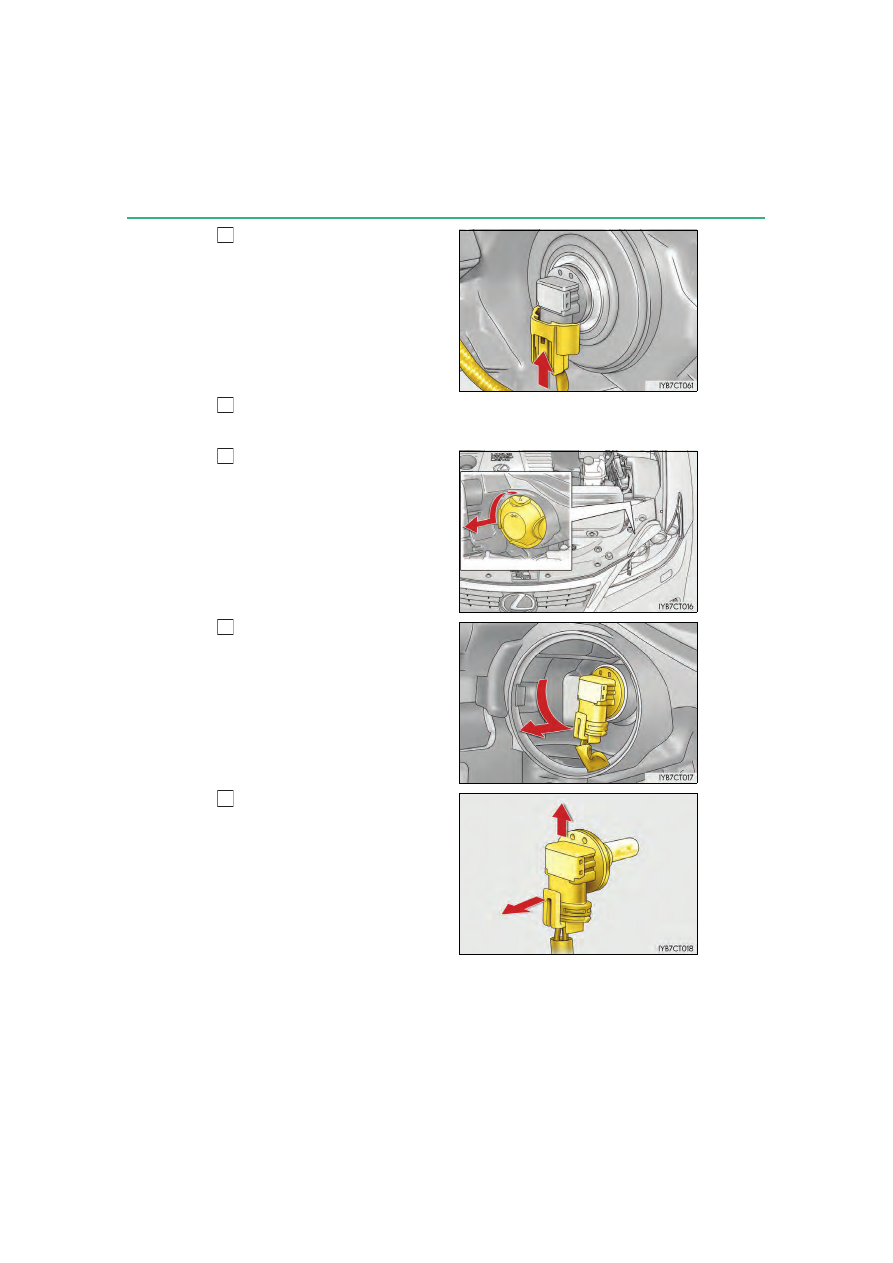

Headlight high beams (halogen headlights)

For the right side only: Move the
washer fluid filler opening.

Unplug the connector while
pressing the lock release.

Turn the bulb base counterclock-
wise.

Set the new light bulb.

Align the 3 tabs on the light bulb with

the mounting, and insert. Turn it

clockwise to set.

518

Set the connector.

After installing the connector, shake

the bulb base gently to check that it is

not loose, turn the headlight high

beams on once and visually confirm

that no light is leaking through the

mounting.

For the right side only: Reinstall the washer fluid filler opening.

■

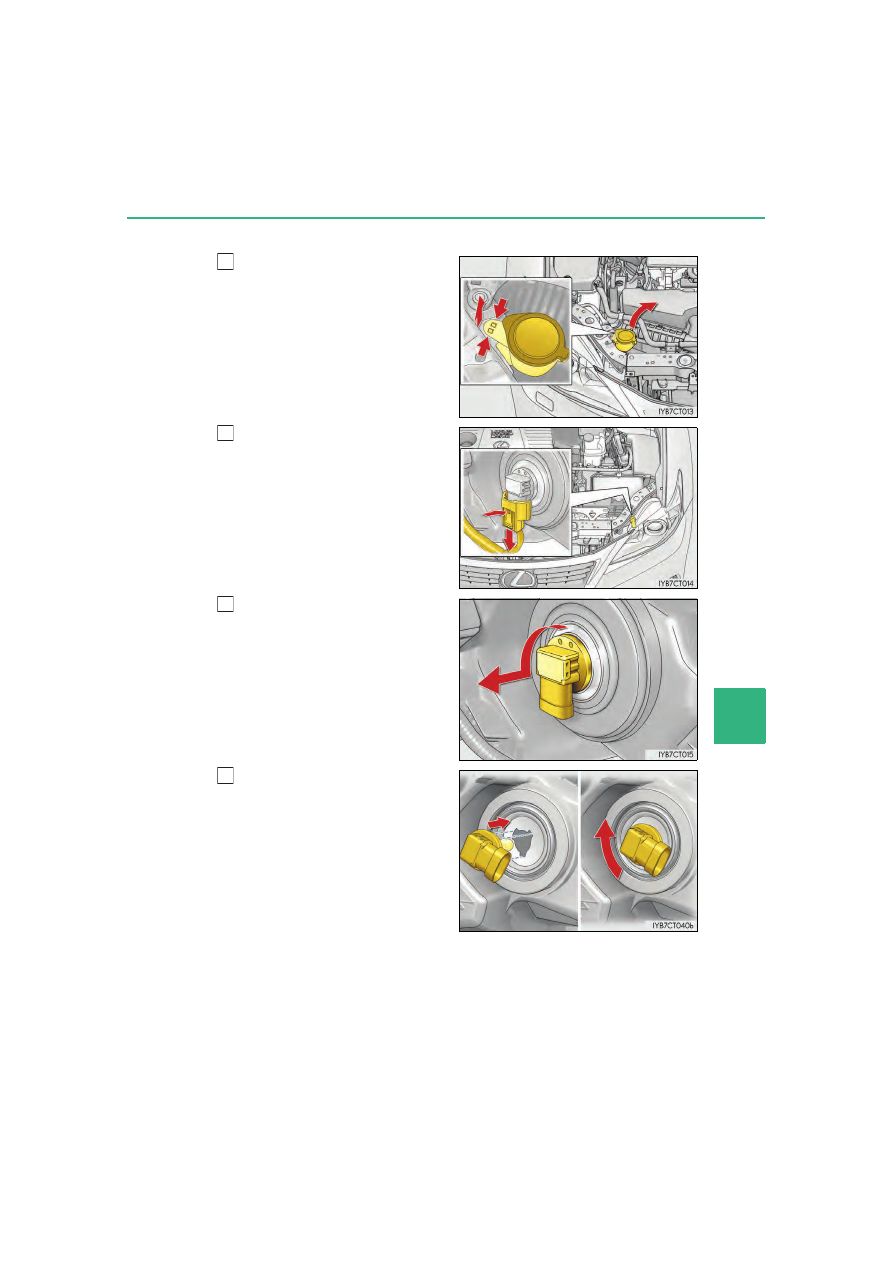

Headlight high beams (LED headlights)

Turn the cover counterclockwise
and remove it.

Turn the bulb base counterclock-
wise.

Unplug the connector while pull-
ing the lock release.

519

Main

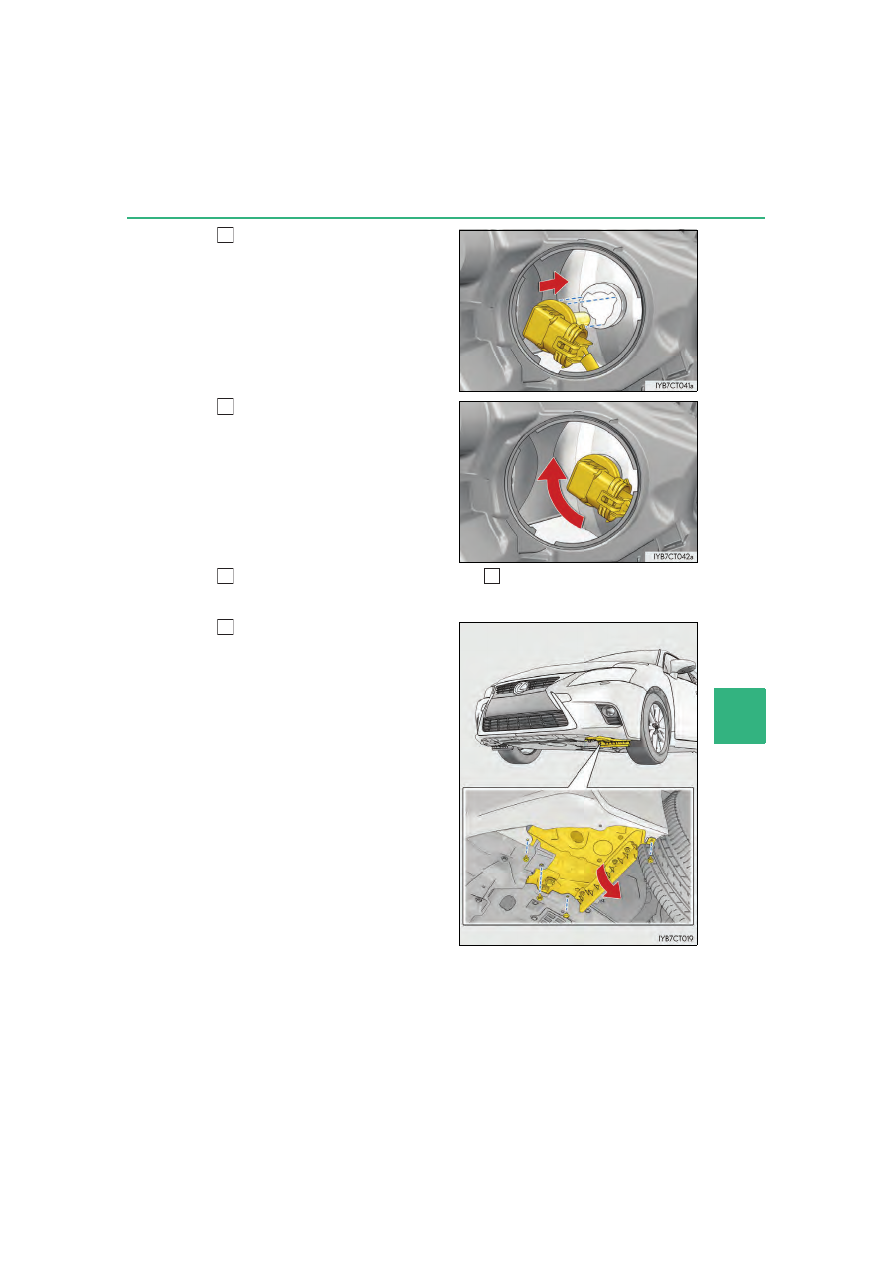

Replace the light bulb, and install
the bulb base.

Align the 3 tabs on the light bulb with

the mounting, and insert.

Turn and secure the bulb base.

Shake the bulb base gently to check

that it is not loose, turn the headlight

high beams on once and visually

confirm that no light is leaking

through the mounting.

When installing the cover, conduct step in reverse.

■

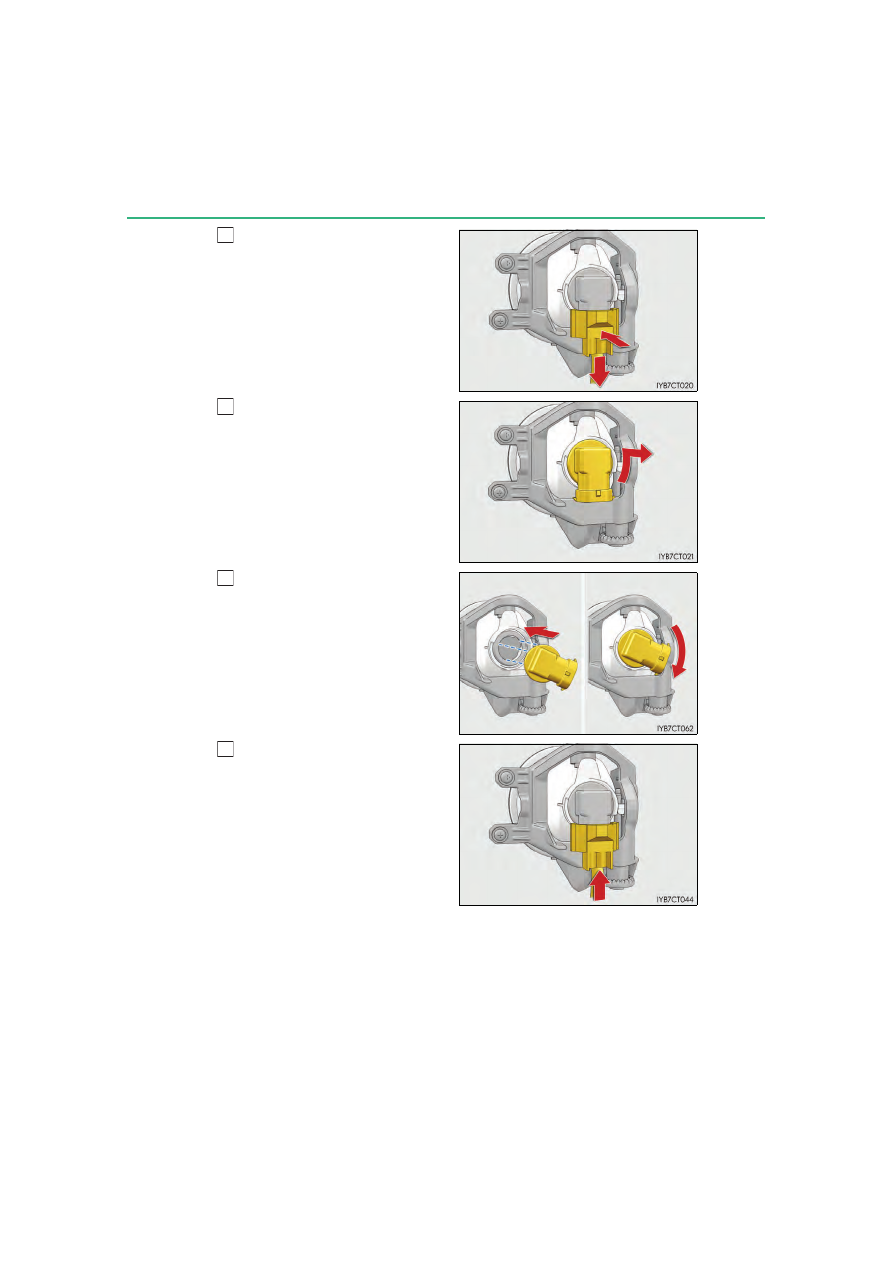

Halogen fog light (if equipped)

Remove 2 screws, a bolt and clip,
and pull down the fender liner.

Pull the fender liner down slowly,

being careful not to dislodge any

fixed components.

520

Unplug the connector while
pressing the lock release.

Turn the bulb base counterclock-
wise.

Set the new light bulb.

Align the 3 tabs on the light bulb with

the mounting, and insert. Turn it

clockwise to set.

Set the connector.

After installing the connector, shake

the bulb base gently to check that it is

not loose, turn the fog lights on once

and visually confirm that no light is

leaking through the mounting.

521

Main

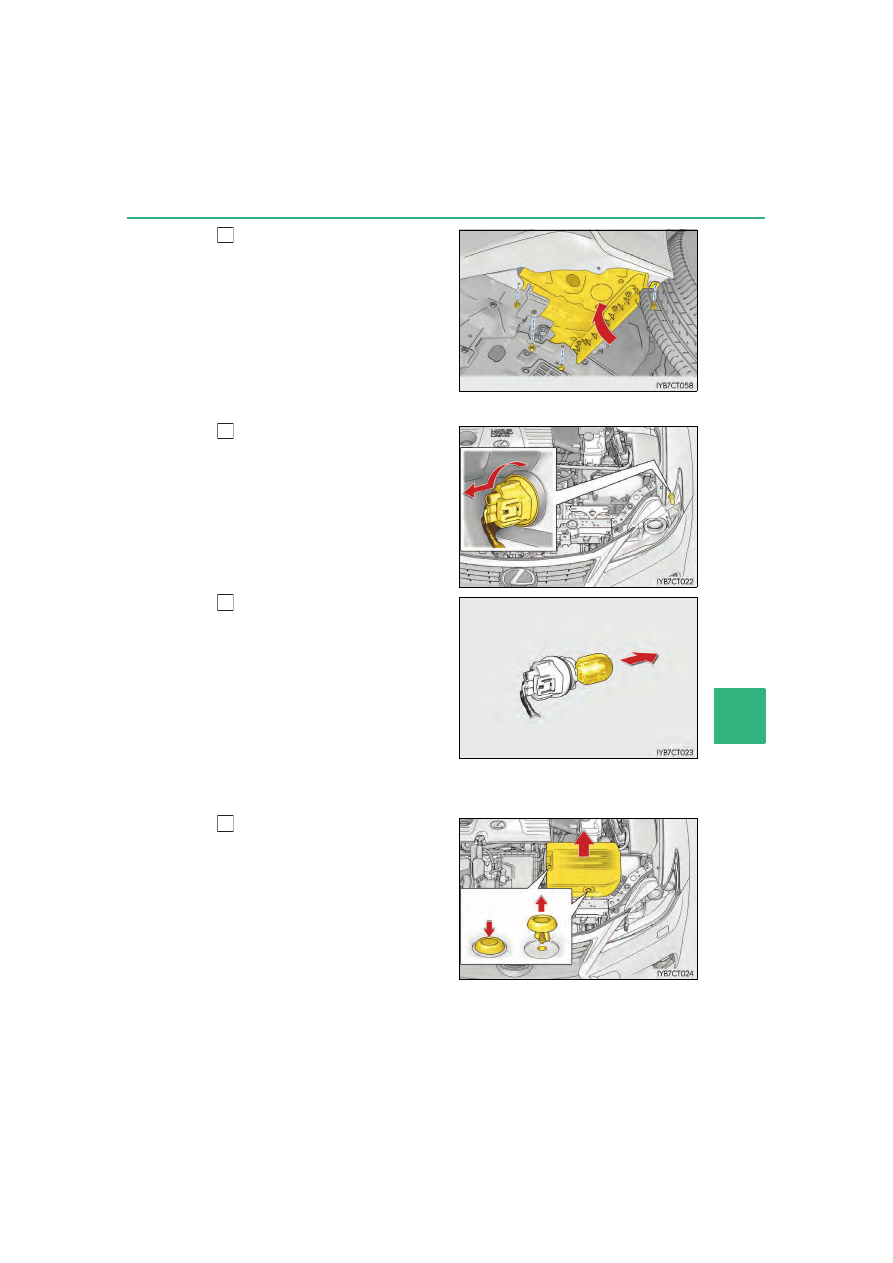

Reinstall the fender liner with 2
screws, a bolt and clip.

■

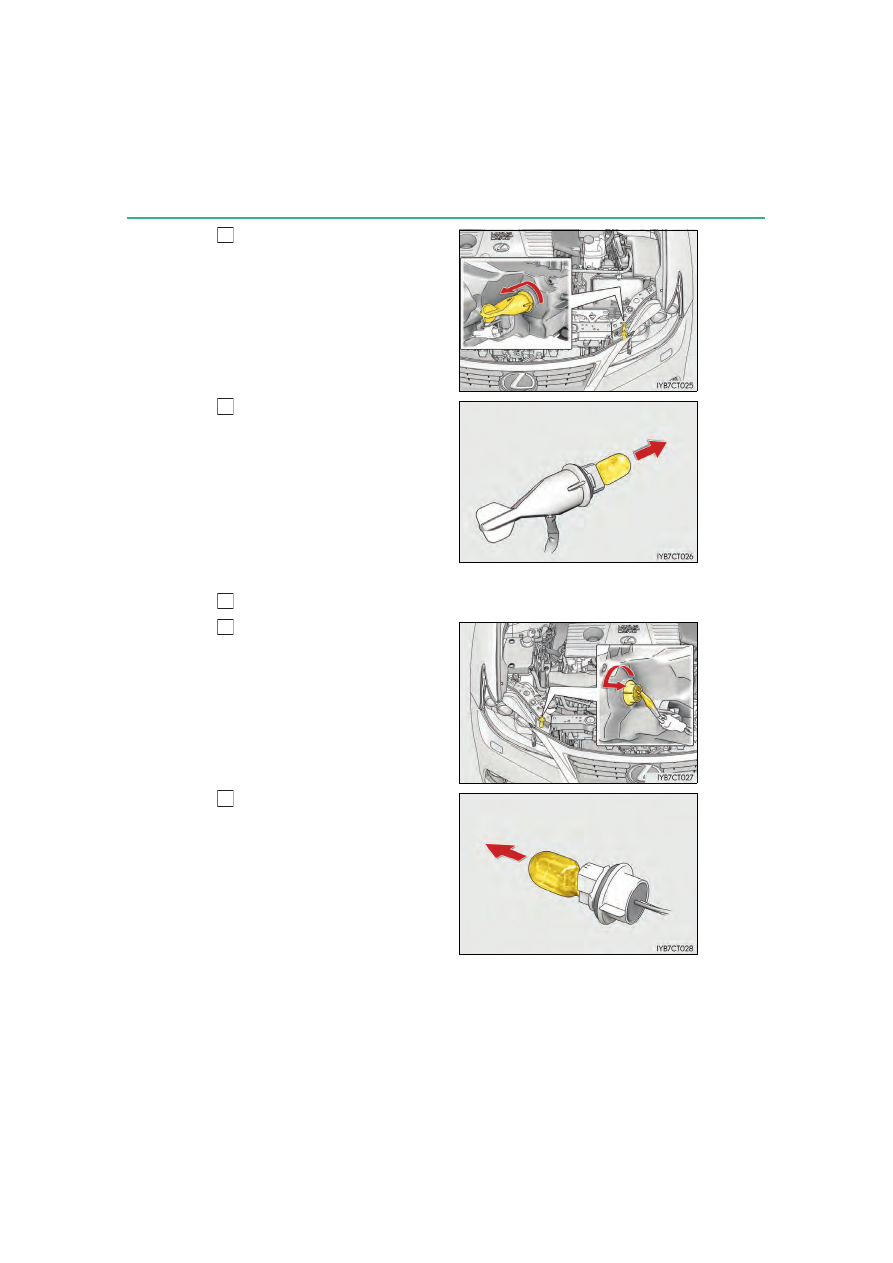

Front turn signal lights (halogen headlights)

Turn the bulb base counterclock-
wise.

Remove the light bulb.

■

Front turn signal lights (LED headlights)



Left side
Remove the power control unit
cover.
