Normal Code

Code 11 and 21

Code 11

4 sec.

0.25 sec.

2.5 sec.

1.5 sec.

0.25 sec.

2 sec.

0.5 sec.

0.5 sec.

Code 21

ON

OFF

ON

OFF

BR3890

05-240

-

DIAGNOSTICS

ABS WITH EBD SYSTEM

393

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

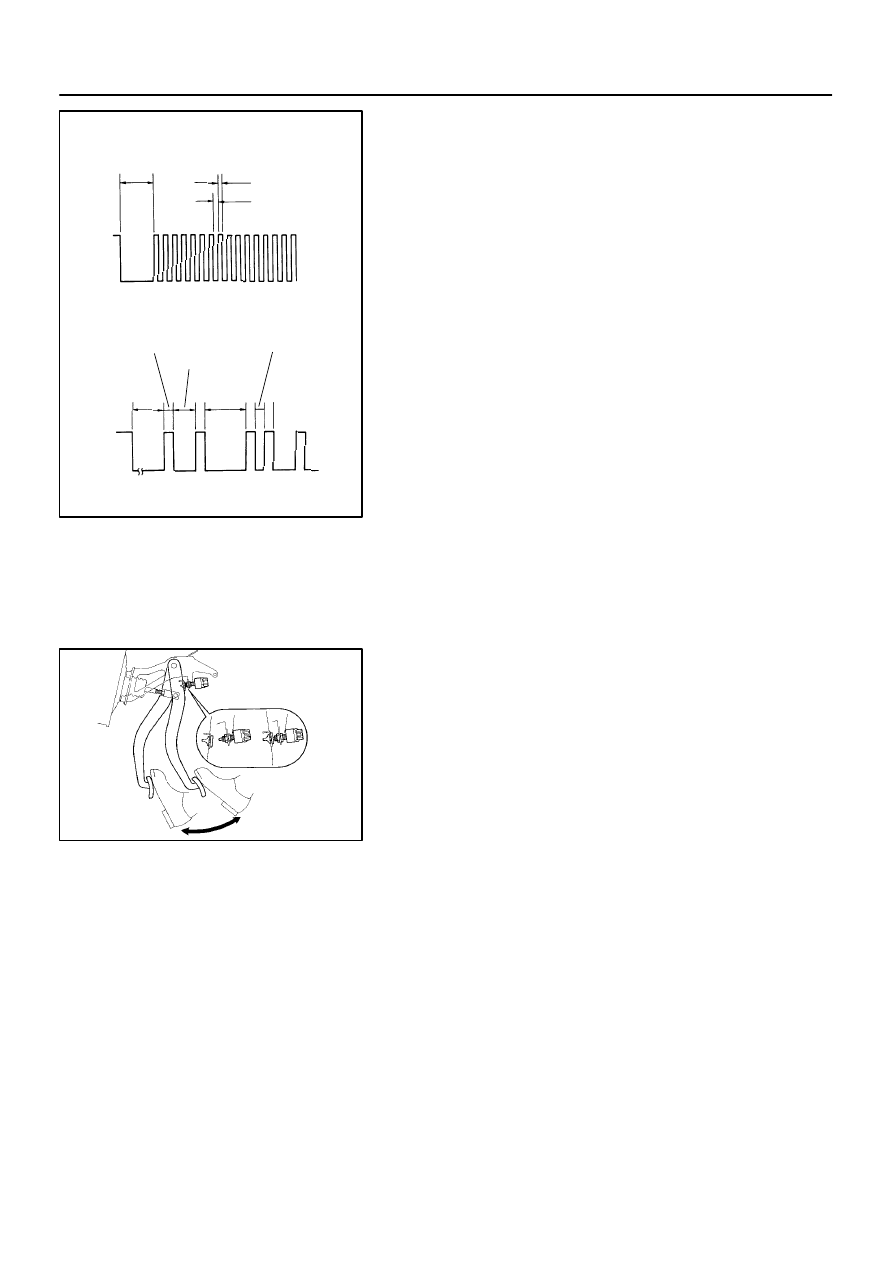

As an example, the blinking patterns for normal code and
codes 11 and 21 are shown on the left.
(4)

Codes are explained in the code table on page

05-246

.

If 2 or more malfunctions are indicated at the same time the low-
est numbered DTC will be displayed 1st.

(5)

After completing the check, remove the SST from
the DLC3.

SST

09843-18040

(d)

In case of using hand-held tester:
Check the DTC.
(1)

Read the DTC by following the prompts on the tes-
ter screen.

HINT:
Please refer to the hand-held tester operator’s manual for fur-
ther details.
(e)

In case of not using hand-held tester:
Clear DTC.
(1)

Using SST, connect the terminals Tc and CG of the
DLC3.

SST

09843-18040

(2)

Turn the ignition switch ON.

(3)

Clear DTC stored in ECU by depressing the brake
pedal 8 or more times within 5 sec.

(4)

Check that the ABS warning light shows the normal
code.

(5)

Remove the SST from the DLC3.

SST

09843-18040

HINT:
Disconnecting the battery cable during repairs will not erase the
DTC in the ECU.
(f)

In case of using hand-held tester:
Clear the DTC.
(1)

Turn the ignition switch ON.

(2)

Operate the hand-held tester to erase the codes.

HINT:
Please refer to the hand-held tester operator’s manual for fur-
ther details.

-

DIAGNOSTICS

ABS WITH EBD SYSTEM

05-241

394

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

2.

DATA LIST

HINT:
According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor,
actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one
of the method to shorten the labor time.
(a)

Connect the hand-held tester to the DLC3.

(b)

Turn the ignition switch ON.

(c)

According to the display on tester, read the ”DATA LIST”.

Item

Measurement Item /

Range (Display)

Normal Condition

Diagnostic Note

ABS MOT RELAY

ABS motor relay / ON or
OFF

SOL RELAY

Solenoid relay / ON or
OFF

STOP LIGHT SW

Stop light switch / ON or
OFF

ON : Brake pedal de-
pressed
OFF : Brake pedal re-
leased

PKB SW

Parking brake switch / ON
or OFF

ON : Parking brake applied
OFF : Parking brake re-
leased

ABS OPERT FR

ABS operation (FR) / BE-
FORE or OPERATE

BEFORE : No ABS opera-
tion (FR)
OPERATE : During ABS
operation (FR)

ABS OPERT FL

ABS operation (FL) / BE-
FORE or OPERATE

BEFORE : No ABS opera-
tion (FL)
OPERATE : During ABS
operation (FL)

ABS OPERT RR

ABS operation (RR) / BE-
FORE or OPERATE

BEFORE : No ABS opera-
tion (RR)
OPERATE : During ABS
operation (RR)

ABS OPERT RL

ABS operation (RL) / BE-
FORE or OPERATE

BEFORE : No ABS opera-
tion (RL)
OPERATE : During ABS
operation (RL)

WHEEL SPD FR

Wheel speed sensor (FR)
reading / min.: 0 km/h (0
MPH, max.: 326 km/h (202
MPH)

Actual wheel speed

Speed indicated on
speedometer

WHEEL SPD FL

Wheel speed sensor (FL)
reading / min.: 0 km/h (0
MPH, max.: 326 km/h (202
MPH)

Actual wheel speed

Speed indicated on
speedometer

WHEEL SPD RR

Wheel speed sensor (RR)
reading / min.: 0 km/h (0
MPH, max.: 326 km/h (202
MPH)

Actual wheel speed

Speed indicated on
speedometer

WHEEL SPD RL

Wheel speed sensor (RL)
reading / min.: 0 km/h (0
MPH, max.: 326 km/h (202
MPH)

Actual wheel speed

Speed indicated on
speedometer

IG VOLTAGE

ECU power supply voltage
/ NORMAL or TOO LOW

NORMAL : 9.5 V or over
TOO LOW : Below 9.5 V

SFRR

ABS solenoid (SFRR) ON /
OFF

05-242

-

DIAGNOSTICS

ABS WITH EBD SYSTEM

395

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

Item

Diagnostic Note

Normal Condition

Measurement Item /

Range (Display)

SFRH

ABS solenoid (SFRH) ON /
OFF

SFLR

ABS solenoid (SFLR) ON /
OFF

SFLH

ABS solenoid (SFLH) ON /
OFF

SRRR (SRR)

ABS solenoid (SRRR
(SRR)) ON / OFF

SRRH (SRH)

ABS solenoid (SRRH
(SRH)) ON / OFF

SRLR

ABS solenoid (SRLR) ON /
OFF

SRLH

ABS solenoid (SRLH) ON /
OFF

AIR BLD SUPPORT

Air bleed support /
SUPPORT or NOT SUP

Supported

TEST MODE

Test mode / NORMAL or
TEST

NORMAL : Normal mode
TEST : During test mode

#CODES

Number of DTC recorded /
min.: 0, max.: 255

Min.: 0, max.: 20

3.

ACTIVE TEST

HINT:
Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to oper-
ate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the meth-
od to shorten the labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
(a)

Connect the hand-held tester to the DLC3.

(b)

Turn the ignition switch ON.

(c)

According to the display on tester, perform the ”ACTIVE TEST”.

Item

Vehicle Condition / Test Details

Diagnostic Note

SFRR

Turns ABS solenoid (SFRR) ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SFRH

Turns ABS solenoid (SFRH) ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SFLR

Turns ABS solenoid (SFLR) ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SFLH

Turns ABS solenoid (SFLH) ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SRRR

Turns ABS solenoid (SRRR) ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SRRH

Turns ABS solenoid (SRRH) ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SRLR

Turns ABS solenoid (SRLR) ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SRLH

Turns ABS solenoid (SRLH) ON / OFF

Operation of solenoid
(clicking sound) can be
heard

-

DIAGNOSTICS

ABS WITH EBD SYSTEM

05-243

396

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

Item

Diagnostic Note

Vehicle Condition / Test Details

SFRR & SFRH

Turns ABS solenoid SFRR & SFRH ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SFLR & SFLH

Turns ABS solenoid SFLR & SFLH ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SRH & SRR

Turns ABS solenoid SRH & SRR ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SRLR & SRLH

Turns ABS solenoid SRLR & SRLH ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SFRH & SFLH

Turns ABS solenoid SFRH & SFLH ON / OFF

Operation of solenoid
(clicking sound) can be
heard

SOL RELAY

Turns ABS solenoid relay ON / OFF

Operation of solenoid
(clicking sound) can be
heard

ABS MOT RELAY

Turns ABS motor relay ON / OFF

Operation of motor can be
heard

ABS WARN LIGHT

Turns ABS warning light ON / OFF

Observe combination me-
ter

BRAKE WRN LIGHT

Turns BRAKE warning light ON / OFF

Observe combination me-
ter

4.

FREEZE FRAME DATA

(a)

The vehicle (sensor) status at the occurrence of abnormality of the diagnosis code and during the ABS
operation can be memorized and displayed using the hand-held tester.

(b)

Only one record of freeze frame data is stored, however, freeze frame data during the ABS operating
is always up-dated. After the storage of freeze frame data, up to 31 ignition ”ON” operations are stored
and displayed.

HINT:
If the ignition switch ”ON” operation exceeds 31 times, ”31” appears on the display.
(c)

If the diagnosis code abnormality occurs, the freeze frame data at the occurrence of the abnormality
is stored but the ABS actuation data is deleted.

Hand-held  Tester Display

Measurement Item

Reference Value*

VEHICLE SPD

Wheel speed reading

Speed indication of a meter

STOP LIGHT SW

Stop light switch signal

Stop light switch ON: ON, OFF: OFF

# IG ON

Number of operations of ignition switch ON after
memorizing freeze frame data

0 - 31

SYSTEM

System status

ABS actvated: ABS
Fail safe mode activated: FAIL SF
No system activated: NO SYS

*: If no conditions are specifically stated for ”Idling”, it means the shift lever is at N or P position, the A/C switch
is OFF and all accessory switches are OFF.
