PREPARATION

STEERING COLUMN

77

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

STEERING COLUMN

PREPARATION

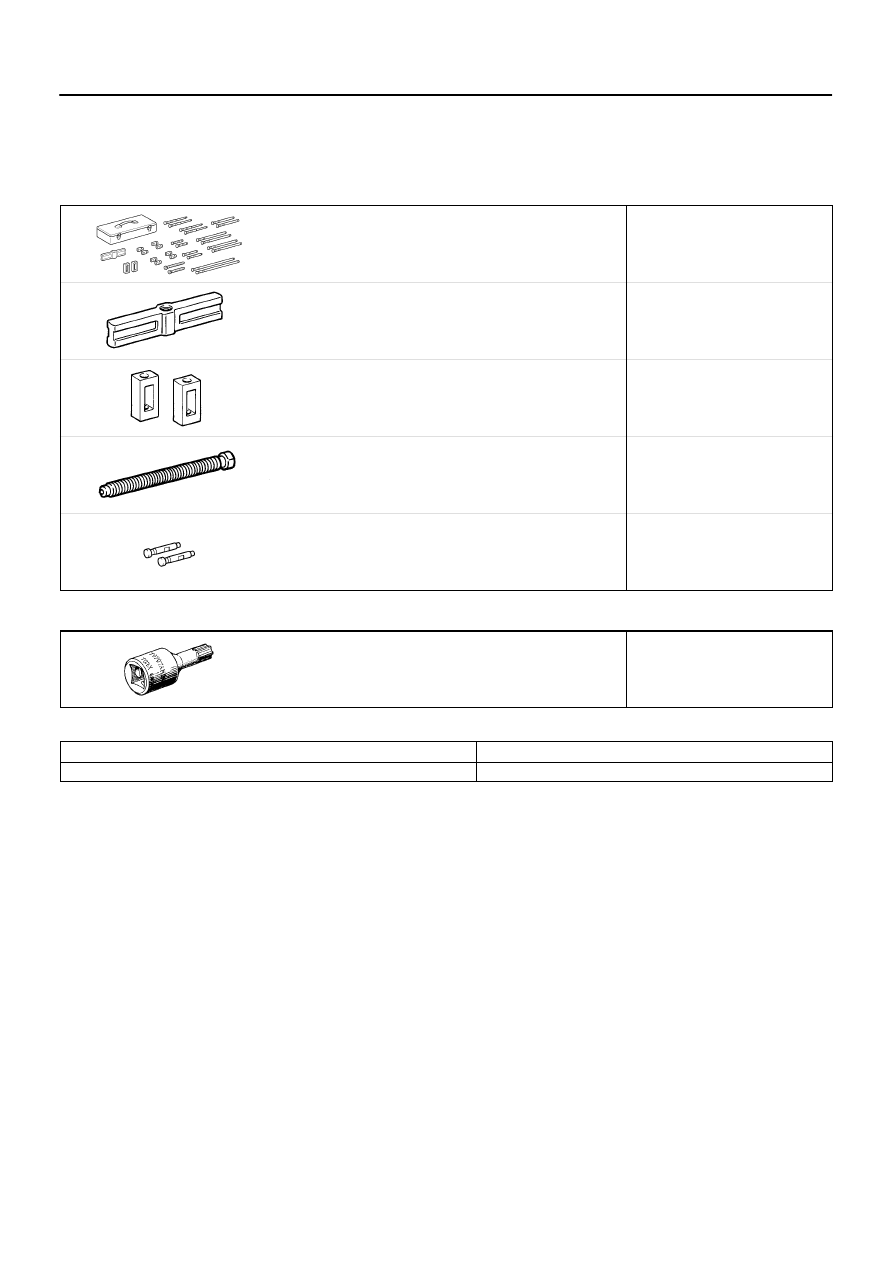

SST

09950-50013

Puller C Set

STEERING COLUMN ASSY

(09951-05010)

Hanger 150

STEERING COLUMN ASSY

(09952-05010)

Slide Arm

STEERING COLUMN ASSY

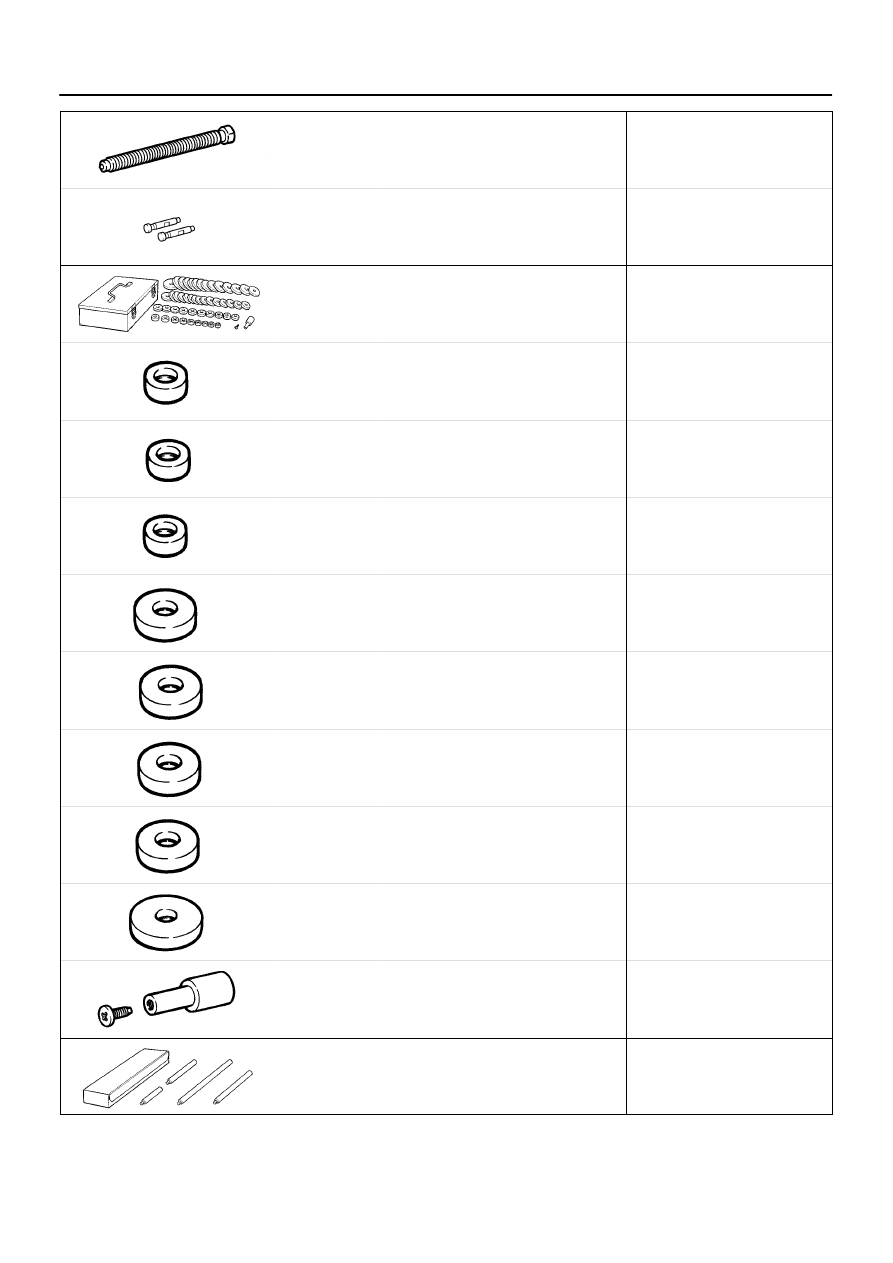

(09953-05020)

Center Bolt 150

STEERING COLUMN ASSY

(09954-05021)

Claw No.2

STEERING COLUMN ASSY

Recomended Tools

09042-00010

Torx Socket T30

STEERING COLUMN ASSY

Equipment

Torque wrench

Screw extractor

020WT-01

-

PREPARATION

POWER STEERING

02-35

78

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

POWER STEERING

PREPARATION

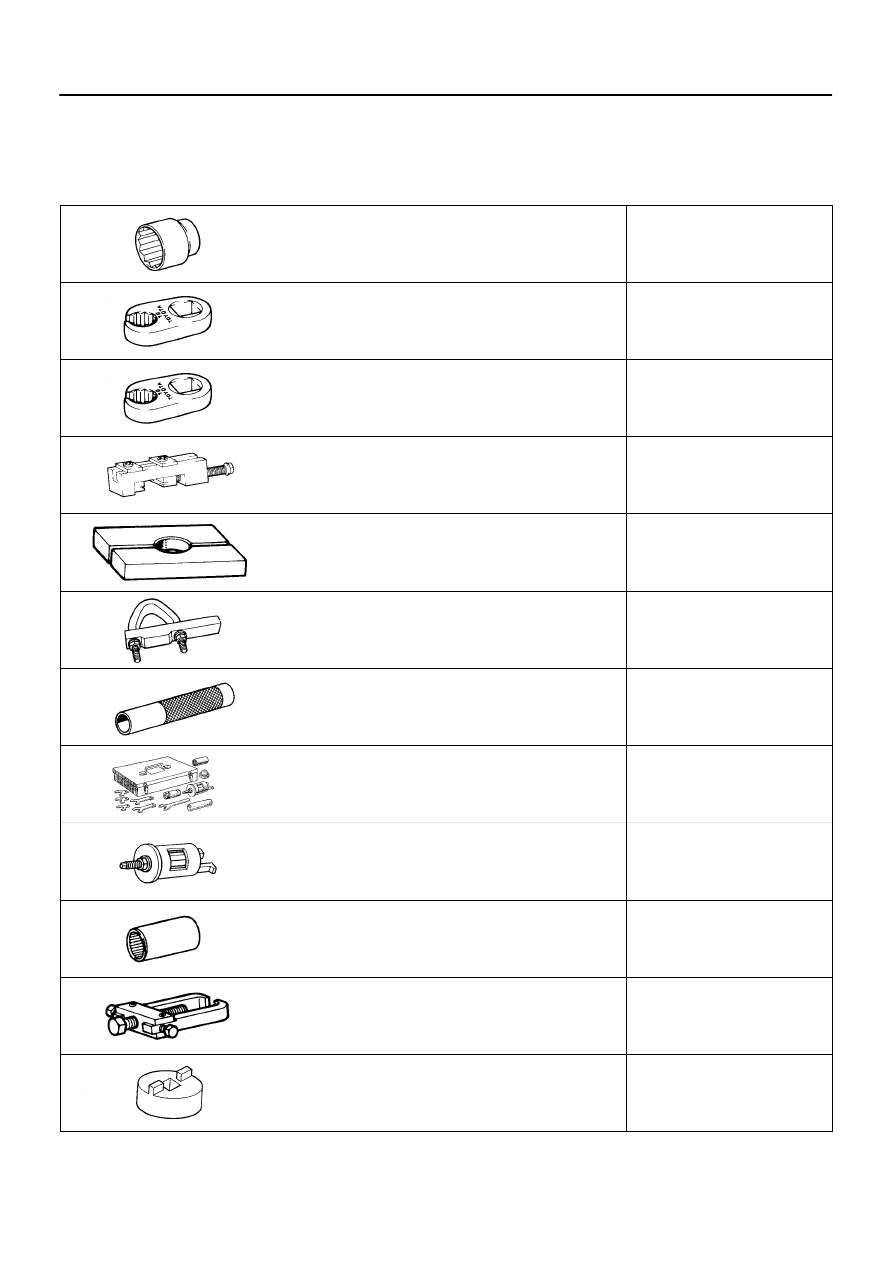

SST

09011-12271

Socket Wrench for 27 mm

RACK & PINION POWER STEERING

GEAR ASSY

09023-12700

Union Nut Wrench 17mm

RACK & PINION POWER STEERING

GEAR ASSY

09023-38200

Union Nut Wrench 12mm

RACK & PINION POWER STEERING

GEAR ASSY

09521-24010

Rear Axle Shaft Puller

RACK & PINION POWER STEERING

GEAR ASSY

09527-2101 1

Rear Axle Shaft Bearing Remover

RACK & PINION POWER STEERING

GEAR ASSY

09612-00012

Rack & Pinion Steering Rack

Housing Stand

RACK & PINION POWER STEERING

GEAR ASSY

09612-2201 1

Tilt Handle Bearing Replacer

RACK & PINION POWER STEERING

GEAR ASSY

09612-24014

Steering Gear Housing Overhaul

Tool Set

RACK & PINION POWER STEERING

GEAR ASSY

(09613-2201 1)

Steering Rack Shaft Bushing

Puller

RACK & PINION POWER STEERING

GEAR ASSY

09616-0001 1

Steering Worm Bearing Adjusting

Socket

RACK & PINION POWER STEERING

GEAR ASSY

09628-6201 1

Boll Joint Puller

RACK & PINION POWER STEERING

GEAR ASSY

09631-10021

Rack Stopper Wrench

RACK & PINION POWER STEERING

GEAR ASSY

02-36

-

PREPARATION

POWER STEERING

79

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

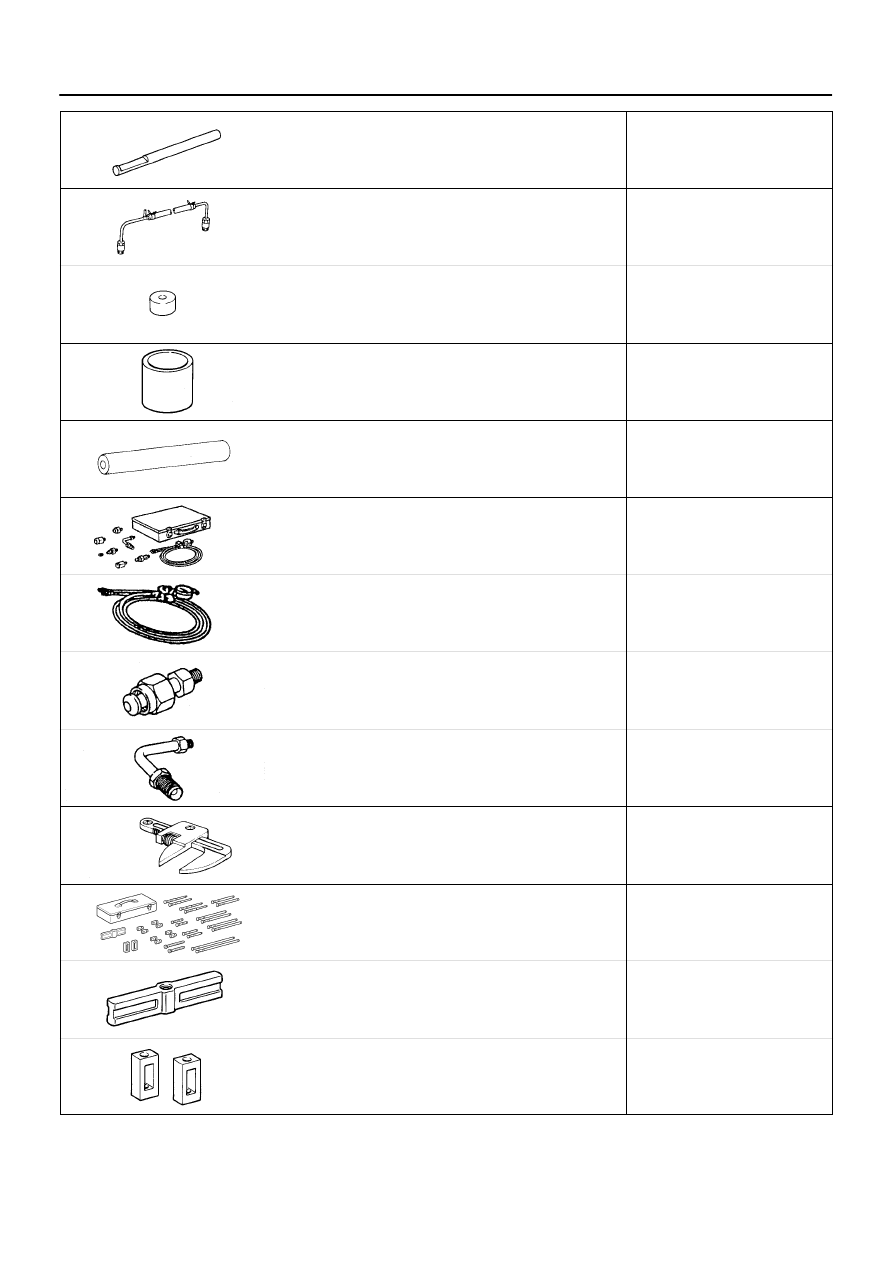

09631-10030

Oil Seal Remover

VANE PUMP ASSY

09631-12071

Steering Rack Oil Seal Test Tool

RACK & PINION POWER STEERING

GEAR ASSY

(09633-00010)

Packing

RACK & PINION POWER STEERING

GEAR ASSY

09631-20081

Seal Ring Tool

RACK & PINION POWER STEERING

GEAR ASSY

09631-33010

Steering Rack Cover ”I”

RACK & PINION POWER STEERING

GEAR ASSY

09640-10010

Power Steering Pressure Gauge

Set

POWER STEERING SYSTEM

(09641-01010)

Gauge Assy

POWER STEERING SYSTEM

(09641-01020)

Attachment A

POWER STEERING SYSTEM

(09641-01030)

Attachment B

POWER STEERING SYSTEM

09922-10010

Variable Open Wrench

RACK & PINION POWER STEERING

GEAR ASSY

09950-50013

Puller C Set

RACK & PINION POWER STEERING

GEAR ASSY

(09951-05010)

Hanger 150

RACK & PINION POWER STEERING

GEAR ASSY

(09952-05010)

Slide Arm

RACK & PINION POWER STEERING

GEAR ASSY

-

PREPARATION

POWER STEERING

02-37

80

2002 LEXUS ES300 REPAIR MANUAL   (RM911U)

(09953-05020)

Center Bolt 150

RACK & PINION POWER STEERING

GEAR ASSY

(09954-05021)

Claw No.2

RACK & PINION POWER STEERING

GEAR ASSY

09950-60010

Replacer Set

VANE PUMP ASSY

RACK & PINION POWER STEERING

GEAR ASSY

(09951-00180)

Replacer 18

RACK & PINION POWER STEERING

GEAR ASSY

(09951-00250)

Replacer 25

RACK & PINION POWER STEERING

GEAR ASSY

(09951-00290)

Replacer 29

RACK & PINION POWER STEERING

GEAR ASSY

(09951-00320)

Replacer 32

RACK & PINION POWER STEERING

GEAR ASSY

(09951-00330)

Replacer 33

VANE PUMP ASSY

(09951-00340)

Replacer 34

RACK & PINION POWER STEERING

GEAR ASSY

(09951-00400)

Replacer 40

RACK & PINION POWER STEERING

GEAR ASSY

(09951-00420)

Replacer 42

RACK & PINION POWER STEERING

GEAR ASSY

(09952-06010)

Adapter

RACK & PINION POWER STEERING

GEAR ASSY

09950-70010

Handle Set

VANE PUMP ASSY

RACK & PINION POWER STEERING

GEAR ASSY
