HOUSING PART NUMBER LIST

E–64

378

Wire Harness Repair Manual (RM1022E)

Part No. of
Connector
Body

Memo

Sleeve

Color

Part No. of Repair Wire

Sealing

Ability

Cav. No.

Male

Female

Terminal

Supply

Part No. of
Connector
Body

Memo

Sleeve

Color

500 mm
Type

160 mm
Type

Sealing

Ability

Cav. No.

Male

Female

Terminal

Supply

90980–

82998–

82998–

12273

X

1.0 III

F

6

U

12690*

–

L

12273

X

2.3 II

F

6

U

12340*

–

L,Y

12274

X

1.0 III

F

18

U

12690*

–

L

12274

X

2.3 II

F

18

U

12340*

–

L,Y

12275

X

1.0 III

F

8

U

12690*

–

L

12275

X

2.3 II

F

24

U

12340*

–

L,Y

12276

X

1.0 III

F

24

U

12690*

–

L

12276

X

2.3 II

F

14

U

12340*

–

L,Y

12277

X

1.0 III

F

10

U

12690*

–

L

12277

X

2.3 II

F

20

U

12340*

–

L,Y

4.8

1

12380

–

Y

12278

X

1.0 III

F

6

U

12690*

–

L

2.3 II

18

12340*

–

L,Y

12291

X

1.0 III

M

39

U

–

–

–

PCB

12296

X

0.64

F

3

U

12750*

–

L

Lever

Lever

B–47

TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS

57

Wire Harness Repair Manual (RM1022E)

HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS

Low Fit and Lever Type Connector

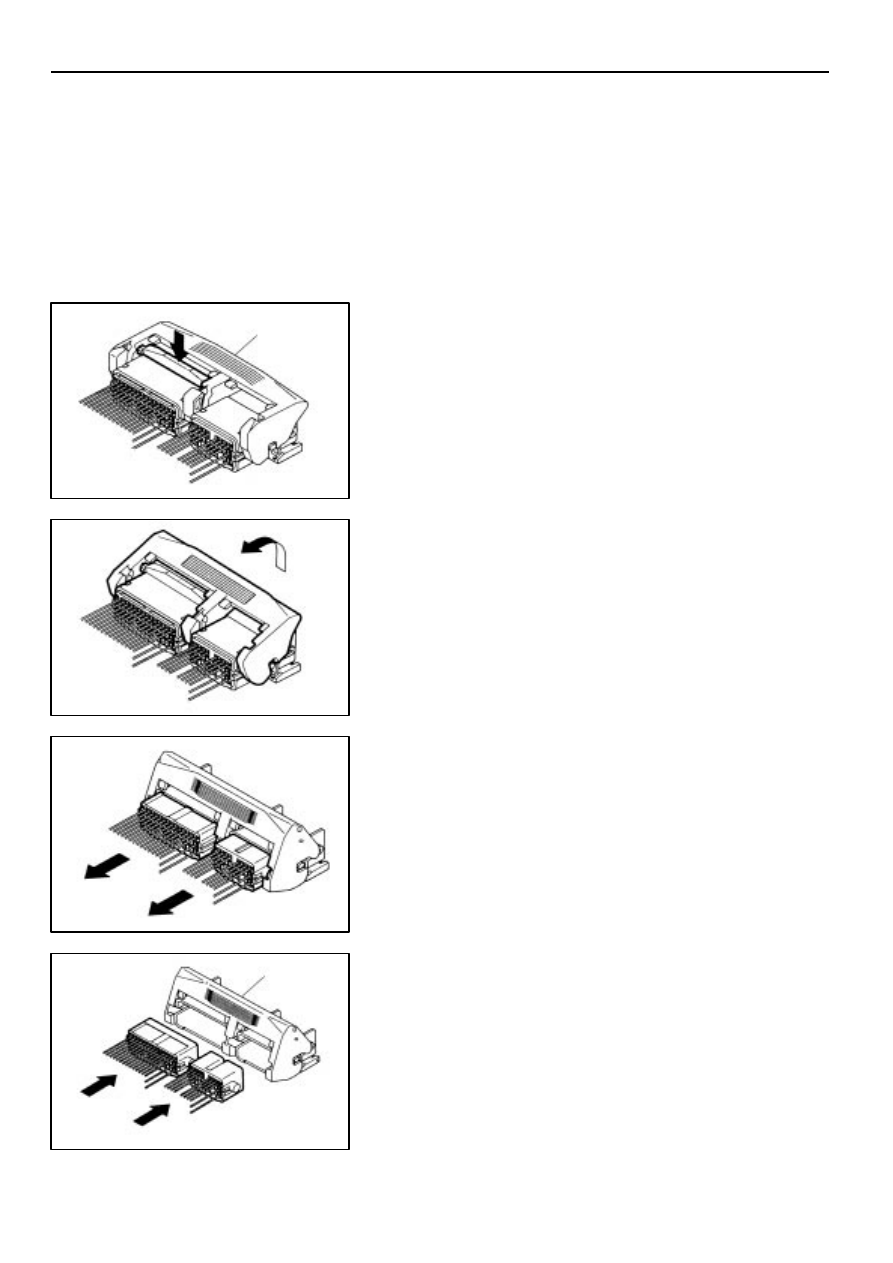

[Case 1]

1.

Cut the connection of the connector

(1)

Push the place indicated by the arrow.

(2)

The lock is released and lever is lifted up.

(3)

Lift the lever up until it stops.

 an

(4)

Cut the connection of the connector.

NOTICE:
Do not hold the wire harness to pull it.

2.

Connect the connector

(1)

Connect the connector in the condition that the lever
is fully lifted up.

HINT:

If the lever is locked at the lower position, follow

the procedure [Case 1]. (1) to (3) and lift the lever up fully.

Lever

Lever is not locked

Lever

TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS

B–48

58

Wire Harness Repair Manual (RM1022E)

(2)

Hold the connector to prevent it from slip off and push
it down until you hear a click to lock it.

(3)

Confirm that the lever is securely locked.

[Case 2]

1.

Cut the connection of the connector

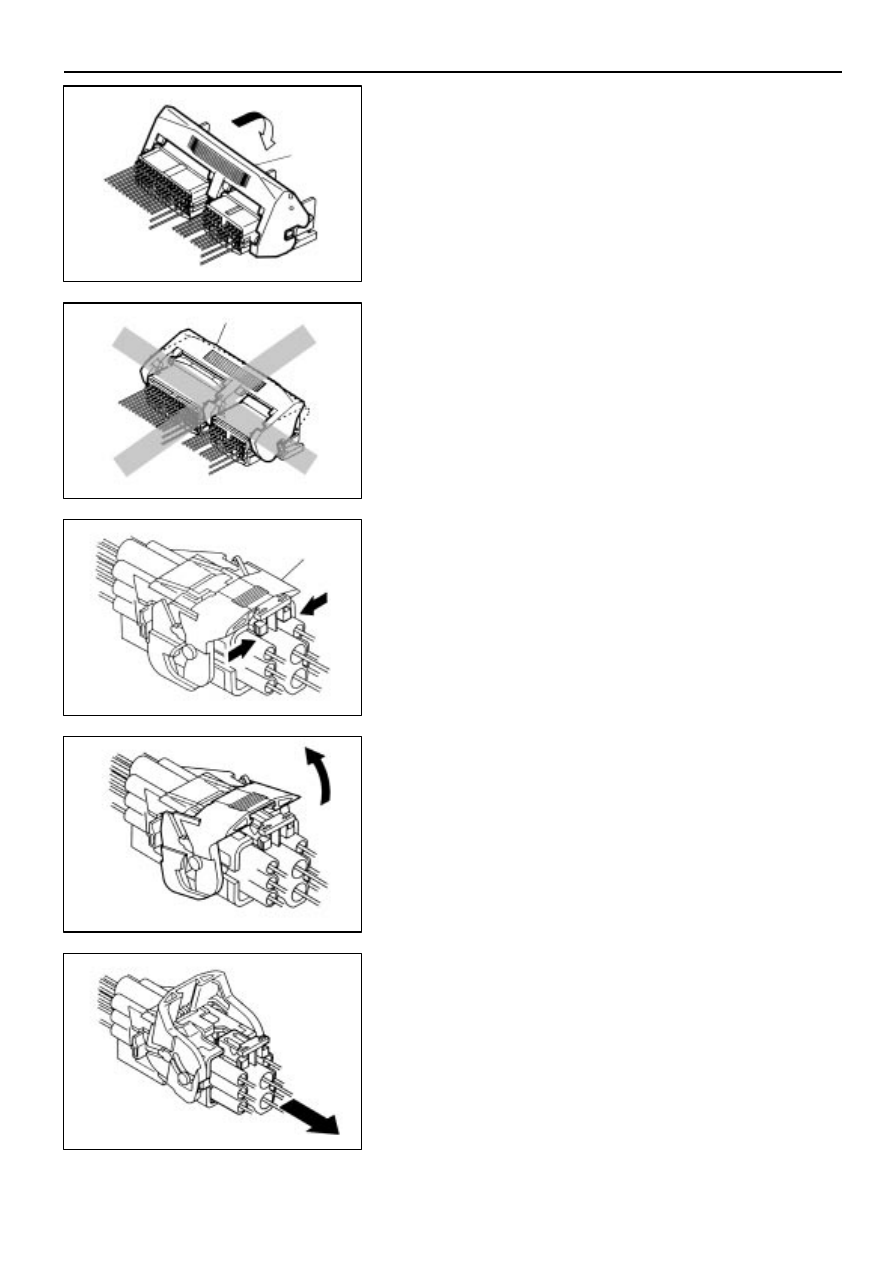

(1)

Hold the area indicated by the arrow in the illustration

(2)

The lock is released and the lever is lifted up.

(3)

Lift the lever up fully.

(4)

Cut the connection of the connector.

NOTICE:
Do not hold the wire harness to pull it.

Lever

Lever is not locked

Lever

B–49

TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS

59

Wire Harness Repair Manual (RM1022E)

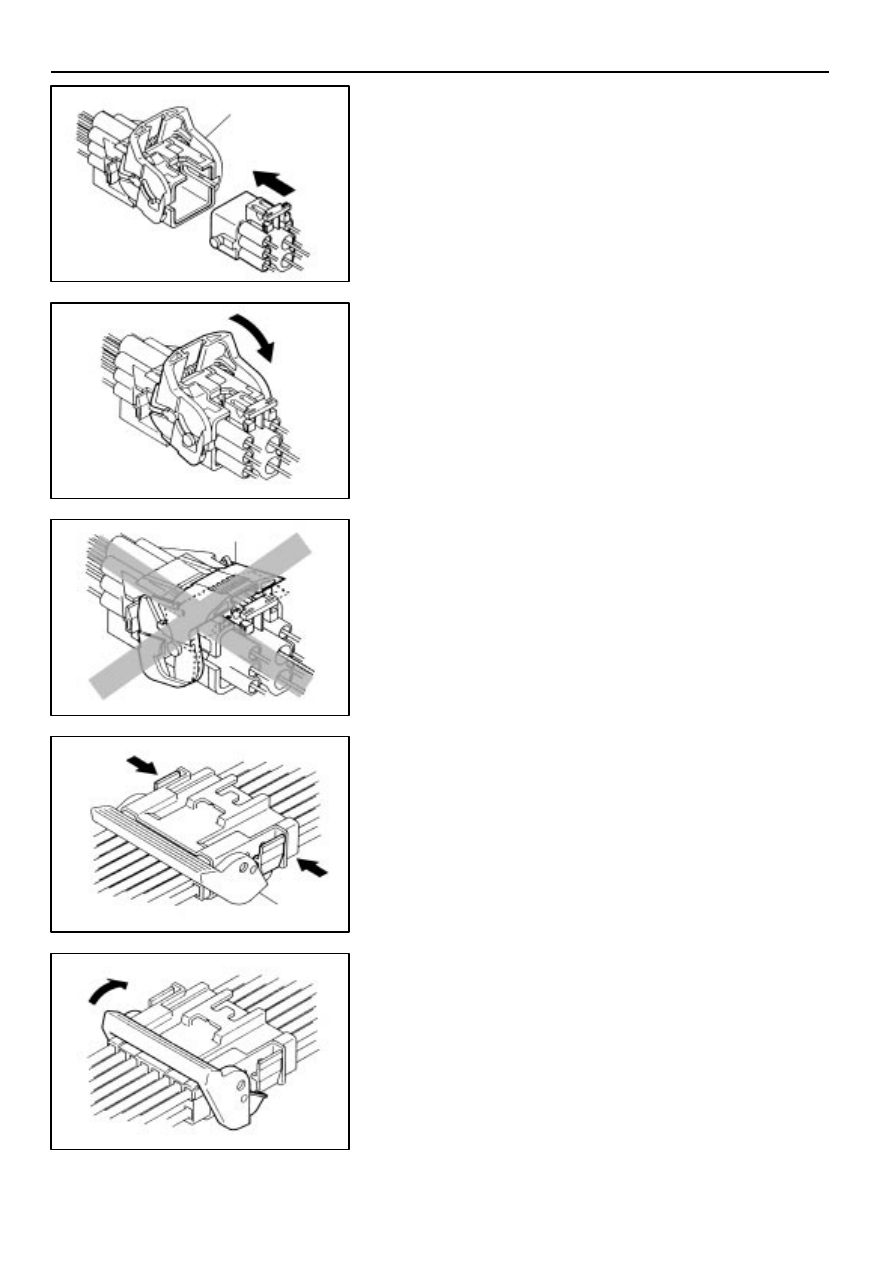

2.

Connect the connector

(1)

Connect the connector in the condition that the lever
is fully lifted up.

(2)

Hold the connector to prevent it from slip off and push
it down until you hear a click to lock it.

(3)

Confirm that the lever is securely locked.

[Case 3]

1.

Cut the connection of the connector

(1)

Pick the part indicated in the illustration by fingers.

(2)

The lock is released and the lever is lifted up.

(3)

Lift the lever up fully.
