Lexus ES300 (1997 year). Service manual - part 153

BO3986

BO3671

Adhesive

Adhesive

N21432

USA:

–

BODY

WINDSHIELD

BO–65

1243

1997 LEXUS ES300   (RM511U)

(c)

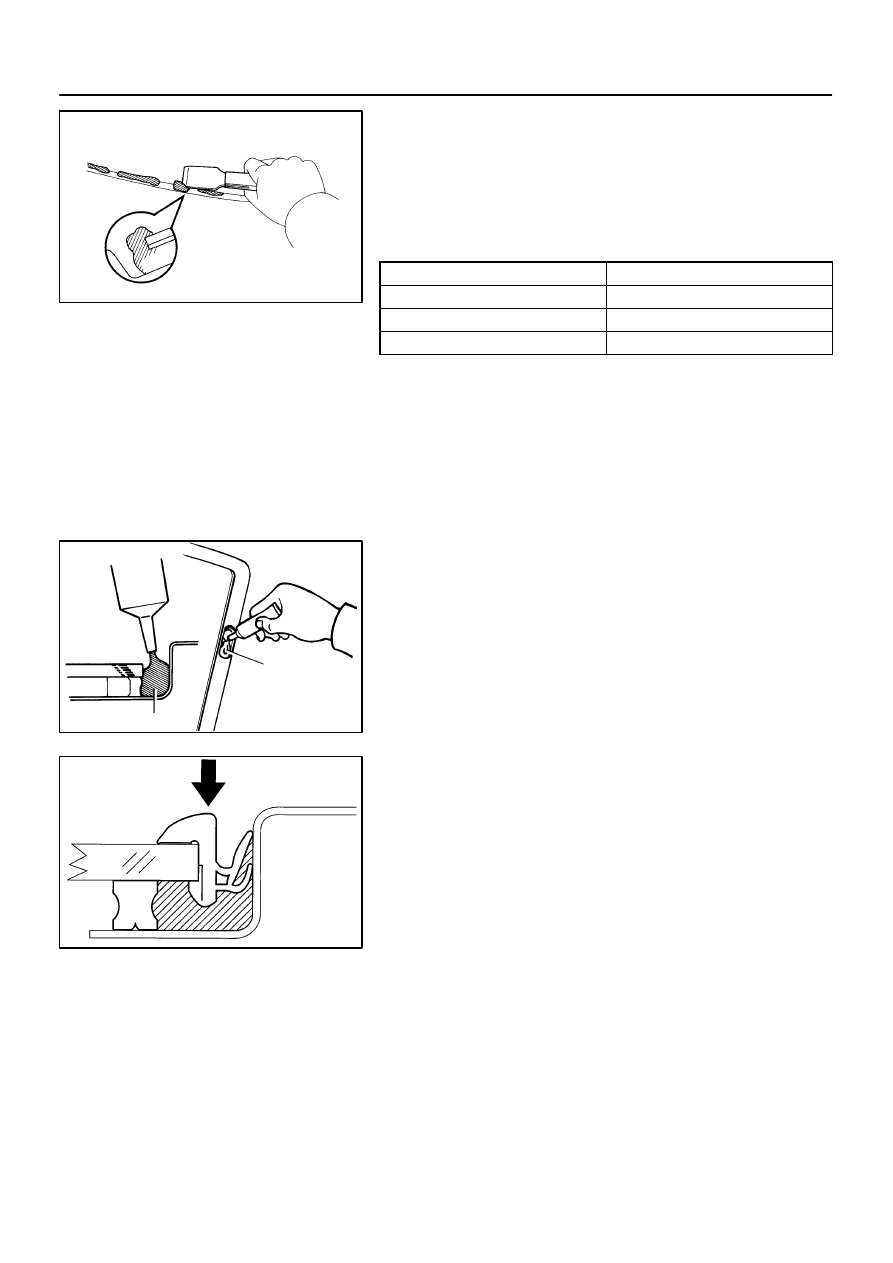

Use a scraper to remove any excessive or protruding
adhesive.

(d)

Hold the glass in place securely with a protective tape or
equivalent until the adhesive hardened.

NOTICE:
Take care not to drive the vehicle during the time described
in the chart below.

Temperature

Minimum time prior to drive the vehicle

35

°

C (95

°

F)

1.5 hour

20

°

C (68

°

F)

5 hour

5

°

C (41

°

F)

24 hour

12.

INSPECT FOR LEAKS AND REPAIR

(a)

Do a leak test after the hardening time has elapsed.

(b)

Seal any leak with sealant.
Part No. 08833–00030 or equivalent

13.

APPLY ADHESIVE AT MOULDING INSTALLATION
AREA

Coat the glass with adhesive at the moulding installation area.

Part No. 08833–00030 or equivalent

14.

USA:
INSTALL WINDSHIELD MOULDING

Place the moulding onto the body and tap it by hand.

N22038

A – A

B – B

A

A

B

B

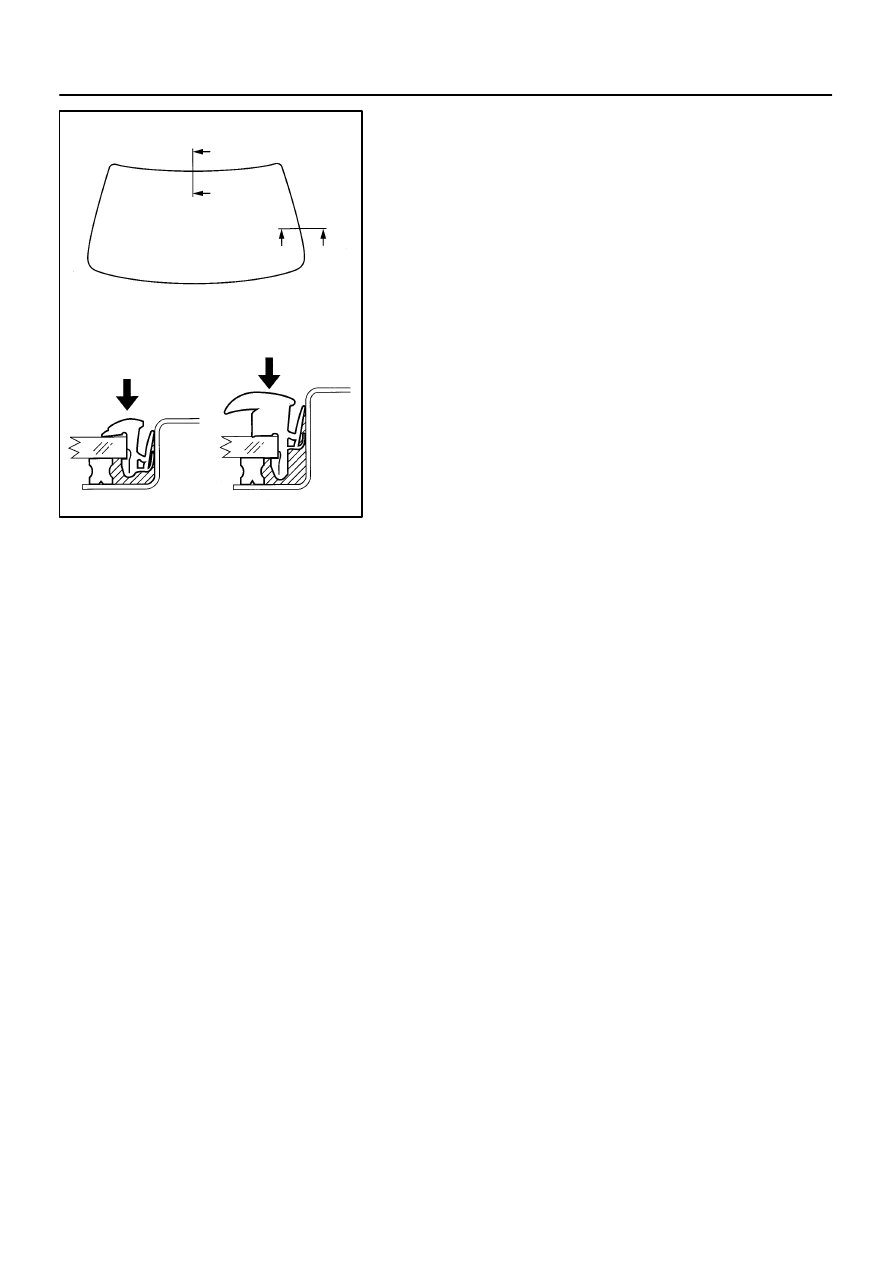

CANADA:

BO–66

–

BODY

WINDSHIELD

1244

1997 LEXUS ES300   (RM511U)

15.

CANADA:
INSTALL WINDSHIELD MOULDING

Place the moulding onto the body and tap it by hand.
16.

INSTALL THESE PARTS:

(a)

Front side of roof headlining

(b)

Roof console box

(c)

Cowl top ventilator louver

(d)

Hood to cowl top seal

(e)

Wiper arm and blades
Torque: 24 N·m (245 kgf·cm, 18 ft·lbf)

(f)

Front pillar garnishes

(g)

Sun visors and holders

BO0AH–04

N21845

N·m (kgf·cm, ft·lbf) : Specified torque

Non–reusable part

 Stopper

 Stopper

 Back Window Moulding

Back Window Glass

Rear Seat Cushion

Rear Seatback

Roof Side
Inner Garnish

Rear Speaker Grille

Roof Side
Inner Garnish

Package Tray Trim

18 (185, 13)

–

BODY

BACK WINDOW GLASS

BO–67

1245

1997 LEXUS ES300   (RM511U)

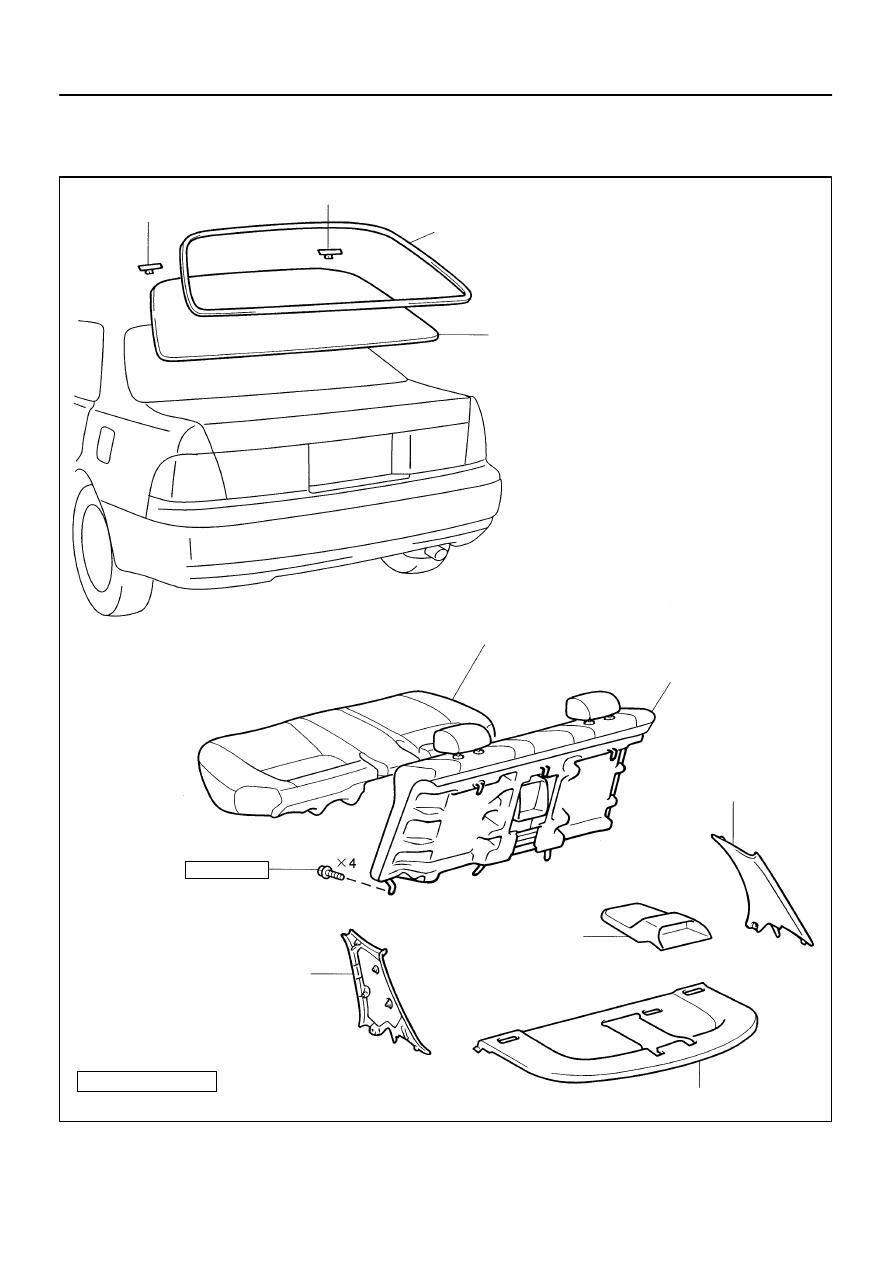

BACK WINDOW GLASS

COMPONENTS

BO0AI–04

N21430

: 4Clips

N21407

N17178

BO–68

–

BODY

BACK WINDOW GLASS

1246

1997 LEXUS ES300   (RM511U)

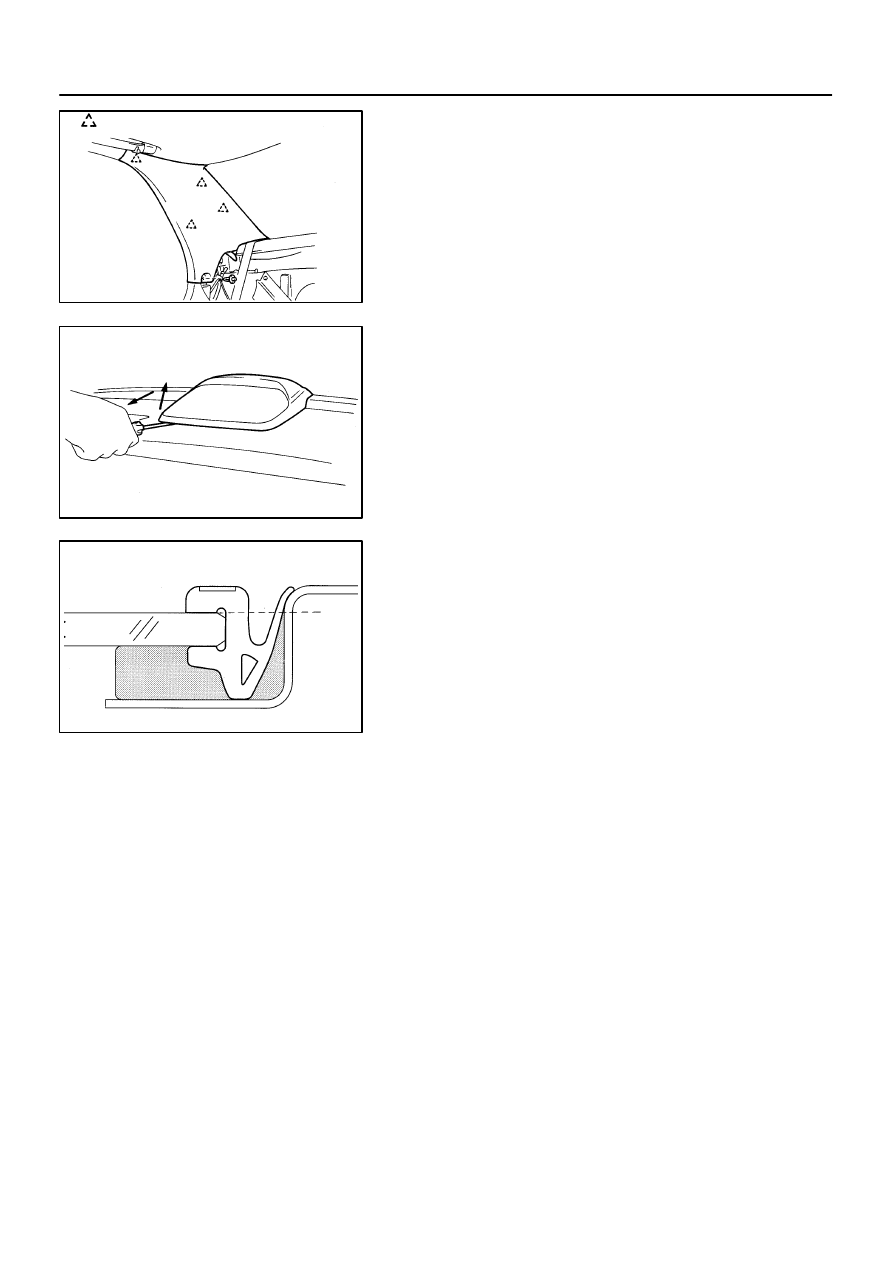

REMOVAL

1.

REMOVE REAR SEAT CUSHION AND SEATBACK
(See page

BO–105

)

2.

REMOVE ROOF SIDE INNER GARNISH

Remove the clip and garnish.

3.

REMOVE REAR SPEAKER GRILLE

(a)

Using a screwdriver, remove the rear speaker grille as
shown in the illustration.

HINT:
Tape the screwdriver tip before use.
(b)

Disconnect the connector.

4.

REMOVE PACKAGE TRAY TRIM

5.

REMOVE BACK WINDOW MOULDING

Using a knife, cut off the moulding as shown in the illustration.
NOTICE:
Do not damage the body with the knife.
6.

REMOVE BACK WINDOW GLASS

Remove the glass in the same way as windshield.
(See page

BO–60

)
