Lexus ES300 (1997 year). Service manual - part 147

BO09Y–03

N21403

N21404

N21401

–

BODY

FUEL LID

BO–41

1219

1997 LEXUS ES300   (RM511U)

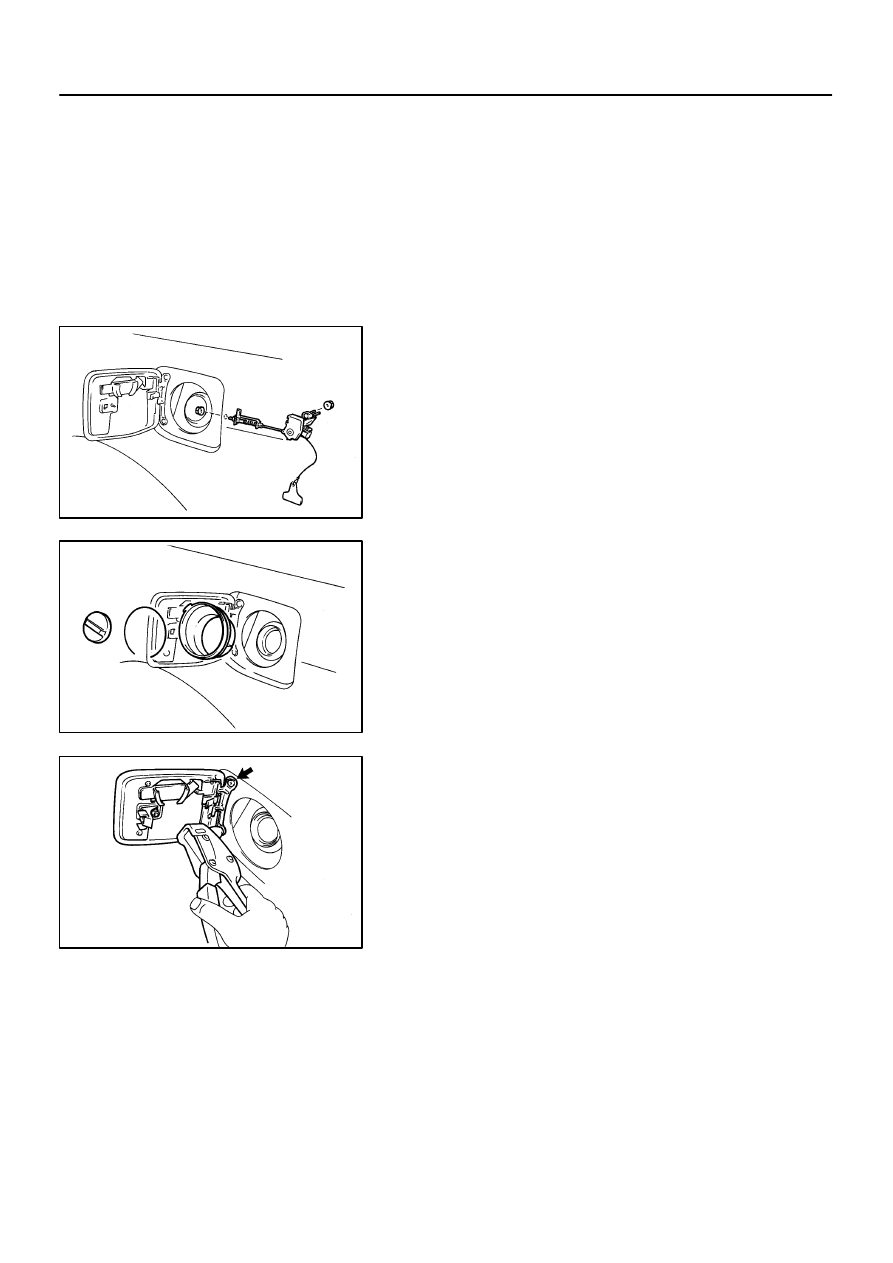

REMOVAL

1.

REMOVE THESE PART:

(a)

Luggage compartment floor mat

(b)

Rear floor finish plate

(c)

LH rear floor finish side plate

(d)

Inner LH cover luggage compartment trim

2.

REMOVE FUEL LID LOCK ASSEMBLY

(a)

Remove the nut from the fuel lid side.

(b)

Remove the nut and lock assembly, then disconnect the
connector.

3.

REMOVE FUEL INLET PIPE SHIELD

(a)

Remove the ring.

(b)

Remove the fuel tank cap and shield.

CAUTION:

Always keep the tank cap closed when it is not re-
quired to be open.

Keep all fire away during the operation.

(c)

Install the cap quickly.

4.

REMOVE FUEL FILLER OPENING LID

(a)

Using a drill, drill out the rivet heads.

(b)

Remove the fuel filler opening lid.

(c)

Remove the fuel tank cap hanger and lock retainer from
the opening lid.

BO09Z–01

N21401

BO–42

–

BODY

FUEL LID

1220

1997 LEXUS ES300   (RM511U)

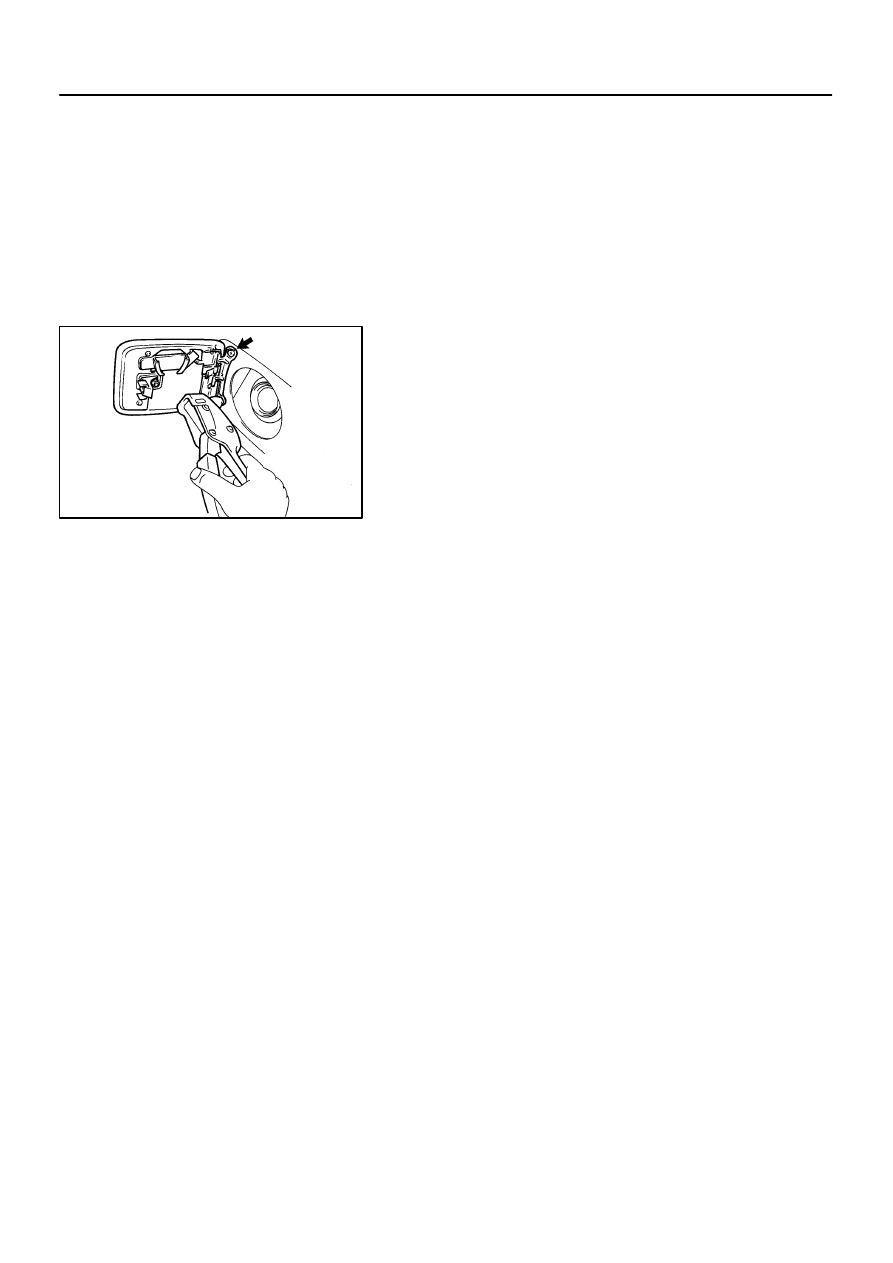

INSTALLATION

1.

INSTALL THESE PARTS:

(a)

Fuel inlet pipe shield

(b)

Fuel tank cap

(c)

Ring

(d)

Fuel lid lock assembly
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

2.

INSTALL FUEL FILLER OPENING LID

(a)

Install the fuel tank cap hanger to the opening lid.

(b)

Install the nut and fuel filler opening lid lock retainer to the
opening lid.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(c)

Using a riveter, install the 2 rivets to the fuel filler opening
lid.

3.

INSTALL THESE PARTS:

(a)

Inner LH cover luggage compartment trim

(b)

Rear floor finish side plates

(c)

Rear floor finish plate

(d)

Luggage compartment floor mat

BO0A0–03

N21846

N·m (kgf·cm, ft·lbf) : Specified torque

Wiper Arm and Blade

RH Cowl Top
Ventilator Louver

Hood to Cowl
Top Seal

Wiper Motor

Wiper Link Assembly

Hood Insulator

x 9

Window Washer Hose

Washer Tank

LH Cowl Top
Ventilator Louver

24 (245, 18)

7.0 (71, 62 in.·lbf)

–

BODY

FRONT WIPER AND WASHER

BO–43

1221

1997 LEXUS ES300   (RM511U)

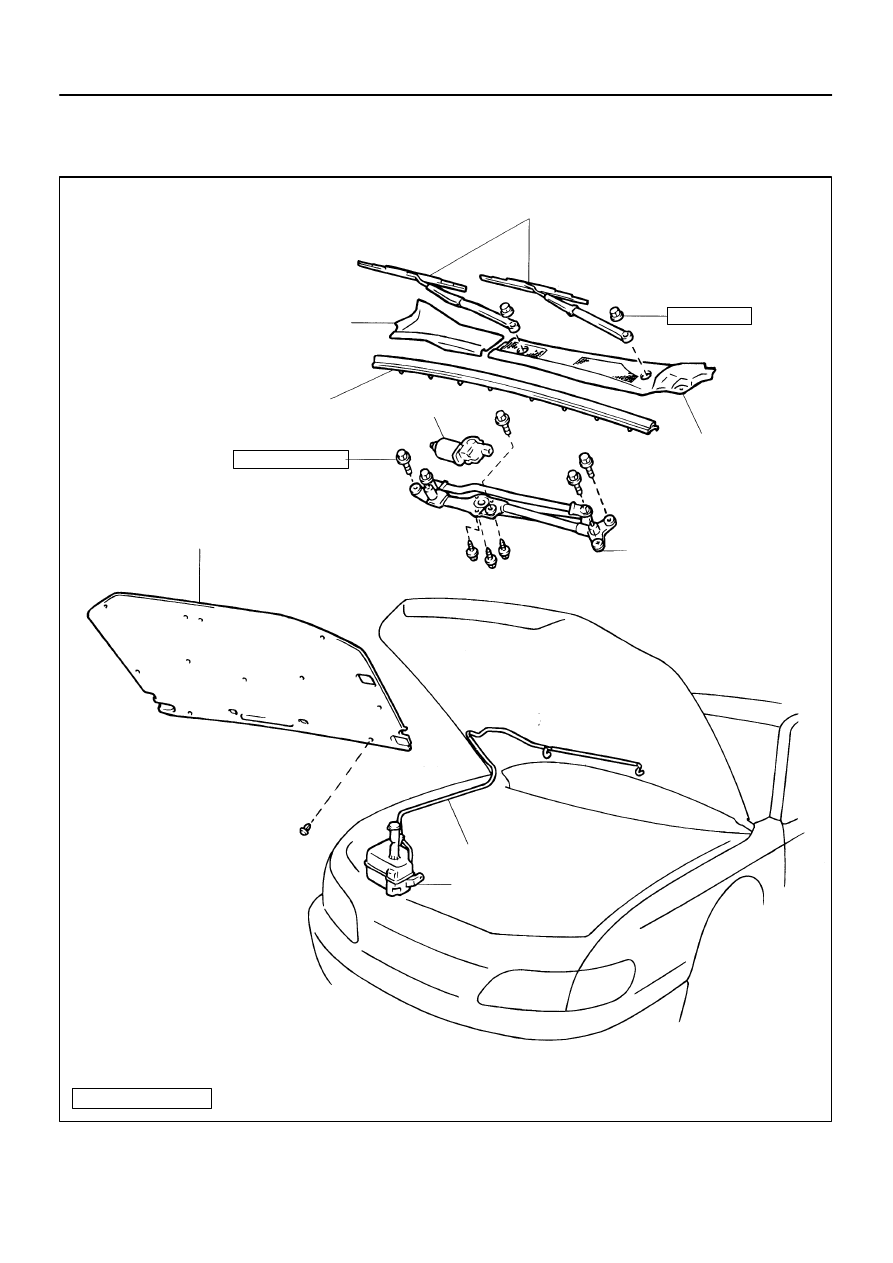

FRONT WIPER AND WASHER

COMPONENTS

BO0A1–01

N13516

N21409

N21410

BO–44

–

BODY

FRONT WIPER AND WASHER

1222

1997 LEXUS ES300   (RM511U)

REMOVAL

1.

REMOVE WIPER ARM AND BLADE ASSEMBLY

2.

REMOVE COWL TOP VENTILATOR LOUVER

(a)

Remove the hood to cowl top seal.

(b)

Remove the 2 clips and cowl top ventilator louver.

HINT:
Raise the front side of the cowl top ventilator louver up and re-
move the cowl top ventilator louver.

3.

REMOVE WIPER MOTOR AND LINK ASSEMBLY

(a)

Remove the 4 bolts.

(b)

Disconnect the connector, then unfasten the bolt.

(c)

Raise the front side of the wiper motor and link assembly
up and remove the wiper motor and link assembly.
