Lexus ES300 (1997 year). Service manual - part 33

AC09I–01

P19938

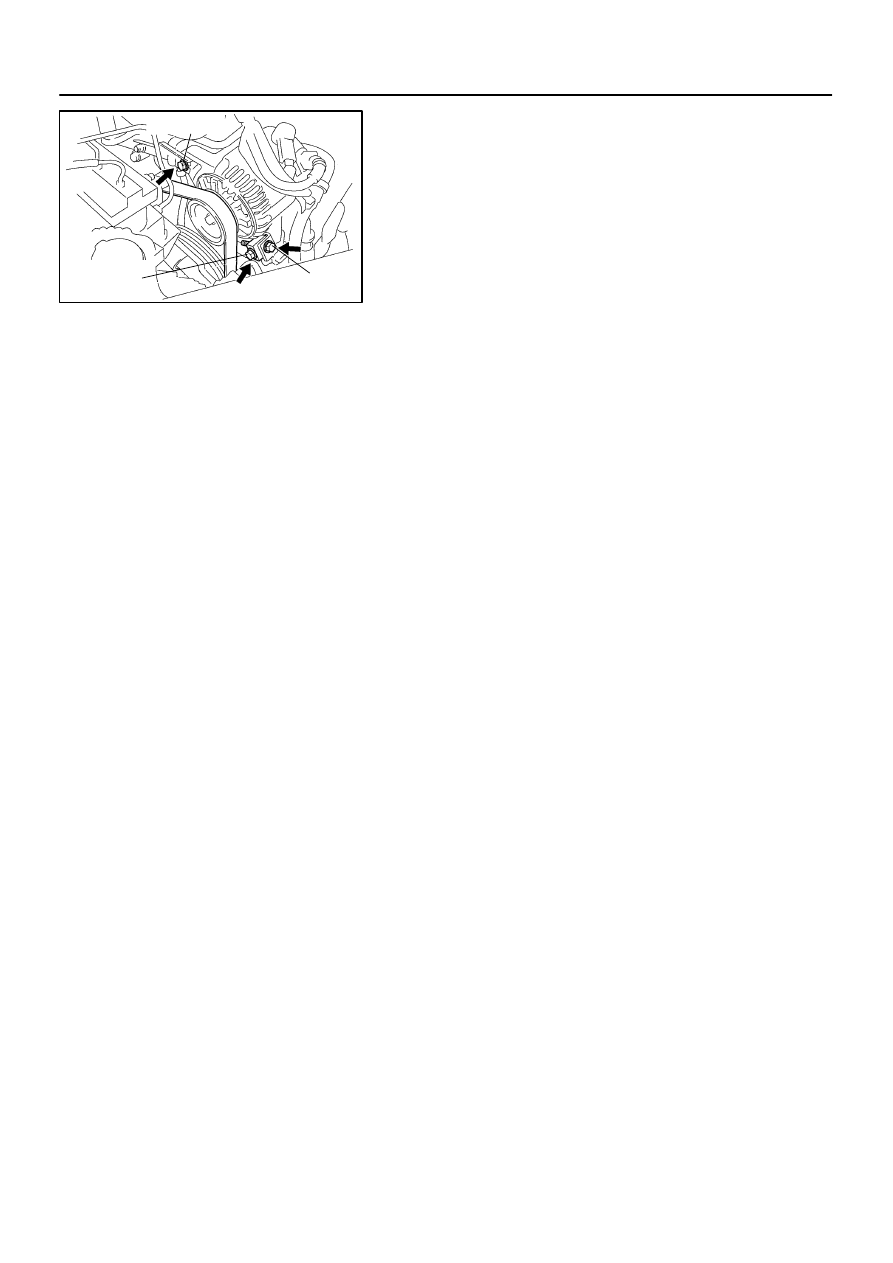

Pivot Bolt

Adjusting
 Lock Bolt

Adjusting Bolt

–

AIR CONDITIONING

DRIVE BELT

AC–15

1572

1997 LEXUS ES300   (RM511U)

REMOVAL

REMOVE DRIVE BELT
(a)

Loosen the pivot bolt and adjusting lock bolt.
Torque:
Pivot bolt: 56 N·m (570 kgf·cm, 41 ft·lbf)
Adjusting lock bolt: 18 N·m (185 kgf·cm, 13 ft·lbf)

(b)

Loosen the belt tension by adjusting bolt and remove the
drive belt.

AC09J–02

AC–16

–

AIR CONDITIONING

DRIVE BELT

1573

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–14

).

N21127

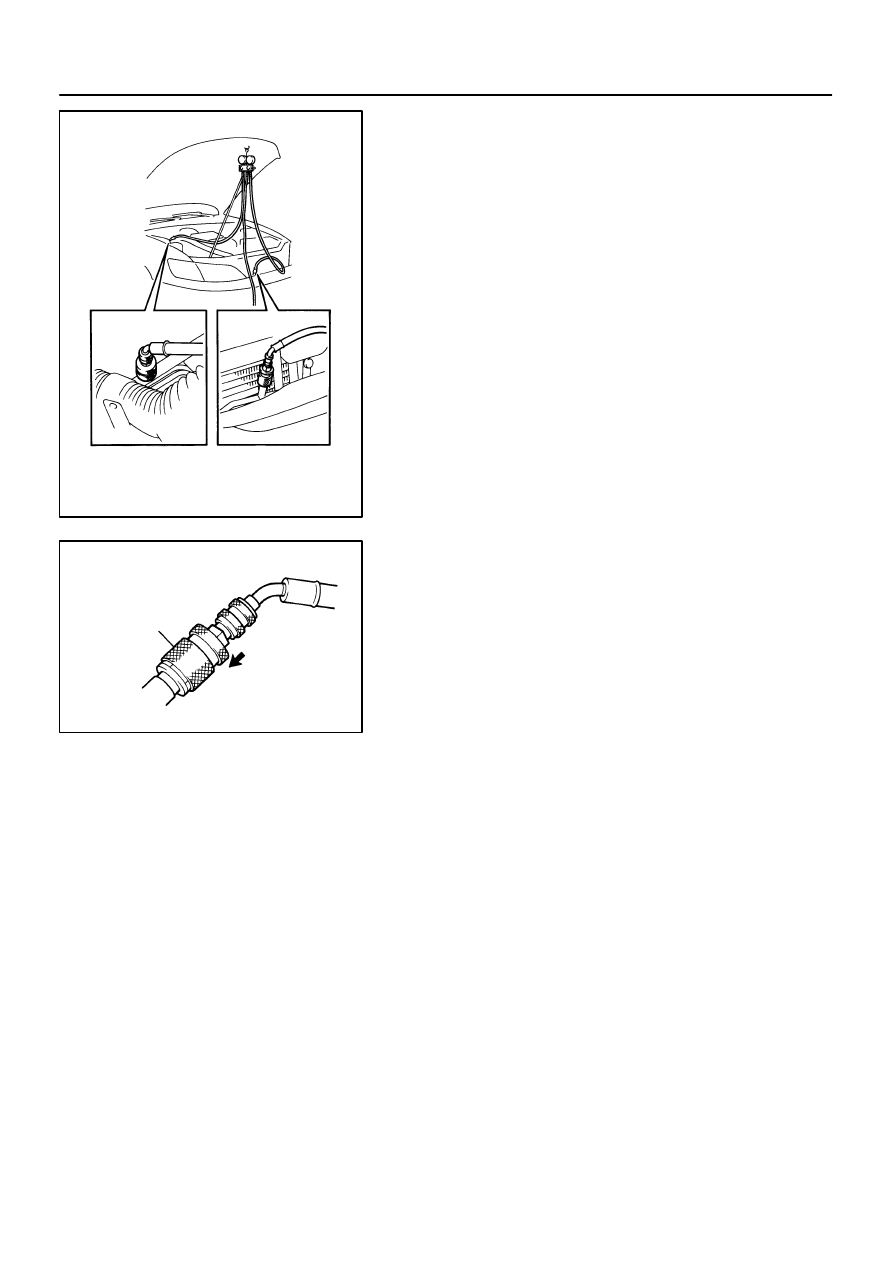

Low Pressure
Charging Hose

High Pressure
Charging Hose

AC09K–01

N04392

Sleeve

–

AIR CONDITIONING

MANIFOLD GAUGE SET

AC–17

1574

1997 LEXUS ES300   (RM511U)

MANIFOLD GAUGE SET

SET ON

1.

CONNECT CHARGING HOSES TO MANIFOLD
GAUGE SET

Tighten the nuts by hand.
CAUTION:
Do not connect the wrong hoses.
2.

CONNECT QUICK DISCONNECT ADAPTERS TO
CHARGING HOSES

Tighten the nuts by hand.
3.

CLOSE BOTH HAND VALVES OF MANIFOLD GAUGE
SET

4.

REMOVE CAPS FROM SERVICE VALVES ON RE-
FRIGERANT LINE

5.

CONNECT QUICK DISCONNECT ADAPTERS TO SER-
VICE VALVES

HINT:
Push the quick disconnect adapter onto the service valve, then
slide the sleeve of the quick disconnect adapter downward to
lock it.

AC09L–01

N06553

AC–18

–

AIR CONDITIONING

MANIFOLD GAUGE SET

1575

1997 LEXUS ES300   (RM511U)

SET OFF

1.

CLOSE BOTH HAND VALVES OF MANIFOLD GAUGE
SET

2.

DISCONNECT QUICK DISCONNECT ADAPTERS
FROM SERVICE VALVES ON REFRIGERANT LINE

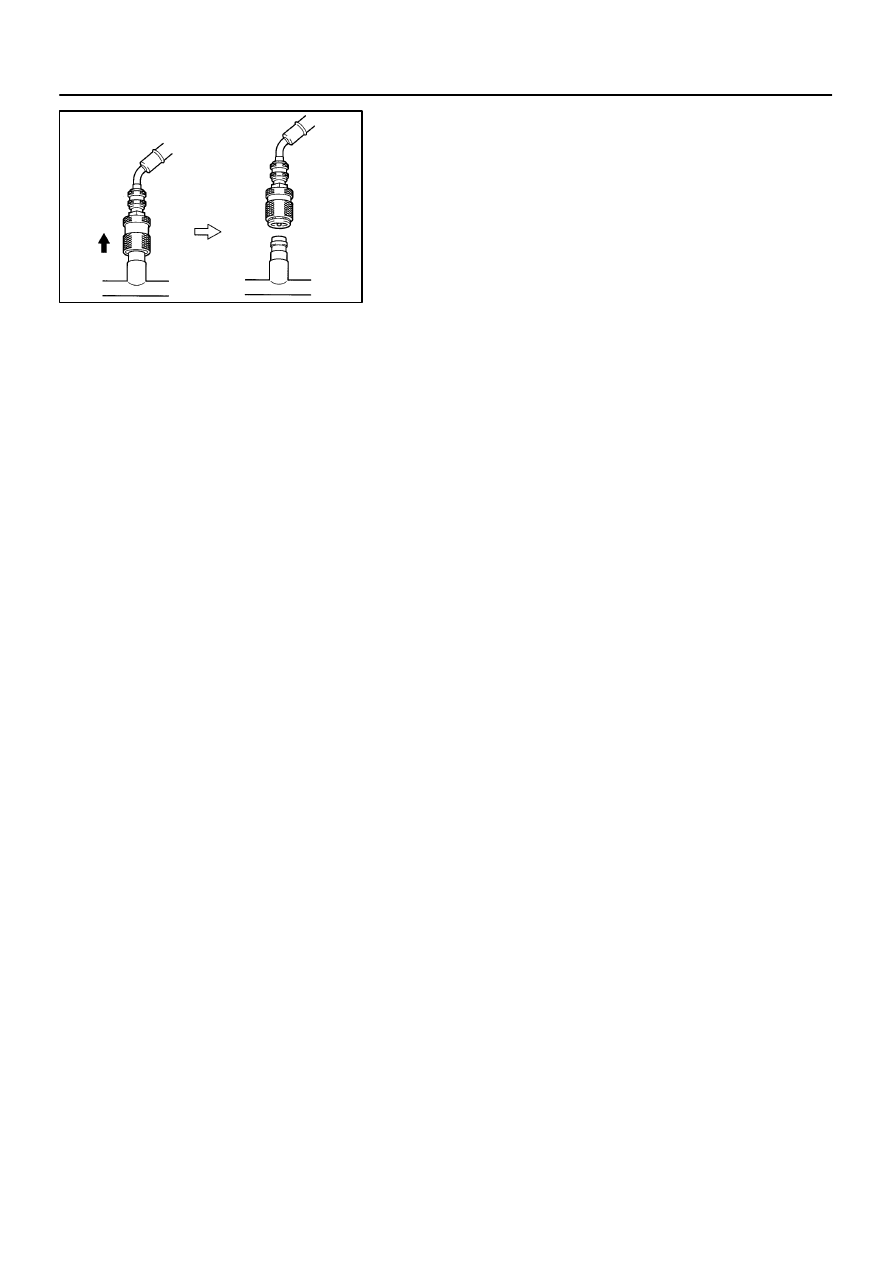

HINT:
Slide the sleeve of the quick disconnect adapter upward to un-
lock the adapter and remove it from the service valve.
3.

INSTALL CAPS TO SERVICE VALVES ON REFRIGER-
ANT LINE
