LUBRICATION (2JZ–GE)

OIL AND FILTER

LU–1

1573

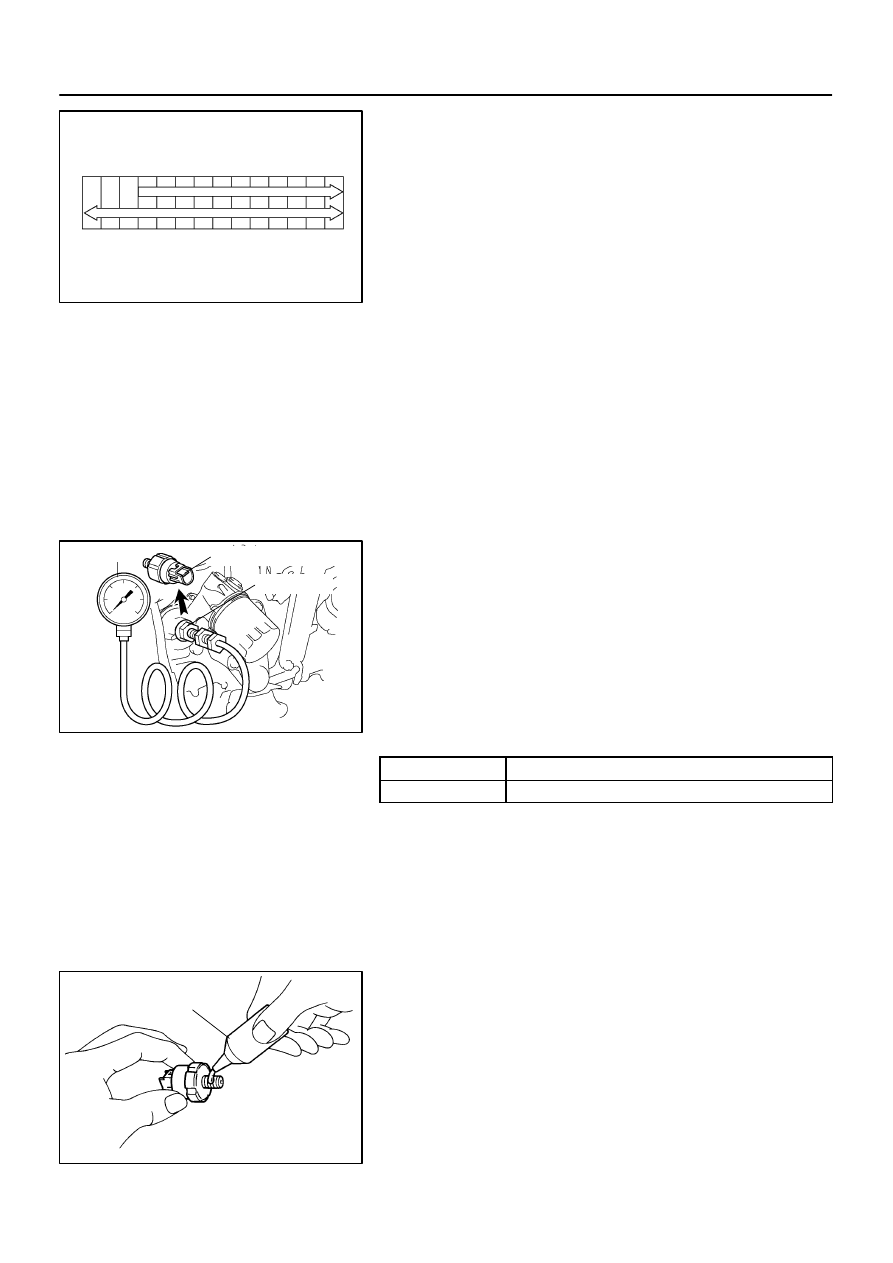

OIL AND FILTER

INSPECTION

1.

CHECK OIL QUALITY

Check the oil for deterioration, entry of water, discoloring or thin-
ning.
If oil quality is visibly poor, replace the oil.

Oil grade:
API grade SJ, Energy–Conserving or ILSAC multi-
grade engine oil. SAE 5W–30 is the best choice for
your vehicle, for good fuel economy, and good start-
ing in cold weather.

2.

CHECK ENGINE OIL LEVEL

After warming up the engine and then 5 minutes after the en-
gine stop, oil level should be between the low level and full level
marks of the dipstick.
If low, check for leakage and add oil up to the full level mark.
NOTICE:
Do not fill with engine oil above the full level mark.

3.

REMOVE OIL PRESSURE SWITCH, AND INSTALL OIL
PRESSURE GAUGE

(a)

Disconnect the oil pressure switch connector.

(b)

Using SST, remove the oil pressure switch.
SST

09816–30010

(c)

Install an oil pressure gauge.

4.

WARM UP ENGINE

Allow the engine to warm up to normal operating temperature.
5.

CHECK OIL PRESSURE
Oil pressure:

At idle

49 kPa (0.5 kgf/cm

2

, 7 psi) or more

At 3,000 rpm

324 kPa (3.3 kgf/cm

2

, 47 psi) or more

6.

REMOVE OIL PRESSURE GAUGE AND REINSTALL
OIL PRESSURE SWITCH

(a)

Remove the oil pressure gauge.

(b)

Tighten the union bolt.
Torque: 90 N·m (900 kgf·cm, 66 ft·lbf)

(c)

Apply adhesive to 2 or 3 threads of the oil pressure switch.
Adhesive:
Part No.08833–00080, THREE BOND 1344,
LOCTITE 242 or equivalent

(d)

Using SST, install the oil pressure switch.
SST

09816–30010

Torque: 15 N·m (150 kgf·cm, 11 ft·lbf)

(e)

Connect the oil pressure switch connector.

7.

START ENGINE AND CHECK FOR LEAKS

LU05M–01

LU–10

–

LUBRICATION (2JZ–GE)

OIL PUMP

1582

REPLACEMENT

REPLACE FRONT CRANKSHAFT  OIL SEAL  (See page

EM–88

).

LU05N–01

P02186

Mark

P02443

S01373

Plug

New
Gasket

Relief
Valve

Compression Spring

–

LUBRICATION (2JZ–GE)

OIL PUMP

LU–11

1583

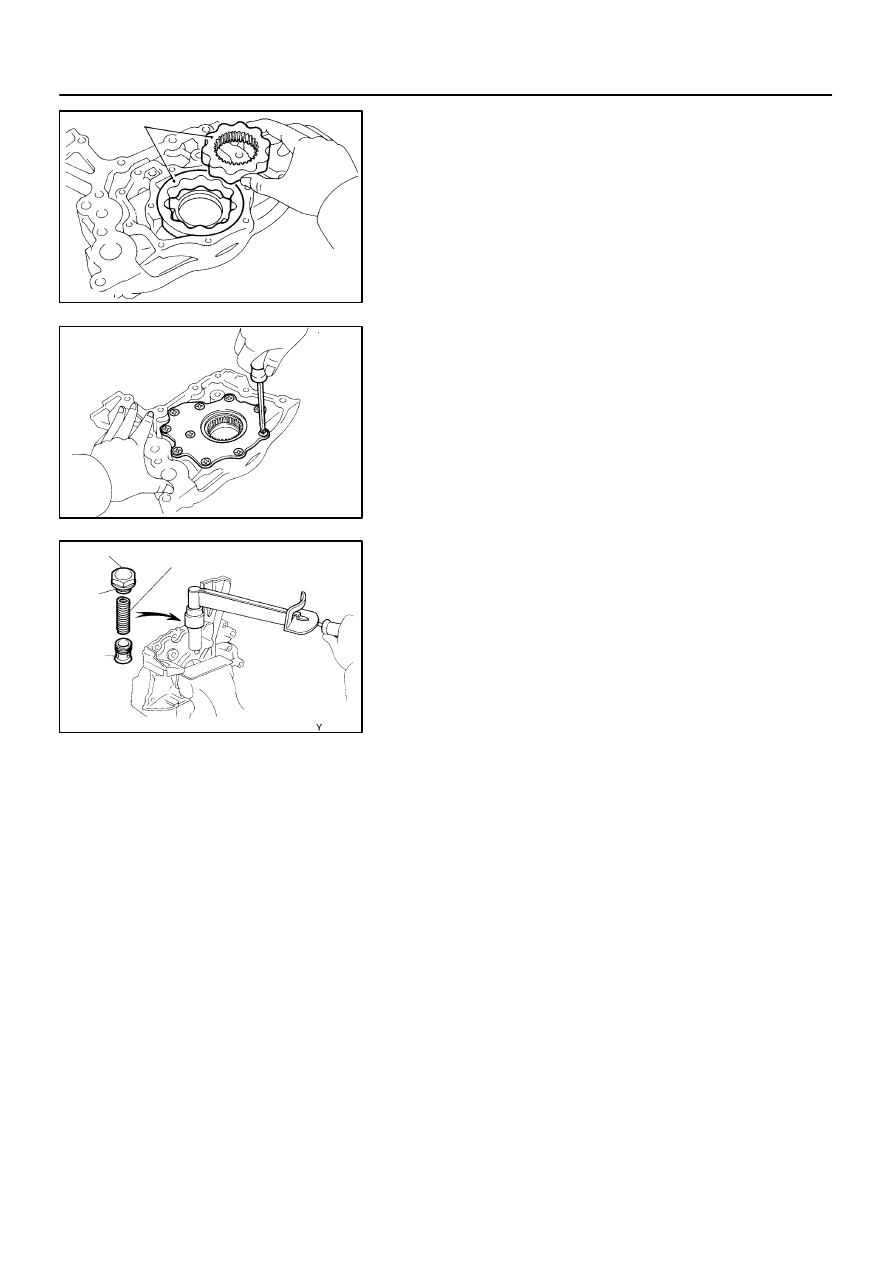

REASSEMBLY

1.

INSTALL DRIVE AND DRIVEN ROTORS

(a)

Place the drive and driven rotors into oil pump body with
the mark facing upward.

(b)

Install the pump body cover with the 10 screws.
Torque: 10 N·m (105 kgf·cm, 8 ft·lbf)

2.

INSTALL RELIEF VALVE

(a)

Carefully mount the pump body in a soft jaw vise.

NOTICE:
Be careful not to damage the pump body.
(b)

Insert the relief valve and compression spring into the oil
pump body hole.

(c)

Install the plug with a new gasket.
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)

LU05O–03

P03946

New O–Ring

Z02385

Seal Width
2 – 3 mm

A

B

A

B

P03936

Long
Bolt

LU–12

–

LUBRICATION (2JZ–GE)

OIL PUMP

1584

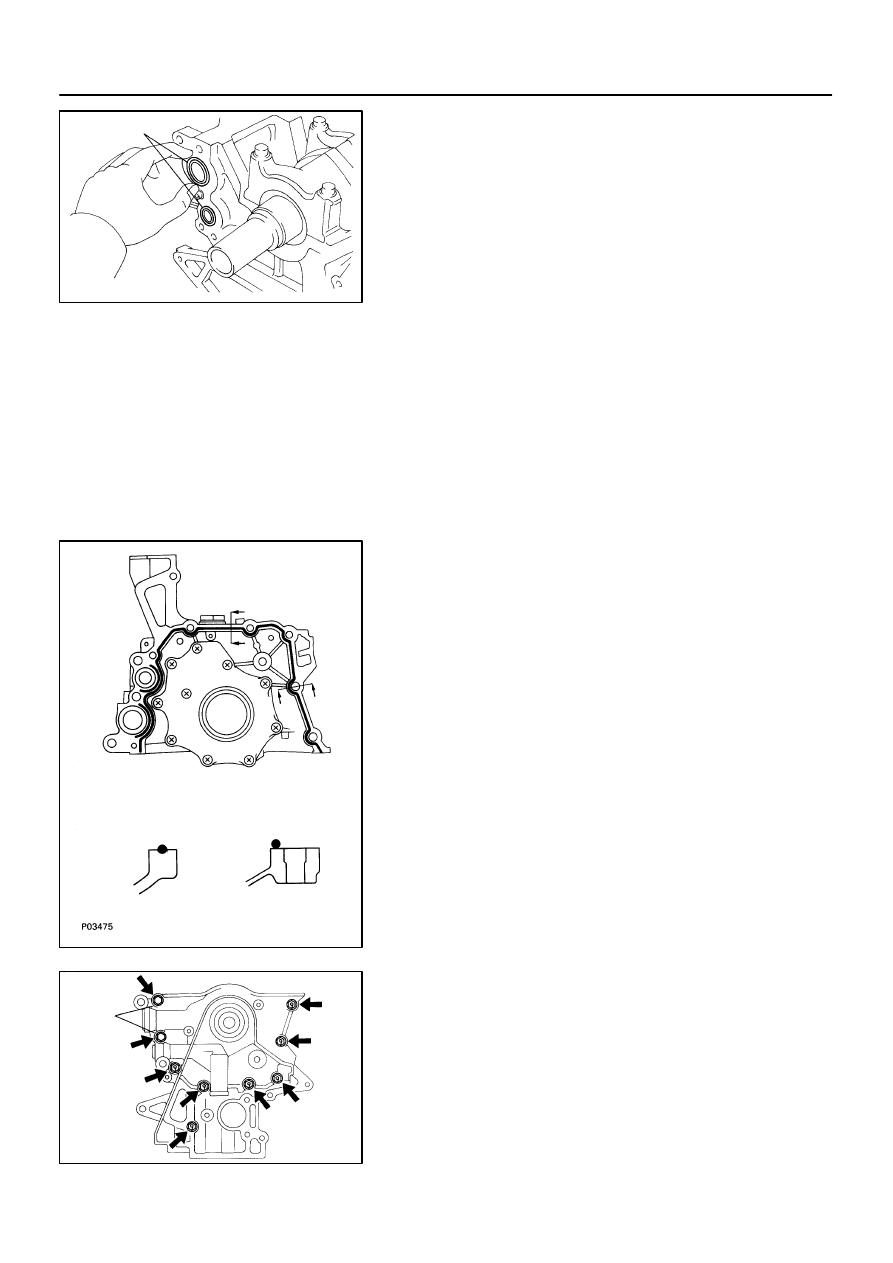

INSTALLATION

1.

INSTALL OIL PUMP

(a)

Place 2 new O–rings in position on the cylinder block.

(b)

Remove any old packing (FIPG) material and be careful
not to drop any oil on the contact surfaces of the oil pump
and cylinder block.

Using a razor blade gasket scraper, remove all the
old packing (FIPG) material from the gasket
surfaces and sealing groove.

Thoroughly clean all components to remove all the
debris.

Using a non–residue solvent, clean both sealing
surfaces.

NOTICE:
Do not use a solvent which will affect the painted surfaces.

(c)

Apply seal packing to the oil pump as shown in the illustra-
tion.
Seal packing: Part No.08826–00080 or equivalent

Install a nozzle that has been cut to a 2 – 3 mm (0.08
– 0.12 in.) opening.

HINT:
Avoid applying an excessive amount to the surface. Be particu-
larly careful near oil passages.

Parts must be assembled within 5 minutes of ap-
plication. Otherwise the material must be removed
and reapplied.

Immediately remove nozzle from the tube and rein-
stall cap.

(d)

Install the oil pump with the 9 bolts.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)
