BE–74

BODY ELECTRICAL

HEADLIGHT CLEANER SYSTEM

2375

4.

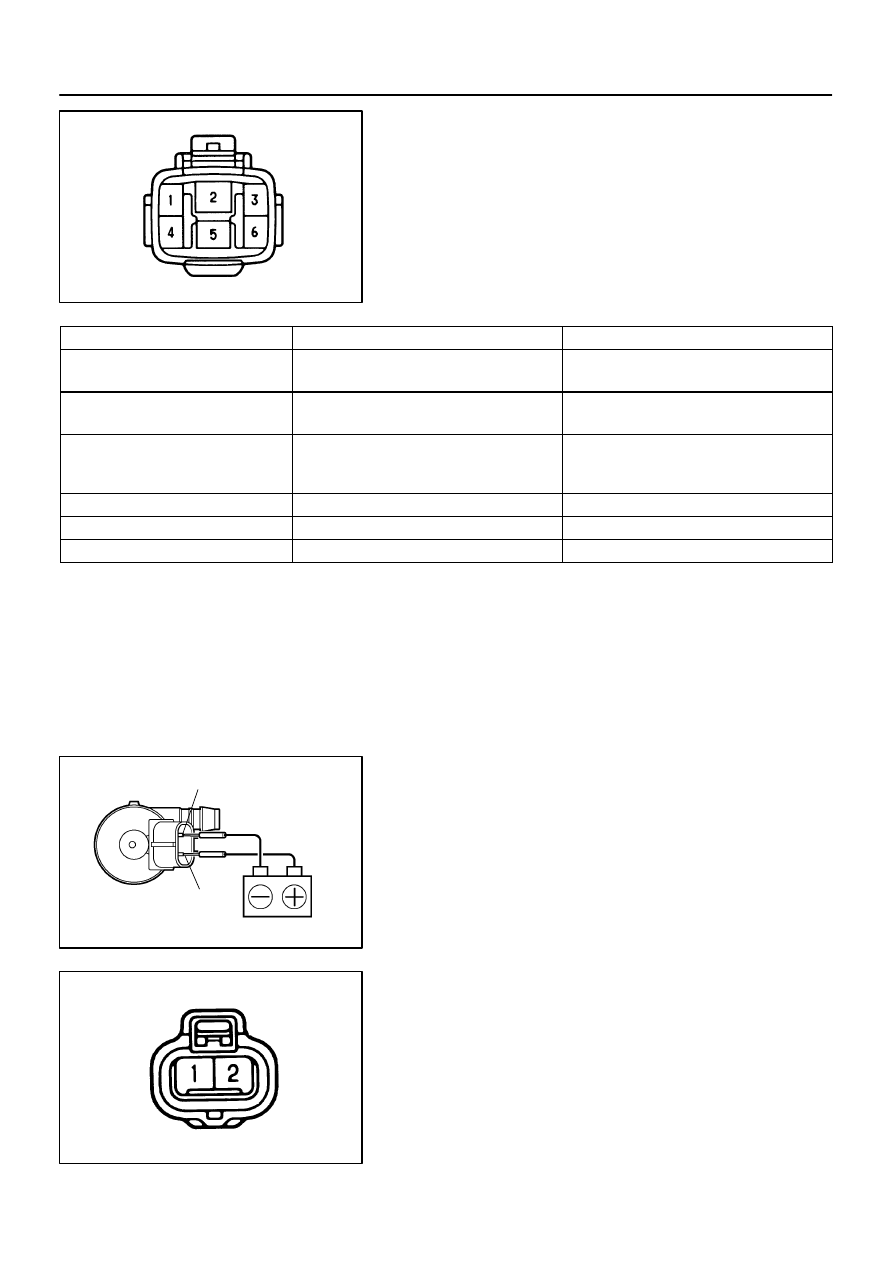

INSPECT HEADLIGHT CLEANER RELAY CIRCUIT

Disconnect the connector from the relay and inspect the con-
nector on wire harness side, as shown.

Tester connection

Condition

Specified condition

2 – Ground

3 – Ground

Constant

Continuity

4 – Ground

Ignition switch ON, light control switch in HEAD

and cleaner switch OFF

No continuity

4 – Ground

Ignition switch ON, light control switch in HEAD

and cleaner switch ON or daytime running light

system operating

Continuity

1 – Ground

Ignition switch OFF or ACC

No voltage

1 – Ground

Ignition switch ON

Battery positive voltage

5 – Ground

Constant

Battery positive voltage

If circuit is not as specified, inspect the circuits connected to oth-
er parts.

5.

INSPECT HEADLIGHT CLEANER MOTOR OPERA-
TION

Connect the positive (+) lead from the battery to terminal 2 and
the negative (–) lead to terminal 1, check that the motor oper-
ates.
NOTICE:

These tests must be performed quickly (within 20 seconds) to

prevent the coil from burning out.

If operation is not as specified, replace the motor.

6.

INSPECT HEADLIGHT CLEANER MOTOR CIRCUIT

Disconnect the connector from the cleaner motor and inspect
the connector on wire harness side, as shown.

BODY ELECTRICAL

HEADLIGHT CLEANER SYSTEM

BE–75

2376

Tester connection

Condition

Specified condition

2 – Ground

Constant

Continuity

If circuit is not as specified, inspect the circuits connected to oth-
er parts.

BE0HN–07

I01358

Wiper Motor

Washer Tank



 Washer Motor

Combination Switch



 Wiper and Washer Switch

Driver Side Junction Block



 WIPER Fuse



 WASHER Fuse

Ignition Switch

BE–76

BODY ELECTRICAL

WIPER AND WASHER SYSTEM

2377

WIPER AND WASHER SYSTEM

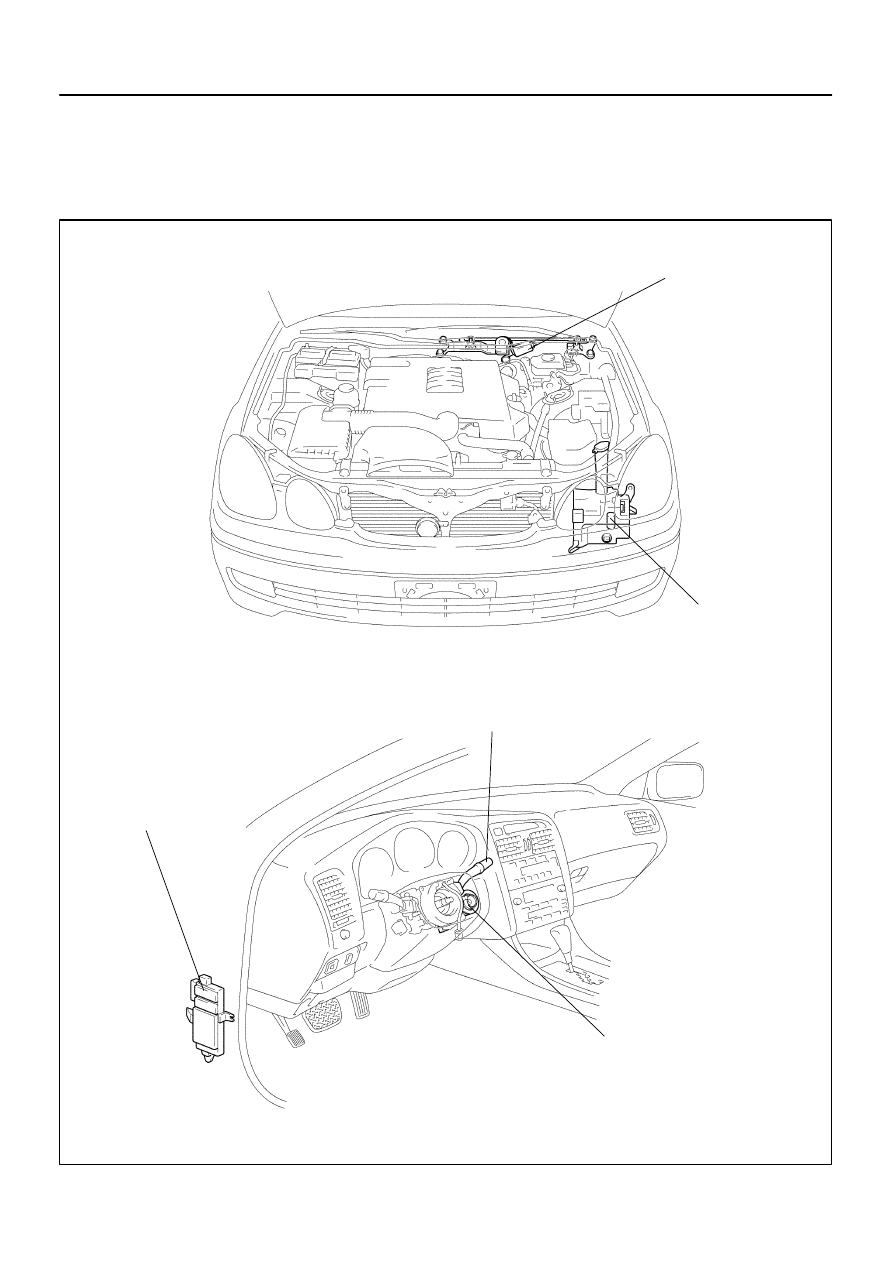

LOCATION



The vehicle shown in this illustration is ”GS400”.



All components of ”GS300” other than the ones used for engine are same as ”GS400”.

BE0HO–04

I04070

OFF

INT

LO

HI

Washer ON

I04034

Wire Harness Side

2

17

I04071

5

4

BODY ELECTRICAL

WIPER AND WASHER SYSTEM

BE–77

2378

INSPECTION

1.

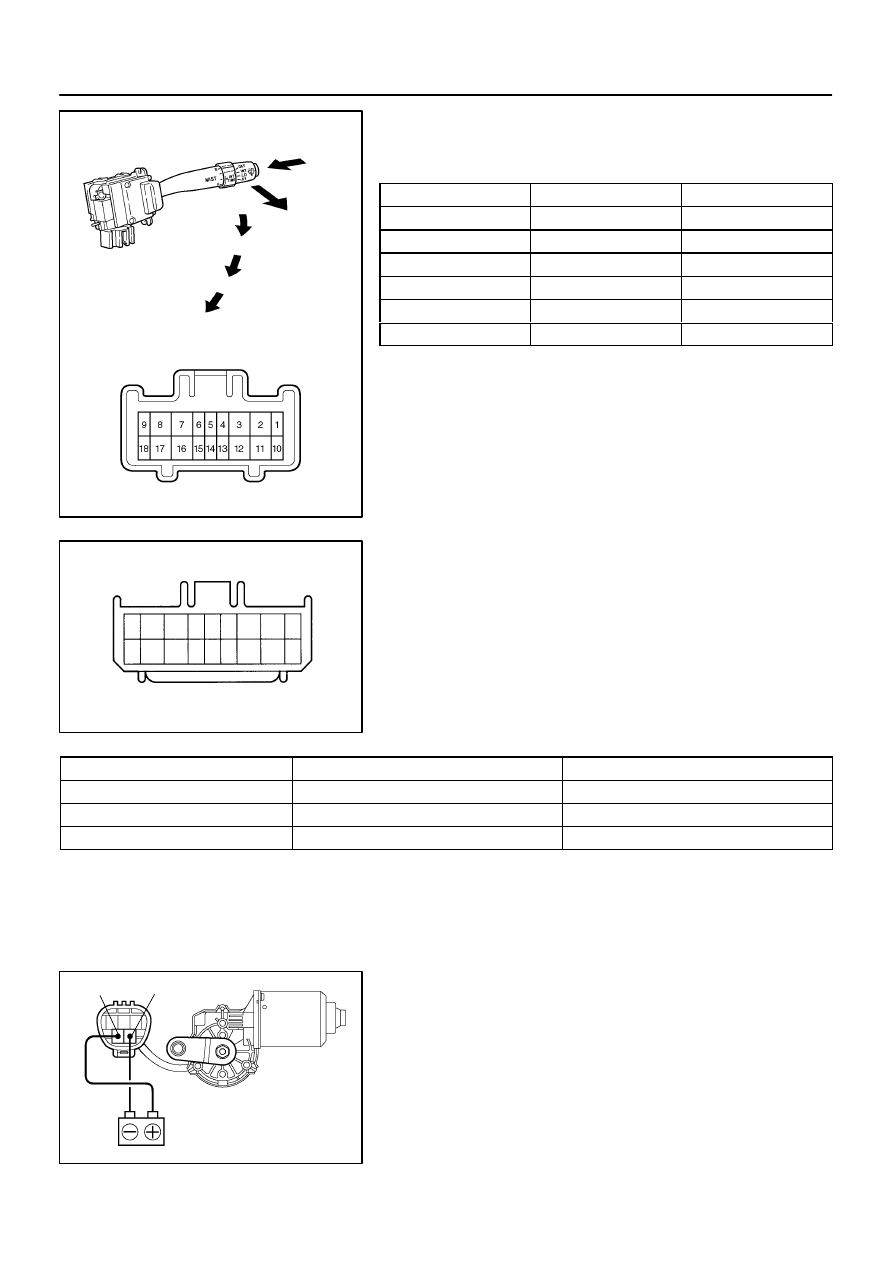

INSPECT WIPER AND WASHER SWITCH CONTINU-
ITY

Switch position

Tester connection

Specified  condition

OFF

7 – 16

Continuity

INT

7 – 16

Continuity

LO

7 – 17

Continuity

HI

8 – 17

Continuity

Washer OFF

No continuity

Washer ON

2 – 11

Continuity

If continuity is not as specified, replace the switch.

2.

INSPECT WIPER AND WASHER SWITCH CIRCUIT
Connector disconnected:

Disconnect the connector from the motor and inspect the con-
nector on the wire harness side, as shown.

Tester connection

Condition

Specified condition

2 – Ground

Constant

Continuity

17 – Ground

Ignition switch LOCK or ACC

No voltage

17 – Ground

Ignition switch ON

Battery positive voltage

If circuit is not as specified, inspect the circuits connected to oth-
er parts.

3.

INSPECT WIPER MOTOR OPERATION
Low speed:

Connect the positive (+) lead from the battery to terminal 5 and
the negative (–) lead to terminal 4, check that the motor oper-
ates at low speed.
If operation is not as specified, replace the motor.
