WARNING!

ALWAYS obey traffic laws and pay attention to the
road. ALWAYS drive safely with your hands on the
steering wheel. You have full responsibility and as-
sume all risks related to the use of the features and
applications in this vehicle. Only use the features and
applications when it is safe to do so. Failure to do so
may result in an accident involving serious injury or
death.

NOTE:
• Your vehicle may be transmitting data as authorized by

the subscriber.

• The SOS and ASSIST buttons will only function if you

are connected to an operable LTE (voice/data) or 4G
(data) network. Other Uconnect services will only be
operable if your SiriusXM Guardian service is active and
you are connected to an operable LTE (voice/data) or 4G
(data) network.

ASSIST Call

The ASSIST Button is used to automatically connect you to
any one of the following support centers:
• Roadside Assistance – If you get a flat tire, or need a tow,

just push the ASSIST button and you will be connected
to a representative for assistance. Roadside Assistance
will know what vehicle you’re driving and its location.
Additional fees may apply for roadside assistance.

• SiriusXM Guardian Customer Care – In-vehicle support

for SiriusXM Guardian.

• Vehicle Customer Care – Total support for all other

vehicle issues.

SOS Call

1. Push the SOS Call button on the Rearview Mirror.

NOTE:

In case the SOS Call button is pushed in error, there

will be a ten second delay before the SOS Call system
initiates a call to a SOS operator. To cancel the SOS Call
connection, push the SOS call button on the Rearview
Mirror or press the cancellation button on the Device
Screen. Termination of the SOS Call will turn off the green
LED light on the Rearview Mirror.

324

IN CASE OF EMERGENCY

2. The LED light located between the ASSIST and SOS

buttons on the Rearview Mirror will turn green once a
connection to a SOS operator has been made.

3. Once a connection between the vehicle and a SOS

operator is made, the SOS Call system may transmit the
following important vehicle information to a SOS op-
erator:

• Indication that the occupant placed a SOS Call.
• The vehicle brand.
• The last known GPS coordinates of the vehicle.

4. You should be able to speak with the SOS operator

through the vehicle audio system to determine if addi-
tional assistance is needed.

WARNING!

ALWAYS obey traffic laws and pay attention to the road.
ALWAYS drive safely with your hands on the steering
wheel. You have full responsibility and assume all risks
related to the use of the features and applications in this
vehicle. Only use the features and applications when it
is safe to do so. Failure to do so may result in an accident
involving serious injury or death.

NOTE:

• Your vehicle may be transmitting data as authorized

by the subscriber.

• Once a connection is made between the vehicle’s SOS

Call system and the SOS operator, the SOS operator
may be able to open a voice connection with the
vehicle to determine if additional assistance is needed.
Once the SOS operator opens a voice connection with
the vehicle’s SOS Call system, the operator should be
able to speak with you or other vehicle occupants and
hear sounds occurring in the vehicle. The vehicle’s
SOS Call system will attempt to remain connected
with the SOS operator until the SOS operator termi-
nates the connection.

5. The SOS operator may attempt to contact appropriate

emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.

IN CASE OF EMERGENCY

325

WARNING!

• If anyone in the vehicle could be in danger (e.g., fire

or smoke is visible, dangerous road conditions or
location), do not wait for voice contact from an
Emergency Services Agent. All occupants should exit
the vehicle immediately and move to a safe location.

• Never place anything on or near the vehicle’s oper-

able network and GPS antennas. You could prevent
operable network and GPS signal reception, which
can prevent your vehicle from placing an emergency
call. An operable network and GPS signal reception
is required for the SOS Call system to function
properly.

• The SOS Call system is embedded into the vehicle’s

electrical system. Do not add aftermarket electrical
equipment to the vehicle’s electrical system. This
may prevent your vehicle from sending a signal to
initiate an emergency call. To avoid interference that
can cause the SOS Call system to fail, never add
aftermarket equipment (e.g., two-way mobile radio,
CB radio, data recorder, etc.) to your vehicle’s electri-
cal system or modify the antennas on your vehicle. IF
YOUR VEHICLE LOSES BATTERY POWER FOR

(Continued)

WARNING! (Continued)

ANY REASON (INCLUDING DURING OR AFTER
AN ACCIDENT), THE UCONNECT FEATURES,
APPS AND SERVICES, AMONG OTHERS, WILL
NOT OPERATE.

• Modifications to any part of the SOS Call system

could cause the air bag system to fail when you need
it. You could be injured if the air bag system is not
there to help protect you.

SOS Call System Limitations

Vehicles sold in Mexico DO NOT have SOS Call system
capabilities.

SOS or other emergency line operators in Mexico may not
answer or respond to SOS system calls.

If the SOS Call system detects a malfunction, any of the
following may occur at the time the malfunction is de-
tected, and at the beginning of each ignition cycle:
• The Rearview Mirror light located between the ASSIST

and SOS buttons will continuously be illuminated red.

• The Device Screen will display the following message

“Vehicle device requires service. Please contact your
dealer.”

326

IN CASE OF EMERGENCY

• An In-Vehicle Audio message will state “Vehicle device

requires service. Please contact your dealer.”

WARNING!

• Ignoring the Rearview Mirror light could mean you

will not have SOS Call services. If the Rearview
Mirror light is illuminated, have your authorized
dealer service the SOS Call system immediately.

• The Occupant Restraint Control module turns on the

air bag Warning Light on the instrument panel if a
malfunction in any part of the system is detected. If
the Air Bag Warning Light is illuminated, have your
authorized dealer service the Occupant Restraint
Control system immediately.

Even if the SOS Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the SOS
Call system operation. These include, but are not limited
to, the following factors:
• Delayed accessories mode is active.
• The ignition is in the OFF position.
• The vehicle’s electrical systems are not intact.
• The SOS Call system software and/or hardware are

damaged during a crash.

• The vehicle battery loses power or becomes discon-

nected during a vehicle crash.

• LTE (voice/data) or 4G (data) network and/or Global

Positioning Satellite signals are unavailable or ob-
structed.

• Equipment malfunction at the SOS operator facility.
• Operator error by the SOS operator.
• LTE (voice/data) or 4G (data) network congestion.
• Weather.
• Buildings, structures, geographic terrain, or tunnels.

WARNING!

IN CASE OF EMERGENCY

327

NOTE:
• Your vehicle may be transmitting data as authorized by

the subscriber.

• Never place anything on or near the vehicle’s LTE

(voice/data) or 4G (data) and GPS antennas. You could
prevent LTE (voice/data) or 4G (data) and GPS signal
reception, which can prevent your vehicle from placing
an emergency call. An operable LTE (voice/data) or 4G
(data) network connection and a GPS signal is required
for the SOS Call system to function properly.

General Information

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

CAUTION!

To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.

328

IN CASE OF EMERGENCY

BULB REPLACEMENT

Replacement Bulbs

Interior Bulbs

Lamps

Bulb Number

Front Courtesy Light

C5W

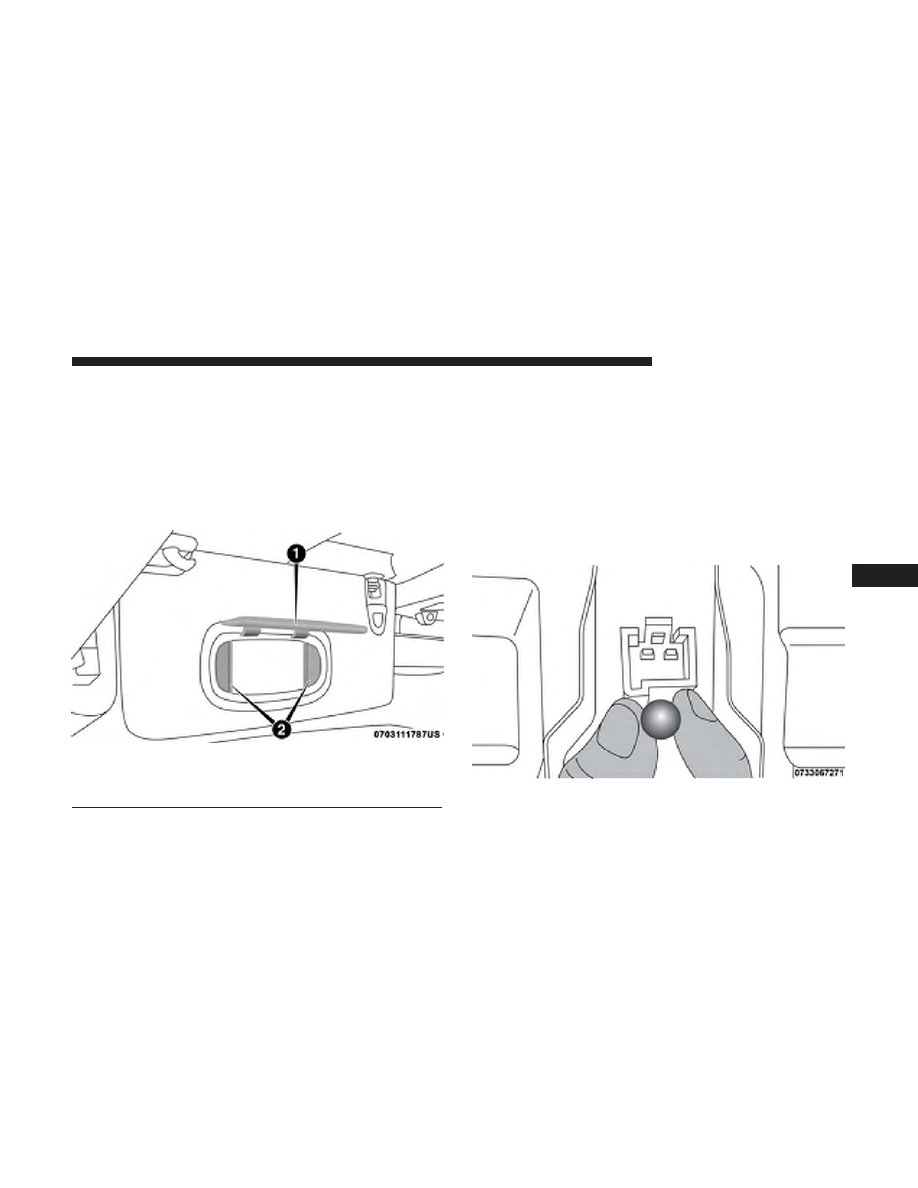

Front Courtesy Lights (Sun Visors)

C5W

Rear Dome Light (Models Without Retractable roof)

C5W

Rear Interior Lights (Models With Retractable roof)

C5W

Interior Lights

HT-168

Dome Light (Glove Box)

HT-168

IN CASE OF EMERGENCY

329

Exterior Bulbs

Lamps

Bulb Number

Low Beam Headlamps (Halogen)

H11LL

High Beam Headlamps (Halogen)

9005LL

Front Position/Daytime Running Lights (DRL)

PSX24W

Front Direction Indicator Lamps

7444NA

Front Position – Premium LED

LED (Serviced At An Authorized Dealer)

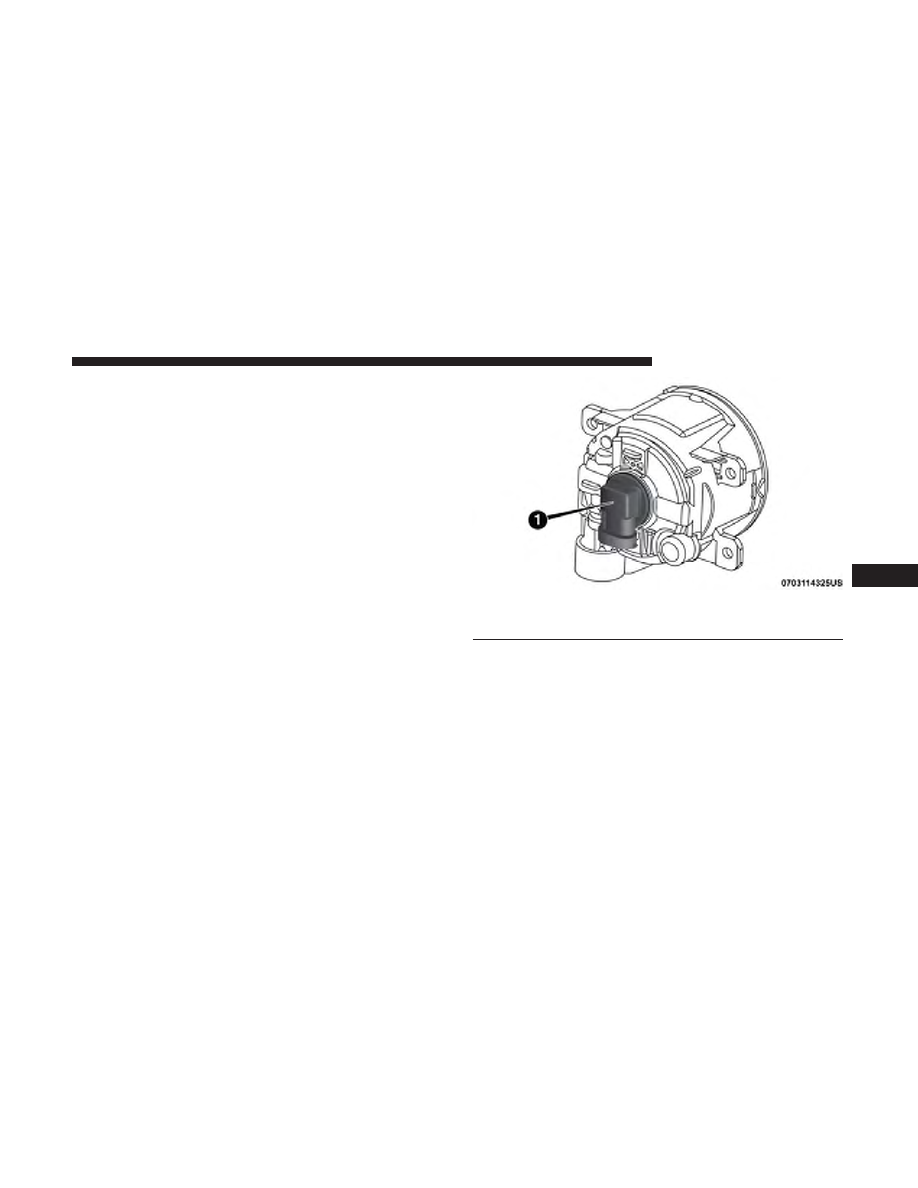

Front Fog Lamps

H11LL

Low Beam / High Beam Headlamps (HID)

D3S (HID) (Serviced At An Authorized Dealer)

Side Indicators (Front – Halogen)

W5W

Side Indicators (Front – HID)

LED (Serviced At An Authorized Dealer)

Side Indicators (Side View Mirror)

LED (Serviced At An Authorized Dealer)

Tail/Brake Lights

Premium Tail Lights: LED

(Serviced At An Authorized Dealer)

Base Tail Lights: W21/5WLL-M

Turn Indicators

W21WLL For Premium Tail Lamps

W21/5WLL For Base Tail Lamps

Center High Mounted Stop Lamp (CHMSL)

LED (Serviced At An Authorized Dealer)

License Plate Lamp

LED (Serviced At An Authorized Dealer)

Liftgate Lamp Reverse

W21WLL

Liftgate Lamp Tail

LED (Serviced At An Authorized Dealer)

330

IN CASE OF EMERGENCY

High Intensity Discharge (HID) Headlamps — If
Equipped

The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off. Because of this, you should
not attempt to service a HID headlamp light source your-
self. If an HID headlamp light source fails, take your
vehicle to an authorized dealer for service.

NOTE:

On vehicles equipped with HID headlamps, when

the headlamps are turned on, there is a blue hue to the
lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.

WARNING!

A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electrocu-
tion if not serviced properly. See your authorized
dealer for service.

Replacing Exterior Bulbs

Headlamps

Hi/Lo Beam Light Halogen

The bulbs can be accessed from the wheel liner with the
following procedure:

1. Turn the front wheels completely.

2. Remove the wheel liner.

3. Remove the headlamp bulb cap.

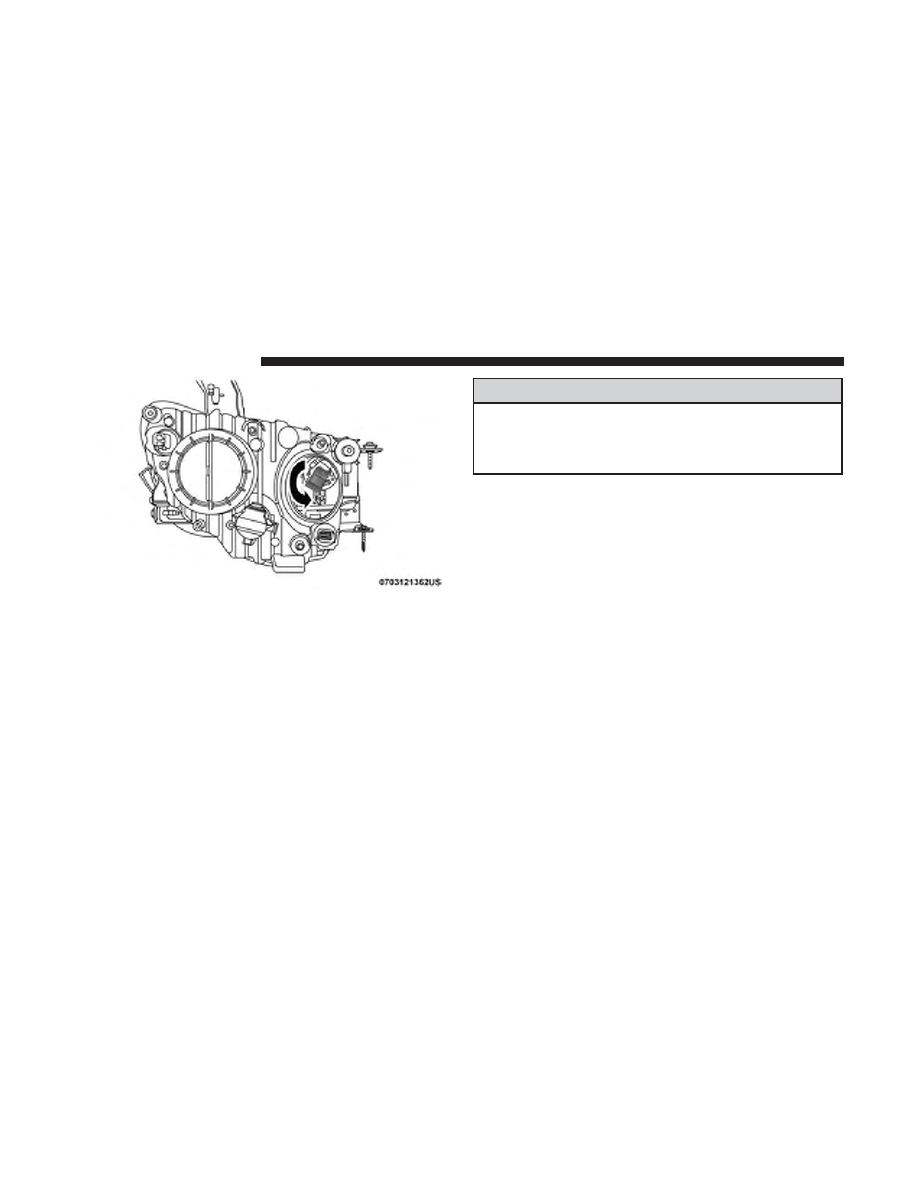

4. Rotate the headlamp bulb socket counterclockwise then

pull outwards.

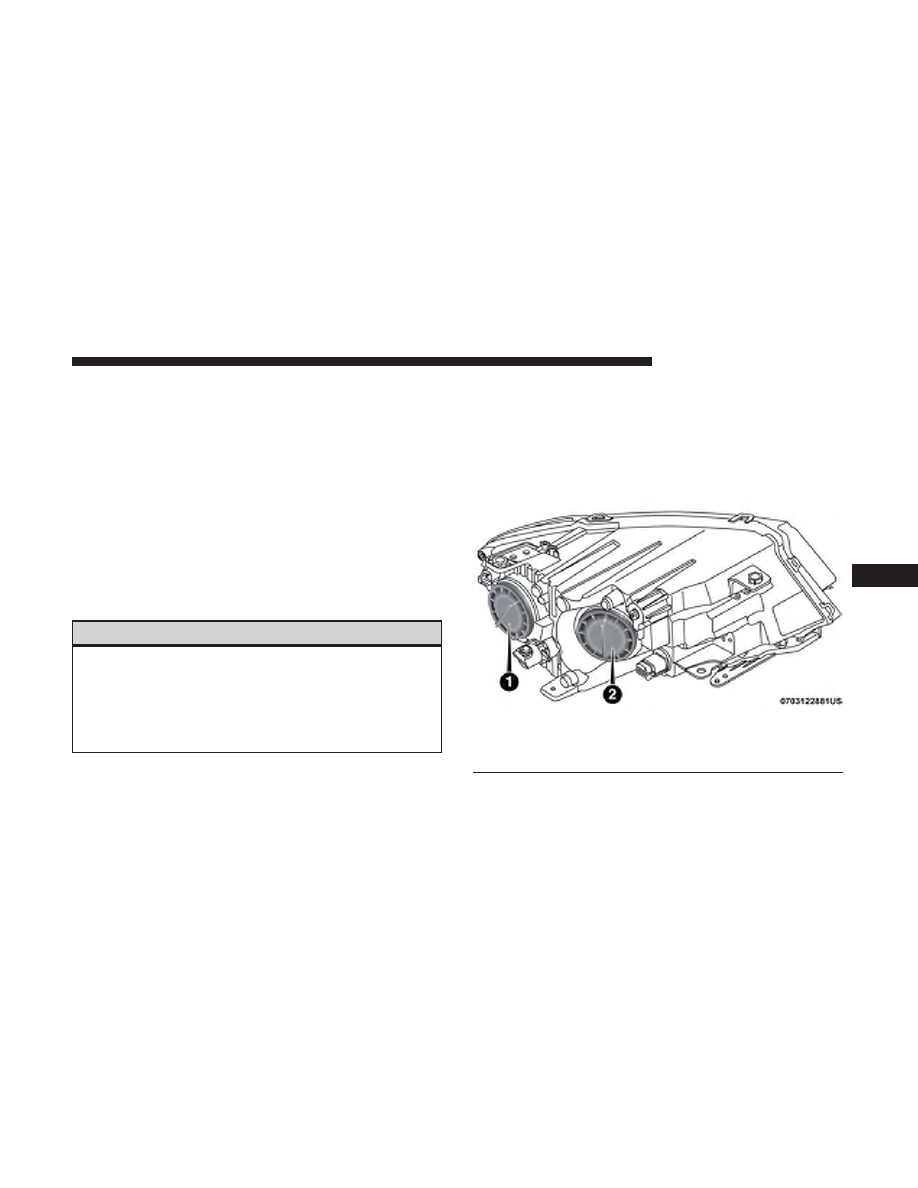

Headlamp

1 — Low Beam Bulb Cap
2 — High Beam Bulb Cap

IN CASE OF EMERGENCY

331

5. Push on the locking tab on the headlamp bulb connector

and remove the bulb and socket.

6. Install the new headlamp bulb making sure it’s properly

locked.

7. Install the headlamp bulb and socket; turn it clockwise

making sure it is properly locked.

8. Reinstall the wheel liner.

NOTE:

We advise referring to an authorized dealer.

WARNING!

Carry out the operation of replacing lamps only with
the engine off. Also make sure that the engine is cold,
to avoid the danger of burns.

Turn Signal Light/Position Lights/Daytime Running
Lights

To replace the bulbs proceed as follows:

1. Turn the front wheels completely.

2. Remove the wheel liner.

3. Remove the electrical connectors.

4. For the DRL bulb, grip the bulb at the top and bottom

locking tabs and squeeze to and remove the bulb.

5. To replace the DRL bulb gently push bulb towards

housing. Be sure to hear both the top and bottom
locking tabs “CLICK” to ensure the bulb is properly
seated.

6. For the turn signal bulb, rotate in a counterclockwise

direction and remove the bulb and bulb socket. Pull the
bulb axially to remove it from the socket.

Headlamp Bulb Socket

332

IN CASE OF EMERGENCY

7. Install the bulb and sockets and rotate them clockwise

making sure that it is properly locked.

8. Reconnect the electrical connectors.

9. Reinstall the wheel liner.

NOTE:

We advise referring to an authorized dealer.

Front Fog Lights

To replace the bulbs proceed as follows:

1. Turn the front wheels completely.

2. Remove the wheel liner.

3. By pushing the electrical connector tab remove the

electrical connector.

4. Rotate the bulb counterclockwise, and then replace the

bulb.

5. Insert the new bulb in the socket, making sure the bulb

is locked into place.

6. Reconnect the electrical connector.

7. Reinstall the wheel liner.

NOTE:

We advise referring to an authorized dealer.

Fog Lamp Housing

1 — Bulb

IN CASE OF EMERGENCY

333

Side Indicators

The Side Indicators are LED. For their replacement see
your authorized dealer.

Rear Body Side Tail Lamps

Contain the following:
• Position lights
• Stop lights
• Direction indicator
To replace the bulbs proceed as follows:

1. Open the liftgate.

2. Using a suitable tool remove fasteners.

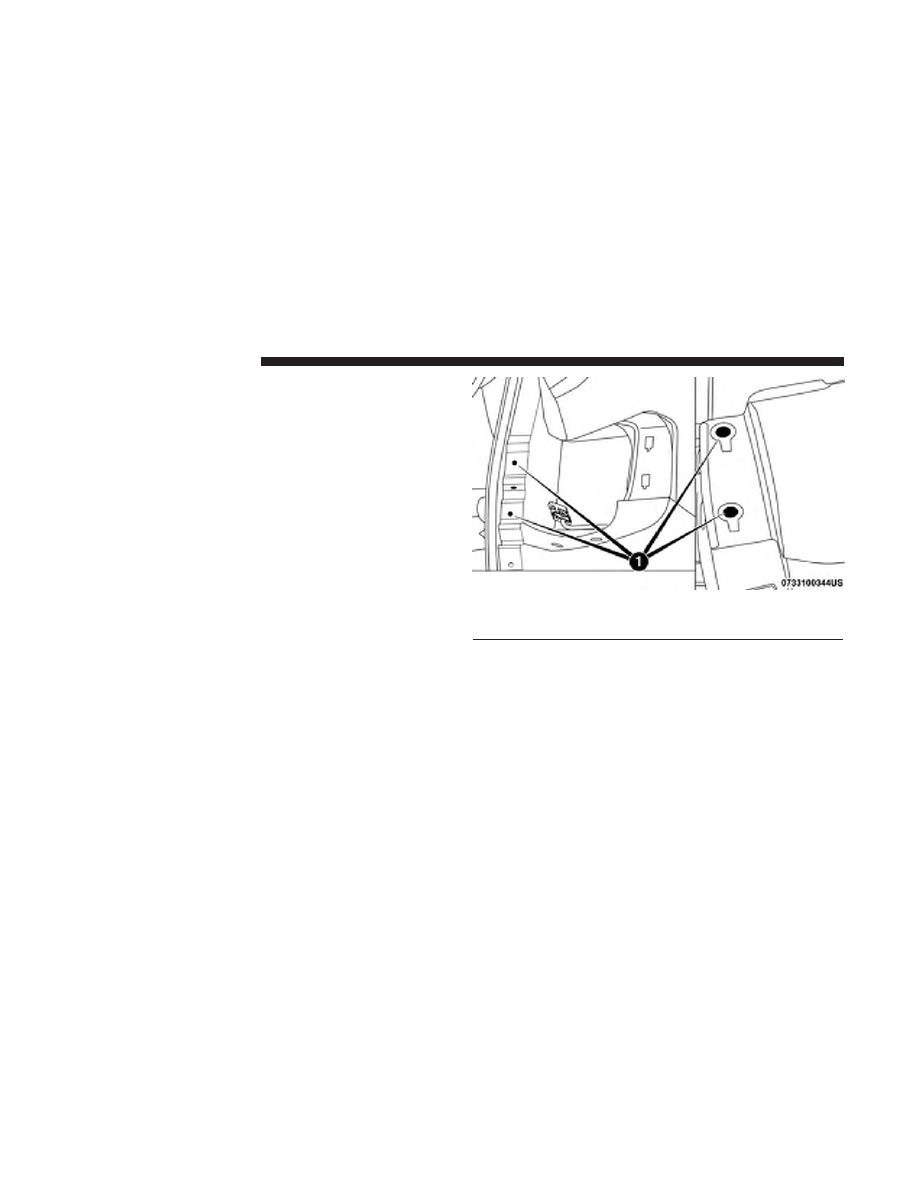

Body Side Tail Lamp Opening

1 — Fasteners

334

IN CASE OF EMERGENCY

3. Disconnect the electrical connector by pushing the re-

lease.

4. Remove the rear body side tail lamp, sliding it away

from the back of the vehicle.

5. Replace the bulb as necessary by turning and removing

the bulb housing.

6. Insert the new bulb, making sure it is properly locked.

7. Reposition the rear body side lamp assembly on the car.

8. Reconnect the electrical connector.

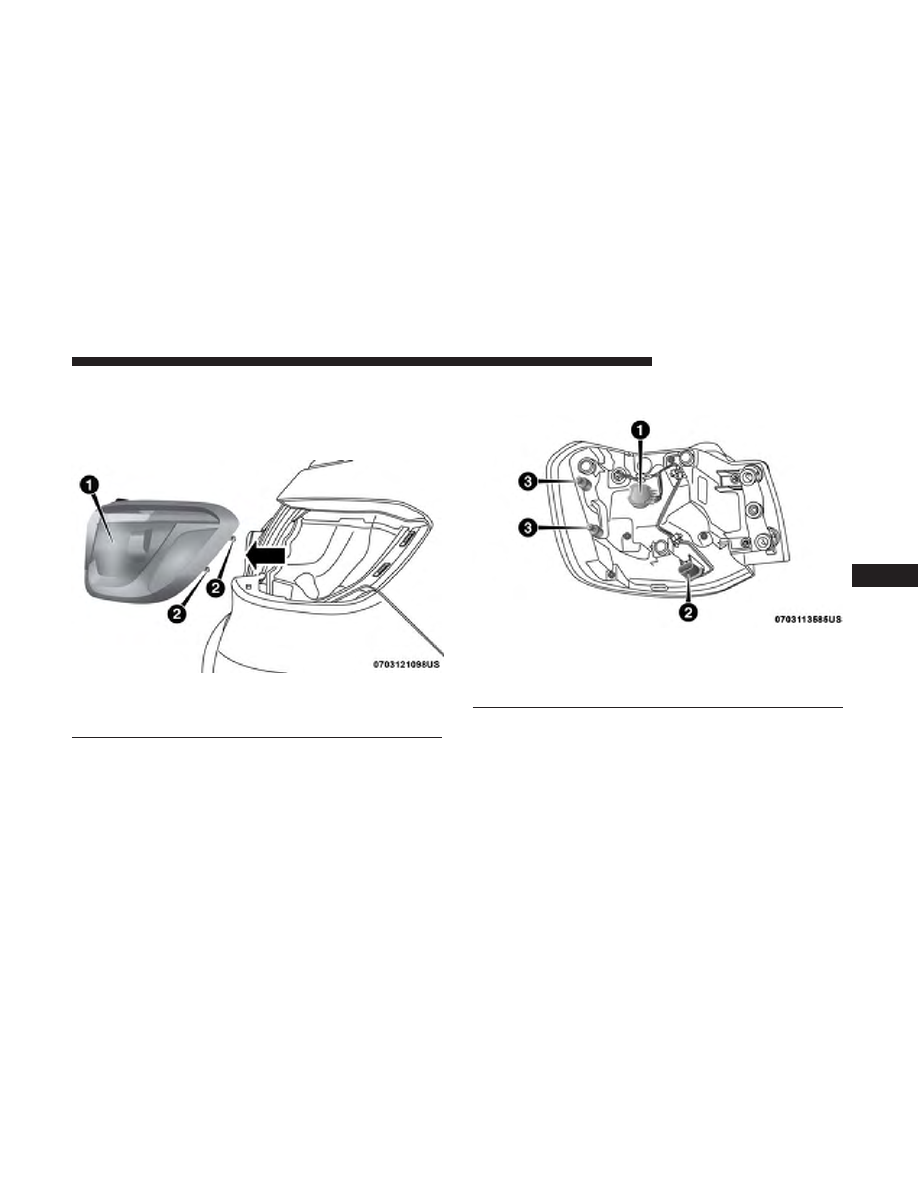

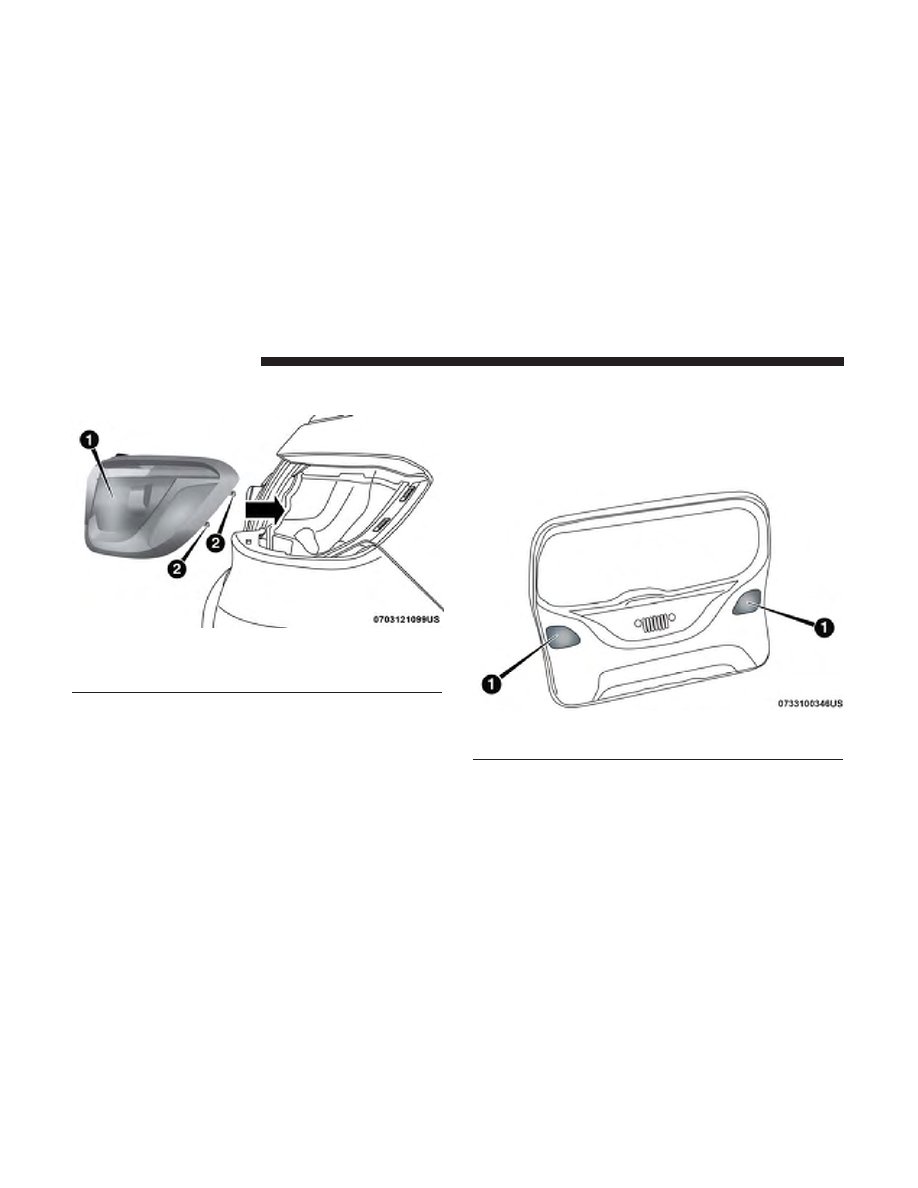

Body Side Tail Lamp

1 — Rear Body Side Tail Lamp
2 — Ball Stud

Reverse Side of Tail Lamp

1 — Direction Indicator Bulb / Stop Lamp Bulb
2 — Electrical Connector
3 — Ball Studs

IN CASE OF EMERGENCY

335

9. Reinstall the body side lamp making sure to align the

ball studs.

10. Install fasteners and tighten body side lamp assembly.

11. Finally close the tailgate.

NOTE:

We advise referring to an authorized dealer.

Reverse Lamps

1. Open the liftgate.

2. Using a suitable tool remove the access panel for body

side lamps, remove lift gate access cover for lift gate
lamps.

3. Disconnect the electrical connector by pushing the re-

lease.

Body Side Tail Lamp

1 — Rear Body Side Tail Lamp
2 — Ball Stud

Liftgate

1 — Lift Gate Access Covers

336

IN CASE OF EMERGENCY

4. Remove bulb and replace making sure it is properly

locked.

5. Reconnect the electrical connector.

6. Reinstall the access panels making sure they are locked

in correctly.

7. Finally close the tailgate.

3rd Stop Lamp

The CHMSL is LED. For their replacement, see your
authorized dealer.

License Plate Lights

The License Plate light is LED. For their replacement, see
your authorized dealer.

Replacing Interior Bulbs

Front Courtesy Light

To replace the bulbs proceed as follows:

1. Using a suitable tool remove the front courtesy light

assemby.

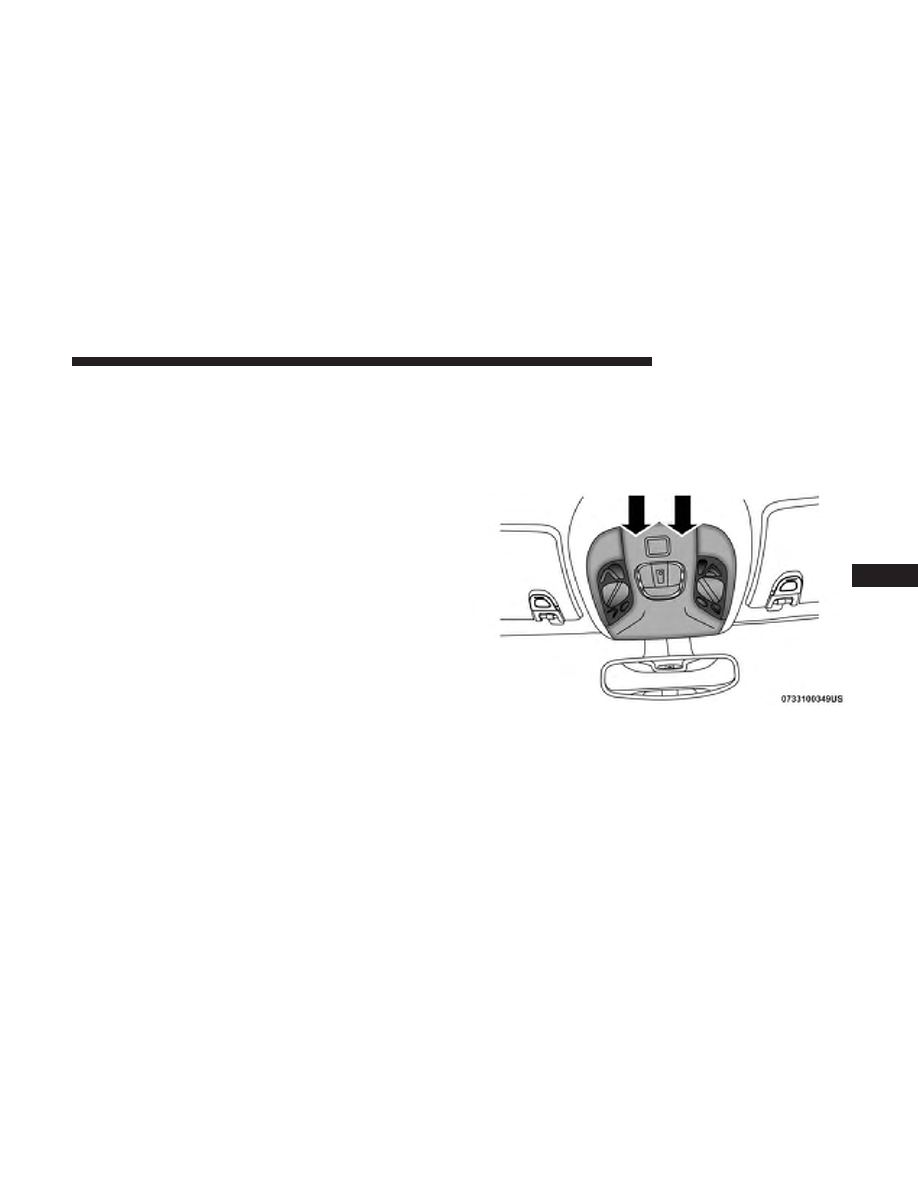

Front Courtesy Light

IN CASE OF EMERGENCY

337

2. Release the retainer clips and bulb housing as shown.

3. Replace the bulbs by pulling straight out of bulb hous-

ing.

4. Insert the new bulbs, making sure that they are properly

locked.

5. Reassemble the bulb housing and courtesy light housing

making sure that they are properly locked.

6. Install the front courtesy light, making sure that it is

properly locked.

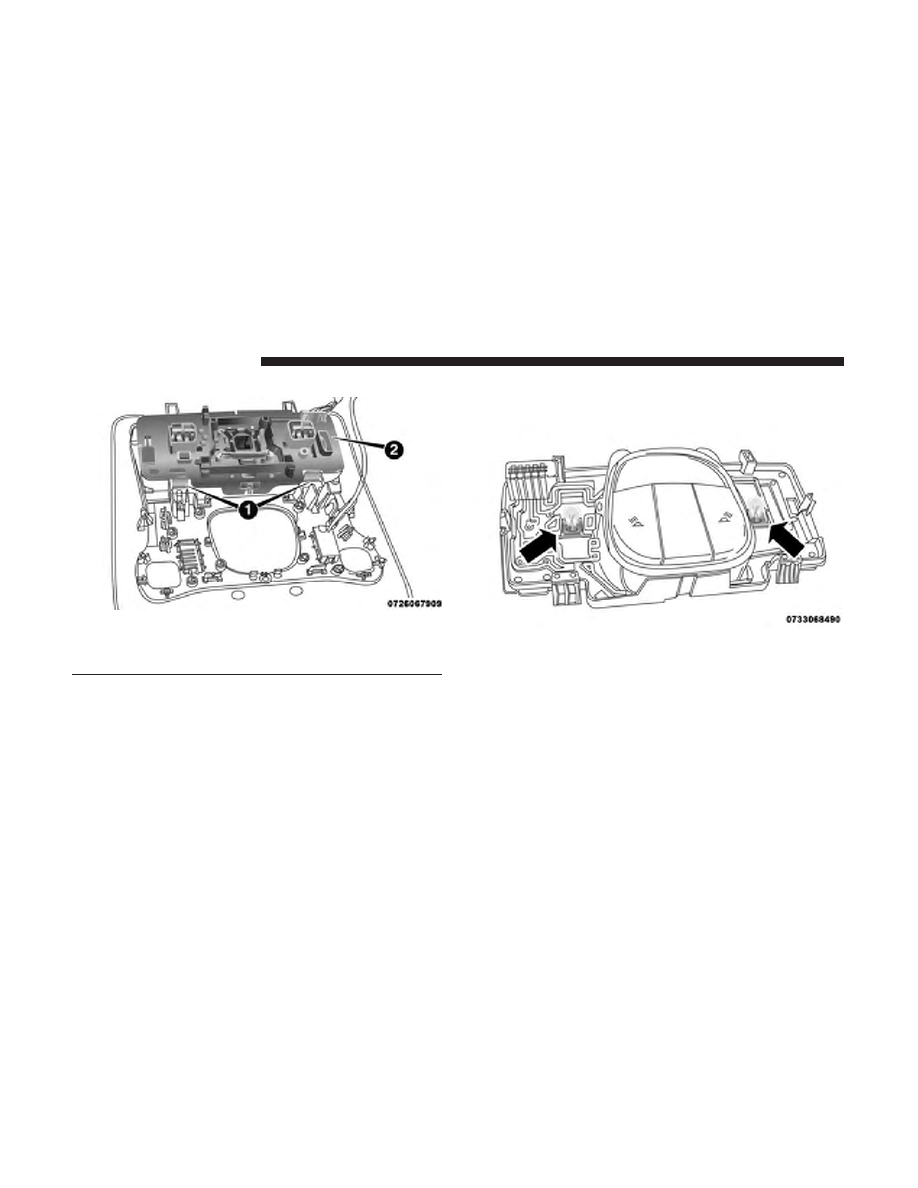

Front Courtesy Bulb Housing

1 — Retaining Clips
2 — Bulb Housing

Front Courtesy Bulb Housing

338

IN CASE OF EMERGENCY

Dome Light Vanity Mirror — If Equipped

To replace the bulbs proceed as follows:

1. Lift the cover of the mirror and pull out the mirror frame

with the mirror light cover attached.

2. Replace the bulb, releasing it from the side contacts, and

then insert the new bulb, making sure that it is properly
locked between the contacts.

3. Reinstall the visor mirror light cover making sure that it

is properly locked.

4. Finally lower the visor mirror cover to the mirror.

Dome Light Glove Compartment

To replace the bulb proceed as follows:

1. Open the glove compartment.

2. Place your fingers inside the light assembly, pull the

bulb to replace it.

3. Insert the new bulb, making sure it is properly locked.

Visor

1 — Visor Mirror Cover
2 — Visor Mirror Light

Bulb Removal/Installation

IN CASE OF EMERGENCY

339

Content .. 19 20 21 22 ..
