Jaguar XK. Service manual - part 68

275

Audio unit operation

R

These levels are optimised for a selected
seating position by pressing the L or R, R
or F buttons.

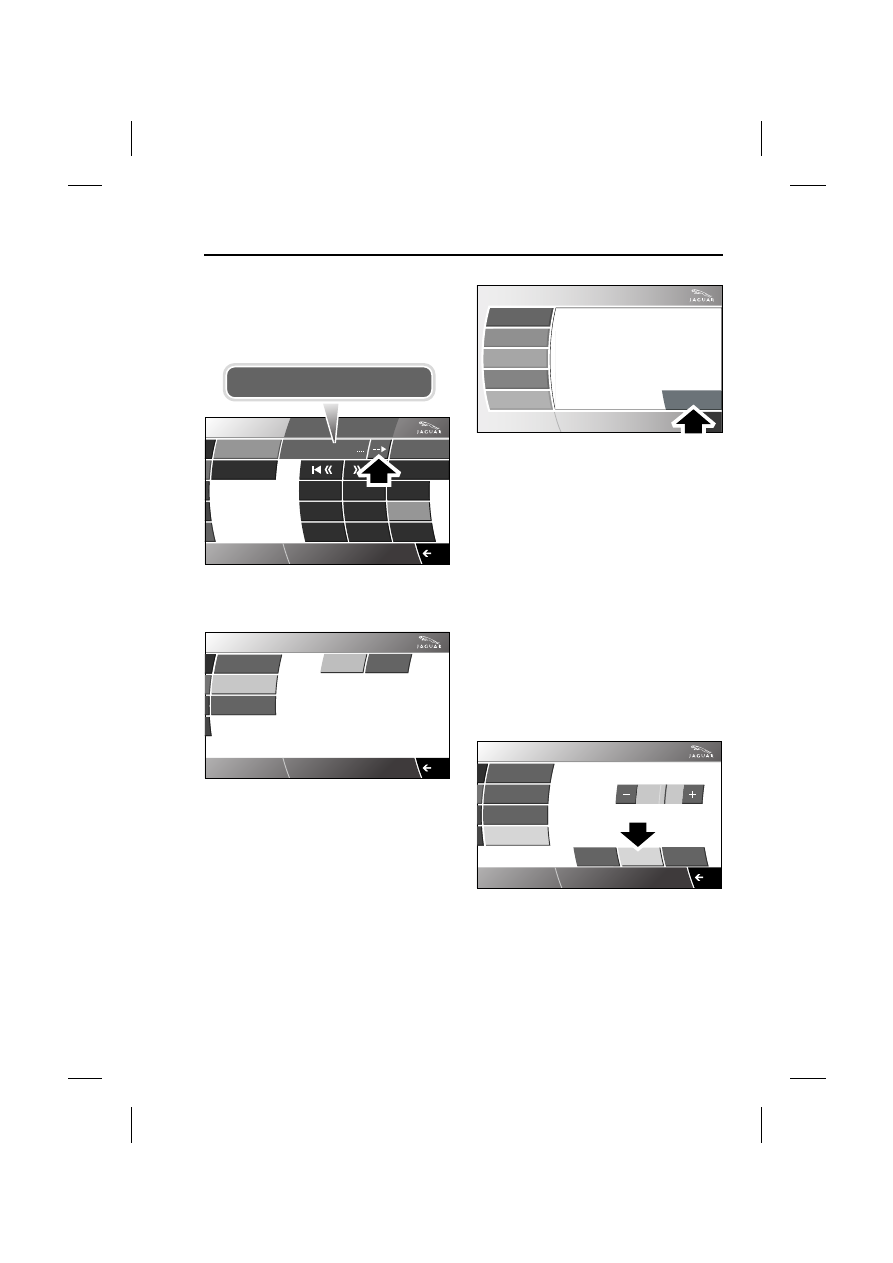

Radio text sent by station

Radio text messages sent out by the
selected station.

To set the display to show radio text
messages select Settings - Options -FM
text.

A pop-up display screen is available,
showing the whole of the message, by
pressing the continuation arrow.

The pop-up will time out after
approximately 12 seconds, or can be
cancelled by touching anywhere within
the pop-up. Pressing the FM text off
button will cancel the display for Radio
text entirely.

Automatic Volume Control (AVC)

This maintains radio volume at a level
sufficient to overcome road noise as
vehicle speed increases or decreases.

To activate the AVC:
• From the main Home touch-screen

menu, select Vehicle.

• Select Syst. settings.
• Select Vol. presets.

• Select either Low, Medium or High for

the AVC.

AM / FM

CD

Settings

A u d i o

PTY

3CH

FM

102.6

WPLJ

Text sent by station

WABC

WFAN

WXRP

WNYC

WPLJ

WQXR

WHTZ

WHUD

Autostore

WCBS

12 : 26 pm

E93922

Text sent by station

A u d i o

Sound

Options

PTY

S e t t i n g s

On

FM text  Off

14 : 26 pm

E93923

Home

Audio

Climate

Phone

Navigation

Vehicle

Valet

FM text

FM text off

The latest news headlines from WPLG.

12 : 26 pm

E93924

Ve h i c l e

Display set

Preferences

Button audio

Navigation

Vol. presets

AVC

Low

Medium

High

12 : 26 pm

E93925

Audio unit operation

276

L

Jaguar Premium Surround Sound

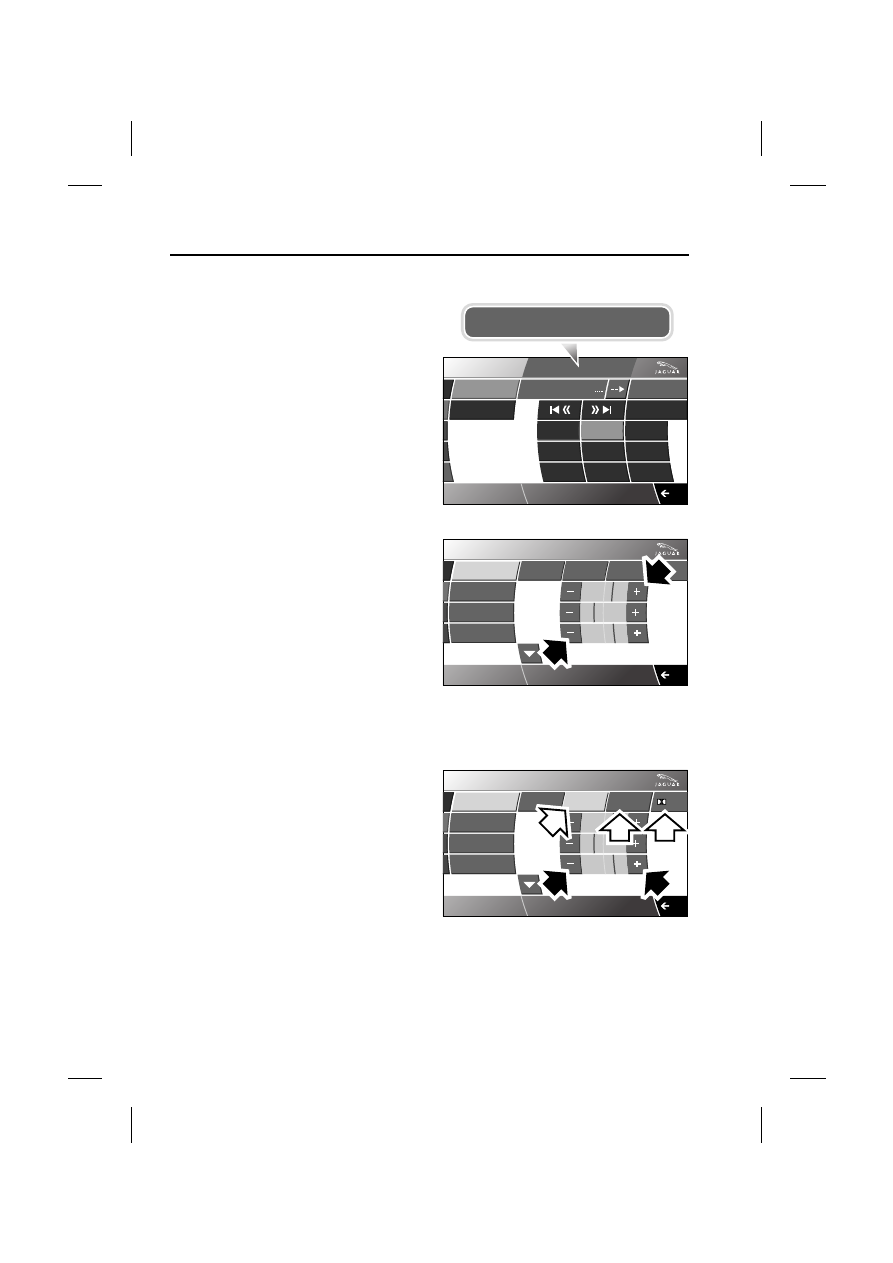

This audio system has the facility of
Digital Signal Processing (DSP) which
optimises the sound for specific seating
positions.

It also allows the user to select stereo,
3-channel stereo or Dolby Pro Logic II
Surround Sound. It is recommended that
Dolby Pro Logic II Surround Sound is
used in CD mode and strong FM
transmissions.

Note: When various setting are altered in
DSP, the sound will briefly fade while the
settings are changing and will return to
normal when the change has been
completed.

Note: Convertible only: The sound will
automatically change for when the
convertible top is up or down.

Settings

When selected, defaults to Sound and
displays the available premium audio
system setting facilities.

• Stereo, 1
• 3 Ch, 2

AM / FM

CD

Settings

A u d i o

PTY

3CH

AM

770

WABC

Text sent by station

WABC

WFAN

WXRP

WNYC

WPLJ

WQXR

WHTZ

WHUD

Autostore

WCBS

12 : 26 pm

E93926

PTY

3CH

AM

770

WABC

A u d i o

S e t t i n g s

Sound

Bal/Fade

Options

Base

Treble

Sub

Stereo

3 Ch.

DSP

PLII

PTY

12 : 26 pm

E93927

A u d i o

S e t t i n g s

Sound

Bal/Fade

Options

Base

Treble

Sub

Stereo

3 Ch.

DSP

PLII

PTY

12 : 26 pm

E93928

3

1

2

277

Audio unit operation

R

• Dolby Pro Logic II Surround Sound,

3

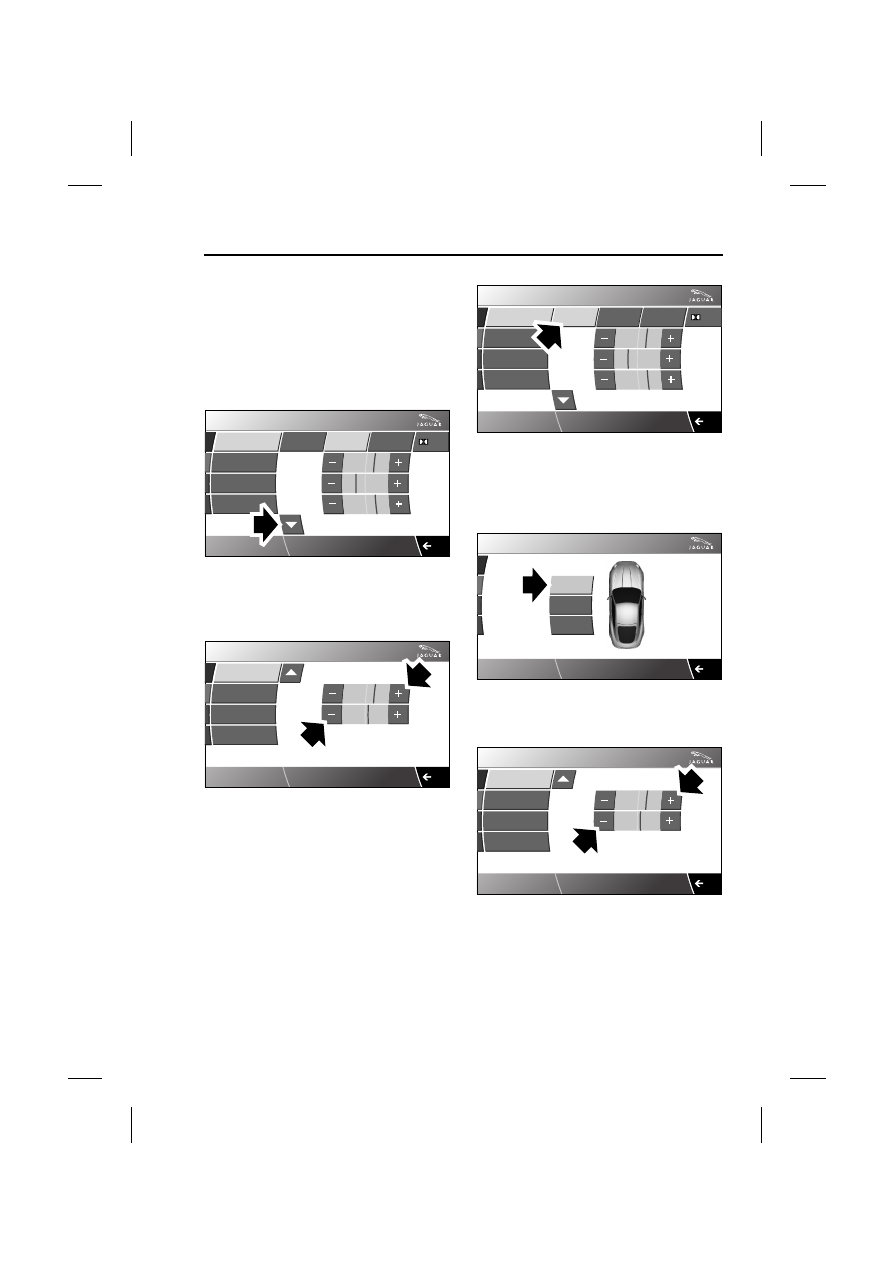

These levels are altered by selecting the
appropriate buttons.

Bass, Treble, Sub levels are increased or
decreased by pressing the (+) or (-)
buttons for the system facilities.

To select further settings, use the scroll
down button to access the next screen
display.

Select either Centre or Surround.

Note: The number of available settings
will depend on whether Stereo, 3Ch or
Dolby Pro Logic II Surround Sound is
selected.

DSP (Digital Signal Processing): To
optimise the sound for specific seating
positions select DSP and then select the
required seating position.

Either Front, Driver or All may be
selected.

Bal/Fade: The sound can be optimised
by using the scrolling buttons to alter the
Balance (left to right) and Fade (front to
rear).

A u d i o

S e t t i n g s

Sound

Bal/Fade

Options

Base

Treble

Sub

Stereo

3 Ch.

DSP

PLII

PTY

12 : 26 pm

E93929

A u d i o

S e t t i n g s

Sound

Bal/Fade

Options

Center

Surround

PTY

12 : 26 pm

E93930

A u d i o

S e t t i n g s

Sound

Bal/Fade

Options

Base

Treble

Sub

Stereo

3 Ch.

DSP

PLII

PTY

12 : 26 pm

E93931

A u d i o

S e t t i n g s

DSP

Front

Driver

All

12 : 26 pm

E93932

A u d i o

S e t t i n g s

Sound

Bal/Fade

Options

Center

Surround

PTY

12 : 26 pm

E93933

Audio unit operation

278

L

Options and PTY functions are the same
as for Settingspreviously.

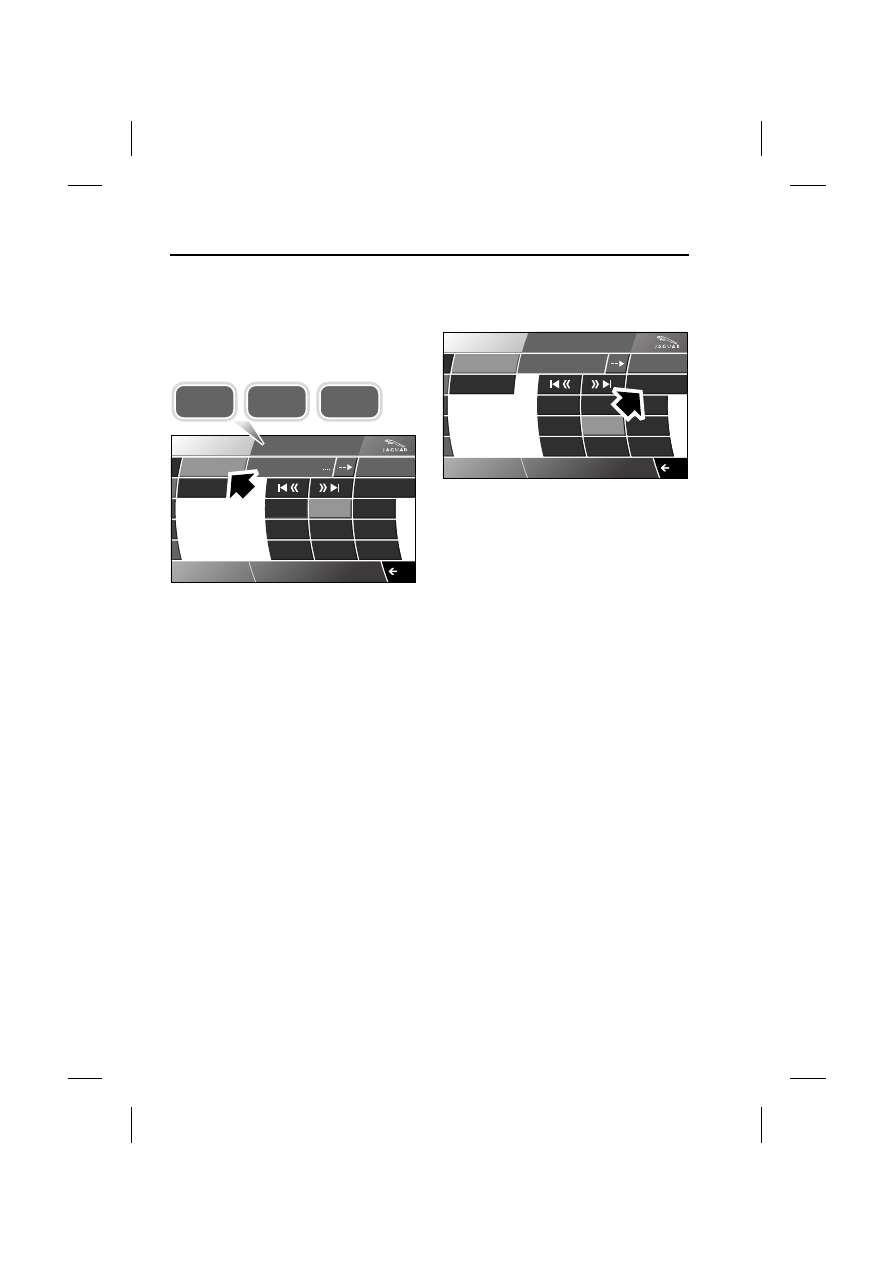

WAVEBAND BUTTON

AM/FM band switching

Pressing AM/FM will cycle the radio
through FM1, FM2 and AM (a
combination of Medium and Long
wavebands). Band selection will be
shown in the display panel. When a CD is
being played, pressing the band switch
will select radio operation.

AUTOSTORE CONTROL

Autostore

Autostore: The automatic memory
function programmes up to nine strong
stations on a selected waveband to
presets 1 to 9.

To activate this function, press and hold
Autostore button for at least two
seconds.

The radio will be briefly muted while it
searches the selected waveband (AM,
FM) for up to nine strong stations.

When programming is completed the
radio will default to preset number 1, and
audio volume will be restored.

If stations cannot be located for all the
preset positions, those that are found will
be allocated positions commencing with
number 1, leaving the remainder not
programmed. The display will show ----
and be greyed out if unprogrammed
preset are selected.

When programmes have been set: A
short press of Autostore will allow the
user to switch between the automatically
stored stations and the manually stored
stations.
