Jaguar XK. Service manual - part 62

251

Fuses

R

Checking or renewing a blown
fuse

Fuse types 3 and 4 and relays should be
replaced only by qualified assistance.

Fuses are colour coded according to the
amperage and the rating is also marked
on each fuse.

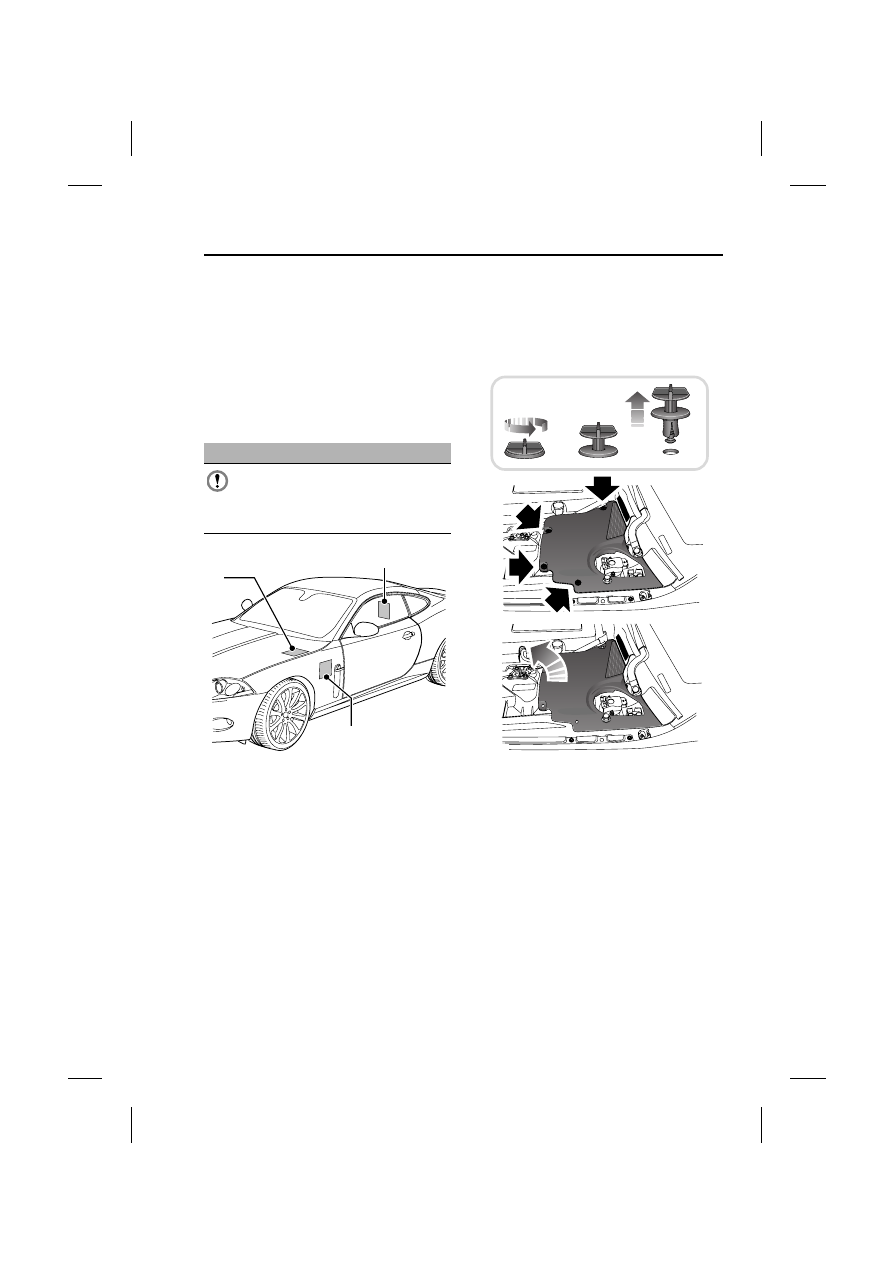

FUSE BOX LOCATIONS

There are three separate fuse boxes fitted
to the vehicle, each one containing fuses
protecting a different group of circuits.

They are located in:

1. The engine compartment

2. The rear seat compartment

3. The passenger compartment.

Engine compartment fuse box

The fuse box is located in the engine
compartment on the left-hand side
underneath the engine compartment
left-hand cover.

Remove the engine compartment
left-hand cover.

CAUTION

When a fuse box lid is removed,
take care to protect the box from
moisture, and refit the lid at the

earliest opportunity.

1

2

3

E91723

E91724

Fuses

252

L

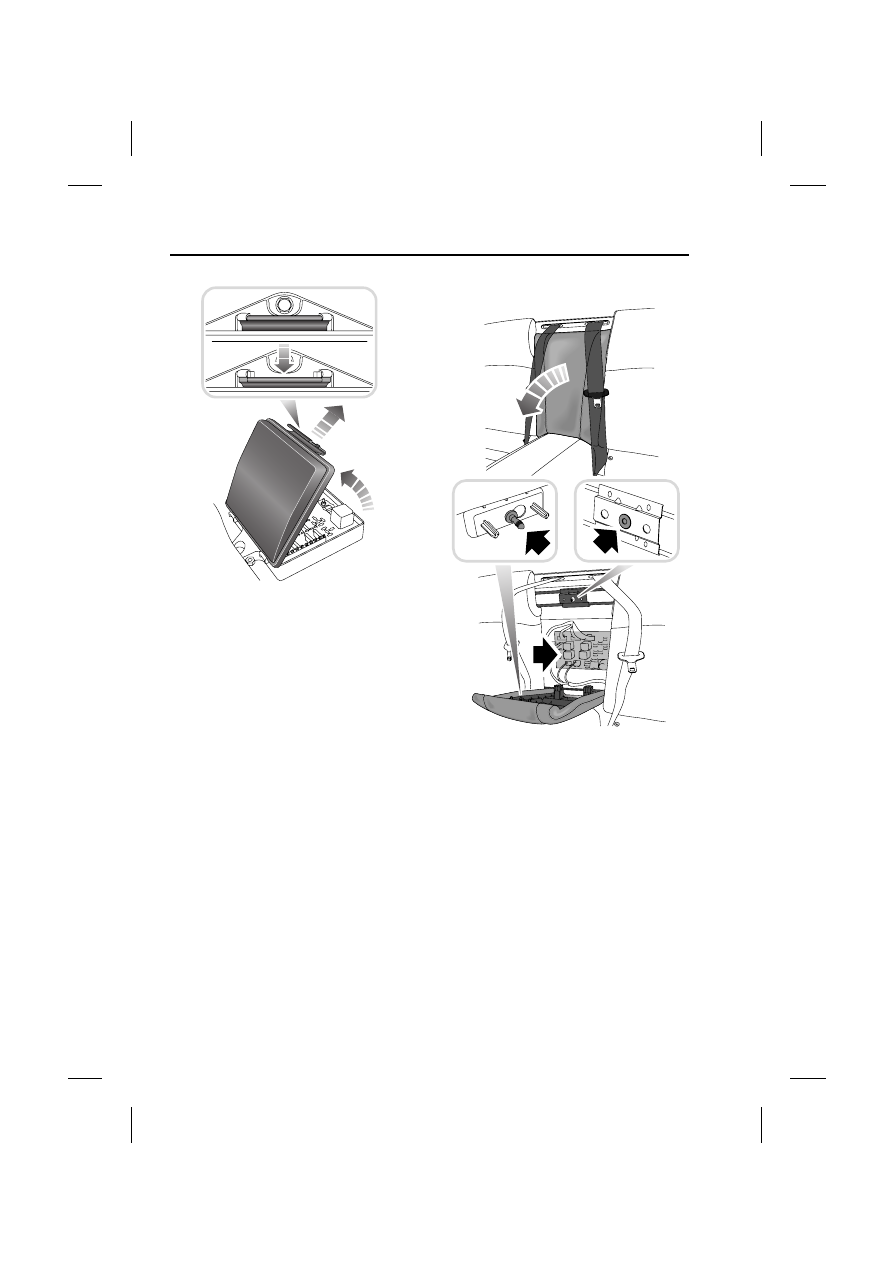

Remove the fuse box lid by pressing the
retaining lugs and lifting.

When refitting, press the fuse box lid in
the area of the retaining lugs until the lid
engages.

Rear seat compartment fuse box

A fuse box is located behind the rear seat
centre section.

To remove the rear seat centre section,
grasp the sides of the section and pull
sharply.

When refitting the rear seat centre section
ensure that the securing and locating
pegs are aligned with their respective
holes before pushing the centre section
fully home.

E91725

E91726

253

Fuses

R

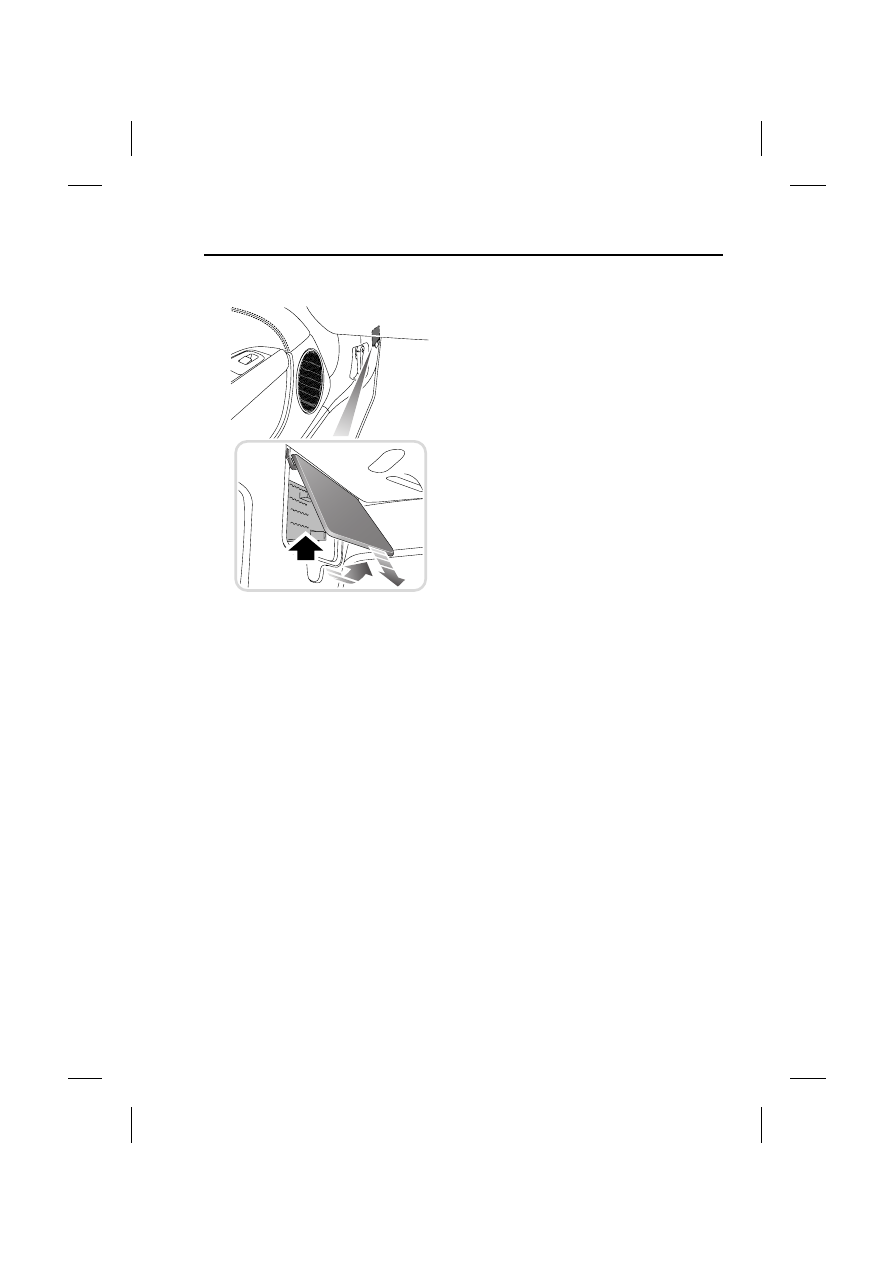

Passenger compartment fuse box

The passenger compartment fuse box is
located under the left-hand side trim
panel in the footwell.

To access the fuse box remove the
left-hand side trim panel fuse box cover.

E91727

Fuses

254

L

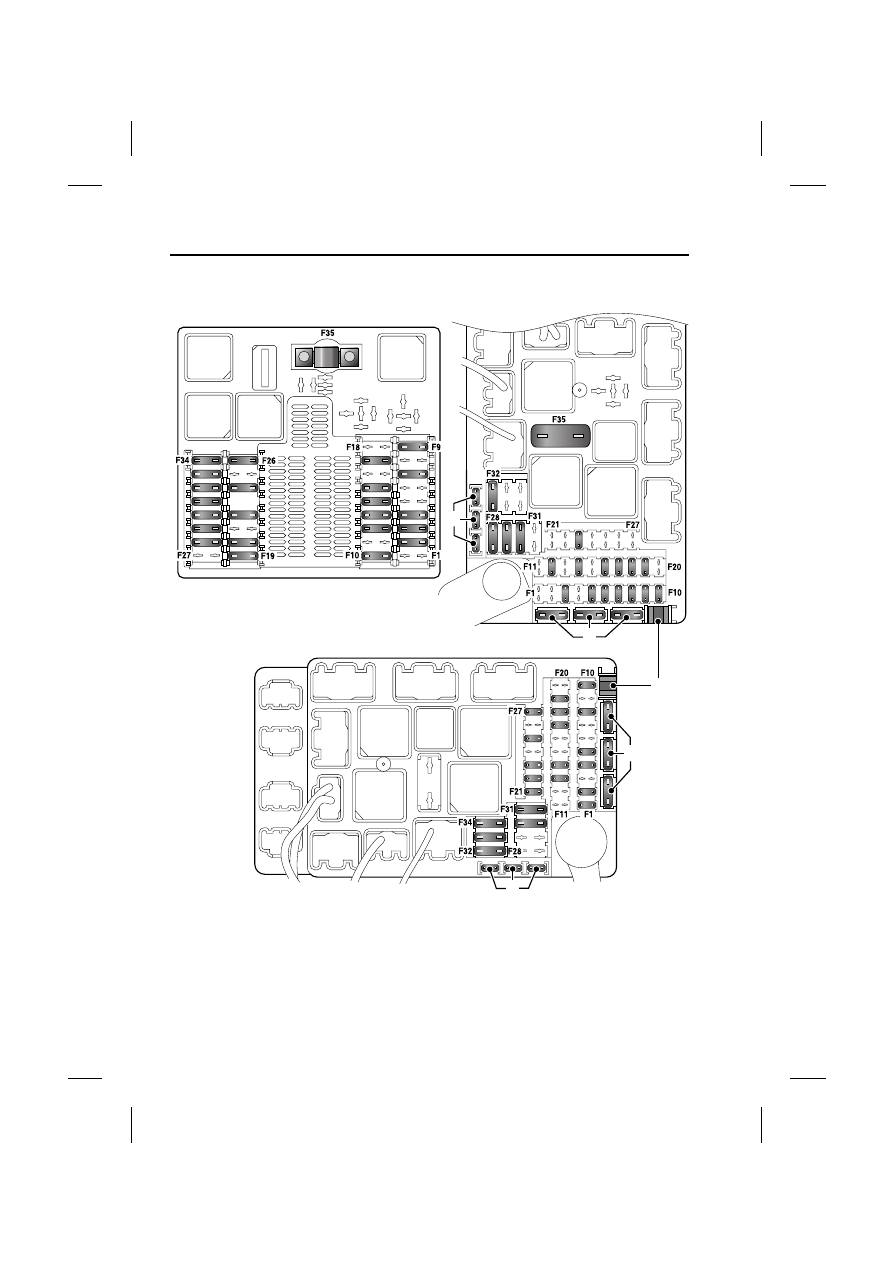

Fuse and relay positions

1. Engine compartment fuse box.

2. Rear seat compartment fuse box.

3. Passenger compartment fuse box.

4. Fuse removal tool.

5. Spare fuses.

1

2

4

5

5

5

5

3

E91728
