Bulb Renewal

172

L

REAR LAMP ASSEMBLY

The rear lamp assembly has the following
bulbs:

1. Reverse lamp, type P21W.

2. Stop and tail lamp type P21/4W.

3. Fog lamp, type P21W.

4. Tail lamp, type R5W.

5. Direction indicator, type PY21W.

Make sure that the lamps and ignition
switch are OFF before removing any
bulbs.

Open the luggage compartment, release
the side carpet retaining clip and unclip
the rear lamp bulb carrier.

Remove the faulty bulb and fit a new one
of the correct type, as illustrated on the
bulb holder. Fitment of the correct type is
essential.

Refit the bulb carrier assembly, making
sure that the clips are correctly secured.

Refit the carpet.

173

Fuses

R

Fuses

FUSES

!

WARNING:

To prevent a possible fire, or damage
to the electrical system, fit Jaguar
approved replacement fuses of the
same rating and type, or fuses of
matching specification. Do not replace
a blown fuse with a fuse of a higher
amperage rating. Always rectify the
cause of the failure before replacing a
fuse. Seek qualified assistance.

Fuse failure is identified by an inoperative
circuit.

Do not fit a new fuse if the wiring is
damaged; contact a Jaguar Dealer. After
renewing a fuse, have the circuit checked
by a Jaguar Dealer.

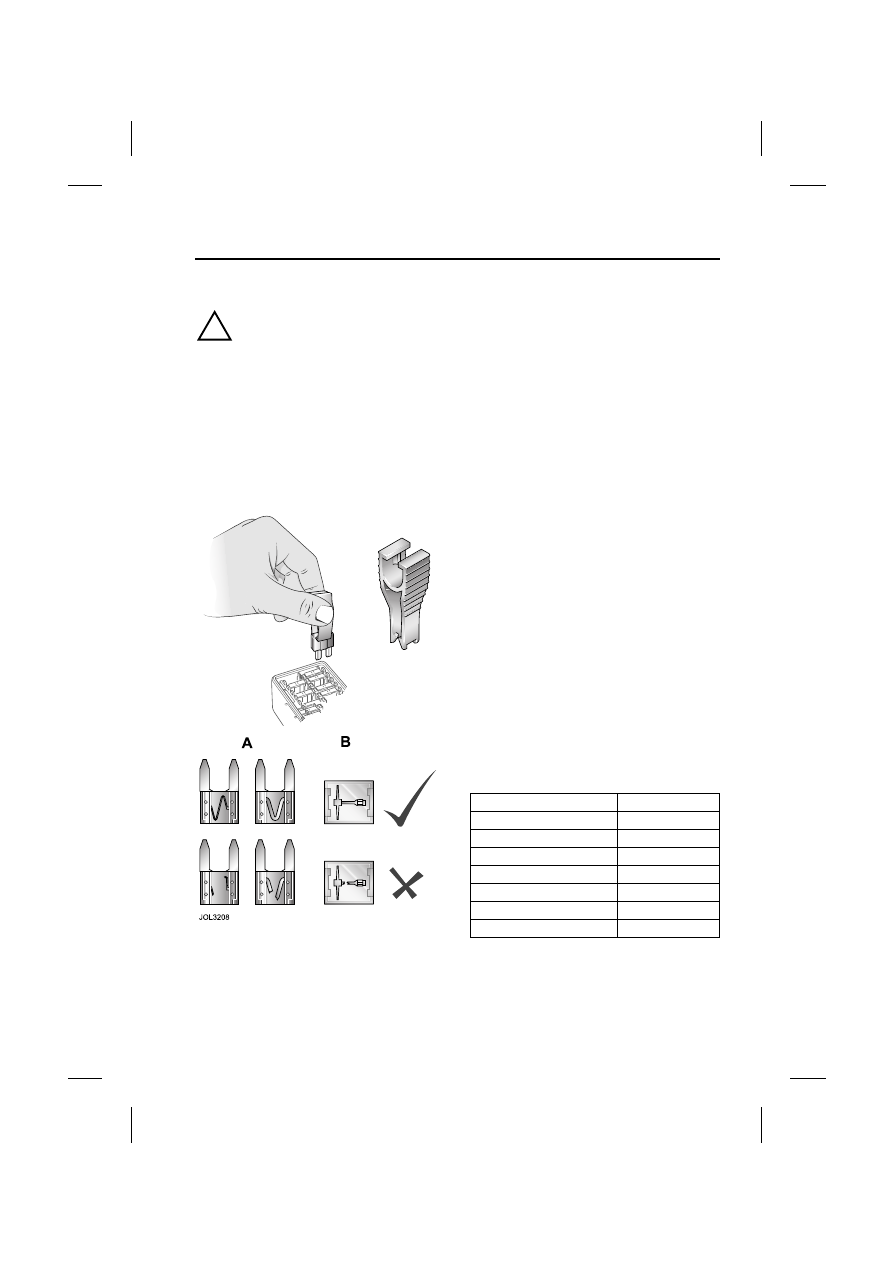

Two types of fuses are fitted in the fuse
boxes; a mini-type (A) and a
cartridge-type (B).

A special tool for removing and replacing
mini-fuses is provided in the engine
compartment fuse box, together with
spare fuses.

Use only the spare fuses supplied. If a
spare fuse is used, renew it with a Jaguar
approved fuse of the same amperage
rating.

CHECKING AND RENEWING A
BLOWN FUSE

It is highly recommended that only the
mini-type fuses are replaced by the
owner. All other fuses and relays should
be replaced by a Jaguar Dealer.

Make sure the new fuse is the correct
rating (amperage).

Fuses are colour coded according to the
amperage and the rating is also marked
on each fuse.

The colour code is as follows:

Tan

5 amp

Brown

7.5 amp

Red

10 amp

Blue

15 amp

Yellow

20 amp

Clear

25 amp

Green

30 amp

Bright Orange

40 amp

Fuses

174

L

Mini-fuse replacement

Push the tool on to the suspect mini-fuse
and withdraw it.

If the wire in the fuse is broken, the fuse
has blown.

Fit a new fuse using the tool.

Cartridge fuse replacement

It is advisable to have these fuses
changed by a Jaguar Dealer when blown.

Pull the suspected blown fuse from its
holder.

If the wire in the fuse is broken, the fuse
has blown.

Push a new fuse into the holder.

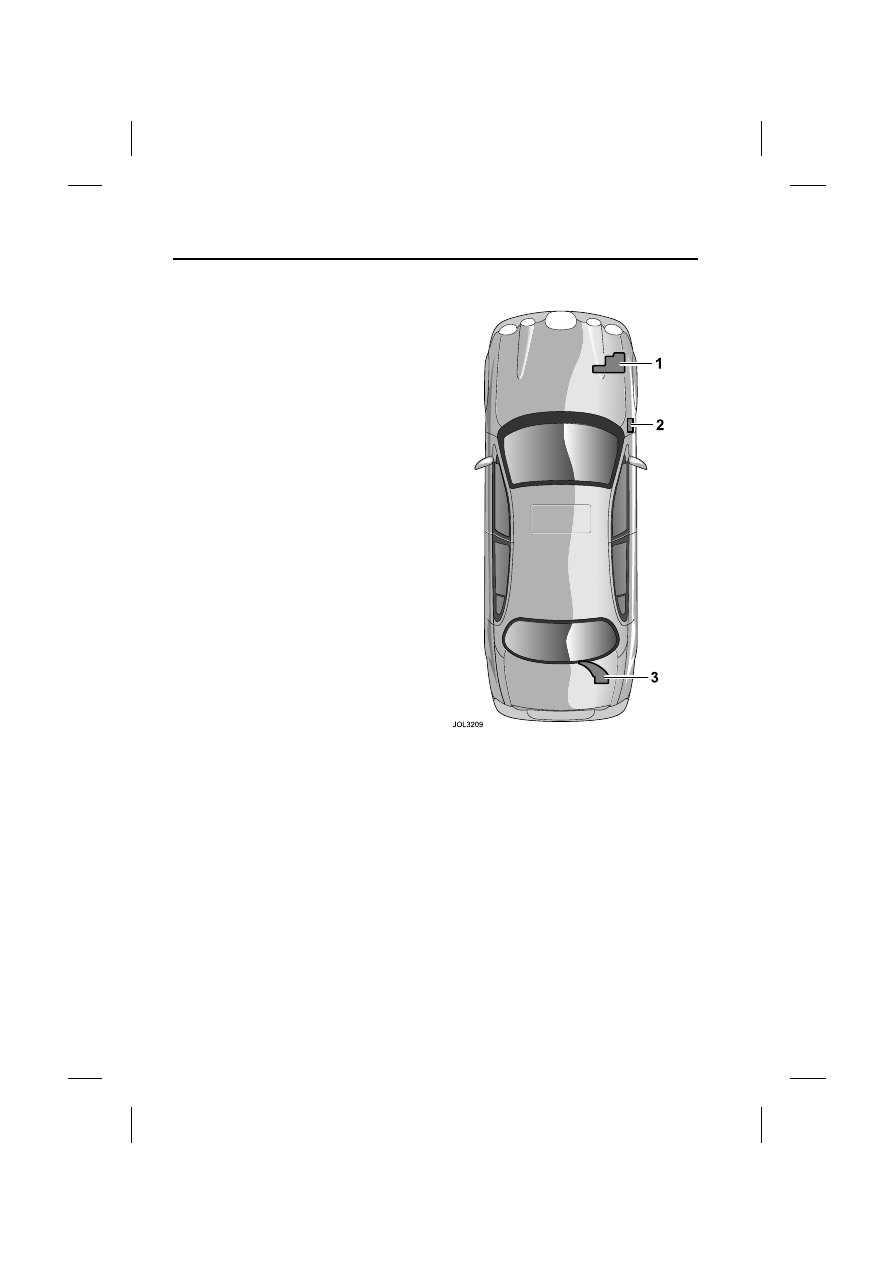

FUSE BOX LOCATIONS

There are three separate fuse boxes fitted
to the vehicle, each one containing fuses
protecting a different group of circuits.

They are located in:

1. The engine compartment.

2. The passenger compartment.

3. The luggage compartment.

Caution: When a fuse box lid is
removed, take care to protect the box
from moisture, and refit the lid at the
earliest opportunity.

175

Fuses

R

Engine compartment fuse box

The fuse box is located in the engine
compartment on the right-hand side,
adjacent to the windshield wash reservoir.

Caution: When a fuse box lid is
removed, take care to protect the box
from moisture, and refit the lid at the
earliest opportunity.

Remove the fuse box lid by pressing the
retaining lugs and lifting.

When refitting, press the fuse box lid in
the area of the retaining lugs until the lid
engages.

Passenger compartment fuse box

The passenger compartment fuse box is
located on the right-hand side trim panel
in the footwell.

Remove the fuse box lid by pressing the
retaining lugs and lifting.

When removing and replacing mini-fuses,
use the special tool provided in the engine
compartment fuse box lid, together with
spare fuses.

When refitting, press the fuse box lid in
the area of the retaining lugs until the lid
engages.
