Child Safety


LATCH seat with tether straps (2)

(See illustration on previous page.)

Clip the flexible lower straps to the two
LATCH loops. Adjust the length of each
strap until the seat is held firmly against
the vehicle back.

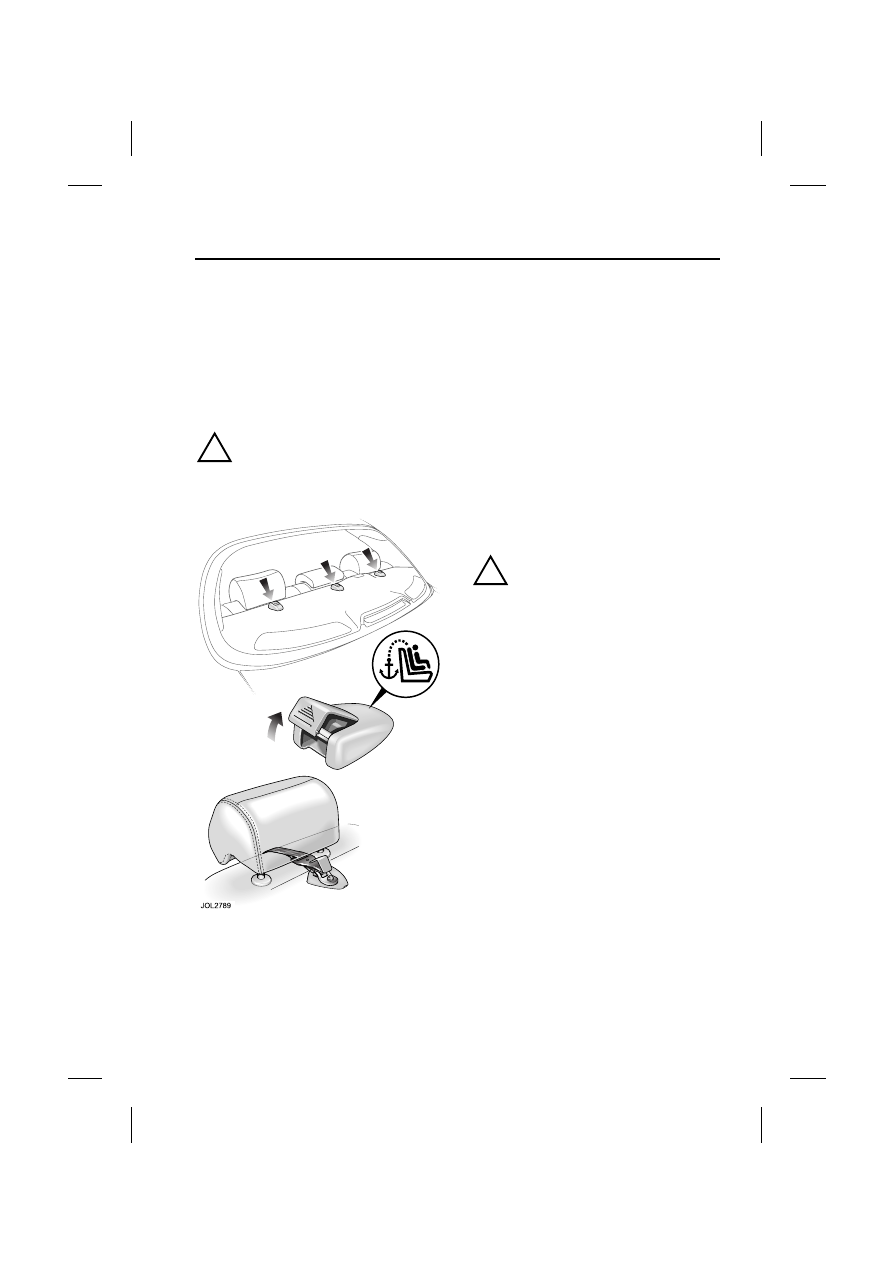

Child restraint top tether anchorages
and brackets



The top tether must always be used to
secure the child seat.

The top of the child seat is connected by
a short strap to the top tether bracket to
prevent the seat from rotating about the
lower anchorages. The top tether
brackets are positioned on the rear parcel
shelf, under access covers, at the
center-line of each rear seating position.

Pass the top tether strap under the
vehicle rear head restraint to connect to
the top tether bracket on the parcel shelf.
Adjust the length of the top tether strap to
hold the top of the child seat against the
vehicle seat back.

Make sure the child seat is securely fitted,
and follow the additional check list on
page 74.



Child restraint anchorages are
designed to withstand only those loads
imposed by correctly fitted child seats.
Under no circumstances are they to be
used for adult seat belts, harnesses or
for attaching other items or equipment
to the vehicle.


Follow the check list each time your child
travels in the vehicle:
• Carefully follow the instructions

provided by the manufacturer of the
restraint system.

• Make sure your child falls into the

correct weight range for the seat.

• Always use the appropriate child

restraints and adjust harnesses for
every child, every trip.

Child Safety



• Avoid dressing your child in bulky

clothing and do not place any objects
between the child and the restraint

• Regularly check the fit of your child

seat and replace seats or harnesses
that show signs of wear.

• No child seat is completely

child-proof. Encourage your child not
to play with the buckle or harness.

• Never leave a child unsupervised in

the vehicle.

• Activate the rear door child safety

locks, refer to page 42.

• Make sure your child does not exit the

vehicle from the side where there is

• Set your child a good example –

always wear your seat belt.

• Make sure that you have removed all

slack from the adult seat belt (non-
LATCH restraint only).

Additional checks for  LATCH child
• Always attach the top tether when

installing the LATCH seat.

• Always give the LATCH seat a final

pull to make sure the lower anchors
are secure, even if the green buttons
indicate that the seat connectors are








• Do not make adjustments when the

vehicle is moving.

• Front passengers must not ride

with the seat fully reclined.

Front seat adjustment

The front seats are adjusted electrically by
switches on the side of the seat cushion.
Adjustment can be made with or without
the ignition key inserted.

The number of seat adjustments varies
with the vehicle specification, but all
options are described in this section. If a
seat movement is not specified for your
vehicle, the control switch will either not
be fitted or will not include that seat
function (switch movement will be

Seat adjustments for two people may be
stored and recalled by the driver position
memory system. Refer to Memory Setting
on page 86.

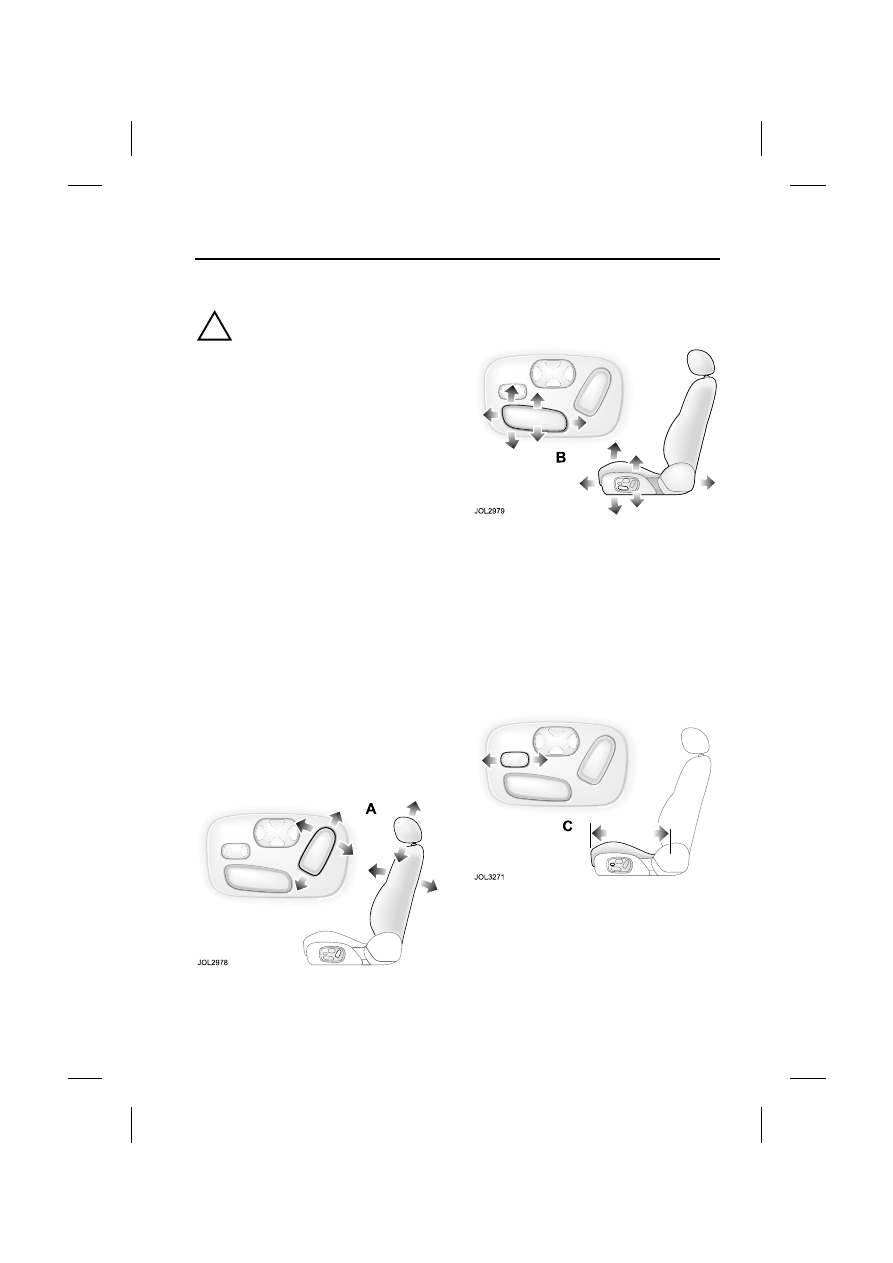

The full range of seat adjustments are:

Back restraint angle (recline) and, if
specified, head restraint height (A):

Seat forwards and rearwards position
and, if specified, cushion height and
front tilt (B):

• Move the switch forwards or

rearwards to change the seat
forewards and rearwards position.

• Move the center or rear of the switch

up or down to adjust cushion height.

• Move the front of the switch up or

down to tilt the front of the cushion.

If specified, varies the cushion length

 Moving the control will change the
distance between the front of the cushion
and the back restraint.




Lumbar (D):

If specified, provides adjustable lumbar
support in the lower back restraint. Either
of two options may be fitted:
• 2-way or 4-way switch: Press the

front or back of the switch to increase
or decrease lumbar support.

• 4-way switch only: Press the top or

bottom of the switch to adjust lumbar
support upwards or downwards.

Manual head restraint adjustment



Adjust the head restraint so that it is
just behind your head and never behind
your neck.

All head restraints may be removed e.g. to
fit a large child seat. Hold the button down
and pull out the head restraint.

Where electrically adjusted head
restraints, refer to Seat Adjustment on
page 75, are not fitted, the front head
restraints are manually adjustable:
• To lower: Press the button and push

the head restraint into the seat back to
the required height.

• To raise: Pull the head restraint


• Swivel the head restraint forwards or

backwards until it is comfortably
positioned behind your head.

Rear head restraints – All rear head
restraints are adjustable for height only.
