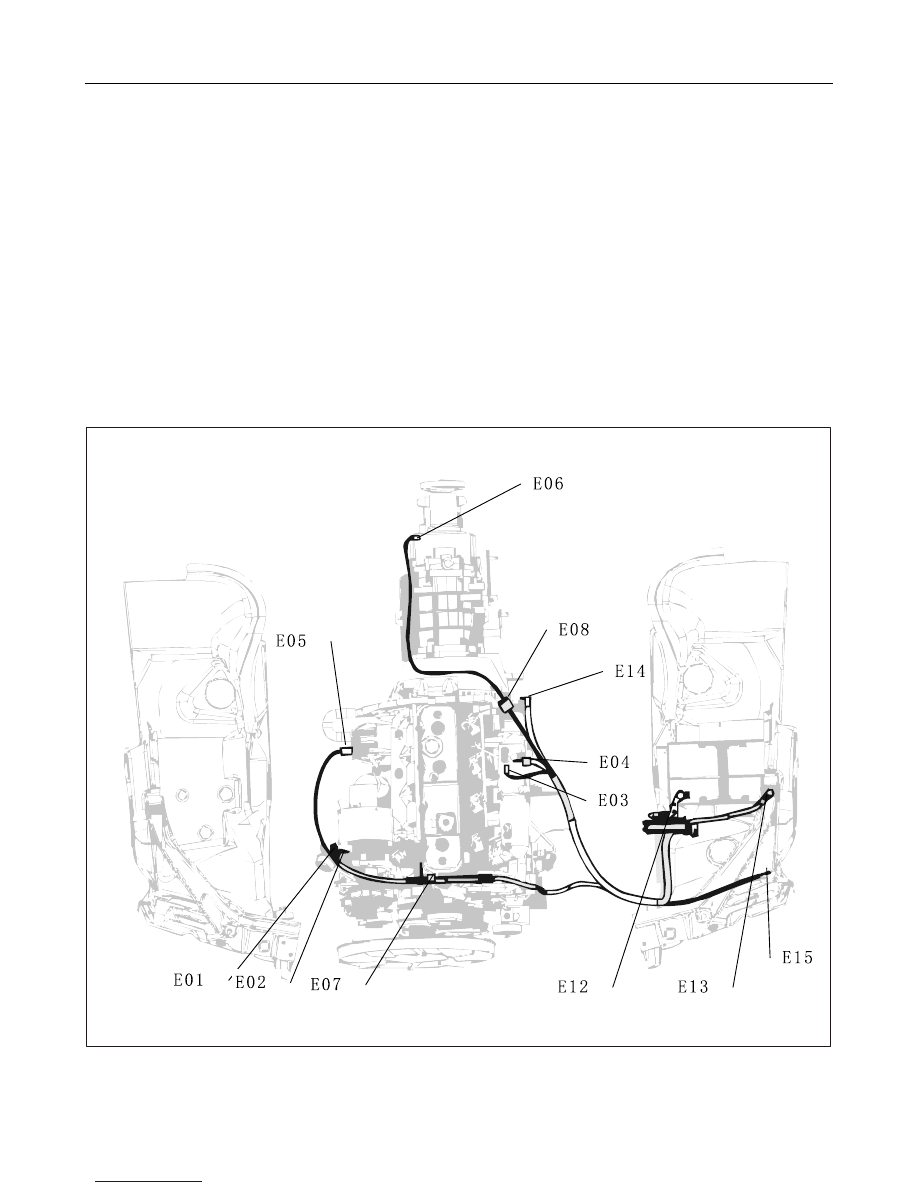

EC EC EC EC Circuit Circuit Circuit Circuit Diagram Diagram Diagram Diagram - 254 - Engine compartment harness specification Identification code Name E01 Connected to generator control E02 Connected to generator positive pole E03 Connected to starter control E04 Connected to starter positive pole E05 Connected to oil pressure switch E06 Connected to reversing lamp switch E07 Connected to water temperature sensor E08 Connected to preheating harness E12 Connected to battery positive pole E13 Connected to battery negative pole E14 Engine ground E15 Vehicle body ground EM01 Connected domain harness
|
