Special notes:

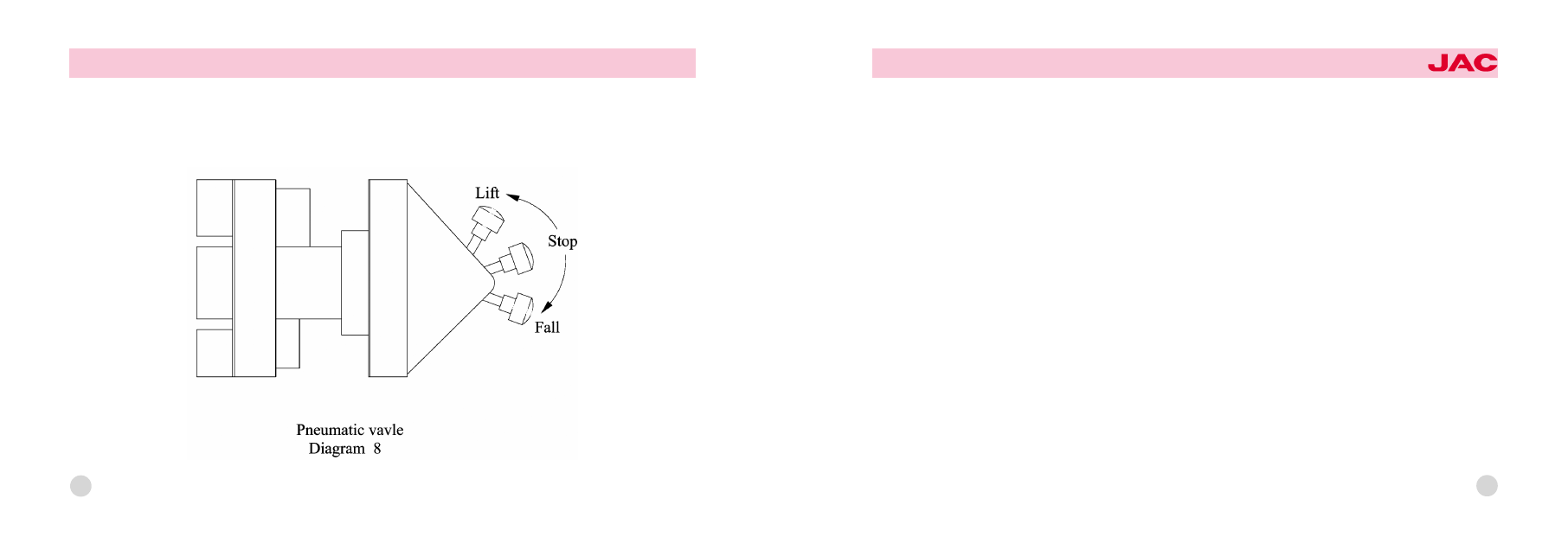

Before starting driving, make sure that the control handle is on the "fall" position so as to avoid the accidental carriage
lifting when the car is moving. The power take-off also needs to be switched off. Otherwise, the gear pump will continue
working, which will result in the excessive wearing and early damage of the pump.
194
OWNER爷S MANUAL
JAC HEAVY DUTY TRUCK
Working Principle and Operation Instructions of Electricity-controlled Dumping Mechanism
1. Working principle of the hydraulic system

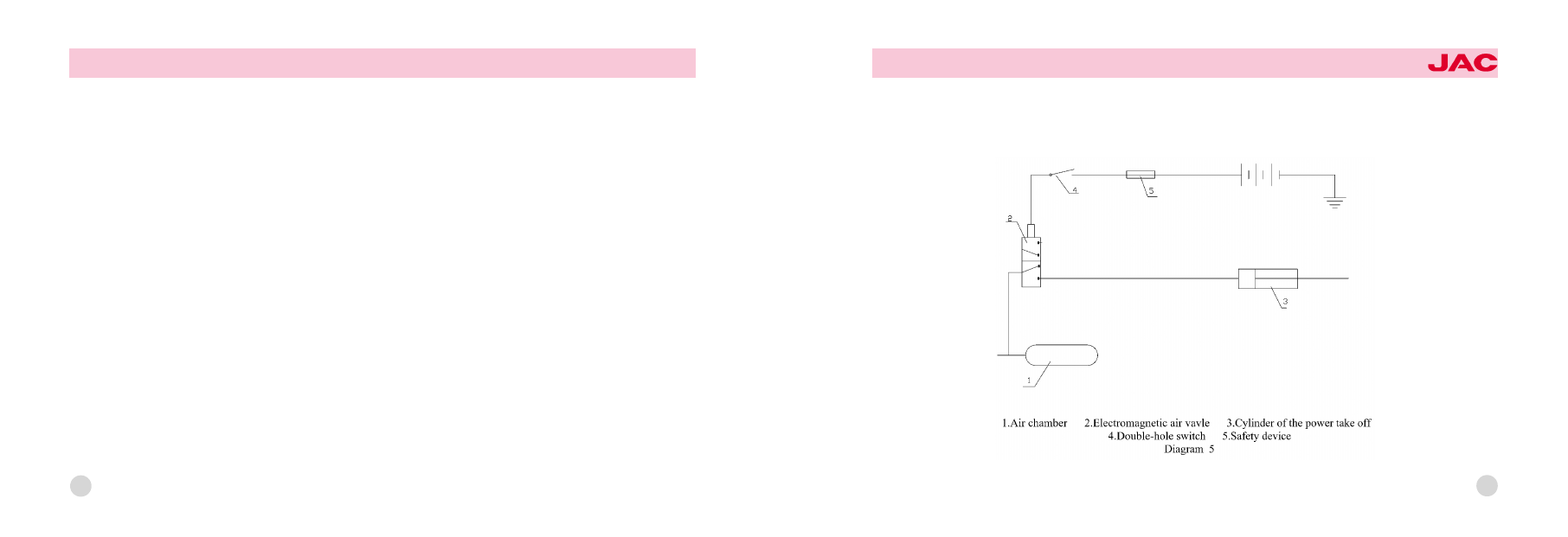

音 The working principle of power take-off control system (see Diagram 5)
195
