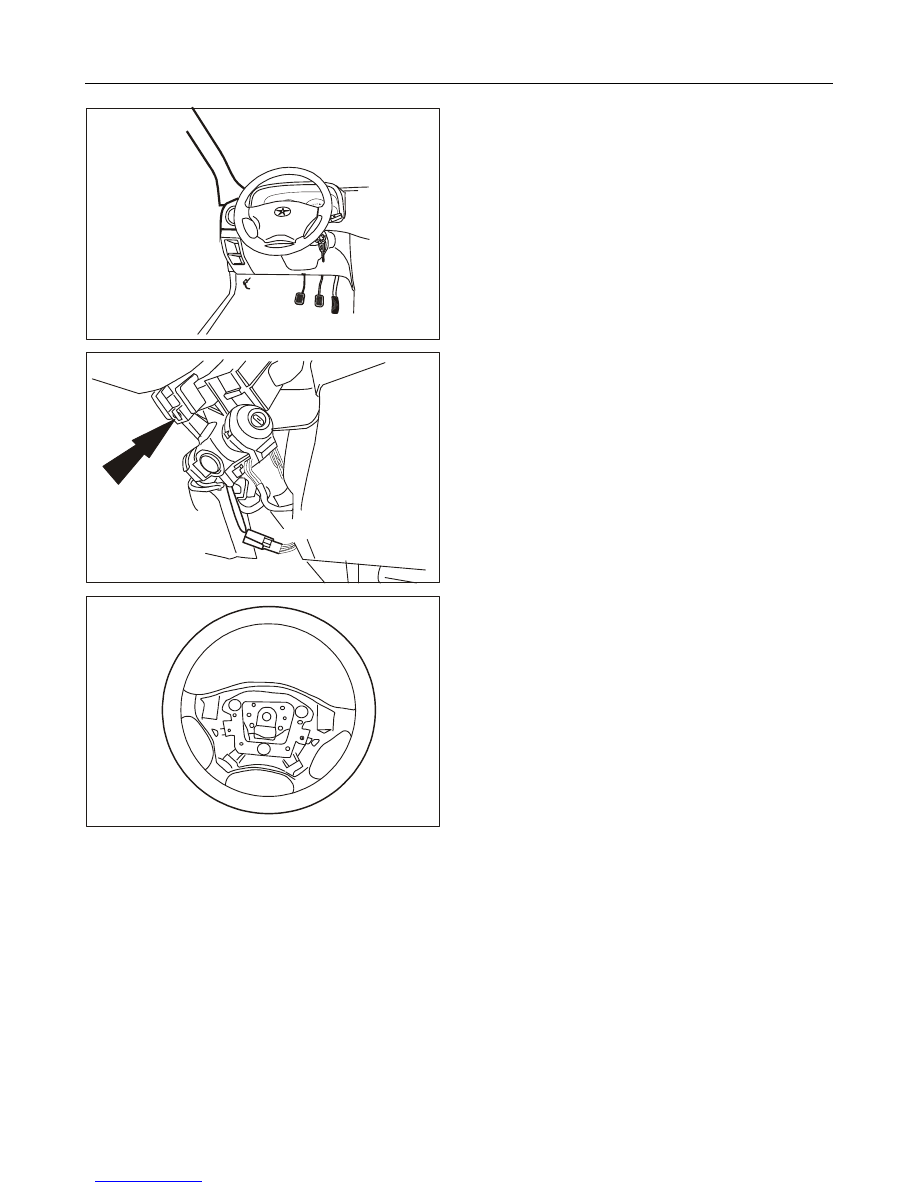

6.

Remove mounting nuts of the steering wheel and
remove the steering wheel.

Installation
Warning:

Warning:

Warning:

Warning:

Prior to the steering wheel installation, Keep the

ignition switch upright all the time.

1.

Return the steering wheel to ensure the ignition
switch set in place.

2.

Reinstall all parts in the reverse order of removal.

PS

PS

PS

PS PowerSteering

PowerSteering

PowerSteering

PowerSteering System

System

System

System

- 169 -

Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation of

of

of

of

Steering

Steering

Steering

Steering Column

Column

Column

Column

Removal
1.

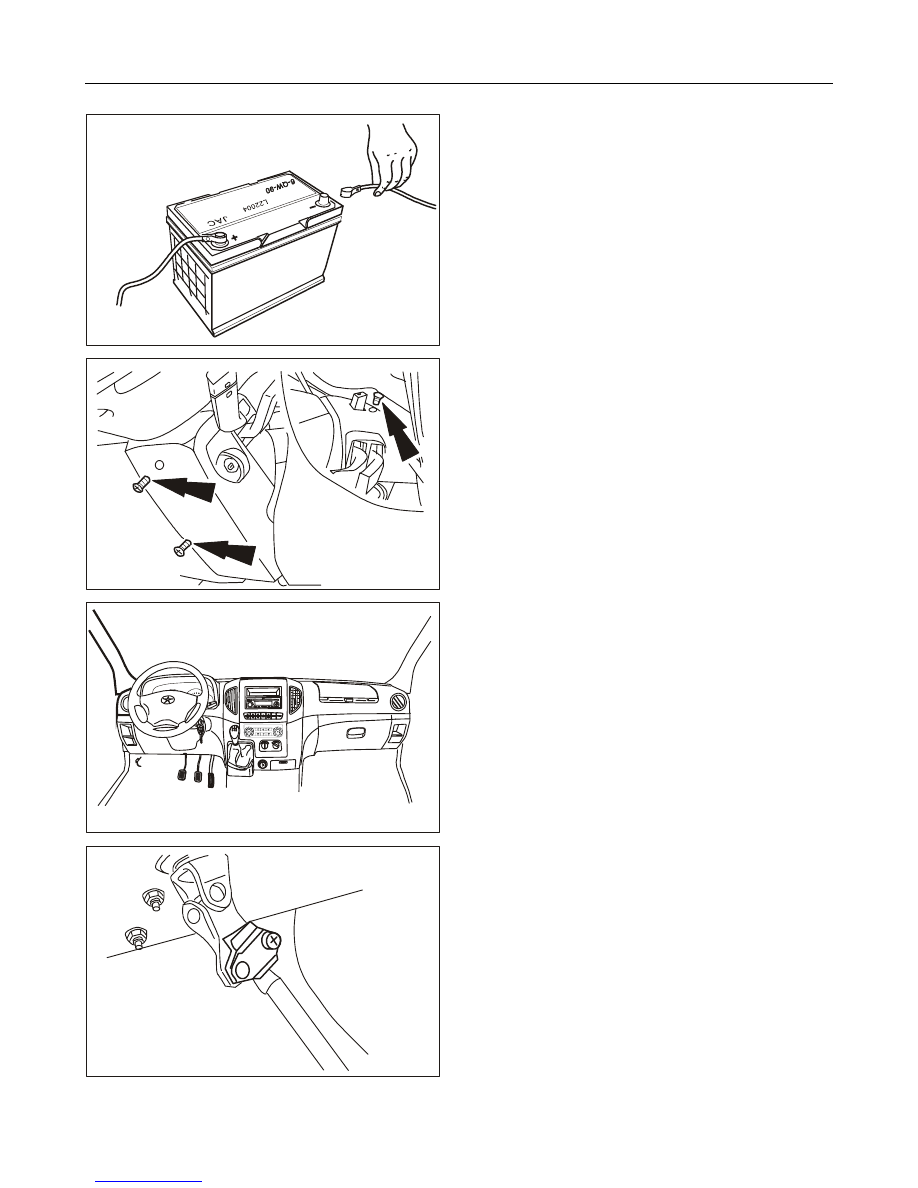

Disconnect the negative cable of the battery

2.

Remove the upper and lower protective plates of
the steering column.

3.

Remove the multi-functional combination switch.

4.

Return the steering wheel to the intermediate
position and lock it up.

5.

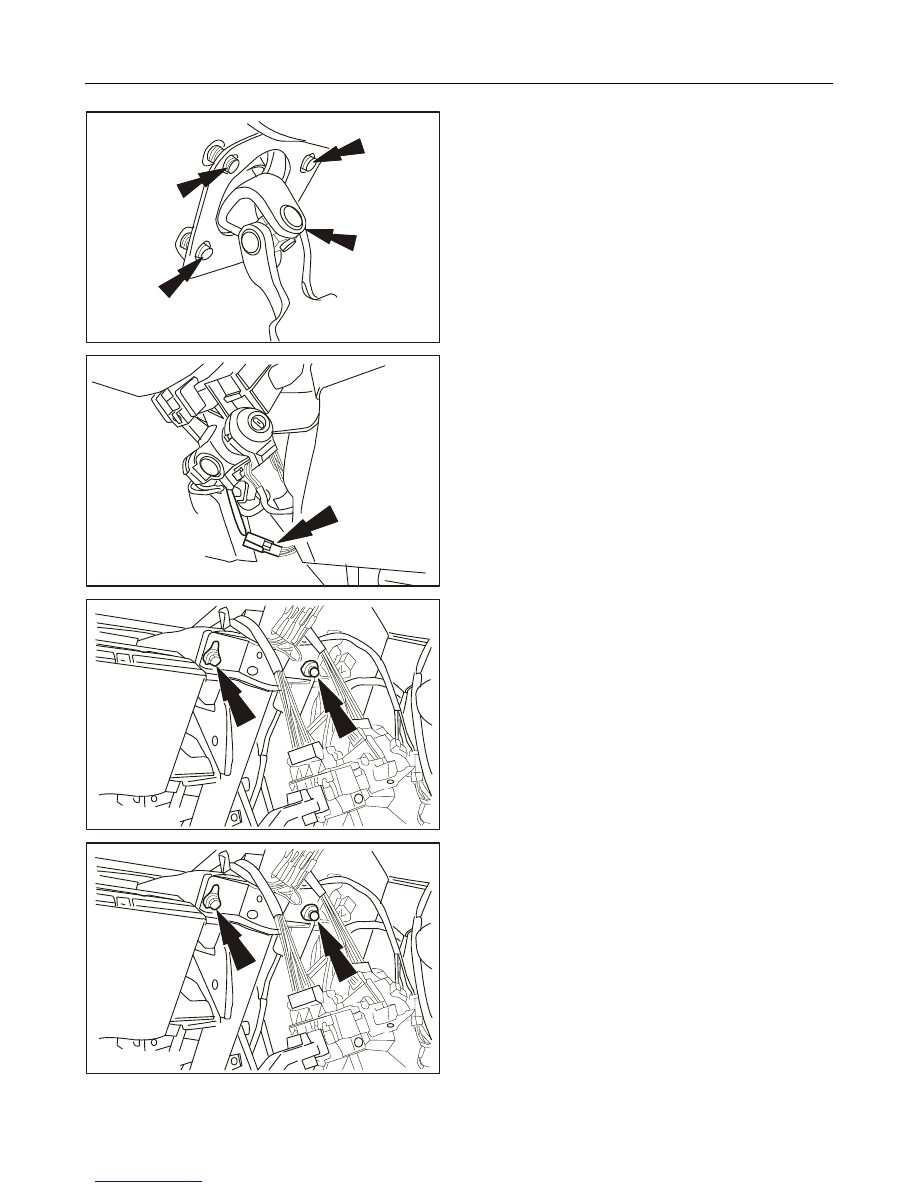

Remove track bolts on the joint of the steering
column and steering knuckle.
Turn clamped plates and take them down.

PS

PS

PS

PS PowerSteering

PowerSteering

PowerSteering

PowerSteering System

System

System

System

- 170 -

Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation of

of

of

of Steering

Steering

Steering

Steering Column

Column

Column

Column (Continued)

(Continued)

(Continued)

(Continued)

6.

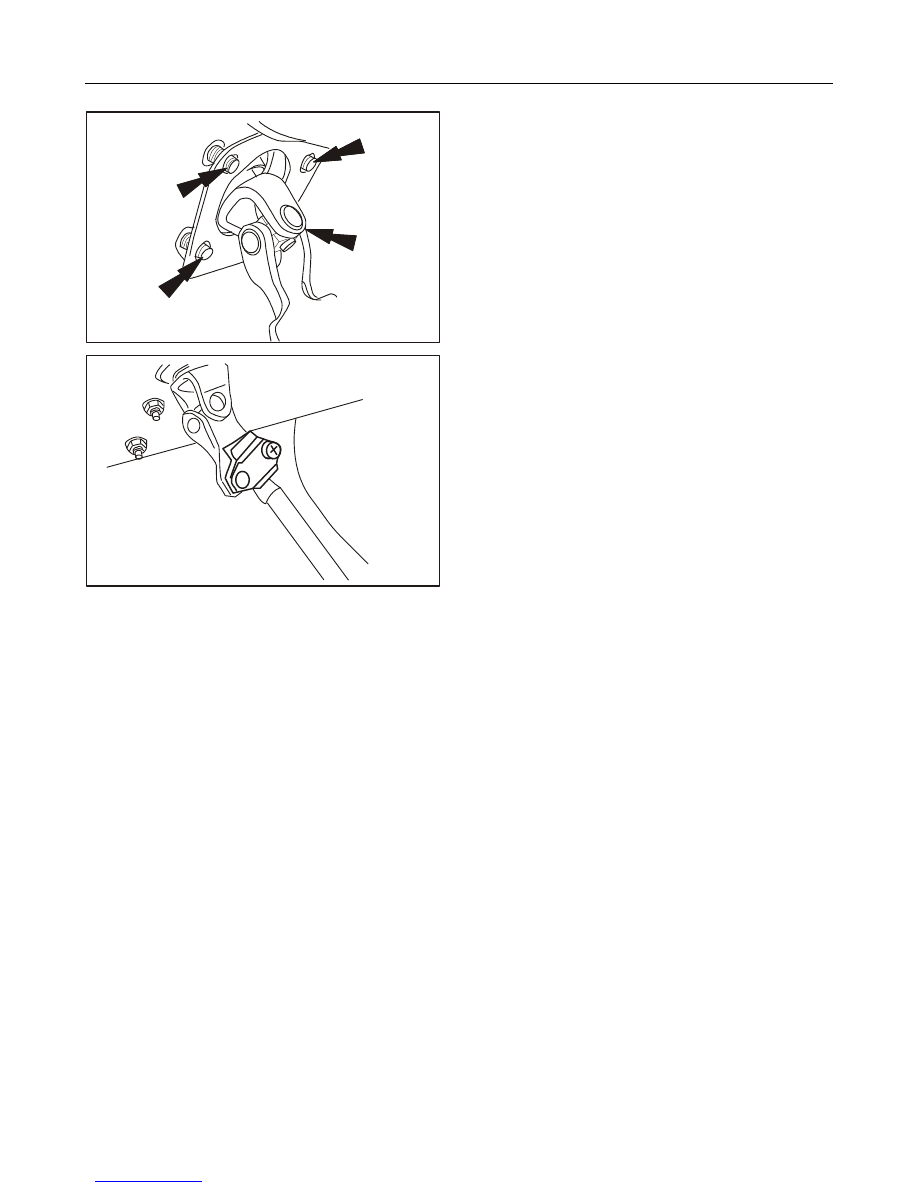

Remove four mounting nuts for fixing the lower
part of the steering column onto the partition panel.

7.

Disconnect the ignition switch plug.

8.

Remove the steering column.

Installation
9.

Install the steering column in place and ensure the
correct positioning of bolts on the lower part of the
steering column.

PS

PS

PS

PS PowerSteering

PowerSteering

PowerSteering

PowerSteering System

System

System

System

- 171 -

Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation of

of

of

of Steering

Steering

Steering

Steering Column

Column

Column

Column (Continued)

(Continued)

(Continued)

(Continued)

10. Fix the lower part of the steering column onto the

partition panel.

11. Reconnect the harness plug of the ignition switch.
12. Reinstall the combination switch.
13. Fix the wire with cable ties.

Caution:

Caution:

Caution:

Caution:

Ensure

that

the

steering

wheel

is

in

the

intermediate position.

14. Align the clamped plates of the cardan universal

joint to the shaft and install the clamped plates.

15. Install the upper and lower protective plates of the

steering column in place.

16. Connect the negative cable of the battery.
