Engine JAC HFC4DA1-2C. Service manual - part 140





ABS

ABS

ABS

ABS Anti-lock

Anti-lock

Anti-lock

Anti-lock Brake

Brake

Brake

Brake System

System

System

System

- 81 -

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Testing

Testing

Testing

Testing

Detection

Detection

Detection

Detection by

by

by

by diagnostic

diagnostic

diagnostic

diagnostic instrument

instrument

instrument

instrument

Remarks:

Data of switches, sensors, actuators and so on can be
read through data stream of diagnostic instrument
without removal/installation of any element.

Therefore,

the

reading

of

data

stream

before

troubleshooting is one of the methods for shortening
maintenance time.

Functions of diagnostic instrument shall be determined
based on actual development of customer’s instrument.
Please refer to corresponding instruction manual of
diagnostic instrument for certain vehicle for details.

The diagnostic contents (BOSCH diagnostic instrument)
listed below is only for reference.

(a)

Connect the diagnostic instrument to data link
connector (DLC).

(b) Turn on the ignition switch.

(c)

Read data stream based on display of diagnostic
instrument.

Remarks: Apply the diagnostic instrument to test ABS,
which should be performed in road test. DTC can be
cleared when necessary to ensure normal operation of

ABS and conventional brake system.

Please finish the following procedures before the
replacement of ABS:

1.

Dynamic self-checking: ABS lamp won’t go out
when the ignition switch is turned on again after
some faults (such as wheel speed sensor signal
reliability failure or motor failure) are eliminated
and the lamp shall go out after ABS dynamic
self-checking is qualified with the vehicle speed no
less than 15Km/h.

2.

Cross validation: Install the removed ABS onto a
normal vehicle equipped with the same ABS model,
with ABS harness connectors connected but no oil
pipe in need of connection, and ensure ABS
connectors and wheel speed sensors are firmly and
reliably connected. Start the vehicle to run for a
few circles to enable ABS dynamic self-checking.

If the ABS lamp goes out, there is no failure in
ABS.

If the lamp keeps on, there is failure in ABS.
The ABS may be replaced.

Item

Display Valve/Range

Normal State

Remarks

Left front wheel speed

1.75Km/h~350Km/h

Actual wheel speed

Right front wheel speed

1.75Km/h~350Km/h

Actual wheel speed

Left rear wheel speed

1.75Km/h~350Km/h

Actual wheel speed

Right rear wheel speed

1.75Km/h~350Km/h

Actual wheel speed

Battery voltage

0~+20.40V

9.3~16.9V

Left front oil inlet valve

ON/OFF

With ignition switch turned on:
Power failure

Other conditions: Based on
control

Relevant to ABS conditions:

Pressure boosting:

Oil inlet valve - power failure

Oil outlet valve - power failure

Pressure maintenance:

Oil inlet valve - continuity

Oil outlet valve - power failure

Pressure reducing:

Oil inlet valve - continuity

Oil outlet valve - continuity

Left front oil outlet valve

ON/OFF

Right front oil inlet valve

ON/OFF

Right front oil outlet valve

ON/OFF

Left rear oil inlet valve

ON/OFF

Left rear oil outlet valve

ON/OFF

Right rear oil inlet valve

ON/OFF

Right rear oil outlet valve

ON/OFF

Brake lamp switch

ON/OFF

ON: With brake pedal
depressed

OFF: With brake pedal released

Reflux pump motor

ON/OFF

Solenoid valve relay

ON/OFF

With ignition switch turned on:
Continuity

Occupied state of hydraulic
governor

Already occupied and normal or
BOSCH supply status

Already occupied and normal

ABS

ABS

ABS

ABS Anti-lock

Anti-lock

Anti-lock

Anti-lock Brake

Brake

Brake

Brake System

System

System

System

- 82 -

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Testing

Testing

Testing

Testing

Brake

Brake

Brake

Brake bleeding

bleeding

bleeding

bleeding

Note:

Brake bleeding can be performed in the first and second
circuits.

Brake

bleeding

should

be

performed

after

the

replacement of brake system components (such as
change of brake fluid, replacement of brake system
components and hydraulic unit) or when the brake pedal
is soft.

The hydraulic unit for replacement must be wet-type
ABS hydraulic governor with ECU.

During exhaust, please ensure the brake system is of
complete structure and all hydraulic units are properly
connected.

Before brake bleeding, shift to P gear (for AMT) or N
gear (for MT) and apply the parking brake lever.

Brake fluid is toxic, so please clean your skin if any
fluid touches your skin.

1.

Manual brake bleeding procedures

Step

Operation

1

Fill the brake fluid reservoir.

2

Repeat the procedures below for bleeding of
each wheel cylinder in order of left rear, left
front, right front and right rear.

3

Open the bleed screw.

4

Depress and release brake pedal repeatedly.

5

Close the bleed screw.

6

Release the brake pedal.

7

Check the pedal travel.

8

If failed, repeat bleeding.

9

Check if brake fluid level is within upper and
lower limit marks.

Remarks: Brake fluid level in reservoir shall be over the
lower limit mark during the whole bleeding process.

2.

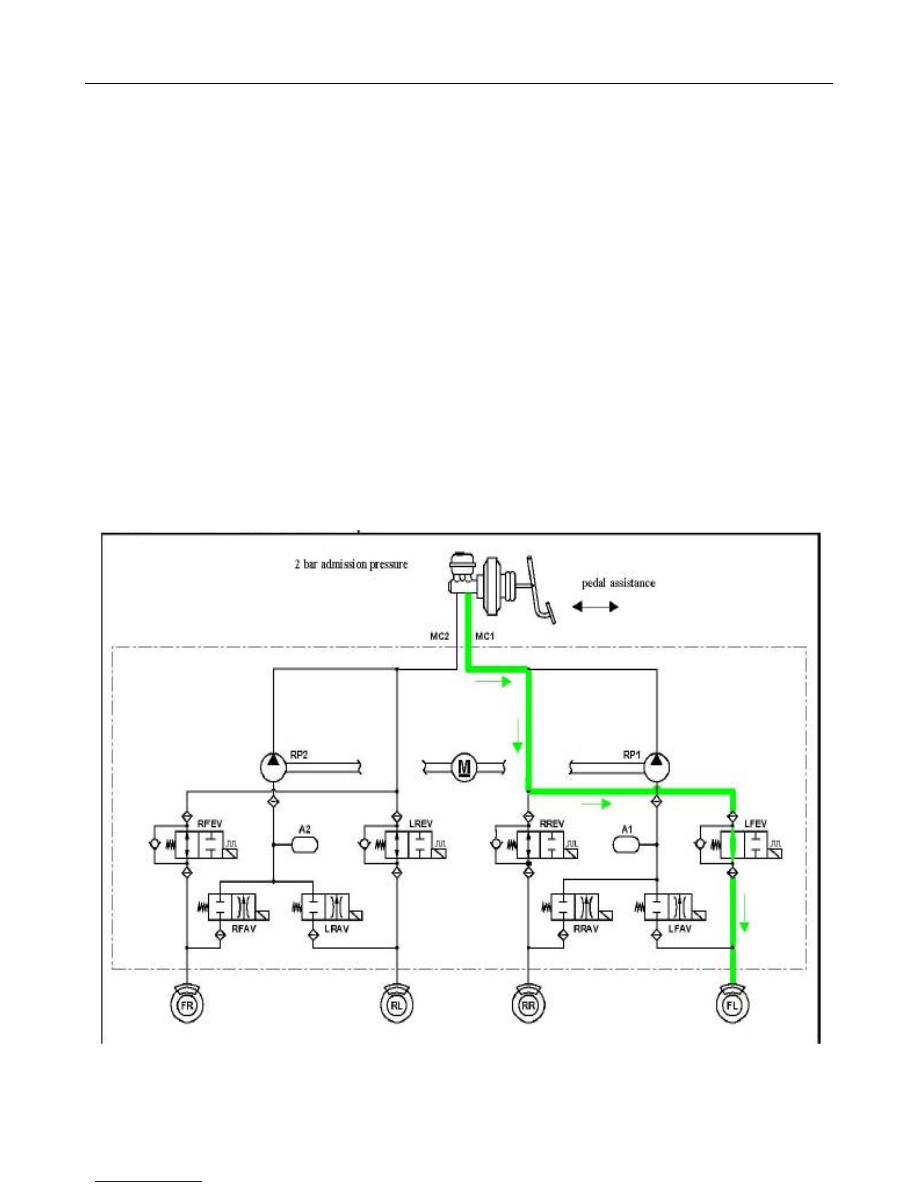

Manual brake bleeding schematic diagram

Manual brake bleeding schematic diagram for 4-channel ABS X type circuit: Left front wheel

Function mode:

The brake fluid flows into wheel cylinder through master cylinder and hydraulic unit. Open the bleed screw on the left
front wheel with the screws on other wheels closed. Depress and release brake pedal until air bubbles and impurities
are fully drained and the brake fluid is pure. Perform the same process on the other three wheels.

ABS

ABS

ABS

ABS Anti-lock

Anti-lock

Anti-lock

Anti-lock Brake

Brake

Brake

Brake System

System

System

System

- 83 -

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Testing

Testing

Testing

Testing

Component activation test

1.

Component activation test for reflux pump:

(1) Turn off the ignition switch.

(2) Connect the diagnostic instrument to DLC.

(3) Turn on the ignition switch with engine off.

(4) Apply the “Component Test” function of

diagnostic instrument to activate the reflux
pump.

Normal state: Operation sound of reflux pump can
be heard.

2.

Component activation test for solenoid valve:

Remarks:

Before testing solenoid valve, please test he
reflux pump to see if it operates normally.

Two repair men are required to finish this test.

(1)

Turn off the ignition switch.

(2)

Connect the diagnostic instrument to DLC.

(3) One repair man should sit in the vehicle and the

vehicle should be lifted by lifter with wheels
suspended.

(4)

Turn on the ignition switch with engine off.

(5) Apply the “Component Test” function of

diagnostic instrument to activate the solenoid
valve as per prompt of diagnostic instrument.

(6) Firstly, test the oil inlet valve and oil outlet

valve of left front wheel, during which, the
repair man in the vehicle should depress the
brake pedal with force and hold it.

Conventional braking phase:

Normal state: The repair man outside

cannot rotate the left front wheel by
hand.

Boosting

phase:

Use

diagnostic

instrument

to

access

the

“boosting

phase”.

Normal state: The repair man outside
cannot rotate the left front wheel by
hand.

Pressure

maintenance

phase:

Use

diagnostic

instrument

to

access

the

“pressure maintenance phase”.

Normal state: The repair man outside
cannot rotate the left front wheel by
hand.

Pressure reducing phase: Use diagnostic
instrument

to

access

the

“pressure

reducing phase”.

Normal state: The repair man outside can
rotate the left front wheel by hand.

(7) Perform testing for right front, left rear and

right rear wheels in sequence. The test results
should be the same as those of left front
wheel.

3.

Component activation test for ABS and EBD
warning lamps

(1) Turn off the ignition switch.

(2) Connect the diagnostic instrument to DLC.

(3) When performing the component activation

test for ABS and EBD warning lamps, they
should lighten or go out corresponding to the
control of diagnostic instrument.

ABS

ABS

ABS

ABS Anti-lock

Anti-lock

Anti-lock

Anti-lock Brake

Brake

Brake

Brake System

System

System

System

84

DTC

DTC

DTC

DTC List

List

List

List

Attention:

Attention:

Attention:

Attention:

Please turn off the ignition switch before removal of parts.

Note:

Note:

Note:

Note:

Please use the diagnostic instrument to read DTC.

If no fault is detected during the detection of components, ABS hydraulic governor with ECU and its ground
point/power line should be inspected.

When more than two DTC is in memory, the fault relevant DTC and circuits should be inspected at first.

DTC

DTC

DTC

DTC list

list

list

list

DTC

Detection Item

Possible Failure Areas

C0035

Left front wheel speed sensor circuit fault

Left front wheel speed sensor circuit, gear ring or sensor itself

C0040

Right front wheel speed sensor circuit fault

Right front wheel speed sensor circuit, gear ring or sensor itself

C0045

Left rear wheel speed sensor circuit fault

Left rear wheel speed sensor circuit, gear ring or sensor itself

C0050

Right rear wheel speed sensor circuit fault

Right rear wheel speed sensor circuit, gear ring or sensor itself

C0060

Left front oil outlet valve circuit fault of hydraulic
governor

ABS hydraulic governor with ECU

C0065

Left front oil inlet valve circuit fault of hydraulic
governor

ABS hydraulic governor with ECU

C0070

Right front oil outlet valve circuit fault of
hydraulic governor

ABS hydraulic governor with ECU

C0075

Right front oil inlet valve circuit fault of hydraulic
governor

ABS hydraulic governor with ECU

C0080

Left rear oil outlet valve circuit fault of hydraulic
governor

ABS hydraulic governor with ECU

C0085

Left rear oil inlet valve circuit fault of hydraulic
governor

ABS hydraulic governor with ECU

C0090

Right rear oil outlet valve circuit fault of hydraulic
governor

ABS hydraulic governor with ECU

C0095

Right rear oil inlet valve circuit fault of hydraulic
governor

ABS hydraulic governor with ECU

C0110

Reflux pump motor fault: Operation or stopping
failed

ABS hydraulic governor with ECU

Ground/power supply for ABS hydraulic governor with ECU

C0121

Solenoid valve relay circuit fault

ABS hydraulic governor with ECU

Ground/power supply for ABS hydraulic governor with ECU

C0161

ABS brake lamp switch circuit fault

Brake lamp switch and its circuit

ABS hydraulic governor with ECU and its circuit

C0245

General fault of wheel speed sensor

Wheel speed sensor circuit, gear ring or sensor itself

C0550

ABS ECU fault

Battery

Ground/power supply for ABS hydraulic governor with ECU

ABS hydraulic governor with ECU

C0800

Voltage out of range

Battery

Charging system

Power/ground circuit















Content   ..  138  139  140  141   ..
