ET
ET
ET
ET ETACS
ETACS
ETACS
ETACS Body
Body
Body
Body Computer
Computer
Computer
Computer
- 38 -
Instruction
Instruction
Instruction
Instruction and
and
and
and Operation
Operation
Operation
Operation
ETACS
ETACS
ETACS
ETACS body
body
body
body computer
computer
computer
computer
SUNRAY ETACS is for controlling a majority of electrical systems and equipments on vehicle, such as front water
sprayer, front wiper, key hole lamp, interior ceiling lamp, anti-theft alarm bell, seat belt alarm, power window, rear fog
lamp, rear defroster, front fog lamp, step lamp, small lamp, headlamp, hazard warning lamp, and locking device.
ETACS control is achieved based on status of various equipments, including signals from driver side door and its
locking device, front passenger door and its locking device, vehicle speed signal, rear fog lamp switch, front fog lamp
switch, small lamp switch, headlamp switch, front water sprayer switch, front wiper switch, hand brake switch, rear
defroster switch, key insertion, ignition switch, seat belt and so on.
Mounting
Mounting
Mounting
Mounting position
position
position
position of
of
of
of ETACS
ETACS
ETACS
ETACS

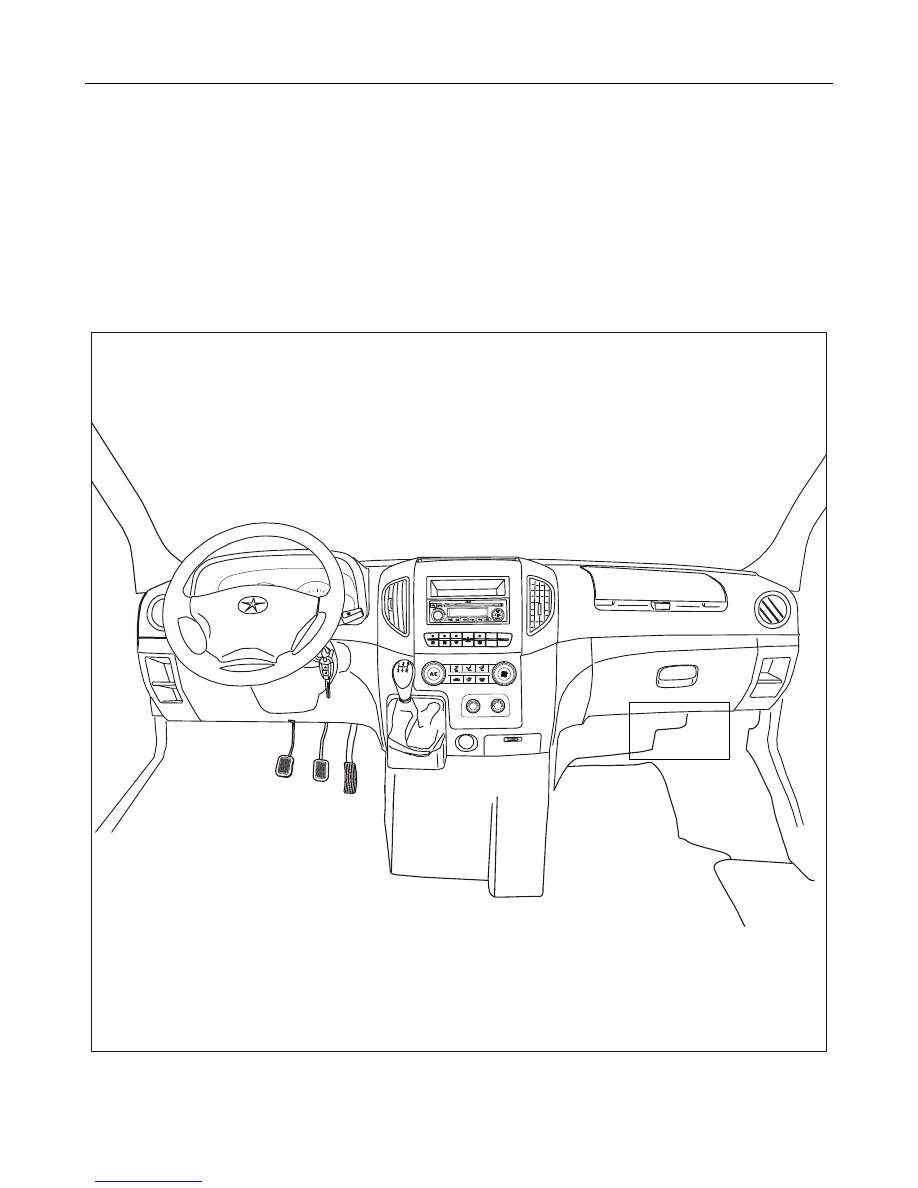

ETACS is installed below the glove box of instrument panel.
