Isuzu N-Series. Service manual - part 984

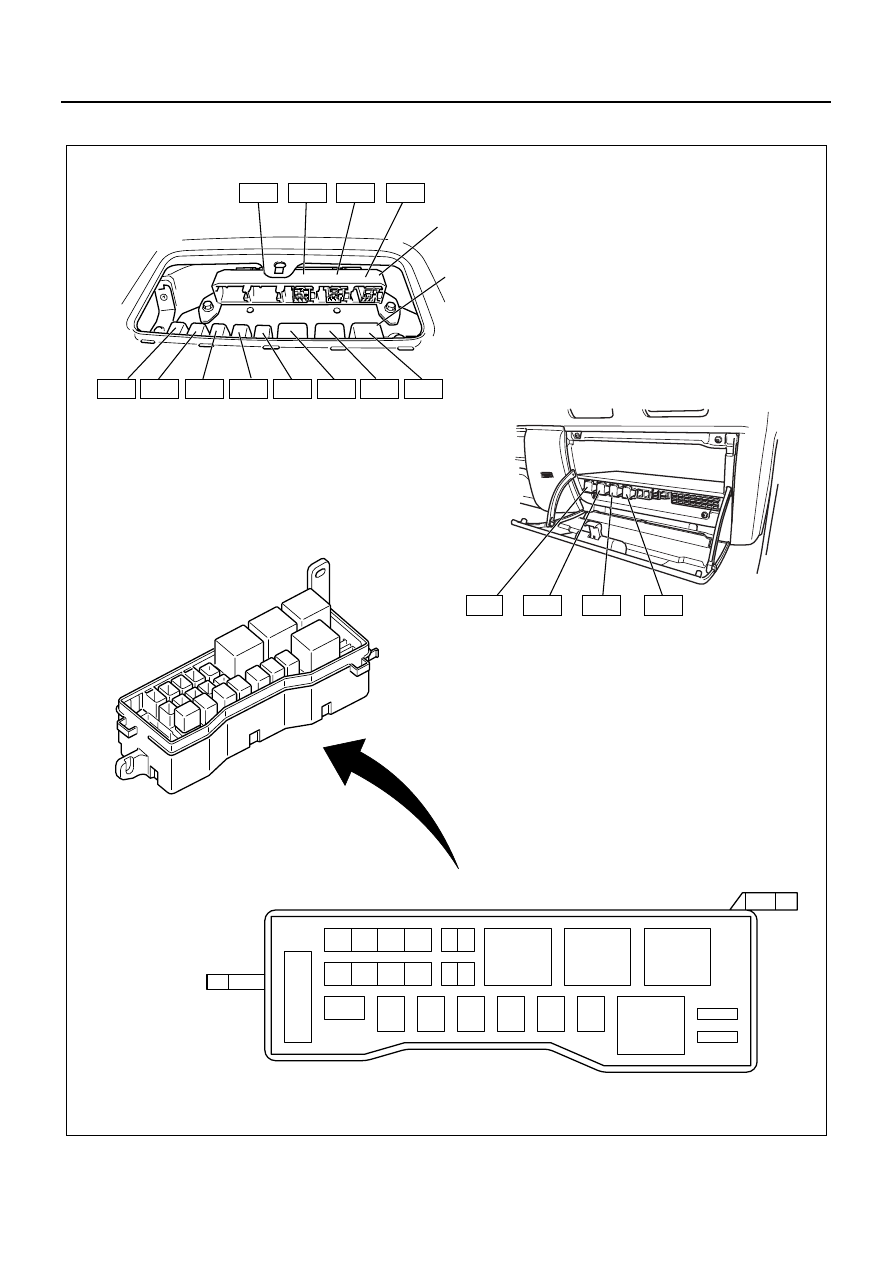

CAB AND CHASSIS ELECTRICAL 8-41
F-16
10 A
METER
CSD Relay, Key remind buzzer, Backup light switch, Backup
light, Neutral switch, Starter relay, QOS-II controller, Glow
relay, Glow indicator (Meter), Coolant temperature gauge,
Thermo unit, Vehicle speed sensor (Installed on the meter
assembly & Transmission), Meter assembly, Power window
relay, Cornering light relay, Backup buzzer, ABS indicator
relay, Charge relay, Heater A/C relay, VSV: 2WD (4WD), VSV:
4WD (4WD), 4WD relay
F-17
10 A
NEES (IG)
Smoother (IGN SIG.)
HSA
—
F-18
—
SRS
—
F-19
10 A
ENG. (BACK UP) HSA
ECM (Back up)
F-20
15 A
HORN, HAZARD
Horn, Horn relay, Horn switch, Flasher unit, Hazard warning
switch, Turn light(s), Side turn signal light relay
F-21
10 A
ABS (IG)
ABS (IGN SIG.)
F-22
10 A
STARTER
Starter relay, QOS-II controller
F-23
10 A
HEAD LIGHT RH
Headlight (RH), Dimmer relay, High beam indicator light
F-24
10 A
HEAD LIGHT LH
Headlight (LH), Dimmer relay
F-25
15 A
MARKER LAMP
Marker light, Marker light relay
F-26
15 A
COND. FAN
Condenser fan
F-27
10 A
RR FOG
Rear fog light switch, Rear fog light relay
F-28
10 A
ECM. ENG.
ECM
Fuse No.
Capacity
Indication on label
Main parts (Load)
