7B-64 Automatic Transmission (Smoother)

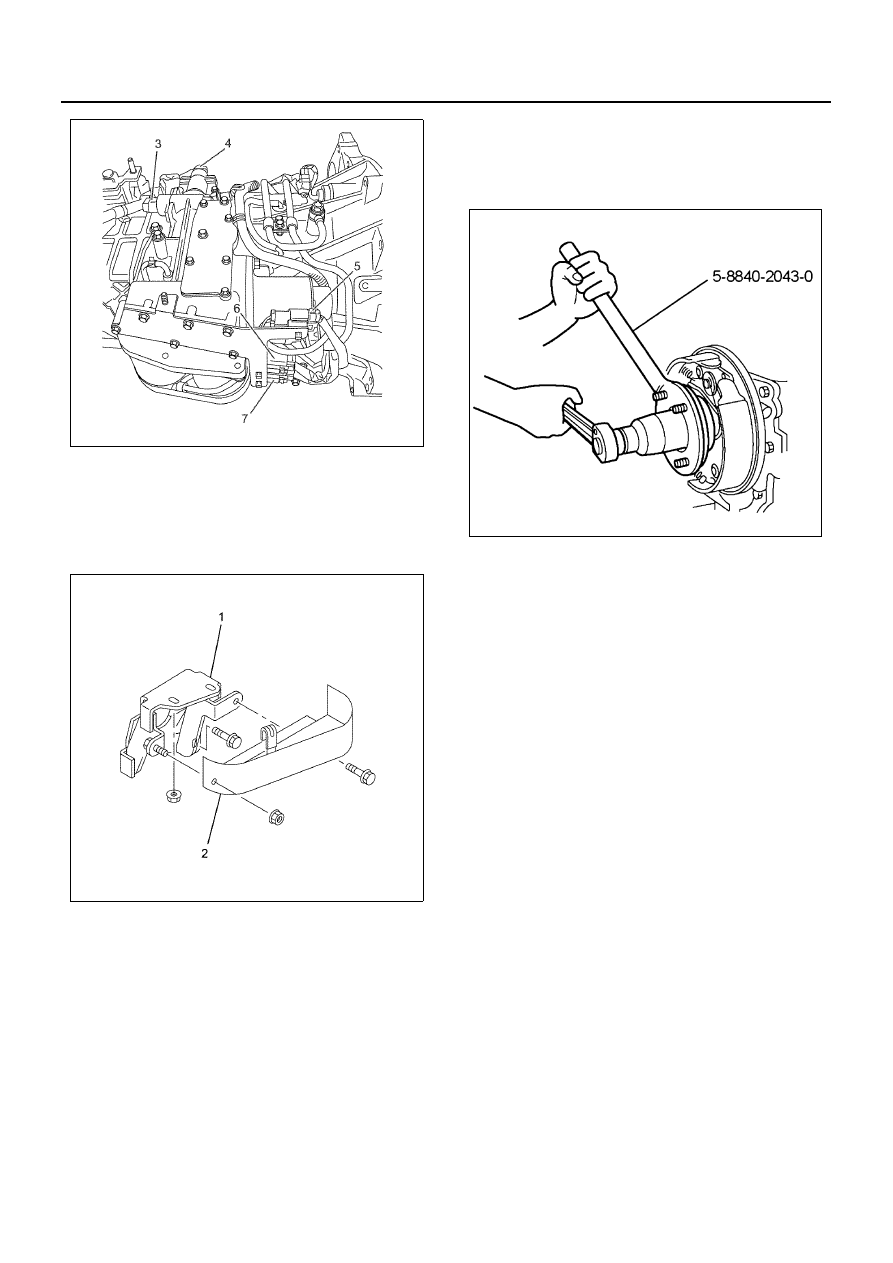

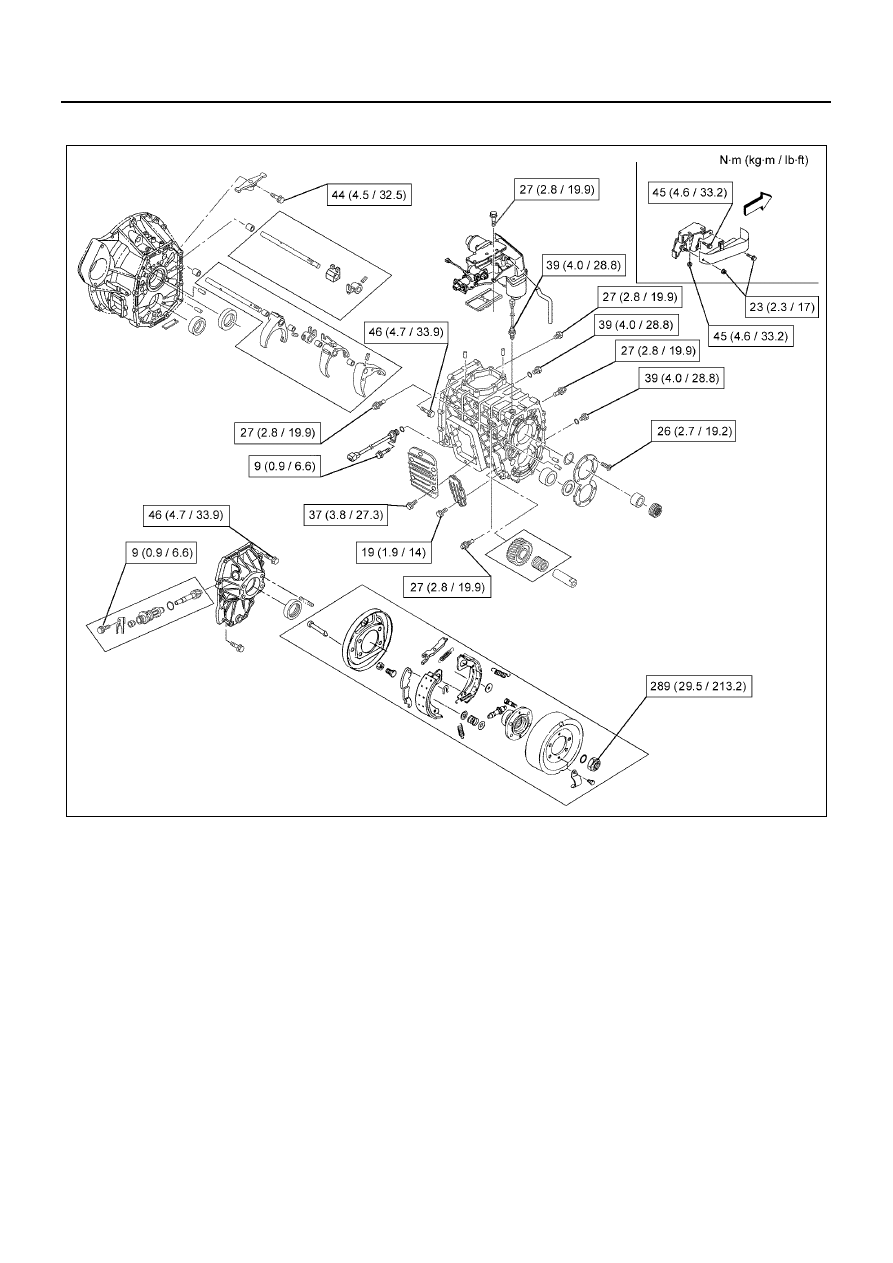

27. Install the heat protector bracket (1) and heat
protector (2).
Tighten:
Bracket
45 N
⋅m (4.6 kg⋅m / 33.2 lb⋅ft)
Protector
23 N
⋅m (2.3 kg⋅m / 17 lb⋅ft)
28. Apply engine oil to the O-ring, and then install the
drain plug and O-ring.
Tighten:
39 N
⋅m (4.0 kg⋅m / 28.8 lb⋅ft)
29. Apply 5W-30 engine oil to the O-ring, and then
install the filler plug and O-ring.
Tighten:
39 N
⋅m (4.0 kg⋅m / 28.8 lb⋅ft)
30. Install the parking brake assembly.
• Refer to “Parking Brake”.
31. Apply engine oil to the O-ring, and then install the
coupling driver and O-ring.
32. Using a new lock nut, use the flange holder (5-
8840-2043-0) to tighten the lock nut.
Tighten:
289 N
⋅m (29.5 kg⋅m / 213.2 lb⋅ft)

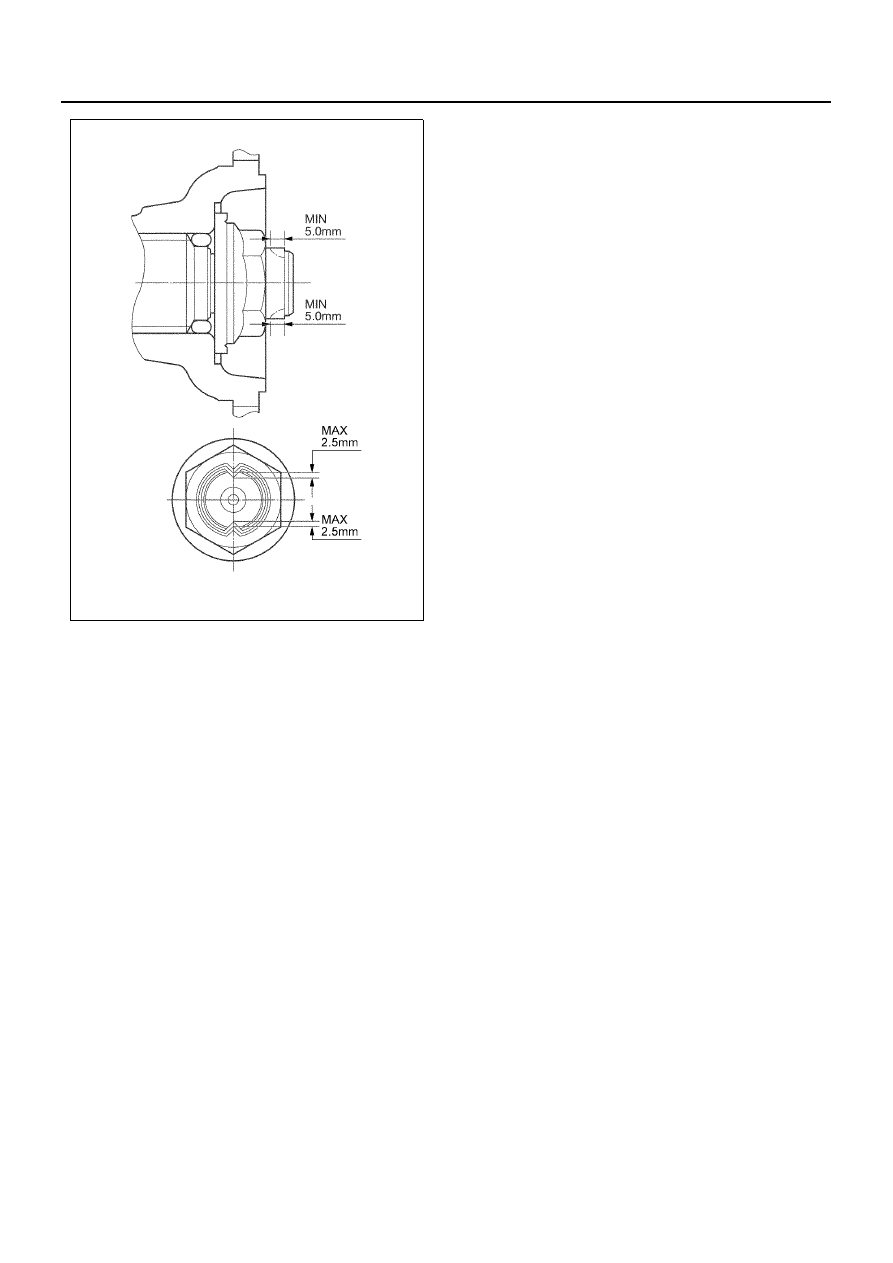

• After tightening the lock nut to the specified
torque, stake it (2 points) securely using a
chisel (chisel tip shape: approx. 1 mm in radius
× 60 degrees) so the lock nut lip gap is aligned
with the V-groove of the shaft and is at least 5
mm, and the clearance between the V-groove
bottom and the nut lip is 2.5 mm or less.
Caution:
After caulking, check the caulking of the nut. If any
cracks are discovered, replace the lock nut and re-caulk.
