CLUTCH 7C-21

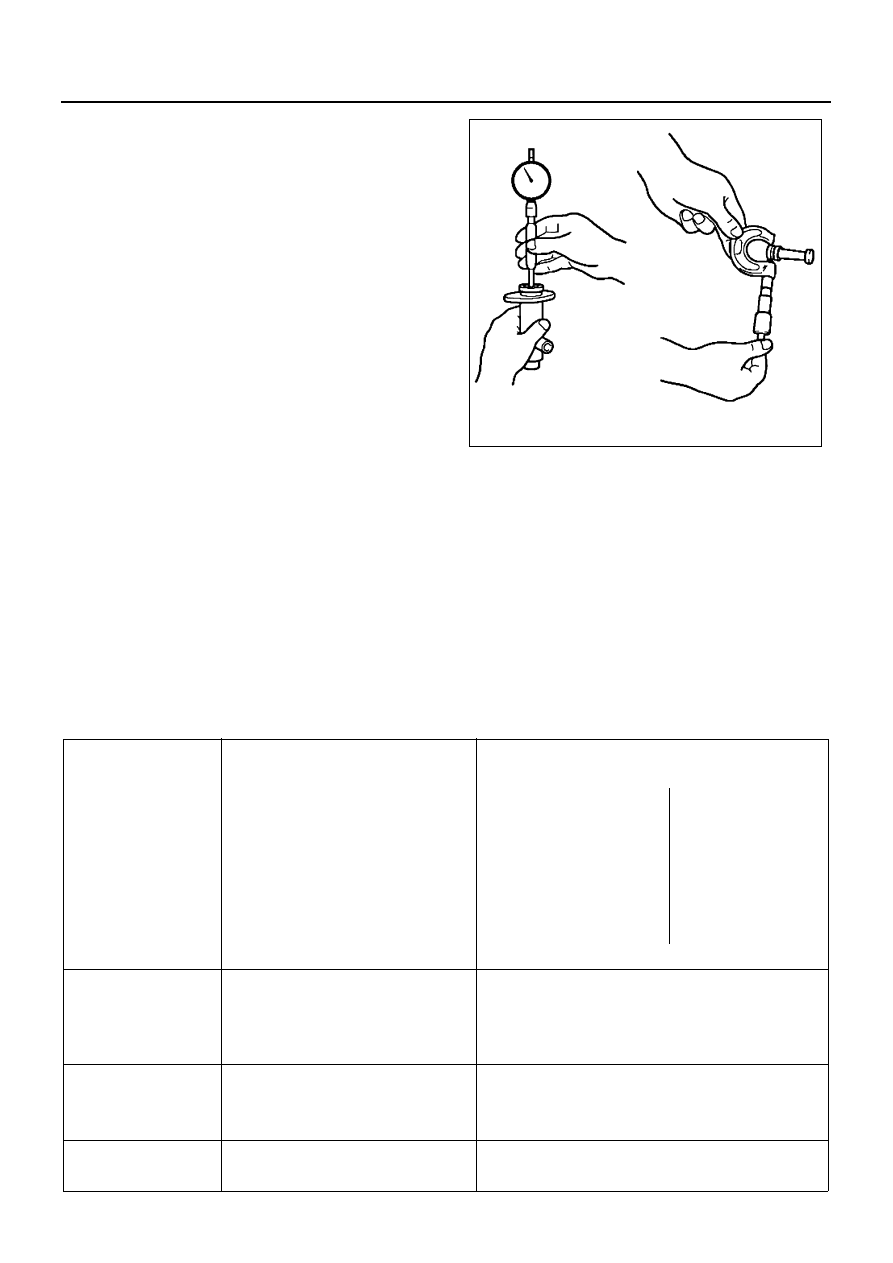

• Check the internal surface of the cylinder body for
stepped wear, corrosion and damage, and mea-
sure the inside diameter.
Inside diameter of the cylinder body.
Standard inside diameter :
φ25.4 mm (1.0 in)
• Check the piston for damage, rust and wear.
• Measure the clearance between the cylinder body
and the piston.
Standard inside diameter : 0.02 — 0.10 mm (0.00078 —
0.0039 in)
Limit : 0.11 mm (0.0043 in)
• If the limit value is exceeded, replace the slave cyl-
inder assembly.
Installation
1. Assemble the cylinder body.
2. Assemble the bleeder screw.
3. Assemble the piston assembly.
• Before assembling, apply a thin coat of rubber
grease to the piston.
Caution:
Make sure not to damage the piston assembly when as-
sembling.
4. Assemble the boots.
5. Assemble the push rod.
Specifications
N7A0513E
PRESSURE PLATE
Spring Shape
Diaphragm Spring
Outer Circumference
373 mm (14.685 in)
Installation Force
Set Force
Engine Model
8,340 N (850 kg / 1,874 lb) 4HF1, 4HG1, 4HF1-II
9,500 N (970 kg / 2,139 lb)
4HG1-T, 4HE1-TC-N,
4HK1-TC
6,200 N (633 kg / 1,396 lb)
4JH1-TC-S
Spring Finger Installation Height
49 — 51 mm (1.93 — 2.01 in)
CLUTCH DISK
Outside Diameter
× Inside Diameter
300
× 190 mm (11.81 × 7.48 in)
Assembly Thickness: When free
8.9 mm (0.35 in)
Assembly Thickness: When com-
pressed
8.5 mm (0.33 in)

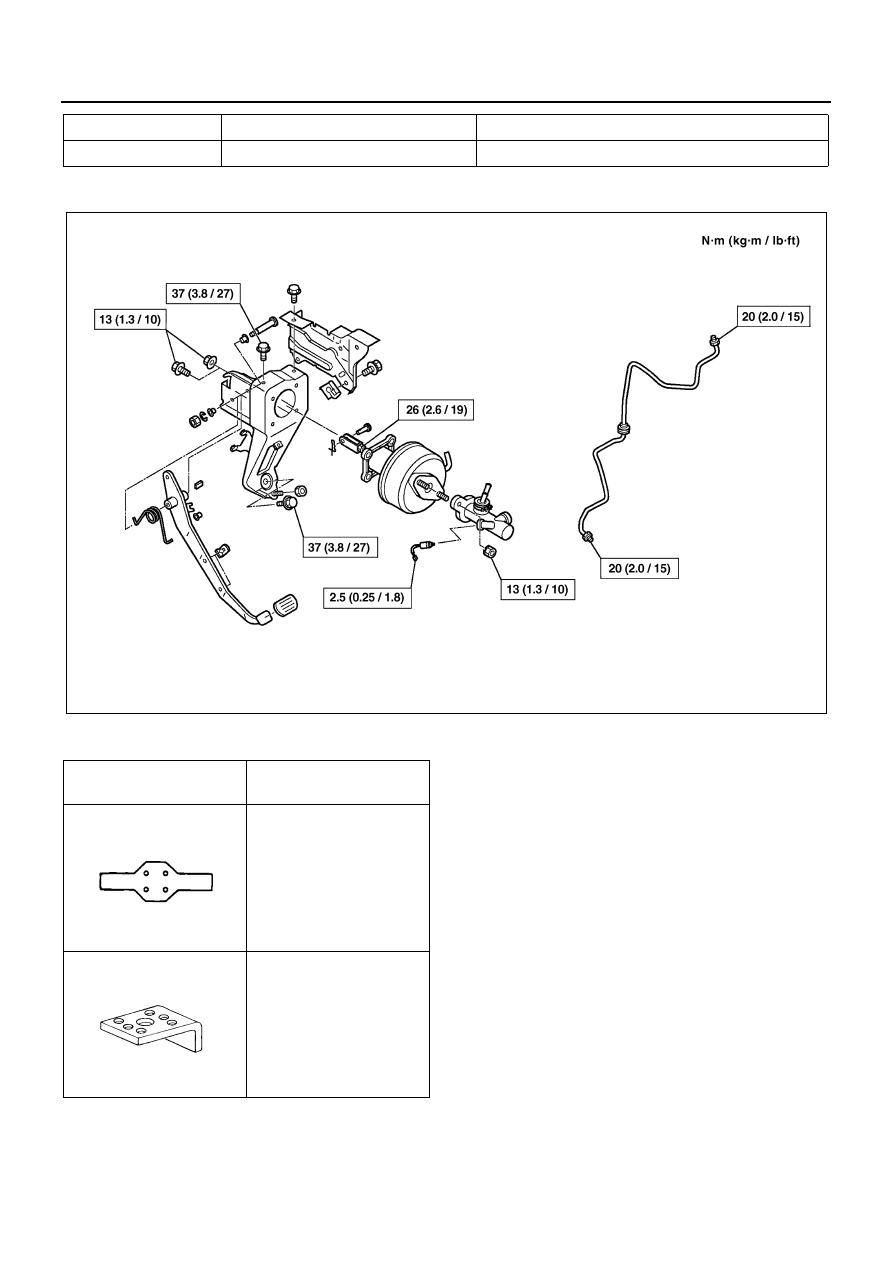

CLUTCH PEDAL
Clutch Pedal Height
160 — 170 mm (6.29 — 6.69 in)
Clutch Pedal Stroke
159 — 169 mm (6.25 — 6.65 in)
Clutch Pedal Free Play
15 — 25 mm (0.59 — 0.98 in)
MASTER CYLINDER Inside Diameter
φ20.64 mm (0.81 in) (with Booster)
φ19.05 mm (0.74 in) (without Booster)
