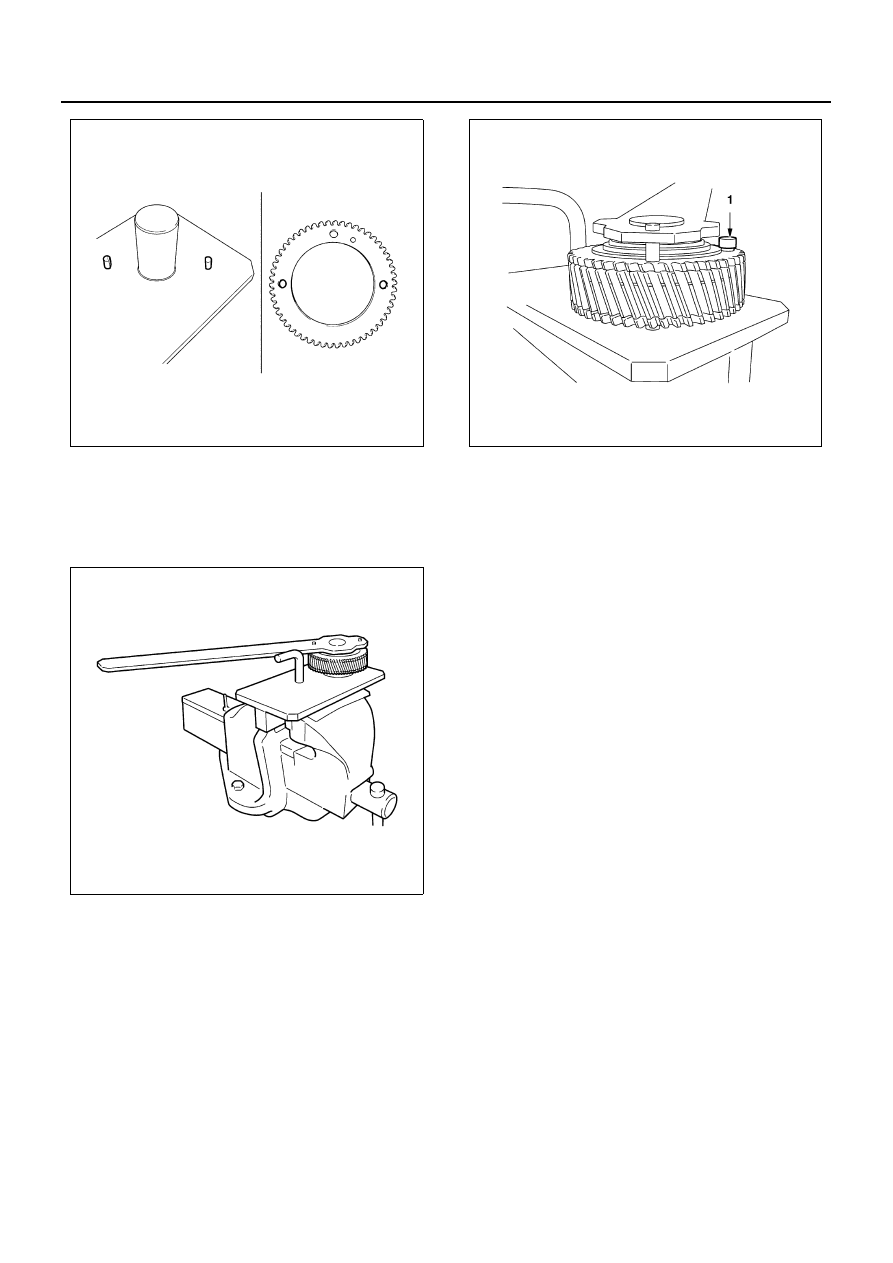

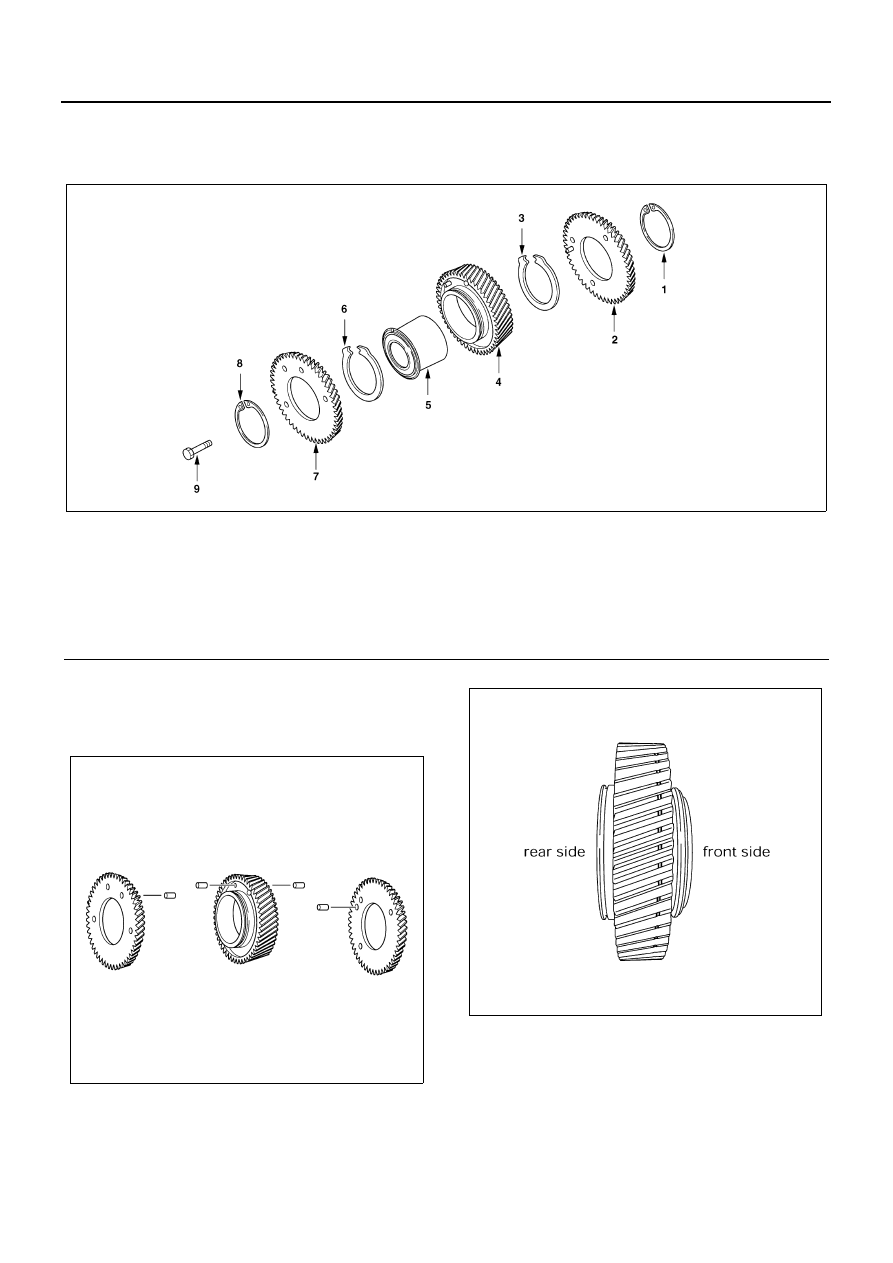

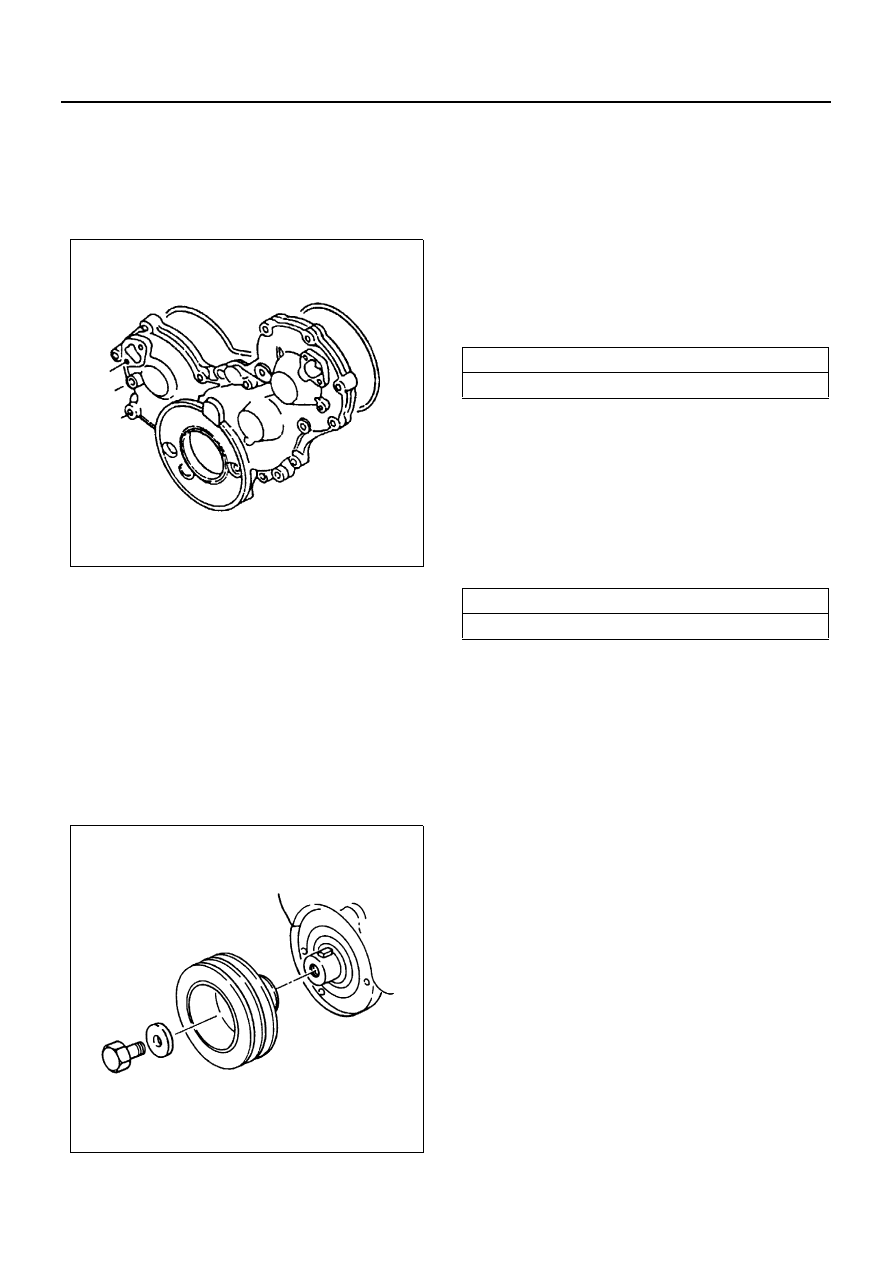

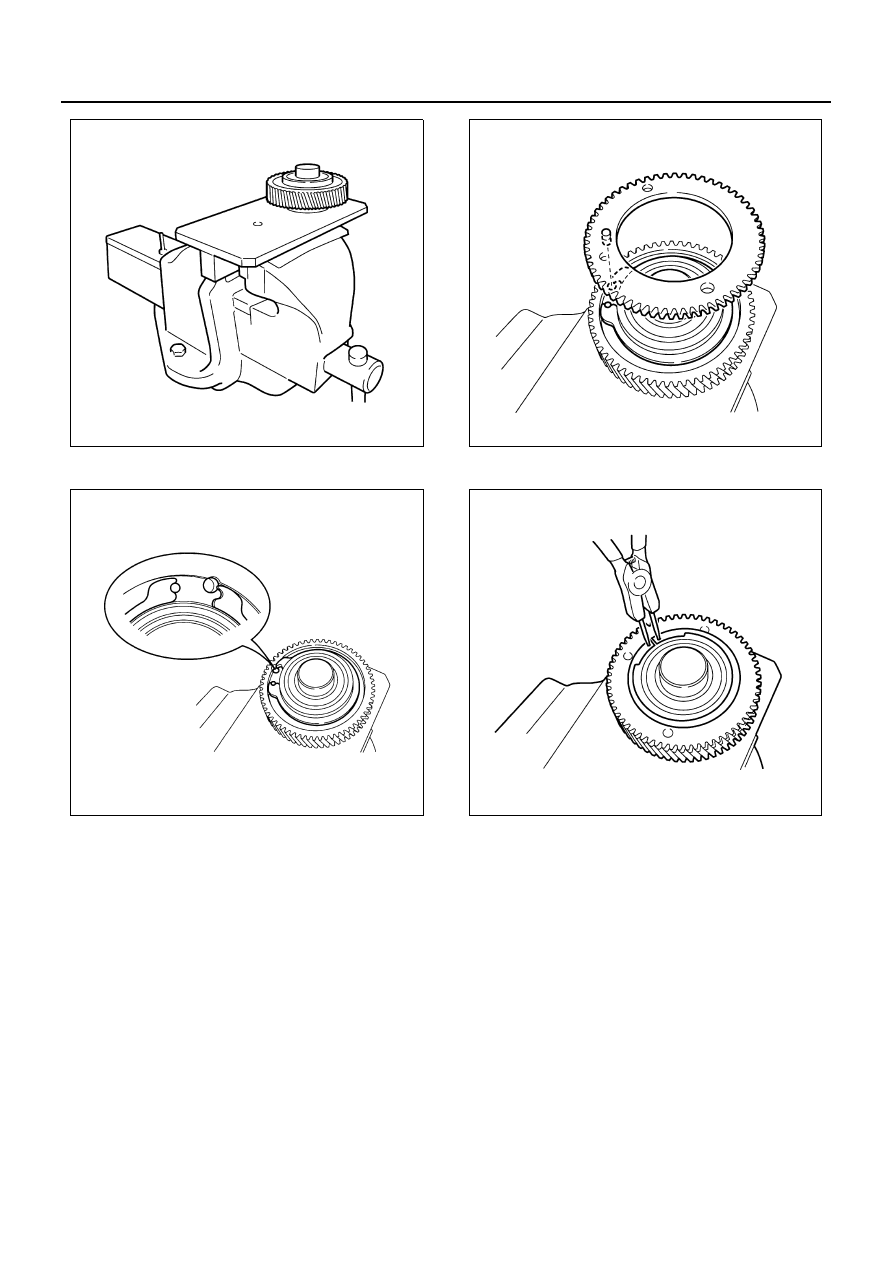

6A1-28 4JB1/4JB1-TC/4JG2/4JH1-TC - ENGINE 7. Timing Gear Case Cover 1) Align the gear case with the timing gear case knock pin and then install the timing gear case 2) Tighten the gear case cover bolts to the speci- fied torque. 8. Noise Cover Spacer 10. Crankshaft Damper Pulley Tighten the crankshaft damper pulley bolt to the Notice: Tighten: • Pulley boss bolt to 206 N ⋅m (21 kg⋅m / 152 lb⋅ft) 11. Cooling Fan Assembly • Mount fan pulley, distance piece, and cooling fan assembly (in this order) on the water pump, and Tighten: • 8 N ⋅m (0.8 kg⋅m / 69 lb⋅in) 12. AC Generator Drive Belt • Install AC Generator drive belt and adjust belt ten- sion. • Depress the drive belt mid-portion with a 98 N (10 kg / 22 lb) force. • Tighten the idler lock nut to the specified torque. Tighten: • Idler lock nut to 27 N ⋅m (2.8 kg⋅m / 20 lb⋅ft) 13. Power Steering Pump Drive Belt (P/S Model) • Install Power Steering pump drive belt and adjust belt tension. • Depress the drive belt mid-portion with a 98 N (10 kg / 22 lb) force. • Tighten the idler lock nut to the specified torque. Tighten: • 27 N ⋅m (2.8 kg⋅m / 20 lb⋅ft) 14. Fan shroud • Install the fan shroud and reservoir tank hose. N6A3169E N6A3170E Drive Belt Deflection mm (in) 8 (0.31) — 12 (0.47) Drive Belt Deflection mm (in) 8 (0.31) — 12 (0.47) |
