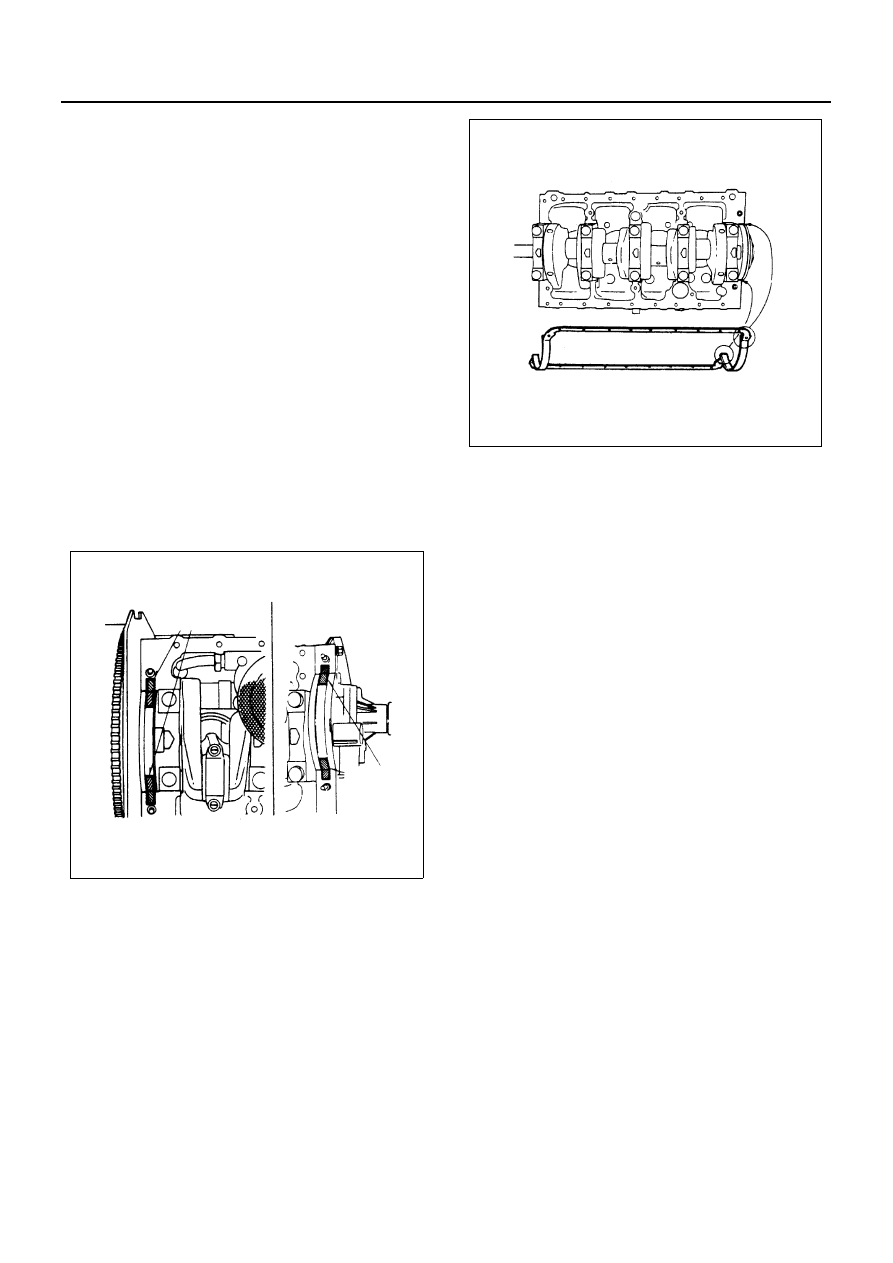

GENERAL ENGINE MECHANICAL 6A-29 2. Stiffener & Space Rubber • Remove the stiffener from of the oil pan left & right side. • Take out space rubber. 3. Oil Pan Assembly Installation 1. Oil Pump Assembly • Apply molybdenum mixed engine oil to drive gear of camshaft and driven gear of oil pump. • Tighten the oil pump fixing bolt to the specified torque. Tighten: ⋅m (1.9 kg⋅m/14 lb⋅ft) 2. Oil Pan Assembly • Apply the recommended liquid gasket or its equivalent to the No. 5 bearing cap arches, the • Fit the gasket rear lipped portion into the No. 5 groove. • Be absolutely sure that the lipped portion is fit- ted snugly into the groove. • Install the oil pan to the cylinder body. Tighten: ⋅m (1.9 kg⋅m/14 lb⋅ft) 3. Stiffener & Space Rubber • Install the space rubber. torque. Tighten: • Engine Body Side to 37 N ⋅m (3.8 kg⋅m/27 lb⋅ft) • Clutch Housing Side to 78 N ⋅m (8.0 kg⋅m/58 lb⋅ft) 4. Vacuum Pump Oil Hose • Install the oil hose to oil pan. N6A3125E N6A3126E |
