Engine Electrical 6D-27
Remove the brushes and commutator carefully so
as not to allow them in contact with the adjacent
parts.

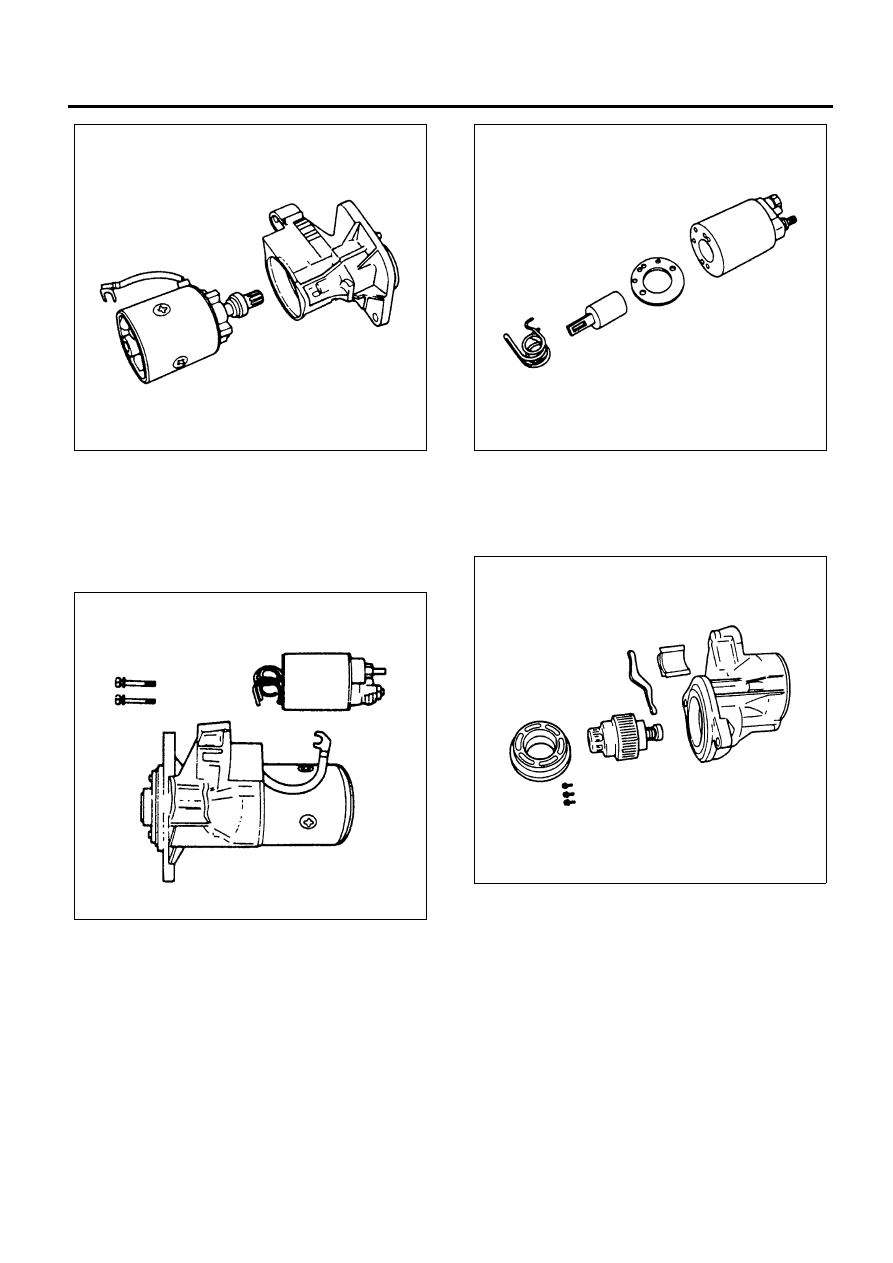

7. Bolt
8. Torsion Spring
9. Magnetic Switch Assembly
Remove the magnetic switch bolts, then remove
the switch from the shift lever.
Remove the torsion spring from the magnetic
switch.
10. Dust Cover
11. Shift Lever
12. Bearing Retainer
13. Clutch Assembly
1) Remove the bearing retainer.
2) Remove the clutch assembly from the gear
case.
14. Bearing Holder
15. Ball Bearing
16. Pinion Stopper Clip
17. Pinion Stopper
18. Return Spring
19. Pinion Shaft
20. Pinion Clutch

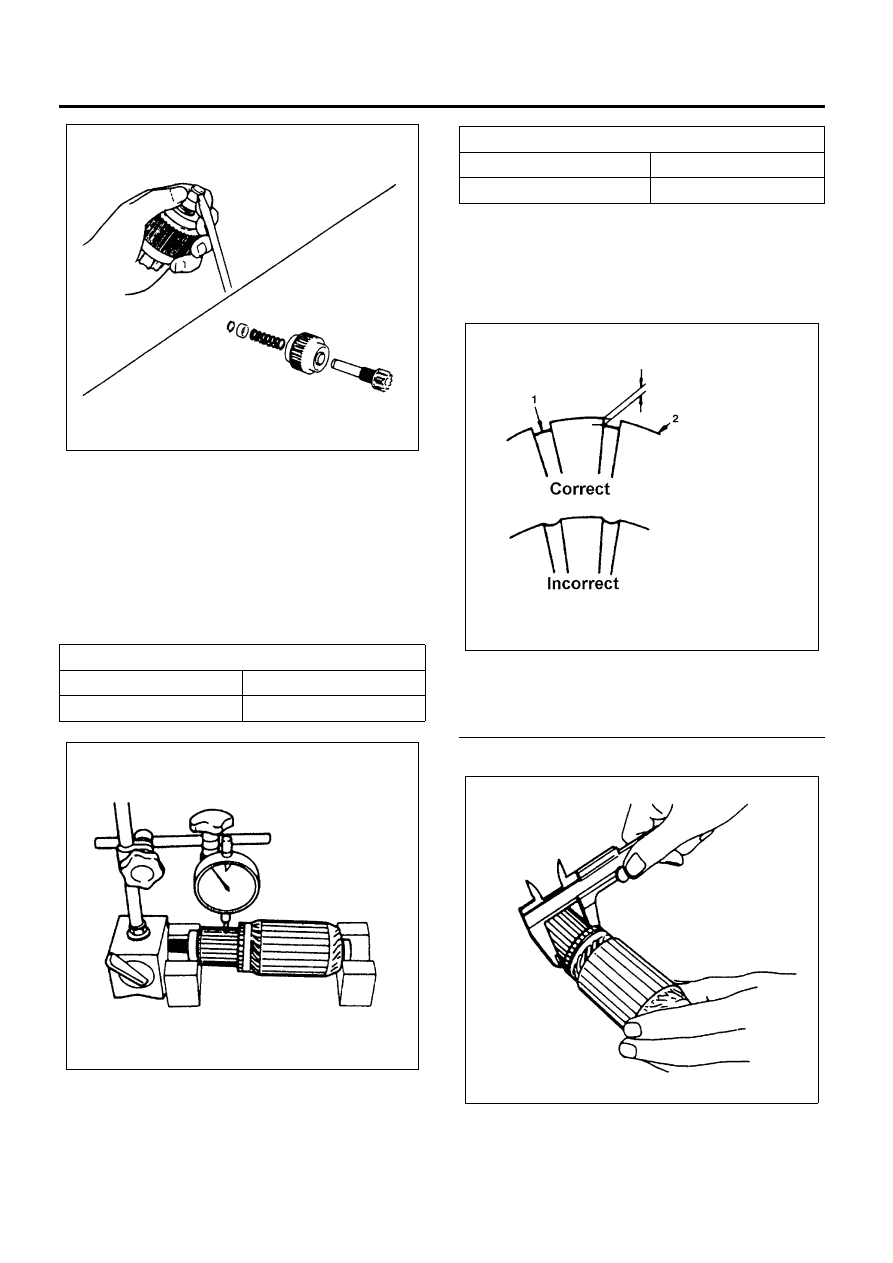

Use a screwdriver to remove the stopper clip. Then
disassemble the clutch assembly.
N6A0998E
N6A0999E
N6A1000E
N6A1001E
