6E-16 EMISSION AND ELECTRICAL DIAGNOSIS

General Service Information

On Board Diagnostic (OBD) Serviceability Issues
The list of non-vehicle faults that could affect the perfor-
mance of the OBD system has been complied. These
non-vehicle faults vary from environmental conditions to
the quality of fuel used.
The illumination of the Malfunction Indicator Lamp (MIL)
(“Check Engine” lamp) due to a non-vehicle fault could
lead to misdiagnosis of the vehicle, increased warranty
expense and customer dissatisfaction. The following list
of non-vehicle faults does not include every possible
fault and may not apply equally to all product lines.
Poor Vehicle Maintenance
The sensitivity of OBD diagnostics will cause the MIL to
turn on if the vehicle is not maintained properly. Restrict-
ed air filters, fuel filters, oil filters, and crankcase depos-
its due to lack of oil changes or improper oil viscosity can
trigger actual vehicle faults that were not previously
monitored prior to OBD. Poor vehicle maintenance can
not be classified as a “non-vehicle fault”, but with the
sensitivity of OBD diagnostics, vehicle maintenance
schedules must be more closely followed.
Maintenance Schedule
Refer to the maintenance Schedule.
Visual/Physical Engine Compartment Inspection
Perform a careful visual and physical engine compart-
ment inspection when performing any diagnostic proce-
dure or diagnosing the cause of an emission test failure.
This can often lead to repairing a problem without further
steps. Use the following guidelines when performing a
visual/physical inspection:

• Inspection all vacuum hoses for punches, cuts, dis-

connects, and correct rouring.

• Inspect hoses that are difficult to see behind other

components.

• Inspect all wires in a engine compartment for prop-

er connections, burned or chafed spots, pinched
wires, contact with sharp edges or contact with hot
exhaust manifolds or pipes.

Basic Knowledge of Tools Required

Notice:
Lack of basic knowledge of this powertrain when per-
forming diagnostic procedures could result in an incor-
rect diagnosis or damage to powertrain components. Do
not attempt to diagnose a powertrain problem without
this basic knowledge.

A basic understanding of hand tools is necessary to ef-
fectively use this section of the Service Manual.

On-Board Diagnostic (OBD)

On-Board Diagnostic Tests
A diagnostic test is a series of steps, the result of which
is a pass or fail reported to the diagnostic executive.
When a diagnostic test reports a pass result, the diag-
nostic executive records the following data:

• The diagnostic test has been completed since the

last ignition cycle.

• The diagnostic test has passed during the current

ignition cycle.

• The fault identified by the diagnostic test is not cur-

rently active.

When a diagnostic test reports a fail result, the diagnos-
tic executive records the following data:

• The diagnostic test has been completed since the

last ignition cycle.

• The fault identified by the diagnostic test is current-

ly active.

• The fault has been active during this ignition cycle.
• The operating conditions at the time of the failure.

Common OBD Terms
Diagnostic
When used as a noun, the word diagnostic refers to any
on-board test run by the vehicle’s Diagnostic Manage-
ment System. A diagnostic is simply a test run on a sys-
tem or component to determine if the system or
component is operating according to specification.
Enable Criteria
The term “enable criteria” is engineering language for
the conditions necessary for a given diagnostic test to
run. Each diagnostic has a specific list of conditions
which must be met before the diagnostic will run. “En-
able criteria” is another way of saying “conditions re-
quired”.
Trip
Technically, a trip is a key on-run-key off cycle in which
all the enable criteria for a given diagnostic are met, al-
lowing the diagnostic to run. Unfortunately, this concept
is not quite that simple. A trip is official when all the en-
able criteria for a given diagnostic are met. But because
the enable criteria vary from one diagnostic to another,
the definition of trip varies as well. Some diagnostic are
run when the vehicle is at operating temperature, some
when the vehicle first start up; some require that the ve-
hicle be cruising at a steady highway speed, some run
only when the vehicle is idle.
Some run only immediately following a cold engine start-
up.
A trip then, is defined as a key on-run-key off cycle in
which the vehicle was operated in such a way as to sat-
isfy the enables criteria for a given diagnostic, and this
diagnostic will consider this cycle to be one trip. Howev-
er, another diagnostic with a different set of enable cri-
teria (which were not met) during this driving event,
would not consider it a trip. No trip will occur for that par-
ticular diagnostic until the vehicle is driven in such a way
as to meet all the enable criteria.

EMISSION AND ELECTRICAL DIAGNOSIS 6E-17

Diagnostic Information
The diagnostic charts and functional checks are de-
signed to locate a faulty circuit or component through a
process of logical decisions. The charts are prepared
with the requirement that the vehicle functioned correct-
ly at the time of assembly and that there are not multiple
faults present.
There is a continuous self-diagnosis on certain control
functions. This diagnostic capability is complemented by
the diagnostic procedures contained in this manual. The
language of communicating the source of the malfunc-
tion is a system of diagnostic trouble codes. When a
malfunction is detected by the control module, a diag-
nostic trouble code is set and the Malfunction Indicator
Lamp (MIL) is illuminated.
Data Link Connector (DLC)
The provision for communication with the control mod-
ule is the Data Link Connector (DLC). It is located at
near the A post of driver side. The DLC is used to con-
nect to a scan tool. Some common uses of the scan tool
are listed below:

• Identifying stored Diagnostic Trouble Codes

(DTCs).

• Clearing DTCs.
• Reading serial data.

Decimal/Binary/Hexadecimal Conversions
All scan tool manufacture will display a variety of vehicle
information which will aid in repairing the vehicle. Some
scan tools will display encoded messages which will aid
in determining the nature of the concern. The method of
encoding involves the use of a two additional numbering
systems: Binary and Hexadecimal.
The binary number system has a base of two numbers.
Each digits is either a 0 or a 1. A binary number is an
eight digit number and is read from right to left. Each dig-
it has a position number with the farthest right being the
0 position and the farthest left being the 7 position. The
0 position, when displayed by a 1, indicates 1 in decimal.
Each position to the left is double the previous position
and added to any other position values marked as a 1.
A hexadecimal system is composed of 16 different alpha
numeric characters. The alpha numeric characters used
are numbers 0 through 9 and letters A through F. The
hexadecimal system is the most natural and common
approach for scan tool manufactures to display data rep-
resented by binary numbers and digital code.
Verifying Vehicle Repair
Verification of vehicle repair will be more comprehen-
sive for vehicle with OBD system diagnostic. Following
a repair, the technician should perform the following
steps:

1. Review and record the Fail Records for the DTC

which has been diagnosed.

2. Clear DTC (s).
3. Operate the vehicle within conditions noted in the

Fail Records.

4. Monitor the DTC status information for the specific

DTC which has been diagnosed until the diagnos-
tic test associated with that DTC runs.

Following these steps are very important in verifying re-
pairs on OBD systems. Failure to follow these steps
could result in unnecessary repairs.
On-Board Diagnostic (OBD) System Check
OBD System should be checked as follows:

1. When Ignition key is turned from the “OFF” to the

“ON” position, make sure that MIL is lit for 0.3 —
0.8 sec.

2. Connect Scan Tool and check to see if MIL is al-

ways lit.
If so, OBD System is normal.

Reading Diagnostic Trouble Codes Using a
Tech 2 or Other Scan Tool

The procedure for reading diagnostic trouble codes is to
be used a diagnostic scan tool. When reading DTCs, fol-
low instructions supplied by tool manufacturer.

Clearing Diagnostic Trouble Codes

Important:
Do not clear DTCs unless directed to do so by the ser-
vice information provided for each diagnostic procedure.
When DTCs are cleared, the Freeze Frame and Failure
Record data which may help diagnose an intermittent
fault will also be erased from memory.

If the fault that caused the DTC to be stored into memory
has been corrected, the Diagnostic Executive will begin
to count the “warm-up” cycles with no further faults de-
tected, the DTC will automatically be cleared from the
Engine Control Module (ECM) memory.
To clear Diagnostic Trouble Codes (DTCs), use the di-
agnostic scan tool “clear DTCs” or “clear Information”
function. When clearing DTCs follow instructions sup-
plied by the tool manufacturer.
When a scan tool is not available, DTCs can also be
cleared by disconnecting one of the following sources
for at least thirty (30) seconds.

Notice:
To prevent system damage, the ignition key must be
“OFF” when disconnecting or reconnecting battery pow-
er.

• The power source to the control module. Exam-

ples: fuse, pigtail at battery ECM connectors etc.

• The negative battery cable. (Disconnecting the

negative battery cable will result in the loss of other
on-board memory data, such as preset radio tun-
ing).

Tech 2 Scan Tool
From 98 MY, Isuzu Dealer service departments are rec-
ommended to use Tech 2. Refer to Tech 2 scan tool
user guide.

6E-18 EMISSION AND ELECTRICAL DIAGNOSIS

Getting Started

• Before operating the Isuzu PCMCIA card with the

Tech 2, the following steps must be performed:

1. The Isuzu 98 System PCMCIA card (1) inserts into

the Tech 2 (2).

2. Connect the SAE 16/19 adapter (4) to the DLC ca-

ble (3).

3. Connect the DLC cable to the Tech 2 (2).
4. Make sure the vehicle ignition key is off.
5. Connect the Tech 2 SAE 16/19 adapter to the ve-

hicle ALDL/DLC.

6. The vehicle ignition turns on.
7. Verify the Tech 2 power up display.

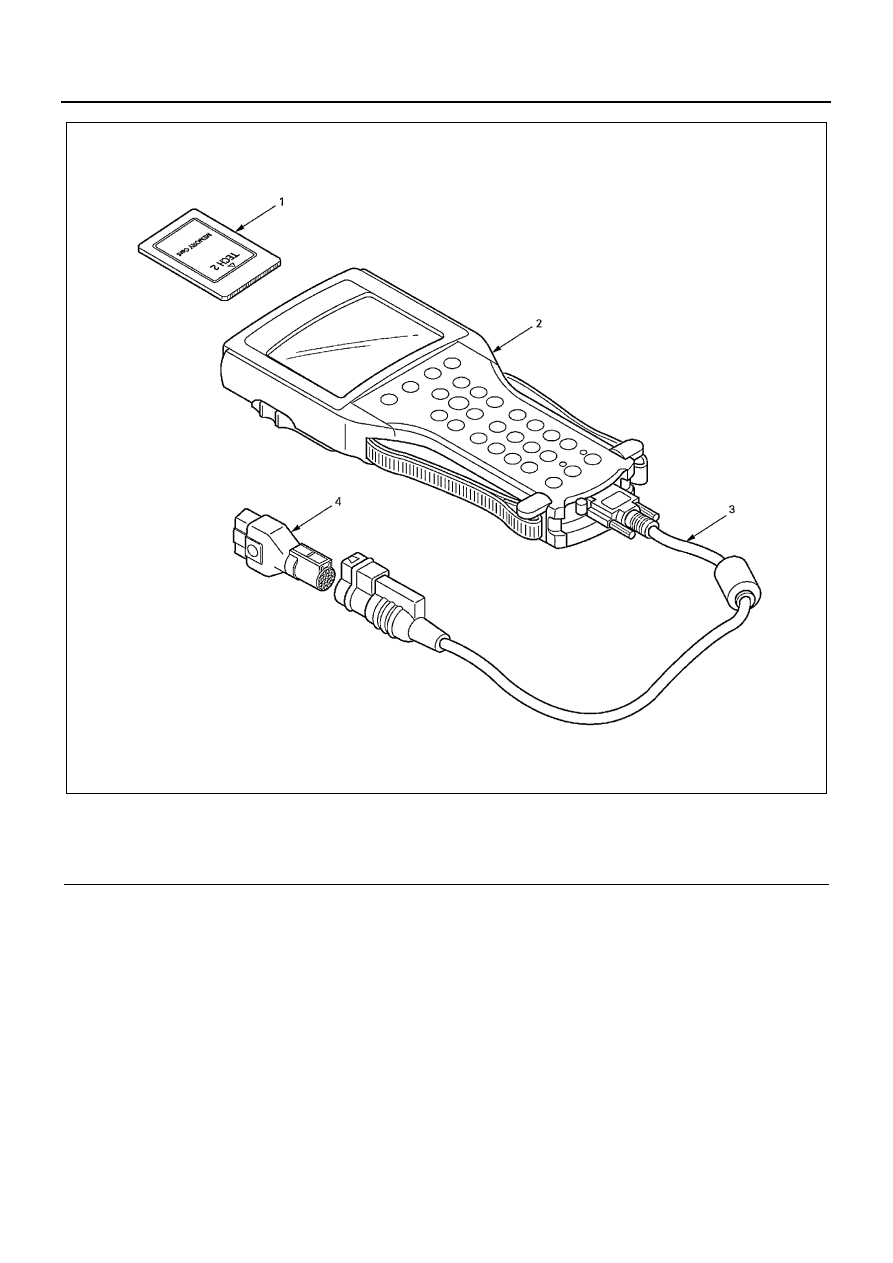

Legend

1. PCMCIA card

3. DLC cable

2. SAE 16/19 adapter

4. Tech-2

N6A1128E

EMISSION AND ELECTRICAL DIAGNOSIS 6E-19

Notice:
The RS232 Loop back connector is only to use for diag-
nosis of Tech 2 and refer to user guide of the Tech 2.

Operating Procedure (For example)

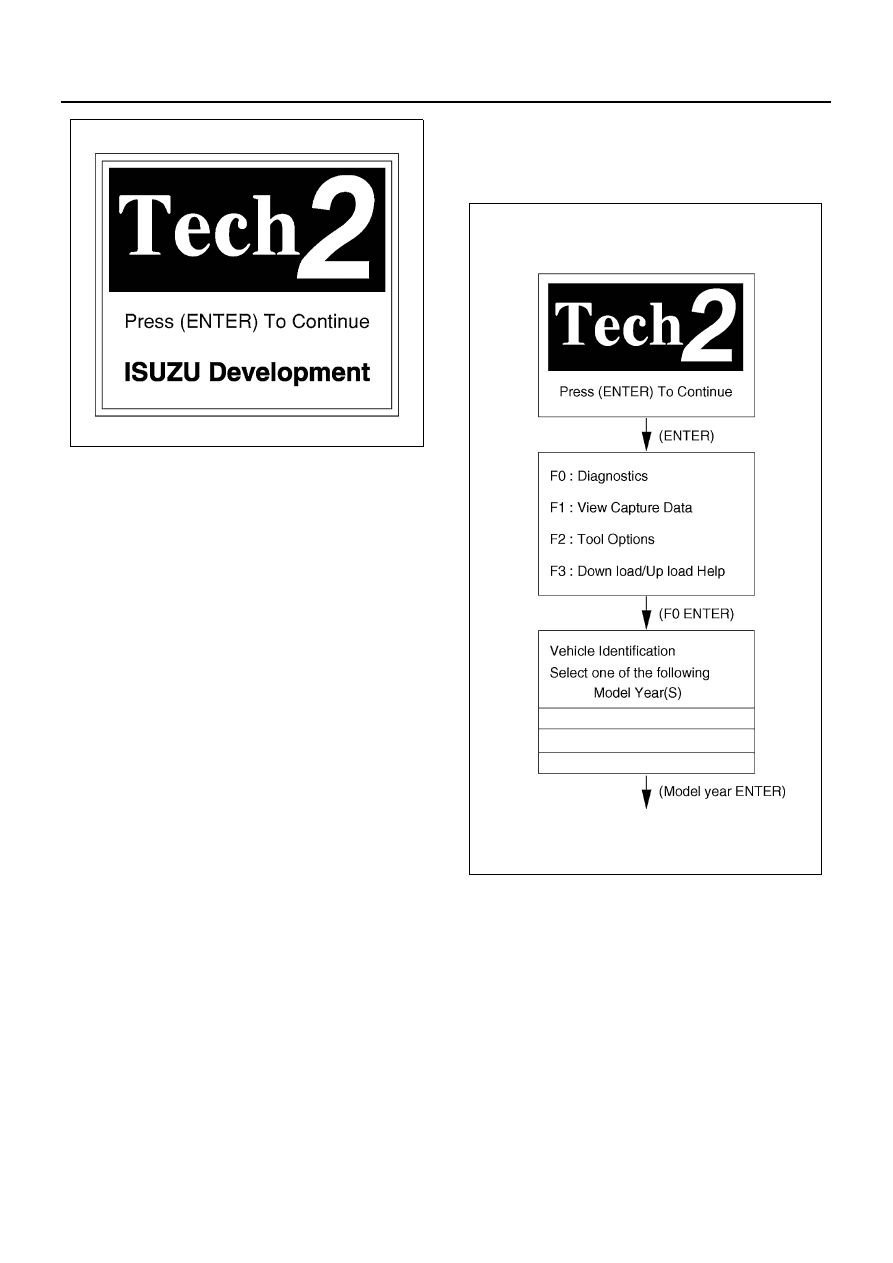

The power up screen is displayed when you power up
the tester with the Isuzu systems PCMCIA card. Follow
the operating procedure below.

N6A1129E

N6A1130E
