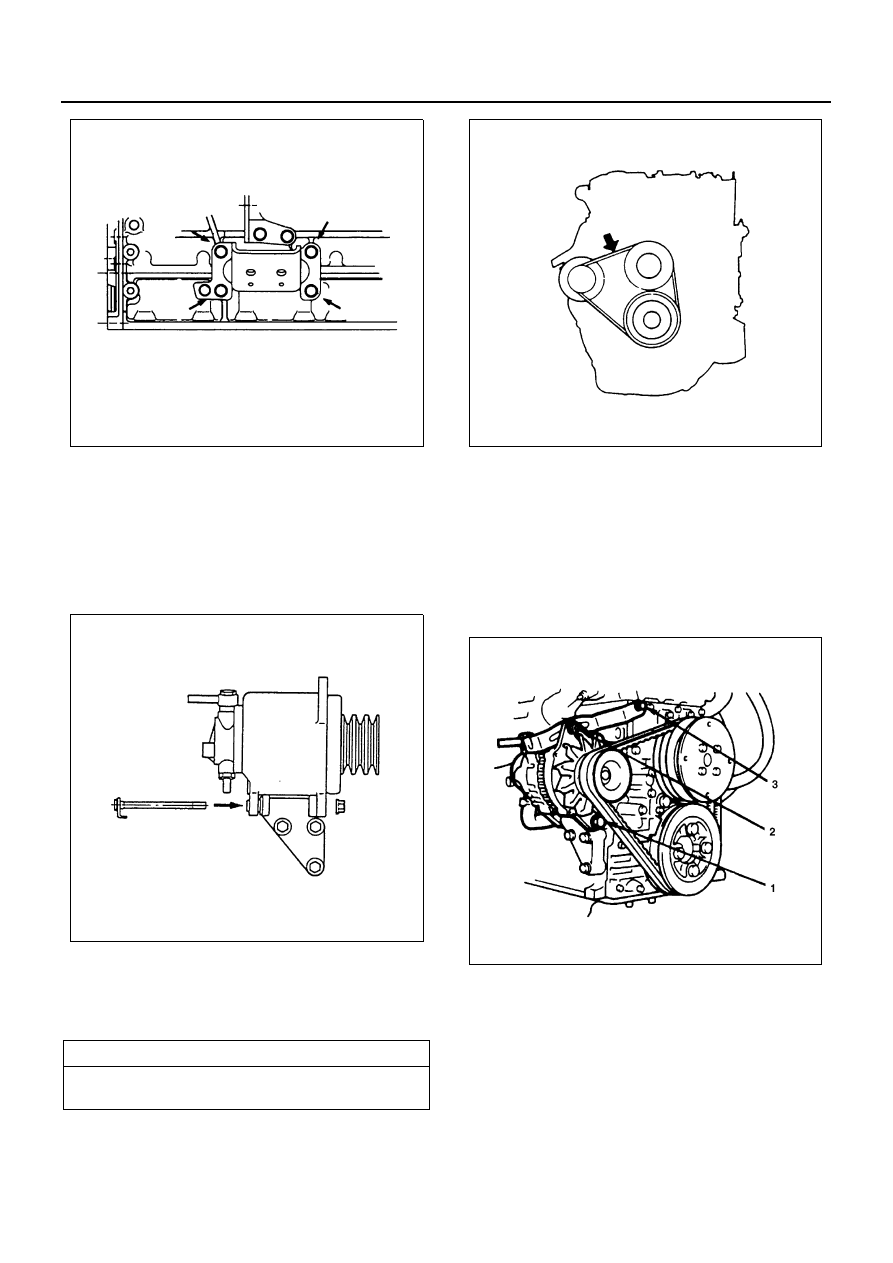

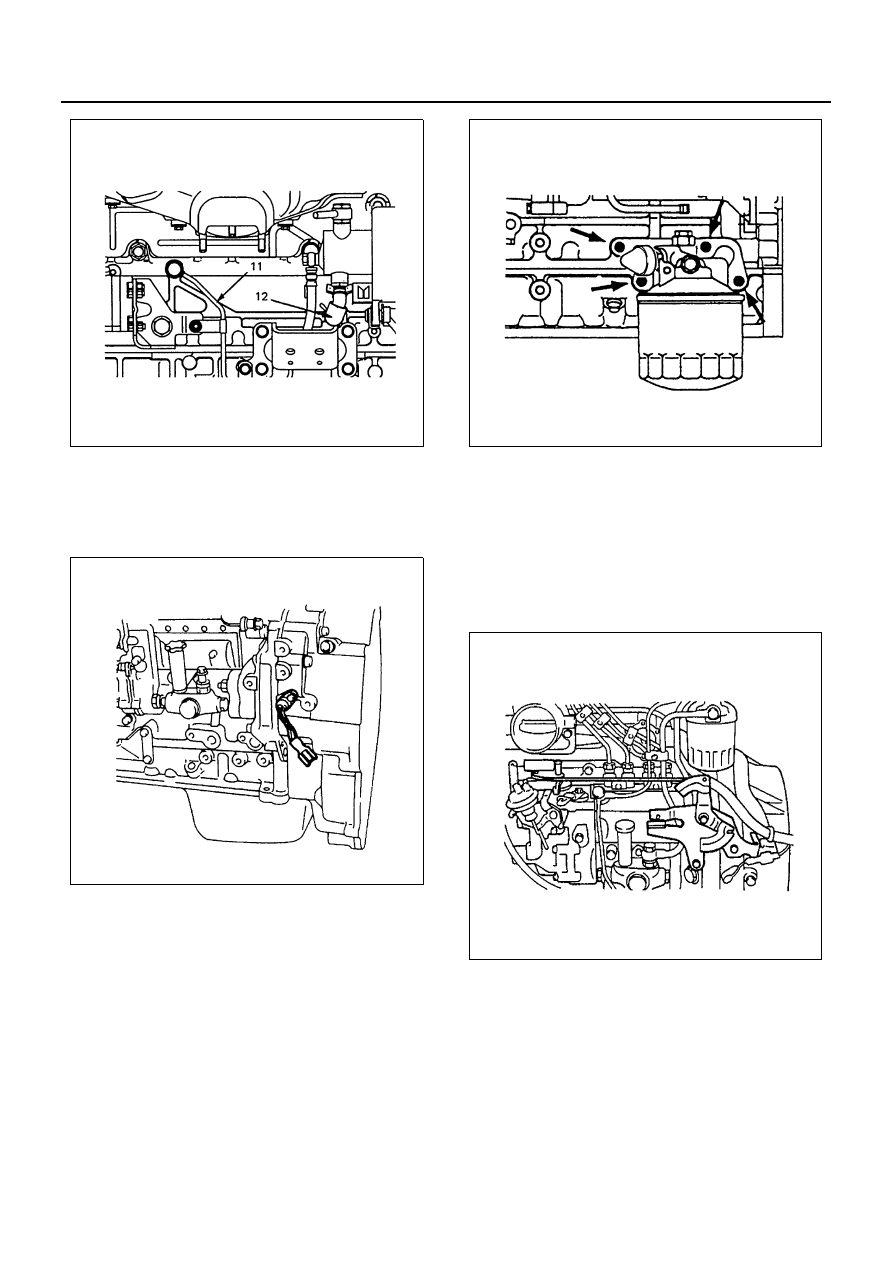

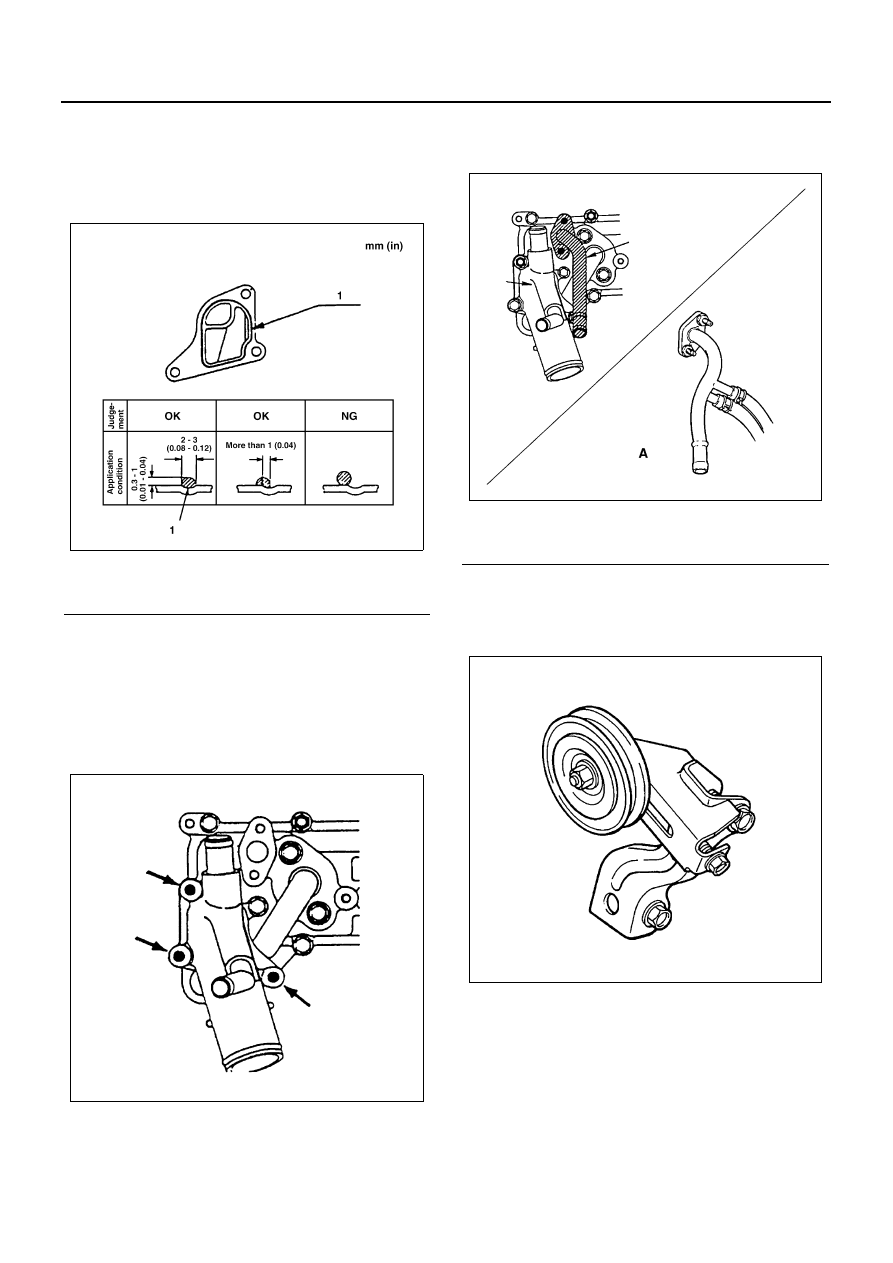

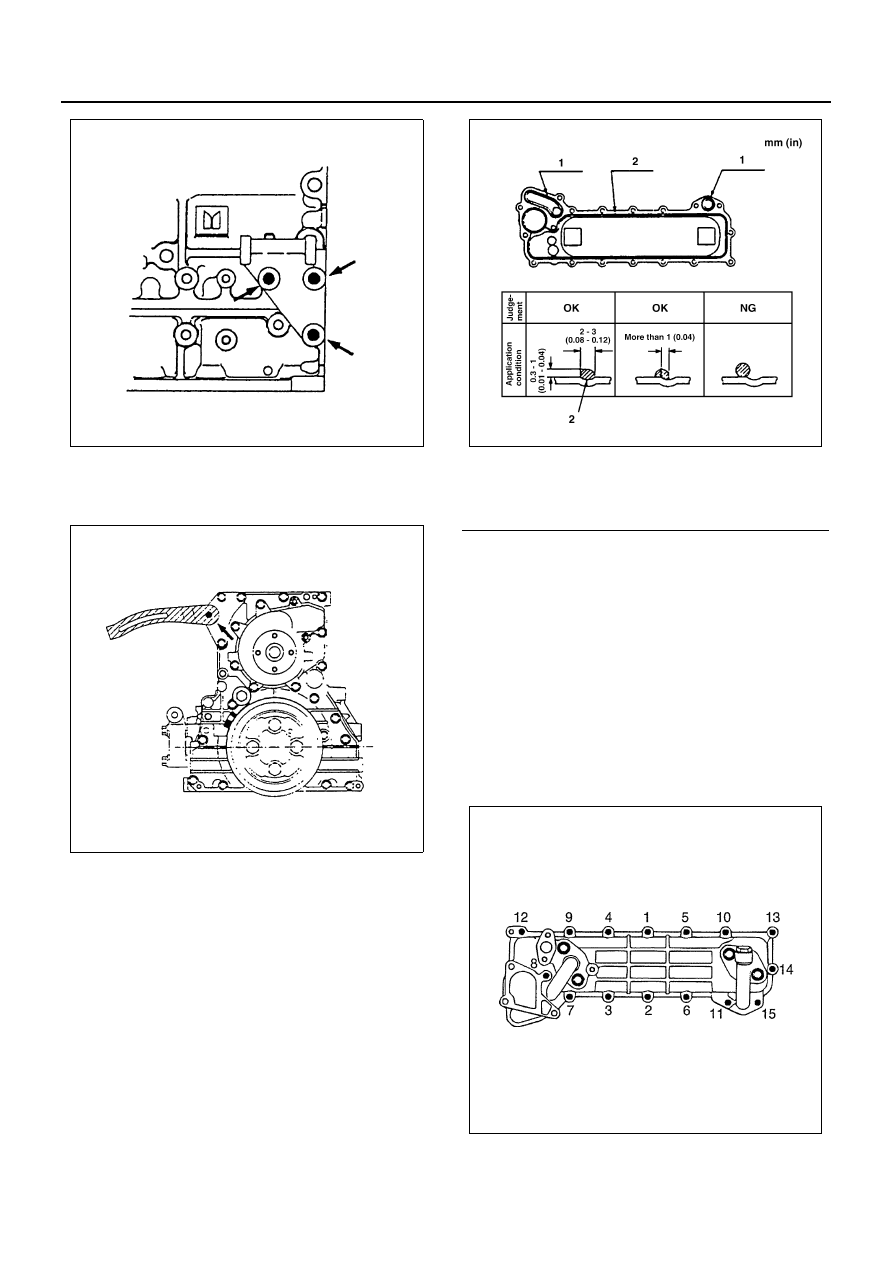

6A3-140 ENGINE (4HF1 / 4HF1-2 / 4HE1-TC / 4HG1 / 4HG1-T) 35. Fan Belt Adjust Plate Install the adjust plate and temporarily tighten the 36. Oil Cooler Assembly 1) Apply 2 — 3 mm (0.08 — 0.12 in) bead of the recommended liquid gasket (Three Bond 2) Apply a coat of engine oil to the O-rings (2 piec- es) and install the O-rings to the oil cooler. Notice: • Install the oil cooler within 7 minutes after appli- cation of the liquid gasket. • For the dislocation of the liquid gasket, refer to the illustration. 3) Tighten the oil cooler bolts and nut to the spec- ified torque a little at a time in the sequence Tighten: ⋅m (2.4 kg⋅m/17 lb⋅ft) 37. Water Suction Pipe 1) Apply a 2 — 3 mm (0.12 — 0.16 in) bead of the recommended liquid gasket (Three Bond N6A0293E N6A0292E Legend 1. O-ring N6A1626E N6A0320E |
