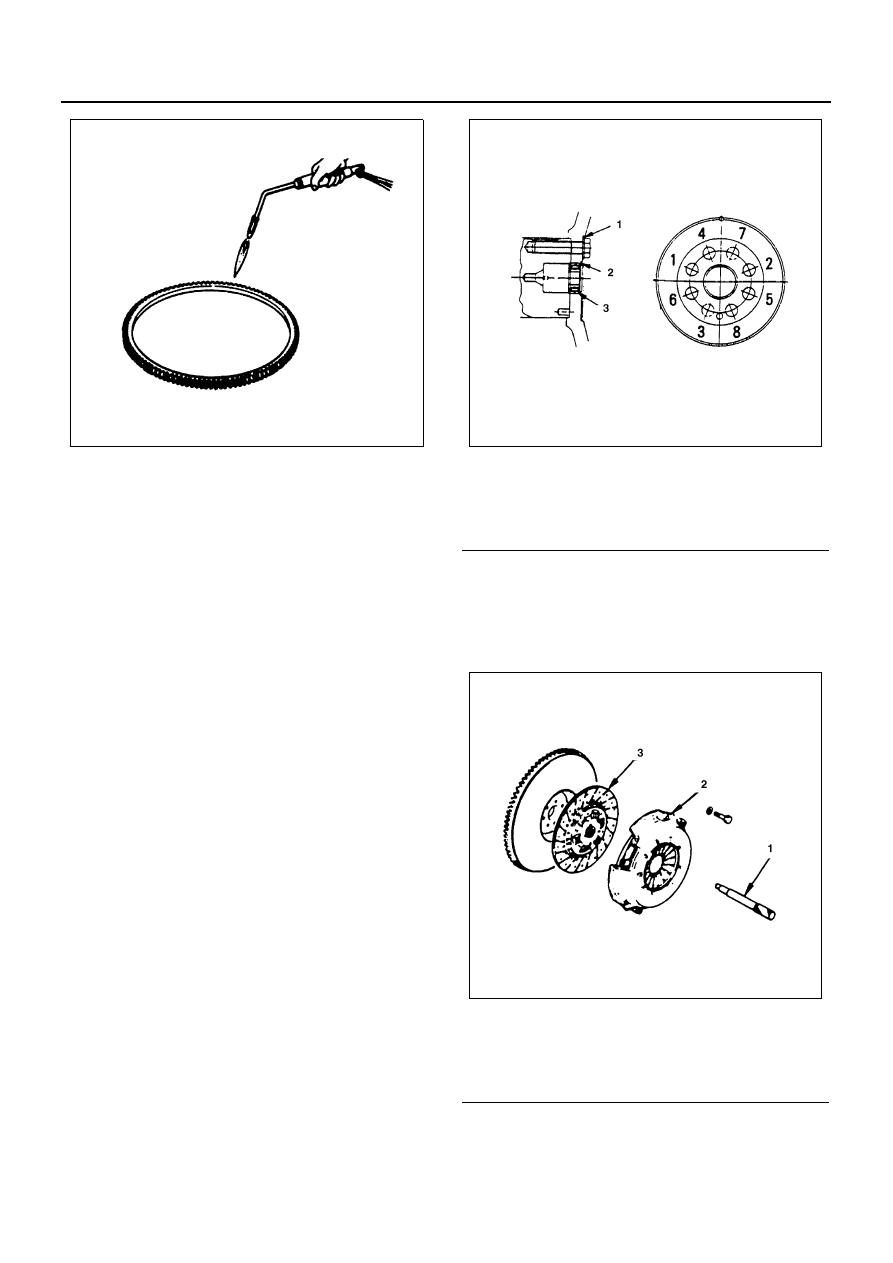

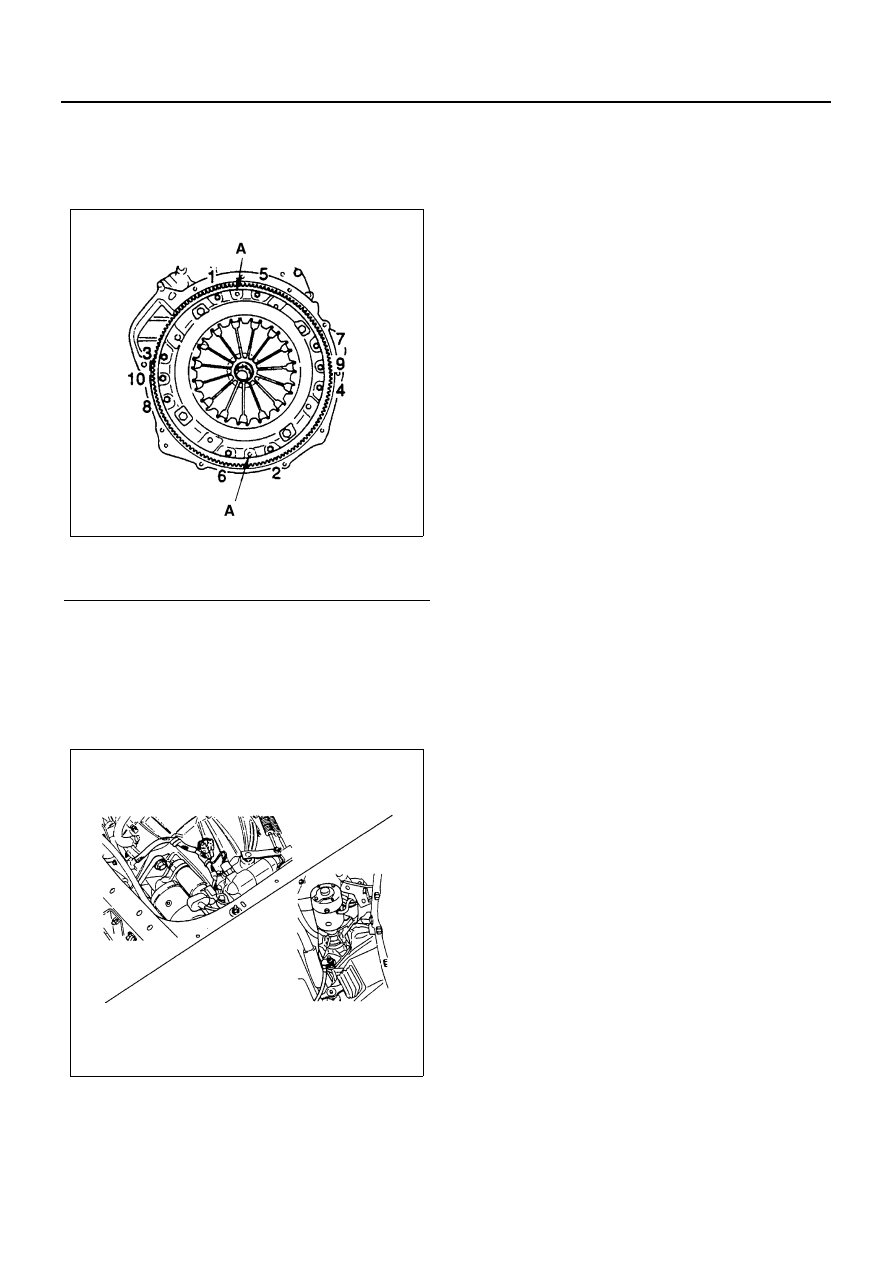

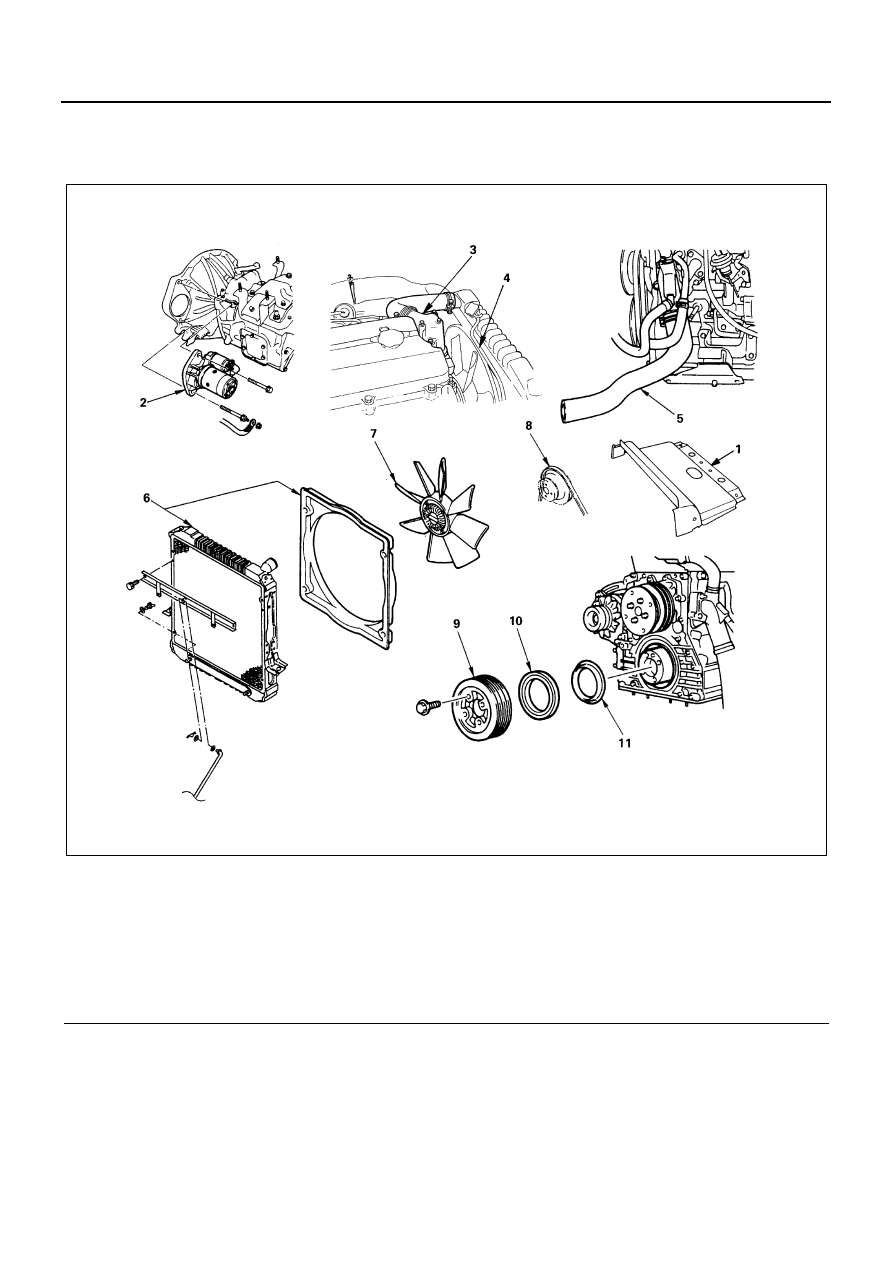

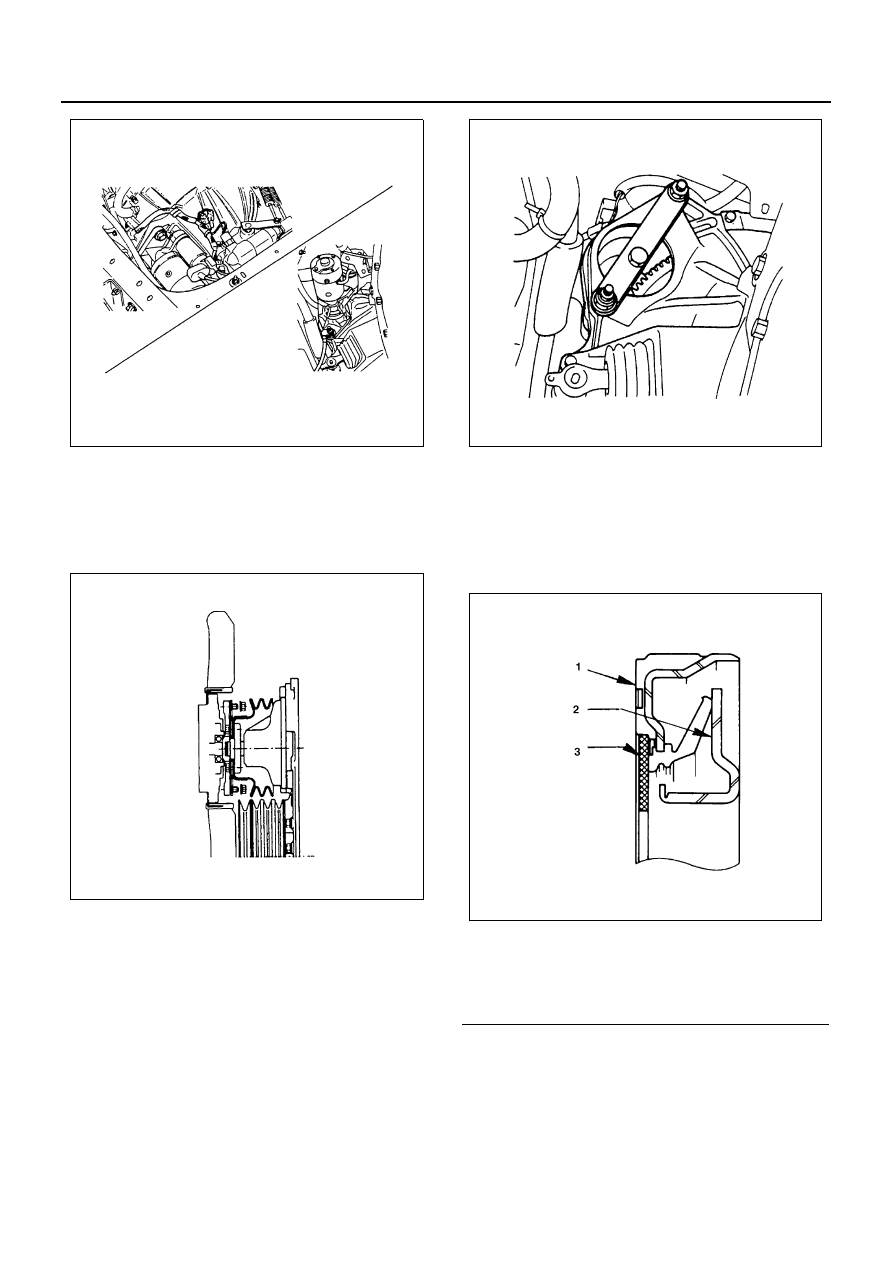

6A3-96 ENGINE (4HF1 / 4HF1-2 / 4HE1-TC / 4HG1 / 4HG1-T) 2. Install the ring gear when it is sufficiently heated. The ring gear must be installed with the chamfer Pilot Bearing Installation 1. Pilot Bearing 1) Align the flywheel with the crankshaft knock pin and temporarily tighten the flywheel bolts. 2) Use the crankshaft stopper to prevent the crankshaft from turning. 3) Install the washer and the flywheel bolts and tighten to the specified torque in numerical or- Tighten: • 1st step: 78 N ⋅m (8.0 kg⋅m/58 lb⋅ft) • 2nd step: 90 — 120 ° 4) Remove the crankshaft stopper. 5. Driven Plate Use the clutch pilot aligner to install the driven 6. Clutch Pressure Plate Assembly 1) Align the clutch pressure plate with the flywheel knock pin. N6A0589E Legend 1. Washer Legend 1. Clutch pilot aligner N6A0586E N6A0351E |
