Isuzu N-Series. Service manual - part 155

SERVICE INFORMATION 00-21

SPECIAL TOOLS

Propeller Shaft

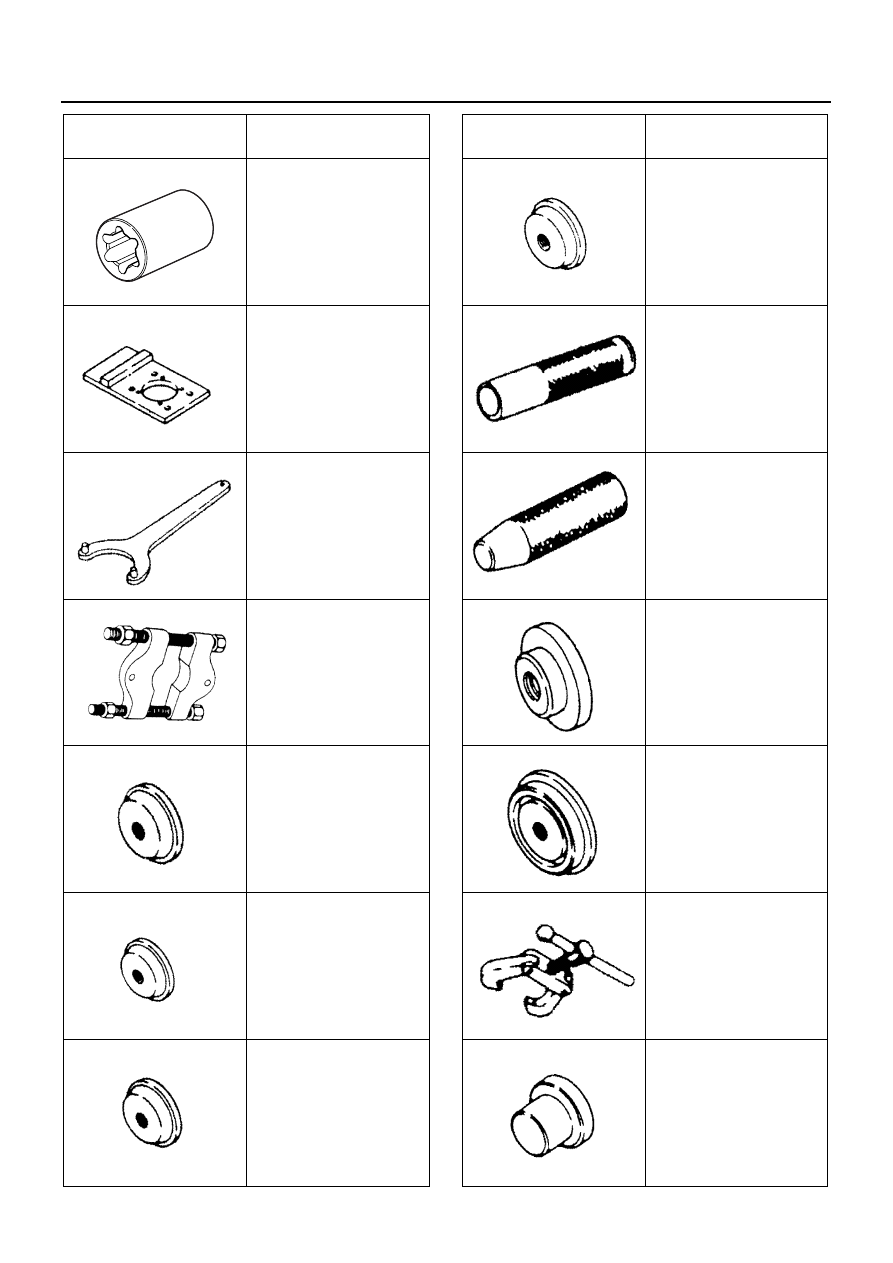

Rear Axle

Illustration

Tool Number /

Description / Remarks

9-8529-2101-0 / Drive

pinion flange bracket

Illustration

Tool Number /

Description / Remarks

5-8840-2027-0 / Univer-

sal puller

9-8521-0116-0 / Rear

hub remover

9-8521-2501-0 / Rear

hub remover

9-8521-1772-0 / Axle

shaft bearing outer race

remover

9852921010

5884020270

9852101160

9852125010

9852117720

9-8522-1268-0 (J-24259)
/ Axle shaft bearing outer

race installer

5-8840-2003-0 (J-24246)

/ Bearing holder nut

wrench

9-8522-1269-0 (J-24255)

/ Bearing holder oil seal

installer

9-8522-1272-0 (J-24254)

/ Axle case oil seal

installer

9-8522-1271-0 (J-8609-

01) / Axle shaft bearing

installer

9-8522-1188-0 / Rear

hub bearing nut wrench

{For 70mm (2.8 in.)}

Illustration

Tool Number /

Description / Remarks

9852212680

5884020030

9852212690

9852212720

9852212710

9852211880

00-22 SERVICE INFORMATION

5-8840-2830-0 / Ring

gear bolt wrench

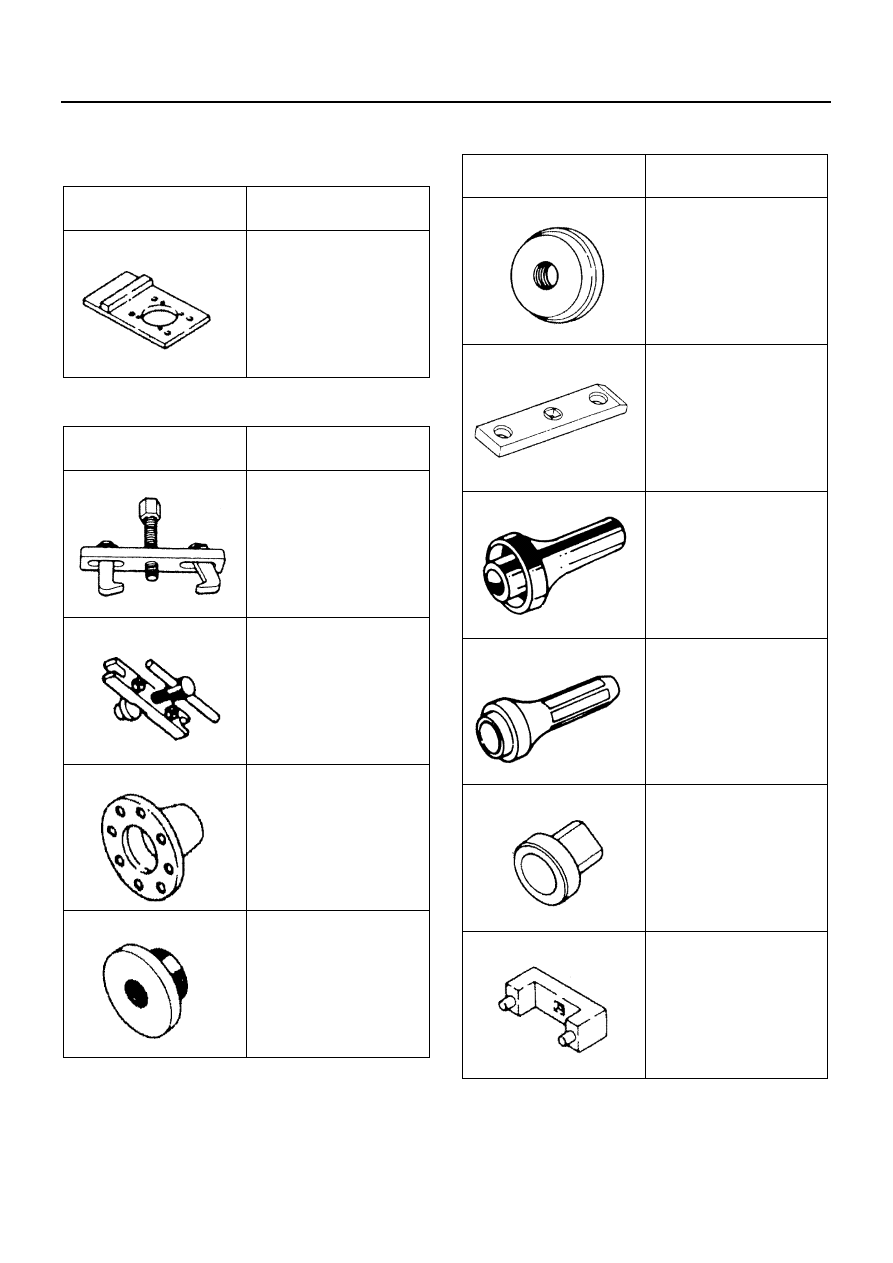

9-8529-2101-0 / Drive

pinion flange yoke

bracket

9-8511-1507-0 (J-29042)

/ Drive pinion flange

holding wrench

5-8840-0015-0 (J-22912-

01) / Drive pinion inner

bearing remover

9-8522-1196-0 / Drive

pinion inner bearing

outer race installer

5-8840-2046-0 / Drive

pinion inner bearing

outer race installer (For

292mm)

9-8522-1197-0 / Drive

pinion outer bearing

outer race installer

Illustration

Tool Number /

Description / Remarks

5884028300

9852921010

9851115070

5884000150

9852211960

5884020460

9852211970

9-8522-1613-0 / Drive

pinion outer bearing

outer race installer (For

292mm)

9-8522-0018-0 / Drive

pinion inner bearing

inner race installer

9-8522-1615-0 / Drive

pinion inner bearing

inner race installer

5-8840-2047-0 / Drive
pinion oil seal installer

9-8522-1607-0 / Drive
pinion oil seal installer

9-8521-0061-0 / Differen-

tial side bearing remover

5-8840-2031-0 / Differen-

tial side bearing remover

adaptor

Illustration

Tool Number /

Description / Remarks

9852216130

9852200180

9852216150

5884020470

9852216070

9852100610

5884020310

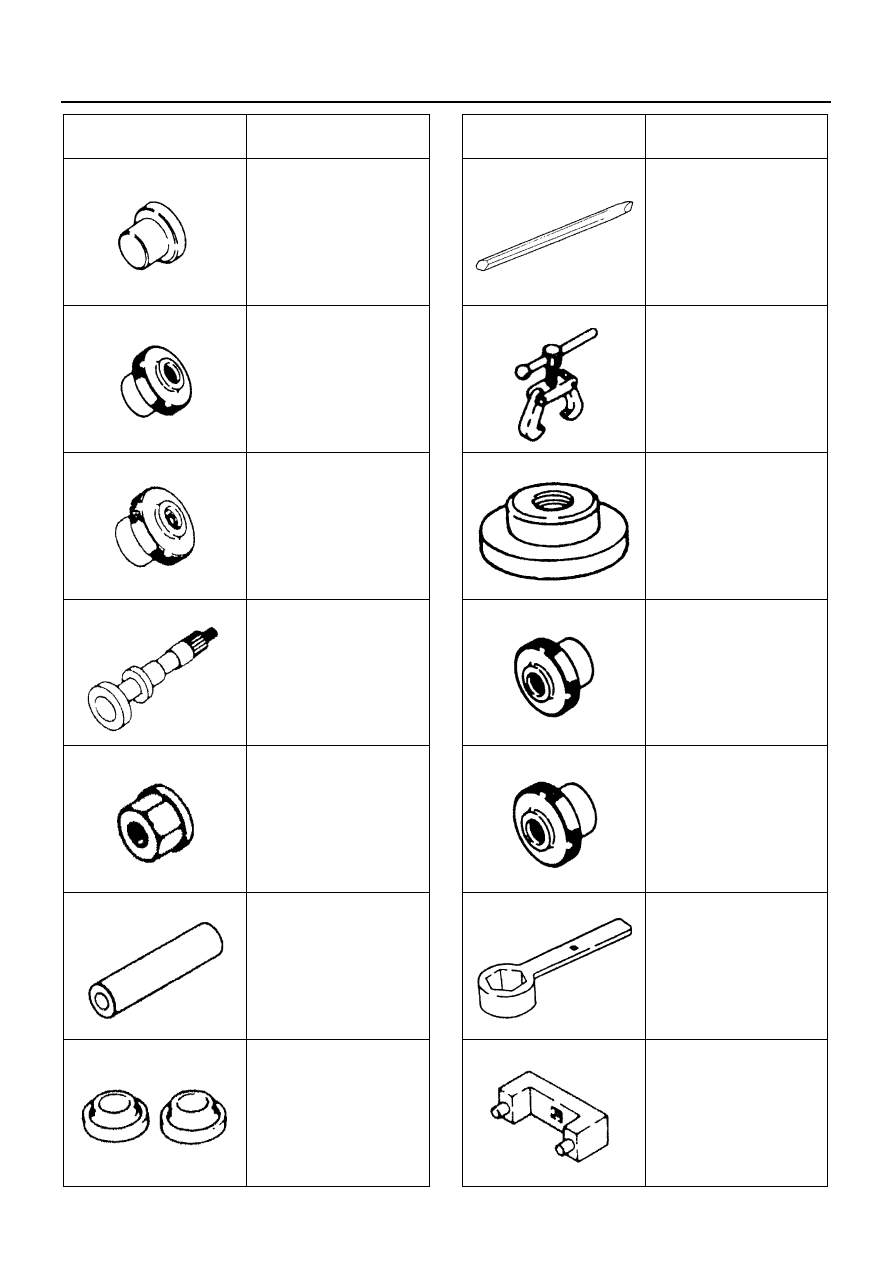

SERVICE INFORMATION 00-23

9-8521-2701-0 / Differen-

tial side bearing remover

adaptor

5-8840-2050-0 / Differen-

tial side bearing installer

9-8522-1614-0 / Differen-

tial side bearing installer

9-8522-1603-0 / Dummy

pinion shaft

9-8522-1624-0 / Dummy

nut

9-8522-1138-0 / Dummy

shaft

9-8522-1137-0 / Dummy

bearing (2 pcs required)

Illustration

Tool Number /

Description / Remarks

9852127010

5884020500

9852216140

9852216030

9852216240

9852211380

9852211370

5-8840-2293-0 (J-39209)

/ Punch: End nut lock

5-8840-2373-0 / Differen-

tial side bearing remover

(For 320mm)

5-8840-2377-0 / Drive
pinion oil seal installer

(For 320mm)

5-8840-2379-0 / Drive

pinion inner bearing

outer race installer (For

320mm)

5-8840-2376-0 / Drive

pinion outer bearing

outer race installer (For

320mm)

5-8840-2329-0 / Hub nut

wrench

9-8522-1606-0 / Rear

hub bearing nut wrench

{For 74mm (2.9 in.)}

Illustration

Tool Number /

Description / Remarks

5884022930

5884023730

5884023770

5884023790

5884023760

5884023290

9852216060

00-24 SERVICE INFORMATION

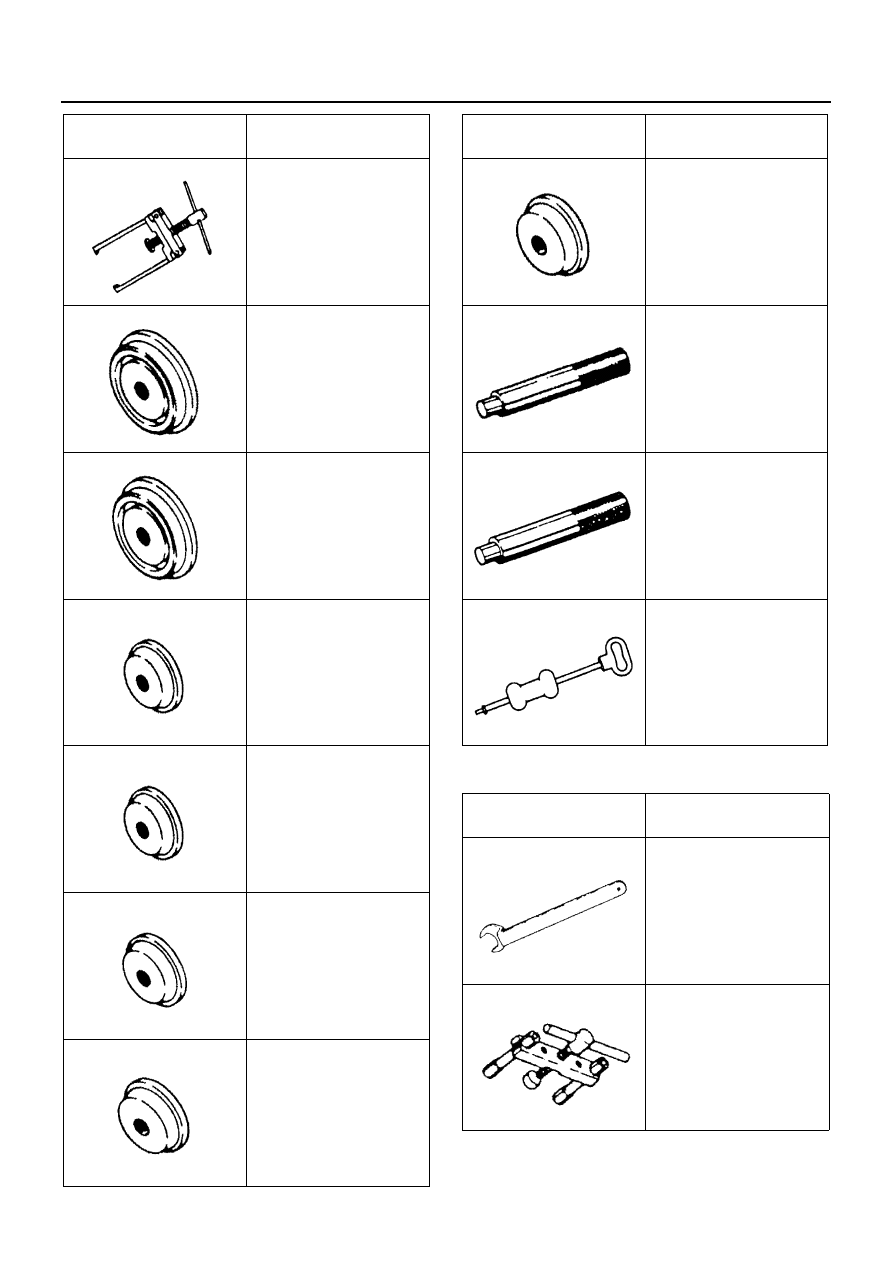

Front Axle

9-8521-0092-0 / Rear

hub inner bearing

remover

9-8522-1607-0 / Rear

hub oil seal installer (For

292mm)

5-8840-2427-0 / Rear

hub oil seal installer

9-8522-1194-0 / Rear

hub inner bearing outer

race installer

9-8522-1609-0 / Rear

hub inner bearing outer

race installer

5-8840-2426-0 / Rear

hub inner bearing outer

race installer

9-8522-1195-0 / Rear

hub outer bearing outer

race installer

Illustration

Tool Number /

Description / Remarks

9852100920

9852216070

5884024270

9852211940

9852216090

5884024260

9852211950

9-8522-1610-0 / Rear

hub outer bearing outer

race installer

9-8522-1608-0 / Grip

9-8522-1148-0 / Grip

5-8840-0084-0 (J-2619-

01) / Sliding hammer

Illustration

Tool Number /

Description / Remarks

5-8840-2015-0 / Front

hub nut wrench

9-8521-0115-0 / Front

hub remover (6 studs)

Illustration

Tool Number /

Description / Remarks

9852216100

9852216080

9852211480

5884000840

5884020150

9852101150
