Isuzu N-Series. Service manual - part 1237





54

Adjusting arm
1冤Lubrication: mount oil month on
adjusting arm, use lithium base
grease periodically to lubricate ad鄄
justing arm (maximum lubrication in鄄
terval is limited to 10000km), or else,
life of adjusting arm will decrease.
2冤Check adjusting arm's counter鄄
clockwise force moment periodically:
rotate adjusting nut of adjusting arm
counterclockwise when running every
20000km and measure whether the
rotary moment is bigger than 18Nm,
measure for three times repeatedly. If
the moment is smaller than 18Nm, it
indicates adjusting arm has been
damage and needs to be replaced
the adjusting arm assembly.

Brake
Front brake has the same structure
with the rear brake. It is shoe brake
with camshaft with fixed sustainer.
When braking, front and rear shoe
slices of the brake press to the rotat鄄
ing brake drum by the action of the
same push force; so the rear brake
shoe is called power-reducing brake
shoe. All above lead to imbalance of
forces that front and rear brake
shoes press on the brake drum, so
this kind of brake is called simple
imbalanced brake.
Clearance between friction disc of the
brake shoe and the brake drum must
be proper, before adjusting the
clearance, make the front wheel off
ground; adjusting steps are as follows:

Full adjustment
1. Loosening fixed nut of brake shoe
bearing pin and nut of binding bolt
on cam bracket.
2. Rotate brake shoe bearing pin so
as to make clearance between front
shoe and bearing pin end the same
as that between rear shoe and bear鄄
ing pin.
3. Start braking, make brake shoe
friction disc lean against brake drum
closely and brake camshaft auto鄄
matic positioned and tighten nut of
binding bolt on support frame.
4. Release braking and rotate worm
so as to make brake shoe friction disc
lean against brake drum closely. Then
counter-rotate worm, released by 3/4r,
brake drum should be rotate freely.

OWNER爷S MANUAL for

HFC1061,HFC1063,HFC1083

series trucks

55

5. Test drive after adjustment, check
working condition of brake, whether
the brake drum get hot and whether
braking distance is proper. If not,
readjust it
Partial adjustment
Turn worm of the brake arm to adjust
clearance between friction disc at the
camshaft end of the brake assembly
and the brake drum. Adjusting meth鄄
ods are as follows: Face to the worm,
turn the worm clockwise, at the same
time, rotate the brake drum come -
and -go continuously till the brake
drum is suppressed completely, and
then return the worm anticlockwise
by 1/2 -3/4 circle, at this time, wind
age of the end of the brake drum
shaft is 0.25-0.4mm, while camshaft

end is 0.45mm.
Brake valve
Brake valve is a mechanism with
which the whole air brake system
controls the brake.
Using and Maintenance:
routine inspection
1. Before running, air pressure in the
pipeline should be checked, when
the air pressure is more than
0.6Mpa, the vehicle can start, and
the normal running air pressure is
0.74-0.84Mpa; if the air pressure is
lower than this value, check the air
pipeline for leak and check whether
the air compressor works normally.
2. Check working condition of the
brake in running whether there is any
trailing or the braking cannot return

and deal with the problems in time. If
the air pressure is lower than
0.45Mpa but the annuciator does not
warn, check the annuciator, replace
it if necessary.
3. If the brake shoe slice is damaged
or over worn, replace for new one;
surface of the new liner should be
grinded, and there should be no oil
dirt, scratches, chap on the surface.
Friction disc must be made of the
same material.
4. Replacing friction disc or rein鄄
stalling shoe slice shaft and brake
camshaft will damage contact condi鄄
tion between former friction disc and
brake drum, because of which, full
adjustment must be done. (see de鄄
tailed adjusting methods above)

Periodical inspection
1. Class -one inspection (1500 -
2000km)

Exclude oil water in air-reservoir

Fill lubrication into position that

needs lubrication.

Check and adjust loosening and

tightening degree of air compressor.
2. Class -two inspection (10000 -
12000km)

Disassemble and adjust brake as

well as adjusting clearance between
brake shoe friction disc and brake
drum.

Check working condition of air

conditioner compressor and clean air
outlet valve clud away.

Disassemble and check brake

chamber rubber film and replace it if

necessary.
3. Class -three inspection (24000要
30000km)

Disassemble and adjust brake

valve and check brake chamber rub鄄
ber film, replace it if necessary.

Check brake and brake pipeline,

replace it if necessary.

Clean all of the pipelines to ensure

pipeline unblocked.
Hydraulic brake
1. Brief description of this system:
Hydraulic brake , which is composed
of vacuum booster, vacuum tube,
brake master cylinder brake pipeline
front and rear brake , is safe, labor-
saving and sensitive.
When depressing running brake ped鄄
al, the reason why the braking is

non-effective is likely that there is air
in system without lacking of braking
oil袁 follow the following steps to re鄄
lease air: right rear wheel brake-left
rear brake-right front brake-left front
brake. Follow air outlet methods be鄄
low:

Clean air -drain screw of main

cylinder and wheel cylinder.

Remove oil -drain plug of main

cylinder or reservoir and fill it with
brake fluid until lever reach the edge.

Depress the brake pedal several

times before holding it depressed
and release the air drain screw to
bleed. Repeat doing this until air in
tube be bled completely. Keep a little
oil left, or air can reenter the system.

Fill reservoir with brake fluid.

56

OWNER爷S MANUAL for

HFC1061,HFC1063,HFC1083

series trucks

2. Note for using brake fluid

The specified brake fluid of this

series of truck is synthetic brake fluid
of class JG3(GB10830).
Never use mixed brake fluid.

Synthetic brake fluid is good at

sopping up. They should be stored
in a clean sealed dry container, keep
away from water, organic solvent,
petroleum, and dust. Otherwise the
vehicle's capability of brake would
be cut down seriously.

Clean system with alcohol before

replacing brake fluid with different
brand . Follow these if alcohol is un鄄
available.

After draining all old brake fluid , fill

reservoir with new fluid near to the open鄄
ing and bleed system again to sweep old

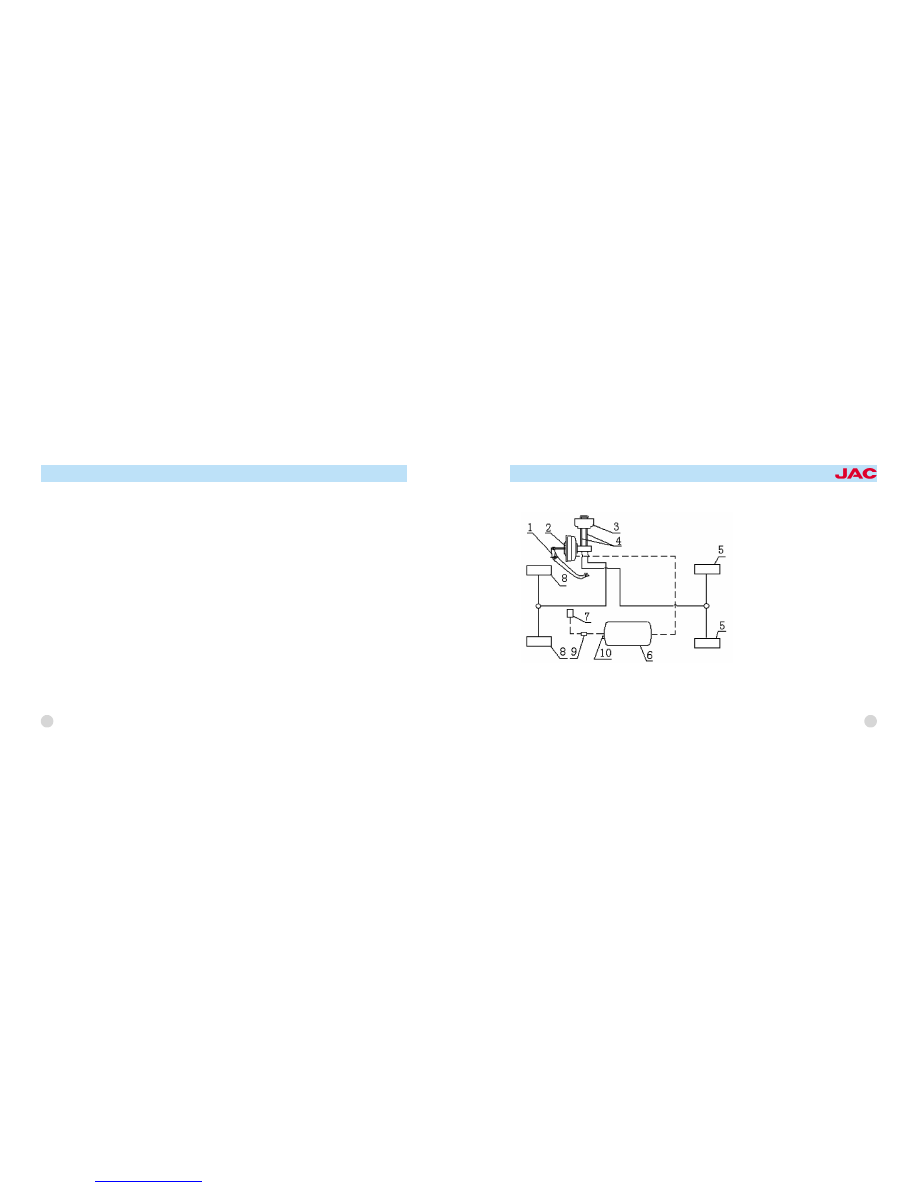

1. brake pedal
2. vacuum booster and main
cylinder assembly
3. reservoir

4. connection cylinder
5. rear brake
6. vacuum cylinder
7. intake manifold

8. front brake
9. vacuum check valve
10. connect to vacuum -
alarm

57

fluid away.

Fill system with brake fluid.

Brake pedal's free play should be 5 -

8mm after adjusted, or it will cause main
booster work abnormally and make brake
drum over hot.
3. Running brake system

Brief description of this system:

The running brake is hydraulic drum,
both front and tear are two leading
shoe brake . It is composed of bot鄄
tom plate, wheel cylinder, brake shoe
set with pad, and return spring set.

Adjustment of running brake

The clearance between pad and
drum will be bigger and bigger due
to wear. In order to ensure brake
work well, adjust it regularly following
these steps.

Jack up the wheel which you want to
adjust and remove the seal plug. Dial
the adjusting gear of wheel cylinder
piston along the direction of arrow
near the adjusting hole on bottom
plate with special adjusting screw
and at the same time rotate the
brake drum until the drum not rotated
by hands. Then rotate the adjusting
gear back for 5 -9 teeth, keep the
pad 0.2 -0.45mm away from the
drum, so that the drum can rotate
freely again .

Use & Check

Replace the pad which is worn out or
damaged. Before installed, the new
pad should be ground. Make sure that
the new pad has not oil coat, also has
not crack and chap and other flaw.

The clearance should be adjusted in
every time of maintenance . Check
drums with hands for temperature ev鄄
ery time you park, adjust the clear鄄
ance if the temperature is too high .
Check wheel cylinders for leakage ,
and replace leather gasket if leakage
is detected. Protect drums from be鄄
ing wrong result from over heat and
other reasons.
4. Vacuum booster

Brief description of this system:

Booster of this series of truck is dual
diaphragm vacuum booster, which is
composed of return spring, control
valve, rubber diaphragm, noise elim鄄
ination board, and so on .

Adjustment

Booster has been adjusted in factory,

58

OWNER爷S MANUAL for

HFC1061,HFC1063,HFC1083

series trucks

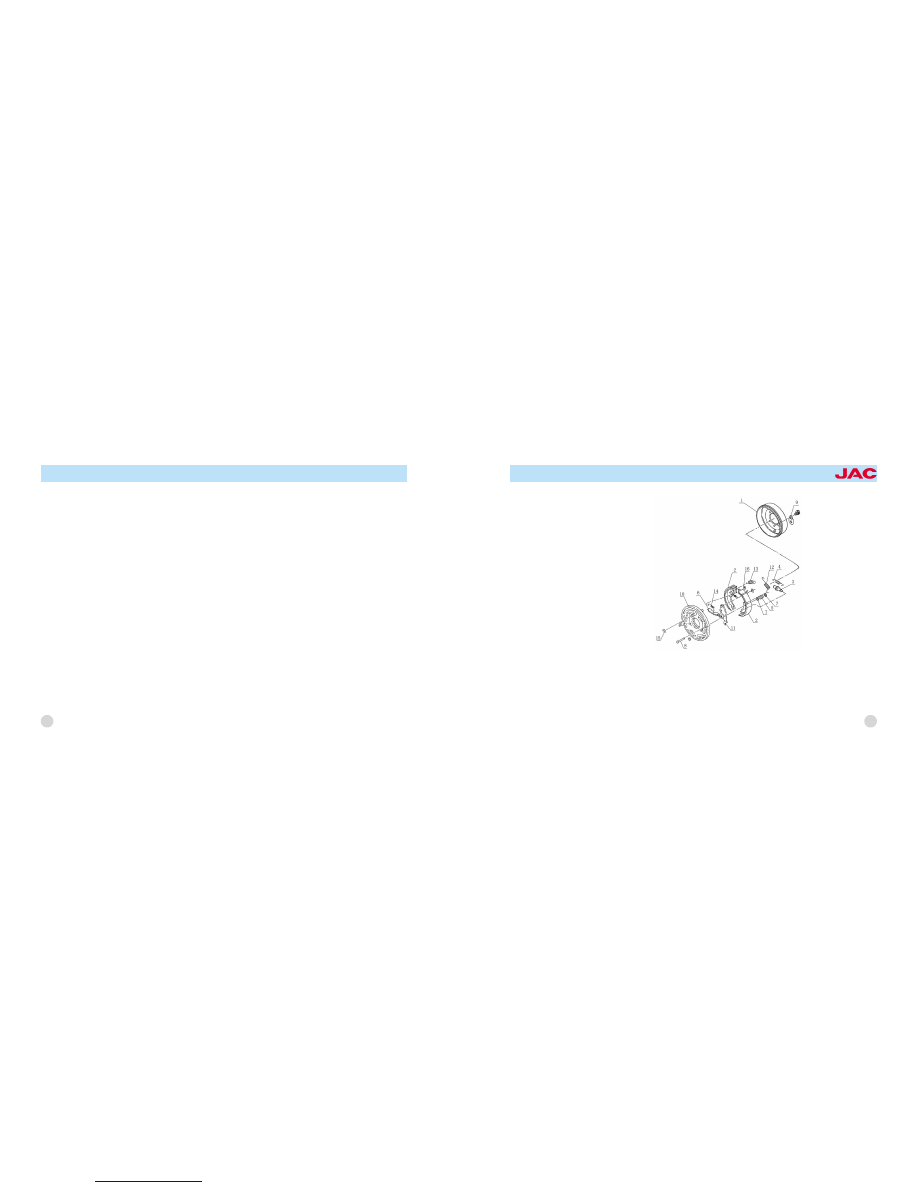

1. parking brake drum
2. parking brake shoe with friction
disc assembly
3. parking brake adjusting bolt
assembly
4. parking brake shoe bottom
end drag spring

5. parking brake shoe compres鄄
sion spring;
6. parking brake shoe push rod
7. brake shoe seat
8. brake shoe compression
spring push rod
9. adjusting window lid

10. parking brake backing plate
assembly
11. parking brake shoe rocker
arm assembly
12. parking brake drag spring
13. parking brake shoe drag
spring
14. parking brake push rod sup鄄
port spring
15. card
16. grommet

don't disassemble it and protect the
diaphragm from being been dam鄄
aged.

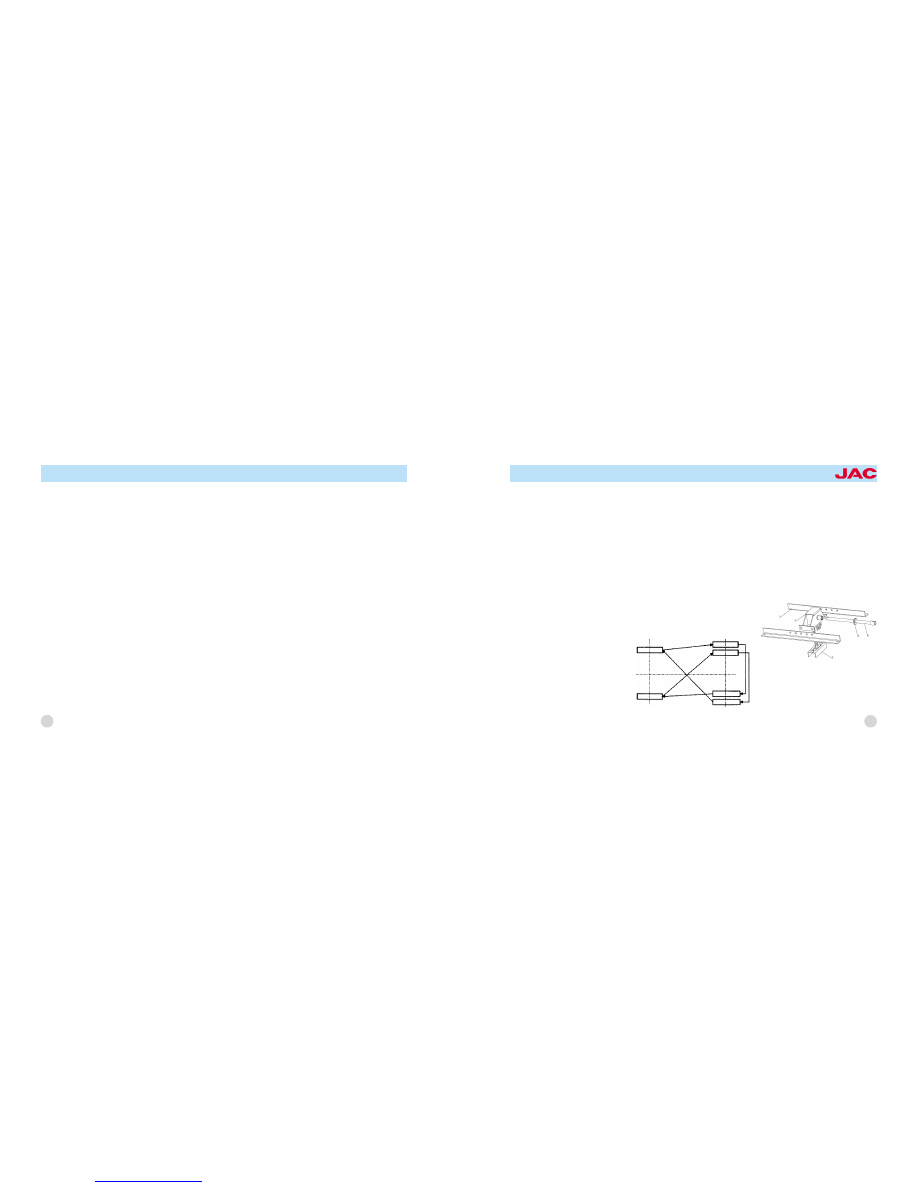

Parking brake system
Brief description of structure:
Parking brake system is composed
of parking brake, control cable as鄄
sembly and control handle. Parking
brake is a brake of center-drum type
(picture below) that is mounted on
rear side of the transmission, acts on
the drive shaft and is mainly used in
parking as well as in emergency
working with foot brake. Control han鄄
dle and parking brake pull arm are
connected by flexible shaft.

59

Adjustment
Clearance between parking brake
drum and friction disc is 0.65mm,
and the upper clearance is as same
as the lower clearance. Because of
friction disc wearing, this clearance
must be adjusted in time. The steps
of adjusting are shown as follows:
1. Jack up the rear axle to make one
wheel off ground.
2. Put the parking brake handle to
the lowest position, and shift the gear
to neutral position.
3. Turn the small hole on the brake
drum to the lowest side, put a screw鄄
driver into the hole and toggle the
gear-type adjusting bolt till the brake
drum can be stopped completely,
and then return the adjusting bolt by

2-6 teeth.
If adjusting above is executed cor鄄
rectly, when the parking brake is
tensed, the vehicle can be stopped
on a 20% ramp.
Using and maintenance
1. Check and adjust clearance be鄄
tween the brake and the brake shoe
slice regularly.
2. When doing class -two mainte鄄
nance, disassemble brake to check
wearing condition of brake lining . If
thickness of gasket has been worn
down by 2mm below ,
Disassemble the gasket and re鄄
assemble it. Gasket gluing intensity:
when boosting transversely , boost鄄
ing by 2.94mpa under normal atmo鄄
spheric temperature is not allowed to

dropped. Glued gasket should be
rubbing processed. Size (after rub鄄
bing processed): R94.5依0.15mm遥

60

OWNER爷S MANUAL for

HFC1061,HFC1063,HFC1083

series trucks

Wheel and spare wheel riser

Wheel

Brief description
Every truck has seven wheels in all,
one of which is spare wheel.
Using and maintenance
In order to use for a longer time,
please charge tire according to
specified pressure valve. Never drive
when pressure is insufficient. It is
normal that pressure increases dur鄄
ing travel, and do not try to reduce it
by deflating. Check the tire pressure
when tire is not hot. If the two central
patterns on tire tread touch against
ground under fully loaded, the pres鄄
sure is normal.
Clean the rust and other dirty on rim
before installed. It should be talked

on the surface between inner tube
and outer tire. Wheel nuts should be
tightened with two steps. Tighten all
of them firstly before tightening them
with specified torque according to
diagonal sequence.
Check wheel nuts regularly, and
retighten them with torque if loosen鄄
ing is detected.
Transposition of tires should be done
in class-three maintenance to ensure
even wearing. Tires are usually
changed with each other acrossed.

Spare wheel riser regulator

Description of structure and using
Spare wheel riser is driven by cate鄄
nary's suspension internal geared
wheel. It is mounted underneath the
frame. To operate it , fix it on the
frame and tighten it with hand before
rocking back for 15 degree. (As
shown in the left picture below)

1. Spare wheel cross鄄
beam support frame
2. Spare wheel regula鄄
tor shell assembly

3. Spare wheel carrier
frame assembly
4. supporting sleeve
5. connecting rod as鄄
sembly

61















Content   ..  1235  1236  1237  1238   ..
