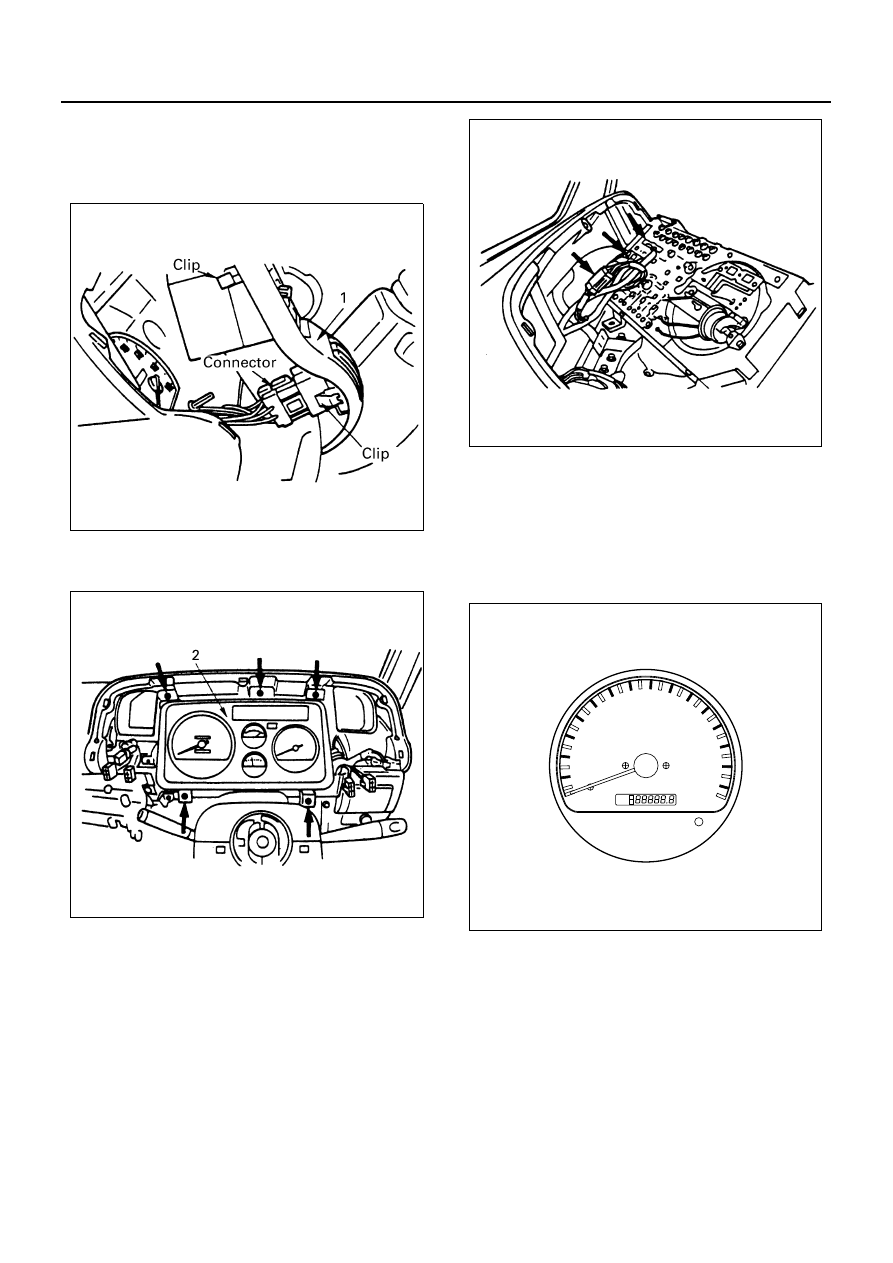

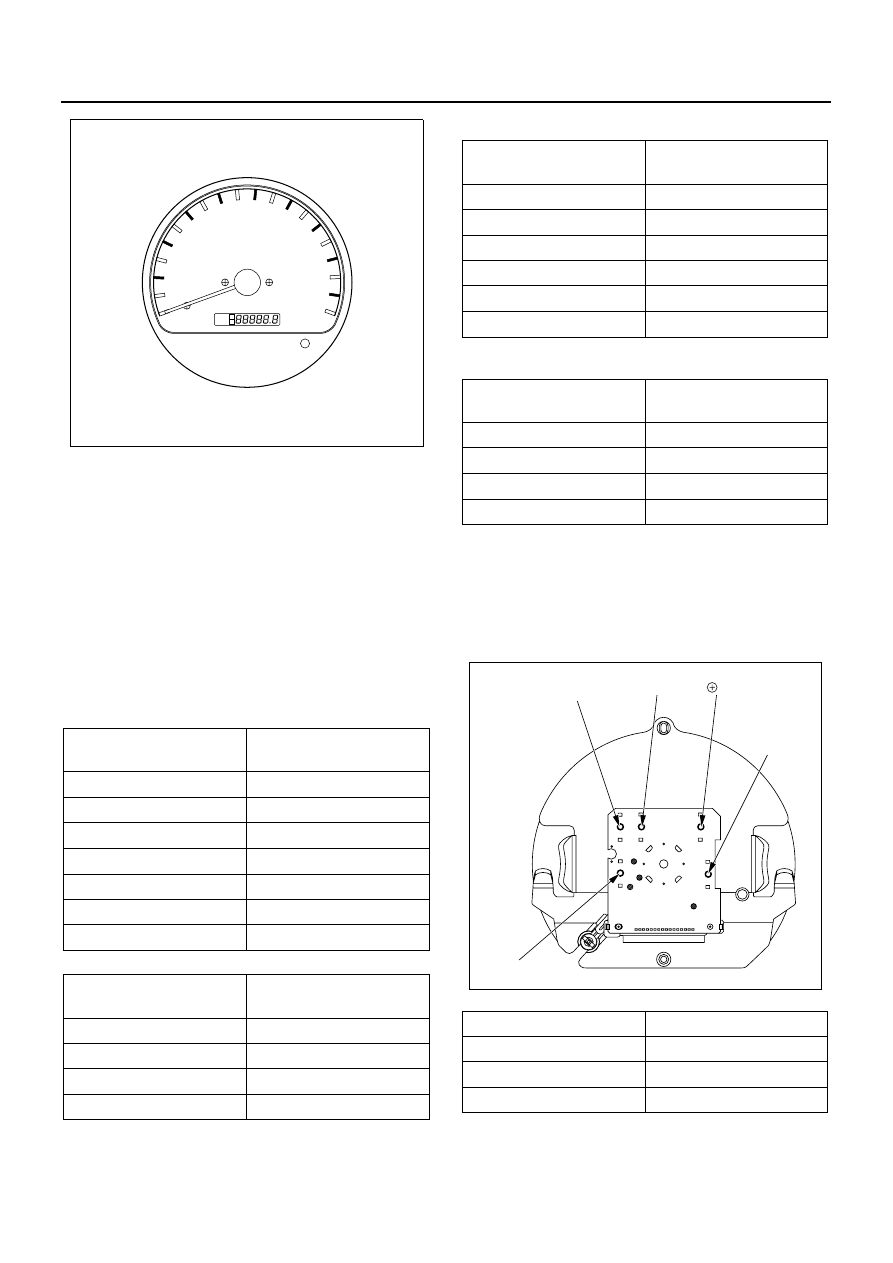

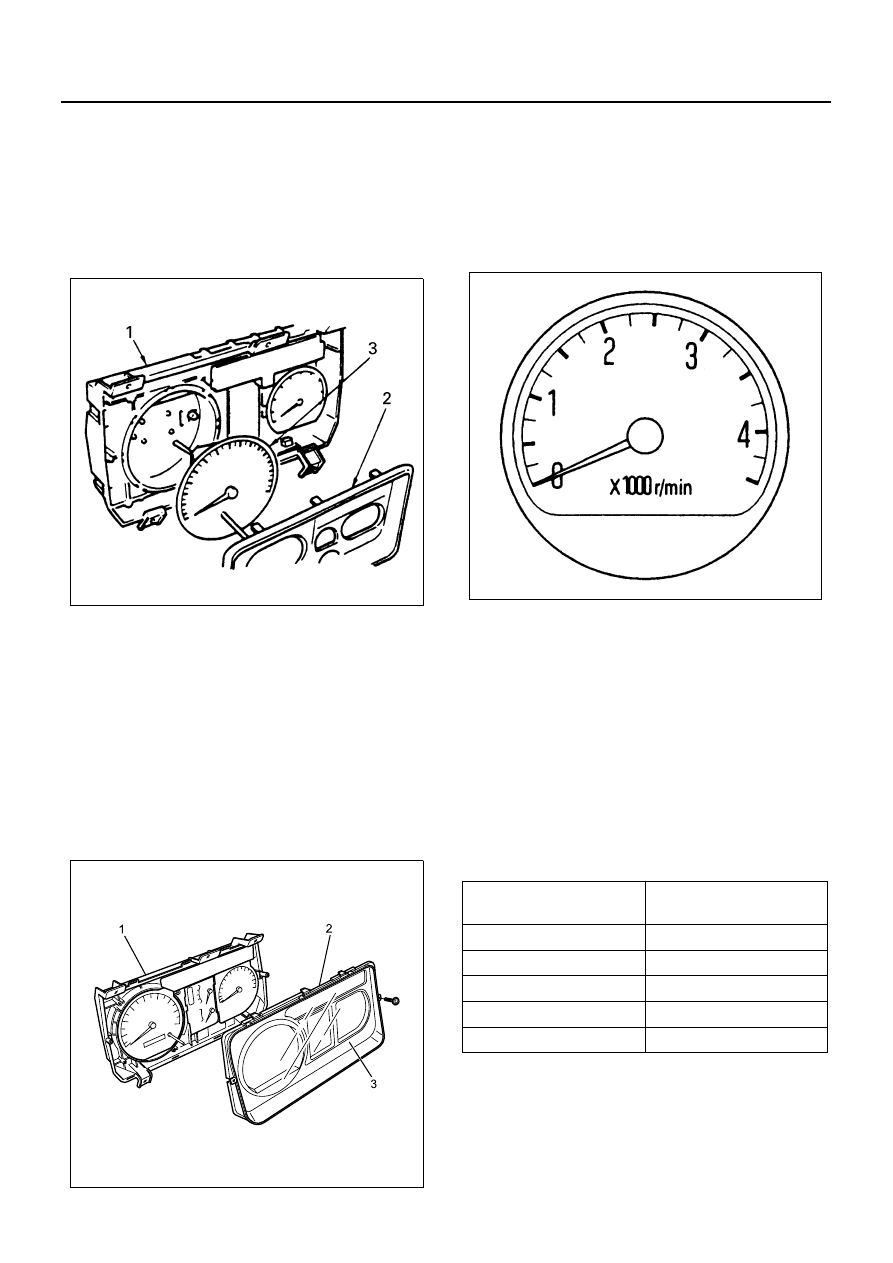

8-324 CAB AND CHASSIS ELECTRICAL B-53 (With Smoother) B-51 *1: With Smoother B-52 Terminal No. Connected to 1 TCM 2 — 3 — 4 — 5 — 6 1st Start 7 ECONO 8 Smoother 9 — 10 — 11 — 12 — Terminal No. Connected to 1 Turn LH 2 Beam 3 — 4 Brake (*1) / — (*2) 5 Check Engine (*1) / Brake (*2) 6 Exhaust Brake 7 — 8 — 9 Brake Booster 10 Charge 11 Oil Pressure 12 ABS 13 — (*1) / Check Engine (*2) 14 — 15 Ground 16 Vehicle Speed Signal Output 17 Illumination + 18 Ignition 19 Rear Fog 20 ASR Terminal No. Connected to 1 4WD 2 — 3 Turn RH 4 — 5 Thermal 6 Fuel 7 TAM Pulse ( −) 8 TAM Pulse (+) 9 — 10 Sedimenter 11 Front Fog 12 — 13 — 14 — 15 Glow 16 Battery 17 Vehicle Speed Sensor 18 — 19 — 20 Ground Terminal No. Connected to 1 Battery 2 — 3 Ground |
