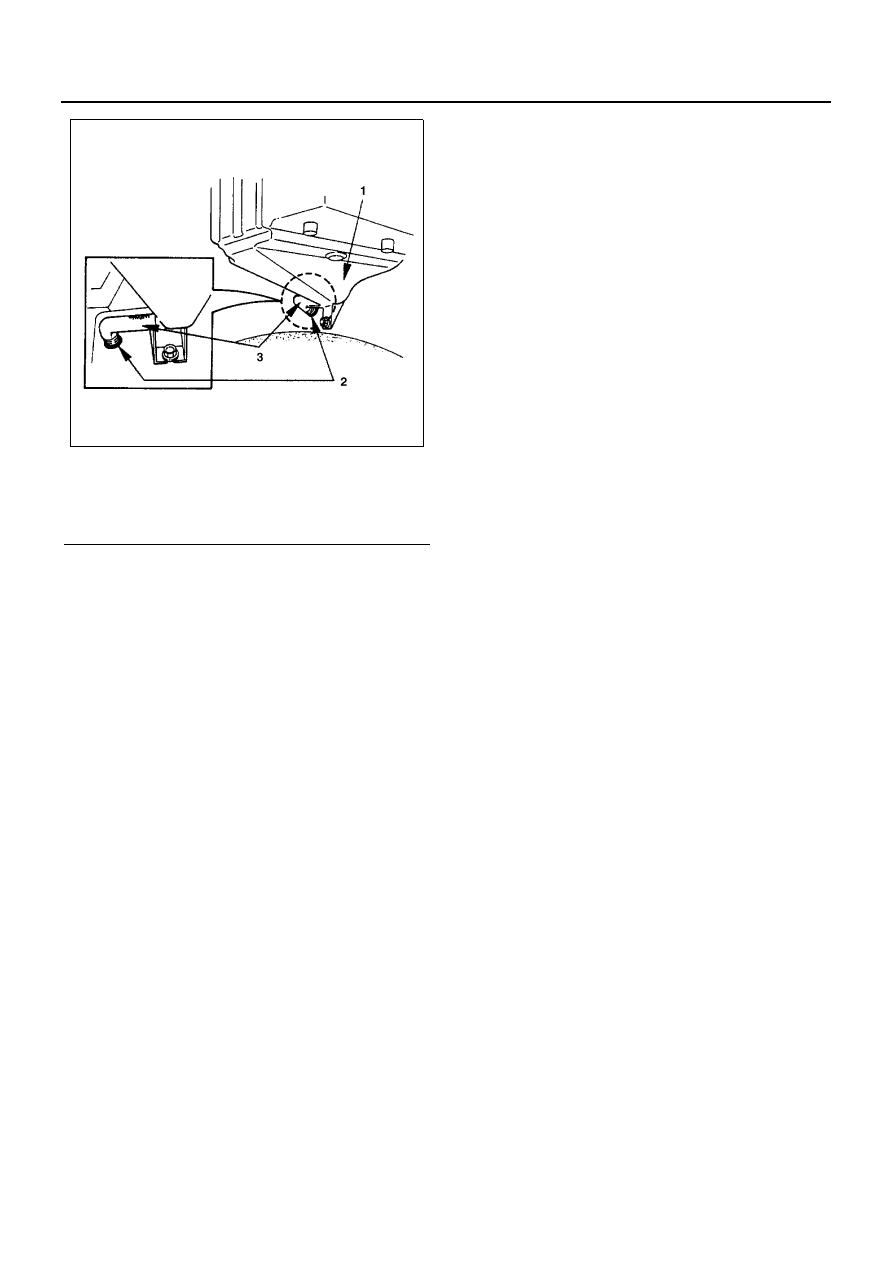

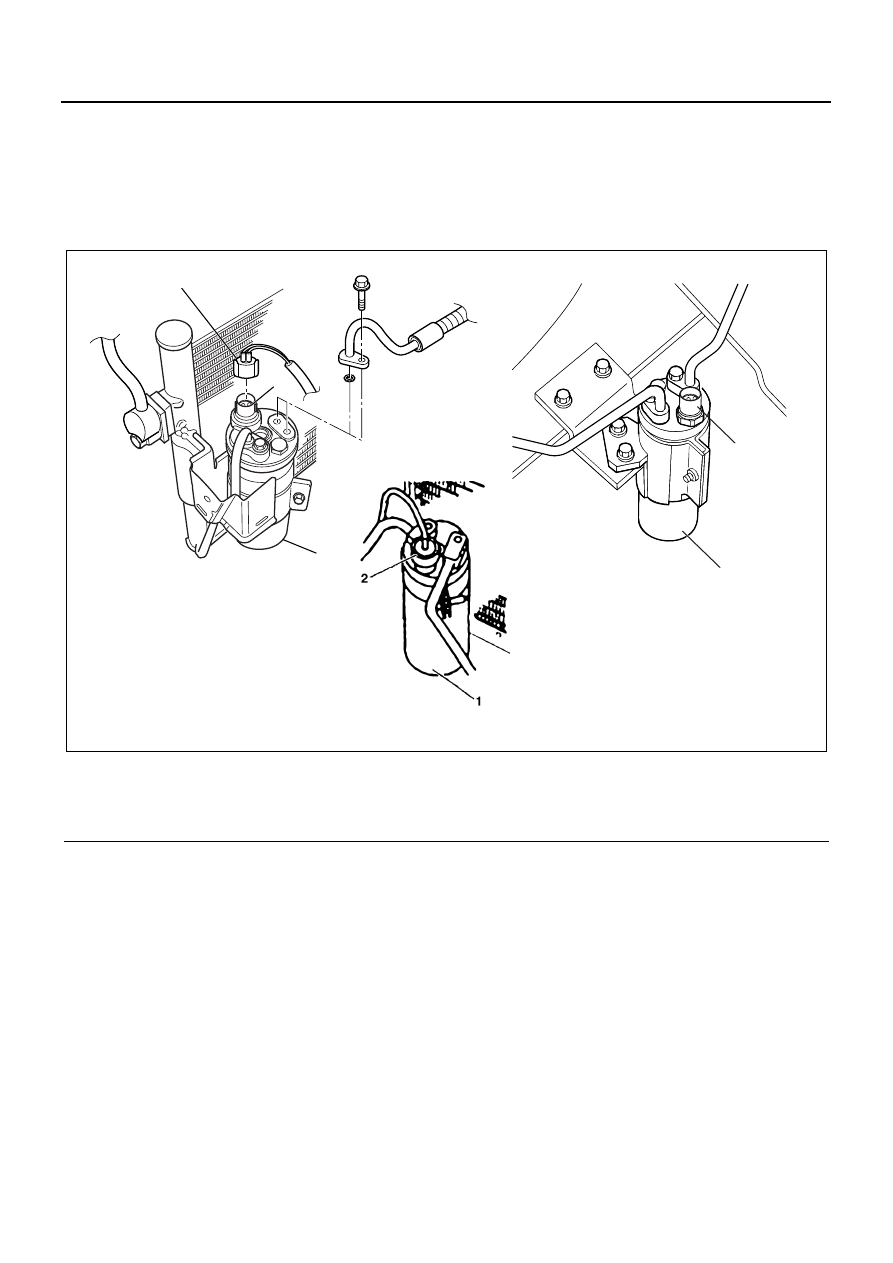

1B-26 AIR CONDITIONING 3. Tighten the line to the specified torque. Tighten: Refrigerant Line to 6 N ⋅m (0.6 kg⋅m/4 lb⋅ft) 4. O-rings cannot be reused. Always replace with new ones. 5. Be sure to apply new specified compressor oil to the O-rings when connecting refrigerant line. Pressure Switch Removal Preparation: 1. Pressure Switch Connector • Turn the pressure switch counterlockwise to re- move it. • When removing the switch connected part, the connecting part should immediately be plugged or Installation To install, follow the removal steps in the reverse order, 1. O-ring cannot be reused. Always replace with a new one. 2. Be sure to apply new specified compressor oil to the O-ring when connecting pressure switch. 3. Tighten the pressure switch to the specified torque. Tighten: Pressure switch to 10 N ⋅m (1.0 kg⋅m/7.4 lb⋅ft) Legend 1. Receiver / drier 3. Triple pressure switch 2. Dual pressure switch 4. Pressure switch connector 4 1 2 3 1 for GCC for Taiwan for Australia N1A0213E |
