Isuzu N-Series. Service manual - part 2
POWER TAKE OFF 00-3

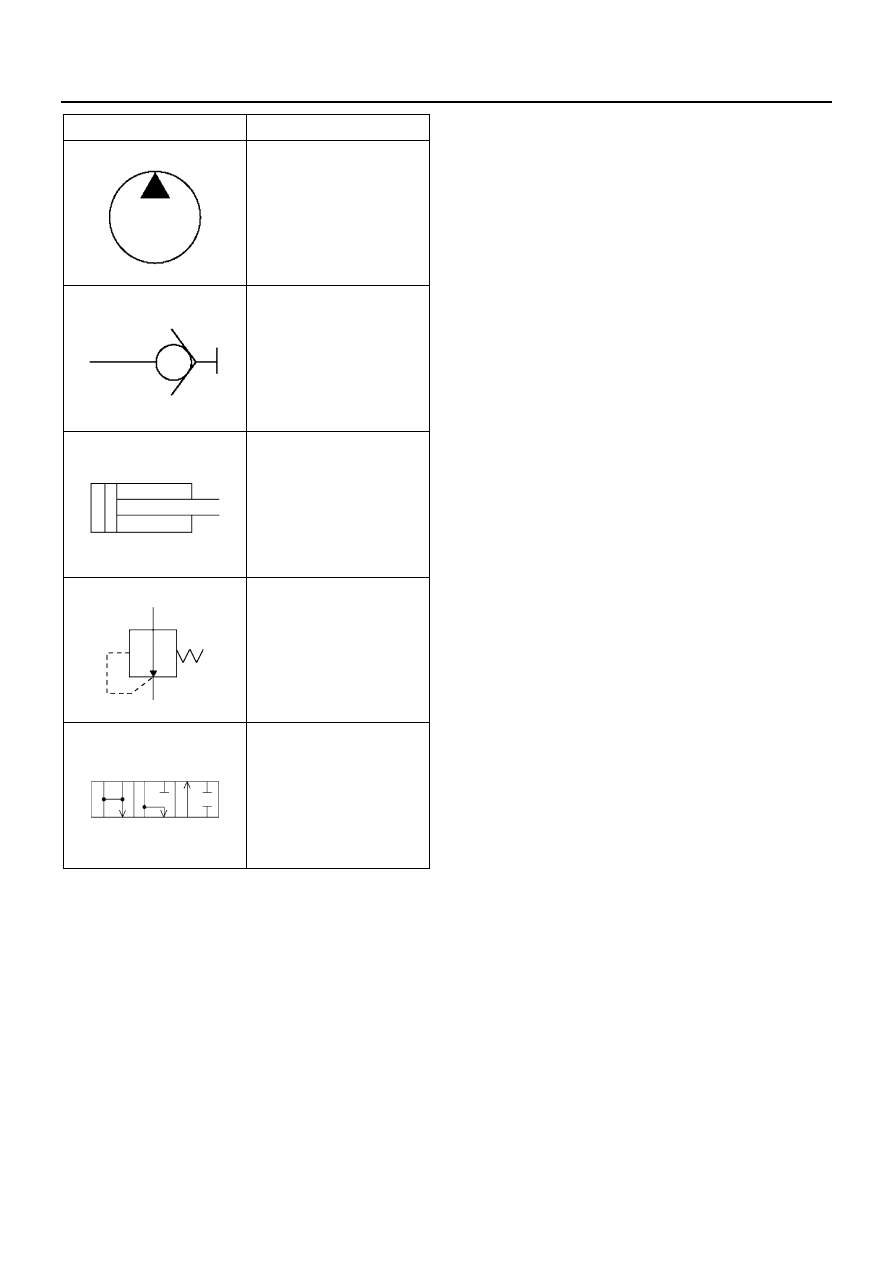

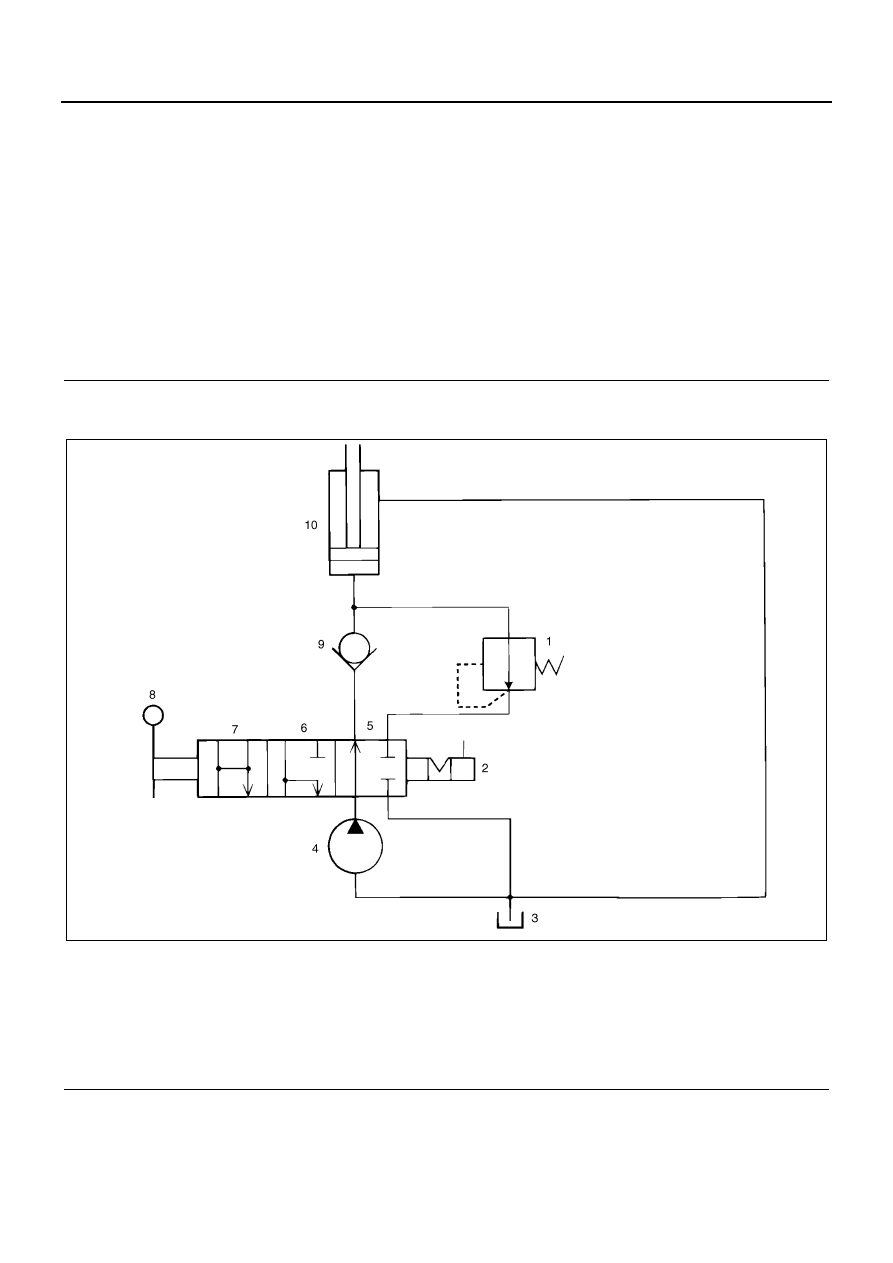

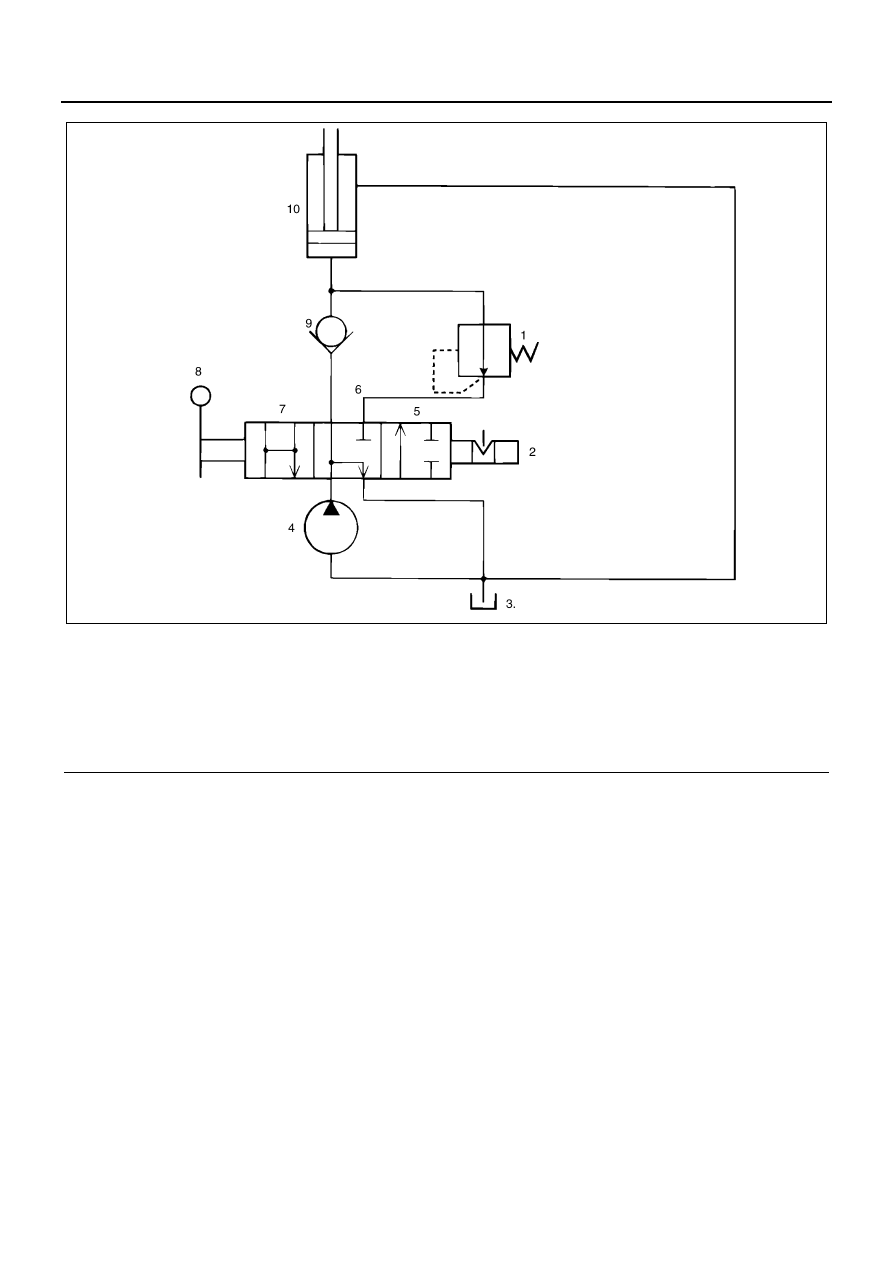

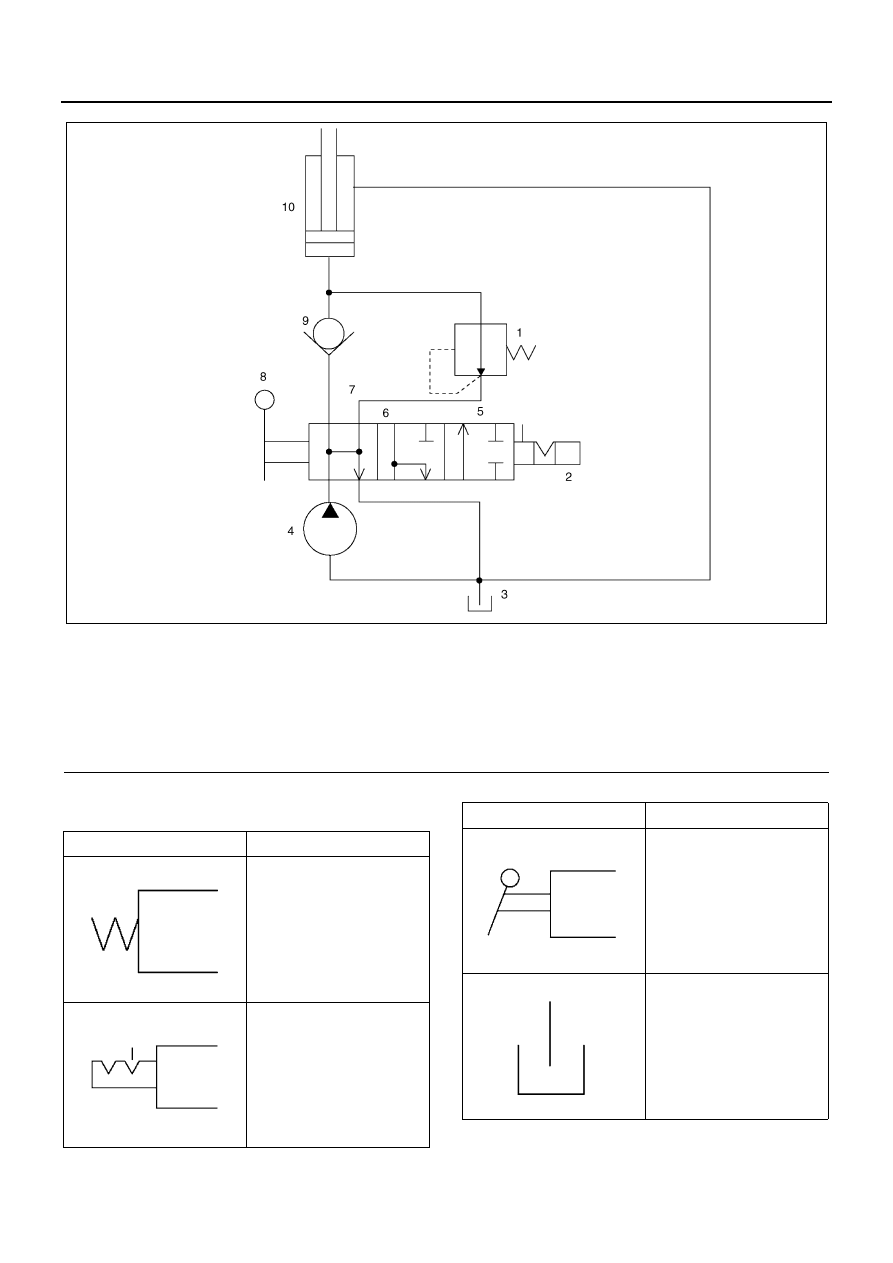

Hydraulic Circuit Diagram
Legend
1. Oil pump (gear pump section)
13. Shift rod
2. Oil seal (output shaft side)
14. O-ring
3. Output shaft
15. Spool
4. Needle bearing
16. Oil pump (hydraulic circuit switching section)
5. Idle gear
17. Stopper adapter
6. Output gear
18. Shift cap
7. Front ball bearing
19. Check valve (swing check valve)
8. Shift arm
20. Flow control (decompression valve)
9. Control cable connector
21. Rear ball bearing
10. Cable connector
22. PTO
11. Oil seal (shift rod side)
23. Bolt (oil pump to PTO)
12. Inner rod
Legend
1. Flow control valve (decompression valve)
6. Neutral
2. Spool valve
7. Down
3. Oil reserve tank
8. Operation lever (PTO interlocking)
4. Oil pump
9. Check valve (swing check valve)
5. Up
10. Dump cylinder
NPA0002E
