Isuzu Trooper (2000 year). Service manual - part 3

0A–9

GENERAL INFORMATION

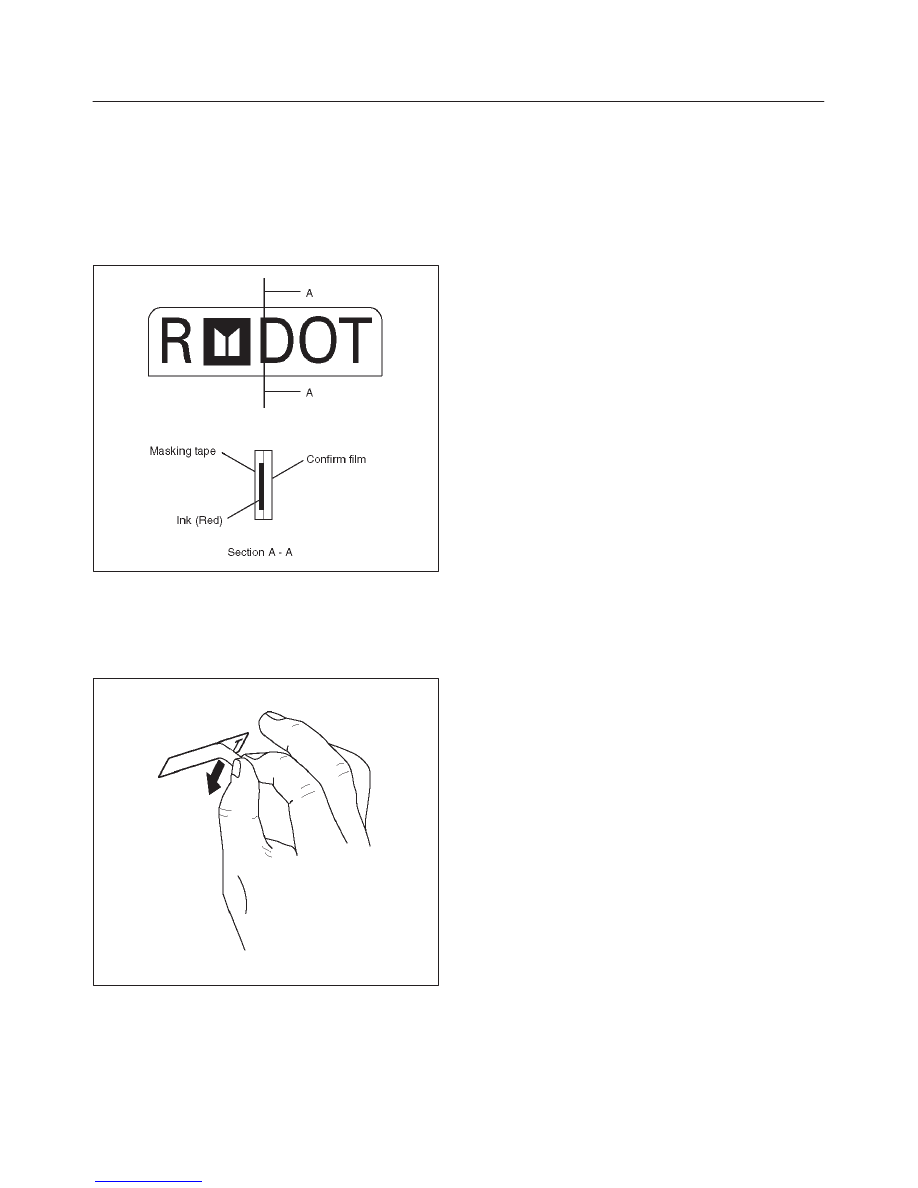

Body Label Instructions

Do not peel off the masking tape until completion of paint
work when replacing these parts, as the tape is affixed on
the label attached to service parts for body of the
anti–theft component.

NOTE: Be sure to pull off the masking tape after paint
work has been completed.
Do not attempt to remove this label for any reason.

901RW083

Precautions in pulling off the masking tape

1. Use only your finger nail or a similar blunt instrument

to peel off the masking tape. Use of a sharp object will
damage the underlying anti–theft label.

2. Be careful not to damage the paint around the label.

901RY00057

0A–10

GENERAL INFORMATION

Lifting Instructions

CAUTION:

D

If a lifting device other than the original jack is used, it
is most important that the device be applied only to
the correct lifting points. Raising the vehicle from any
other point may result in serious damage.

D

When jacking or lifting a vehicle at the frame side rail
or other prescribed lift points, be certain that lift pads
do not contact the catalytic converter, brake pipes or
cables, or fuel lines. Such contact may result in
damage or unsatisfactory vehicle performance.

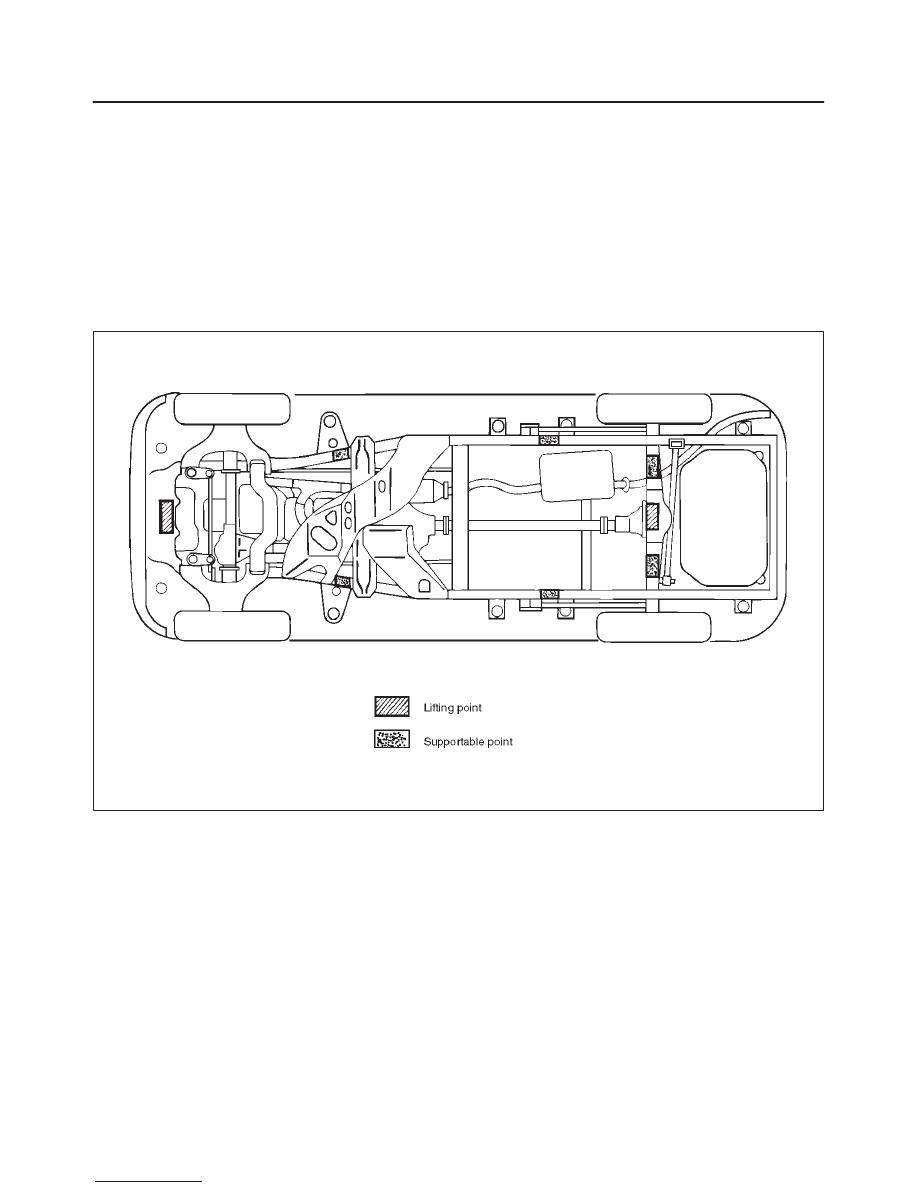

Lifting Points and Supportable Point Locations

C00RW003

0A–11

GENERAL INFORMATION

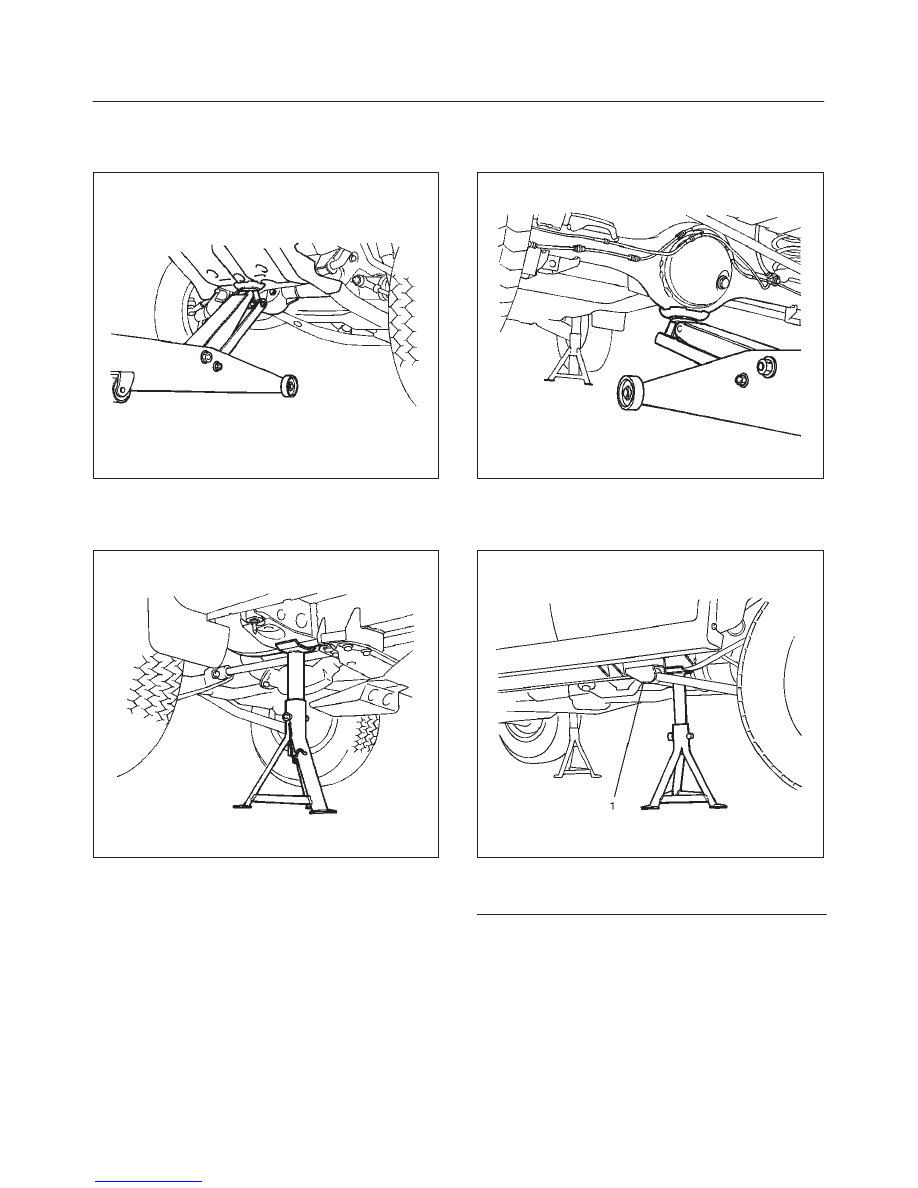

Lifting Point; Front

D

When using a floor jack, lift on the center of the skid
plate.

545RS001

Supportable Point; Front

D

Position the chassis stands at the bottom of the frame
sidemember, behind the front wheel.

501RS003

Lifting Point; Rear

D

Position the floor jack at the center of the rear axle
case when lifting the vehicle.

420RS002

Supportable Point; Rear

D

Position the chassis stands at the bottom of the frame
sidemember, just behind the trailing link bracket.

501RW002

Legend

(1) Trailing Link Bracket

0A–12

GENERAL INFORMATION

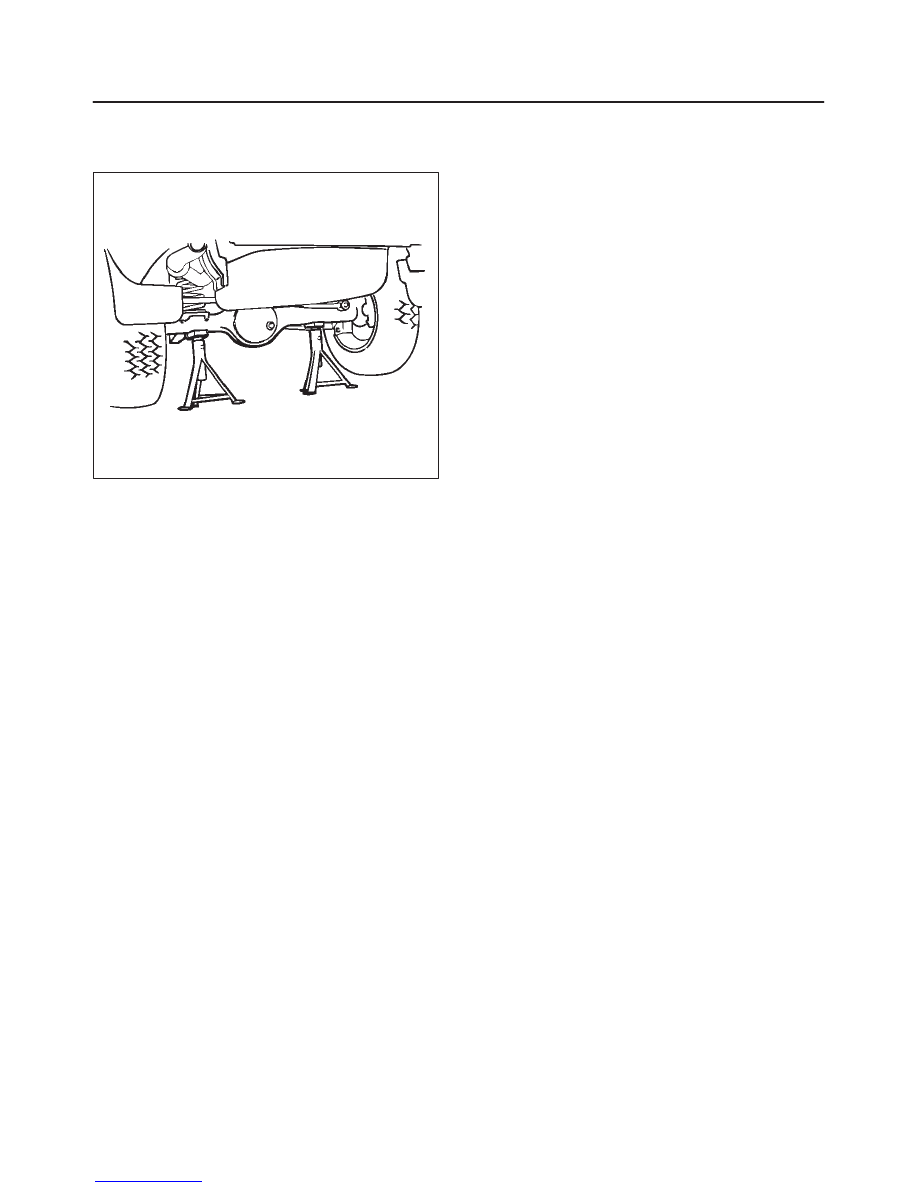

Supportable Point; Rear

D

Position the chassis stands at the bottom of the rear
axle case.

420RS001
