Isuzu Rodeo UE. Service manual - part 569

8D–124

WIRING SYSTEM

Circuit Diagram–3

D08RX057

8D–125

WIRING SYSTEM

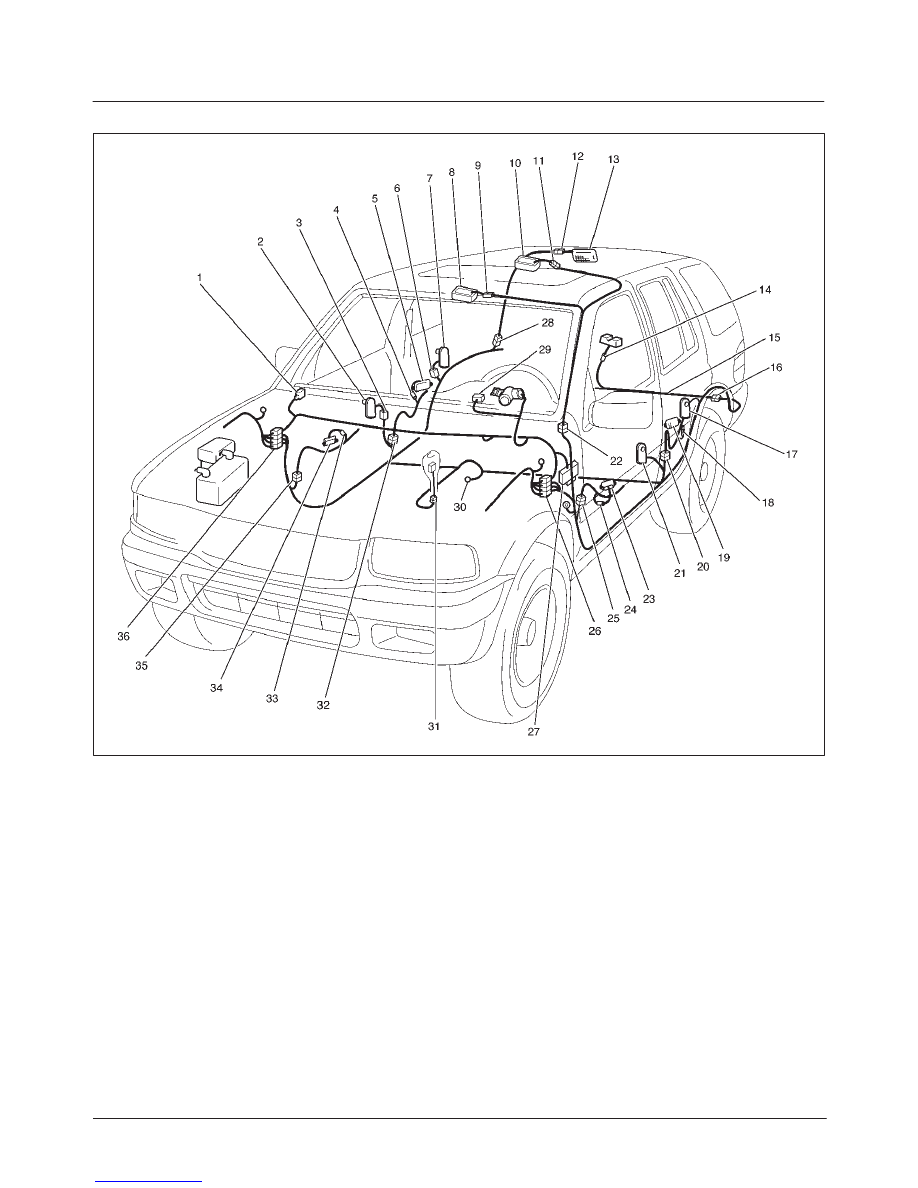

Parts Location

D08RX063

Legend

(1) I–41, I–42
(2) FRT Door SW–RH
(3) B–1
(4) D–29
(5) RR Courtesy–Light–RH
(6) B–21
(7) RR Door SW–RH
(8) Map Light
(9) L–2

(10) Dome Light

(11) L–3

(12) B–11
(13) Luggage Room Light
(14) G–1 (LWB)
(15) Tail Gate Harness
(16) H–22
(17) RR Door SW–LH
(18) B–16

(19) RR Courtesy–Light–LH
(20) H–24
(21) FRT Door SW–LH
(22) H–30
(23) FRT Door SW–LH
(24) D–7
(25) H–28
(26) H–31,H–32
(27) I–34, I–44, I–45, I–46
(28) H–22
(29) I–1
(30) B–8
(31) B–22
(32) H–29
(33) FRT Courtesy–Light–RH
(34) D–18
(35) H–33
(36) H–19

8D–126

WIRING SYSTEM

Power Door Lock

General Description

The door lock system consists of door lock switch and
door lock actuator. Door lock switch on driver’s side can
actuate the door lock mechanism.
Locking or unlocking the lock switch on the driver side
causes the door lock mechanism to be locked or
unlocked.
At this time, the current flows for approx. 1 second from
door lock switch on driver’s side to door lock actuator to
run the motor.

8D–127

WIRING SYSTEM

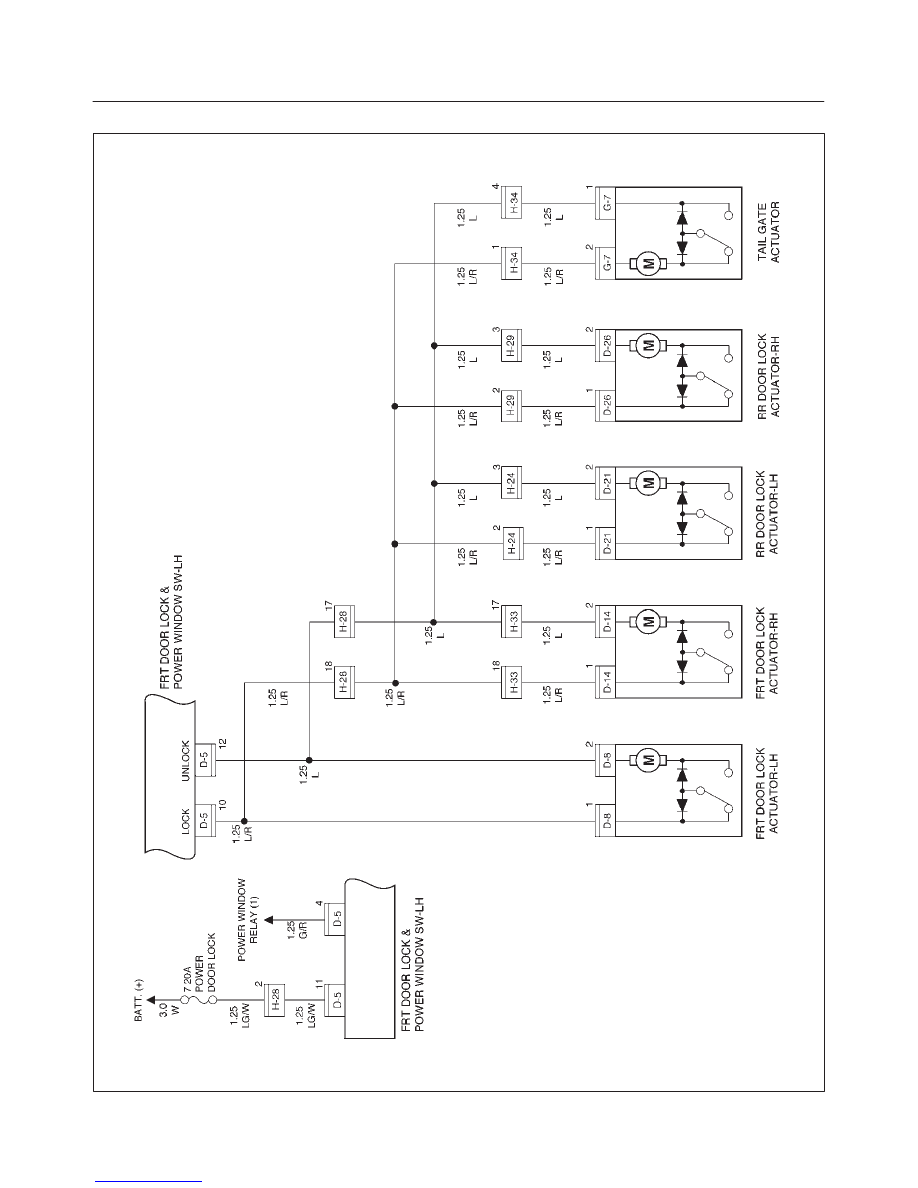

Circuit Diagram–1

D08RX064
