Isuzu Rodeo UE. Service manual - part 531

LIGHTING SYSTEM

8A–11

Spotlight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

f

Pull out the bulb.

825RW105

Installation

To install, follow the removal steps in the reverse order.

Luggage Room Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

f

Pull out the bulb.

825RW077

Installation

To install, follow the removal steps in the reverse order.

8A–12

LIGHTING SYSTEM

HVAC Bezel Illumination Light Bulb

Removal and Installation

Refer to Control Panel Illumination bulb in Heating,
Ventilation and Air Conditioning (HVAC) section.

Shift Lever Illumination Light Bulb (A/T)

Removal

1. Disconnect the battery ground cable.
2. Remove the console assembly.

f

Remove four screws.

3. Remove the bulb (1).

f

Turn the bulb socket counterclockwise.

f

Pull out the bulb from the socket.

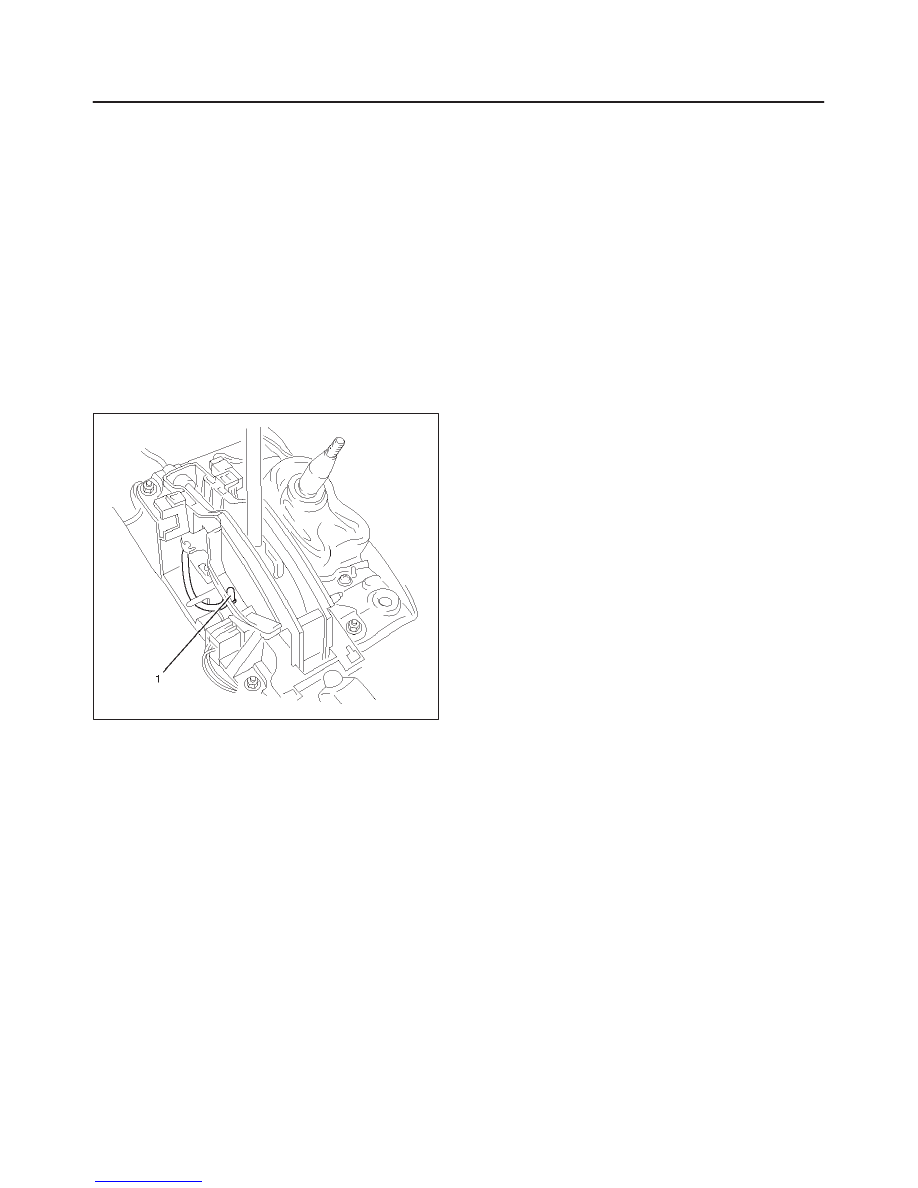

825RW078

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–13

Vanity Mirror Illumination Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (1).
3. Remove the bulb (2).

f

Attach some scotch tape to the bulb and pull it out.

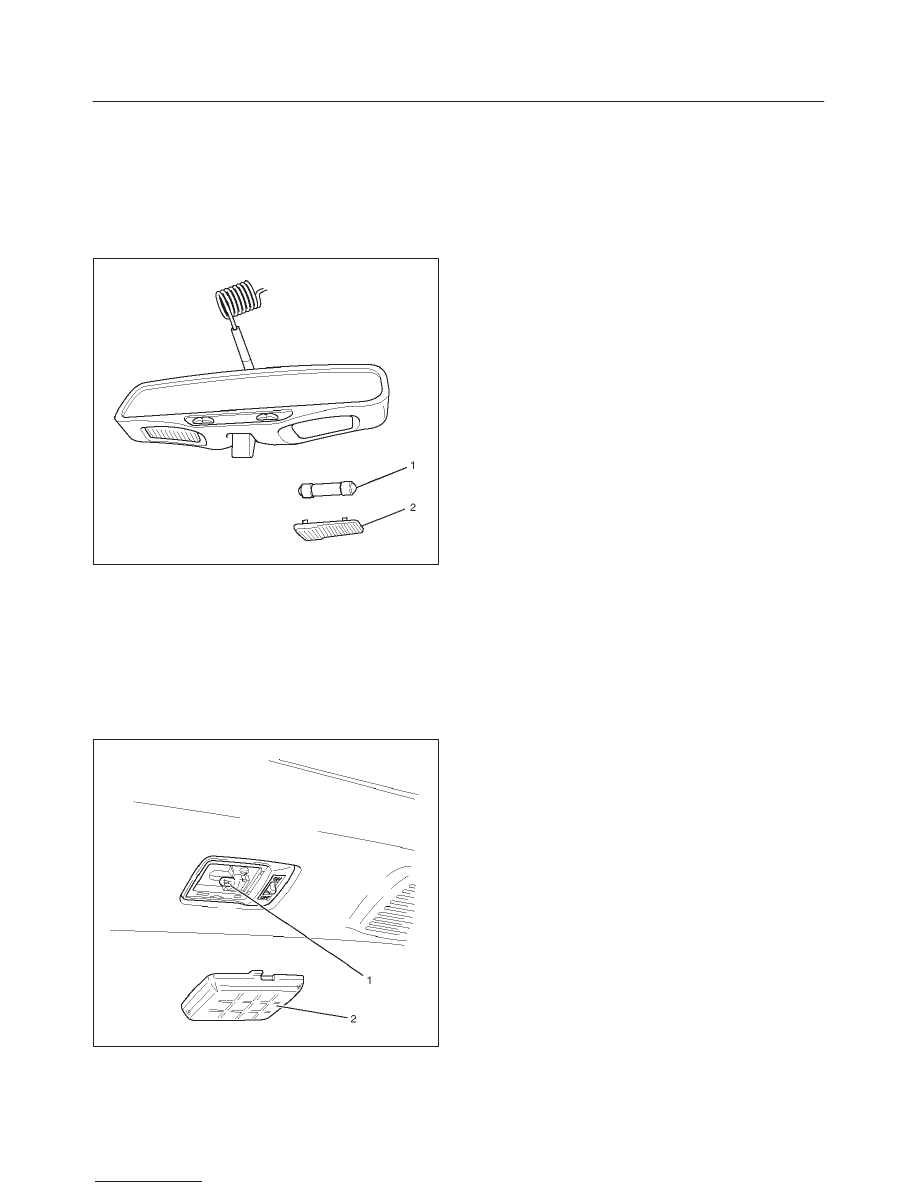

743RW005

Installation

To install, follow the removal steps in the reverse order.

Starter Switch

Removal and Installation

Refer to Lock cylinder in steering section.

8A–14

LIGHTING SYSTEM

Lighting Switch (Combination Switch)

Removal and Installation

Refer to Combination Switch in Steering section.

Dimmer·Passing Switch (Combination Switch)

Removal and Installation

Refer to Combination Switch in Steering section.
