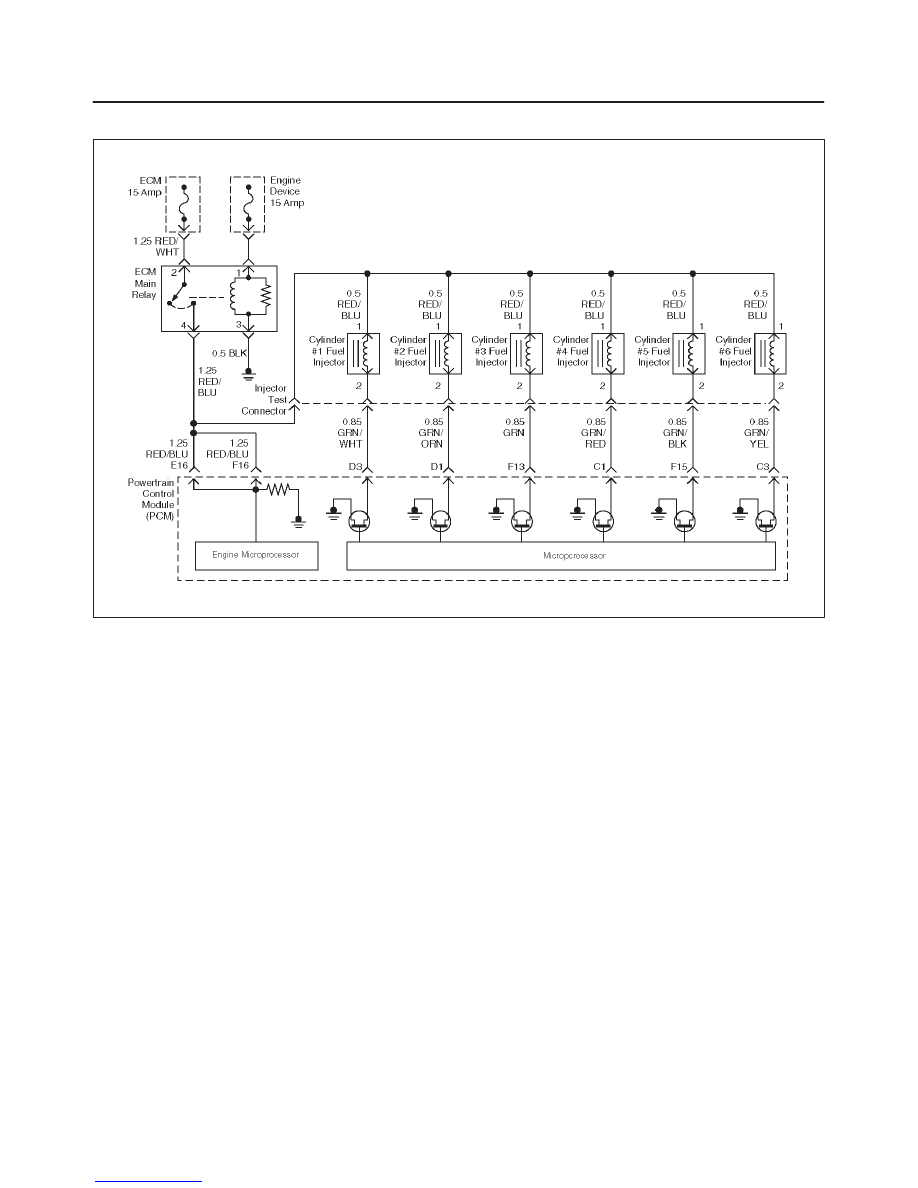

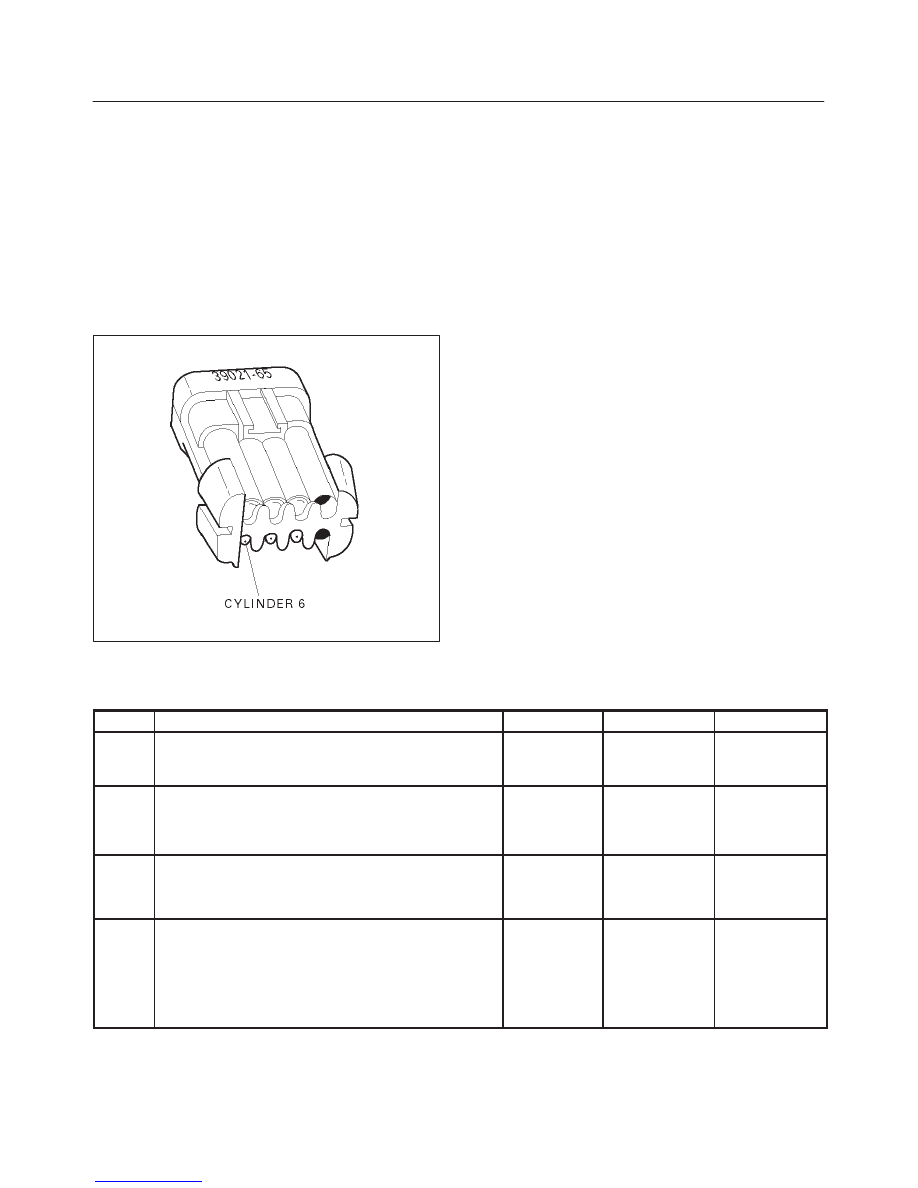

6E2–247 RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS DTC P0205 – Injector 5 Control Circuit (Cont'd) Step No Yes Value(s) Action 5 1. Engine “OFF.” injector test connector. 4. Crank the engine and note the light. Does the cylinder 5 test light blink? — Go to Fuel Injector Coil Test Procedure Go to Step 6 6 Note whether the injector test light was “OFF” or “ON” Was the test light “ON” steady while cranking the — Go to Step 7 Go to Step 9 7 1. Disconnect the PCM connector for the affected injectors. 2. With a test light connected to B+, probe the affected injector driver circuit. Does the test light illuminate? — Go to Step 8 Go to Step 15 8 Repair short to ground in the injector driver circuit. Is the action complete? — Go to OBD System Check — 9 1. Disconnect the injector test connector. ohmmeter between the positive wire (red with blue Does the ohmmeter indicate continuity? — Go to Step 11 Go to Step 10 10 Repair the open injector harness wire or open injector. Is the action complete? — Verify repair — 11 At the PCM side of the injector test connector, check Was there a short to voltage? — Go to Step 12 Go to Step 13 12 Repair the short to voltage. Is the action complete? — Verify repair — 13 Check for an open circuit between the injector test Was there an open circuit? — Go to Step 14 Go to Step 15 14 Repair the open circuit. Is the action complete? — Verify repair — 15 Replace the PCM. IMPORTANT: The replacement PCM must be On-Vehicle Service in Powertrain Control Module and Sensors for And also refer to latest service bulletin. Check to see if the Latest software is released or not. Is the action complete? — Verify repair — |
