RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

11. Push “On” or “Off” soft key.

060RX027

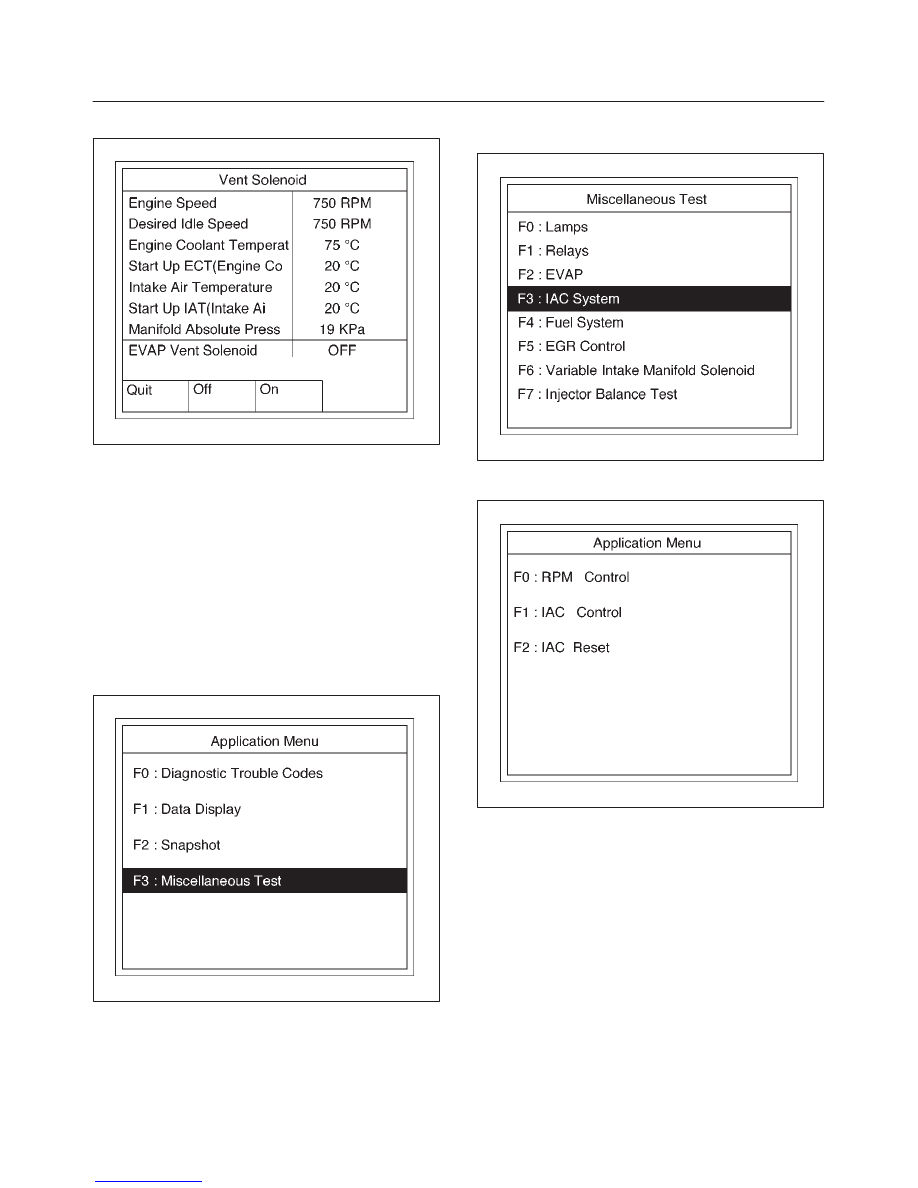

12. Control EVAP Vent Solenoid and check data list.
13. If the data list changes, the EVAP Vent Solenoid is

normal.

Idle Air Control System Test

This test is conducted to check IAC system for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

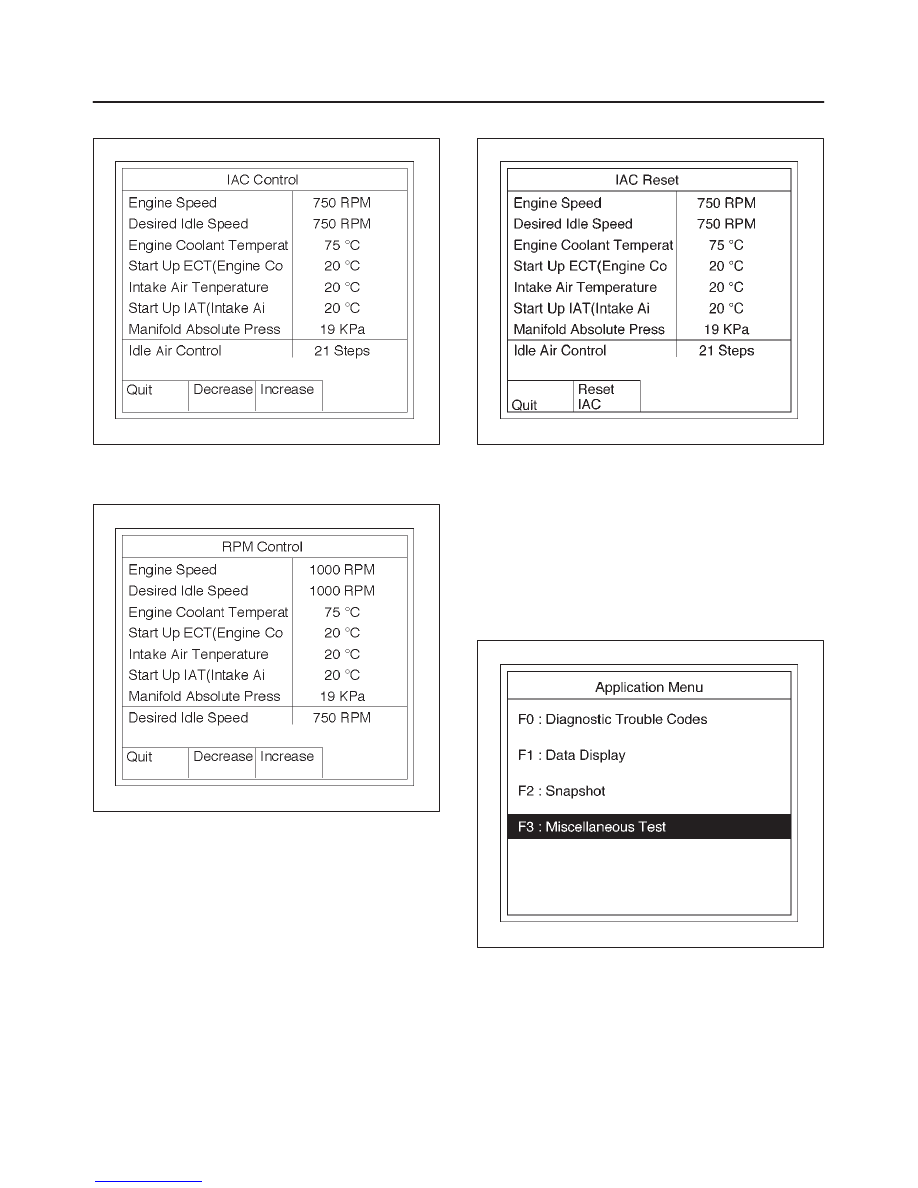

4. Select F3: IAC System Test in the Miscellaneous

Test.

060RX007

5. Select F1: IAC Control Test.

060RW235

6. Push “Increase” or “Decrease” soft key.

6E2–44

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

7. Instruct IAC system and check data list.

060RX015

8. If the data list changes, the IAC control is normal.
9. Select F0: RPM Control Test

060RX016

10. Push “Increase” or “Decrease” soft key.

11. Control RPM and check data list.

12. If the data list changes, the RPM control is normal.
13. Select F2: IAC Reset.
14. Push “Reset IAC” soft key.
15. Control IAC Reset and check data list.

16. If data list changes, the IAC has been Reset.

060RW231–1

Fuel System Test

This test is conducted check Fuel Level Gauge for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

6E2–45

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

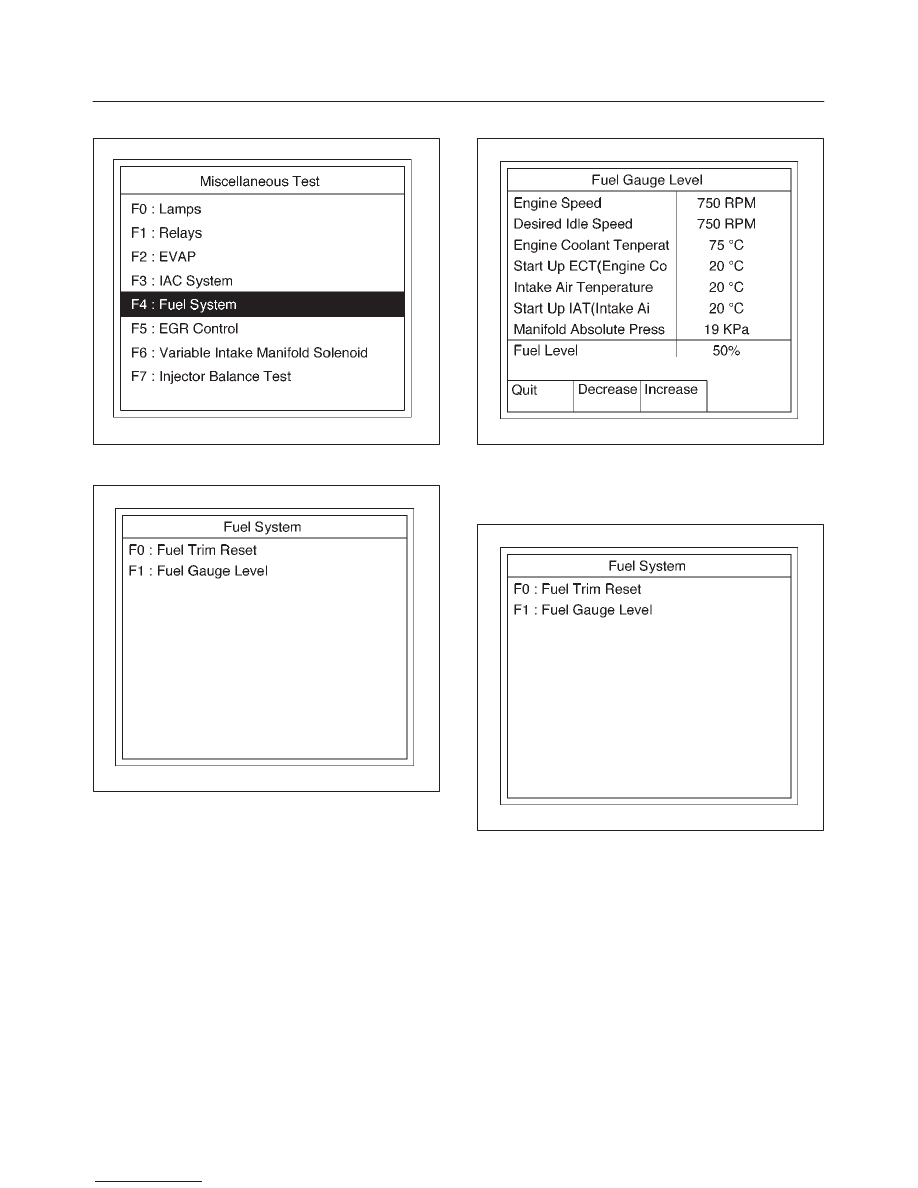

4. Select F4: Fuel System in the Miscellaneous Menu.

060RX032

5. Select F1: Fuel Gauge Level

060RX028

6. Push “Decrease” or “Increase” soft key.

060RX030

7. Control Fuel Level and check data list.
8. If data list chouges the Fuel Gauge Level is normal.

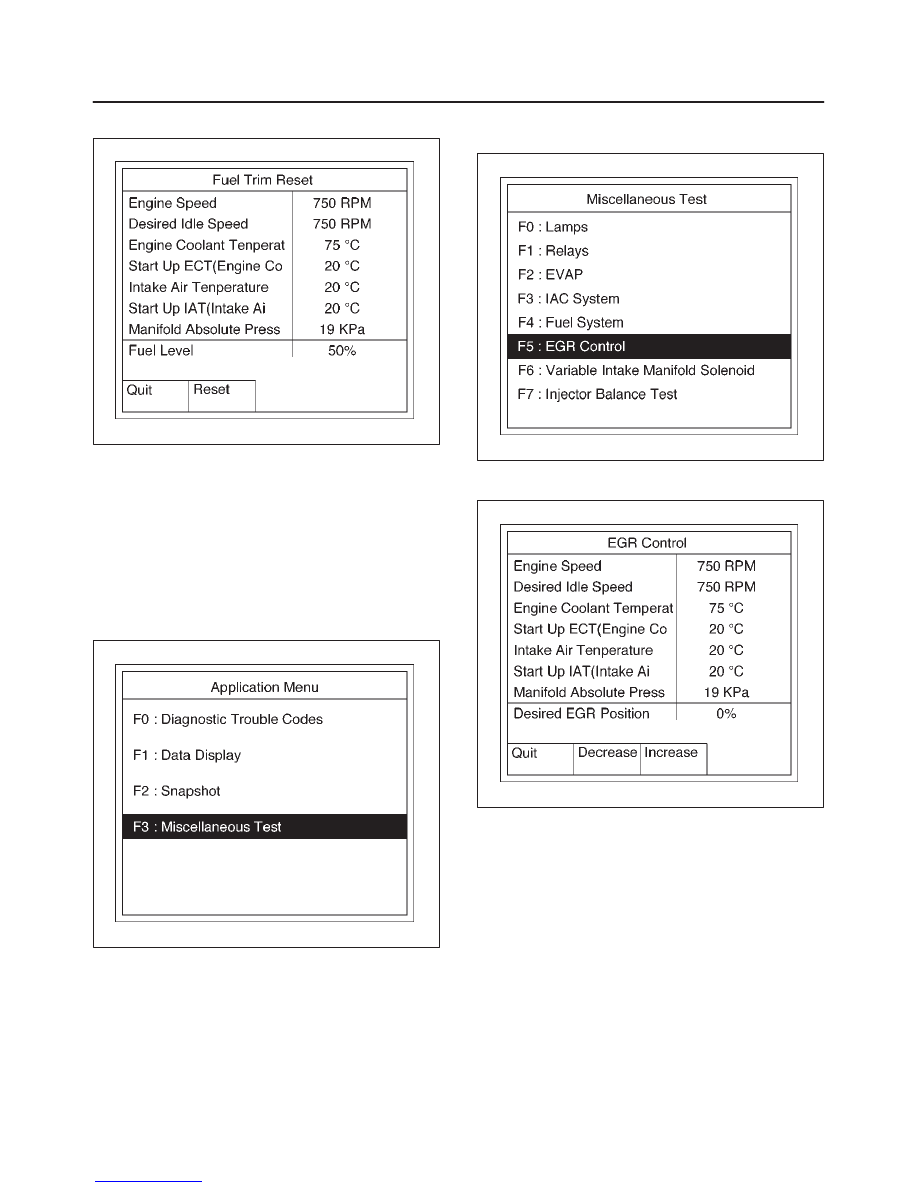

9. Select F0: Fuel Trim Reset.

060RX028

6E2–46

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

10. Push “Reset” soft key.

060RX029

EGR Control Test

This test is conducted check EGR valve for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F5: EGR Control Test in the Miscellaneous

Test.

060RX008

5. Control EGR Valve and check data list.

060RX017

6. If data list chouges, the EGR Control is normal.

Variable Intake Manifold Solenoid Test

This test is conducted check VIM Solenoid for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
