Isuzu Rodeo UE. Service manual - part 145

6A–69

ENGINE MECHANICAL (X22SE 2.2L)

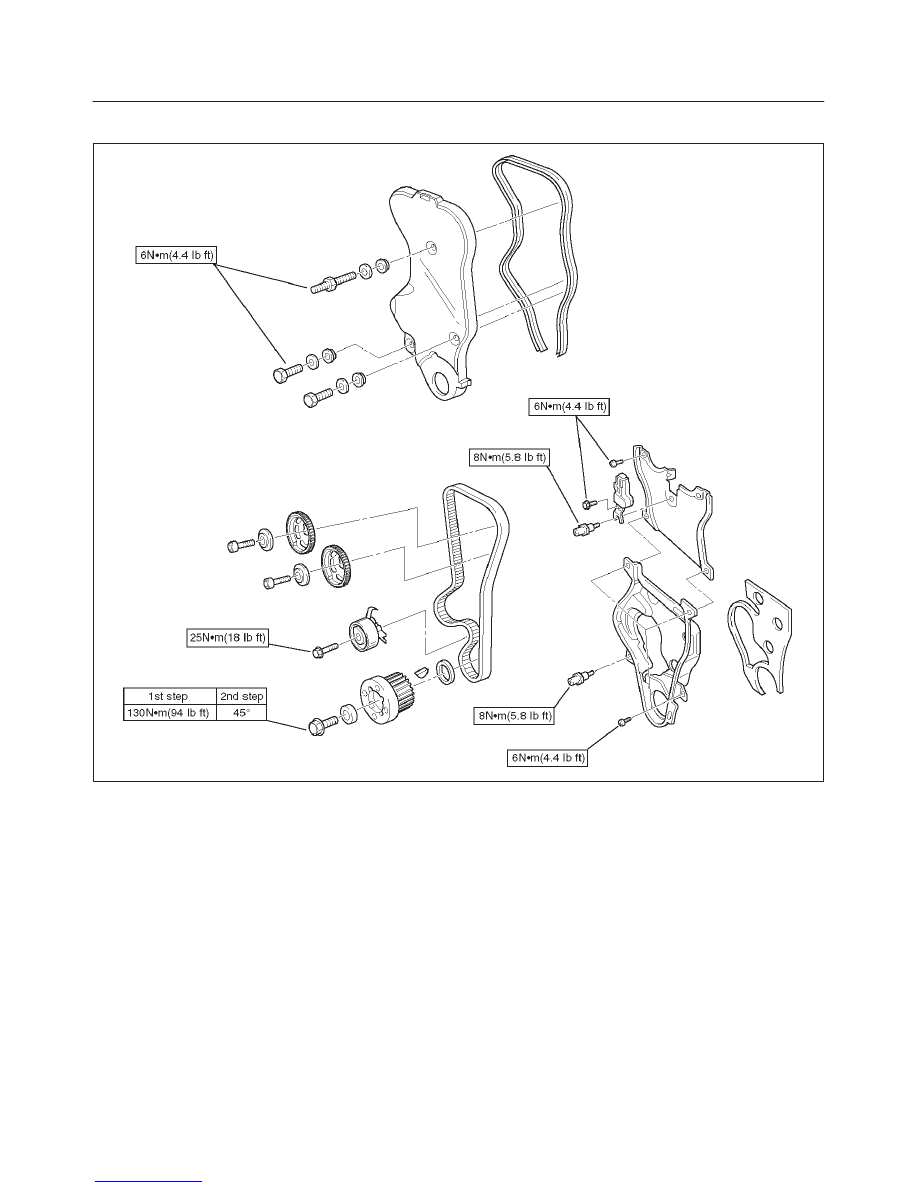

Timing gear crankshaft (center bolt), Timing belt cover front, Timing belt cover rear, Timing belt tensioner,
Camshaft angle sensor

020RW011

6A–70

ENGINE MECHANICAL (X22SE 2.2L)

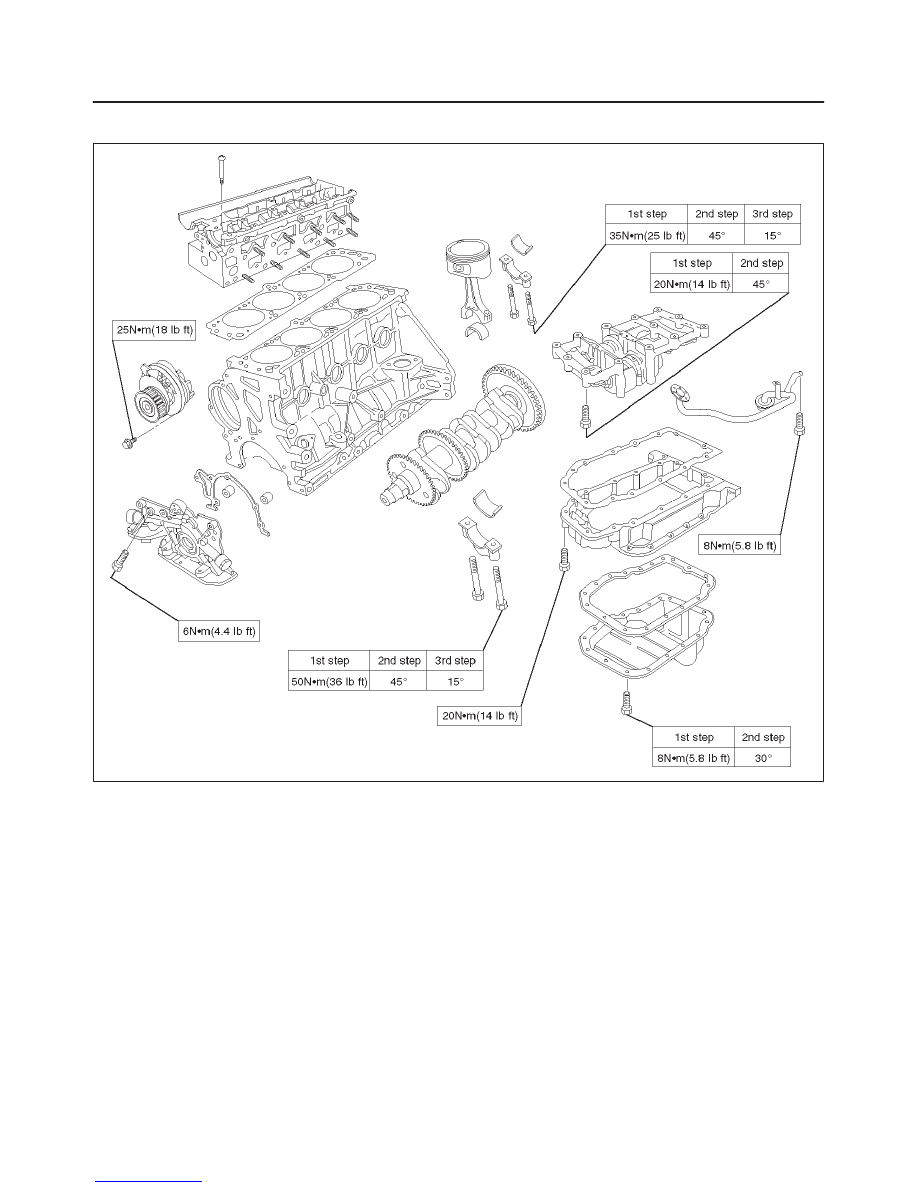

Crankshaft main bearing, Oil pan support, Oil pan, Balance unit assembly, Connrod Cap, Oil pump, Oil
strainer

015RW023

6A–71

ENGINE MECHANICAL (X22SE 2.2L)

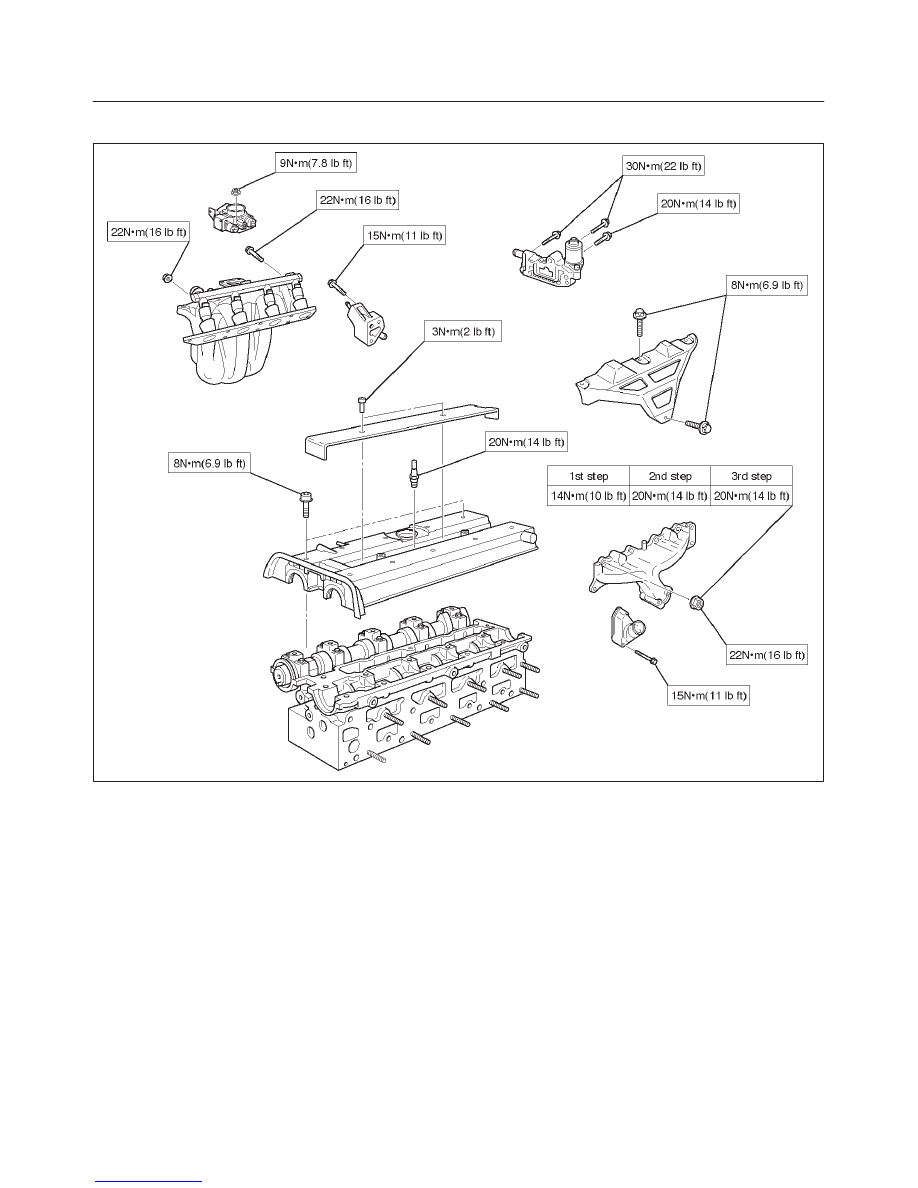

Spark plug, Throttle body, EGR valve adaptor assembly, Bypass housing assembly, Thermostat assembly,
inlet manifold assembly, Exhaust manifold assembly, heat shield, Ignition cable cover

011RW022

6A–72

ENGINE MECHANICAL (X22SE 2.2L)

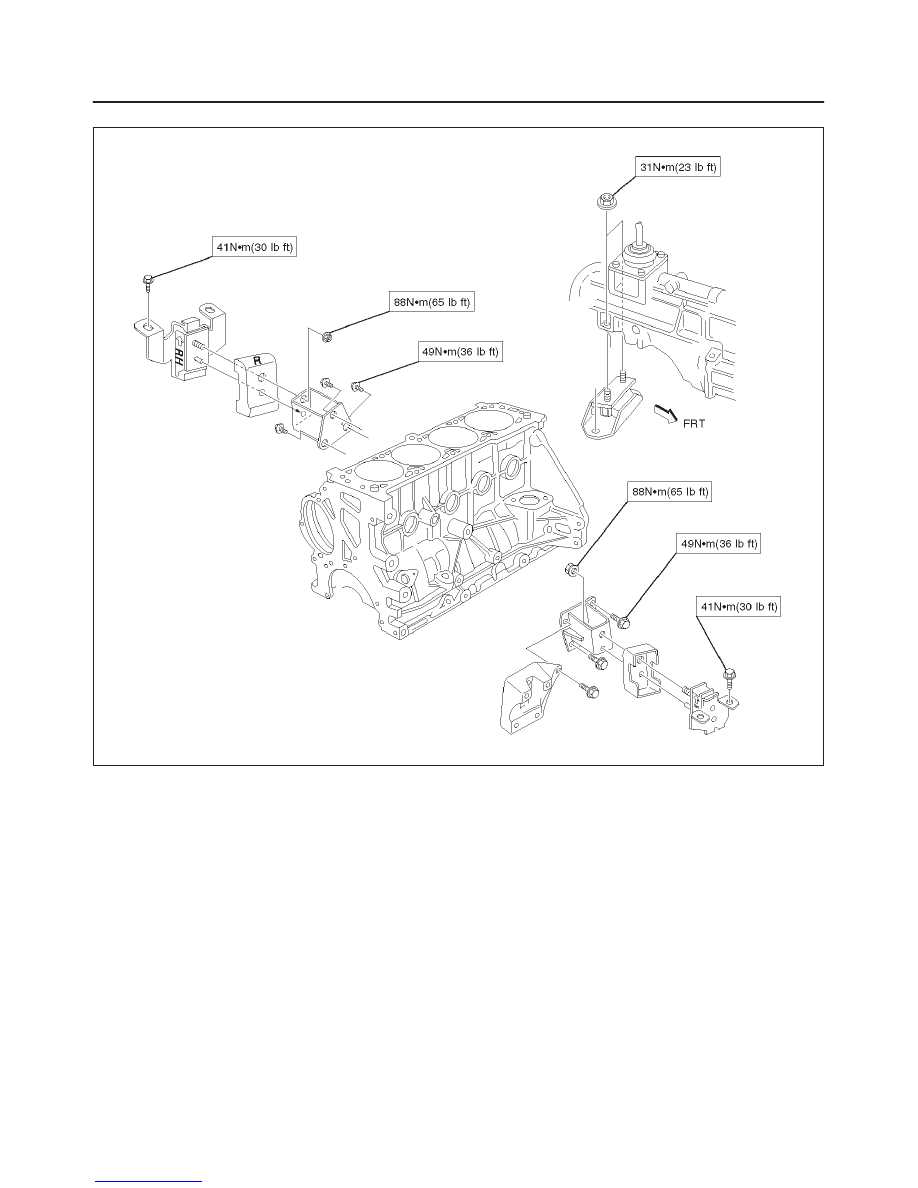

Engine mount

022RW010
