HEADLIGHT CONTROL SWITCH

Lighting

1

Rotate the switch to the

position,

and the front parking, tail, license plate,
and instrument panel lights will come on.

2

Rotate the switch to the

position,

and the headlights will come on and all
the other lights remain on.

CAUTION

Use the headlights with the engine running
to avoid discharging the vehicle battery.

Autolight system

The autolight system allows the headlights to
turn on and off automatically. The autolight
system can:
• Turn on the headlights, front parking, tail,

license plate and instrument panel lights
automatically when it is dark.

• Turn off all the lights (except daytime run-

ning lights) when it is light.

• Keep all the lights on for a period of time

after you place the ignition switch in the
OFF position and all doors are closed.

LIC3818

Type A (if so equipped)

LIC4755

Type B (if so equipped)

LIC3819

Type A (if so equipped)

HEADLIGHT SWITCH

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:
Autolight activation sensitivity and the
time delay for autolight shutoff can be
adjusted. For additional information, refer
to the separate INFINITI InTouch® Owner’s
Manual.

To turn on the autolight system:

1.

For USA:

Turn the headlight switch to the

AUTO position

O

1

.

For CAN:

Turn the headlight switch to the

AUTO

O

1

or

position.

2. Place the ignition switch in the ON position.

3. The autolight system automatically turns

the headlights on and off.

Initially, if the ignition switch is placed in the
OFF position and a door is opened and left
open, the headlights remain on for a period of
time. If another door is opened while the
headlights are on, then the timer is reset.

To turn the autolight system off:

For USA:

Turn the switch to the OFF (if so

equipped),

, or

position.

For CAN:

Turn the switch to the

position.

If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes.

Be sure you do not put anything on top of the
autolight sensor located in the top side

O

1

of

the instrument panel. The autolight sensor
controls the autolight; if it is covered, the
autolight sensor reacts as if it is dark out and
the headlights will illuminate. If this occurs
while parked with the engine off and the ig-
nition switch placed in the ON position, your
vehicle's battery could become discharged.

LIC4756

Type B (if so equipped)

LIC2237

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Operating, servicing and maintaining a passenger vehicle or
off-highway motor vehicle can expose you to chemicals
including engine exhaust, carbon monoxide, phthalates, and
lead, which are known to the State of California to cause
cancer and birth defects or other reproductive harm. To
minimize exposure, avoid breathing exhaust, do not idle the
engine except as necessary, service your vehicle in a well-
ventilated area and wear gloves or wash your hands
frequently when servicing your vehicle. For more information
go to www.P65Warnings.ca.gov/passenger-vehicle.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles
(kilometers) of driving pleasure. Please read
through this manual before operating your
vehicle.

A separate Warranty Information Booklet is
included in your Owner’s literature portfolio.
The “Maintenance and schedules” section of
this manual explains details about maintain-
ing and servicing your vehicle. Always carry it
with you when you take your vehicle to an
INFINITI retailer. The Warranty Information
Booklet contents provide complete informa-
tion about all warranties covering this vehicle,
the requirements to keep the warranties in
effect as well as the INFINITI Roadside Assis-
tance program.

Additionally, a separate Customer Care and
Lemon Law Information Booklet will explain
how to resolve any concerns you may have
with your vehicle, as well as clarify your
rights under your state’s lemon law.

In addition to factory-installed options, your
vehicle may also be equipped with additional
accessories installed prior to delivery. It is
recommended that you visit an INFINITI re-
tailer for details concerning the particular ac-
cessories with which your vehicle is equipped.

It is important that you familiarize yourself
with all disclosures, warnings, cautions and
instructions concerning proper use of such
accessories prior to operating the vehicle
and/or accessory. It is recommended that
you visit an INFINITI retailer for details con-
cerning the particular accessories with which
your vehicle is equipped.

Before driving your vehicle, please read this
Owner's Manual carefully. This will ensure
familiarity with controls and maintenance
requirements, assisting you in the safe opera-
tion of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION
REMINDERS!

Follow these important driving rules to
help ensure a safe and comfortable trip for
you and your passengers!

NEVER drive under the influence of alco-
hol or drugs.

ALWAYS observe posted speed limits
and never drive too fast for conditions.

ALWAYS give your full attention to
driving and avoid using vehicle features
or taking other actions that could dis-
tract you.

ALWAYS use your seat belts and appro-
priate child restraint systems. Pre-teen
children should be seated in the rear seat.

ALWAYS provide information about the
proper use of vehicle safety features to
all occupants of the vehicle.

ALWAYS review this Owner’s Manual
for important safety information.

FOREWORD

READ FIRST—THEN DRIVE SAFELY

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For descriptions specified for all-wheel drive
models, an

AWD

mark is placed at the begin-

ning of the applicable sections/items.

As with other vehicles with features for off-
road use, failure to operate all-wheel drive
models correctly may result in loss of control
or an accident. For additional information,
see “Driving safety precautions” (P. 5-10).

ON-PAVEMENT AND OFF-ROAD DRIVING

This vehicle will handle and maneuver dif-
ferently from an ordinary passenger car
because it has a higher center of gravity for
off-road use. As with other vehicles with
features of this type, failure to operate this
vehicle correctly may result in loss of con-
trol or an accident.

For additional information, see “On- pave-
ment and off-road driving precautions”
(P. 5-8),
“Avoiding collision and roll- over”
(P. 5-8)
and “Driving safety precautions”
(P. 5-10).

MODIFICATION OF YOUR VEHICLE

This vehicle should not be modified. Modi-
fication could affect its performance,
safety, emissions or durability and may
even violate governmental regulations. In
addition, damage or performance problems
resulting from modifications may not be
covered under INFINITI warranties.

WARNING

Installing an aftermarket On-Board Diag-
nostic (OBD) plug-in device that uses the
port during normal driving, for example
remote insurance company monitoring,
remote vehicle diagnostics, telematics or
engine reprogramming, may cause inter-
ference or damage to vehicle systems. We
do not recommend or endorse the use of
any aftermarket OBD plug-in devices, un-
less specifically approved by INFINITI. The
vehicle warranty may not cover damage
caused by any aftermarket plug-in device.

This manual includes information for all fea-
tures and equipment available on this model.
Features and equipment in your vehicle may
vary depending on model, trim level, options
selected, order, date of production, region or
availability. Therefore, you may find informa-
tion about features or equipment that are not
included or installed on your vehicle.

All information, specifications and illustra-
tions in this manual are those in effect at the
time of printing. INFINITI reserves the right
to change specifications, performance, de-
sign or component suppliers without notice
and without obligation. From time to time,
INFINITI may update or revise this manual to
provide Owners with the most accurate in-
formation currently available. Please care-
fully read and retain with this manual all revi-
sion updates sent to you by INFINITI to
ensure you have access to accurate and up-
to-date information regarding your vehicle.
Current versions of vehicle Owner's Manuals
and any updates can also be found in the
Owner section of the INFINITI website at

https://owners.infinitiusa.com/iowners/
navigation/manualsAndGuides

. If you have

questions concerning any information in your
Owner's Manual, contact INFINITI Con-
sumer Affairs. See the INFINITI CUSTOMER
CARE PROGRAM page in this Owner’s
Manual for contact information.

WHEN READING THE MANUAL

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IMPORTANT INFORMATION
ABOUT THIS MANUAL

You will see various symbols in this manual.
They are used in the following ways:

WARNING

This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the risk,
the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a
hazard that could cause minor or moderate
personal injury or damage to your vehicle.
To avoid or reduce the risk, the procedures
must be followed carefully.

If you see this symbol, it means

“Do not do

this”

or

“Do not let this happen.”

If you see a symbol similar to these in an
illustration, it means the arrow points to the
front of the vehicle.

Arrows in an illustration that are similar to
these indicate movement or action.

Arrows in an illustration that are similar to
these call attention to an item in the
illustration.

CALIFORNIA PERCHLORATE
ADVISORY

Some vehicle parts, such as lithium batteries,
may contain perchlorate material. The follow-
ing advisory is provided: “Perchlorate Mate-
rial – special handling may apply. For addi-
tional information, refer to www.dtsc.ca.gov/
hazardouswaste/perchlorate/”.

All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a
retrieval system, or transmitted in any form,
or by any means, electronic, mechanical, pho-
tocopying, recording or otherwise, without
the prior written permission of Nissan Motor
Co., Ltd.

APD1005

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI CARES . . .

Both INFINITI and your INFINITI retailer are
dedicated to serving all your automotive
needs. Your satisfaction with your vehicle
and your INFINITI retailer are our primary
concerns. Your INFINITI retailer is always
available to assist you with all your automo-
bile sales and service needs.

However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please contact
our (INFINITI’s) Consumer Affairs Depart-
ment using our toll-free number:

For U.S. customers

1-800-662-6200

For Canadian customers

1-800-361-4792

The Consumer Affairs Department will ask
for the following information:
– Your

name,

address,

and

telephone

number

– Vehicle identification number (on dash

panel)

– Date of purchase
– Current odometer reading
– Your INFINITI retailer's name
– Your comments or questions

OR

You can write to INFINITI with the informa-
tion on the left at:

For U.S. customers

INFINITI Division

Nissan North America, Inc.

Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
nnaconsumeraffairs@nissan-usa.com

For Canadian customers

INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada. com

If you prefer, visit us at:

www.infinitiUSA.com (for U.S. customers)

or

www.infiniti.ca (for Canadian customers)

We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.

INFINITI CUSTOMER CARE PROGRAM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

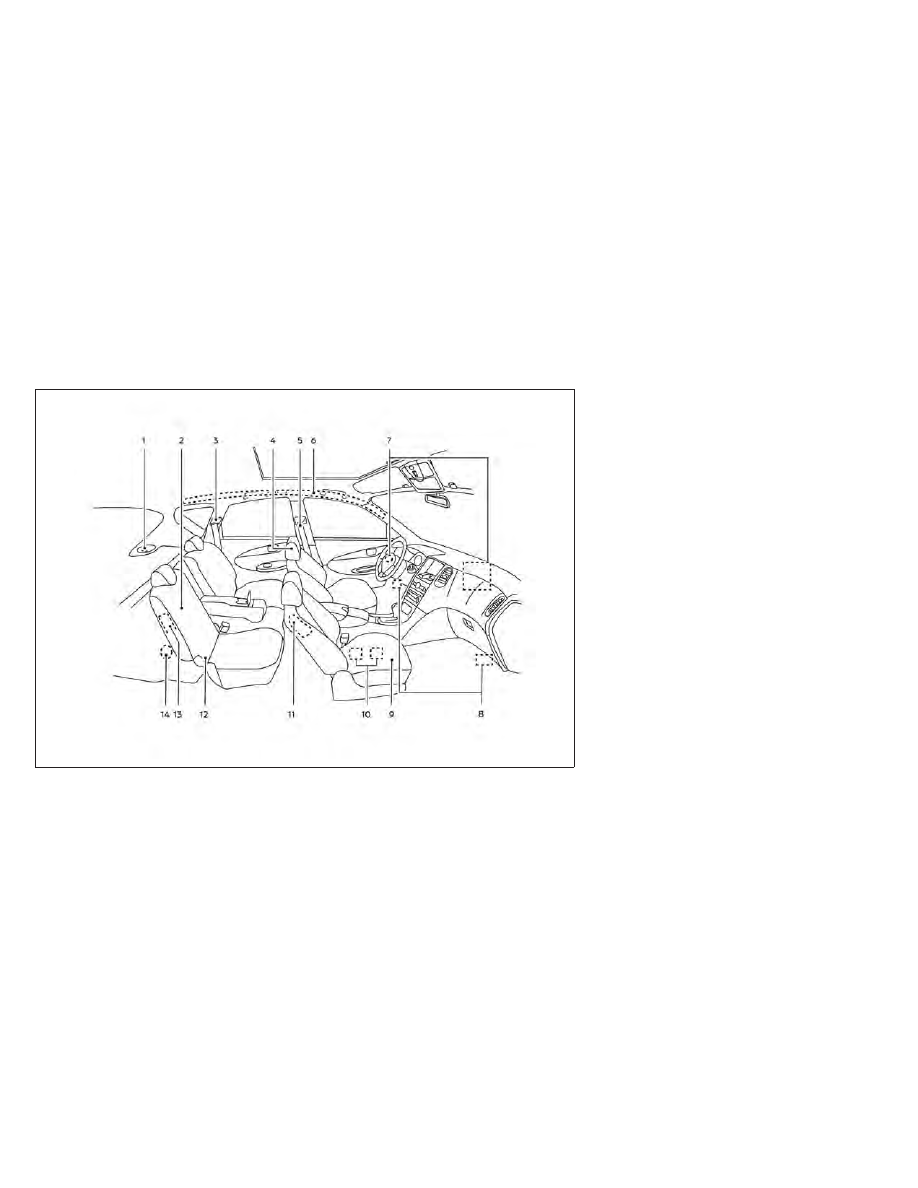

1.

Rear seat manual fold flat lever (P. 1-5)

2.

Folding rear bench (P. 1-5)

3.

Rear outboard seat belt with
pretensioner(s) (P. 1-60)

4.

Head restraints/headrests (P. 1-7)

5.

Front seat belt with pretensioner(s) and
shoulder height adjuster (P. 1-60, 1-18)

6.

Roof-mounted curtain side-impact and
rollover supplemental air bag (P. 1-57)

7.

Supplemental air bags (P. 1-41)

8.

Driver and front passenger supplemental
knee air bags (P. 1-59)

9.

Front seats (P. 1-2)

10. Occupant classification sensor

(weight sensor) (P. 1-52)

11.

Front seat-mounted side-impact
supplemental air bag (P. 1-57)

12.

LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-24)

13.

Rear outboard seat-mounted side-impact
supplemental air bag (P. 1-41)

14.

Rear seat top tether strap anchor
(located on bottom of seatback) (P. 1-26)

Refer to the page number indicated in paren-
theses for operating details.

LII2778

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

0-2

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

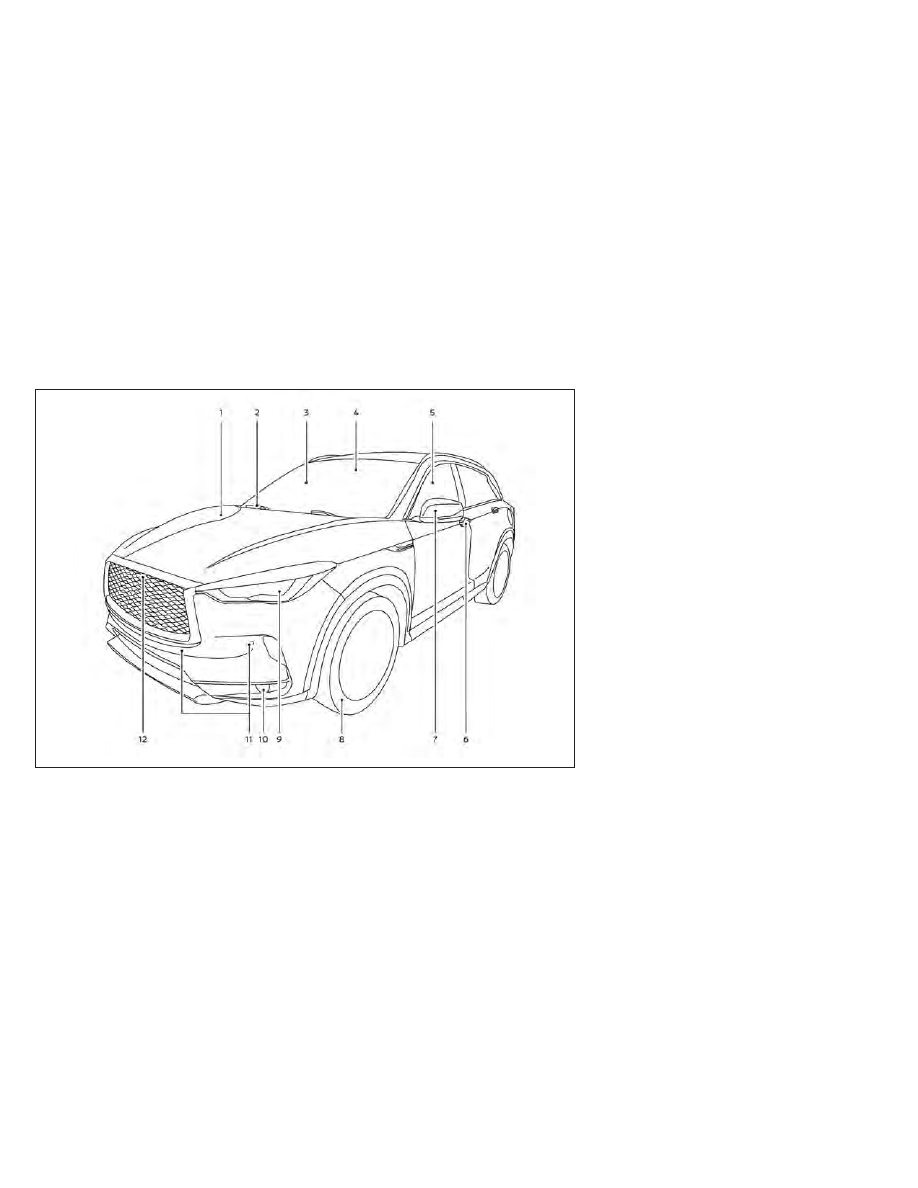

1.

Engine hood (P. 3-21)

2.

Wiper and washer switch (P. 2-36)
Wiper blades (P. 8-17)

3.

Windshield (P. 8-17)

4.

Front camera (P. 5-32, 5-40, 5-54,
5-109)

5.

Power windows (P. 2-72)

6.

Door locks (P. 3-4)
INFINITI Intelligent Key system (P. 3-6)
Keys (P. 3-2)

7.

Mirrors (P. 3-34)
Side camera (if so equipped) (P. 4-11)

8.

Tire pressure (P. 8-27)
Flat tire (P. 6-3)
Tire chains (P. 8-38)

9.

Replacing bulbs (P. 8-24)
Headlight switch (P. 2-40)
Turn signal switch (P. 2-46)
LED Daytime Running Lights (DRL)
system (P. 2-45)

10. Fog light switch (if so equipped) (P. 2-47)
11.

Sonar sensors (if so equipped) (P. 5-147)

12.

Front view camera (if so equipped)
(P. 4-11)

See the page number indicated in parenthe-
ses for operating details.

LII2611

EXTERIOR FRONT

Illustrated table of contents

0-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

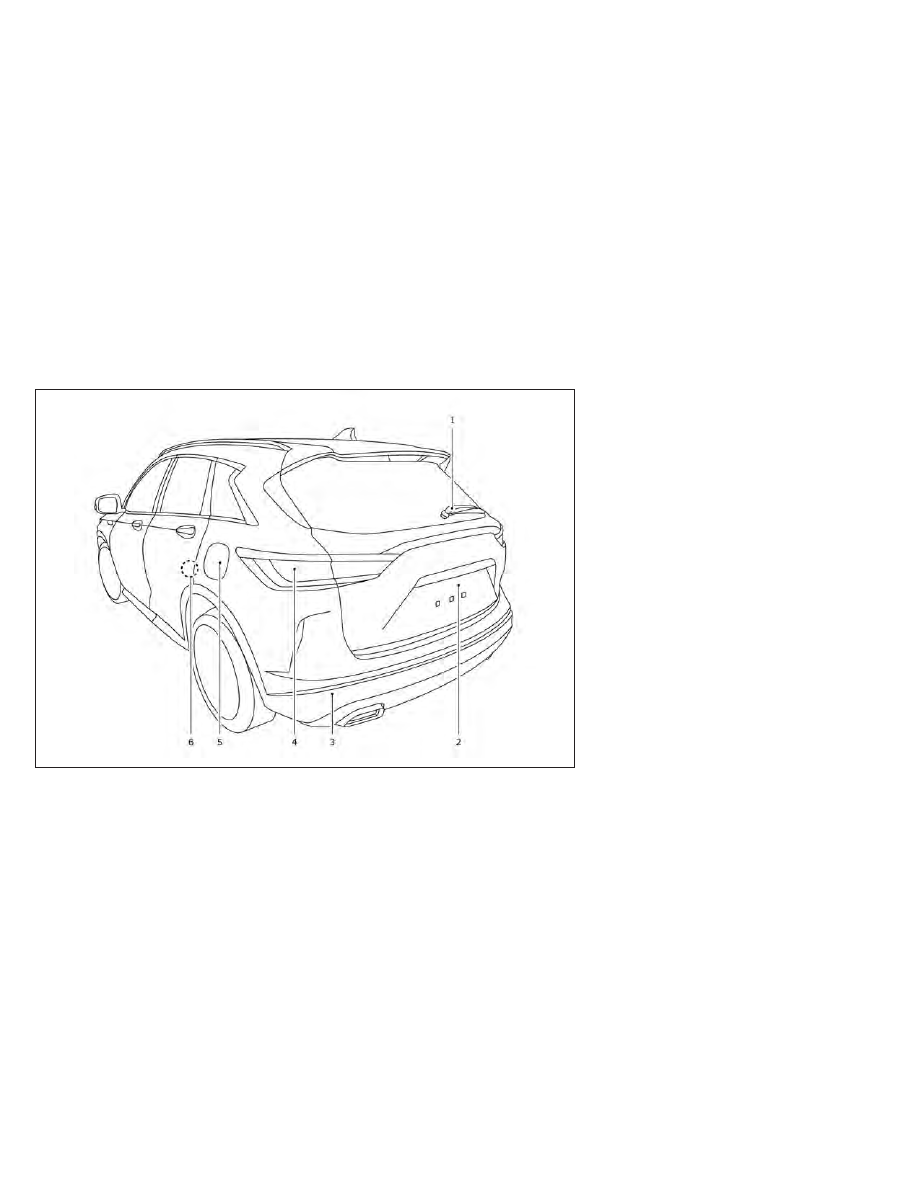

1.

Rear wiper and washer switch (P. 2-38)

2.

Liftgate release (P. 3-22)
Rearview camera (P. 4-3, 4-11)

3.

Sonar sensors (P. 5-147)

4.

Replacing bulbs (P. 8-24)

5.

Fuel-filler cap (P. 3-28)
Fuel recommendation (P. 10-4)
Fuel-filler door (P. 3-28)

6.

Child safety rear door lock (P. 3-6)

Refer to the page number indicated in paren-
theses for operating details.

LIC3788

EXTERIOR REAR

0-4

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.

Moonroof (if so equipped) (P. 2-75)

2.

Sun visors (P. 3-32)

3.

Map lights (P. 2-79)

4.

Sunglasses storage (P. 2-63)

5.

Rearview mirror (P. 3-34)

6.

Glove box (P. 2-62)

7.

Console box (P. 2-62)

8.

Cup holders (P. 2-63)

Refer to the page number indicated in paren-
theses for operating details.

LIC3789

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

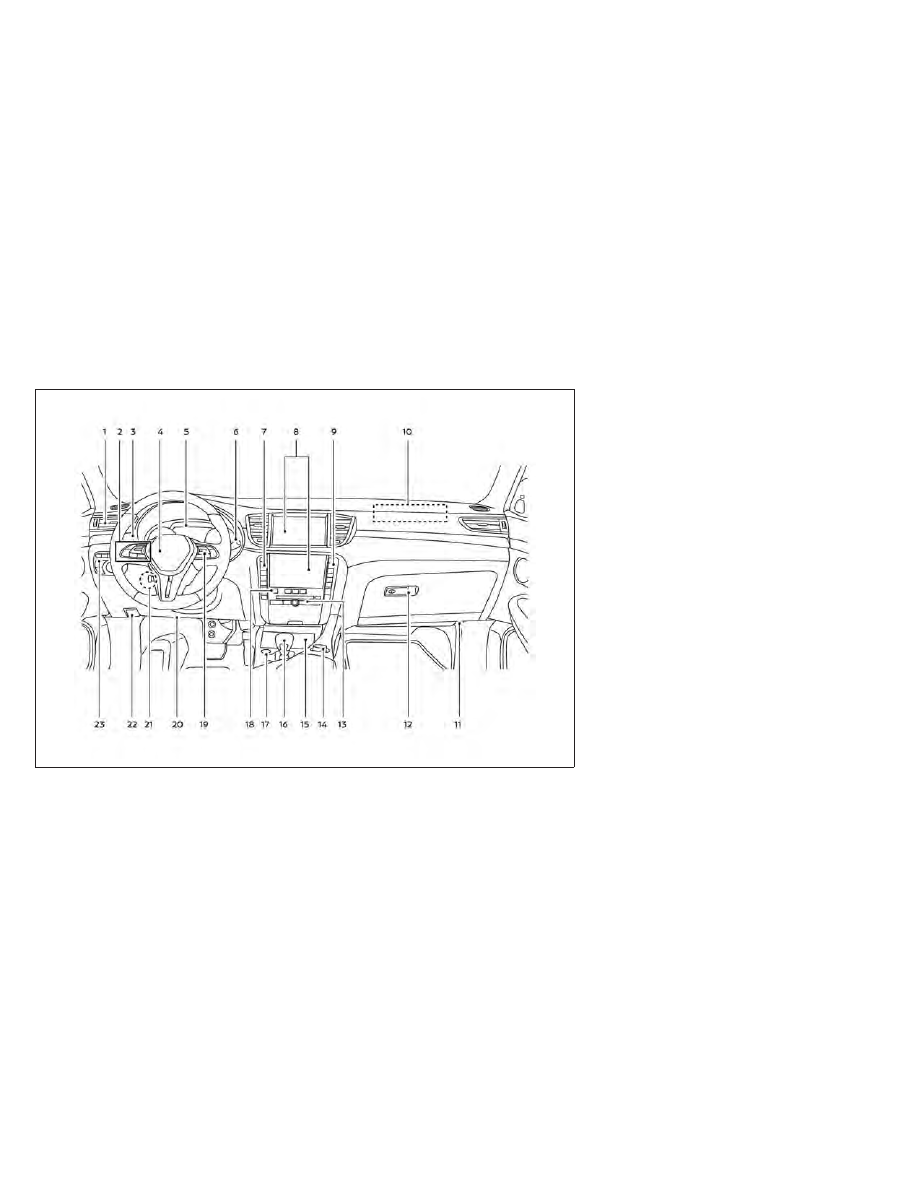

1.

Vent (P. 4-34)

2.

Bluetooth® Hands-Free Phone System*
Steering wheel switch for audio control*

Center display multi-function control
buttons*

3.

High beam/turn signal switch (P. 2-46)
Paddle shifters (P. 5-22)
Trip reset switch (P. 2-5)

4.

Driver supplemental air bag (P. 1-41)
Horn (P. 2-47)

5.

Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-9)
Vehicle information display (P. 2-19)

6.

Wiper and washer switch (P. 2-36)
Rear wiper and washer switch (P. 2-38)

7.

Automatic heater and air conditioning
controls (P. 4-35)
Driver side climate controlled seat
switches (if so equipped) (P. 2-48)
Driver side heated seat switches (if so
equipped) (P. 2-49)

8.

Upper and lower displays*
Navigation system* (if so equipped)

9.

Automatic heater and air conditioning
controls (P. 4-35)
Passenger side climate controlled seat
switches (if so equipped) (P. 2-48)
Passenger side heated seat switches
(if so equipped) (P. 2-49)
Rear window defroster, outside mirror
defroster (if so equipped), and wiper
deicer (if so equipped) switch (P. 2-39)

10.

Front passenger supplemental air bag
(P. 1-41)

LII2779

INSTRUMENT PANEL

0-6

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

11.

Front passenger supplemental knee air
bag (P. 1-59)

12.

Glove box (P. 2-62)

13.

Audio system controls*
Front passenger air bag status light
(P. 1-52)

14.

INFINITI controller*

15.

Power outlet (P. 2-59)
USB port*
Cup holders (P. 2-63)
Wireless charger and indicator (P. 2-55)

16.

Shift lever (P. 5-18)

17.

Push-button ignition switch (P. 5-13)
Electronic parking brake switch (P. 5-24)
Automatic brake hold switch (P. 5-26)
INFINITI Drive Mode Selector (P. 5-29)

18.

Hazard warning flasher switch (P. 6-2)

19.

ProPILOT Assist Switch (P. 5-76)
Cruise control switches (P. 5-78)
Distance control switch (P. 5-76)
Control panel and vehicle information
display switches (P. 2-20)

20.

Driver supplemental knee air bag
(P. 1-59)

21.

Tilt and telescopic steering wheel control
(P. 3-31)

22.

Hood release (P. 3-21)

23.

Instrument brightness control (P. 2-46)
Front and rear sonar system switch (if so
equipped) (P. 2-51)
Steering assist switch (P. 2-51)
Instrument panel liftgate switch (P. 3-22)
Headlight switch (P. 2-40)
Fog light switch (if so equipped) (P. 2-47)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-52)

*: Refer to the separate INFINITI InTouch®
Owner's Manual.

Refer to the page number indicated in paren-
theses for operating details.

Illustrated table of contents

0-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

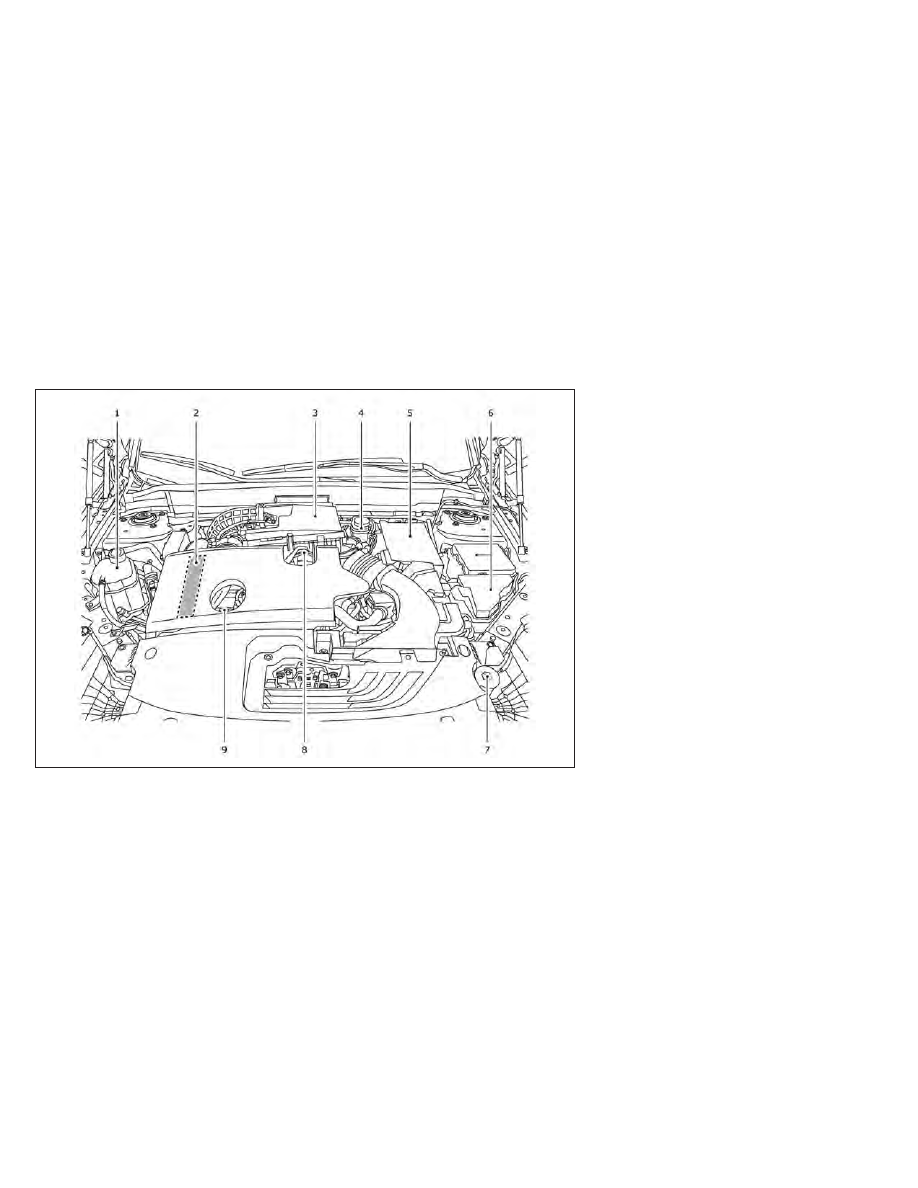

2.0L 4 cylinder (KR20DDET engine model)

1.

Engine coolant reservoir (P. 8-5)

2.

Drive belt location (P. 8-15)

3.

Air cleaner (P. 8-16)

4.

Brake fluid reservoir (P. 8-10)

5.

Battery (P. 8-12)

6.

Fuse/Fusible link box (P. 8-20)

7.

Windshield-washer fluid reservoir
(P. 8-11)

8.

Engine oil filler cap (P. 8-6)

9.

Engine oil dipstick (P. 8-6)

NOTE:

Your vehicle may not be equipped with an
engine cover.

Refer to the page number indicated in paren-
theses for operating details.

LDI3173

ENGINE COMPARTMENT CHECK
LOCATIONS

0-8

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning/

Indicator

light (red)

Name

Page

or

Brake warning
light

2-10

Charge warning
light

2-11

Electric shift
control system
warning light

2-11

or

Electronic parking
brake indicator
light

2-11

Warning/

Indicator

light (red)

Name

Page

Engine oil pressure
warning light

2-12

Master warning
light

2-12

Pop-up engine
hood warning light

2-12

Seat belt warning
light and chime

2-12

Security indicator
light

2-13

Supplemental air
bag warning light

2-13

Warning/

Indicator

light

(yellow)

Name

Page

or

Anti-lock Braking
System (ABS)
warning light

2-13

or

Electronic parking
brake warning
light

2-13

Forward Emer-
gency Braking
(FEB) with Pedes-
trian Detection
system warning
light

2-14

WARNING/INDICATOR LIGHTS

Illustrated table of contents

0-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning/

Indicator

light

(yellow)

Name

Page

Front passenger
air bag status light

2-14

Low tire pressure
warning light

2-14

Malfunction Indi-
cator Light (MIL)

2-15

Master warning
light

2-16

Power steering
warning light

2-16

Rear Automatic
Braking (RAB) sys-
tem warning light

2-17

Warning/

Indicator

light

(yellow)

Name

Page

Slip indicator light

2-17

Vehicle Dynamic
Control (VDC)
OFF indicator light

2-17

Warning/

Indicator

light

(other)

Name

Page

Automatic brake
hold indicator light
(white/green)

2-17

Eco drive indicator
light (green) (if so
equipped)

2-17

Warning/

Indicator

light

(other)

Name

Page

Front fog light
indicator light
(green) (if so
equipped)

2-18

High Beam Assist
indicator light
(green)

2-18

High beam indica-
tor light (blue)

2-18

Side light and
headlight indicator
light (green)

2-18

Turn signal/hazard
indicator lights
(green)

2-18

0-10

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1 Safety-Seats, seat belts and supplemental
restraint system

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

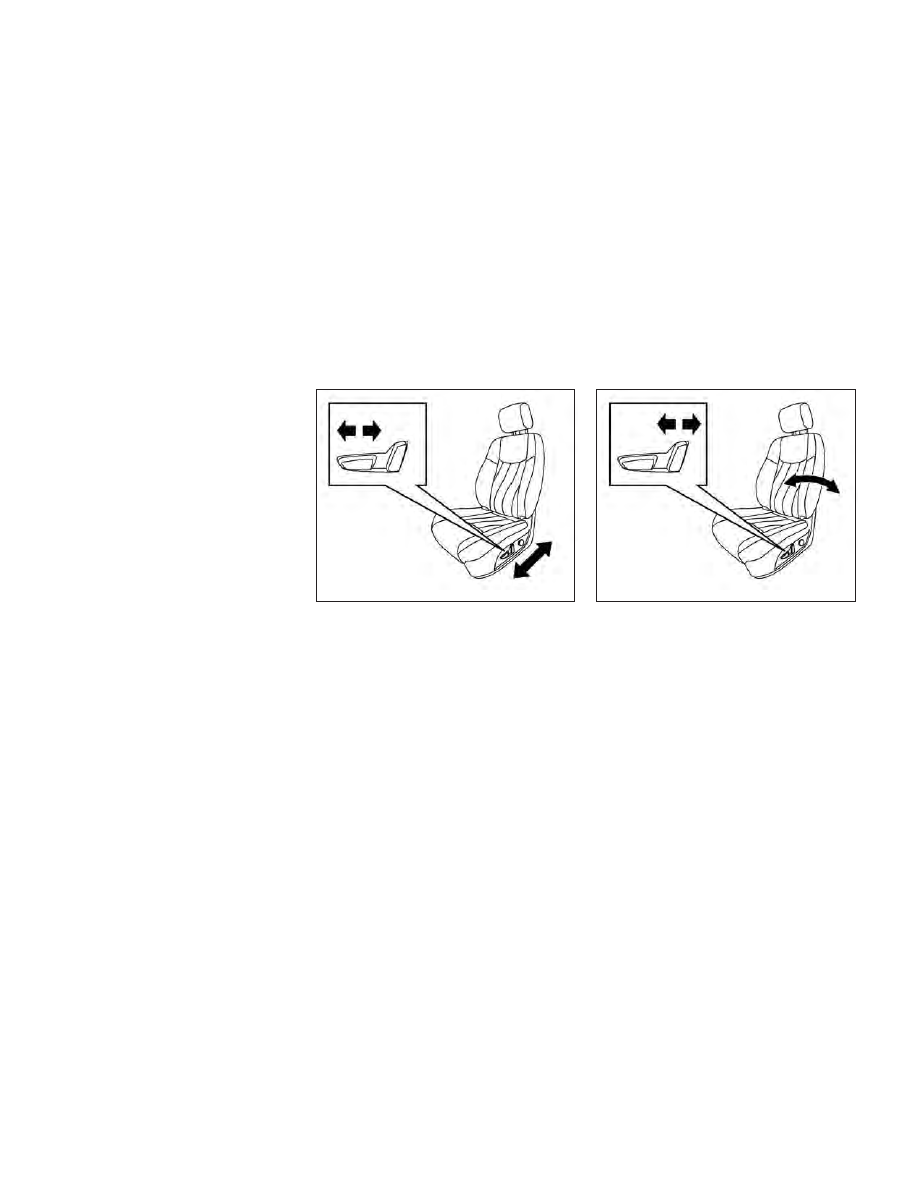

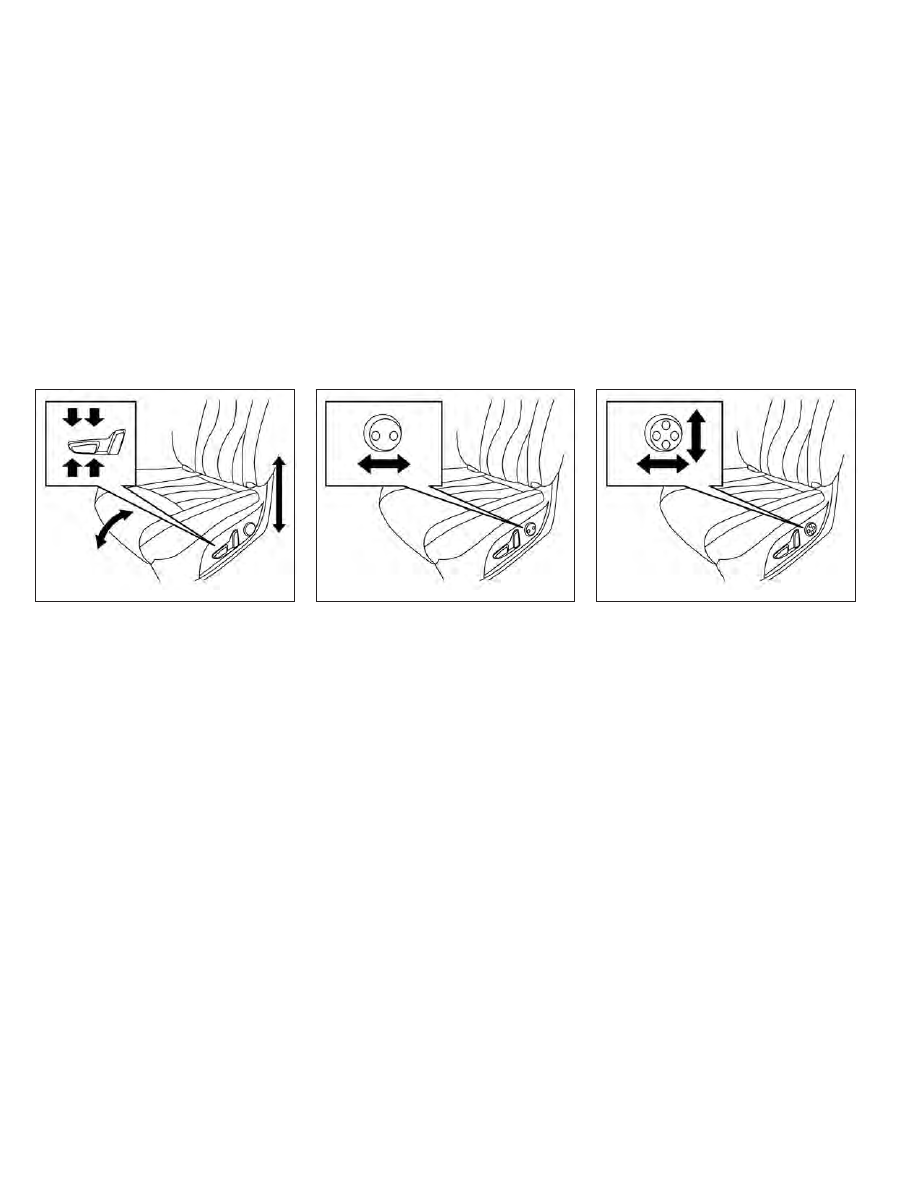

Front power seat adjustment . . . . . . . . . . . . . . . . . . 1-3
Rear bench seat adjustment . . . . . . . . . . . . . . . . . . . 1-5
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Flexible seating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

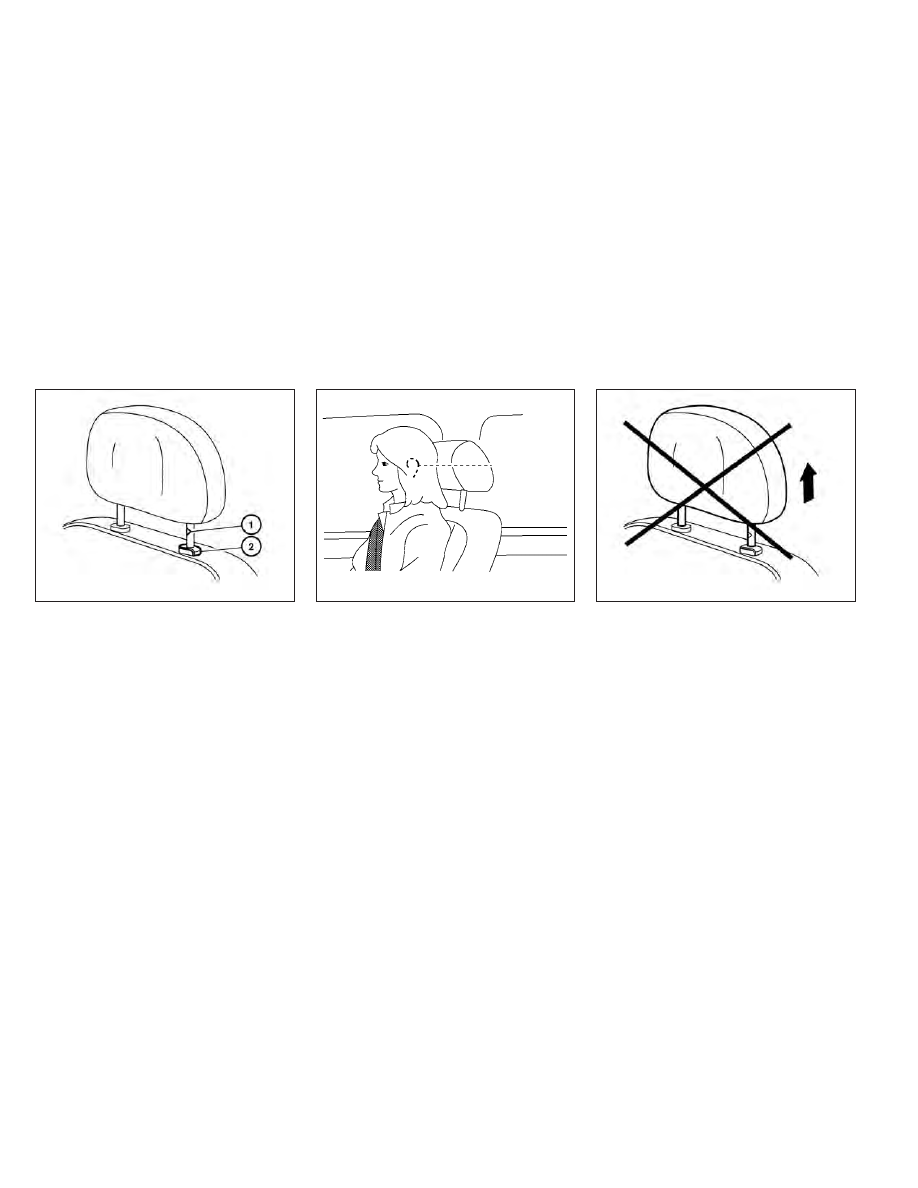

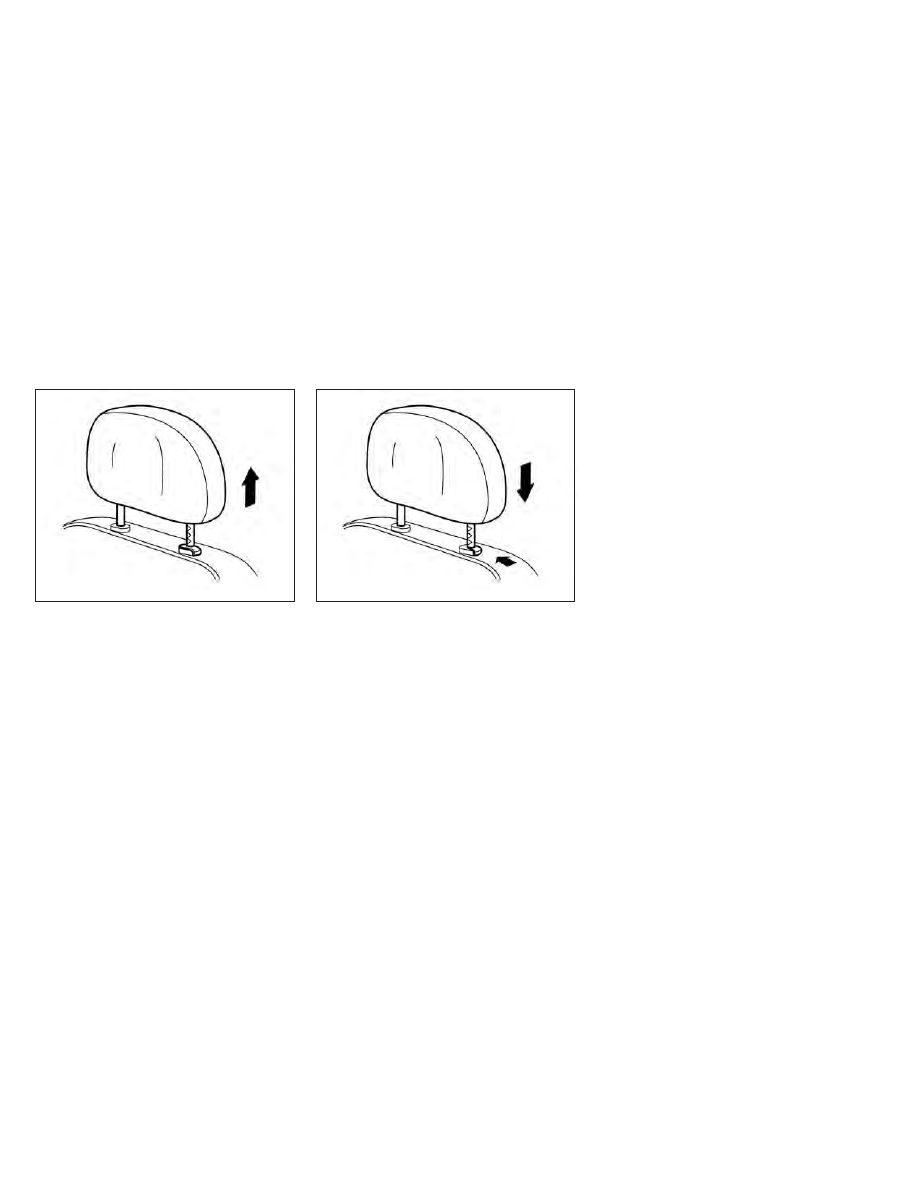

Head restraints/headrests . . . . . . . . . . . . . . . . . . . . . . . 1-7

Adjustable head restraint/headrest
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Non-adjustable head restraint/headrest
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12

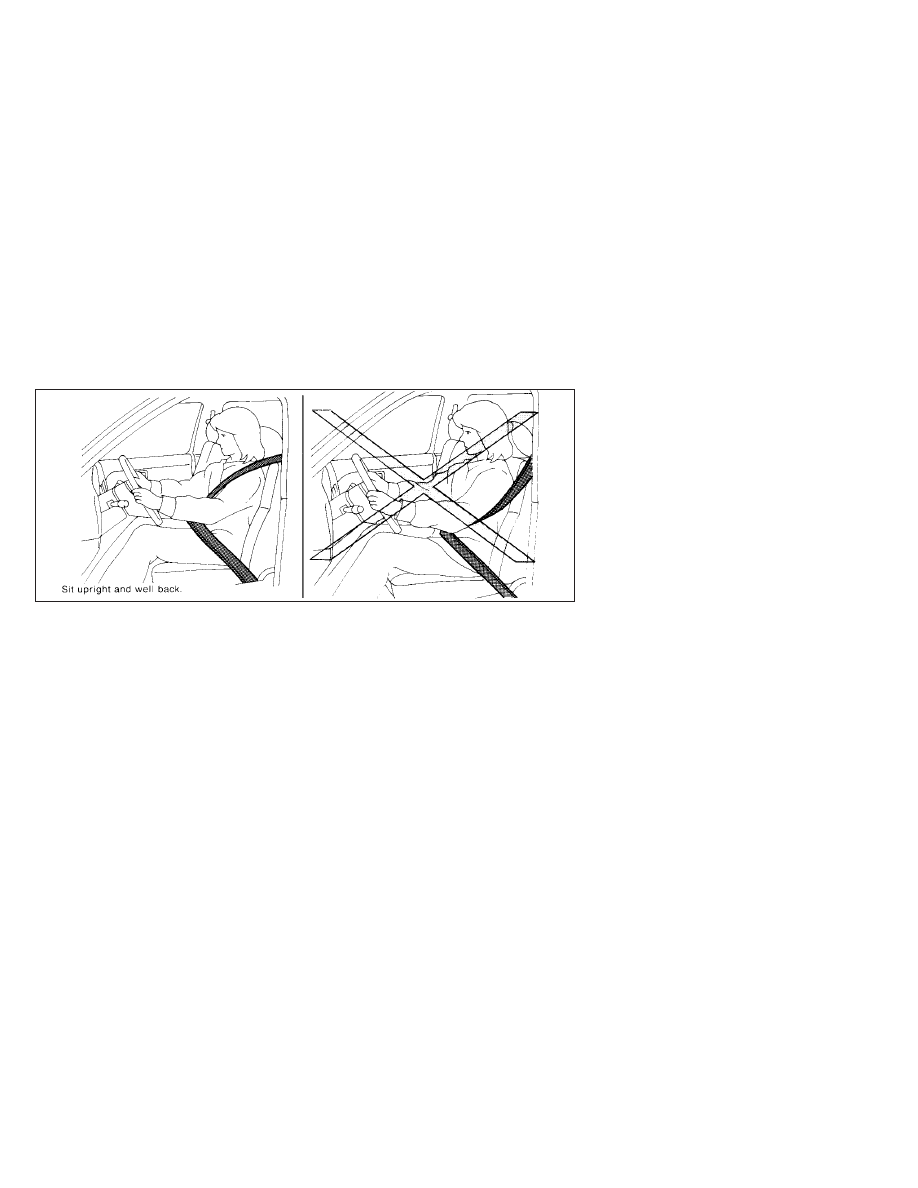

Precautions on seat belt usage . . . . . . . . . . . . . . .1-12
Seat belt warning light and chime . . . . . . . . . . . . .1-15
Pregnant women . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15
Injured persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16
Three-point type seat belt with retractor . . . . . .1-16
Seat belt extenders . . . . . . . . . . . . . . . . . . . . . . . . . .1-19
Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . .1-19

Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20

Infants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20

Small Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
Larger children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-21

Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-22

Precautions on child restraints . . . . . . . . . . . . . . . .1-22
LATCH (Lower Anchors and Tethers for
CHildren) system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
Rear-facing child restraint installation
using LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-27
Rear-facing child restraint installation
using the seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 1-29
Forward-facing child restraint installation
using LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-31
Forward-facing child restraint installation
using the seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-38

Supplemental Restraint System (SRS) . . . . . . . . . . . .1-41

Precautions on SRS . . . . . . . . . . . . . . . . . . . . . . . . . .1-41
Supplemental air bag warning labels . . . . . . . . . .1-61
Supplemental air bag warning light . . . . . . . . . . 1-62

Pop-up engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-63

Pop-up engine hood activation
conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-64

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.

For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat properly. For
additional information, see “Precautions
on seat belt usage” (P. 1-12).

After adjustment, gently rock in the seat
to make sure it is securely locked.

Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children could
become involved in serious accidents.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.

Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of control
of the vehicle.

The seatback should not be reclined any
more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined,
the risk of sliding under the lap belt and
being injured is increased.

CAUTION

When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damage.

ARS1152

SEATS

1-2

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT POWER SEAT
ADJUSTMENT

Operating tips

• The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.

• Do not operate the power seat switch for a

long period of time when the engine is off.
This will discharge the battery.

For additional information, see “Memory
seat” (P. 3-37).

Forward and backward

Moving the switch as shown will slide the
seat forward or backward to the desired
position.

Reclining

Move the recline switch as shown until the
desired angle is obtained.

The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, see
“Precautions on seat belt usage” (P. 1-12).
Also, the seatback can be reclined to allow
occupants to rest when the vehicle is parked.

LRS3531

LRS3530

Safety-Seats, seat belts and supplemental restraint system

1-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat lifter and tilt

Move the front part of the switch as shown
to adjust the angle of the seat cushion. Move
the back part of the switch as shown to
adjust the height of the seat.

Lumbar support (if so equipped)

The lumbar support feature provides adjust-
able lower back support to the driver and
passenger (if so equipped).

Move the switch forward to increase the
lumbar support or rearward to decrease the
lumbar support.

Move the switch up or down to adjust the
height of the lumbar. Move the switch for-
ward to increase the lumbar support or rear-
ward to decrease the lumbar support.

NOTE:

Moving the switch forward increases the
lumbar support on the last height activated
position.

LRS3554

LRS3046

Type A (if so equipped) (Driver’s seat only)

LRS3480

Type B (if so equipped) (Driver’s and

passenger’s seat)

1-4

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REAR BENCH SEAT ADJUSTMENT
Forward and backward

Pull the center of the bar

O

1

up and hold it

while you slide the seat forward or backward
to the desired position. Release the bar to
lock the seat in position.

Reclining

To recline the seatback, pull up on the lever

O

2

and lean back. To bring the seatback for-

ward, pull the lever

O

2

up and lean your body

forward. Release the lever to lock the seat-
back in position.

The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, see “Pre-
cautions on seat belt usage” (P. 1-12). Also,
the seatback can be reclined to allow occu-
pants to rest when the vehicle is parked.

WARNING

After adjustment, gently rock in the seat
to make sure it is securely locked.

Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.

For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat and adjust the seat belt
properly. For additional information,
see “Precautions on seat belt usage”
(P. 1-12).

ARMREST

The rear bench seat comes equipped with an
armrest. Pull the armrest down as shown.

LRS2988

LRS3336

Safety-Seats, seat belts and supplemental restraint system

1-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FLEXIBLE SEATING

WARNING

Never allow anyone to ride in the cargo
area or on the rear seats when they are in
the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.

Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.

Do not allow more than one person to use
the same seat belt.

Do not fold down the rear seats when
occupants are in the rear seat area or any
luggage is on the rear seats.

Make sure that the seat path is clear

before moving the seat.

Be careful not to allow hands or feet

to get caught or pinched in the seat.

Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been removed
for any reason.

If the head restraints/headrests are
removed for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.

When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position.
If they are not completely secured, pas-
sengers may be injured in an accident or
sudden stop.

Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured cargo
could cause personal injury.

Folding the rear bench seat

To fold the rear bench seat flat for maximum
cargo hauling:

1. Remove any object from the rear seat sit-

ting area

2. Move each side of the rear seat completely

backwards. For additional information, see
“Forward and backward” (P. 1-5).

3. Make sure that the head restraints/

headrests are lowered. For additional infor-
mation, see “Lower” (P. 1-11).

LRS3047

Rear seat shown

1-6

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Stow the rear seat belts in the seat belt

hooks found on the sides of the vehicle.

5. Lift up on the recline lever on the side of

the outboard seats or pull the lever on
either side of the cargo area to fold the
seatbacks flat.

• If one of the rear seatbacks does not

fold flat completely, move the corre-
sponding front power seat forward,
push up the seatback until it latches in
place and remove the head restraints/
headrests. For additional information,
see “Remove” (P. 1-9).

6. To return the rear bench seats to a seating

position, push up on the seatback until it
latches in place.

WARNING

Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalk, ex-
cept for genuine INFINITI accessories spe-
cifically tested for use with the vehicle’s
head restraint/headrest stalk. Do not re-
move the head restraint/headrest. Do not
use the seat if the head restraint/headrest
has been removed. If the head restraint/
headrest was removed, reinstall and prop-
erly adjust the head restraint/headrest
before an occupant uses the seating posi-
tion. Failure to follow these instructions
can reduce the effectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.

LRS3008

Cargo area shown

HEAD RESTRAINTS/HEADRESTS

Safety-Seats, seat belts and supplemental restraint system

1-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

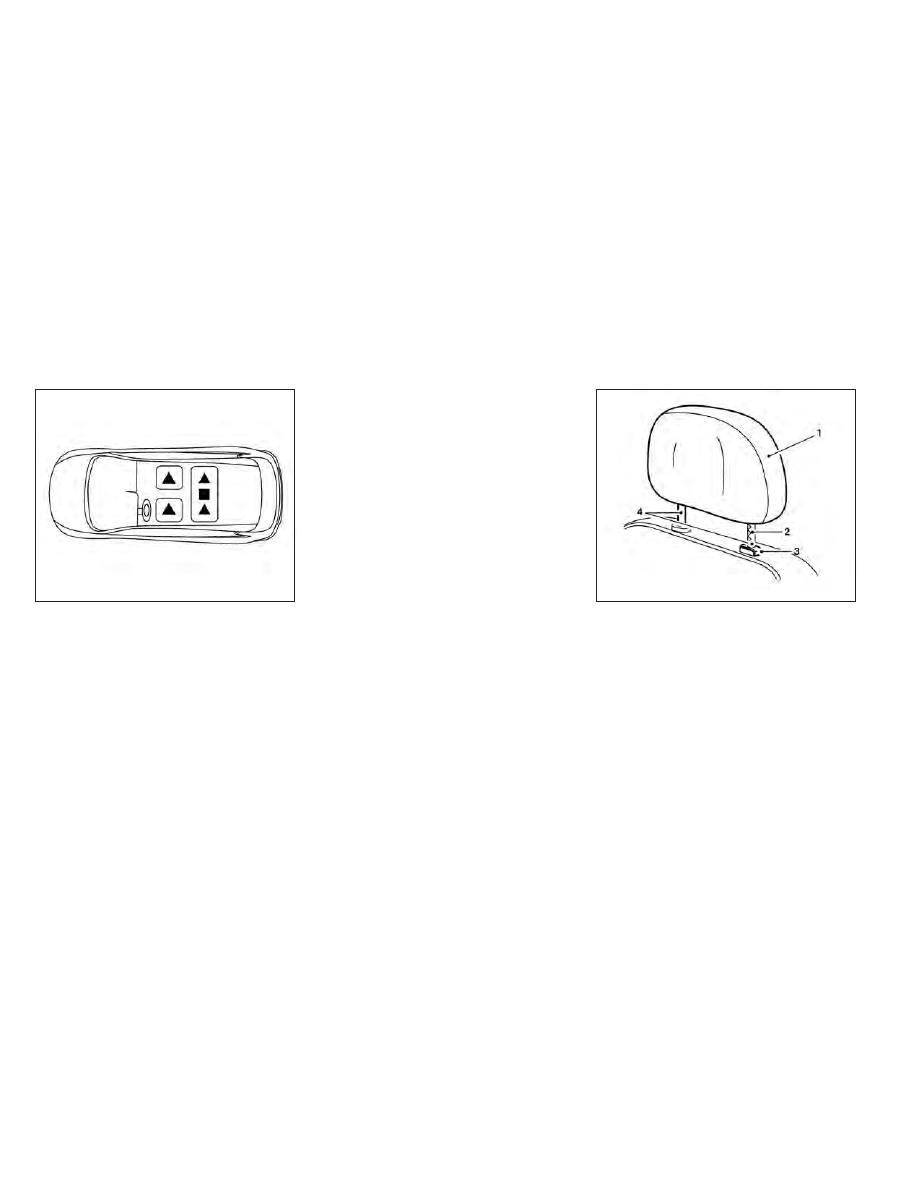

The illustration shows the seating positions
equipped with head restraints/headrests.

Indicates the seating position is equipped

with a head restraint.

쮿

Indicates the seating position is equipped

with a headrest.

+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).

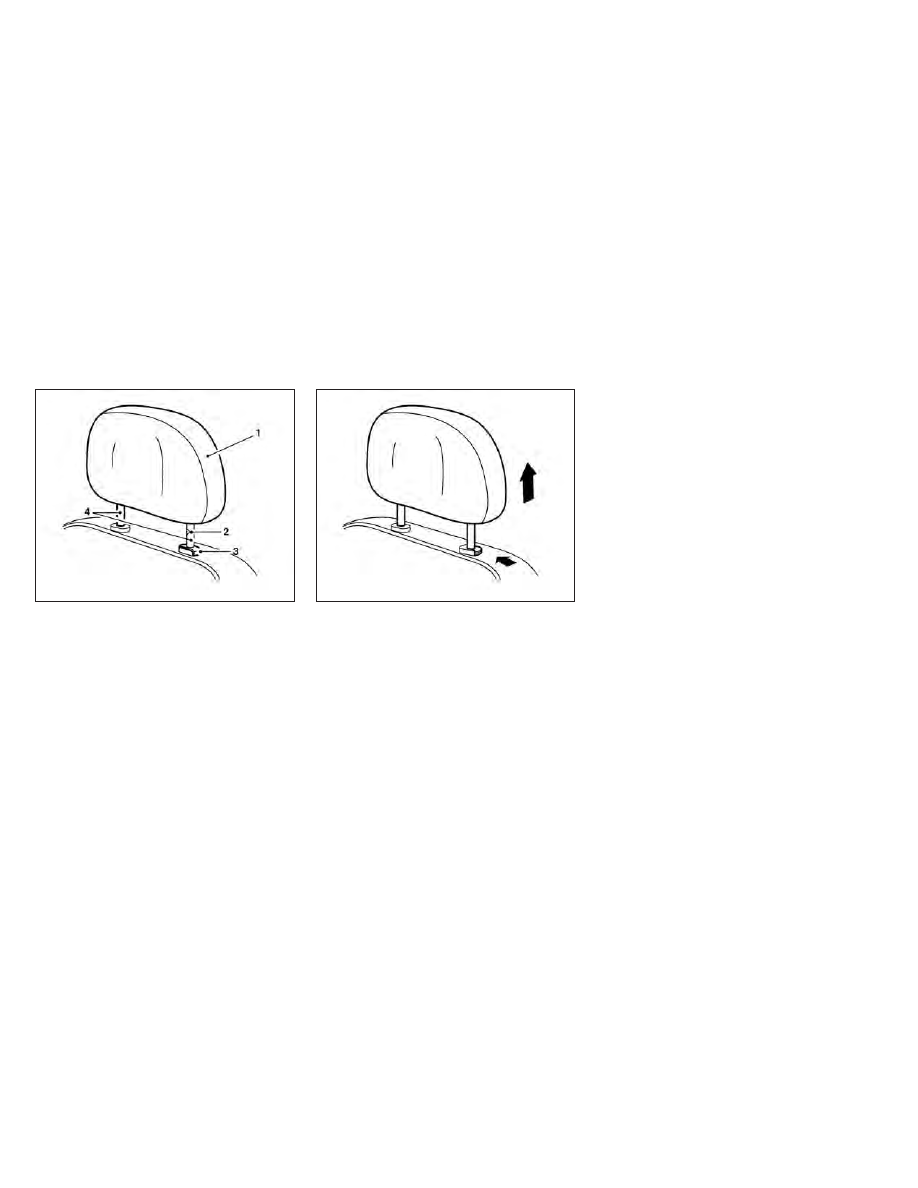

• Your vehicle is equipped with a head

restraint/headrest that may be integrated,
adjustable or non-adjustable.

• Adjustable head restraints/headrests have

multiple notches along the stalk(s) to lock
them in a desired adjustment position.

• The

non-adjustable

head

restraints/

headrests have a single locking notch to
secure them to the seat frame.

• Proper Adjustment:

– For the adjustable type, align the head

restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.

– If your ear position is still higher than the

recommended alignment, place the head
restraint/headrest

at

the

highest

position.

• If the head restraint/headrest has been re-

moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.

ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS

1. Removable head restraint/headrest

2. Multiple notches

3. Lock knob

4. Stalks

LRS2403

LRS2300

1-8

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS

1. Removable head restraint/headrest

2. Single notch

3. Lock knob

4. Stalks

REMOVE

Use the following procedure to remove the
head restraint/headrest:

1. Pull the head restraint/headrest up to the

highest position.

2. Push and hold the lock knob.

3. Remove the head restraint/headrest from

the seat.

4. Store the head restraint/headrest prop-

erly in a secure place so it is not loose in
the vehicle.

5. Reinstall and properly adjust the head

restraint/headrest before an occupant
uses the seating position.

LRS2299

LRS2302

Safety-Seats, seat belts and supplemental restraint system

1-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTALL

1. Align the head restraint/headrest stalks

with the holes in the seat. Make sure that
the head restraint/headrest is facing the
correct direction. The stalk with the notch
(notches)

O

1

must be installed in the hole

with the lock knob

O

2

.

2. Push and hold the lock knob and push the

head restraint/headrest down.

3. Properly

adjust

the

head

restraint/

headrest before an occupant uses the
seating position.

ADJUST

For adjustable head restraint/headrest

Adjust the head restraint/headrest so the
center is level with the center of your ears.
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.

For non-adjustable head restraint/headrest

Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seating
position.

LRS2303

WRS0134

LRS2351

1-10

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Raise

To raise the head restraint/headrest, pull it
up.

Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seating
position.

Lower

To lower, push and hold the lock knob and
push the head restraint/headrest down.

Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seating
position.

LRS2305

LRS2306

Safety-Seats, seat belts and supplemental restraint system

1-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRECAUTIONS ON SEAT BELT
USAGE

If you are wearing your seat belt properly
adjusted and you are sitting upright and well
back in your seat with both feet on the floor,
your chances of being injured or killed in a
collision and/or the severity of injury may be
greatly reduced. INFINITI strongly encour-
ages you and all of your passengers to buckle
up every time you drive, even if your seating
position includes a supplemental air bag.

Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.

SSS0136

SEAT BELTS

1-12

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Every person who drives or rides in this
vehicle should use a seat belt at all times.
Children should be in the rear seats and in
an appropriate restraint.

WARNING

The seat belt should be properly adjusted
to a snug fit. Failure to do so may reduce
the effectiveness of the entire restraint
system and increase the chance or sever-
ity of injury in an accident. Serious injury
or death can occur if the seat belt is not
worn properly.

SSS0134

SSS0016

Safety-Seats, seat belts and supplemental restraint system

1-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Always route the shoulder belt over your
shoulder and across your chest. Never
put the belt behind your back, under your
arm or across your neck. The belt should
be away from your face and neck, but not
falling off your shoulder.

Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE
WAIST. A lap belt worn too high could
increase the risk of internal injuries in an
accident.

Be sure the seat belt tongue is securely
fastened to the proper buckle.

Do not wear the seat belt inside out or
twisted. Doing so may reduce its
effectiveness.

Do not allow more than one person to use
the same seat belt.

Never carry more people in the vehicle
than there are seat belts.

If the seat belt warning light glows con-
tinuously or chime continues while the
ignition is turned on with all doors closed
and all seat belts fastened, it may indi-
cate a malfunction in the system. Have
the system checked. It is recommended
that you visit an INFINITI retailer for this
service.

No changes should be made to the seat
belt system. For example, do not modify
the seat belt, add material, or install de-
vices that may change the seat belt
routing or tension. Doing so may affect
the operation of the seat belt system.
Modifying or tampering with the seat
belt system may result in serious per-
sonal injury.

Once the seat belt pretensioner(s) have
activated, they cannot be reused and
must be replaced together with the re-
tractor. It is recommended that you visit
an INFINITI retailer for this service.

All seat belt assemblies, including retrac-
tors and attaching hardware, should be
inspected after any collision. It is recom-
mended that you visit an INFINITI re-
tailer for this service. INFINITI recom-
mends that all seat belt assemblies in use
during a collision be replaced unless the
collision was minor and the belts show no
damage and continue to operate prop-
erly. Seat belt assemblies not in use dur-
ing a collision should also be inspected
and replaced if either damage or im-
proper operation is noted.

All child restraints and attaching hard-
ware should be inspected after any
collision. Always follow the restraint
manufacturer's inspection instructions
and replacement recommendations. The
child restraints should be replaced if they
are damaged.

SSS0014

1-14

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

















Content      ..      1       2         ..



//////////////////////////////////////////
