Infiniti Q70 (2019 year). Instruction

1-52

Safety — Seats, seat belts and supplemental restraint system

SRS air bag

The warning labels

are located on the

surface of the sun visors.

SPA1097

SUPPLEMENTAL AIR BAG
WARNING LIGHT

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag systems,
pretensioners and all related wiring.

When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the SRS air bag
systems are operational.

If any of the following conditions occur, the
air bag and/or pretensioner systems need
servicing:

. The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light

does not come on at all.

Under these conditions, the air bag and/or
pretensioner systems may not operate prop-
erly. They must be checked and repaired. It is
recommended you visit an INFINITI retailer
for this service.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air
bag, side air bag, curtain air bag and/or
pretensioner systems will not operate in
an accident. To help avoid injury to
yourself or others, have your vehicle
checked as soon as possible. It is recom-
mended you visit an INFINITI retailer for
this service.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REPAIR AND REPLACEMENT
PROCEDURE

The front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the supple-
mental air bag warning light will remain
illuminated after inflation has occurred.
These systems should be repaired and/or
replaced as soon as possible. It is recom-
mended you visit an INFINITI retailer for this
service.

When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood or
inside the vehicle.

WARNING

. Once a front air bag, side air bag, or

curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner must also
be replaced. The air bag module and
pretensioner should be replaced. It is

recommended you visit an INFINITI
retailer for this service. However, the
air bag module and pretensioner
system cannot be repaired.

. The front air bag, side air bag, curtain

air bag and the pretensioner system
should be inspected if there is any
damage to the front end or side
portion of the vehicle. It is recom-
mended you visit an INFINITI retailer
for this service.

. If you need to dispose of the supple-

mental air bag or pretensioner or
scrap the vehicle, it is recommended
you visit an INFINITI retailer. Correct
supplemental air bag and seat belt
pretensioner system disposal proce-
dures are set forth in the appropriate
INFINITI Service Instruction. Incorrect
disposal procedures could cause per-
sonal injury.

Safety — Seats, seat belts and supplemental restraint system

1-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

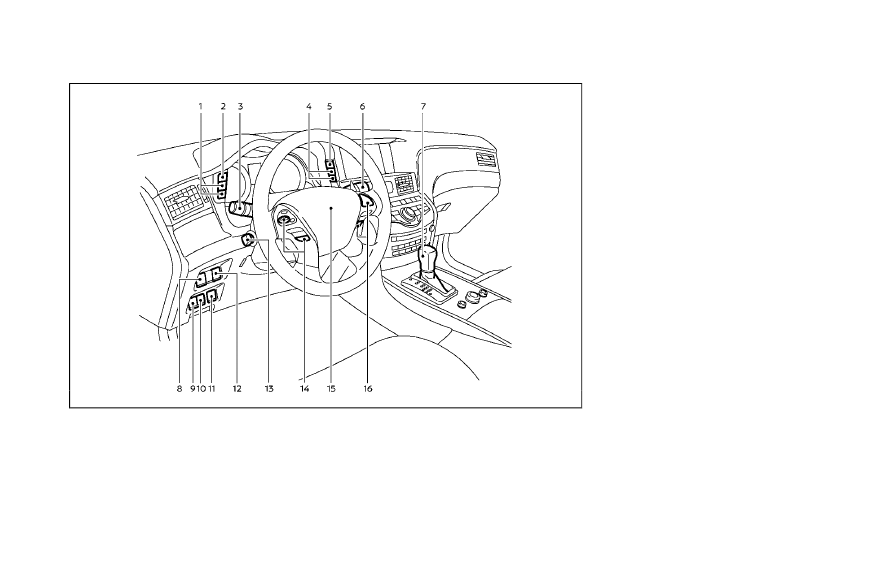

JVC1098X

Instrument brightness control switch
(P.2-38)

Adaptive Front lighting System (AFS)
switch (if so equipped) (P.2-36)

Headlight, fog light and turn signal
switch (P.2-34)

Trip computer switch (P.2-27)

TRIP/RESET switch for twin trip od-
ometer (P.2-7)

Windshield wiper and washer switch
(P.2-32)

Shift lever (P.5-15)

Vehicle Dynamic Control (VDC) OFF
switch (P.5-123)

Rear sunshade switch (if so equipped)
(P.2-55)

10. Steering heater switch (if so equipped)

(P.2-40)

11. Trunk lid release switch (P.3-18)
12. W a r n i n g s y s t e m s s w i t c h ( i f s o

equipped) (P.5-22, P.5-32)

13. Electric tilting/telescopic steering

wheel lever (P.3-24)

14. Steering-wheel-mounted controls (left

side)
- Audio control steering switch*
- Voice recognition system switch*
- Bluetooth

Hands-Free Phone Sys-

tem switch*

15. Steering wheel

— Horn (P.2-40)
— Driver supplemental air bag (P.1-38)
— Heated steering wheel (if so
equipped) (P.2-40)

16. Steering-wheel-mounted controls

(right side)
— Cruise control switches (P.5-65)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-67)
— Dynamic driver assistance switch (if
so equipped) (P.5-22, P.5-41, P.5-88)

Instruments and controls

2-3

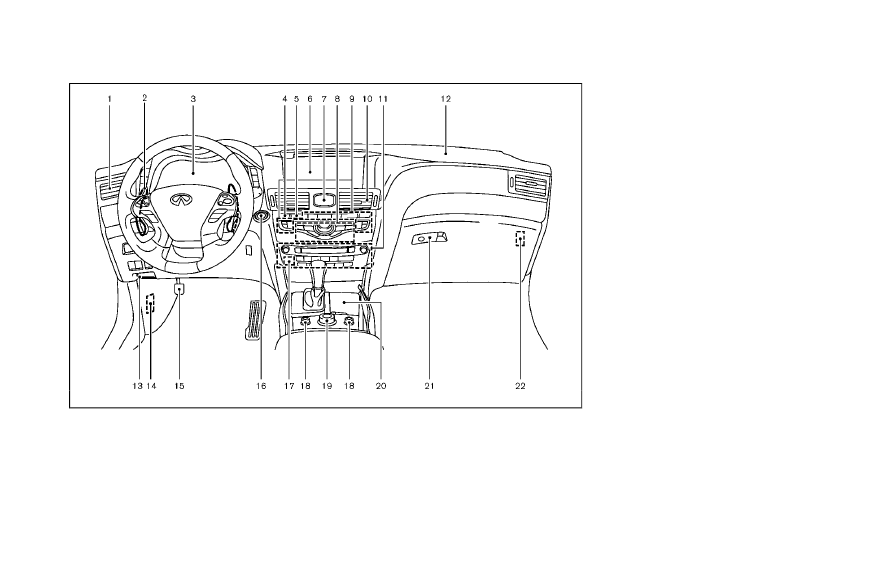

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVO0130X

Side ventilator (P.4-32)

Paddle shifter (if so equipped) (P.5-17)

Meters and gauges (P.2-6)

Hazard warning flasher switch (P.6-2)

Rear window and outside mirror
defroster switch (P.2-34)

Center display*
— Navigation system* (if so equipped)
— Around View

Monitor (if so

equipped) (P.4-10)
— RearView Monitor (if so equipped)
(P.4-3)

Clock (P.2-45)

Center multi-function control panel*

Automatic climate control system
(P.4-32)

10. Center ventilator (P.4-32)
11. Audio system*
12. Front passenger supplemental air bag

(P.1-38)

13. Hood release handle (P.3-17)
14. Fuse box cover (P.8-23)
15. Parking brake

— Parking (P.5-19)

16. Push-button ignition switch (P.5-10)
17. Front passenger air bag status light

(P.1-46)

18. Climate controlled seat switch (if so

equipped) (P.2-43) or Seat heater
switch (if so equipped) (P.2-41)

19. INFINITI Drive Mode Selector (P.5-20)
20. Storage box (P.2-50)

— Power outlet (P.2-46)

21. Glove box lid release handle (P.2-48)
22. Trunk release power cancel switch

(P.3-20)

Refer to the INFINITI InTouch

Own-

er’s Instruction.

Instruments and controls

2-5

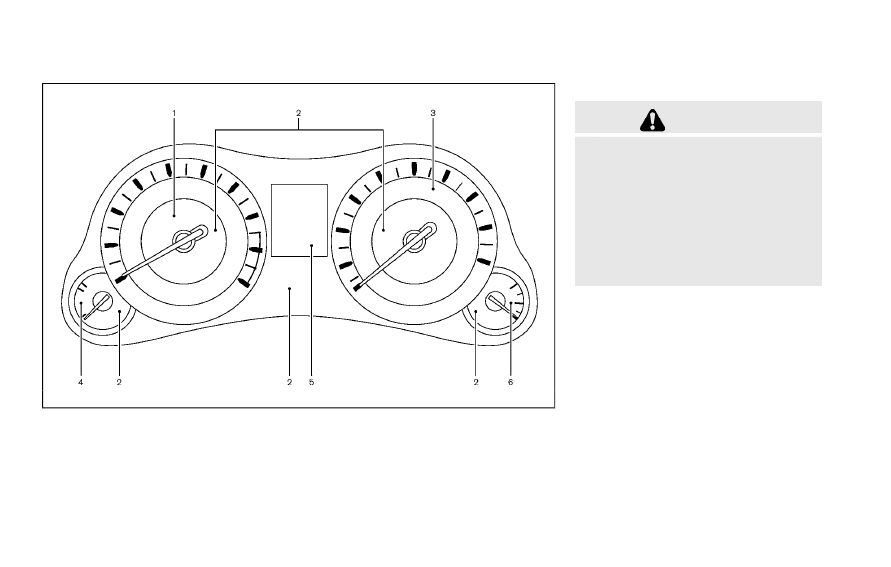

INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-6

Instruments and controls

SIC4317

Tachometer (P.2-8)

Warning/Indicator lights (P.2-10)

Speedometer (P.2-7)

Engine coolant temperature gauge
(P.2-8)

Vehicle information display (P.2-20)/

Odometer/twin trip odometer (P.2-7)

Fuel gauge (P.2-9)

*: The needle indicators in the speedometer,
tachometer, engine coolant temperature
gauge and fuel gauge may move slightly
after the ignition switch is pushed to the

LOCK position. This is not a malfunction.

CAUTION

. For cleaning, use a soft cloth, dam-

pened with water. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or cause discoloration to the
lens.

. Do not spray any liquid such as water

on the meter lens. Spraying liquid
may cause the system to malfunction.

METERS AND GAUGES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

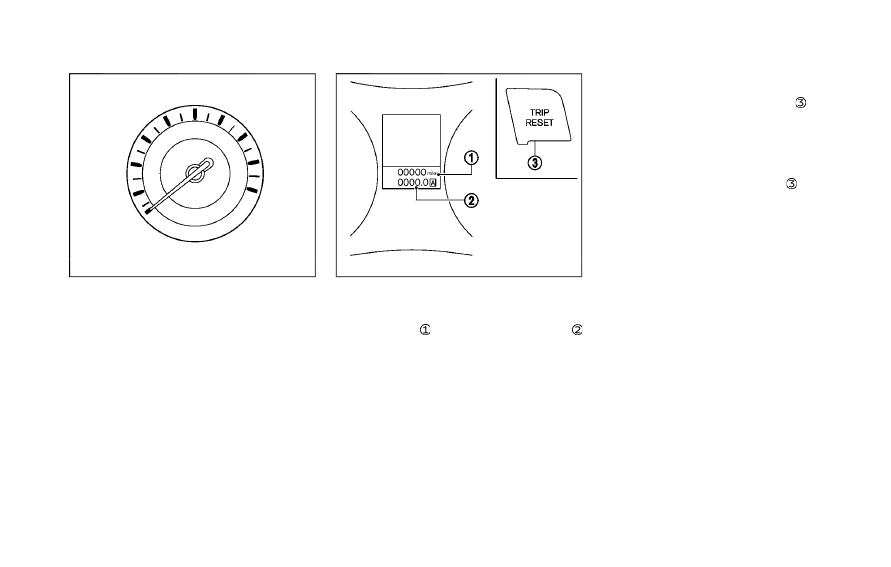

SIC4318

Speedometer

SPEEDOMETER AND OD-
OMETER

Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per
hour (km/h).

JVI1126X

Odometer/twin trip odometer

Odometer/twin trip odometer

The odometer

and twin trip odometer

are displayed on the vehicle information
display when the ignition switch is in the
ON position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance
of individual trips.

Changing the display:
Pushing the TRIP RESET switch

on the

right of the combination meter panel
changes the display as follows:

TRIP A

? TRIP B ? TRIP A

Resetting the trip odometer:
Pushing the TRIP RESET switch

for more

than 1 second resets the trip odometer to
zero.

Average fuel economy and distance to
empty information is also available. (See
“Vehicle information display” (P.2-20).)

Instruments and controls

2-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-8

Instruments and controls

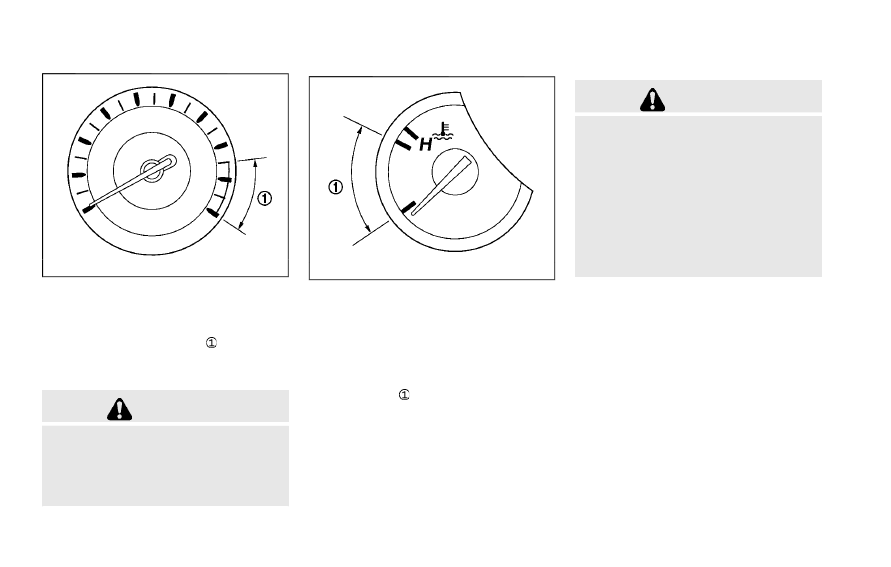

SIC4320

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev
the engine into the red zone

The scale length and the red zone vary with
the engine model.

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

SIC4321

ENGINE COOLANT TEMPERA-
TURE GAUGE

The gauge indicates the engine coolant
temperature.

The engine coolant temperature is within the
normal range when the gauge needle points
within the zone

shown in the illustration.

The engine coolant temperature varies with
the outside air temperature and driving
conditions.

CAUTION

If the gauge indicates the engine coolant
temperature is near the hot (H) end of
the normal range, reduce vehicle speed
to decrease the temperature. If the
gauge is over the normal range, stop
the vehicle as soon as safely possible and
let the engine idle. If the engine is
overheated, continued operation of the
vehicle may seriously damage the engine.
See “If your vehicle overheats” (P.6-12)
for immediate action required.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

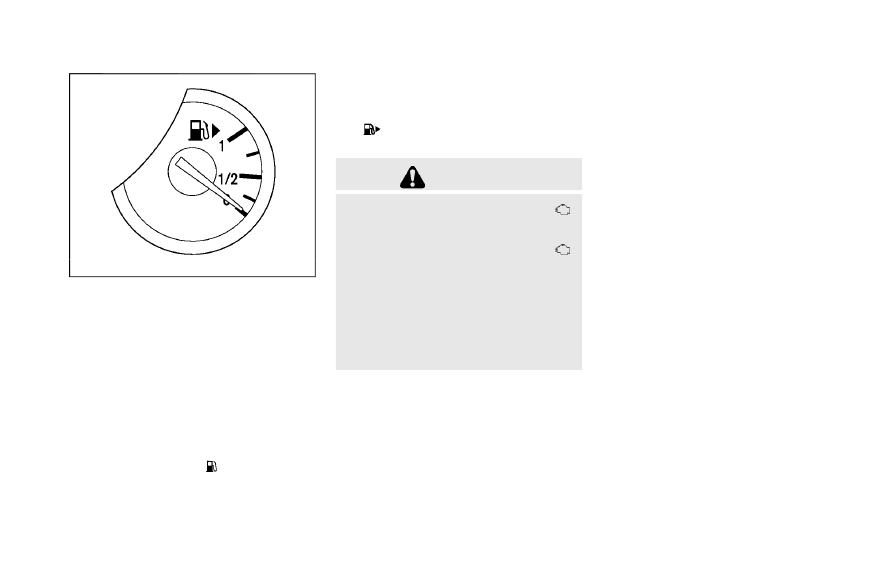

JVI0846X

FUEL GAUGE

The gauge indicates the approximate fuel
level in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down
hills.

The gauge needle returns to “0” (Empty)
after the ignition switch is pushed to the
OFF position.

Refill the fuel tank before the gauge
registers “0” (Empty).

The low fuel warning

appears on the

vehicle information display when the fuel
level is getting low. Refuel as soon as it is
convenient, preferably before the gauge

reaches “0”. There will be a small reserve of
fuel in the tank when the fuel gauge needle
reaches “0”.

The

indicates that the fuel-filler door is

located on the right side of the vehicle.

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light should turn off. If the light
remains on after a few driving trips,
have the vehicle inspected. It is
recommended you visit an INFINITI
retailer for this service.

. For additional information, see “Mal-

function Indicator Light (MIL)” (P.2-
18).

Instruments and controls

2-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-10

Instruments and controls

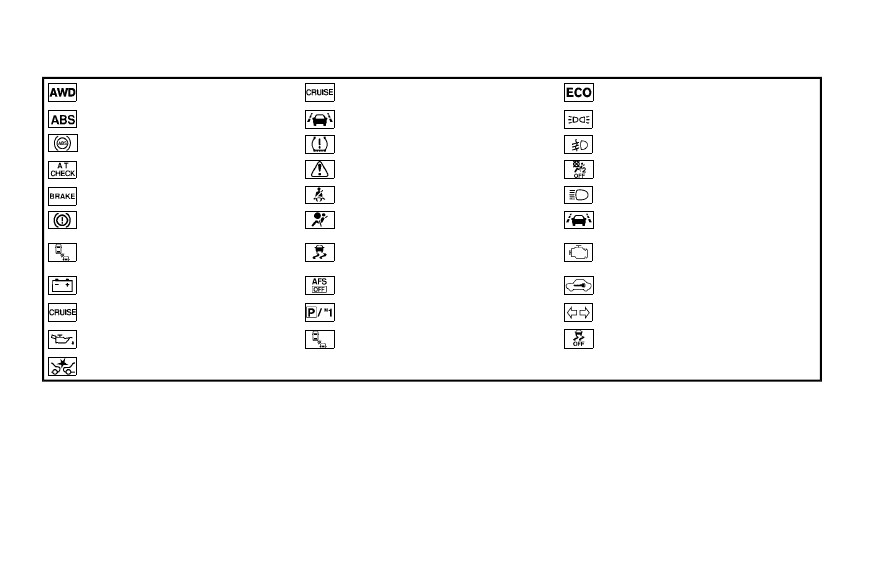

All-Wheel Drive (AWD) warning light (if
so equipped)

Intelligent Cruise Control (ICC) system
warning light (orange) (if so equipped)

ECO drive indicator light

Anti-lock Braking System (ABS) warning
light

Lane Departure Warning (LDW) indica-
tor light (orange) (if so equipped)

Exterior light indicator

Low tire pressure warning light

Front fog light indicator light

Automatic transmission check warning
light

Master warning light

Front passenger air bag status light

Brake warning light

Seat belt warning light and chime

High beam indicator light

Supplemental air bag warning light

Lane Departure Prevention (LDP) ON
indicator light (green) (if so equipped)

Blind Spot Warning (BSW)/Blind Spot
Intervention (BSI) system warning light
(orange) (if so equipped)

Vehicle Dynamic Control (VDC) warning
light

Malfunction Indicator Light (MIL)

Charge warning light

Adaptive Front lighting System (AFS) off
indicator light (if so equipped)

Security indicator light

Distance Control Assist (DCA) system
warning light (orange) (if so equipped)

Automatic transmission (AT) position
indicator light

Turn signal/hazard indicator lights

Engine oil pressure warning light

Blind Spot Intervention (BSI) ON indica-
tor light (green) (if so equipped)

Vehicle Dynamic Control (VDC) off in-
dicator light

Forward Emergency Braking (FEB) sys-
tem warning light (if so equipped)

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:

The following lights (if so equipped) come on
briefly and then go off:

If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-
tion. It is recommended you have the system
checked by an INFINITI retailer.

Some indicators and warnings are also
displayed on the vehicle information display
between the speedometer and tachometer.
(See “Vehicle information display” (P.2-20).)

WARNING LIGHTS

All-Wheel Drive (AWD) warn-

ing light (if so equipped)

The

warning light comes on when the

ignition switch is pushed to ON. It turns off
soon after the engine is started.

If the Intelligent AWD system malfunctions,

or the diameter of the front and the rear
wheels are different, the warning light will
either remain illuminated or blink. (See “In-
telligent All-Wheel Drive (AWD)” (P.5-118).)

CAUTION

. If the warning light comes on while

driving, there may be a malfunction in
the Intelligent AWD system. Reduce
the vehicle speed and have your
vehicle checked as soon as possible.
It is recommended you visit an
INFINITI retailer for this service.

. If the AWD warning light blinks on

when you are driving:

— blinks rapidly (about twice a

second):

Pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to
prevent the AWD system from
malfunctioning. If the warning
light turns off, you can drive
again.

— blinks slowly (about once every 2

seconds):

Pull off the road in a safe area,
and idle the engine. Check that all
tire sizes are the same, tire pres-

sure is correct and tires are not
worn.

. If the warning light is still on after the

above operations, have your vehicle
checked as soon as possible. It is
recommended you visit an INFINITI
retailer for this service.

Anti-lock Braking

System (ABS) warning light

When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.

If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
you visit an INFINITI retailer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock
assistance. (See “Brake system” (P.5-121).)

Instruments and controls

2-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-12

Instruments and controls

Automatic transmission check

warning light

When the ignition switch is pushed to the
ON position, the light comes on for 2
seconds. If the light comes on at any other
time, it may indicate the transmission is not
functioning properly. It is recommended you
visit an INFINITI retailer to check and repair
the transmission.

Brake warning light

This light functions for both the parking
brake and the foot brake systems.

Parking brake indicator:
When the ignition switch is in the ON
position, the light comes on when the
parking brake is applied.

Low brake fluid warning light:
When the ignition switch is in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine is
running with the parking brake not applied,
stop the vehicle and perform the following:

1. Check the brake fluid level. If brake fluid

is necessary, add fluid and have the
system checked. It is recommended you
have this service performed by an
INFINITI retailer. (See “Brake fluid”

(P.8-14).)

2. If the brake fluid level is correct, have the

warning system checked. It is recom-
mended you have this service performed
by an INFINITI retailer.

Anti-lock Braking System (ABS) warning
indicator:
When the parking brake is released and the
brake fluid level is sufficient, if both the
brake warning light and the Anti-lock Brak-
ing System (ABS) warning light illuminate, it
may indicate the ABS is not functioning
properly. Have the brake system checked,
and if necessary repaired. It is recommended
you visit an INFINITI retailer for this service.
(See “Anti-lock Braking System (ABS) warn-
ing light” (P.2-11).)

WARNING

. Your brake system may not be work-

ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.

. Pressing the brake pedal with the

engine stopped and/or low brake

fluid level may increase your stopping
distance and braking will require
greater pedal effort as well as pedal
travel.

. If the brake fluid level is below the

minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended you visit an INFINITI
retailer for this service.

Blind Spot Warning (BSW)/

Blind Spot Intervention

(BSI) sys-

tem warning light (orange; if so
equipped)

When the ignition switch is placed in the ON
position, the indicator light will first illumi-
nate in orange and turn green before turning
off. This indicates that the Blind Spot
Warning (BSW) and Blind Spot Interven-
tion

(BSI) systems are operational.

If the light comes on in orange and remains
on, it may indicate that the BSW and BSI
systems are not functioning properly.
Although the vehicle is still driveable, have
the systems checked. It is recommended you
visit an INFINITI retailer for this service. See
“Blind Spot Warning (BSW)” (P.5-32) and
“Blind Spot Intervention

(BSI)” (P.5-41).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Charge warning light

If the light comes on while the engine is
running, it may indicate the charging system
is not functioning properly. Turn the engine
off and check the alternator belt. If the belt is
loose, broken, missing or if the light remains
on, have your vehicle serviced immediately. It
is recommended you visit an INFINITI re-
tailer for this service.

CAUTION

Do not continue driving if the alternator
belt is loose, broken or missing.

Distance Control Assist (DCA)

system warning light (orange; if so
equipped)

This light comes on if there is a malfunction
in the Distance Control Assist (DCA) system.

If the warning light illuminates, park the
vehicle in a safe place. Turn the engine off,
restart the engine, resume driving and turn
on the DCA system again.

If it is not possible to turn on the system or
the warning light stays on, it may indicate
that the system is malfunctioning. Although

the vehicle is still driveable under normal
conditions, have the vehicle checked. It is
recommended you visit an INFINITI retailer
for this service.

Engine oil pressure warning

light

This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop
the engine immediately and call an INFINITI
retailer or other authorized repair shop.

The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level. (See “Engine
oil” (P.8-10).)

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.

Forward Emergency Braking

(FEB) system warning light (if so
equipped)

This

warning light comes on when the

ignition switch is placed in the ON position.
It turns off after the engine is started.

This light illuminates when the Forward
Emergency Braking (FEB) system is set to
OFF on the center display.

If the light illuminates when the FEB system
is ON, it may indicate that the system is
unavailable. See “Forward Emergency Brak-
ing (FEB)” (P.5-101) for more details.

This light will also illuminates if the Active
Trace Control is malfunctioning. Although
the vehicle is still driveable under normal
conditions, have the vehicle checked. It is
recommended you visit an INFINITI retailer
for this service. (See “Vehicle Dynamic Con-
trol (VDC) system” (P.5-123).)

Intelligent Cruise Control (ICC)

system warning light (orange; if so
equipped)

This light comes on if there is a malfunction
in the Intelligent Cruise Control (ICC) sys-
tem.

If the warning light comes on, park the

Instruments and controls

2-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q70 (2019 year). Instruction - part 5
