Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]
SSS0521
FRONT SEAT-MOUNTED SIDE-IM-
PACT SUPPLEMENTAL AIR BAG AND
ROOF-MOUNTED CURTAIN SIDE-IM-
PACT AND ROLLOVER SUPPLEMEN-
TAL AIR BAG SYSTEMS

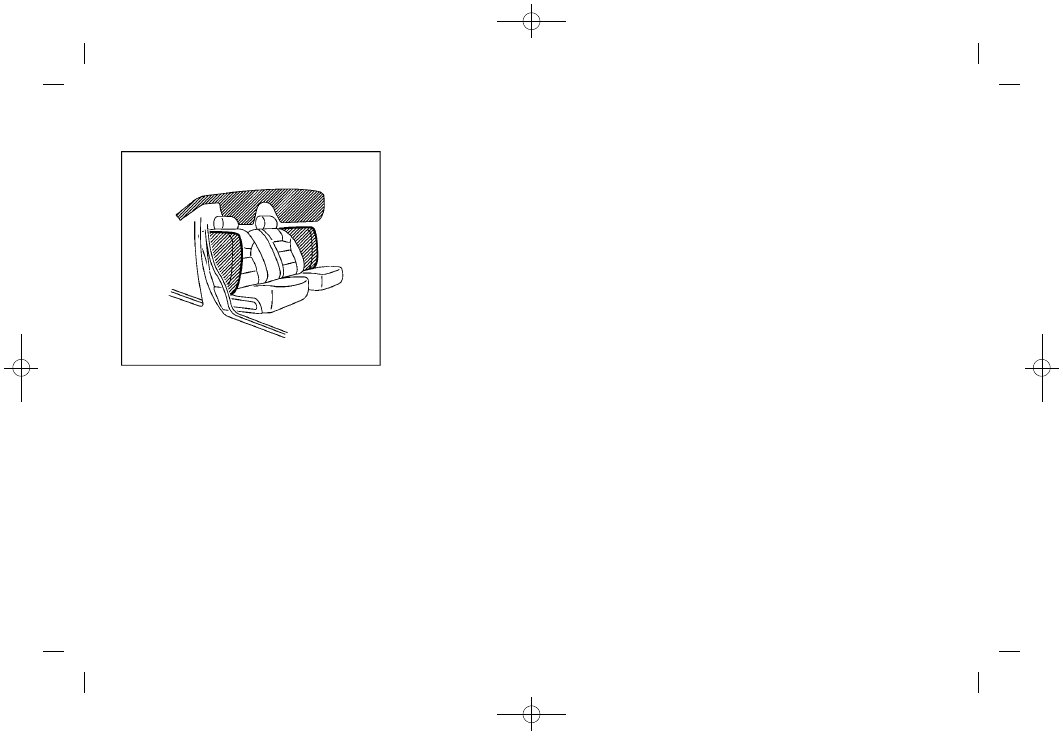

The side air bags are located in the outside
of the seatback of the front seats. The
curtain air bags are located in the side roof
rails. All of the information, cautions and
warnings in this instruction apply and must be
followed. The side air bags and curtain air
bags are designed to inflate in higher
severity side collisions, although they may
inflate if the forces in another type of
collision are similar to those of a higher
severity side impact. They are designed to
inflate on the side where the vehicle is
impacted. They may not inflate in certain
side collisions on the side where the
vehicle is impacted. Curtain air bags are
also designed to inflate in certain types of
rollover collisions or near rollovers.
Vehicle damage (or lack of it) is not always
an indication of proper side air bag and
curtain air bag operation.
When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke
is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it
may cause irritation and choking. Those
with a history of a breathing condition
should get fresh air promptly.
Side air bags, along with the use of seat
belts, help to cushion the impact force on
the chest and pelvic area of the front
occupants. Curtain air bags help to cushion
the impact force to the head of occupants
in the front and rear outboard seating
positions. They can help save lives and
reduce serious injuries. However, side air
bags and curtain air bags may cause
abrasions or other injuries. Side air bags
and curtain air bags do not provide
restraint to the lower body.
The seat belts should be correctly worn and
the driver and passenger seated upright as
far as practical away from the side air bags.
Rear seat passengers should be seated as
far away as practical from the door
finishers and side roof rails. The side air
bags and curtain air bags inflate quickly in
order to help protect the occupants.
Because of this, the force of the side air
bags and curtain air bags inflating can
increase the risk of injury if the occupant is
too close to, or is against, these air bag
modules during inflation. In a rollover, the
curtain air bags on both sides are designed
to inflate. Under both side-impact and
rollover situations, the curtain air bags will
remain inflated for a short period of time.
The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.
After pushing the ignition switch to the ON
position, the supplemental air bag warn-
ing light illuminates. The air bag warning
light will turn off after about 7 seconds if
the systems are operational.
Safety — Seats, seat belts and supplemental restraint system
1-55
