2017 Infiniti QX60/JX (2017 year). Instruction - part 33





All-Wheel Drive (AWD) models

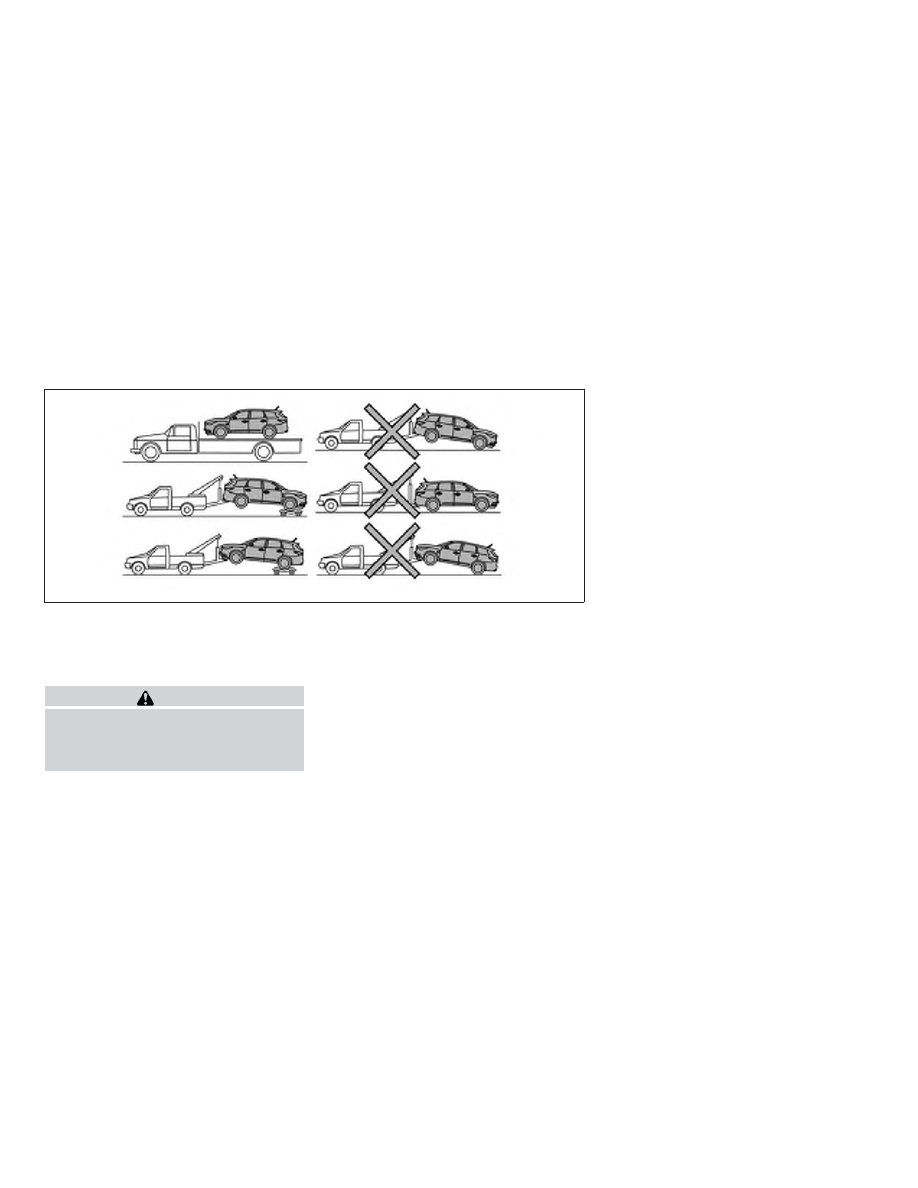

INFINITI recommends that towing dollies be used
when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.

CAUTION

Never tow AWD models with any of the
wheels on the ground as this may cause
serious and expensive damage to the
powertrain.

LCE2212

6-14

In case of emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front-Wheel Drive (FWD) models

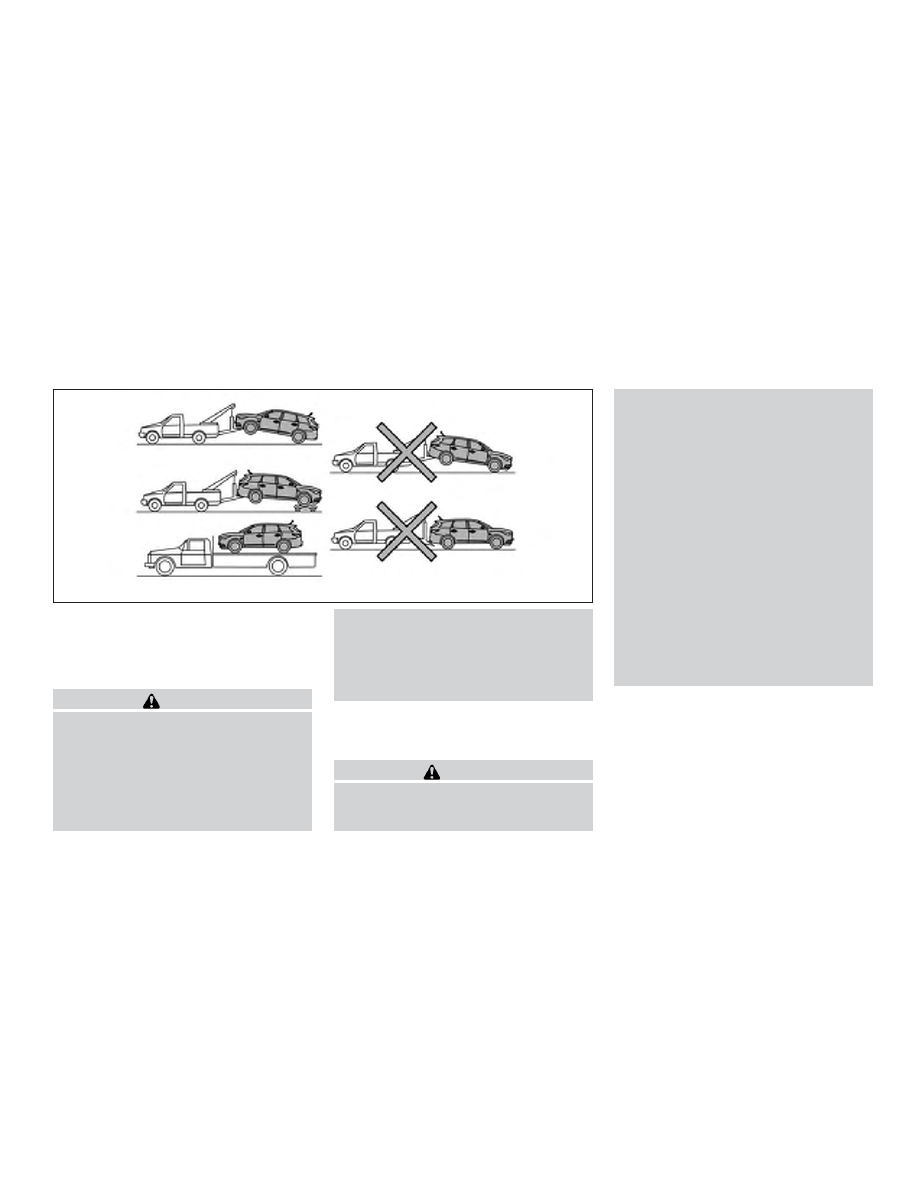

INFINITI recommends that your vehicle be towed
with the driving wheels (front) off the ground or
place the vehicle on a flat bed truck as illustrated.

WARNING

● Never tow your vehicle with the front

wheels on the ground or four wheels on
the ground (forward or backward), as
this may cause serious and expensive
damage to the transmission. If it is nec-
essary to tow the vehicle with the rear
wheels raised always use towing dollies
under the front wheels.

● When towing with the rear wheels on

the ground or on towing dollies, place
the ignition switch in the ACC or ON
position, and secure the steering wheel
in the straight-ahead position with a
rope or similar device.

VEHICLE RECOVERY (freeing a stuck
vehicle)

WARNING

To avoid vehicle damage, serious personal
injury or death when recovering a stuck
vehicle:

● Contact a professional towing service

to recover the vehicle if you have any
questions

regarding

the

recovery

procedure.

● Tow chains or cables must be attached

only to main structural members of the
vehicle.

● Do not use the vehicle tie-downs to tow

or free a stuck vehicle.

● Only use devices specifically designed

for vehicle recovery and follow the
manufacturer’s instructions.

● Always pull the recovery device straight

out from the front of the vehicle. Never
pull at an angle.

● Route recovery devices so they do not

touch any part of the vehicle except the
attachment point.

If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed specifi-
cally for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.

LCE2213

In case of emergency

6-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rocking a stuck vehicle

WARNING

● Stand clear of a stuck vehicle.
● Do not spin your tires at high speed.

This could cause them to explode and
result in serious injury. Parts of your
vehicle could also overheat and be
damaged.

If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:

1. Turn off the Vehicle Dynamic Control (VDC)

system.

2. Make sure the area in front and behind the

vehicle is clear of obstructions.

3. Turn the steering wheel right and left to clear

an area around the front tires.

4. Slowly rock the vehicle forward and back-

ward.

● Shift back and forth between R (Reverse)

and D (Drive).

● Apply the accelerator as little as possible

to maintain the rocking motion.

● Release the accelerator pedal before

shifting between R (Reverse) and D
(Drive).

● Do not spin the tires above 35 mph

(55 km/h).

5. If the vehicle cannot be freed after a few

tries, contact a professional towing service
to remove the vehicle.

6-16

In case of emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7 Appearance and care

Cleaning exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Removing spots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Underbody . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Aluminum alloy wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Tire dressings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Cleaning interior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Air fresheners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Power moonroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Floor mats (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 7-5
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Cleaning the seat tracks. . . . . . . . . . . . . . . . . . . . . . . . . 7-6

Corrosion protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

Most common factors contributing to vehicle
corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Environmental factors influence the rate of
corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Protect your vehicle from corrosion . . . . . . . . . . . . . . . 7-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In order to maintain the appearance of your ve-
hicle, it is important to take proper care of it.

To protect the paint surfaces, please wash your
vehicle as soon as you can:

● after a rainfall to prevent possible damage

from acid rain

● after driving on coastal roads
● when contaminants such as soot, bird drop-

pings, tree sap, metal particles or bugs get
on the paint surface

● when dust or mud builds up on the surface

Whenever possible, store or park your vehicle
inside a garage or in a covered area.

When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.

Be careful not to scratch the paint surface
when putting on or removing the body
cover.

WASHING

Wash dirt off with a wet sponge and plenty of
water. Clean the vehicle thoroughly using a mild
soap, a special vehicle soap or general purpose
dishwashing liquid mixed with clean, lukewarm
(never hot) water.

CAUTION

● Do not use car washes that use acid in

the detergent. Some car washes, espe-
cially brushless ones, use some acid for
cleaning. The acid may react with some
plastic vehicle components, causing
them to crack. This could affect their
appearance, and also could cause them
not to function properly. Always check
with your car wash to confirm that acid
is not used.

● Do not wash the vehicle with strong

household soap, strong chemical deter-
gents, gasoline or solvents.

● Do not wash the vehicle in direct sun-

light or while the vehicle body is hot, as
the surface may become water-spotted.

● Avoid using tight-napped or rough

cloths, such as washing mitts. Care
must

be

taken

when

removing

caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.

Rinse the vehicle thoroughly with plenty of clean
water.

Inside edges, seams and folds on the doors,
hatches and hood are particularly vulnerable to

the effects of road salt. Therefore, these areas
must be cleaned regularly. Take care that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.

A damp chamois can be used to dry the vehicle to
avoid water spots.

WAXING

Regular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing is
recommended to remove built-up wax residue
and to avoid a weathered appearance before
re-applying wax.

An INFINITI retailer can assist you in choosing the
proper product.

● Wax your vehicle only after a thorough wash-

ing. Follow the instructions supplied with the
wax.

● Do not use a wax containing any abrasives,

cutting compounds or cleaners that may
damage the vehicle finish.

Machine compounding or aggressive polishing
on a base coat/clear coat paint finish may dull the
finish or leave swirl marks.

CLEANING EXTERIOR

7-2

Appearance and care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REMOVING SPOTS

Remove tar and oil spots, industrial dust, insects,
and tree sap as quickly as possible from the
surface of the paint to avoid lasting damage or
staining. Special cleaning products are available
at an INFINITI retailer or any automotive acces-
sory store. It is recommended that you visit an
INFINITI retailer for these products.

UNDERBODY

In areas where road salt is used in winter, it is
necessary to clean the underbody regularly in
order to prevent dirt and salt from building up and
causing the acceleration of corrosion on the un-
derbody and suspension. Before the winter pe-
riod and again in the spring, the underseal must
be checked and, if necessary, re-treated.

GLASS

Use glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.

CAUTION

When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant
cleaners. They could damage the electrical
conductors, radio antenna elements or
rear window defroster elements.

ALUMINUM ALLOY WHEELS

Wash the wheels regularly with a sponge damp-
ened in a mild soap solution, especially during
winter months in areas where road salt is used. If
not removed, road salt can discolor the wheels.

CAUTION

Follow the directions below to avoid
staining or discoloring the wheels:

● Do not use a cleaner that uses strong

acid or alkali contents to clean the
wheels.

● Do not apply wheel cleaners to the

wheels when they are hot. The wheel
temperature should be the same as am-
bient temperature.

● Rinse the wheel to completely remove

the cleaner within 15 minutes after the
cleaner is applied.

CHROME PARTS

Clean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.

TIRE DRESSINGS

INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the rub-
ber. If a tire dressing is applied to the tires, it may
react with the coating and form a compound. This
compound may come off the tire while driving and
stain the vehicle paint.

If you choose to use a tire dressing, take the
following precautions:

● Use a water-based tire dressing. The coat-

ing on the tire dissolves more easily than
with an oil-based tire dressing.

● Apply a light coat of tire dressing to help

prevent

it

from

entering

the

tire

tread/grooves (where it would be difficult to
remove).

● Wipe off excess tire dressing using a dry

towel. Make sure the tire dressing is com-
pletely removed from the tire tread/grooves.

● Allow the tire dressing to dry as recom-

mended by tire dressing manufacturer.

Appearance and care

7-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

This vehicle has new and unique surfaces on the
center console and door pull finishers. If cleaning
is required use mild soap and water. However if
mild soap and water won’t clean the center con-
sole and door pull finishers, use Genuine INFINITI
Vinyl and Leather Cleaner (or equivalent).

Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth damp-
ened in mild soap solution, then wipe clean with a
dry, soft cloth.

Regular care and cleaning is required in order to
maintain the appearance of the leather.

Before using any fabric protector, read the manu-
facturer’s recommendations. Some fabric pro-
tectors contain chemicals that may stain or
bleach the seat material.

Use a cloth dampened only with water to clean
the meter and gauge lens.

WARNING

Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification
sensor. This can also affect the operation
of the air bag system and result in serious
personal injury.

CAUTION

● Never use benzene, thinner, or any simi-

lar material on the interior surfaces or
surface damage may occur. Such dam-
age is not covered under the INFINITI
warranty.

● Small dirt particles can be abrasive and

damaging

to

leather

surfaces

and

should be removed promptly. Do not
use saddle soap, car waxes, polishes,
oils, cleaning fluids, solvents, deter-
gents or ammonia-based cleaners as
they may damage the leather’s natural
finish.

● Never use fabric protectors unless rec-

ommended by the manufacturer.

● Do not use glass or plastic cleaner on

meter or gauge lens covers. It may dam-
age the lens cover.

AIR FRESHENERS

Most air fresheners use a solvent that could affect
the vehicle interior. If you use an air freshener,
take the following precautions:

● Hanging-type air fresheners can cause per-

manent discoloration when they contact ve-
hicle interior surfaces. Place the air fresh-
ener in a location that allows it to hang free
and not contact an interior surface.

● Liquid-type air fresheners typically clip on

the vents. These products can cause imme-
diate damage and discoloration when
spilled on interior surfaces.

Carefully read and follow the manufacturer’s in-
structions before using the air fresheners.

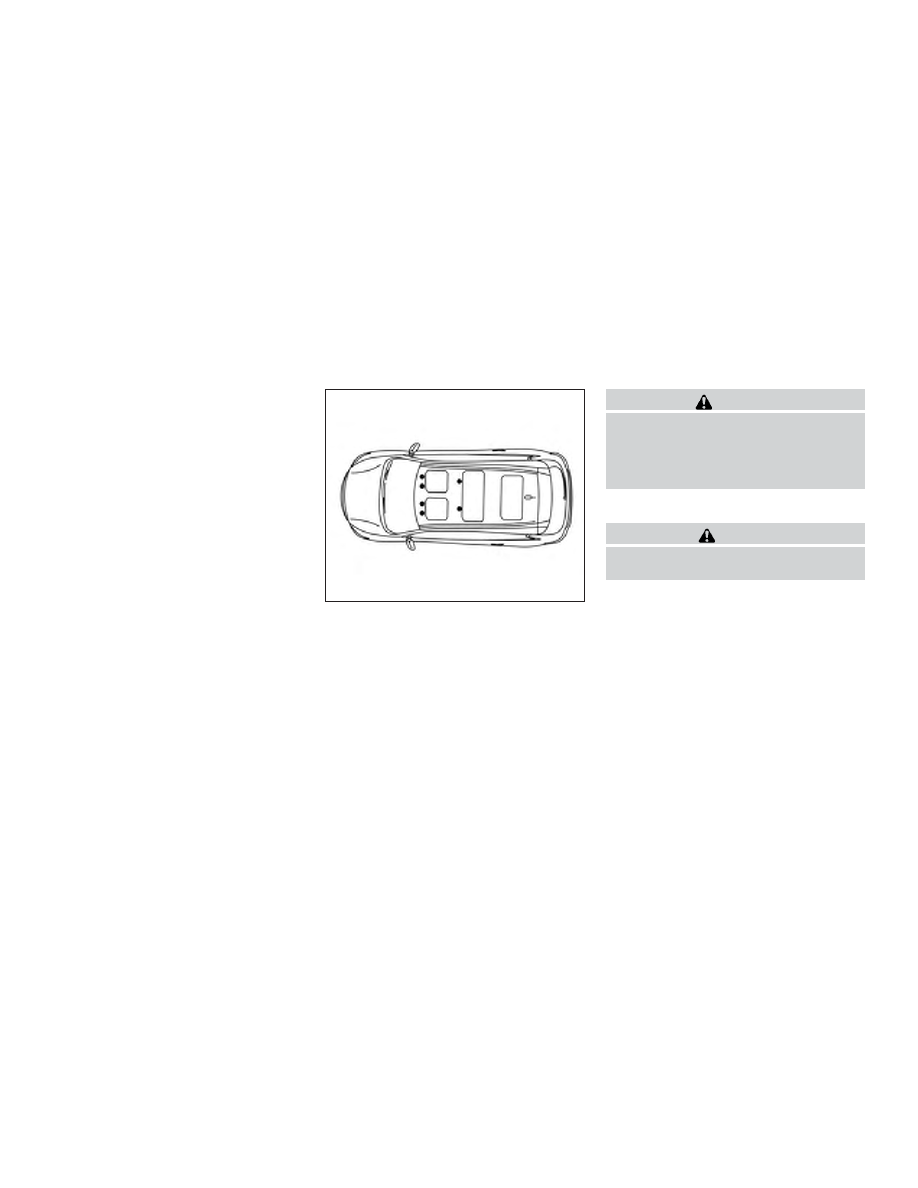

POWER MOONROOF

The moonroof is made from a suede material.

CAUTION

To help prevent damaging the moonroof
while cleaning:

● Do not rub the material with a cloth.

Doing so can damage the surface of the
material or cause a stain to spread.

● Never use benzine, thinner or any simi-

lar chemical to clean the suede. This
may discolor the moonroof and damage
the surface.

CLEANING INTERIOR

7-4

Appearance and care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● Clean water based stains by patting the

surface with a clean soft cloth damp-
ened in warm water. Press a clean dry
cloth onto the surface to remove as
much dampness as possible and then
let air dry.

● Clean oil based stains by patting the

surface with a clean soft cloth damp-
ened in warm water. Press a clean dry
cloth onto the surface to remove as
much dampness as possible and then
let air dry.

FLOOR MATS (if so equipped)

WARNING

To avoid potential pedal interference that
may result in a collision, injury or death:

● NEVER place a floor mat on top of an-

other floor mat in the driver front posi-
tion or install them upside down or
backwards.

● Use only Genuine INFINITI floor mats or

equivalent floor mats, that are specifi-
cally designed for use in your vehicle
model and model year.

● Properly position the mats in the floor-

well using the floor mat positioning
hook. For additional information, refer
to

Floor mat installationⴖ in this

section.

● Make sure the floor mat does not inter-

fere with pedal operation.

● Periodically check the floor mats to

make sure they are properly installed.

● After cleaning the vehicle interior,

check the floor mats to make sure they
are properly installed.

The use of Genuine INFINITI floor mats can ex-
tend the life of your vehicle carpet and make it
easier to clean the interior. Mats should be main-
tained with regular cleaning and replaced if they
become excessively worn.

Floor mat installation

Your vehicle is equipped with floor mat position-
ing hook(s). The number and shape of the floor
mat positioning hooks for each seating position
varies depending on the vehicle.

LAI2002

Appearance and care

7-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When installing Genuine INFINITI floor mats, fol-
low the installation instructions provided with the
mat and the following:

1. Position the floor mat in the floorwell so that

the floor mat grommet holes are aligned with
the hook(s).

2. Secure the grommet holes into the hook(s)

and ensure that the floor mat is properly
positioned.

3. Make sure the floor mat does not interfere

with pedal operation. With the ignition in the
OFF position, the shift lever in the P (Park)
position (Automatic Transmission models)
or the shift lever in the N (Neutral) position
(Instruction Transmission models) fully apply
and release all pedals. The floor mat must
not interfere with pedal operation or prevent
the pedal from returning to its normal posi-
tion.

It is recommended that you visit an INFINITI re-
tailer for details about installing the floor mats in
your vehicle.

The illustration shows the location of the floor mat
positioning hooks.

SEAT BELTS

The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely in the shade
before using them. For additional information,
refer to “Seat belt maintenance” in the “Safety-
–Seats, seat belts and supplemental restraint
system” section of this instruction.

WARNING

Do not allow wet seat belts to roll up in the
retractor. NEVER use bleach, dye or
chemical solvents to clean the seat belts,
since

these

materials

may

severely

weaken the seat belt webbing.

CLEANING THE SEAT TRACKS

CAUTION

Periodically clean the seat tracks to pre-
vent reduction of ability to move the seats.

Clean periodically with a high-powered vacuum
cleaner. Dirt and debris may reduce the ability to
adjust the seat. A wet cleansing agent may be
used if necessary.

Positioning hooks

LAI2003

7-6

Appearance and care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION

Most vehicle corrosion is caused by:

● the accumulation of moisture-retaining dirt

and debris in body panel sections, cavities,
and other areas

● damage to paint and other protective coat-

ings caused by gravel and stone chips or
minor traffic collisions

ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION

Moisture

Accumulation of sand, dirt and water on the ve-
hicle body underside can accelerate corrosion.
Wet floor coverings will not dry completely inside
the vehicle and should be removed for drying to
avoid floor panel corrosion.

Relative humidity

Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing and where
atmospheric pollution exists and road salt is
used.

Temperature

High temperatures accelerate the rate of corro-
sion to those parts which are not well ventilated.

Air pollution

Industrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use acceler-
ates the corrosion process. Road salt also accel-
erates the disintegration of paint surfaces.

PROTECT YOUR VEHICLE FROM
CORROSION

● Wash and wax your vehicle often to keep the

vehicle clean.

● Always check for minor damage to the paint

and repair it as soon as possible.

● Keep drain holes at the bottom of the doors

open to avoid water accumulation.

● Check the underbody for accumulation of

sand, dirt or salt. If present, wash with water
as soon as possible.

CAUTION

● NEVER remove dirt, sand or other de-

bris from the passenger compartment
by washing it out with a hose. Remove
dirt with a vacuum cleaner or broom.

● Never allow water or other liquids to

come in contact with electronic compo-
nents inside the vehicle as this may
damage them.

Chemicals used for road surface de-icing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake lines,
brake cables, floor pan and fenders.

In winter, the underbody must be cleaned
periodically.

For additional protection against rust and corro-
sion, which may be required in some areas, it is
recommended that you consult an INFINITI re-
tailer.

CORROSION PROTECTION

Appearance and care

7-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

7-8

Appearance and care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8 Do-it-yourself

Maintenance precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine compartment check locations . . . . . . . . . . . . . . . . 8-3
Engine cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Checking engine coolant level . . . . . . . . . . . . . . . . . . . 8-5
Changing engine coolant . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

Checking engine oil level . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Changing engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Changing engine oil filter . . . . . . . . . . . . . . . . . . . . . . . . 8-8

Continuously Variable Transmission (CVT) fluid . . . . . . . 8-9
Power steering fluid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Windshield-washer fluid. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Windshield-washer fluid reservoir . . . . . . . . . . . . . . . 8-10

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11

Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

Drive belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13
Spark plugs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

Replacing spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

In-cabin microfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Windshield wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18

Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
Passenger compartment . . . . . . . . . . . . . . . . . . . . . . . 8-19

Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20

INFINITI Intelligent Key . . . . . . . . . . . . . . . . . . . . . . . . . 8-20

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22

Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Fog lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Exterior and interior lights. . . . . . . . . . . . . . . . . . . . . . . 8-22

Wheels and tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24

Tire pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24
Tire labeling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-28
Types of tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-30
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31
Changing wheels and tires . . . . . . . . . . . . . . . . . . . . . 8-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.

WARNING

● Park the vehicle on a level surface, ap-

ply the parking brake securely and
block the wheels to prevent the vehicle
from moving. Move the shift lever to P
(Park).

● Be sure the ignition switch is in the OFF

or LOCK position when performing any
parts replacement or repairs.

● If you must work with the engine run-

ning, keep your hands, clothing, hair
and tools away from moving fans, belts
and any other moving parts.

● It is advisable to secure or remove any

loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle.

● Always wear eye protection whenever

you work on your vehicle.

● Your vehicle is equipped with an auto-

matic engine cooling fan. It may come
on at any time without warning, even if
the ignition switch is in the OFF posi-
tion and the engine is not running. To
avoid injury, always disconnect the
negative battery cable before working
near the fan.

● If you must run the engine in an en-

closed space such as a garage, be sure
there is proper ventilation for exhaust
gases to escape.

● Never get under the vehicle while it is

supported only by a jack. If it is neces-
sary to work under the vehicle, support
it with safety stands.

● Keep smoking materials, flame and

sparks away from the fuel tank and
battery.

● Because the fuel lines on gasoline en-

gine models are under high pressure
even when the engine is off, it is recom-
mended that you visit an INFINITI retailer
for service of the fuel filter or fuel lines.

CAUTION

● Do not work under the hood while the

engine is hot. Turn the engine off and
wait until it cools down.

● Avoid contact with used engine oil and

coolant. Improperly disposed engine
oil, engine coolant and/or other vehicle
fluids can damage the environment. Al-
ways conform to local regulations for
disposal of vehicle fluid.

● Never leave the engine or Continuously

Variable Transmission (CVT) related
component

harnesses

disconnected

while the ignition switch is in the ON
position.

● Never connect or disconnect the battery

or any transistorized component while
the ignition switch is in the ON position.

This “Do-it-yourself” section gives instructions
regarding only those items which are relatively
easy for an owner to perform.

A Genuine INFINITI service instruction is also avail-
able. For additional information, refer to “Owner’s
Instruction/Service Instruction order information” in the
“Technical and consumer information” section of
this instruction.

You should be aware that incomplete or improper
servicing may result in operating difficulties or
excessive emissions, and could affect warranty
coverage. If in doubt about any servicing, it
is recommended that you have it done by
an INFINITI retailer.

MAINTENANCE PRECAUTIONS

8-2

Do-it-yourself

-------------------------------------------------------------------------------------------------------------------------------------------------------------

VQ35DD engine

1.

Power steering fluid reservoir

2.

Engine coolant reservoir

3.

Drive belt location

4.

Fuse box

5.

Engine oil filler cap

6.

Brake fluid reservoir

7.

Air cleaner

8.

Fuse box

9.

Fuse/Fusible link box

10. Fuse/Fusible link box
11. Battery
12. Engine oil dipstick
13. Radiator cap
14. Windshield-washer fluid reservoir

NOTE:

Engine cover removed for clarity.

LDI3012

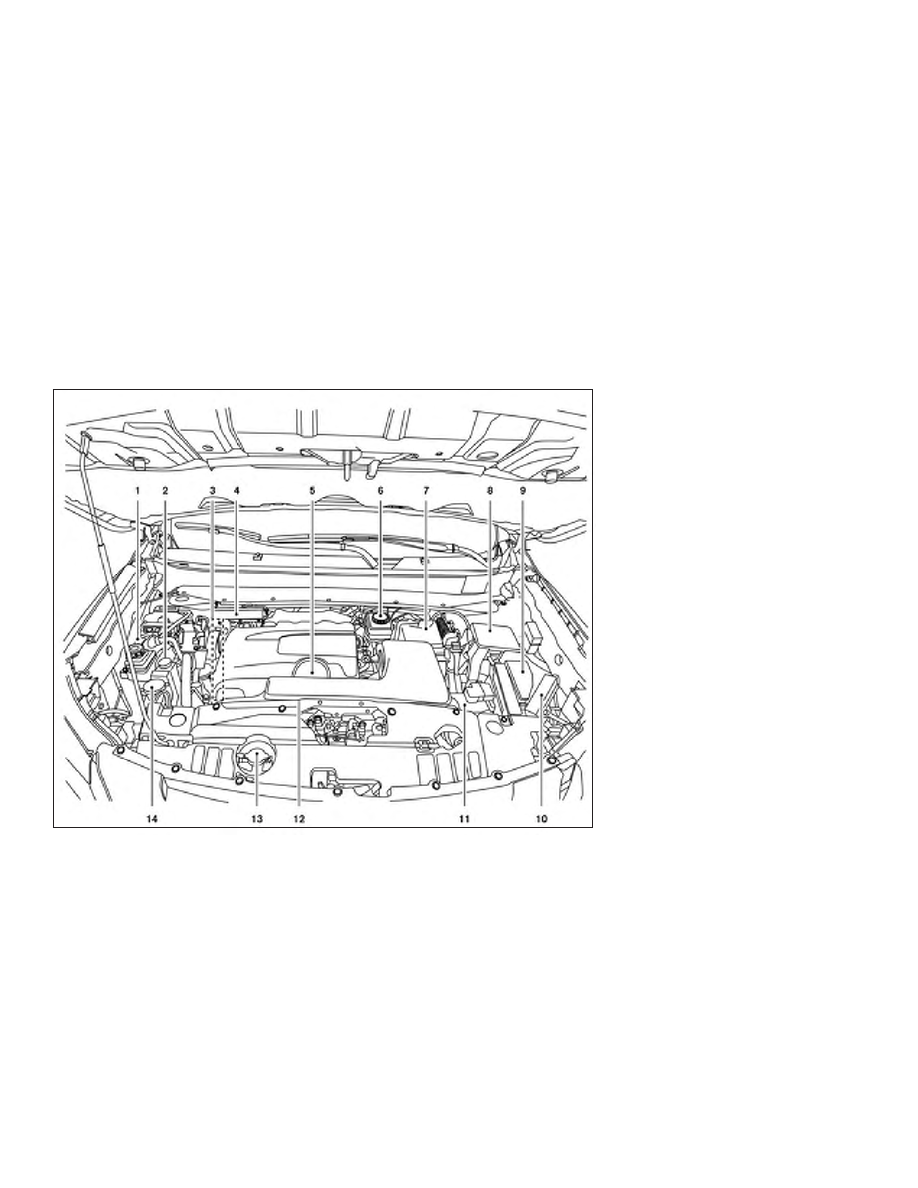

ENGINE COMPARTMENT CHECK
LOCATIONS

Do-it-yourself

8-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round antifreeze and
coolant protection. The antifreeze solution con-
tains rust and corrosion inhibitors. Additional en-
gine cooling system additives are not necessary.

WARNING

● Never remove the radiator or coolant

reservoir cap when the engine is hot.
Wait until the engine and radiator cool
down. Serious burns could be caused
by high pressure fluid escaping from
the radiator. For additional information
on precautions, refer to “If your vehicle
overheats” found in the “In case of
emergency” section of this instruction.

● The radiator is equipped with a pres-

sure type radiator cap. To prevent en-
gine damage, use only a Genuine
NISSAN radiator cap.

CAUTION

● Never use any cooling system additives

such as radiator sealer. Additives may
clog the cooling system and cause dam-
age to the engine, transmission and/or
cooling system.

● When adding or replacing coolant, be

sure to use only Genuine NISSAN Long
Life

Antifreeze/Coolant

(blue)

or

equivalent. Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is pre-diluted
to provide antifreeze protection to
-34° F (-37° C). If additional freeze pro-
tection is needed due to weather where
you operate your vehicle, add Genuine
NISSAN Long Life Antifreeze/Coolant
(blue) concentrate following the direc-
tions on the container. If an equivalent
coolant other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue) is
used, follow the coolant manufacturer’s
instructions to maintain minimum anti-
freeze protection to -34° F (-37° C). The
use of other types of coolant solutions
other than Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent
may

damage

the

engine

cooling

system.

● The life expectancy of the factory-fill

coolant is 105,000 miles (168,000 km) or
7 years. Mixing any other type of cool-
ant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue), includ-
ing

Genuine

NISSAN

Long

Life

Antifreeze/Coolant (green), or the use
of non-distilled water will reduce the
life expectancy of the factory-fill cool-
ant. For additional information, refer to
the Maintenance and schedules section
of this instruction.

ENGINE COOLING SYSTEM

8-4

Do-it-yourself

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHECKING ENGINE COOLANT
LEVEL

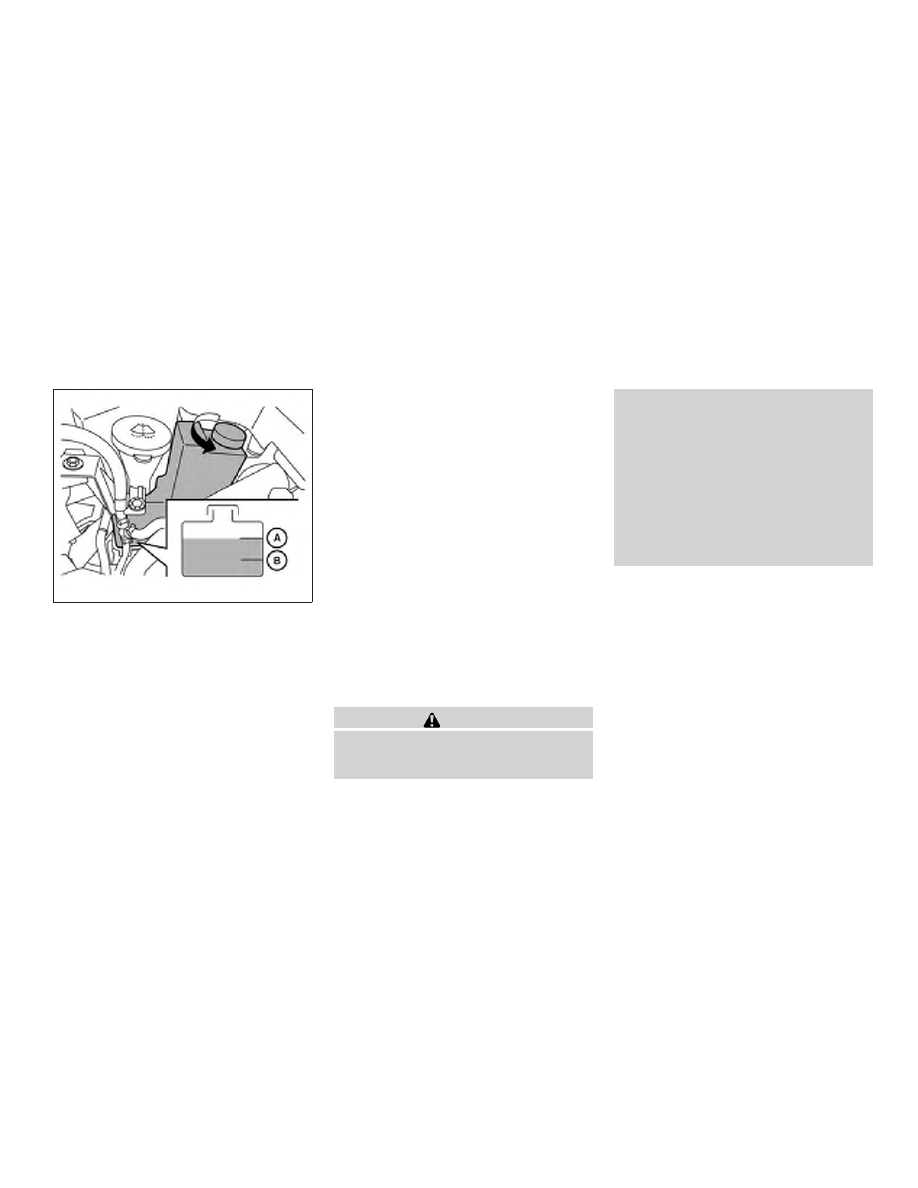

Check the coolant level in the reservoir when
the engine is cold.
If the coolant level is below
the MIN level

B

, add coolant to the MAX level

A

. If the reservoir is empty, check the coolant

level in the radiator when the engine is cold. If
there is insufficient coolant in the radiator, fill the
radiator with coolant up to the filler opening and
also add it to the reservoir up to the MAX level

A

.

This vehicle contains Genuine NISSAN Long Life
Antifreeze/Coolant (blue). The life expectancy of
the

factory-fill

coolant

is

105,000

miles

(168,000 km) or 7 years. Mixing any other type of

coolant or the use of non-distilled water will re-
duce the life expectancy of the factory-fill coolant.
For additional information, refer to the

⬙Mainte-

nance and schedules

⬙ section of this instruction.

If the cooling system frequently requires
coolant, have it checked. It is recom-
mended that you visit an INFINITI retailer
for this service.

For additional information on the location of the
engine coolant reservoir, refer to “Engine com-
partment check locations” in this section.

CHANGING ENGINE COOLANT

An INFINITI retailer can change the engine cool-
ant. The service procedure can be found in the
INFINITI Service Instruction.

Improper servicing can result in reduced
heater performance and engine overheat-
ing.

WARNING

● To avoid the danger of being scalded,

never change the coolant when the en-
gine is hot.

● Never remove the radiator or engine

coolant reservoir cap when the engine
is hot. Serious burns could be caused by
high pressure fluid escaping from the
radiator.

● Avoid direct skin contact with used

coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.

● Keep coolant out of the reach of chil-

dren and pets.

Engine coolant must be disposed of properly.
Check your local regulations.

LDI2860

Do-it-yourself

8-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     31      32      33      34     ..
