Model: 2017MY INFINITI QX50(J50) OM17E00J50U0 ]
SAA1840

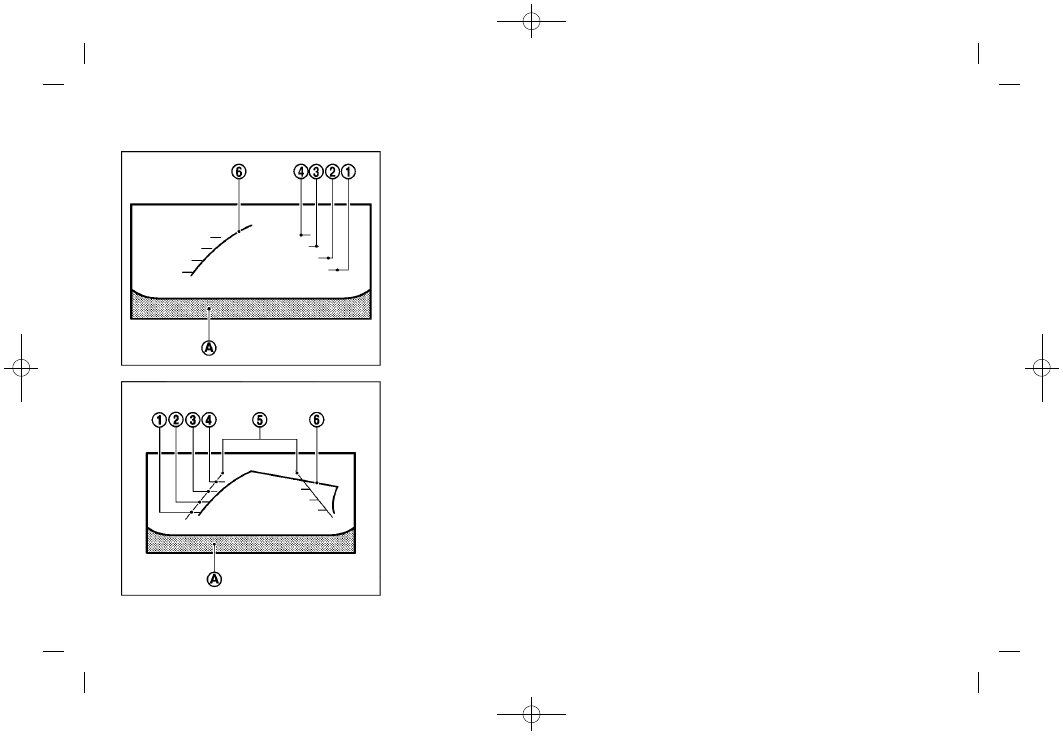

Front view
SAA1896
Rear view

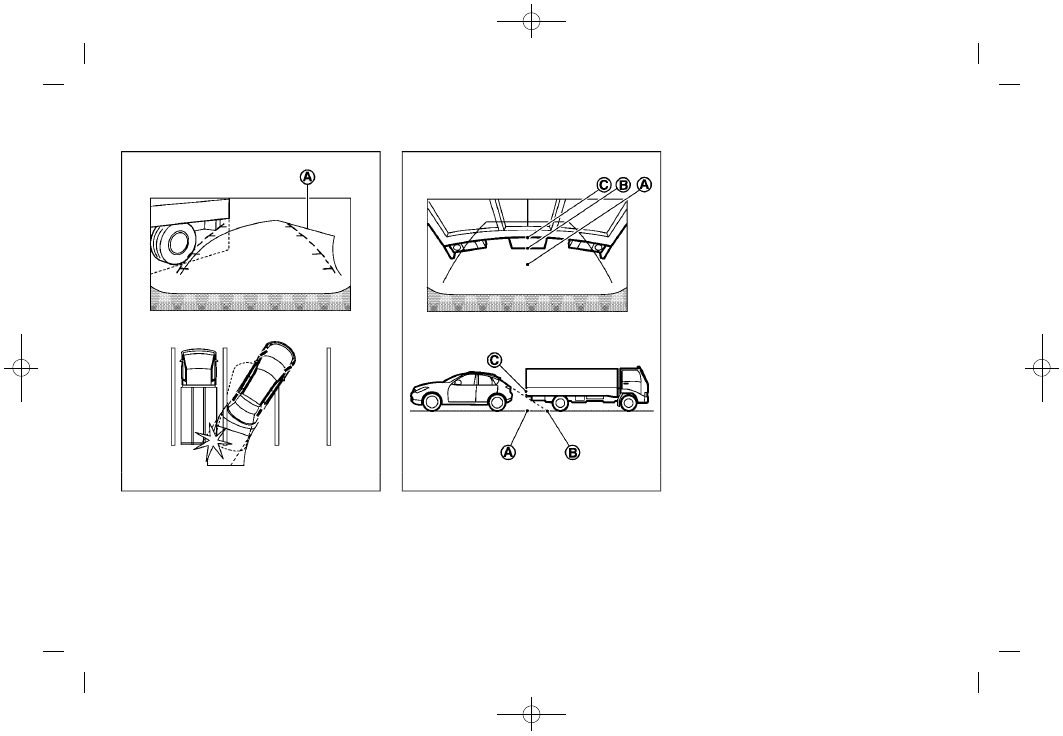

Front and rearview:
Guiding lines that indicate the approximate
vehicle width and distances to objects with
reference to the vehicle body line
*
A
, are
displayed on the monitor.

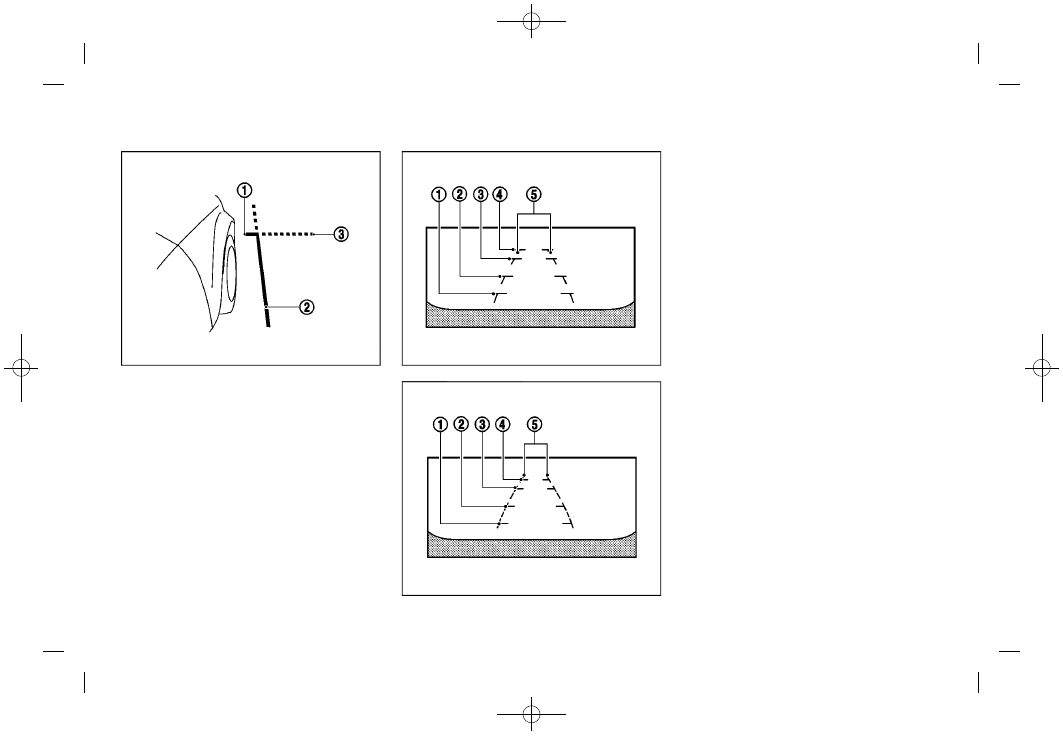

Distance guide lines:
Indicate distances from the vehicle body.
.
Red line
*
1
: approx. 1.5 ft (0.5 m)
.
Yellow line
*
2
: approx. 3 ft (1 m)
.
Green line
*
3
: approx. 7 ft (2 m)
.
Green line
*
4
: approx. 10 ft (3 m)
Vehicle width guide lines
*
5
:
Indicate the vehicle width when backing
up.
Predictive course lines
*
6
:
Indicate the predictive course when oper-
ating the vehicle. The predictive course
lines will be displayed on the monitor when
the steering wheel is turned. The predictive
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel
is in the straight ahead position.
The front view will not be displayed when
the vehicle speed is above 6 MPH (10
km/h).
NOTE:
When the monitor displays the front view
and the steering wheel turns about 90
degrees or less from the straight ahead
position, both the right and left predictive
course lines
*
6
are displayed. When the
steering wheel turns about 90 degrees or
more, a line is displayed only on the
opposite side of the turn.
Monitor, climate, audio, phone and voice recognition systems
4-33
Condition:
