Infiniti Jx35 (2013 year). Instruction - part 5

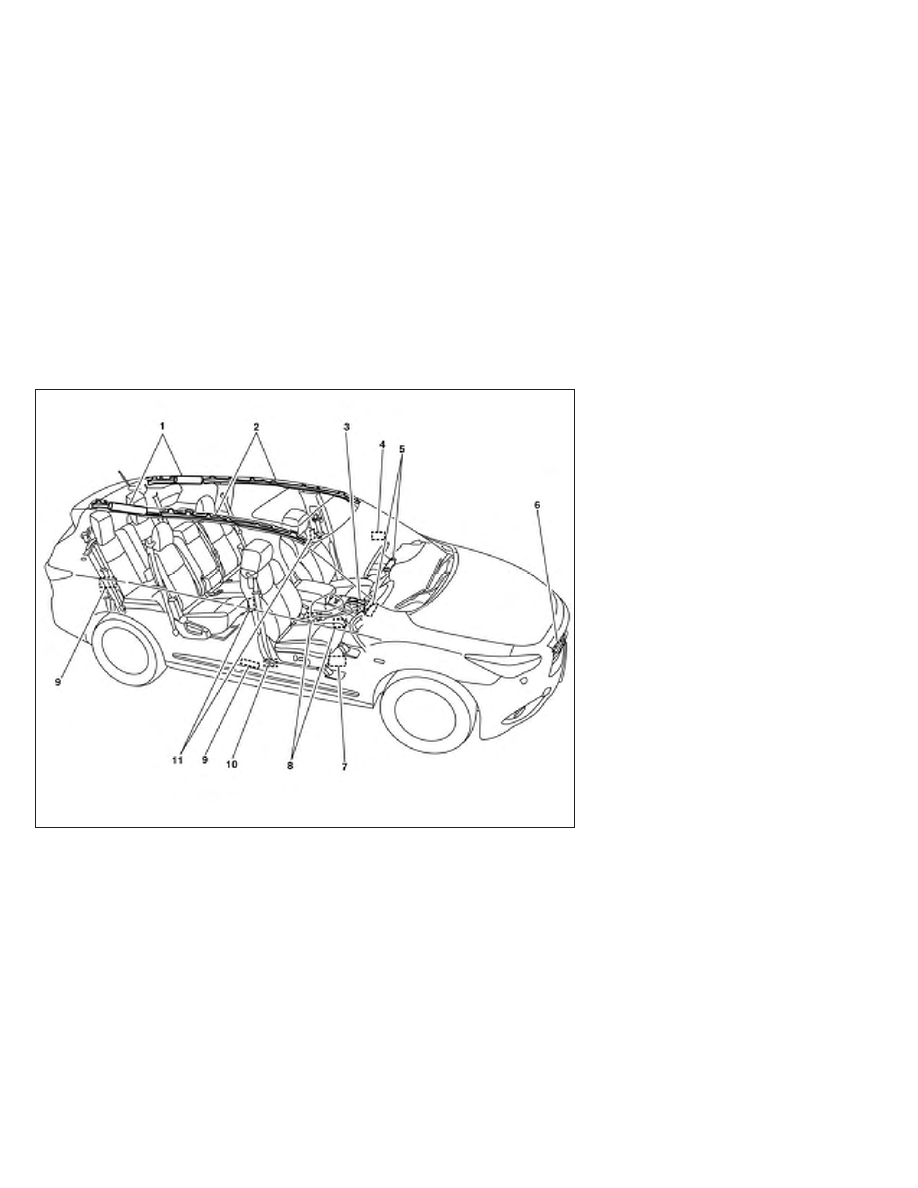

1.

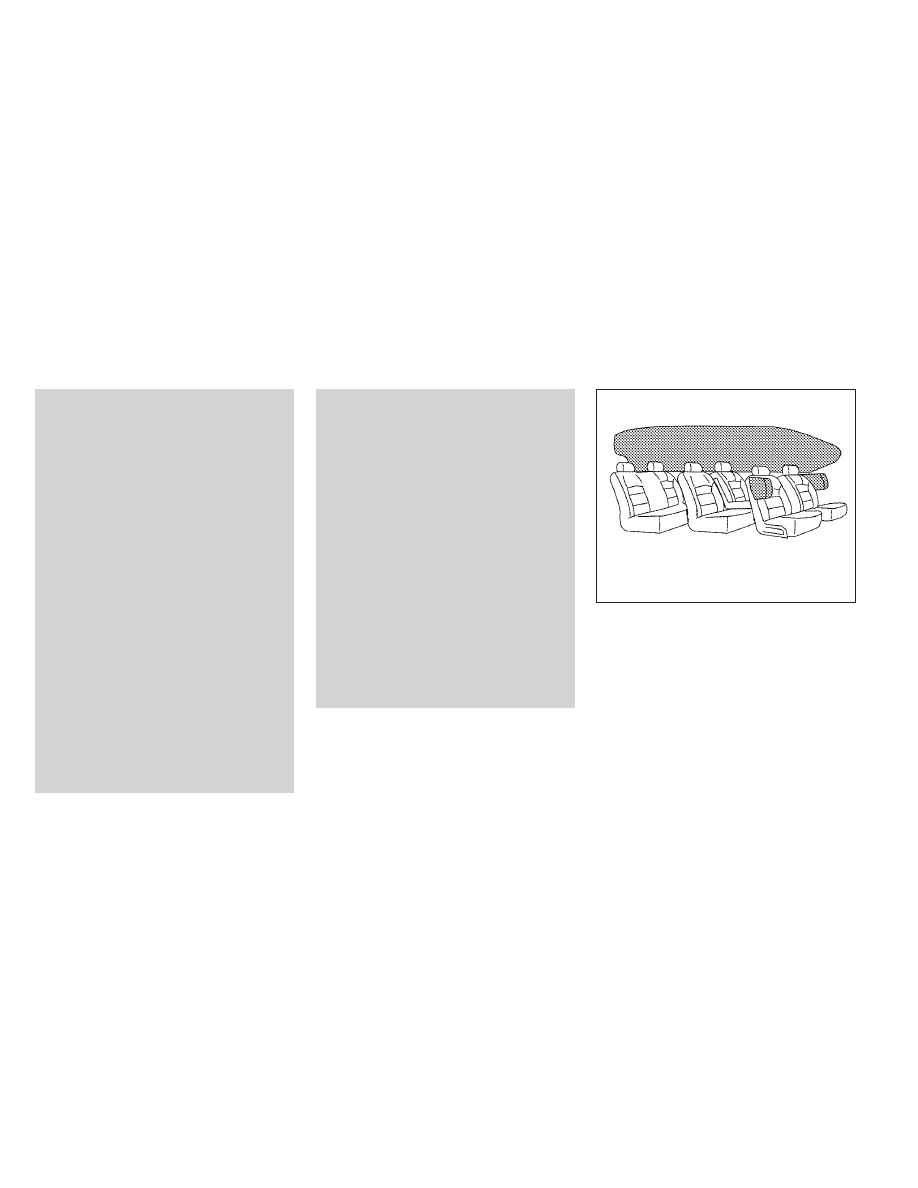

Roof-mounted curtain side-impact and
rollover supplemental air bag inflators

2.

Roof-mounted curtain side-impact and
rollover supplemental air bags

3.

Air bag Control Unit (ACU)

4

Pressure sensors in door (driver’s side
shown; passenger side similar)

5.

Supplemental front-impact air bag
modules

6.

Crash zone sensor

7.

Occupant classification system control
unit

8.

Occupant classification sensor (weight
sensor – located on passenger seat
frame )

9.

Satellite sensors

10. Seat belt with pretensioner
11. Front seat-mounted side-impact

supplemental air bag modules

LRS2141

1-56

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI Advanced Air Bag System
(front seats)

WARNING

To ensure proper operation of the passen-
ger’s advanced air bag system, please ob-
serve the following items.

● Do not allow a passenger in the rear

seat to push or pull on the seatback
pocket.

● Do not place heavy loads heavier than

2.2 lb (1 kg) on the seatback, head re-
straint or in the seatback pocket.

● Do not store luggage behind the seat

that can press into the seatback.

● Do not position the front passenger

seat so it contacts the rear seat. If the
front seat does contact the rear seat,
the air bag system may determine a
sensor malfunction has occurred and
the front passenger air bag status light
may illuminate and the supplemental
air bag warning light may flash.

● If a forward-facing child restraint is in-

stalled in the front passenger seat, do
not position the front passenger seat so
the child restraint contacts the instru-
ment panel. If the child restraint does
contact the instrument panel, the sys-
tem may determine the seat is occupied
and the passenger air bag may deploy
in a collision. Also the front passenger
air bag status light may not illuminate.
See “Child restraints” earlier in this sec-
tion for information about installing
and using child restraints.

● Confirm the operating condition with

the front passenger air bag status light.

● If you notice that the front passenger air

bag status light is not operating as de-
scribed later in this section, please take
your vehicle to your INFINITI retailer to
check

the

occupant

classification

system.

● Until you have confirmed with your re-

tailer that your passenger seat occu-
pant classification system is working
properly, position the occupants in the
rear seating positions.

This vehicle is equipped with the INFINITI Ad-
vanced Air Bag System for the driver and front
passenger seats. This system is designed to

meet certification requirements under U.S. regu-
lations. It is also permitted in Canada. However,
all of the information, cautions and warn-
ings in this instruction still apply and must be
followed.

The driver supplemental front-impact air bag is
located in the center of the steering wheel. The
passenger supplemental front-impact air bag is
mounted in the dashboard above the glove box.
The front air bags are designed to inflate in higher
severity frontal collisions, although they may in-
flate if the forces in another type of collision are
similar to those of a higher severity frontal impact.
They may not inflate in certain frontal collisions.
Vehicle damage (or lack of it) is not always an
indication of proper front air bag system opera-
tion.

The INFINITI Advanced Air Bag System has dual
stage inflators. It also monitors information from
the crash zone sensor, the Air bag Control Unit
(ACU), seat belt buckle sensors and Occupant
Classification Sensor (weight sensor). Inflator
operation is based on the severity of a collision
and seat belt usage for the driver. For the front
passenger, the occupant classification sensors
are also monitored. Based on information from
the sensors, only one front air bag may inflate in a
crash, depending on the crash severity and
whether the front occupants are belted or un-
belted. Additionally, the front passenger air bag

Safety—Seats, seat belts and supplemental restraint system

1-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

may be automatically turned OFF under some
conditions, depending on the weight detected on
the passenger seat and how the seat belt is used.
If the front passenger air bag is OFF, the passen-
ger air bag status light will be illuminated (if the
seat is unoccupied, the light will not be illumi-
nated, but the air bag will be off). See “Front
passenger air bag and status light” later in this
section for further details. One front air bag inflat-
ing does not indicate improper performance of
the system.

If you have any questions about your air bag
system, please contact INFINITI or your INFINITI
retailer. If you are considering modification of
your vehicle due to a disability, you may also
contact INFINITI. Contact information is con-
tained in the front of this Owner’s Instruction.

When a front air bag inflates, a fairly loud noise
may be heard, followed by the release of smoke.
This smoke is not harmful and does not indicate a
fire. Care should be taken to not inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.

Front air bags, along with the use of seat belts,
help to cushion the impact force on the face and
chest of the front occupants. They can help save
lives and reduce serious injuries. However, an
inflating front air bag may cause facial abrasions

or other injuries. Front air bags do not provide
restraint to the lower body.

Even with INFINITI air bags, seat belts should be
correctly worn and the driver and passenger
seated upright as far as practical away from the
steering wheel or instrument panel. The front air
bags inflate quickly in order to help protect the
front occupants. Because of this, the force of the
front air bag inflating can increase the risk of
injury if the occupant is too close to, or is against,
the front air bag module during inflation.

The front air bags deflate quickly after a collision.

The front air bags operate only when the
ignition switch is placed in the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

Front passenger air bag and status light

WARNING

The front passenger air bag is designed to
automatically turn OFF under some con-
ditions. Read this section carefully to
learn how it operates. Proper use of the
seat, seat belt and child restraints is nec-
essary for most effective protection. Fail-
ure to follow all instructions in this
instruction concerning the use of seats, seat
belts and child restraints can increase the
risk or severity of injury in an accident.

LRS0865

1-58

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

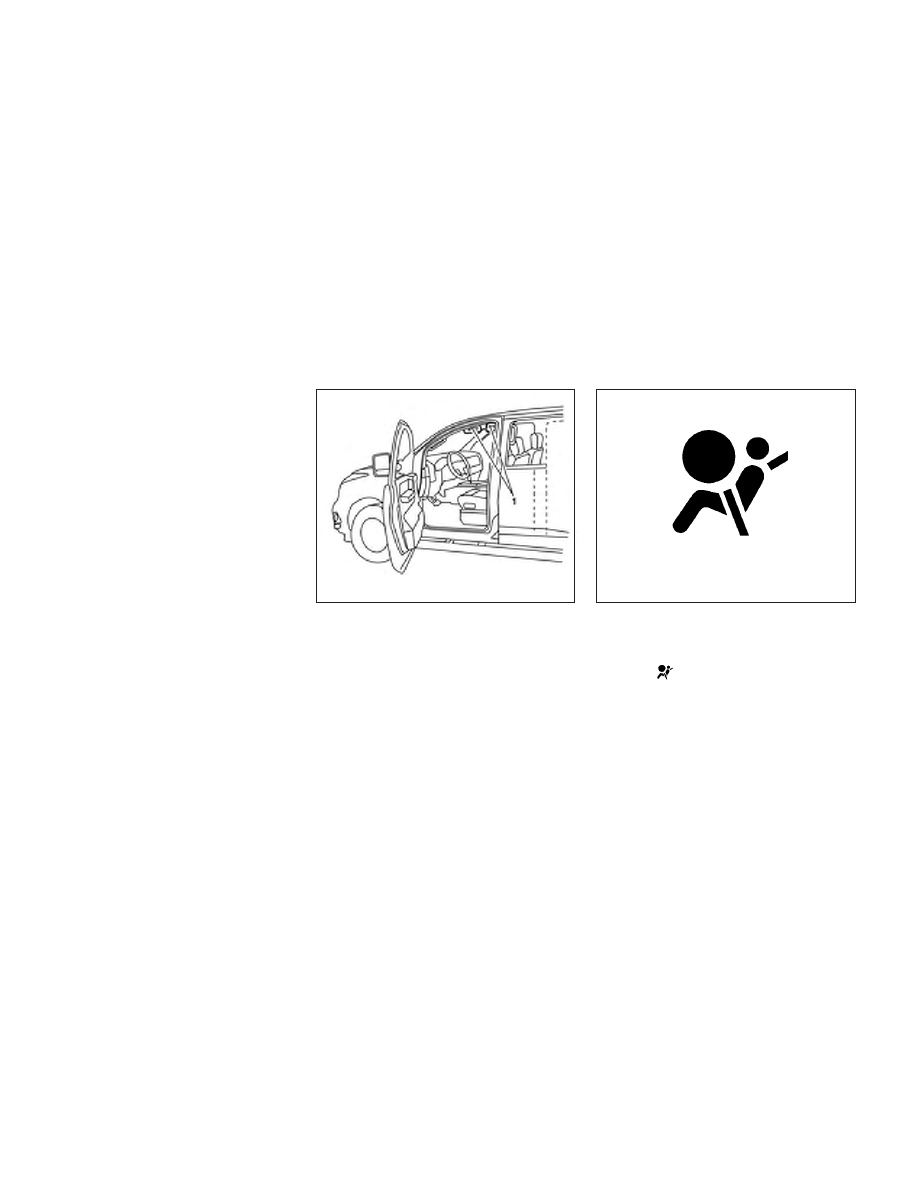

Status light

The front passenger air bag status light

is

located near the radio controls. After the ignition
switch is placed in the

⬙ON⬙ position, the front

passenger air bag status light on the instrument
panel illuminates for about 7 seconds and then
turns off or remains illuminated depending on the
front passenger seat occupied status. The light
operates as follows:

● Unoccupied passenger’s seat: The

is

OFF and the front passenger air bag is OFF
and will not inflate in a crash.

● Passenger’s seat occupied by a small adult,

child or child restraint as outlined in this
section: The

illuminates to indicate

that the front passenger air bag is OFF and
will not inflate in a crash.

● Occupied passenger seat and the passen-

ger meet the conditions outlined in this sec-
tion: The light

is OFF to indicate that

the front passenger air bag is operational.

Front passenger air bag

The front passenger air bag is designed to auto-
matically turn OFF when the vehicle is operated
under some conditions as described below in
accordance with U.S. regulations. If the front
passenger air bag is OFF, it will not inflate in a

crash. The driver air bag and other air bags in your
vehicle are not part of this system.

The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air bag
to certain front passenger seat occupants, such
as children, by requiring the air bag to be auto-
matically turned OFF. Certain sensors are used
to meet the requirements.

One sensor used is the occupant classification
sensor (weight sensor). It is designed to detect
an occupant and objects on the seat by weight.
For example, if a child is in the front passenger
seat, the Advanced Air Bag System is designed
to turn the passenger air bag OFF in accordance
with the regulations. Also, if a child restraint of the
type specified in the regulations is on the seat, its
weight and the child’s weight can be detected
and cause the air bag to turn OFF.

Front passenger seat adult occupants who are
properly seated and using the seat belt as out-
lined in this instruction should not cause the passen-
ger air bag to be automatically turned OFF. For
small adults it may be turned OFF, however if the
occupant takes his/her weight off the seat cush-
ion (for example, by not sitting upright, by sitting
on an edge of the seat, or by otherwise being out
of position), this could cause the sensor to turn
the air bag OFF. Always be sure to be seated and

wearing the seat belt properly for the most effec-
tive protection by the seat belt and supplemental
air bag.

INFINITI recommends that pre-teens and chil-
dren be properly restrained in a rear seat.
INFINITI also recommends that appropriate child
restraints and booster seats be properly installed
in a rear seat. If this is not possible, the occupant
classification sensor is designed to operate as
described above to turn the front passenger air
bag OFF for specified child restraints as required
by the regulations. Failing to properly secure
child restraints and to use the ALR mode may
allow the restraint to tip or move in an accident or
sudden stop. This can also result in the passen-
ger air bag inflating in a crash instead of being
OFF. See “Child restraints” earlier in this section
for proper use and installation.

If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object’s weight detected by the occupant
classification sensor. Other conditions could also
result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this instruction.
Always be sure that you and all vehicle occupants
are seated and restrained properly.

Safety—Seats, seat belts and supplemental restraint system

1-59

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Using the passenger air bag status light, you can
monitor when the front passenger air bag is au-
tomatically turned OFF with the seat occupied.
The light will not illuminate when the front pas-
senger seat is unoccupied.

If an adult occupant is in the seat but the passen-
ger air bag status light is illuminated (indicating
that the air bag is OFF), it could be that the
person is a small adult, or is not sitting on the seat
properly or not using the seat belt properly.

If a child restraint must be used in the front seat,
the passenger air bag status light may or may not
be illuminated, depending on the size of the child
and the type of child restraint being used. If the air
bag status light is not illuminated (indicating that
the air bag might inflate in a crash), it could be
that the child restraint or seat belt is not being
used properly. Make sure that the child restraint is
installed properly, the seat belt is used properly
and the occupant is positioned properly. If the air
bag status light is not illuminated, reposition the
occupant or child restraint in a rear seat.

If the passenger air bag status light will not illu-
minate even though you believe that the child
restraint, the seat belts and the occupant are
properly positioned, the system may be sensing
an unoccupied seat (in which case the air bag is
OFF). Your INFINITI retailer can check that the
system is OFF by using a special tool. However,

until you have confirmed with your retailer that
your air bag is working properly, reposition the
occupant or child restraint in a rear seat.

The air bag system and passenger air bag status
light will take a few seconds to register a change
in the passenger seat status. For example, if a
large adult who is sitting in the front passenger
seat exits the vehicle, the passenger air bag
status light will go from OFF to ON for a few
seconds and then to OFF. This is normal system
operation and does not indicate a malfunction.

If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light

, located in the meter and gauges area

of the instrument panel, will blink. Have the sys-
tem checked by a INFINITI retailer.

Other supplemental front-impact air bag
precautions

WARNING

● Do not place any objects on the steer-

ing wheel pad or on the instrument
panel. Also, do not place any objects
between any occupant and the steering
wheel or instrument panel. Such ob-
jects may become dangerous projec-
tiles and cause injury if the front air
bags inflate.

● Do not place objects with sharp edges on

the seat. Also, do not place heavy objects
on the seat that will leave permanent
impressions in the seat. Such objects can
damage the seat or occupant classifica-
tion sensors (weight sensors). This can
affect the operation of the air bag system
and result in serious personal injury.

● Do not use water or acidic cleaners (hot

steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensors. This can also affect the
operation of the air bag system and
result in serious personal injury.

● Immediately after inflation, several

front air bag system components will be
hot. Do not touch them; you may se-
verely burn yourself.

● No unauthorized changes should be

made to any components or wiring of
the supplemental air bag system. This is
to prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system.

● Do not make unauthorized changes to

your vehicle’s electrical system, sus-
pension system or front end structure.
This could affect proper operation of
the front air bag system.

1-60

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● Tampering with the front air bag system

may result in serious personal injury.
Tampering includes changes to the
steering wheel and the instrument
panel assembly by placing material
over the steering wheel pad and above
the instrument panel or by installing
additional trim material around the air
bag system.

● Removing or modifying the front pas-

senger seat may affect the function of
the air bag and result in serious per-
sonal injury.

● Modifying or tampering with the front

passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing mate-
rial on the seat cushion or by installing
additional trim material, such as seat
covers, on the seat that are not specifi-
cally designed to assure proper air bag
operation. Additionally, do not stow any
objects under the front passenger seat
or the seat cushion and seatback. Such
objects may interfere with the proper
operation of the occupant classifica-
tion sensor (weight sensor).

● No unauthorized changes should be

made to any components or wiring of
the seat belt system. This may affect the
front air bag system. Tampering with
the seat belt system may result in seri-
ous personal injury.

● Work on and around the front air bag

system should be done by a INFINITI
retailer. Installation of electrical equip-
ment should also be done by a INFINITI
retailer. The Supplemental Restraint
System (SRS) wiring harnesses* should
not be modified or disconnected. Unau-
thorized electrical test equipment and
probing devices should not be used on
the air bag system.

● A cracked windshield should be re-

placed immediately by a qualified re-
pair facility. A cracked windshield could
affect the function of the supplemental
air bag system.

*The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Instruction.

Front seat-mounted side-impact
supplemental air bag and roof-
mounted curtain side-impact and
rollover supplemental air bag systems

The side air bags are located in the outside of the
seatback of the front seats. The curtain and roll-
over air bags are located in the side roof rails in all
3 rows. These systems are designed to meet
voluntary guidelines to help reduce the risk of
injury to out-of-position occupants. However,
all of the information, cautions and warn-
ings in this instruction still apply and must be
followed.
The side air bags and curtain and
rollover air bags are designed to inflate in higher

WRS0381

Safety—Seats, seat belts and supplemental restraint system

1-61

-------------------------------------------------------------------------------------------------------------------------------------------------------------

severity side collisions, although they may inflate
if the forces in another type of collision are similar
to those of a higher severity side impact. They are
designed to inflate on the side where the vehicle
is impacted. They may not inflate in certain side
collisions.

Curtain and rollover air bags are also designed to
inflate in certain types of rollover collisions or near
rollovers. As a result, certain vehicle movements
(for example, during severe off roading) may
cause the curtain and rollover air bags to inflate.

Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain and
rollover air bag operation.

When the side air bags and curtain and rollover
air bags inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke is not
harmful and does not indicate a fire. Care should
be taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.

Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest of
the front occupants. Curtain and rollover air bags
help to cushion the impact force to the head of
occupants in the front and rear outboard seating
positions in all rows. They can help save lives and
reduce serious injuries. However, an inflating
side air bag or curtain and rollover air bag may

cause abrasions or other injuries. Side air bags
and curtain and rollover air bags do not provide
restraint to the lower body.

The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bag. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain and rollover air
bags inflate quickly in order to help protect the
occupants. Because of this, the force of the side
air bags and curtain and rollover air bags inflating
can increase the risk of injury if the occupant is
too close to, or is against, these air bag modules
during inflation. The side air bag will deflate
quickly after the collision is over.

The curtain and rollover air bag will remain in-
flated for a short time.

The side air bags and curtain and rollover
air bags operate only when the ignition
switch is placed in the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

WARNING

● Do not place any objects near the seat-

back of the front seats. Also, do not
place any objects (an umbrella, bag,
etc.) between the front door finisher
and the front seat. Such objects may
become

dangerous

projectiles

and

cause injury if a side air bag inflates.

● Right after inflation, several side air bag

and curtain and rollover air bag system
components will be hot. Do not touch
them; you may severely burn yourself.

● No unauthorized changes should be

made to any components or wiring of
the side air bag and curtain and rollover
air bag systems. This is to prevent dam-
age to or accidental inflation of the side
air bag and curtain and rollover air bag
systems.

● Do not make unauthorized changes to

your vehicle’s electrical system, sus-
pension system or side panel. This
could affect proper operation of the
curtain and rollover air bag systems.

1-62

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● Tampering with the side air bag system

may result in serious personal injury.
For example, do not change the front
seats by placing material near the seat-
backs or by installing additional trim
material, such as seat covers, around
the side air bag.

● Work around and on the side air bag

and curtain and rollover air bag systems
should be done by an INFINITI retailer.
Installation

of

electrical

equipment

should also be done by an INFINITI re-
tailer.

The

SRS

wiring

harnesses*

should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices should
not be used on the side air bag or cur-
tain and rollover air bag systems.

* The SRS wiring harness or connectors are
yellow or orange for easy identification.

When selling your vehicle, we request that you
inform the buyer about the side air bags and
curtain and rollover air bag system and guide the
buyer to the appropriate sections in this Owner’s
Instruction.

Seat belts with pretensioners (Front
seats)

WARNING

● If the vehicle becomes involved in a

collision but a pretensioner is not acti-
vated, be sure to have the pretensioner
system checked and, if necessary, re-
placed by your INFINITI retailer.

● No unauthorized changes should be

made to any components or wiring of
the pretensioner system. This is to pre-
vent damage to or accidental activation
of the pretensioners. Tampering with
the pretensioner system may result in
serious personal injury.

● Work around and on the pretensioner

system should be done by an INFINITI
retailer. Installation of electrical equip-
ment should also be done by an
INFINITI retailer. Unauthorized electri-
cal test equipment and probing devices
should not be used on the pretensioner
system.

● If you need to dispose of a pretensioner

or scrap the vehicle, contact an INFINITI
retailer. Incorrect disposal procedures
could cause personal injury.

The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor,
the pretensioner helps tighten the seat belt when
the vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.

The pretensioner is encased with the seat belt
retractor. These seat belts are used the same way
as conventional seat belts.

When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.

After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.

The supplemental air bag warning light

is

used to indicate malfunctions in the pretensioner
system. (See

⬙SUPPLEMENTAL AIR BAG

WARNING LIGHT

⬙ in this section for more de-

tails.) If the operation of the supplemental air bag
warning light indicates there is a malfunction,
have the system checked by a INFINITI retailer.

Safety—Seats, seat belts and supplemental restraint system

1-63

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Instruction.

1. SRS Air Bag Warning Labels

The warning labels are located on the sur-
face of the sun visor.

SUPPLEMENTAL AIR BAG
WARNING LABELS

Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.

SUPPLEMENTAL AIR BAG
WARNING LIGHT

The

supplemental

air

bag

warning

light,

displaying

in the instrument panel, moni-

tors the circuits for the air bag systems, preten-
sioners and all related wiring.

When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational.

LRS2158

LRS0100

1-64

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If any of the following conditions occur, the front
air bag, side air bag, curtain and rollover air bag
and pretensioner systems need servicing:

● The supplemental air bag warning light re-

mains on after approximately 7 seconds.

● The supplemental air bag warning light

flashes intermittently.

● The supplemental air bag warning light does

not come on at all.

Under these conditions, the front air bag, side air
bag, curtain and rollover air bag or pretensioner
systems may not operate properly. They must be
checked and repaired. Take your vehicle to the
nearest INFINITI retailer.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain and rollover air bag
and/or pretensioner systems will not op-
erate in an accident. To help avoid injury
to yourself or others, have your vehicle
checked by an INFINITI retailer as soon as
possible.

Repair and replacement procedure

The front air bags, side air bags, curtain and
rollover air bags and pretensioners are designed
to inflate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light remains illuminated after inflation
has occurred. Repair and replacement of these
supplemental air bag systems should be done
only by an INFINITI retailer.

When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain and
rollover air bags, pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should al-
ways be in the LOCK position when working
under the hood or inside the vehicle.

WARNING

● Once a front air bag, side air bag, or

curtain and rollover air bag has inflated,
the air bag module will not function
again and must be replaced. Addition-
ally, the activated pretensioners must
also be replaced. The air bag module
and pretensioner should be replaced by
an INFINITI retailer. The air bag module
and pretensioner cannot be repaired.

● The front air bag, side air bag, curtain

and rollover air bag systems and the
pretensioner system should be in-
spected by an INFINITI retailer if there is
any damage to the front end or side
portion of the vehicle.

● If you need to dispose of a supplemen-

tal air bag or pretensioner or scrap the
vehicle, contact an INFINITI retailer. In-
correct

disposal

procedures

could

cause personal injury.

Safety—Seats, seat belts and supplemental restraint system

1-65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2 Instruments and controls

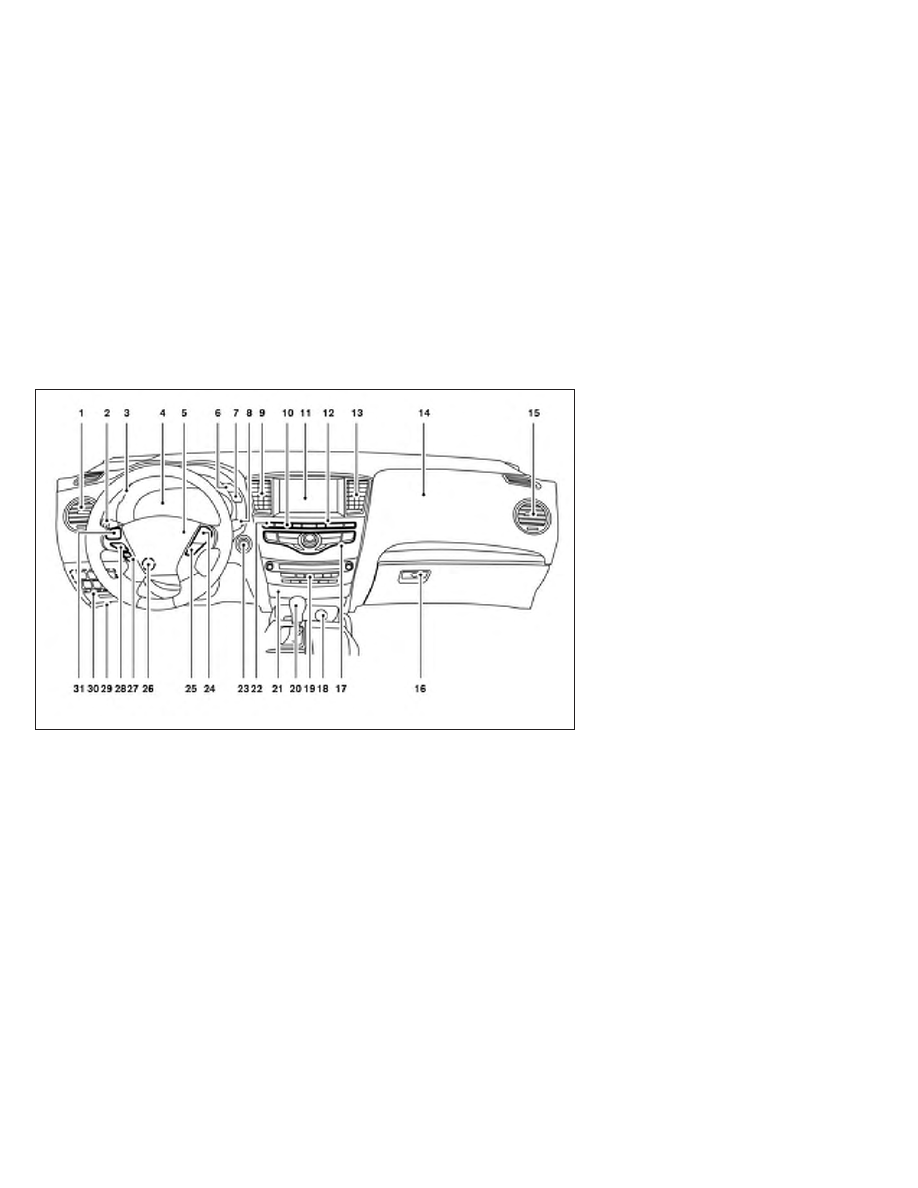

Instrument panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

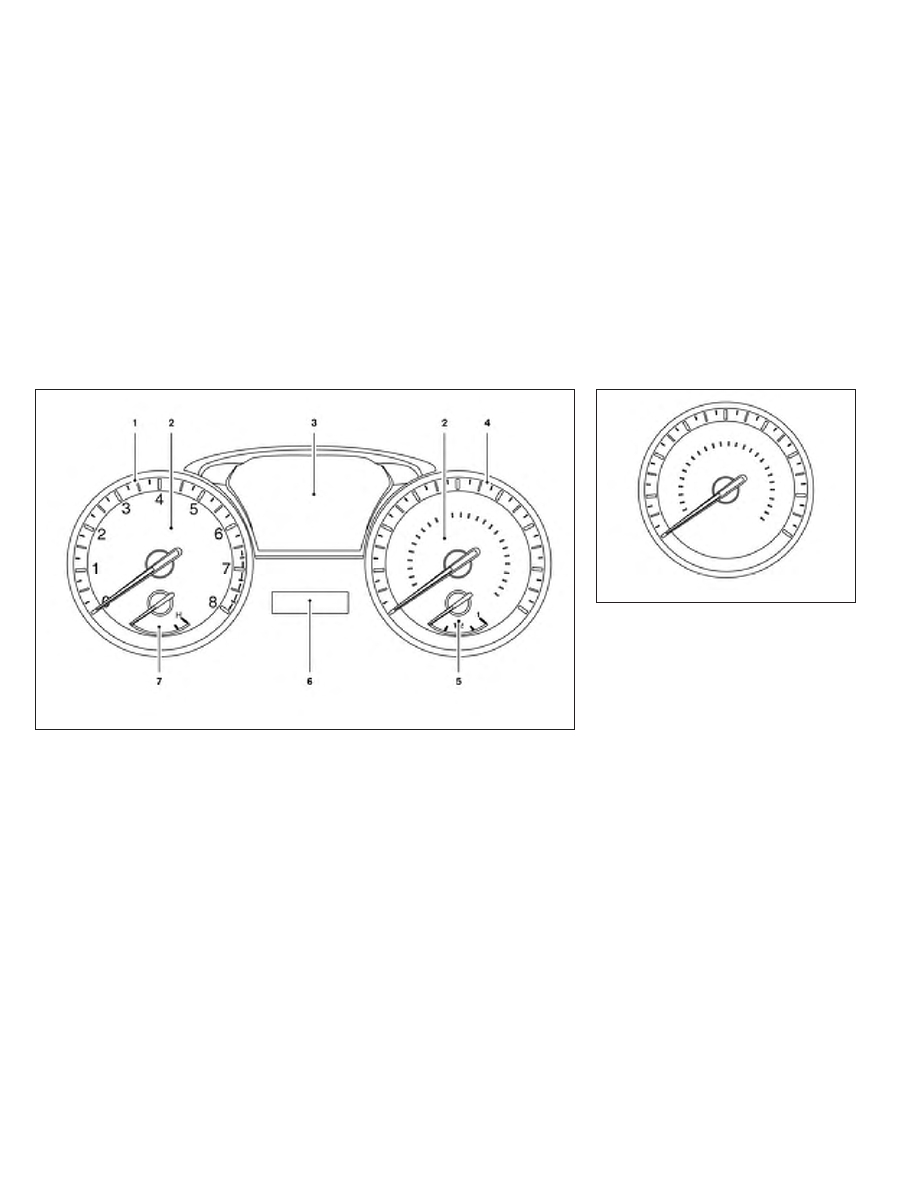

Meters and gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

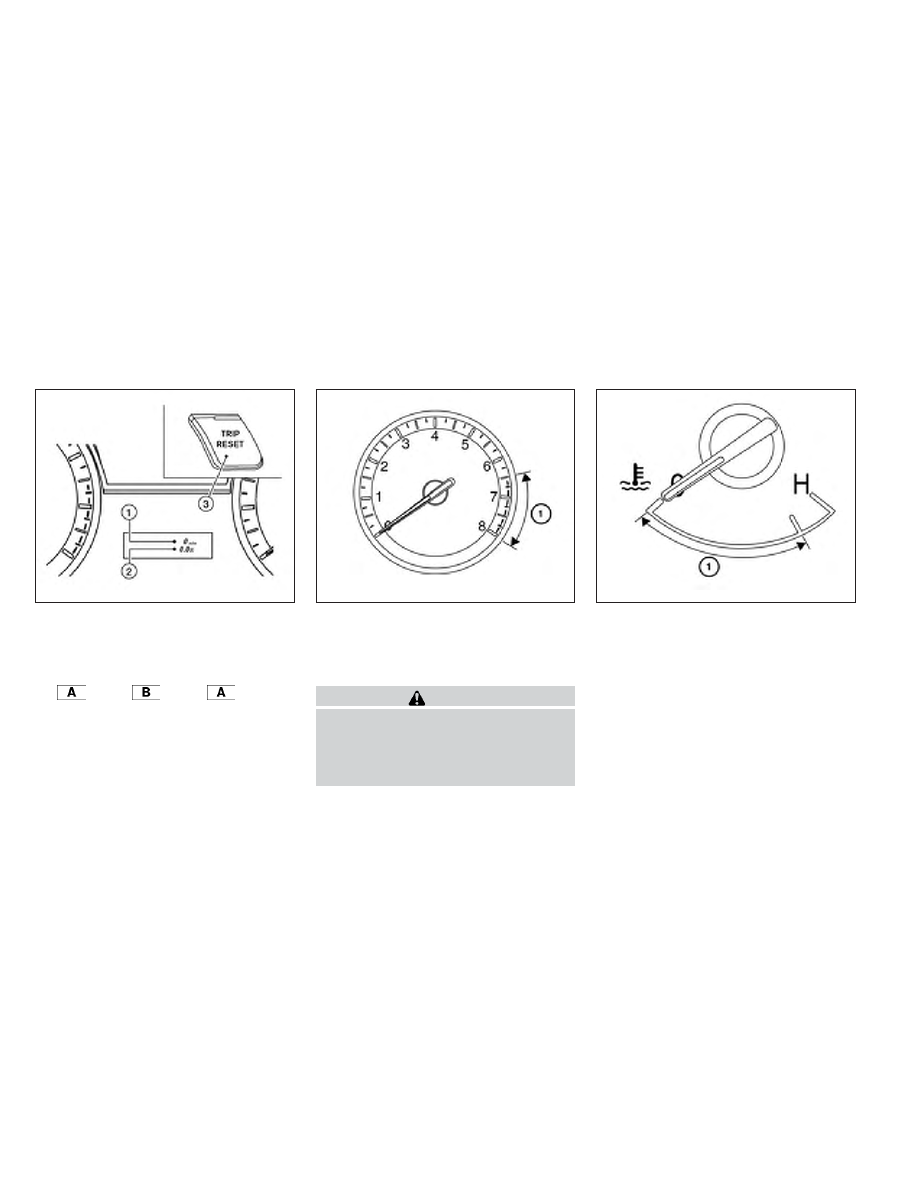

Speedometer and odometer . . . . . . . . . . . . . . . . . . . . . 2-4
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Engine coolant temperature gauge . . . . . . . . . . . . . . . 2-5
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Warning/indicator lights and audible reminders . . . . . . . 2-7

Checking bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Audible reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Vehicle Information Display . . . . . . . . . . . . . . . . . . . . . . . . 2-14

How to use the vehicle information display . . . . . . . 2-14
Startup display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Vehicle information display warnings and
indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Security systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24

Vehicle security system. . . . . . . . . . . . . . . . . . . . . . . . . 2-24
INFINITI vehicle immobilizer system . . . . . . . . . . . . . . 2-25

Windshield wiper and washer switch . . . . . . . . . . . . . . . 2-26

Switch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27

Rain-sensing auto wiper system
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28

Rear window wiper and washer switch . . . . . . . . . . . . . . 2-29
Rear window and outside mirror defroster switch. . . . . 2-30
Headlight and turn signal switch. . . . . . . . . . . . . . . . . . . . 2-30

Xenon headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30
Headlight control switch. . . . . . . . . . . . . . . . . . . . . . . . 2-31
Daytime running light system (Canada only) . . . . . . 2-33
Instrument brightness control . . . . . . . . . . . . . . . . . . . 2-34
Turn signal switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-34
Fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-35

Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-35
Heated front seats (if so equipped) . . . . . . . . . . . . . . . . . 2-35
Heated rear seats (if so equipped). . . . . . . . . . . . . . . . . . 2-37
Climate control seat switch (if so equipped) . . . . . . . . . 2-38
Heated steering wheel (if so equipped) . . . . . . . . . . . . . 2-39
Warning systems switch (if so equipped). . . . . . . . . . . . 2-40
Vehicle Dynamic Control (VDC) off switch. . . . . . . . . . . 2-41
Power inverter switch (if so equipped) . . . . . . . . . . . . . . 2-41
Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-41

12v outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-41
120v outlet (if so equipped) . . . . . . . . . . . . . . . . . . . . 2-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-43

Map pockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-43
Seatback pockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-44
Sunglasses holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-44
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-45
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-46
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47
Storage tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47
Luggage hooks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-48
Cargo area storage bin. . . . . . . . . . . . . . . . . . . . . . . . . 2-48
Roof rack (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 2-49

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-50

Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-50

Moonroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-52

Automatic moonroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-52
Panoramic sunshade (if so equipped) . . . . . . . . . . . . 2-54

Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-55

Console light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-55

Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-56
Map lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-56
Cargo light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-56

HomeLink® universal transceiver (Type A)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-57

Programming HomeLink® . . . . . . . . . . . . . . . . . . . . . . 2-58
Programming HomeLink® for Canadian
customers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-59
Operating the HomeLink® universal
transceiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-59
Programming trouble-diagnosis . . . . . . . . . . . . . . . . . 2-59
Clearing the programmed information . . . . . . . . . . . . 2-60
Reprogramming a single HomeLink® button. . . . . . 2-60
If your vehicle is stolen . . . . . . . . . . . . . . . . . . . . . . . . . 2-60

HomeLink® universal transceiver (Type B)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-61

Programming HomeLink® . . . . . . . . . . . . . . . . . . . . . . 2-62
Programming HomeLink® for Canadian
customers and gate openers. . . . . . . . . . . . . . . . . . . . 2-63
Operating the HomeLink® universal
transceiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-63
Programming trouble-diagnosis . . . . . . . . . . . . . . . . . 2-64
Clearing the programmed information . . . . . . . . . . . . 2-64
Reprogramming a single HomeLink® button. . . . . . 2-64
If your vehicle is stolen . . . . . . . . . . . . . . . . . . . . . . . . . 2-64

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.

Vent (P. 4-53)

2.

Headlight/fog light/turn signal switch
(P. 2-30)

3.

Instrument brightness control (P. 2-34)

4.

Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-7, 2-14)

5.

Driver supplemental air bag/Horn
(P.1-49, P. 2-35)

6.

Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-30)

7.

Twin trip odometer reset switch (P. 2-5)

8.

Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-26, P. 2-29)

9.

Vent (P. 4-53)

10.

Rear window and outside mirror
defroster switch (P. 2-30)

11.

Center display (P. 4-14,
4-4)/Navigation system*
(if so equipped)

12.

Automatic heater and air conditioning
controls (P. 4-54)

13.

Vent (P. 4-53)

14.

Front passenger supplemental air bag
(P. 1-49)

15.

Vent (P. 4-53)

16.

Glove box (P. 2-46)

17.

Center multi-function control buttons
(P. 4-14, 4-4)

18.

Power outlet (P.2-41)

19.

Audio system controls (P. 4-61)

20.

Shift selector (P.5-15)

21.

Front passenger air bag status light
(P. 1-59)

22.

Hazard light switch (P. 6-2)

LIC2290

INSTRUMENT PANEL

2-2

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

23.

Ignition switch (P. 5-10)

24.

Cruise control main/set switches (if so
equipped) and Intelligent cruise control
main/set switches (if so equipped)
(P. 5-47, P.5-49)

25.

Distance Control Assist (DCA) system
switch (if so equipped) (P. 5-68)

26.

Tilt steering wheel control (P. 3-26)

27.

Bluetooth® Hands-Free Phone System
(P. 4-115, 4-129)

28.

Steering wheel switch for audio control
(P.4-101)

29.

Hood release (P. 3-20)

30.

Vehicle dynamic control (VDC) OFF
switch (P. 2-41)
Heated steering wheel switch
(if so equipped) (P.2-39)
Headlight aiming control (P. 2-33)
Warning System switch
(if so equipped) (P. 2-40)
Power inverter switch (if so equipped)
(P. 2-41)
Liftgate release switch (P.3-20)
Power liftgate main switch (P. 3-23)

31.

Control panel and Vehicle Information
Display switches (P.4-17, 2-14)

*: Refer to the separate Navigation System Own-
er’s Instruction (if so equipped).

See the page number indicated in paren-
theses for operating details.

Instruments and controls

2-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.

Tachometer

2.

Warning/indicator lights

3.

Vehicle Information Display

4.

Speedometer

5.

Fuel gauge

6.

Odometer/Twin trip odometer

7.

Engine coolant temperature gauge

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed.

Odometer/Twin trip odometer

The odometer

1

and the twin trip odometer

2

are displayed below the Vehicle Information Dis-
play when the ignition switch is placed in the ON
position.

The odometer records the total distance the ve-
hicle has been driven.

The twin trip odometer records the distance of
individual trips.

LIC2217

LIC2218

METERS AND GAUGES

2-4

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Changing the display:

Pushing the TRIP RESET

3

switch on the right

of the combination meter to change the display
as follows:

Trip

→ Trip

→ Trip

Resetting the trip odometer:

Pushing the TRIP RESET switch

3

for more

than 1 second resets the currently displayed trip
odometer to zero.

Average fuel economy and distance to empty
information is also available. See “Vehicle Infor-
mation Display” in this section.

TACHOMETER

The tachometer indicates engine speed in revo-
lutions per minute (rpm). Do not rev the engine
into the red zone

1

.

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature is within the
normal range

1

when the gauge needle points

within the zone shown in the illustration.

The engine coolant temperature varies with the
outside air temperature and driving conditions.

LIC2234

LIC2219

LIC2220

Instruments and controls

2-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
